Global Industrial MFL1-30-5K User Manual

globalindustrial.ca

Distribucion Industrial Globales S DE RL DE CF

Assembly Instructions Instrucciones de Ensamblaje Directives d’assemblage

Customer Service

US: 1-800-645-2986

Servicio de atención al Cliente

México: 01.800.681.6940

LED Security Light

Models 500908

CONTENTS

Ref. Qty. Description

1 1 Lens Cover

2 2 Cover Plate

3 2 Electrical Panel

H1 2

H2 1

H3 2 Wire Tie

GENERAL SAFETY INFORMATION

• To reduce the risk of property damage, personal injury, and/or death from
fire,
electric shock, falling equipment, and other hazards please read all
instructions and warnings.

• Installation, service, and maintenance should be performed by a qualified
licensed electrician.

• Fixture LEDs are not replaceable.

• DO NOT INSTALL DAMAGED PRODUCTS!

M4 x .7 x 12mm. Lg.
Phillips Screw

M4 x .7 x 7mm. Lg.
Phillips Screw

Service à la clientèle

Canada: 888-645-2986

H1

WARNING

RISK OF ELECTRICAL SHOCK

• Turn off electrical power at fuse or circuit breaker box prior to power supply
installation.

• Turn off power prior to performing any maintenance.

• Verify supply voltage accuracy.

• Ensure all electrical and grounded connections are in accordance with the
National Electrical Code and any other applicable local code requirements.

• All wiring connections should be capped with approved wire connectors.

CAUTION

RISK OF INJURY

• Wear gloves and safety glasses at all times during unit installation or
maintenance.

• Avoid direct eye exposure to light source.

CAUTION

RISK OF FIRE

• Keep combustible and other materials away
from luminaries and lamp/lens.

• Do not install insulation within 2 inches of light fixture

1

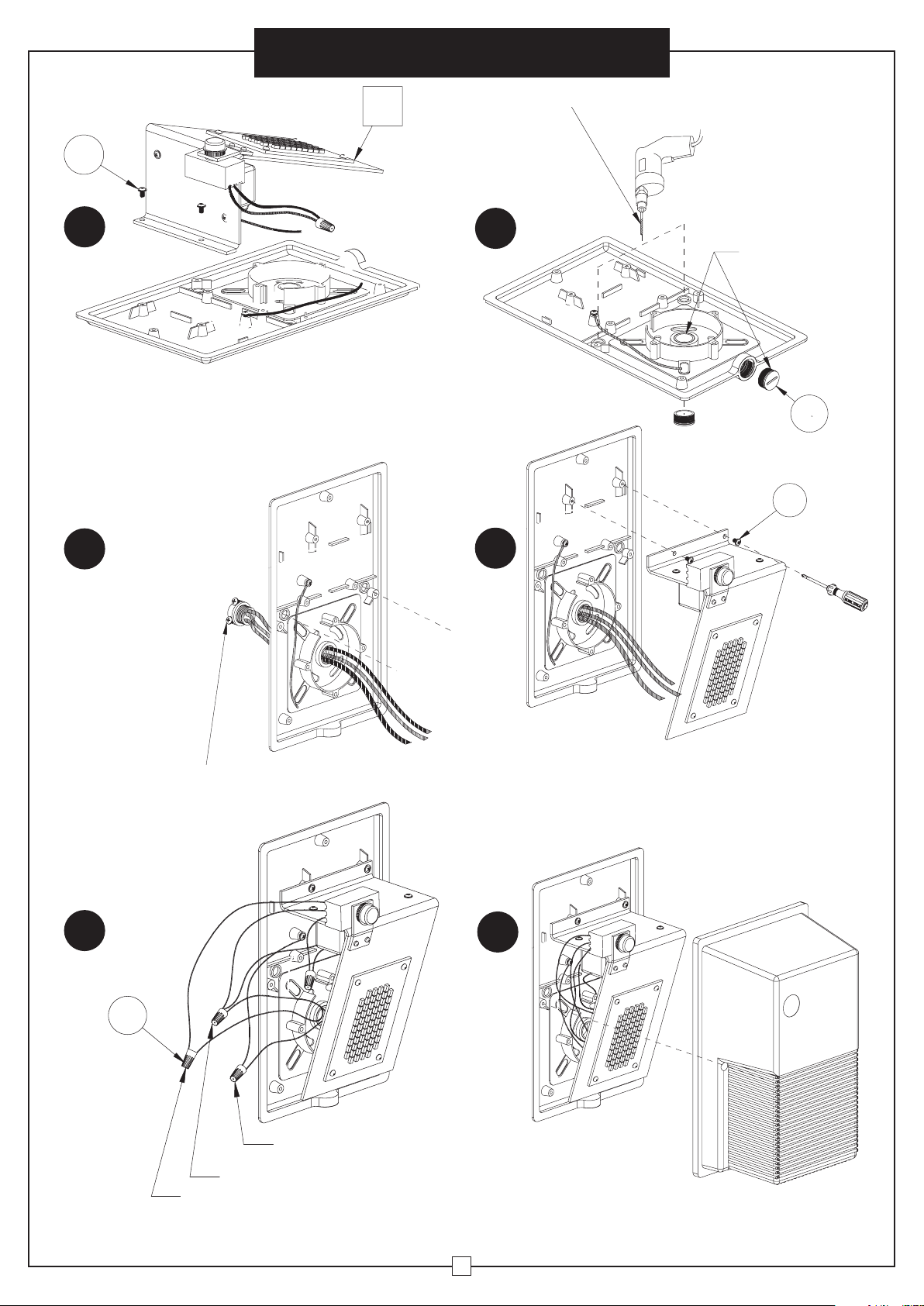

Remove Lens Cover

1

2

1

052617

LED Security Light

Assembly Instructions

H2

2

Be careful not to damage electrical
panel when removing from cover plate

Determine the mounting location and
install cover plate to wall (using the
appropriate hardware NOT SUPPLIED).

3

Drill Out Mounting Holes At These Locations

3

Remove one of
the electrical wire
feed plug

H3

H2

4

Route cable from power source
through plug opening and tighten to
cover plate

6

5

Be careful not to damage electrical
panel when attaching cover plate

7

H3

Green = Ground

White = Neutral

Black = Positive

• Connect wires to the appropriate terminals.

• Make sure ALL wires are tucked in before
reinstalling the lens cover.

Install the lens cover.

2
