DIVINE
PoE Powered Network Audio
Loudspeaker
User Guide
Glensound
6 Brooks Place, Maidstone
Kent, UK, ME14 1HE
Tel: +44 (0)1622 753662
www.glensound.com
Page 2
Page 2 of 39
Glensound Electronics Ltd
Thank you for choosing a new Glensound product.
All rights reserved.
Information contained in this manual is subject to change without notice, if in
doubt please contact us for the latest product information.
If you need any help with the product then we can be contacted at:
Glensound Electronics Ltd
1 – 6 Brooks Place
Maidstone
Kent
ME14 1HE
United Kingdom
Telephone: +44 (0) 1622 753662
EMAIL ADDRESSES
General enquires: [email protected]
Technical enquires: [email protected]
Sales enquires: [email protected]
Page 3
Page 3 of 39

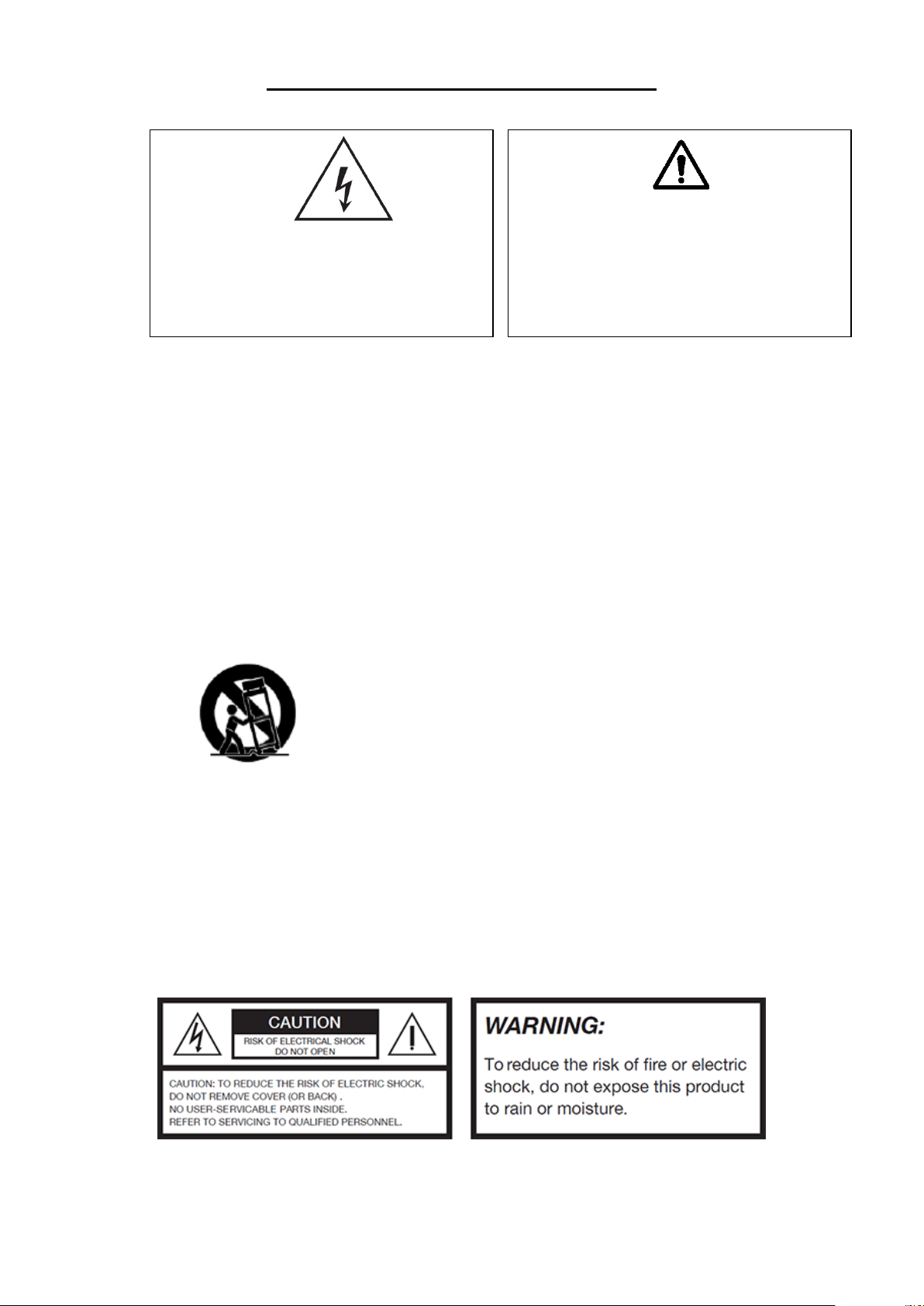

IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions
2) Keep these instructions
3) Heed all warnings
4) Follow all instructions
5) Do not use this apparatus near water
6) Clean only with a dry cloth
7) Do not block any ventilation openings. Install in accordance with
manufacturer’s instructions
8) Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat
9) Protect the network cord from being walked on or pinched, particularly at
plugs, convenience receptacles and the point where they exit from the
apparatus
10) Only use attachments/ accessories specified/ supplied by the manufacturer
11) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/ apparatus combination to avoid injury from tip over
12) Unplug this apparatus during lightning storms or when unused for long periods of
time
13) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as physical damage, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped
14) Do not attempt to modify this product. Doing so could result in personal injury and/
or product failure
This symbol is intended to warn that
dangerous voltages within the product
are present and constitute a risk of
electric shock.
This symbol is intended to highlight that
there are important operating &
maintenance instructions in the
literature accompanying this unit.
Page 4
Page 4 of 39
PRODUCT WARRANTY
All equipment is fully tested before dispatch and carefully designed to
provide you with trouble free use for many years.
We have a policy of supporting products for as long as possible and
guarantee to be able to support your product for a minimum of 10 years.
For a period of one year after the goods have been despatched the Company
will guarantee the goods against any defect developing after proper use
providing such defects arise solely from faulty materials or workmanship and
that the Customer shall return the goods to the Company’s works or their
local dealer.
All non-wear parts are guaranteed for 2 years after despatch and any defect
developing after proper use from faulty materials or workmanship will be
repaired under this warranty providing the Customer returns the goods to
the Company's works or their local dealer.
Page 5
Page 5 of 39
EU DECLARATION OF CONFORMITY
DIVINE
PoE Powered Network Audio Monitor Loudspeaker
This declaration of conformity is issued under the sole responsibility of the
manufacturer.
This equipment is manufactured by Glensound Electronics Ltd of Brooks
Place Maidstone Kent ME14 1HE is CE marked and conforms to the
following Union harmonisation legislation:
Emissions: BS EN55032:2015
Immunity: BS EN55035:2017
Signed for and on behalf of Glensound Electronics Ltd.
Gavin Davis, Managing Director
Maidstone, Kent, England
Date: 03/10/2019
Page 6
Page 6 of 39
Name & Address of Manufacturer:
Glensound Electronics Ltd,
6 Brooks Place, Maidstone, Kent, ME14 1HE, United Kingdom
Product Name: Divine
Product Type/ Model: Active Loudspeaker/ Divine
Batch/ Serial Number: 000001
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Place of Issue: Maidstone, England, U.K.
Name of Authorised Person: Gavin Davis
Signature of Authorised Person:
Date of Issue: 09 October 2019
TEST REPORT NO: ETS/Z2977/FCC
ISSUE DATE: 24 September 2019
FEDERAL COMMUNICATIONS COMMISSION (F.C.C.)
DECLARATION OF CONFORMITY
Page 7
Page 7 of 39
RoHS DIRECTIVE
RoHS 2 Directive 2011/65/EU restricts the use of the hazardous substances
listed below in electrical and electronic equipment.
This product conforms to the above directive and for these purposes, the
maximum concentration values of the restricted substances by weight in
homogenous materials are:
Lead
0.1%
Mercury
0.1%
Hexavalent Chromium
0.1%
Polybrominated Biphenyls
0.1%
Polybrominated Diphenyl
Ethers
0.1%
Cadmium
0.01%
Page 8
Page 8 of 39
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
REGULATIONS 2006 (WEEE)
Glensound Electronics Ltd is registered for business to business sales of
WEEE in the UK our registration number is:
WEE/JJ0074UR
Page 9
Page 9 of 39
DIVINE
HANDBOOK CONTENTS
Description Issue 1 Page No.
Contents
IMPORTANT SAFETY INSTRUCTIONS ............................................................................................... 3
PRODUCT WARRANTY ............................................................................................................................ 4
EU DECLARATION OF CONFORMITY ...................................................................................................... 5
FEDERAL COMMUNICATIONS COMMISSION (F.C.C.) ............................................................................ 6
RoHS DIRECTIVE ..................................................................................................................................... 7
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT REGULATIONS 2006 (WEEE) ............................... 8
HANDBOOK CONTENTS ......................................................................................................................... 9
OVERVIEW ............................................................................................................................................ 10
QUICK START ........................................................................................................................................ 11
FRONT PANEL CONTROLS .................................................................................................................... 12

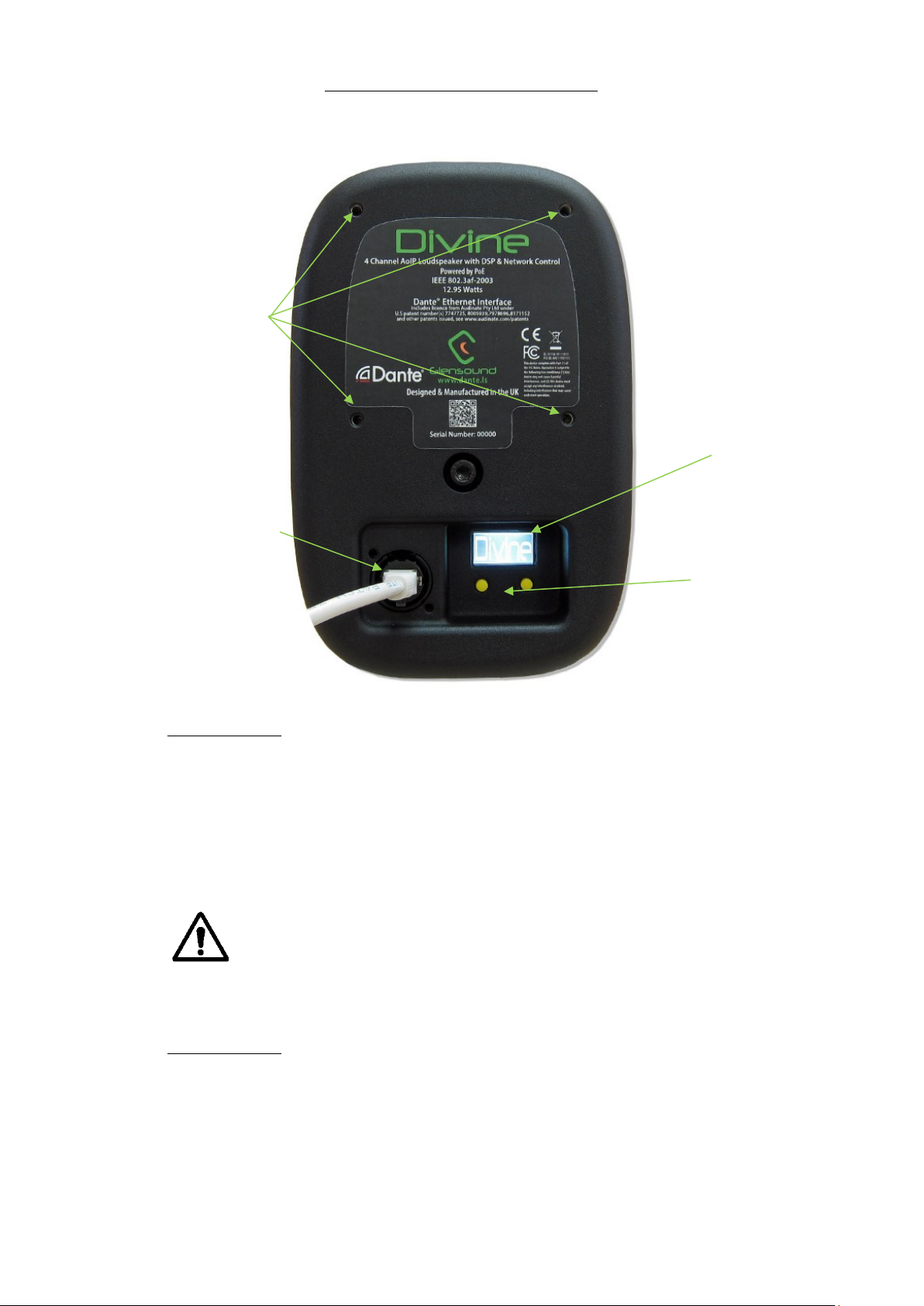

REAR PANEL CONTROLS ....................................................................................................................... 14
DAY TO DAY OPERATION ..................................................................................................................... 16
(and hidden functions) ......................................................................................................................... 16
1. Selecting a Source ....................................................................................................................... 16
2. Front panel volume control ......................................................................................................... 16
3. Input trim control ........................................................................................................................ 17
MENU & SETUP ..................................................................................................................................... 19
POWERING THE DIVINE ........................................................................................................................ 28
CONNECTING THE DIVINE TO A DANTE® NETWORK ........................................................................... 29
Getting Dante
®
Controller ................................................................................................................... 29
Connecting Divine device to the network ........................................................................................... 29
Audio Over IP Network ....................................................................................................................... 29

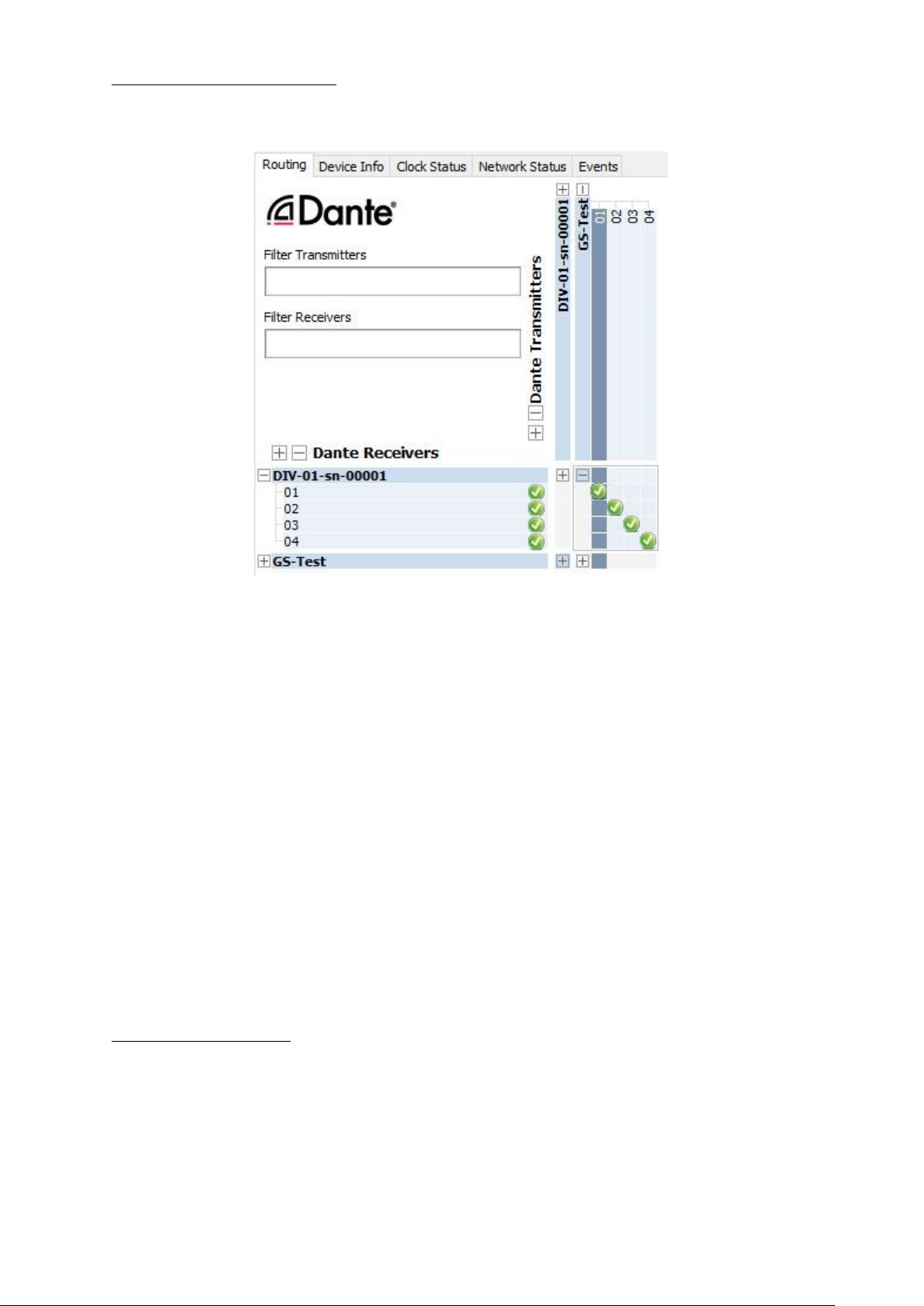

Running Dante
®
Controller ................................................................................................................. 30
Dante
®
Controller TIP .......................................................................................................................... 30
Device not showing up in Dante
®
Controller ....................................................................................... 31

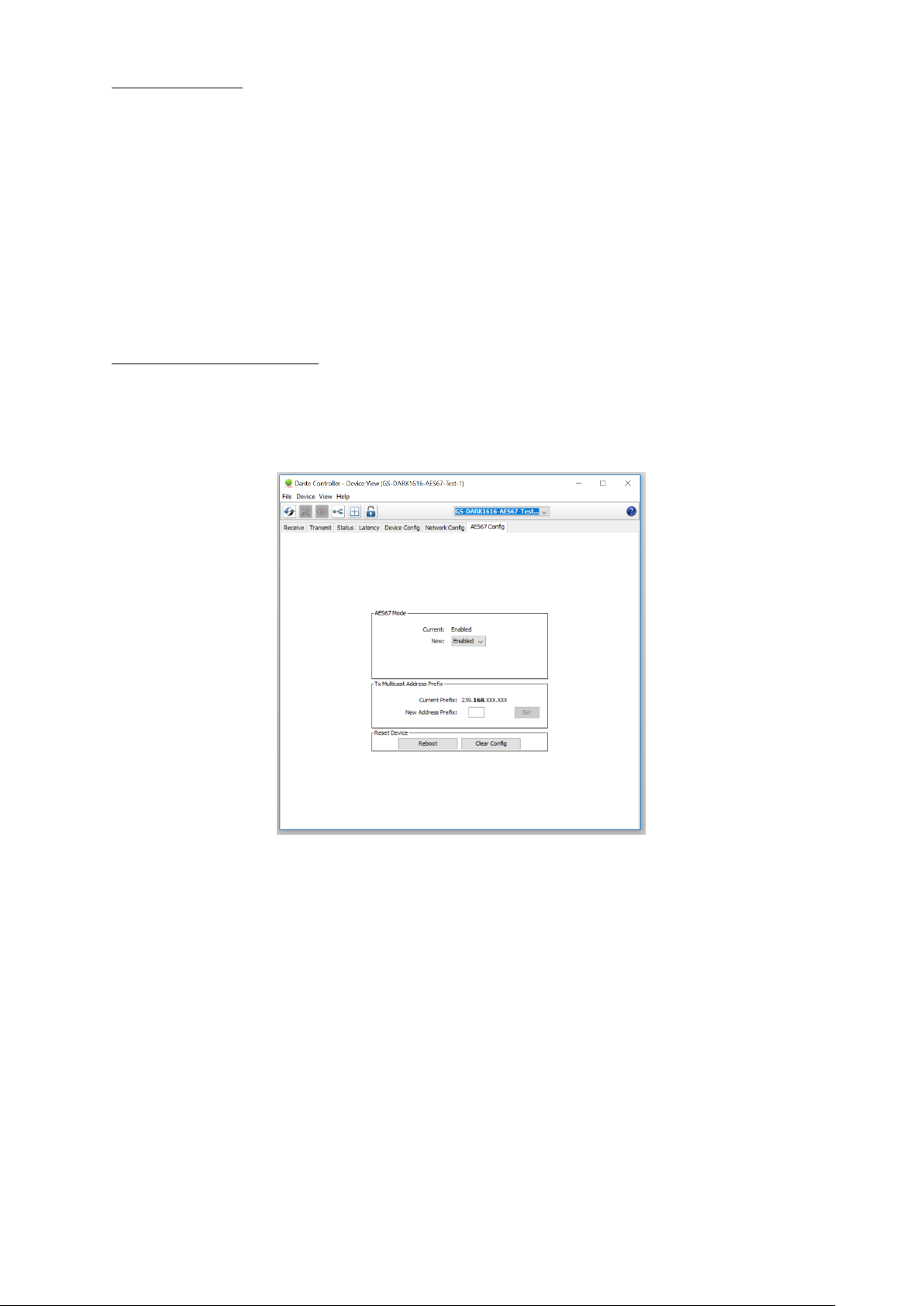

AES67 MODE ......................................................................................................................................... 32
Turning On AES67 Mode..................................................................................................................... 32

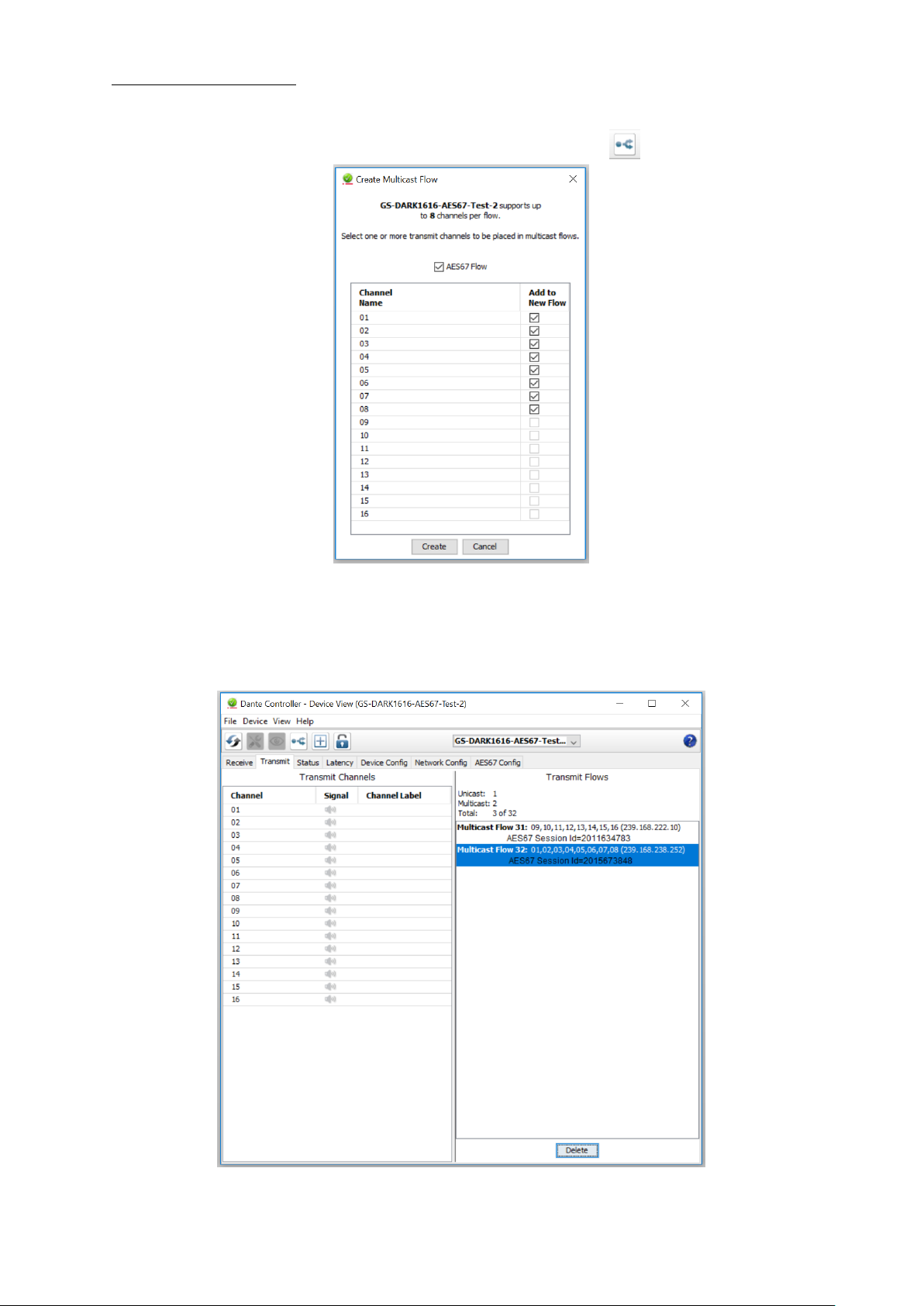

Sending AES67 Audio ......................................................................................................................... 33
Receiving AES67 Audio ....................................................................................................................... 34
AES67 Restrictions .............................................................................................................................. 34
UPDATING FIRMWARE ......................................................................................................................... 35
General ............................................................................................................................................... 35
UPDATING THE MICROPROCESSOR .DFU FIRMWARE .......................................................................... 35
UPDATING THE ULTIMO .DFU FIRMWARE ........................................................................................... 39
Page 10
Page 10 of 39
Finding Out Current Installed Version ................................................................................................. 39
Finding Out What The Latest Available Version Is ............................................................................... 39

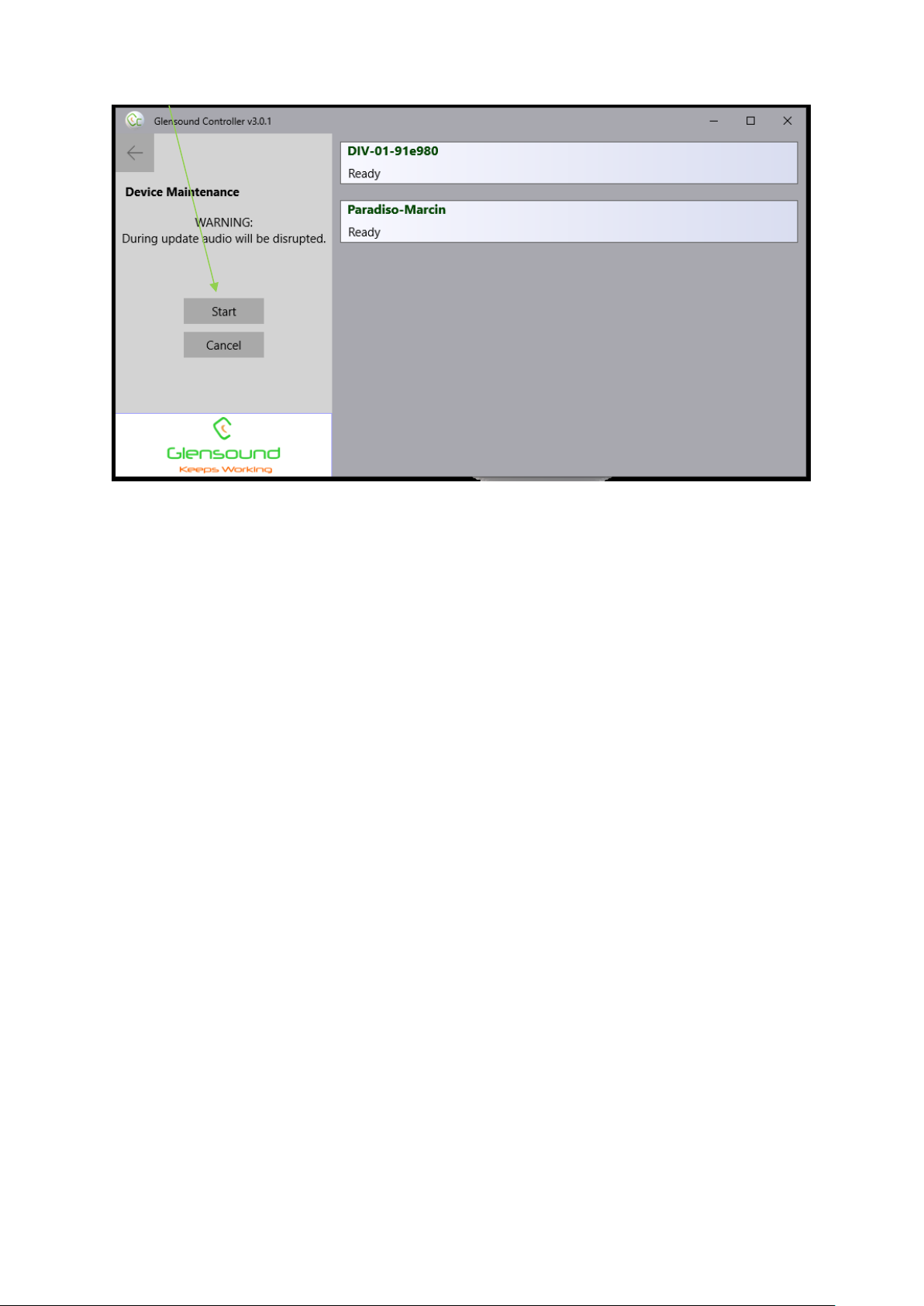

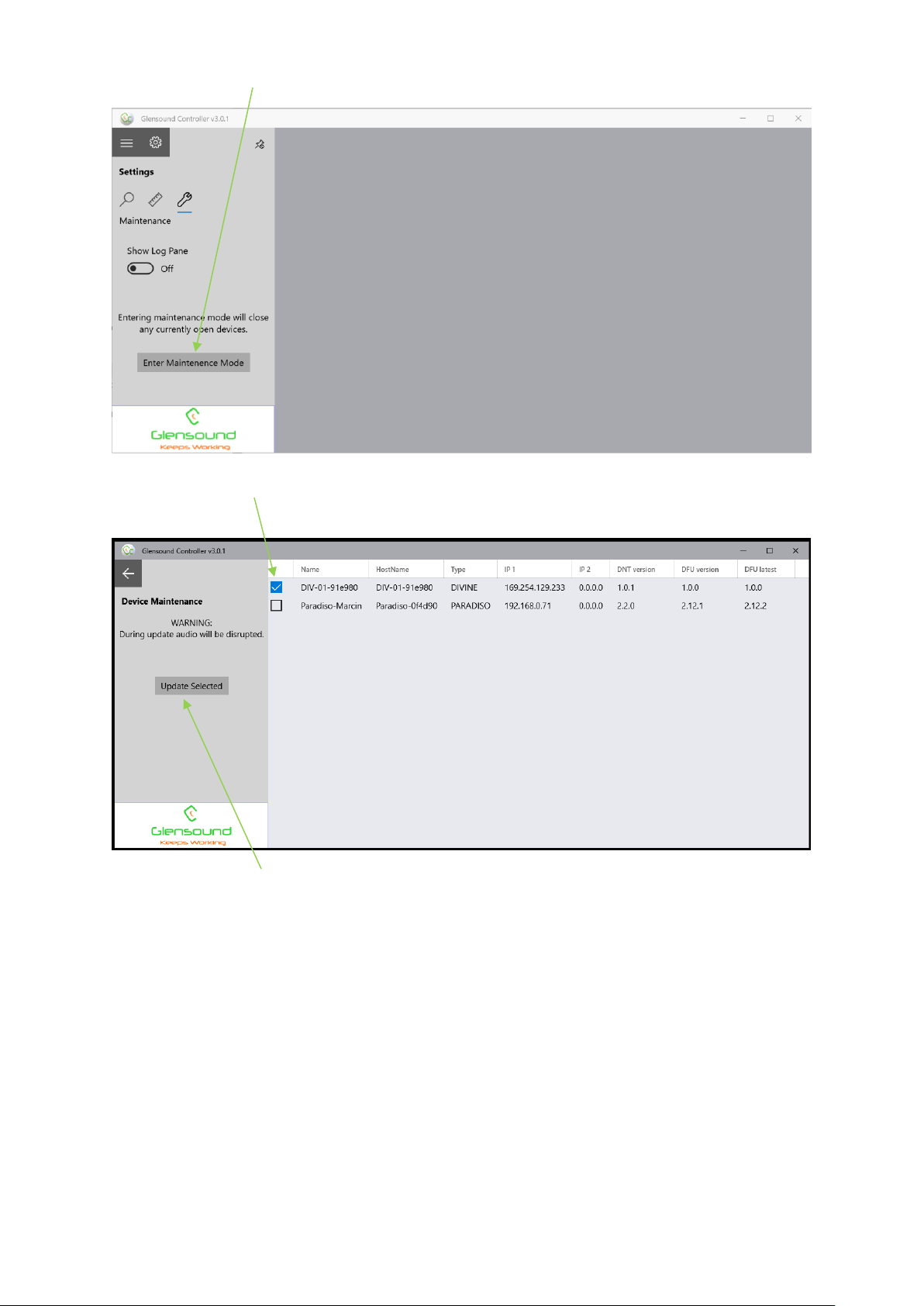

Updating the device ........................................................................................................................... 39
OVERVIEW
Divine is a new concept in powered network audio monitors. It is housed in a
hardwearing fully sealed diecast enclosure, is powered by Power over Ethernet (PoE)
and boasts the very latest low noise high output class D power amplifier.
Internally a Digital Signal Processor (DSP) takes careful care of the audio signals,
including state of the art compression and limiting circuits, while a microprocessor
provides full setup and control via a small rear panel LCD. Control of setup and day to
day operation of the Divine will also be available on our Windows 10 application
GlenController including the ability to group multiple Divines together and control
their level simultaneously.
Divine can receive up to four Dante (AES67 compliant) audio over IP (AoIP) inputs.
These inputs can be selected by the user on a large clear front panel select switch. The
four audio inputs can also be easily mixed together and their individual levels adjusted.
A priority system is provided to allow one (or more) of the inputs to automatically duck
another. This can be very useful if you want to monitor one source but also listen to
another when audio is present, such as sending show relay to dressing rooms in a
theatre but having the stage managers call and building fire alarm take precedence
when they’re active.
The diecast enclosure has been carefully designed to provide full protection of all
control knobs, switches and ports to prevent damage. The housing also uniquely
features a standard PC screen Vesa mount, meaning that you can purchase any
standard Vesa mounting solution to hang/ mount your Divine on, saving you lots of
money. Standard microphone stand threads are also provided in the base for an
alternative support solution.

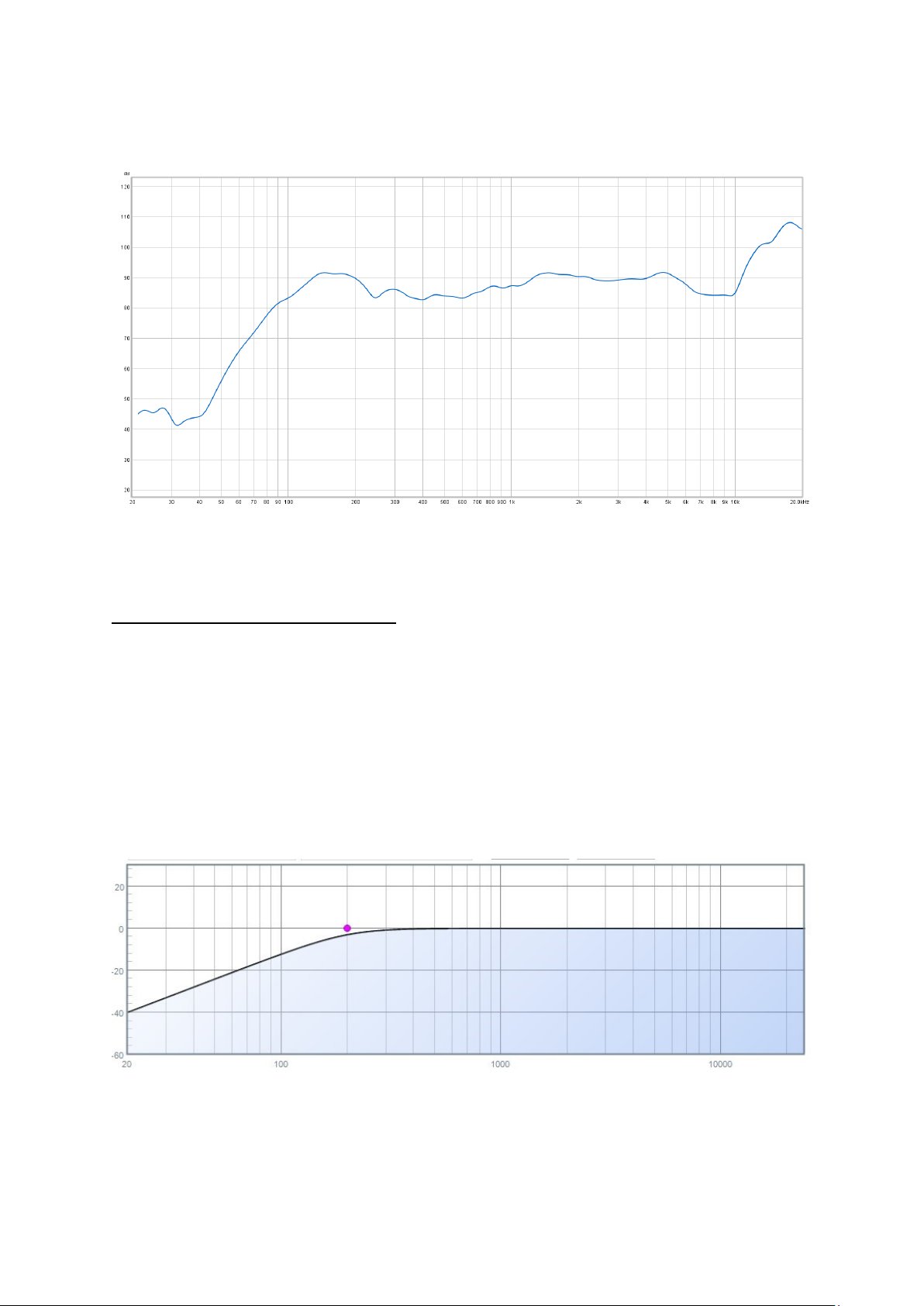

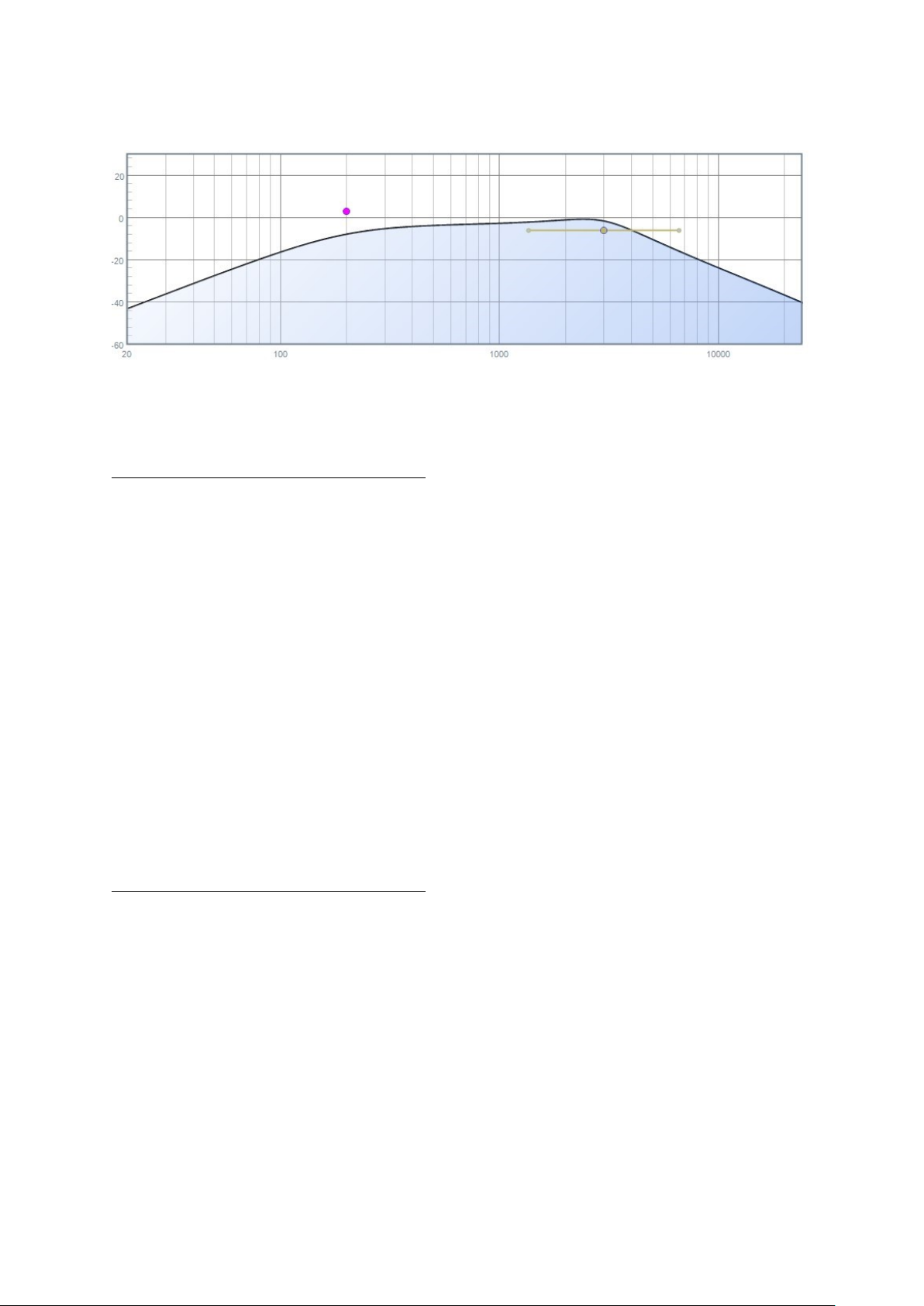

Different preset EQs and an LF cut can all be set in the user menu to allow the Divine to
be used for a variety of applications.
Divine is so much more than just
another powered loudspeaker.
Page 11
Page 11 of 39
QUICK START
1) Connect the Divine to a PoE enabled Ethernet switch or to a PoE midspan PoE
injector and onwards to a network switch.
2) Connect a Dante® enabled device to provide source audio to your network
(such as Dante® Virtual soundcard running on a PC)

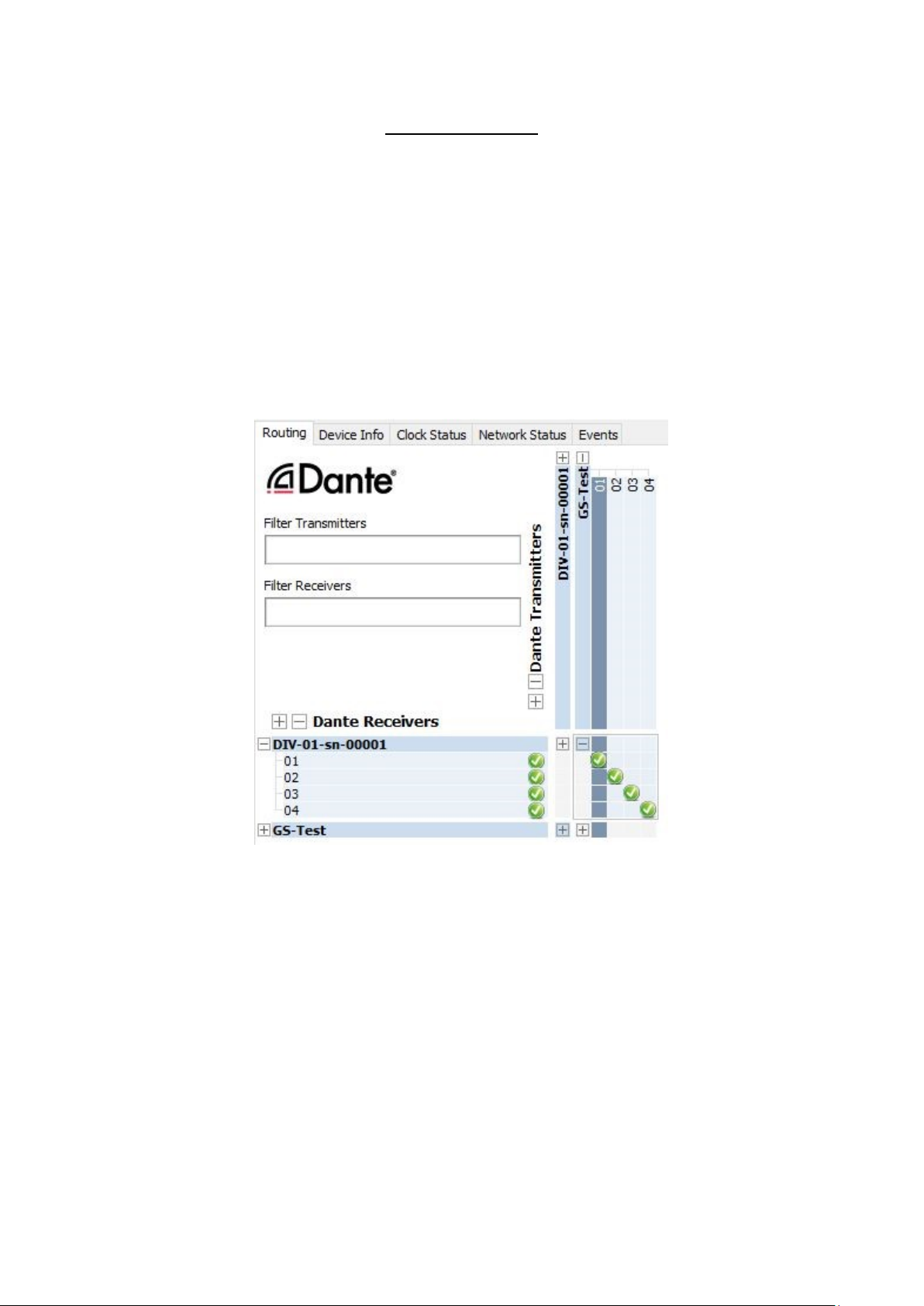

3) Using Dante controller route audio from your Dante® audio source to one or
more of the input channels of the Divine
4) Use the front panel Select switch on the Divine to select which of the Dante®
audio inputs you want to monitor
5) Adjust the volume using the front panel Volume control.
Page 12
Page 12 of 39

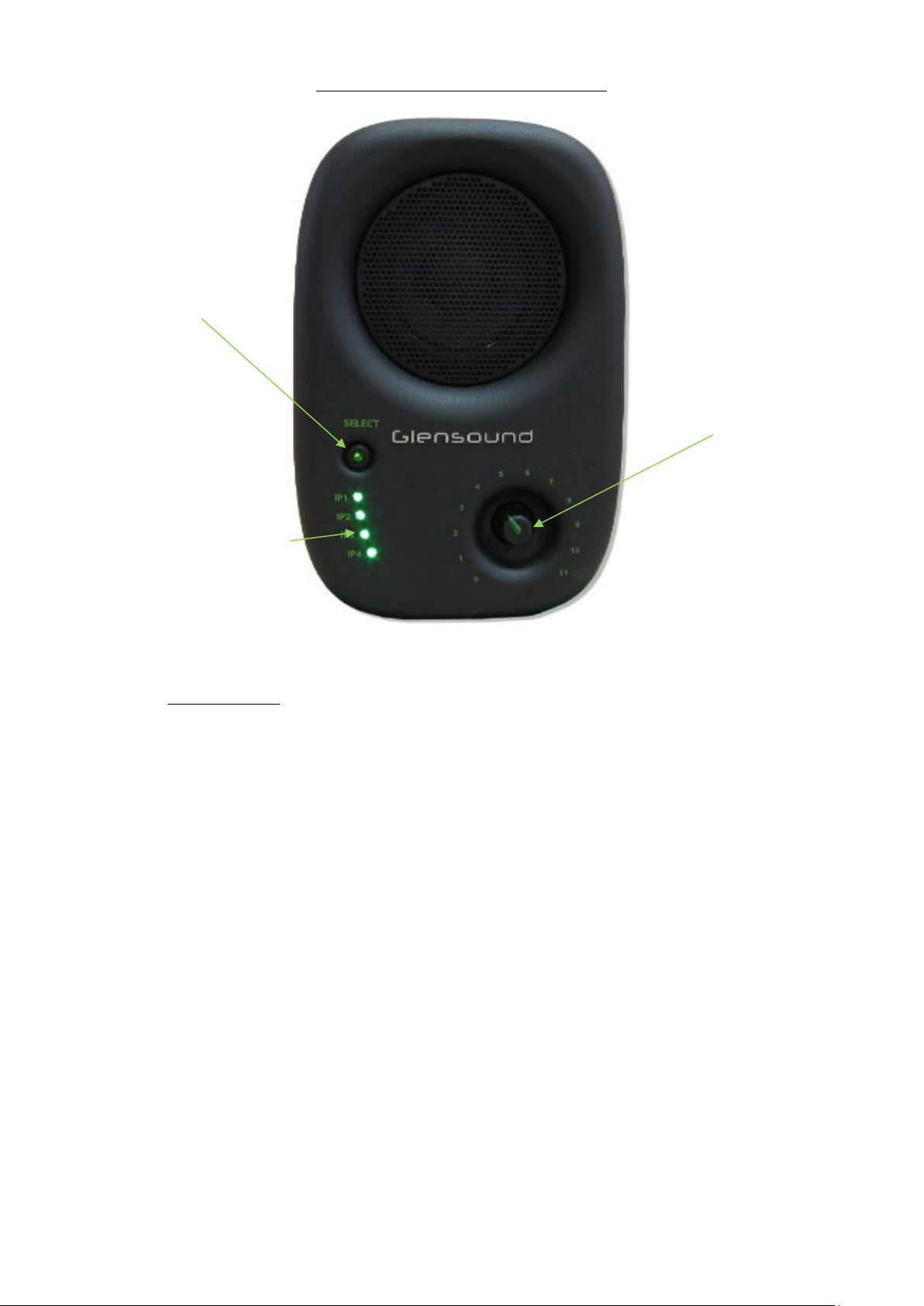

FRONT PANEL CONTROLS
1. Select Switch
The select switch has two main functions.
A) Each single press of the switch will scroll to the next available input
channel(s), the currently selected channel(s) will be highlighted by the LEDs.
B) Pressing and holding the select switch will enable the currently selected input
channel to have its gain adjusted by +/-16dB by using the front panel volume
control. While the switch is being held down the inputs LED will turn orange to
indicate that you are in the gain trim mode.
NOTE: It is possible to disable the select switch within in the menu system. If
when you press the switch the input LEDs flash red, then this indicates that the
switch has been disabled and the user cannot scroll through the input channels.
1. Select Switch
2. Input LEDS
3. Volume Control
Page 13
Page 13 of 39
2. Input LEDs
The 4 input LEDs main role is to indicate which channel(s) is/ are currently being
routed to the loudspeaker. Whichever channels’ LED(s) is/ are on indicate which
network audio input(s) is/are being routed to the loudspeaker.
The LEDs can also be set in the menu system to act as a PPM (either individually,
or as a column). If in the mode then they will illuminate to indicate audio level,
and the currently selected channel(s) LED will not be shown, unless the Select
switch is pressed.
If all the LEDs flash red , then this provides an indication to the user that the
current control they are operating (select switch or volume control) has been
locked from within the menu system.
3. Volume Control
The volume control is used for adjusting the loudness/ volume of the
loudspeaker. Turning it clockwise increases the volume and anti-clockwise
reduces the volume.
It can also be used in conjunction with the select switch to adjust the gain of any
of the input channels. (see Day to Day Operation…Input Trim Control for further
details).
Using the menu system it is possible to set a minimum and/ or maximum output
level from the loudspeaker. This will mean that although the operator can turn
the volume control all the way up or down the actual output level may be being
limited by the menu setting.
NOTE: It is possible to completely disable the volume control in the settings
menu. If it has been disabled then when it is rotated all the input LEDs will flash
red to warn the user that the control is disabled.
Page 14
Page 14 of 39
REAR PANEL CONTROLS
1. VESA Mounts
VESA mount points to allow the Divine to be attached to and supported by a
standard pc style monitor arm are provided.
They conform to the 75 x 75mm (2.95 x 2.95”) standard and accept 4mm metric
threaded screws. The screw holes are blind tapped (i.e. are not open inside the
Divine’s casing). The maximum length of screw that can be inserted is 9mm.
It is very important that any arm or VESA mounting system that the
Divine is attached to is specified and capable of supporting the Divine’s weight
which is 1.725Kg/ 3lb12oz.
2. Ethernet Port
The Ethernet port is physically a Neutrik EtherCON connector and can mate with
XLR shelled EtherCON cables but also standard network RJ45 patch cables.
Both network audio (Dante®/ AES67) and power in the form of PoE are
connected to the Divine using this connector, which should be connected to
your network audio Ethernet infrastructure.
2. Display
3. Menu Buttons
4. Ethernet Port
1. VESA Mounts
Page 15
Page 15 of 39
3. Display
The display is used in conjunction with the menu buttons to set the Divine’s
parameters. The display will turn itself off after 30 seconds of inactivity and can
be awoken by pressing either of the menu buttons. See the menu section of this
handbook for more details.
4. Menu Buttons
These two push buttons are used to navigate through and select different menu
options.
The left-hand button is used to select different menus and the right-hand
button is used to view and select different parameters within a menu.
The menu is setup as a vertical tree, with the left-hand button being used to
select the next menu above or below the one currently visible.
TIP: There is an arrow in the left top corner of the display. This indicates which
direction the menu system will navigate in when the left-hand menu button is
next pressed. To change direction, then press and hold the left menu button
until the arrow indicates a change of direction.
Page 16
Page 16 of 39
DAY TO DAY OPERATION
(and hidden functions)
1. Selecting a Source
Pushing the select switch will scroll the input source to the next available input
(note available inputs can be set in the menu system).
If Sum (mixing) is enabled then the enabled sum options will be scrolled through
after the individual inputs.
The select switch can be disabled in the menu system, if it has been disabled then
if pressed it and all the front panel source LEDs will all flash red.
2. Front panel volume control
The volume control adjusts the output volume of the loudspeaker.
There are a few possible settings for the volume control that can be set in the
menu system.
1) The volume control can be disabled…. i.e. the volume that it was set at
when it was disabled will become fixed and turning the control up or down will
not affect the output volume.
If it has been set as disabled when it is rotated the 4 input source LEDs will flash
red to indicate a warning to the user that it is fixed.
2) It is also possible to set within the menu system a minimum (Min)
volume.
This means that when the volume control is turned fully anti-clockwise it will not
fully attenuate the volume and the source audio can never be completely turned
off.
3) It can be used in conjunction with the source select switch to adjust a
particular inputs level (see Input trim control).
Note if it has been used in this way then it must be turned to its previous volume
position before it will again start effecting the output volume of the loudspeaker.
Page 17
Page 17 of 39
3. Input trim control
This function allows an individual input to have its level adjusted.
When a single channel is selected, press and hold the select button to trim the
gain using the front panel volume pot (not available in channel sums).
The channel LED will show in orange, and the pot can then be used to set the
gain value +/-16dB.
Note: On exit (i.e. once the channel select button has been released) the volume
control reverts to the normal volume control but will only become active when
turned to the current volume level. For example, if the volume was 3 before
entering gain trim, and the volume control is moved to 10 in gain trim, on exit the
volume will remain at 3 until the pot is turned back to 3 again.
4. Source select LEDs
The source select LEDs are used to show various states of the system including
metering.
1) When yellow they indicate which of the sources is currently being routed
to the loudspeaker.
2) If all flash red, then this indicates that the current control that is being
operated has been disabled in the menu (select switch or volume pot)
3) If one LED indicates red, while another becomes dimmer, this indicates
that the priority mode is currently active. The dimmed yellow LED indicates the
currently selected audio channel and the brighter red LED indicates the priority
channel that is currently receiving audio and is active and will be ducking the
audio of the selected channel.
5. LED PPM mode
It is possible to enable two different Peak Programme Meter (PPM) modes in the
menu.
‘Bar’ mode makes the 4 source LEDs work as a traditional meter, showing the
output level of the currently selected source.
‘Colour’ mode makes the selected LED change colour to indicate its own source
level. Whereby Blue = on with no audio, through green, yellow, then red to
indicate high level.
6. Dark mode
It is possible in the menu system to set the front panel LEDs to ‘dark’ mode. This
greatly reduces their output brightness. All functionality remains the same, the
LEDs are just much dimmer for situations when bright LEDs are not desirable.
7. Rear Panel LCD
The rear panel LCD can be used to setup the various parameters of the Divine.
Page 18
Page 18 of 39
The rear panel display is normally off and will only turn itself on and show the
menu system when either of the rear panel blue buttons are pressed.
The two blue buttons are used to navigate through the menu system. Whereby
the left button selects the next available menu function and the right button
selects the options within a menu.
Pressing and holding the left blue button for two seconds changes the direction
that the menu system is being scrolled through. An arrow next to the Menu
Function Name indicates the current direction of scrolling through the menus.
The menu times out after 10 seconds and all current selections will be
remembered and stored in non-volatile RAM.
Page 19
Page 19 of 39
MENU & SETUP
(Listed in order)
Menu Function Name:
Audio EQ
Options within menu:
Off, Natural, Normal, Pop
Description:
These three eq settings alter the output frequency response of the loudspeaker.

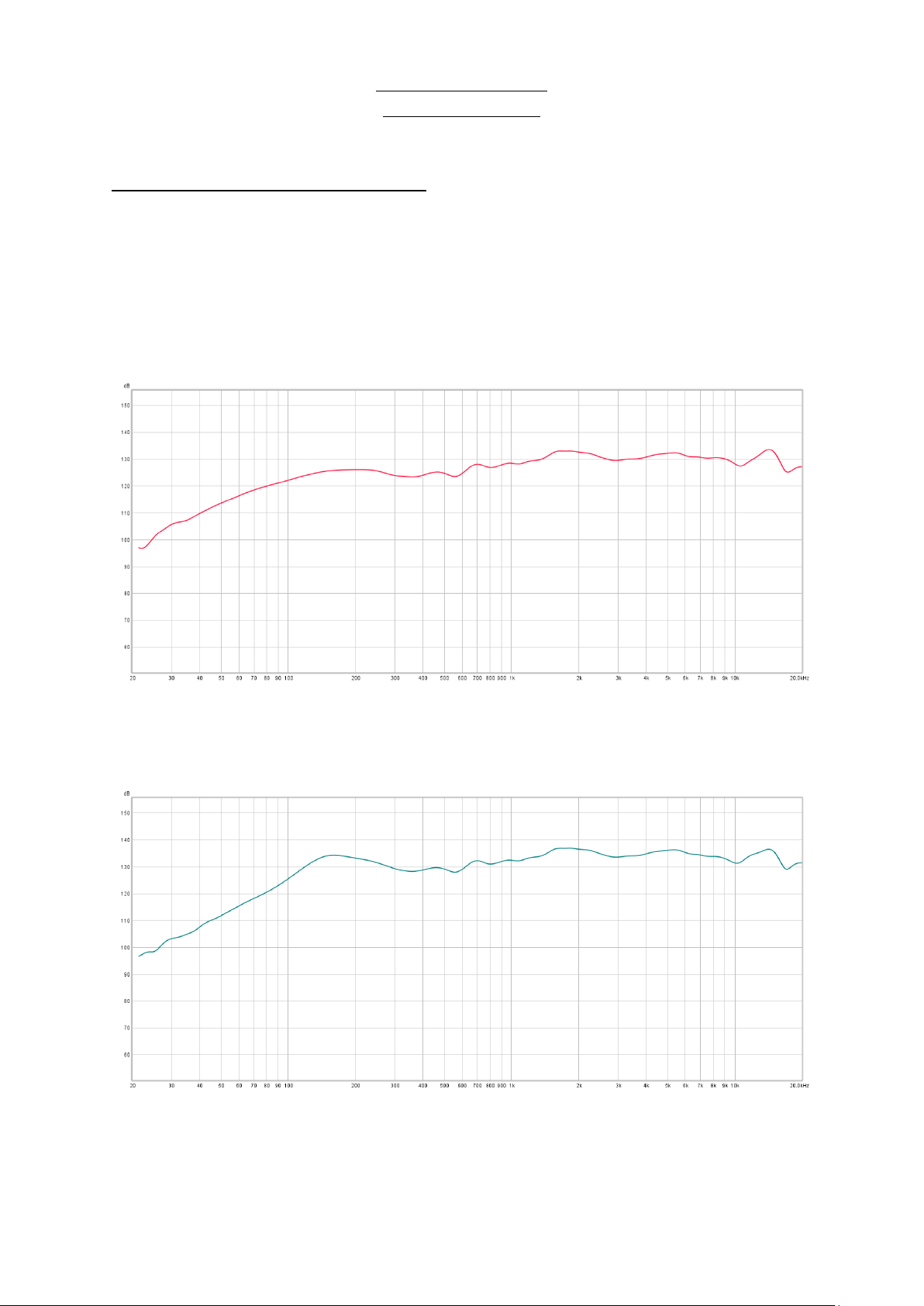

Natural has a frequency/ level response as per the graph below.
Normal is a set of filters designed to emulate the sound of the traditional analogue
powered monitors. The frequency/ level output is as per the below graph.
Page 20
Page 20 of 39
Pop is a set of filters that our software engineer developed that he liked while he was
writing code for the Divine and listening to the unit 8 hours a day. You can tell from the
extended HF response that our developer is not straight out of university! The
frequency/ level output is as per the below graph.
Audio EQ Default = Normal
Menu Function Name:
LF Cut
Options within menu:
On, Off
Description:
LF cut is a filter that is applied to the lower frequency output of the speaker. It is useful
to help with unwanted extended resonating low frequencies when the Divine is placed
tight in a corner or close against a wall. The LF Cut starts at 200 Hz and rolls off at 12dB
per Octave.
LF Cut Default = Off
Page 21
Page 21 of 39
Menu Function Name:
Gain Boost
Options within menu:
0dB, 6dB, 12dB, 18dB, 24dB
Description:
The internals of the Divine have been carefully designed such that even when audio
input signals are getting close to full scale there won’t be distortion within the internal
electronics. Although this a perfect design in the real World most programme audio
signals are well below digital full scale and as such this design limits the overall volume
available from the loudspeaker. As such we have included Gain Boost, to increase the
incoming signals by a set amount, to allow the full audio output of the Divine to be
achieved. Compressor/ limiter circuits are built in so even when gain boost is on and
input levels are high the audio output will be as good as possible.
Gain Boost Default = +6dB
Menu Function Name:
Meter Mode
Options within menu:
Off, Bar, Colours
Description:
This mode enables the front panel source select LEDs to act as simple audio level
meters. There are two different styles of meters available.
Bar: operates like a normal vertical level meter, with increases in level increasing the
number of LEDs on.
Colour: provides individual meters on each of the single source LEDs, indicating their
own source input level. The LED will change colour depending upon the level, starting
at blue (off), going through green, amber and then red all at different intensities to
indicate the incoming signal level.
Meter Mode Default = Off
Menu Function Name:
Input Enable
Description:
Input enable sets what input sources can be selected by the front panel select switch.
If the input number is highlighted i.e.’1’ then it is enabled.
To add/ remove inputs from being enabled, scroll to the input by a quick press of the
right-hand blue button and then press and hold the right hand blue button until it
changes state.
Note
: If an input is not enabled in this menu it will not prevent it from working if set as a
priority circuit.
Input Enable Default = All 4 inputs enabled
Page 22
Page 22 of 39
Menu Function Name:
Sum Enable
Options within menu:
1+2, 3+4, 1+2+3+4
Description:
Sum enable sets which (if any) inputs can be mixed together. Whichever options are set
in this menu will appear as a source as the user scrolls through the available sources
using the front panel select switch.
To add/ remove inputs from being sum enabled, scroll to the inputs by a quick press of
the right-hand blue button and then press and hold the right-hand blue button until it
changes state.
Sum Enable Default = No sums enabled
Menu Function Name:
In 1 Delay
Options within menu:
0, 5, 10, 15, 20, 25, 30 35, 40ms
Description:
This menu affects the inbuilt delay for input channel 1. The menu is designed to allow
the input channel’s audio to be delayed internally within the Divine to match your
working environment (i.e. aligning sound to a processed vision feed).
The delay time is in milliseconds.
Menu Function Name:
In 2 Delay
See In 1 Delay
Menu Function Name:
In 3 Delay
See In 1 Delay
Menu Function Name:
In 4 Delay
See In 1 Delay
Delay Defaults = 0 ms (no delay)
Menu Function Name:
Input Filter
Description:
Input filter allows a bandpass filter optimised for voice to be set on any of the input
circuits.
If the input number is highlighted i.e.’1’ then the filter is in circuit for that input.
To add/ remove filters from input channels, scroll to the input by a quick press of the
right-hand blue button and then press and hold the right-hand blue button until it
changes state.
The filter setting is designed to make a voice circuit very clear and intelligible. It has two
coarse filters, one at 300Hz and the other at 3kHz. This provides a significant amount of
presence to a contributing voice.
Page 23
Page 23 of 39
When enabled the frequency/ level output of a filtered channel is as per the below
graph.
Input Filter Default = No filters set
Menu Function Name:
Priority 1
Options within menu:
Ch 1, Ch 2, Ch 3, Ch 4, None
Description:
In priority mode when audio is detected on a priority channel the currently selected
channel is dimmed by the dim level (see dim level menu) and the priority channel is
turned on and mixed with the currently selected channel.
The LED of the priority channel will show in red whilst active. After 2 seconds of
inactivity the previously selected channel is returned to normal level and the priority
channel is muted.
Priority 3 is the highest priority and whichever channel has been set in the priority 3
menu will dim priority 1 and 2 channels (if set)
Priority 1 Default = None
Menu Function Name:
Priority 2
Options within menu:
Ch 1, Ch 2, Ch 3, Ch 4, None
Description:
In priority mode when audio is detected on a priority channel the currently selected
channel is dimmed by the dim level (see dim level menu) and the priority channel is
turned on and mixed with the currently selected channel.
The LED of the priority channel will show in red whilst active. After 2 seconds of
inactivity the previously selected channel is returned to normal level and the priority
channel is muted.
Page 24
Page 24 of 39
Priority 3 is the highest priority and whichever channel has been set in the priority 3
menu will dim priority 1 and 2 channels (if set)
Priority 2 Default = None
Menu Function Name:
Priority 3
Options within menu:
Ch 1, Ch 2, Ch 3, Ch 4, None
Description:
In priority mode when audio is detected on a priority channel the currently selected
channel is dimmed by the dim level (see dim level menu) and the priority channel is
turned on and mixed with the currently selected channel.
The LED of the priority channel will show in red whilst active. After 2 seconds of
inactivity the previously selected channel is returned to normal level and the priority
channel is muted.
Priority 3 is the highest priority and whichever channel has been set in the priority 3
menu will dim priority 1 and 2 channels (if set)
Priority 3 Default = None
Menu Function Name:
Dim Level
Options within menu:
-6 dB, -12 dB, -18 dB, -24 dB, -30 dB, MUTE
Description:
This menu is used in combination with the Priority menus. If a priority channel receives
audio then the currently selected channel will dim by the amount of dBs set in this
menu. The menu levels refer to decibels of dimming.
If set to MUTE then the currently selected channel’s audio will be turned off while the
priority circuit is in use.
Dim Level Default = -12dB
Menu Function Name:
Input Select
Options within menu:
Unlocked, Locked
Description:
This feature allows the front panel Input select switch to be disabled (locked). If it is
disabled then the currently set input source cannot be changed by the front panel
select switch.
If the control is pressed when in locked mode, then the front panel input LEDs will flash
red to provide a visual indication to the user that it is currently locked and they cannot
change it.
Page 25
Page 25 of 39
Input Select Default = Unlocked
Menu Function Name:
Volume Pot
Options within menu:
Unlocked, Locked
Description:
This feature allows the front panel volume pot (potentiometer (knob)) to be disabled
(locked). If it is disabled then the currently set volume cannot be changed by the front
panel volume control.
If the control is turned when in locked mode, then the source select LEDs will flash red
to provide a visual indication to the user that it is currently locked and they cannot
change it.
Volume Pot Default = Unlocked
Menu Function Name:
Min Volume
Options within menu:
-52 dB, -46 dB, -40 dB, -34 dB, -28 dB, -Inf
Description:
This function adds a virtual ‘end stop’ resistor to the end of the volume pot. This means
that the front panel volume pot cannot be fully attenuated and therefore cannot fully
turn down the incoming audio.
The figures in dB are the maximum attenuation allowed, i.e. the -52 dB setting will
allow the output level to be much quieter than the -28 dB setting.
-Inf (infinity) will allow the speaker to be fully turned off.
Min Volume Default = -Inf
Menu Function Name:
Vol. Limit
Options within menu:
0 dB, -3 dB, -6 dB, -9 dB, -12 dB
Description:
The options in this menu sets a limit to the maximum output level from the front panel
volume control. In normal use when it’s turned fully up the output is ‘0dB’. If you have
set this control for one of the ‘-‘ figures then that will be the amount of dBs below
maximum volume available from the volume control.
Vol. Limit Default = 0 dB
Menu Function Name:
Line-up
Options within menu:
-24 dBFs, -20 dBFs, -18 dBFs
Page 26
Page 26 of 39
Description:
The above figures represent the 0dBU level in comparison to the digital full scale level
0dBFS. This should be set to match the rest of your AoIP audio infrastructure.
Line-up Default = -18 dBFs
Menu Function Name:
Power Save
Options within menu:
Off, 10 sec, 30 secs, 60 secs, 5 min, 15 min, 30 min, 60 min
Description:
The power save menu, if enabled, allows the Divine to turn off the power to its power
amplifier and save energy when no audio is present. During power saving its network
interface will continue to run and the microcontroller will also continue to monitor the
incoming audio channels and will quickly turn the power amplifier back on when audio
has been detected.
The sec or minute time are the length of time that no audio must be detected for
before entering power saving mode.
Power Safe Default = 5 min
Menu Function Name:
Dark Mode
Options within menu:
Off, On
Description:
Dark mode relates to the front panel source select LEDs. The light output of these have
been set to be useable during normal working environments. Turning on dark mode,
dims the front panel source LEDs (not the select switch), such that they are only visible
in a dark room.
Dark Mode Default = Off
Menu Function Name:
Enable Pass.
Options within menu:
Enabled, Disabled
Description:
Enable Pass. stands for Enable Password and allows the menu to be protected by our
default password/ key press.
If enabled then before accessing the menu system the user must enter the password by
pressing the blue buttons in the correct order which is:
RIGHT, RIGHT, LEFT
Page 27
Page 27 of 39
This combination is the letter G in Morse code (dash, dash, dot).
Enable Pass. Default = Off
Menu Function Name:
Fact. Reset
Options within menu:
No, Reset?
Description:
If the ‘Reset?’ option is selected by a quick press of the right hand blue button and then
the same button is pressed and held for 2 seconds then a factory reset will be
performed.
When complete this will be indicated by the display showing ‘Done!’.
The factory reset returns all menu functions to their default value.
Menu Function Name:
Info
Options within menu:
DFU, DNT, SR, Temp C &F, Amp,
Descriptions:
DFU: This shows the currently installed firmware version in our own internal
microprocessor.
DNT: This shows the currently installed DNT firmware version in the Ultimo chipset.
Note: The Ultimo chipset is a device from Audinate that provides the Dante® network
audio processing.
SR: SR = This shows the current digital audio sample rate operating within the Divine
and being received from the network.
Temp: The internal temperature of the Divine’s microprocessor can be shown in both
degrees Celsius and degrees Fahrenheit
Amp: The internal power amplifier is digital and communicates with the
microprocessor, if the microprocessor receives an error message from the amplifier it
will be shown here.
Page 28
Page 28 of 39
POWERING THE DIVINE
Divines are Ethernet network devices that require a Power over Ethernet (PoE) power
source to supply them with power to allow them to turn on and operate.
PoE is a standard technique for powering equipment from an Ethernet network and the
Divine conforms to IEEE 802.3af-2003.
The Divine requires a PoE voltage at the source (i.e. network switch) of a minimum of 44
and a maximum of 57 Volts DC.
The PoE source must also be able to provide at least 15.4 Watts on the output that the
Divine is connected to.
The Divine can be powered either from a network switch that provides PoE or from a
Midspan (Mid-span) PoE power source. If your network switch does not supply PoE
then a Midspan power supply can be connected between your switch and the Divine to
provide it with power.
NOTE: The Divine has no on/ off switch, if it is connected to a suitable PoE enabled
network switch or Midspan power source then it will automatically turn on. It does
have a power saving mode that can be setup in the menu.
Page 29
Page 29 of 39
CONNECTING THE DIVINE TO A DANTE® NETWORK
The Divines are network audio devices utilizing the reliable and versatile Dante® audio
over IP protocol. Dante® is a proprietary system (although very widely used) the
originators of which are Audinate.
The information below is only meant as a very basic guide. Full details of the power of
Dante® network audio and instructions for using it can be found at www.audinate.com
Getting Dante® Controller
If you are connecting the Divine to a new Dante® network the first thing you will need
to do is to get the free Dante® controller software from Audinate.
This can be downloaded by visiting Audinate’s web site at www.audinate.com
Connecting Divine device to the network
The Divine can be connected to the network that you are going to use for your audio
distribution simply by plugging in to the RJ45 network connection on the rear. Once
connected to the network it will be possible to see the Divine from within the Dante®
controller and route its’ audio circuits.
Note: Please remember the Divine is powered by Power over Ethernet (PoE) so the
RJ45 network cable must be connected to a network switch capable of providing PoE
or a mid-span power supply (PoE Injector) must be used.
Audio Over IP Network
We strongly recommend that you consider your network topology carefully and would
not recommend sharing broadcast audio and general data on the same network.
For more details of audio over IP network structure please visit www.audinate.com
Page 30
Page 30 of 39
Running Dante® Controller
At the time of writing this manual the Dante® Controller looks as per the screenshot
below:
The Divine will have been named at the factory during test to allow them to be
identified by the Dante® controller.
The format used for the factory name is:
‘DIV-01-sn-XXXXX’
Where ‘DIV-01’ refers to the Glensound product i.e. Divine type 1.
The ‘–sn-XXXXX’ refers to the serial number of the Divine which can be found printed
on the rear label of the unit.
The unit may be renamed in Dante® controller by opening the ‘Device view’ window
and selecting DIV-01-sn-XXXXX in the drop-down menu. Go to the ‘Device Config’ tab
and change the name with the Rename Device box.
Note if you upload a new DNT file or clear the devices config then the name will change
to DIV-01-xxXxXx whereby the ‘X’s refer to the devices MAC address.
Dante® Controller TIP
If you have never run Dante® controller before then make sure that on the bottom left
of the Dante controllers’ screen ‘P’ or ‘S’ is next to a green square as this indicates that it
is connected to a network. By clicking ‘P’ or ‘S’ a pop-up box opens to allow you to set
what network interface the controller is using.
Page 31
Page 31 of 39
Device not showing up in Dante® Controller
If your Dante® device does not show up in Dante® Controller then the most likely issue is
that the device’s IP Address is not appropriate for your network.
A) It maybe that the device is set to obtain an IP address automatically using DHCP
(this is the default configuration) and your network is setup for fixed IP
addresses only and does not have a DHCP server.
B) It maybe that the device has had a fixed IP address assigned but that this
address is not suitable for your network.
The solution to both scenarios is basically the same.
1) You must connect your Dante® device directly to the Ethernet port of your
computer using an Ethernet cable.
2) Make sure that your computer is set to ‘Obtain an IP address automatically’
3) After a few minutes the Dante® device should now appear in Dante® Controller.
4) Double click the device name to open up device view.

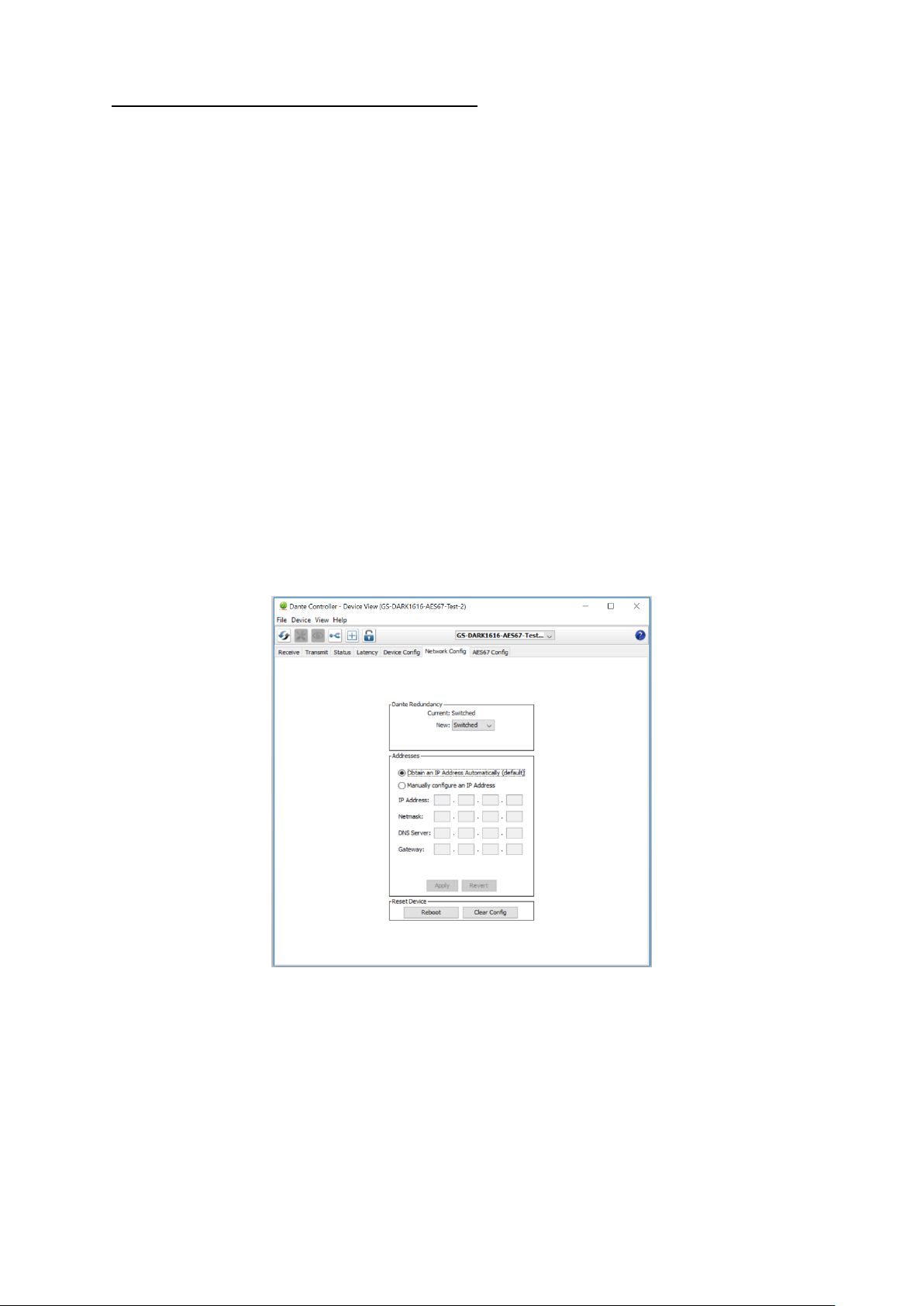

5) Open up the ‘Network Config’ tab
6) Either turn on ‘Obtain an IP Address Automatically’ or correctly configure the
‘Manually configure an IP Address’ options for your network.
7) Click on ‘Apply’ to confirm the new settings, then disconnect the computer and
reconnect the Dante® device to your network.
Page 32
Page 32 of 39
AES67 MODE
The Divine uses a chipset from Audinate called ‘Ultimo’ for its network audio interface.
Audinate are the company behind Dante® and as such the primary network audio
protocol is Dante®, however Audinate have enabled their chip to comply with AES67
and therefore the Beatrice can be set to AES67 mode for interaction with other AES67
devices.
Please note however that Glensound are relying on Audinate’s AES67 interface and are
unfortunately not able to provide full AES67 support for the unit. AES67 support should
be sought directly from Audinate.
Turning On AES67 Mode
If you want to use your Divine on an AES67 network and it has not been set to AES67
mode then this can be set in Dante® controller by double clicking the Divine to open
the Device View window where you will find an AES67 tab to enable AES67 support.
Once the AES67 drop down box has been enabled you’ll have to reboot the Divine for
the change to take effect. After the reboot go back to the AES67 tab and set the
multicast prefix address to one that is suitable for your newtork.
Page 33
Page 33 of 39
Sending AES67 Audio
To transmit AES67 audio to the network a multicast flow must first be setup.
This is done by selecting the ‘Create New Multicast Flow’ Icon in the Device View.
Tick the AES67 Flow check box, then select up to 4 channels to be included in the flow
then click ‘Create’
Once set the flows can be seen in the transmit tab of the device view.
Page 34
Page 34 of 39
Receiving AES67 Audio
Once a compatible AES67 stream is detected on the network by Dante® Controller the
AES67 flows will appear in the Dante® Transmitters section in the Routing tab.
AES67 Restrictions
AES67 flows can only be generated with the following constraints:
• Multicast Only
• Destination address in range 239.nnn.0.0 to 239.nnn.255.255 (239.nnn/16), port
5004
• 48kHz sampling rate
• 24 bit linear (L24) encoding
• 1 msec packet time
• Up to 4 channels per stream
Received AES67 flows have the following constraints:
• Multicast Only
• Destination address in range 239.nnn.0.0 to 239.nnn.255.255 (239.nnn/16), port
5004. Must match destinatio address range.
• 48kHz sampling rate
• L16 or L24 encoding
• 125usec, 250usec, 333usec, 1 msec packet time
• Up to 4 channels per stream
Page 35
Page 35 of 39
UPDATING FIRMWARE
General
Internally the Divine runs two sets of firmware (integrated circuit device specific
software).
A microprocessor deals with control of the buttons, pot, LEDs, volume control & menu
system and communicates user inputs to the internal DSP to allow changes to the
audio. This microprocessor runs its own firmware and the firmware file type is .DFU
Separate to the microprocessor is the Ultimo chipset which is chipset supplied by
Audinate (the company behind Dante®). The Ultimo chipset performs all the complex
distribution and receiving of audio packets from the Ethernet network and
communications with the Dante® controller and network switches. The Ultimo chipset
has its own firmware file type .DNT
UPDATING THE MICROPROCESSOR .DFU FIRMWARE
The microprocessor’s .DFU file is updated across the network using our GlenController
windows 10 application.
Please see ‘GlenController’ section of this handbook for installation instructions.
Finding out if the DFU needs updating:
There are two ways of finding out the current version of installed DFU and the latest
available version.
1) Using the rear LCD screen and menu buttons on the rear of the Divine navigate
down to ‘INFO’ and then select ‘DFU’ the currently installed DFU version will be
displayed.
Go to the Divine’s web page http://www.glensound.co.uk/product-details/divine-617/
and select the Firmware Latest Version tab, the latest version of the DFU & DNT files wil
be listed here.
2) Use GlenController and follow the updating instructions below, when you get to
step 6, GlenController will display information about the Divine (and any other
compatible device on your network).
The column called ‘DFU version’ shows the currently installed DFU firmware and the
column called ‘DFU latest’ shows the most up to date available version of firmware for
your device.
NOTE: To update the Divine, the PC that is running GlenController must be on the
same network as the Divine and must have internet access. This is because
GlenController automatically accesses our website and gets the latest .DFU firmware
file from it to load into the Divine.
Page 36
Page 36 of 39

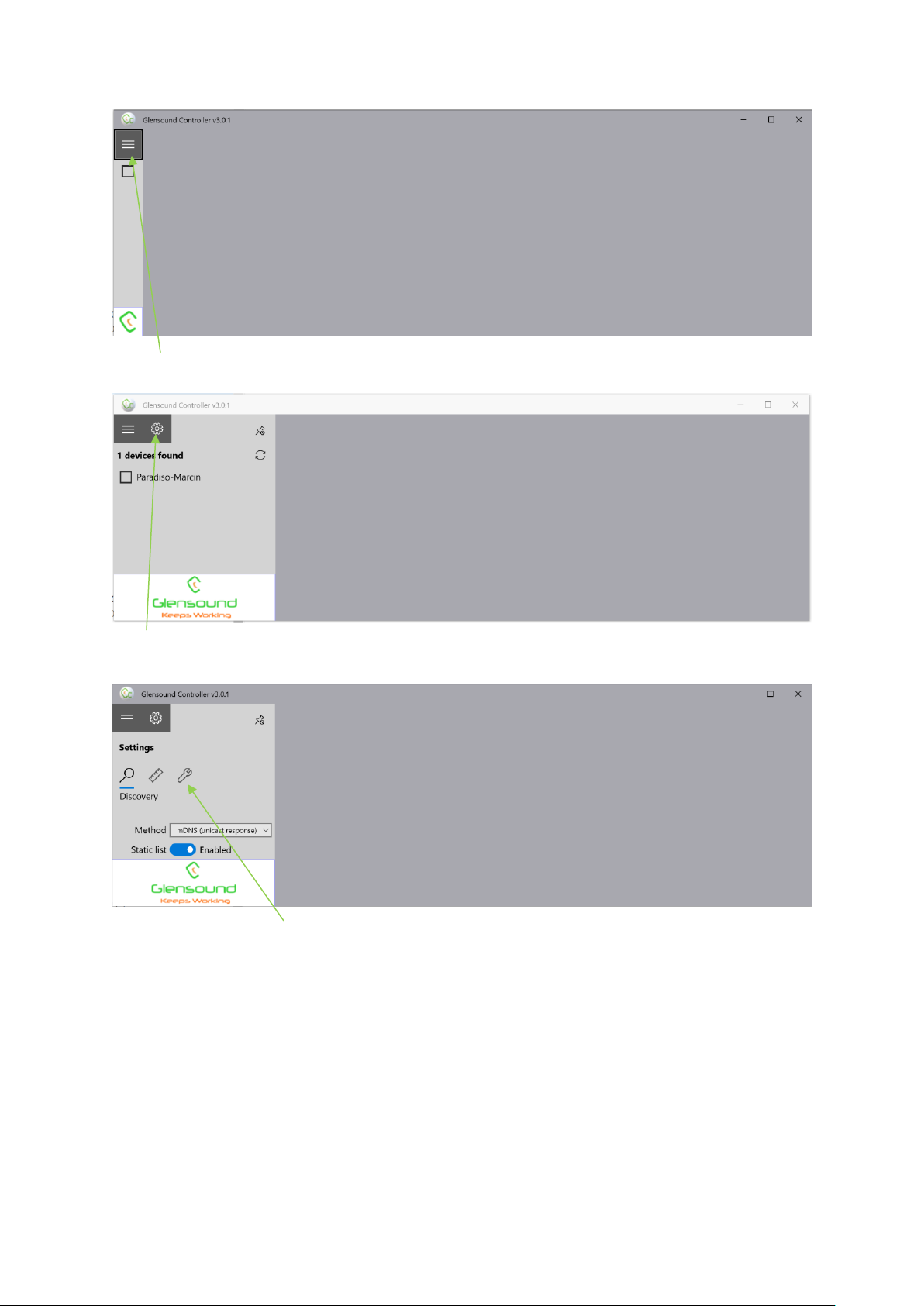

1) Open GlenController
2) Click the 3 lines
3) Click the settings ICON
4) Click the ‘Maintenance’ spanner
Page 37
Page 37 of 39
5) Click ‘Enter Maintenance Mode’
6) Select the device to be updated
7) Click Update Selected
Page 38
Page 38 of 39
8) Click Start
Your device will now have the latest .DFU file loaded.
Page 39
Page 39 of 39
UPDATING THE ULTIMO .DFU FIRMWARE
The Ultimo Chipset is a device supplied by Audinate that does most of the processing
for the actual Dante®/ AES67 network audio streams. There is one Ultimo Chipset in
each Divine. We supply special code (a .DNT file) that sets up/ initiates the Ultimo
Chipset and makes it work in particular way that is compatible to the Divine.
Finding Out Current Installed Version
Using Dante® controller double click on the Divine device name in the routing tab to
open the Device View box.
In the Device View box open the Status Tab.
The ‘Product Version:’ shows the currently installed version of Ultimo Chipset dnt code.
Alternatively using the rear LCD screen and menu buttons on the rear of the Divine
navigate down to ‘INFO’ and then select ‘DNT’ the currently installed DNT version will
be displayed.
Finding Out What The Latest Available Version Is
Go the Divine’s web page at Glensound.com and open the ‘Firmware Latest Version’
Tab.
This will give both the latest version numbers/ file names and also the location to
download the file from.
Updating the device
The firmware that runs in the Ultimo Chipset is updated using Audinate’s Firmware
updating tool. The updating tool and a user guide can be downloaded from Audinate’s
website:
https://www.audinate.com/products/firmware-update-manager
NOTE:
Please note we strongly advise that when you do the update that only your PC and the
Dante device that you want to update are on the network to save accidently updating
the wrong Dante device.
Loading...
