TERMOMETRO AURICOLARE
IR EAR THERMOMETER
THERMOMETRE AURICOLAIRE
OHRENTHERMOMETER
TERMÓMETRO AURICULAR
TERMÔMETRO AURICULAR
ΘΕΡΜΟΜΕΤΡΟ ΑΥΤΙΟΥ
Model: TH889
25580
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
[email protected] - [email protected]
www.gimaitaly.com
M25580-M-Rev.3-02.22
Made in China
IP22
0476
Page 2
ENGLISH
Intended use
The ear thermometer is electronic thermometer using an infrared detector (thermopile detector) to detect body temperature from ear
canal in people of all ages.
Intended operator: Have eight years of education, no maximum.
Thank you for purchasing the thermometer.
This thermometer is designed with an advanced infrared and ambient temperature
compensation technology for instantaneous
self-diagnosis and accurate temperature
measurements. Do not use this device for
Live & Dead decision or Safety related ap-
plications.
Please consult with doctor if you have health
concerns.
Operating Instructions
NOTE: The device must stay in stable ambient (room) temperature for 15 minutes before operating.
1. Gently squeeze the opposite ends of the thermometer to pull off the probe cap. Do not use force to
remove the cap.
2. Always use a new and undamaged probe cover. Make sure the ear canal is clean.
Warning: Choking from swallowing small parts and batteries by children or pets is possible,
please keep small parts and batteries at places where children and pets can’t reach.
3. Install Probe Cover

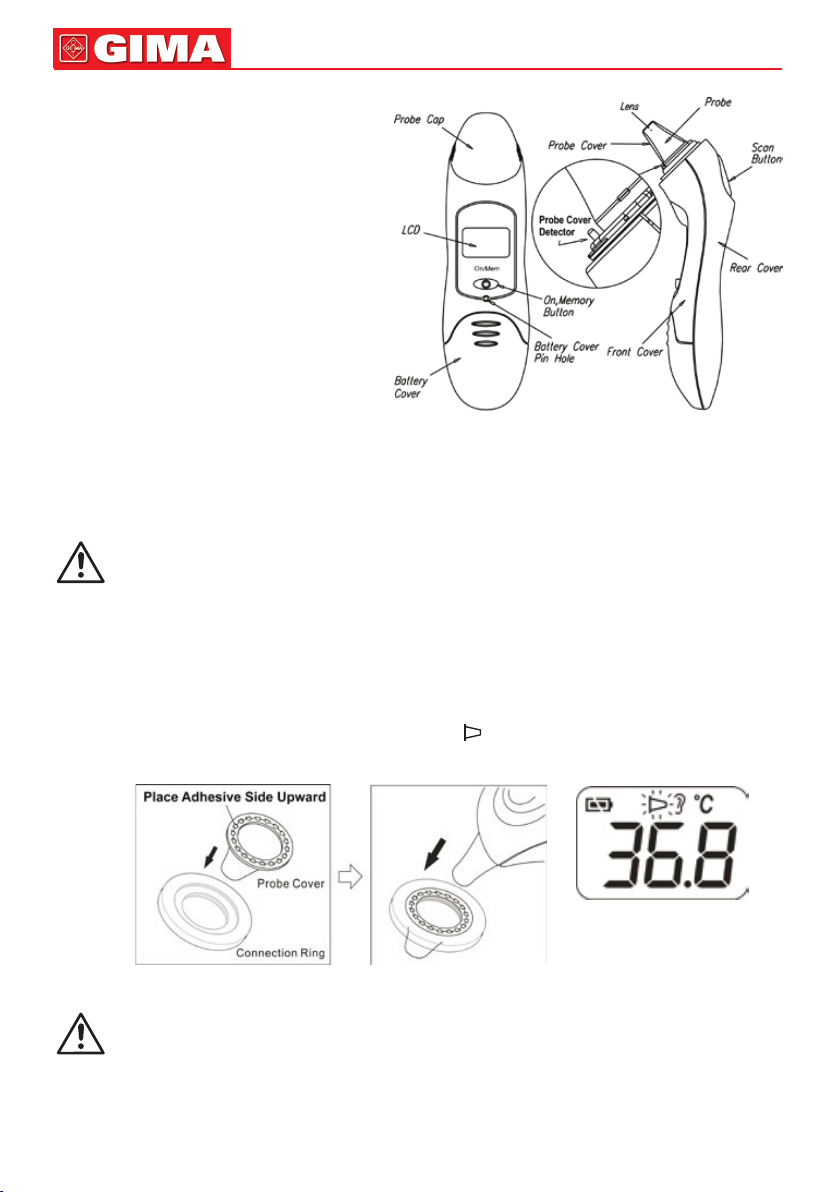

1) Place a new probe cover on the connection ring. (See Figure 1)
NOTE: Make sure to place the “Adhesive Side” of probe cover “Upward.”
2) Align the probe with the center of probe cover. Insert the probe into the probe cover on the connec-
tion ring. (See Figure 2)
3) Push the connection ring until the “Click” sound. This means the probe cover has been installed
successfully.
NOTE: If the probe cover did not connect rmly, the “ ” icon will ash on the LCD screen. Please
check the setting of the probe cover again.
6
Figure 1 Figure 2
Proper installation of the probe cover and using the specic probe cover ensure accurate meas-
urements.
Page 3
7
ENGLISH
4. Press “ON/MEM” button to power on. The thermometer is ready
for use after the ear icon stop ashing and two short beep sound.

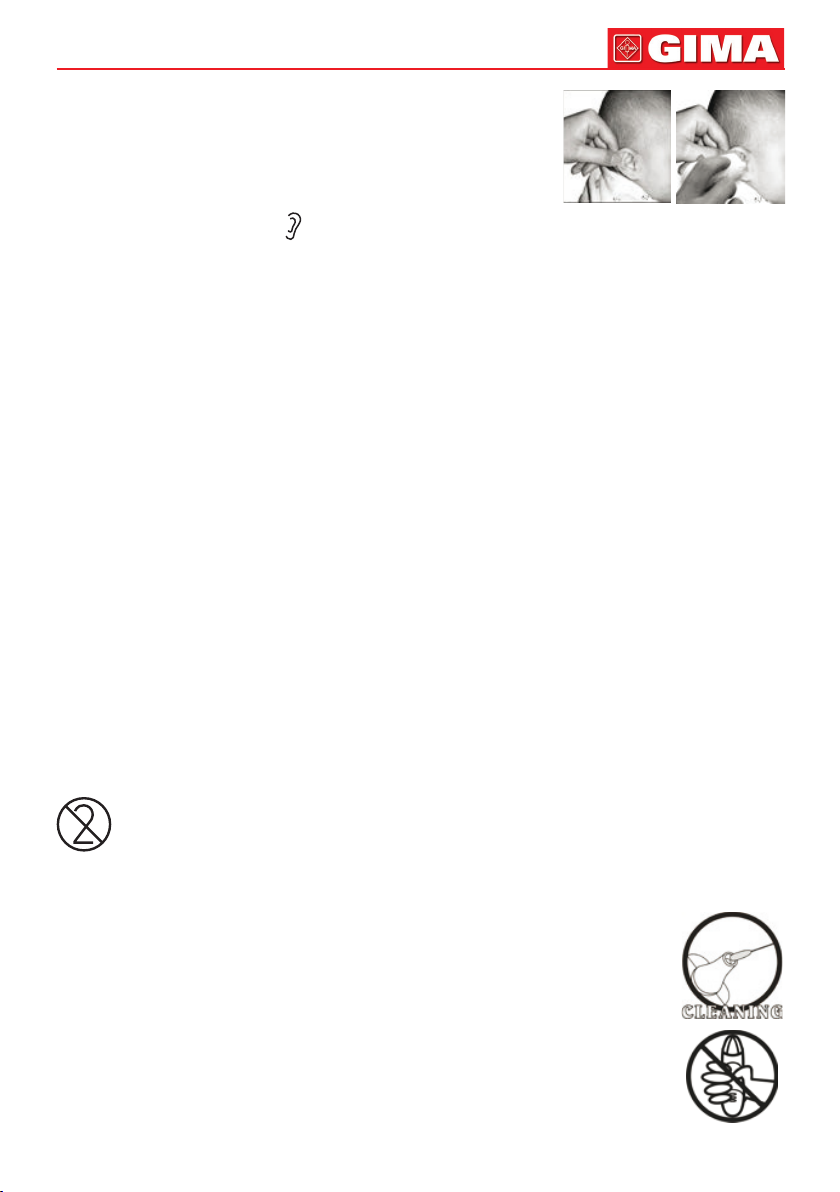

5. Gently pull the ear back to straighten the ear canal and snugly po-
sition the probe into the ear canal, aiming towards the membrane of
the eardrum to obtain an accurate reading. (Fig.4-1)
6. Measuring the ear temperature: Use the index nger to trigger.
Press the “Scan” button until you hear a long beep. (Fig.4-2). After
each ear measurement, wait “ ” icon stop ashing to be ready for
Figure 4-1 Figure 4-2
next measurement.
7. Power off: This device will automatically shut down after 1 minute
pending to extend battery life.
NOTE
a. Before the measurement, please stay in a stable environment for 5mins and avoid the exercise, bath
for 30mins.
b. It is recommended that you measure 3 times with the same ear. If the 3 measurements are different,
select the highest temperature.
c. To avoid the risk of cross contamination, please clean the probe according to “Cleaning and Storage”
section after each use.
d. The “Clinical Bias” is -0.2 ~ -0.4°C.
e. The “Limits of Agreement” is 0.58.
f. The “Repeatability” is 0.17°C.
Fever Indication:
If the thermometer detects a body temperature ≥37.5°C (or 99.5°F), three short beep sound will follow
one long beep sound to warn the user for potential fever.
Switching between Fahrenheit (°F) and Celsius (°C):
In “Power Off” mode, press and hold the “SCAN” button, then press the “ON/MEM” button for 3 seconds,
icon “°C” will be switched to icon “°F”. You can also use the same process to change the LCD display
from °F to °C.
Memory Function:
When in power on, press the “ON/MEM” button to see the temperature stored. The thermometer provides 9 sets memory for the body temperature.
Cleaning and Storage:
The probe is the most delicate part of the thermometer. Use with care when cleaning the lens to avoid
damage.
** The probe cover is disposable: throw it away and replace it after each use to ensure an ac-
curate reading and avoid cross contamination.
Storage temperature Range: It should be stored at room temperature between -20~+50°C, RH ≤85%
Keep the unit dry and away from any liquids and direct sunlight. The Probe should not submerge into
any liquids.
** If device is accidentally used without probe cover, clean the probe as follows:
a. Please use the cotton swab with Alcohol (70% concentration) to clean the lens( on
the inside of the probe).
b. Allow the probe to fully dry for at least 1 minute.
NOTE: Please check the device if damaged once it falls. If you can’t make sure of it,
please send the complete device to the nearest retailer for recalibration.
Holding the thermometer too long may cause a higher ambient temperature reading
of the probe.
This could make the body temperature measurement lower than usual.
Page 4
ENGLISH
Changing the Battery:
This device is supplied with one lithium cell (CR2032 x 1).

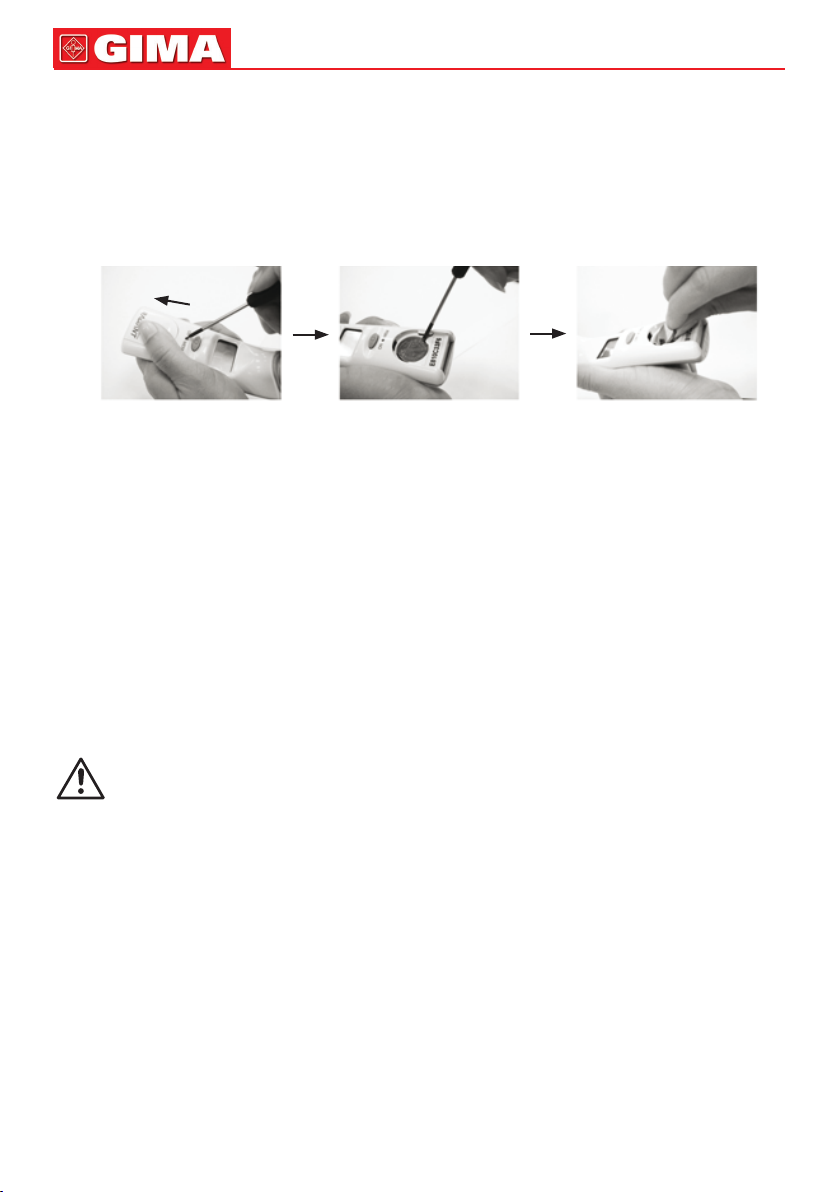

1. Open the battery cover: Insert a pointed object into the battery cover pick hole. At the same time, use
thumb to remove battery cover. (See Figure 1)
2. Flip the battery out with a small screw driver (See Figure 2)
3. Insert the new battery under the metal hook on the left side and press the right side of the battery
down until you hear a “click”. (See Figure 3)
4. Replace the battery cover.
The positive (+) side Up and the negative (-) side pointed Down.
Figure 1 Figure 2 Figure 3
Specications:
- Operating temperature range: 10~40°C (50~104°F), 15%~85% RH
-
Storage temperature Range: It should be stored at room temperature between -20~+50°C, RH ≤85%
Transportation temperature shall be less than 70°C, RH ≤95%
- Atmospheric pressure: 800~1013 hPa
- Comply with ASTM E1965-98, EN ISO 80601-2-56, IEC/EN60601-1-2(EMC), IEC/EN60601-1(Safety) standards, ISO10993, RoHS.
- Accuracy: ±0.2°C (0.4°F) within 35~42°C (95~107.6°F), ±0.3°C (0.5°F) for other range.
- This thermometer is an adjusted mode thermometer that converts the ear temperature to display its
“oral equivalent” (according to the result of the clinical evaluation to get the offset value)
- Enclosure Rating: IP22
- Dimensions: 149.1 x 42.5 x 54.9 mm
- Weight: 79.7 grams including battery
- Battery life: around 3,000 continuous readings.
- Product life: 4 years
8
The device should not submerge into any liquids and expose it to direct moisture.
There is no gender and age limitation for using infrared thermometer.
This is not an AP or APG product.
NOTE: The thermometer is calibrated at the time of manufacture. If at any time you question the accuracy of temperature measurements, please contact the dealers or nearest service address.
Page 5
9
Throubleshooting

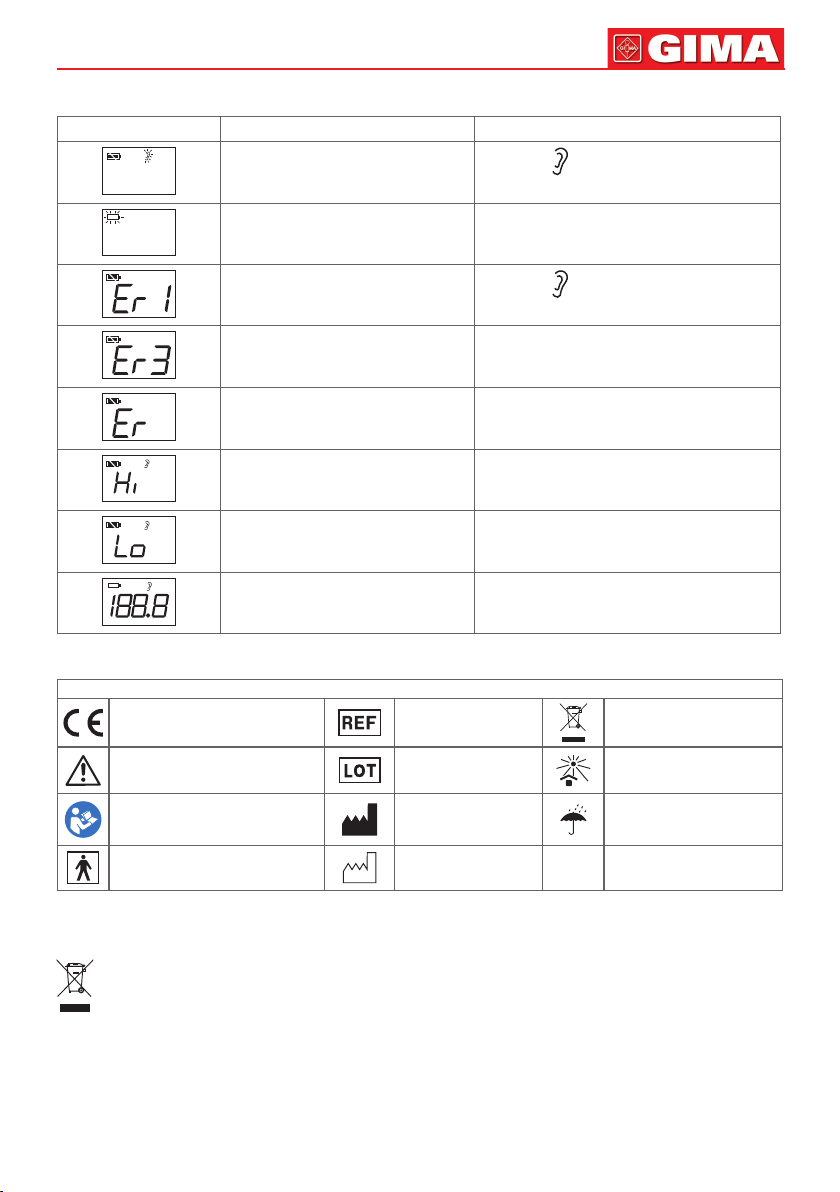

Error message Problem Solution
°C
Device stabilization in process.
Wait until stops ashing.
ENGLISH
Battery is low and no more
measurements are possible.
Measurement before device
stabilization.
The ambient temperature is not
within the range between 10°C
and 40°C (50°F ÷ 104°F).
Error 5 ÷ 9, the system is not
functioning properly.
°C
Temperature taken is higer than
42,2°C (108°F).
°C
Temperature taken is lower than
34°C (93,2°F).
°C
Device can not be powered on to
the ready stage.
Medical Device complies
with Directive 93/42/EEC
Caution: read instructions
(warnings) carefully
Replace the battery.
Wait until stops ashing.
Allow the thermometer to rest in a room
at least 15 minutes at room temp. (10°C
÷ 40°C, 50°F ÷ 104°F).
Unload the battery, wait for 1 minute and
repower it. If the message reappears,
contact the retailer for service.
Check the integrity of the probe
cover and take a new temperature
measurement.
Make sure the probe cover and the lens
are clean and take a new temperature
measurement.
Change with a new battery.
Symbols
Product code WEEE disposal
Lot number Keep away from sunlight
Follow instructions for use Manufacturer Keep in a cool, dry place
Type BF applied part
Date of manufacture
Covering Protection rate
IP22
Disposal: The product must not be disposed of along with other domestic waste. The users
must dispose of this equipment by bringing it to a specic recycling point for electric and electronic equipment.
