*** USER’S MANUAL ***
FCC ID: WXAMINI400B
- 1 -
TM951241
Information
.........................................................................................
3
Technical And Operational Description
Connections
Card Data Format
Specifications

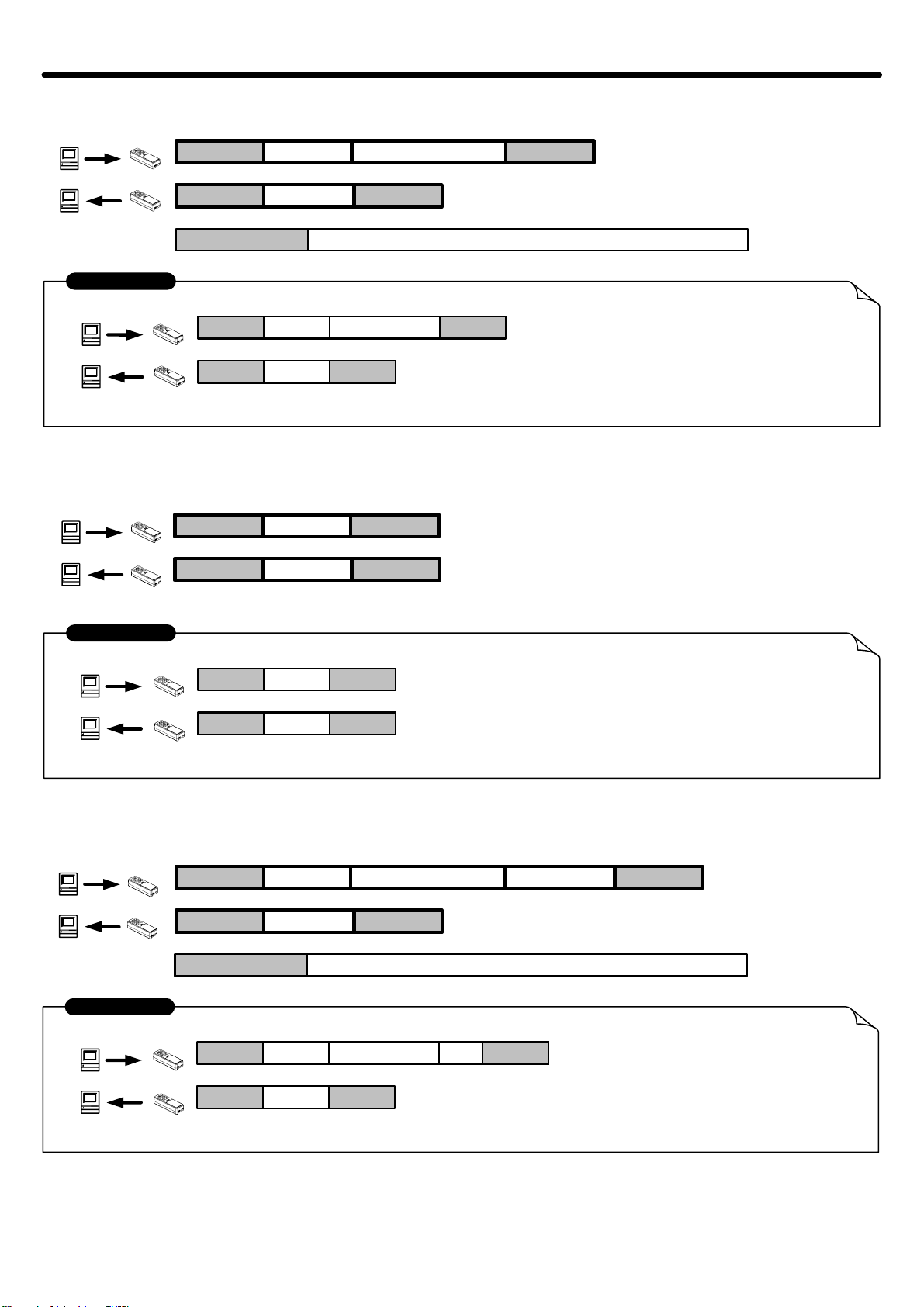

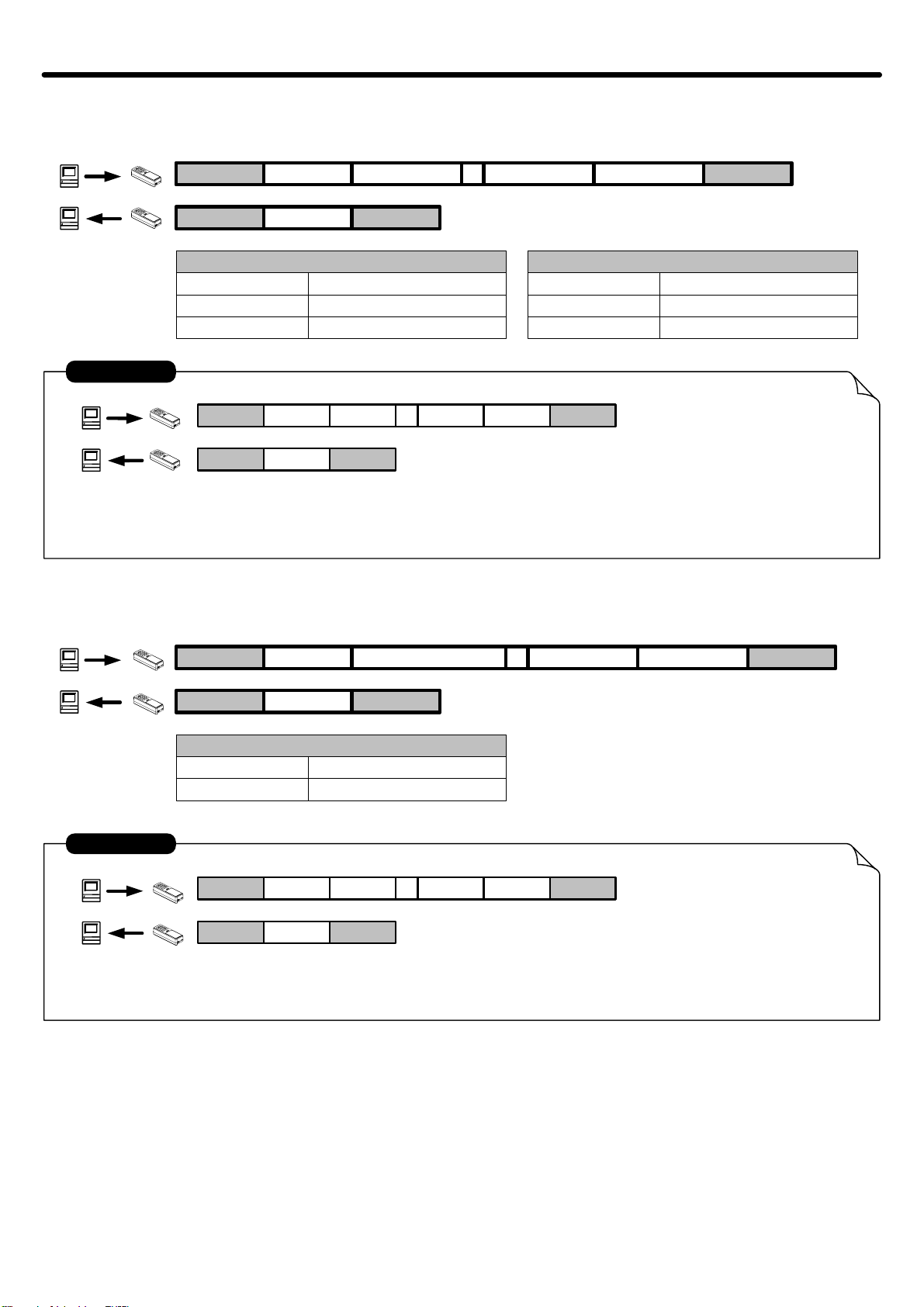

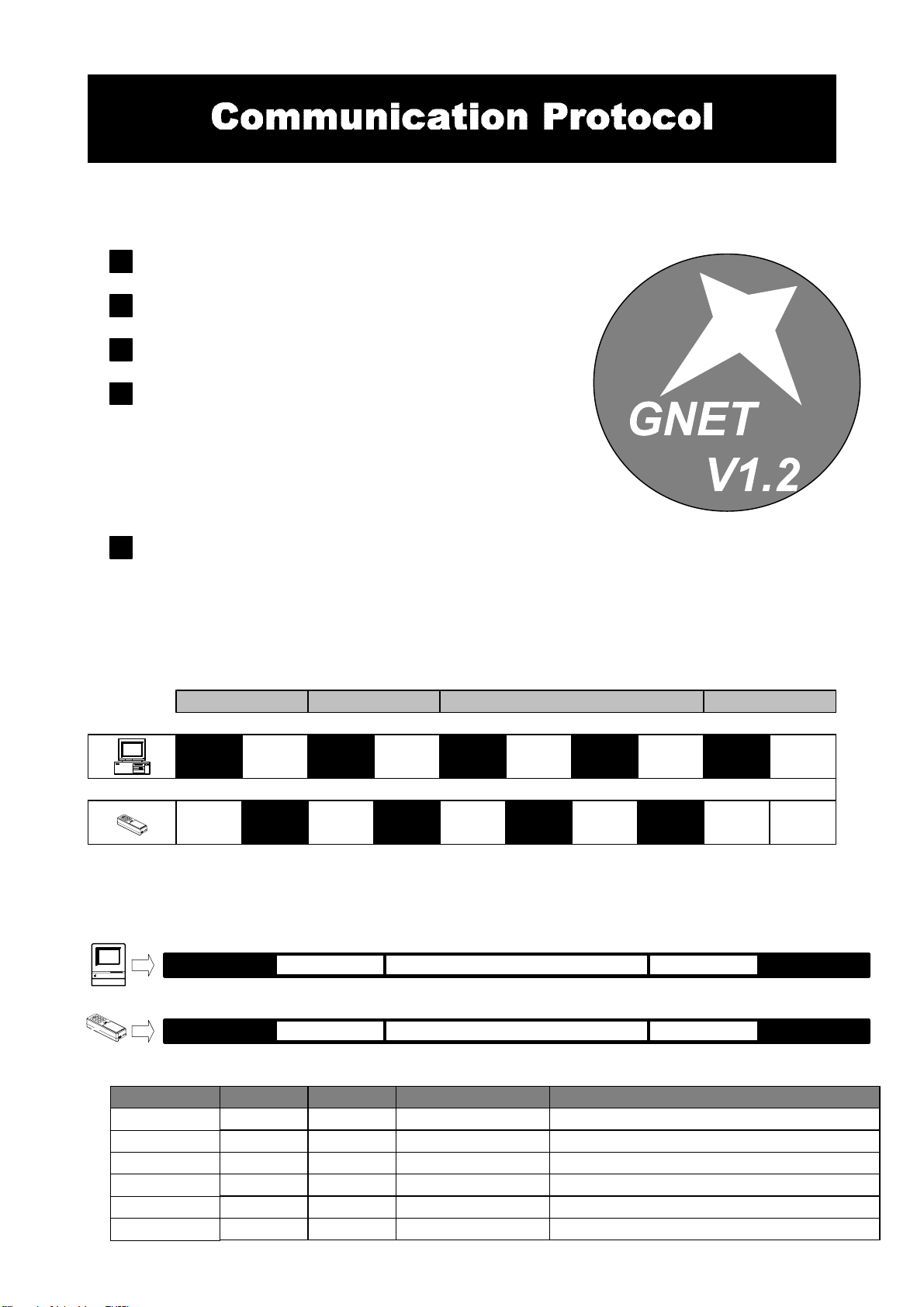

Communication Protocol
.........................................................................................
............................................................................
.....................................................................................
.....................................................................
..........................................
6
9
10
11
12
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communication.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
- 2 -

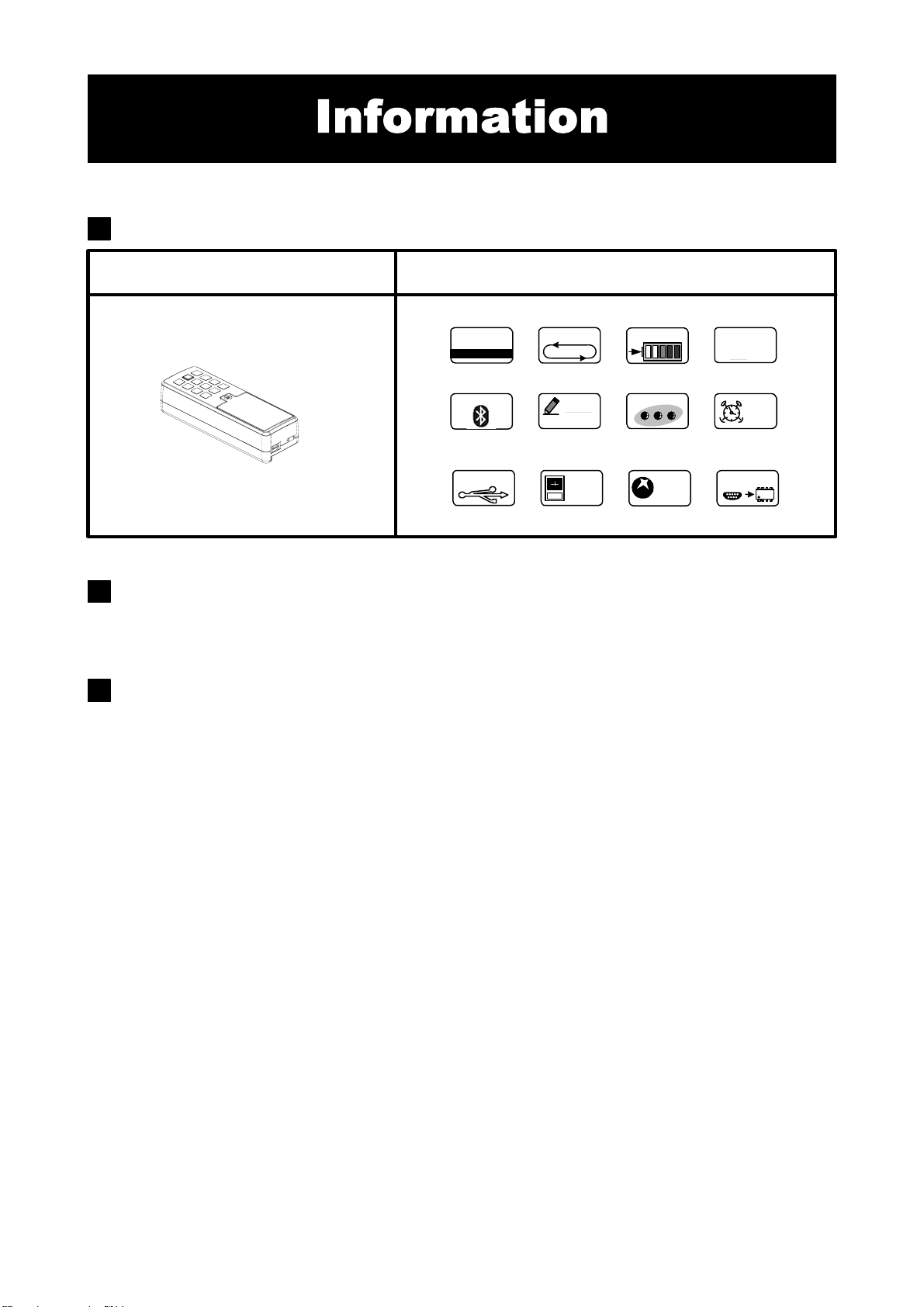

Mini400B Series Magnetic Swipe Reader
MACHINE TYPE FUNCTION
Muti-Charge
LED STATUS
N
G
VER 1.2
ET
F-MEM
KB
512
RTC
FFM
Mini400B
MC
1 2 3
BlueTooth
USB
Ver 1.1
Li-Polymer
Rechargeable
2048
REC QUEUE
AUTO
OFF
OFF
Track 1 & 2 & 3
Bluetooth adaptor Installation Refer to page10
Read the instructions on your device before
installing batteries
1. Insert batteries into your device properly, with the (+) and (-) terminals aligned correctly.
2. Always fully charge your batteries before use.
3. When you charge the batteries for the first time, or if the batteries have been stored for a
long time, it normally takes about 3 charge and discharge cycles for the batteries to regain
full capacity.
4. It is normal for batteries to become hot during charging and they will gradually cool down
to room temperature after fully charged.
5. Store the batteries in a cool and dry place.
6. Remove batteries from the electrical device if the device is not going to be used for a long
time.
7. Keep battery contact surfaces and battery compartment contacts clean by rubbing them
with a clean pencil eraser or a rough cloth each time you replace batteries.
8. If the performance of the batteries decrease substantially, it is time to replace the
batteries.
9. Keep batteries away from children. If swallowed, contact a physician at once.
- 3 -
Information
Lithium Ion Polymer Battery Handling
Guideline
Danger !
It may cause the battery swelling, leaking, explosion or ignition, if you do not reading following:
1. Do not store battery in a manner that allows terminals to short.
2. The cell batteries are requested to be stored within a proper temperature range specified in this specifications.
3. Use only approved charger (Mini123EX).Improperly charging a cell or battery may cause the cell or battery to flame or
damage.
4. Prohibit reversing cell polarity within a battery assembly. The battery must be connected correctly.
5. Do not heat or dispose the battery into fire, water or other liquids.
6. Do not short-circuit a battery. Extended short-circuiting creates high temperature in the cell and at the terminals.
Physical contact to high temperature can cause skin burns. In addition, extended short-circuit may cause the cell or
battery to flame.
7. Do not bend, fold or fall the battery or part of the battery. It may cause the battery be damaged and result in the battery
swelling, leaking, explosion or ignition.
8. Do not open or manipulate the folded cell edge.
9. Do not bend or fold the sealing edge. And do not tear off the sealing film.
10. Do not drop or cause unnecessary shocks to the battery.
11. No sharp edge components shall be inside the battery housing. The sharp edge may destroy the cell packaging.
12. Do not carry loose batteries in a pocket or purse with metal objects like coins, paper clips and hair pins, etc. This will
short circuit the battery, generating high heat.
13. Do not directly heat cell body. It may cause the battery be damaged by heat above 90
14. Never disassemble a battery.
15. Never solder a battery.
.
Warning !
It may cause the battery swelling, leaking, explosion or ignition, if you do not reading following:
1. Do not put the battery into microware, washing machine or drying machine.
2. Do not put the battery onto oven.
3. Do not mixed batteries and types. Avoid to use old and new cells or cells of different sizes,different chemistry or
types in the same battery assembly.
4. Do not use a damaged battery.
5. Keep away batteries from children.
6. In case of contacting the materials from a damaged or ruptured cell or battery:
Eye contact: Washing immediately with plenty of water and soap or for at least 15 minutes. Get medical attention.
Skin contact: Washing immediately with water and soap.
Inhalation of Vented Gas: Remove to fresh air. Get medical attention.
Ingestion : Get medical attention immediately.
Caution !
1. Do not place batteries near heating sources, nor exposed to direct sunlight for long periods. Elevated temperature
can result in reduced battery service life.
2. The battery shall be operated (stored, charged and discharged ) in the temperature specified in this specifications.
Operating Temperature:
Charging : 0
Discharge : -20 ~60
Storage -20 ~45
3. Do not overcharge or overdischarge batteries. It will decrease the batteries' service life.
~45
* Manufactory has no liability for problems that occur when the above specifications are not followed.
- 4 -

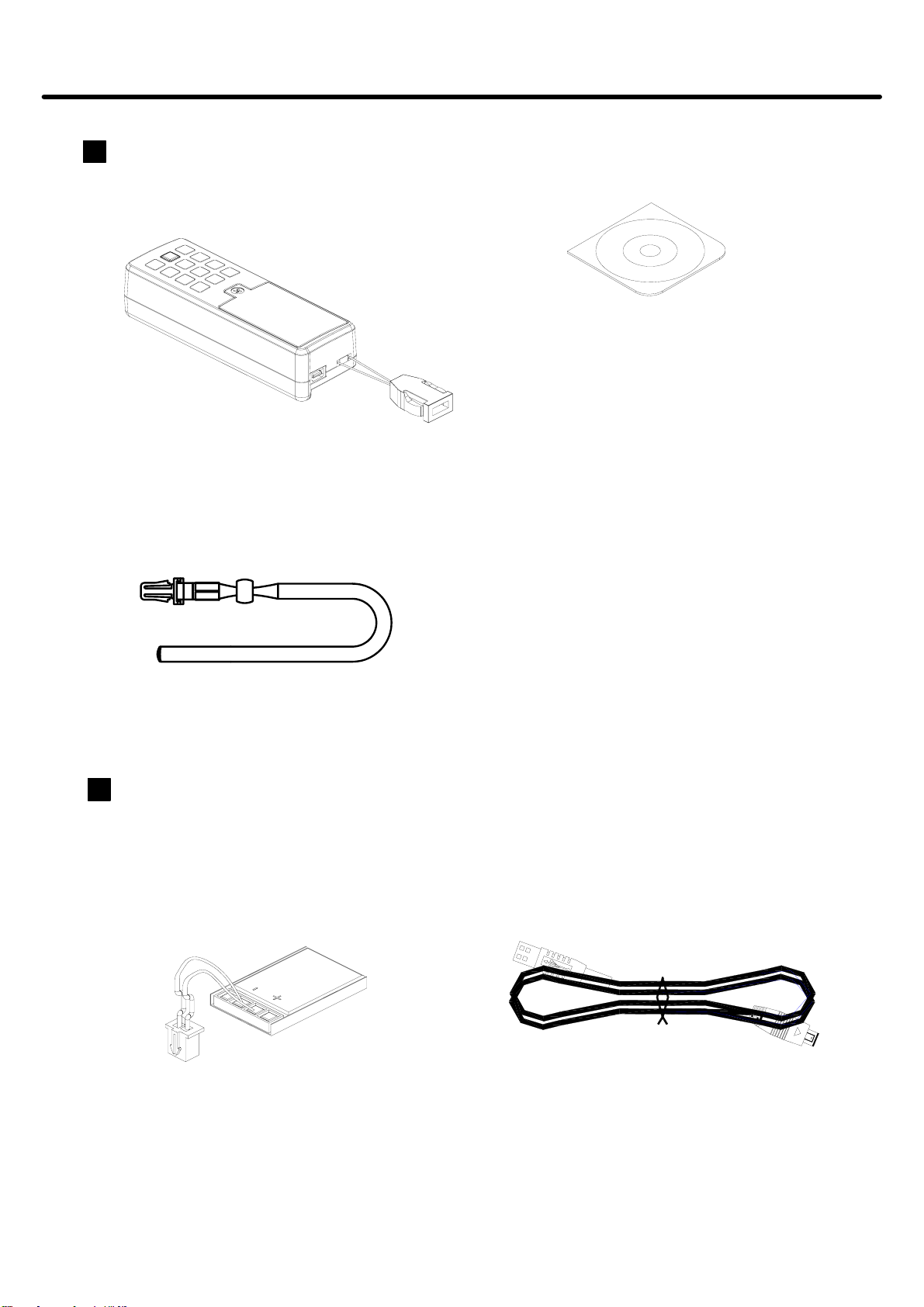

Standard Package
Main unit
( Mini400B )
Information
CD-ROM
( DISK5269 )
Chain Sling
( TM09F1001 )
Option
Li-Polymer Rechargeable Battery
3.7V 250mAH
( BAT-T0011 )
USB Cable
( WAS-T0233 )
- 5 -

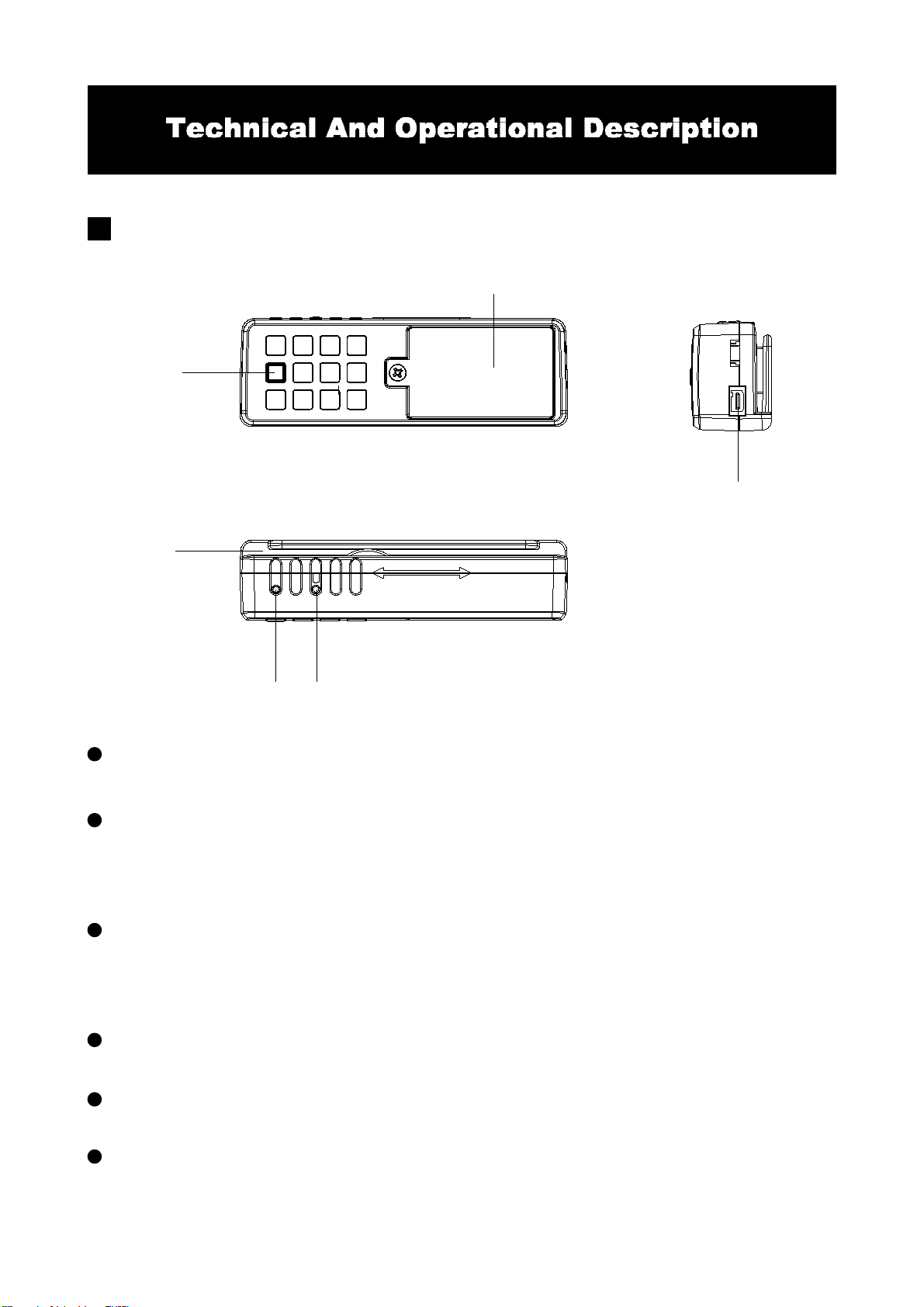

Front Panel Display and Operations
Power & Control
Button
Card
Reader
Battery Box
Connector
Power ,Memory ,Read Status
LED indicator
Card Reader
Swipe the card through the entire length of the slot to read.
Power,Memory,Read Status LED Indicator
When encountering erroneous input, defective card, misread,bad
memory or incorrectly encoded data and so on, the device will turn on
the ERROR indicator .
Bluetooth & Battery Status LED Indicator
Indicating the bluetooth is standby, the bluetooth connection is ON or
OFF, the battery is ready ,charging progress , charge done, charge
suspend in charge mode or low battery in operational mode.
Connector
For connection to host computer and external Power for charge Battery .
Battery Box
Put the battery in box and hold battery .
Bluetooth & Battery
Status LED indicator
Power & Control Button
Turn the Mini400B on/off power.
Note : Hold the power button for 3 sec for power off.
- 6 -
Technical And Operational Description
Display Information
Power,Memory,Read Status LED Indicator
Status
Power On
Auto Power Off Beep. Beep.
Ready
Read OK
Read Error
Inactive Battery Off Beep. Beep. Beep.
RTC No Setting Take turns blink X
Memory will be Full Slow Blink Off X O
Memory Full
Memory bad
Green LED
Take turns blink
2 times
Take turns blink
2 times
On
Blink
1 times
Off
Fast Blink
Off
Red LED
Off
Off
Blink
1 times
Blink
3 times
Off
Blink
Buzzer *1
Beep. Beep.
X
Beep.
Beep. Beep. Beep.
X
X
Read Card
X
X
O
X
X
X
X
X
X
Firmware Management
mode
Off On X X
Bluetooth & Battery Status LED Indicator
Status
Bluetooth standby On X
Bluetooth connected
Precharge in progress
Fast charge in progress
Charge done
Charge suspend
(temperature ,Timer Fault)
Blue LED
Blink
X
X
X
Red LED
X
Slow Blink
OnX
Off
Fast Blink
Low Battery
- 7 -
X
Off
Technical And Operational Description
Operational Description
1. Powered by Battery
For normal use, the unit is powered by battery. Push the Power Switch Button
for about 1.5 seconds to turn on the unit. Also push the Power Switch Button for about 1.5
seconds to turn off the unit. After the unit is turned on, the power would be turned off
automatically if there is no swiping a card on the unit in 30 seconds. This means the unit would
be turned off if no swiping a card again in every 30 seconds after every card swiping. It would
have Low Battery Detect/Warning indication when the unit is powered by battery.
2. Powered by Cable
When the unit is connected with the PC through the communication Cable (WAS-T0233) and
the PC is running Mini400B software and open the COM PORT for the unit, then the unit will be
turned on in about 0.5 second by the PC through the USB PORT. Then you can do the unit
Setting, Configuration or data downloading. When the software closes the COM PORT or exits,
the power turn off from the PC immediately. When powered by cable from PC, the Power Switch
would have no function and the unit would have no Low Battery Detect/Warning function.
3. Real Time Clock Setting
Before start using the unit, you must set the Real Time Clock (RTC) inside the unit to your
local time. If there is no battery for quite a while or it is powered by cable for quite a while this
would cause Real Time clock (RTC) malfunctioned due to no power supply. When put on the
battery to turn on the unit and the Red/Green LED take turns blinking, this means the RTC is
malfunctioning and you must do the RTC time setting before you use the unit.
4. Low Battery Detect
When powered by battery, it would have Low Battery Detect function. When the battery goes
low, the Bluetooth & Battery Status LED would flash red once every 2 second and you must
charge battery immediately, otherwise, the unit would shut down any time without pre-warning.
5. Charge Mode
There are three different charge modes for Mini400B: low battery mode ;real time mode and
manual charge mode. Low battery charge mode is used when the battery hits low voltage, it
starts to be charged automatically. Real time charge mode is whenever the Mini400B cable is
connected to USB, it would be charged immediately. Manual charge mode is the charge is
controlled by Demo software . User can use the software to start or stop charging. The default
set mode is on low battery charge mode.
6. Charge Status Indication
When Mini400B is in charge, Bluetooth & Battery Status LED Indicator light show slow blink red
that means the battery is in the pre-charge. When Bluetooth & Battery Status LED Indicator
light turns to red, it means the battery is in charge status. When Bluetooth & Battery Status
Indicator light turn off, it means the charge is finished. If the charge process has unusual
situation, Bluetooth & Battery Status Indicator light will show red fast blink. If Mini400B cable is
connected, and battery is not in charge, Bluetooth & Battery Status Indicator light will turn off.
7. Memory Low Warning
Log database memory is almost full (>90%). Adding new records is still possible but you are
advised to free up the log database memory by uploading the data to the PC as soon as
possible.
8. Memory Full Warning
Log database memory is full. You not be able to add any new records. Free the log database
memory by uploading the data to the PC.
9. Firmware Management mode (FMM)
FMM allows you to quickly upgrade your Mini123EX's internal firmware via com port and also
check validity of currently loaded firmware. Contact your dealer for most recent firmware
upgrade files.
10. Bluetooth Mode
For normal use, the unit is powered by battery. Push the Power Switch Button
for about 2.5 seconds to turn on the unit. the bluetooth will standby and Bluetooth & Battery
Status LED Indicator light show blue, when the unit will be turned on in by the PC through the
Bluetooth Adapter and the PC is running Mini400B software,the bluetooth will standby and
Bluetooth & Battery Status LED Indicator light show blink blue.
- 8 -
WAS-T0233
1
Connections
1
USB 4P FEMALE PIN
1
3
2
4
Connect to PC
FUNCTION
VCC
D -
D +
GND
USB
PORT
MINI USB 4P
1
2
3
4
FUNCTION
VCC
RXD
TXD
GND
Personal Computer
Mini400B
Note:
1. When Mini400B is connected/disconnected to USB port, it would be turned On/Off automatically.
2. Normally the charging time is about 1.5 ~ 2.5 hours (Default setting is low battery charge mode, it is detected
when the battery is low, it would be charge until Full automatically). The working hours would be more than 48
hours (Stand alone and Always On). When Mini400B is connected with USB.
3. The battery life is more than 300 times. If user uses improperly charge mode, it may affect the battery life.
- 9 -
CARD DATA STRING
TRACK 1 TRACK 2 TRACK 3
TRACK1 DATA
SS ES
TRACK1 DATA% ? ; ?TRACK2 DATA + ?TRACK3 DATA
SS ESTRACK2 DATA SS ESTRACK3 DATA
TRACK 1
CARD ID% ?
1. SS is the start sentinel ( % ).
2. ES is the end sentinel ( ? ).
3. Card Id up to 76 alphanumeric data characters.
TRACK 2
CARD ID; ?
1. SS is the start sentinel ( ; ).
2. ES is the end sentinel ( ? ).
3. Card Id up to 37 numeric data characters.
DATE & TIME
SP DATE SP TIME SP WEEK
DATE TIME WEEK
Track 1 IATA
Bits Per Inch 210
Bits Per Character 7
Alphanumeric Characters 79
Track 2 ABA
Bits Per Inch 75
Bits Per Character 5
Numeric Characters 40
TRACK 3
CARD ID+ ?
1. SS is the start sentinel ( + ).
2. ES is the end sentinel ( ? ).
3. Card Id up to 104 numeric data characters.
DATE&TIME&WEEK
SP DATE
YYYY/MM/DD
1. SP is the SPACE characters ( 20h ).
2. TIME is 24hr .
SP TIME WEEKSP
SP
HH:MM:SS
Track 3 Thrift
Bits Per Inch 210
Bits Per Character 5
Numeric Characters 107
WEEK
SUN
WSP
MON
TUE
WED
THU
FRI
SAT
1
2
3
4
5
6
7
- 10 -
MC
1 2 3
Magnetic Stripe Card :
TRACK 1 / IATA / 210 bpi / 79 Alphanumeric Characters
TRACK 2 / ABA / 75 bpi / 40 Numeric Characters
TRACK 3 / Thrift / 210 bpi / 107 Numeric Characters
BlueTooth
USB
Ver 1.1
GN
VER 1.2
RTC
2048
REC QUEUE
Li-Polymer
Rechargeable
Bluetooth Interface :
SPP Profile ,Class 2 ,Compatible Bluetooth V2.0+EDR,V1.2,V1.1
USB Interface
Full compliance with the USB Specification V 1.1
The device uses a Virtual Serial Port Driver, making it appear to
have the software like a standard RS232 Serial Port.
ET
Communication Protocol :
Version 1.2 (GNET V1.2)
CLOCK :
Real Time Clock (RTC) module and back-up capacitor
Memory Size for Storing Data :
CMOS Serial Flash Memory 512K bytes
Up to 2048 records ( 256 Bytes / Record )
Battery Power :
Rechargeable Lithium-ion Polymer Battery
Nominal Capacity: 250 mAH ( Typical )
Nominal Voltage: 3.7 V
Cycle Life: 300 cycles ( at least )
Low Battery Detect and Built-in Quick Charge Circuit
AC
DC
Power Supply for Charge :
DC 5V , 200mA ( for RS-232 ) or USB Powered
Charging duration time : 1.5 ~ 2.5 hr
Working duration time after charge : 48 hr ( always power on )
Dimensions :
L 82 x W 27.5 x H 21 mm
%
C/F
Environment :
Operating Temp : -0℃ ~ +60℃ ( Discharge )
-0℃ ~ +45℃ ( Charging )
Storage Temp : -10 ~ +65℃
Humidity : 10 ~ 90 % relative
Mounting :
Portable or Any surface
- 11 -
GNET FEATURES
Support TTY (TELE TYPE) OPERATION -
Use TTY to send commands and messages.
Simple handshaking -
One enquiry one answer back.
Multi-link capability
Expandability -
GNET provides 4 major functions:
1. POLLING
2. LOGIN / LOGOUT
3. DATABASE
4. INFORMATION
Also can be expandable.
Simple format
Use ASCII value for each field and use Separator "," between two
Fields.
GNET Handshaking
ACK
TX1
RX1 RX2
RX
ACK
GNET PACKET
STX CMD CONTENTS CHKSUM CR
STX REPLY CONTENTS CHKSUM CR
ITEM Dec Control Key Function Hex
STX
CMD
CONTENTS
CHKSUM
CR
REPLY (78) 65 (N) A (Negative) Acknowledge(4e) 41
2 ^B Start of Text 02
Ascii Ascii Command CodeAscii
Ascii Ascii Contents DataAscii
Ascii Ascii Check SumAscii
13 ^M Carriage Return0d
NACK TIME OUT
TX2 TX4RX
NACK
TX3
RX
ERR
RX
NACK
NACK
TX3
RX3
RX
ACK
NO
RX4
TIME
OUT
WAIT
RX
- 12 -
Command Index Table
Topic Command Contents Description
L
O
P
SETTING
DATABASE
B
C
F
S
T
N
G
E
Reply Index Table
4 Characters for Login(0000)
-
New four digit password
-
-
-
Date,Time,Week
-
-
Number
-
Communication Protocol
Login
Logout
Set Password
Get Register
Set register
Get Product Version
Set Date,Time and Week
Get Date and Time
Get Number of Record
Read Record by Number
Erase All Record
Topic Reply
ACK
NAK
A
N
See Error Index Table
Contents
Reply Information
Error Index Table ( For Reply NAK )
Topic
ACCESS LEVEL
COMMAND CODE
DATABASE
FILE
Error Index
00
01
02
03
04
05
06
07
08
09
0A
Description
ACK+Information
NAK+Information
Description
Access Denied or Password Error
Command packet is too long
Command packet is empty
Command code is out of range
Illegal Command or Data
Database and Register is Empty
Record number is out of range
Check Sum Error
Memory Not Enough
Action Failure
File Not Exist
- 13 -

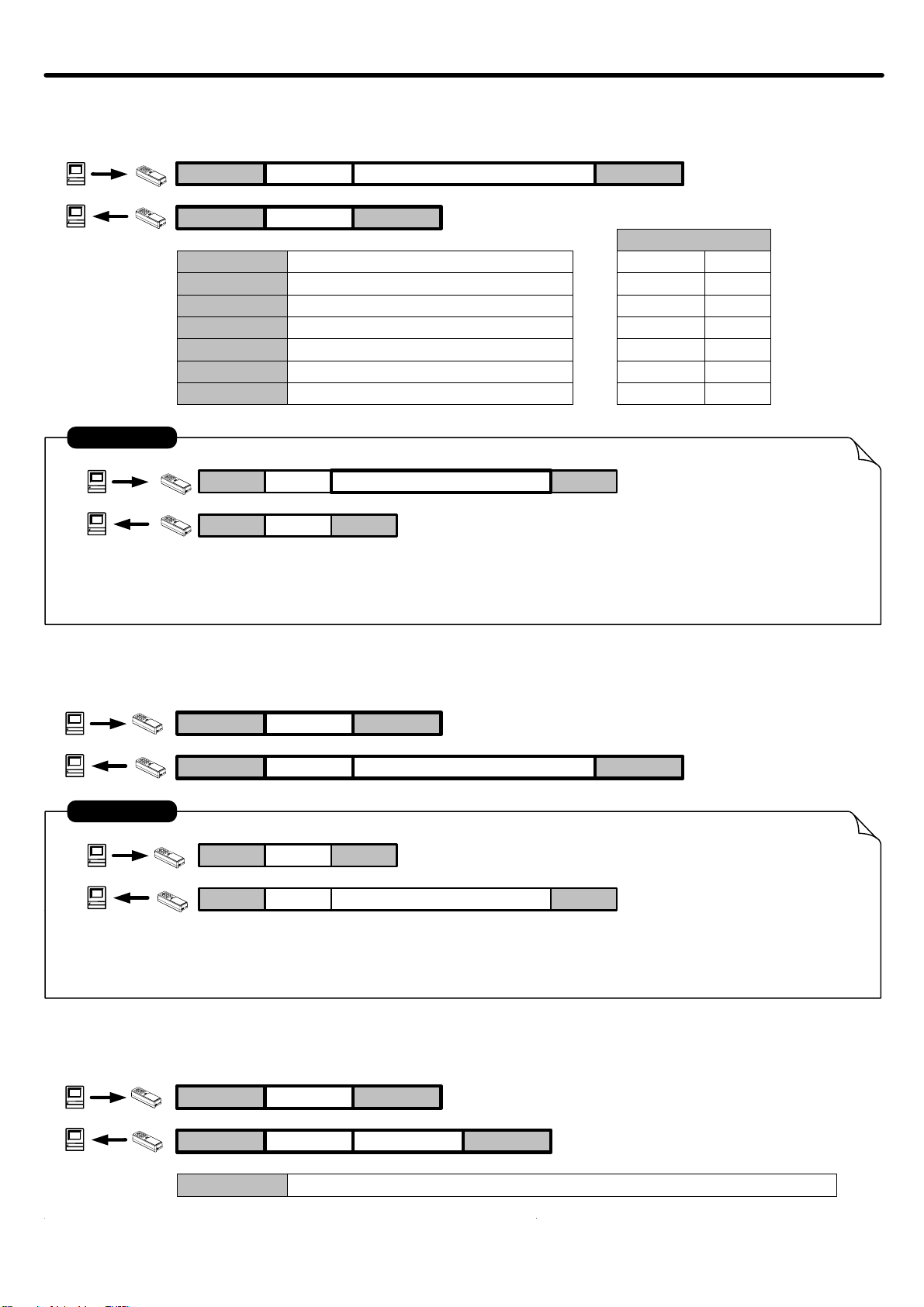

1. GET NUMBER OF RECORD :
STX N CR
Communication Protocol
STX A CR
NUMBER Record Count . 4 Bytes Width ( 0000h ~ 0080h )
EXAMPLE
02 N 0d
02 A 0d
The Total of Record Count : 12
NUMBER
000C
2. READ RECORD BY NUMBER :
STX G CR
STX A CR
NUMBER Record Count . 4 Bytes Width ( 0000h ~ 007Fh )
DATA Record Data ( TRACK1 , TRACK2 , TRACK3 )
NUMBER
NUMBER
CHKSUM
14
DATA,
CHKSUM
EXAMPLE
02 G 0d
02 A 0d
Read Record Number : 11
TRACK1 ID : ABCD , TRACK2 ID : 2222 , TRACK3 ID : 3333
000B
000B
, ABCD%? ; ?2222 + ?3333
3. ERASE ALL RECORD :
STX E CR
STX A CR
EXAMPLE
02 E 0d
02 A 0d
C7
ERASE ALL RECORD
- 14 -
4. SET DATE AND TIME :
Communication Protocol
STX S CR
STX A CR
YYYY
MM
DD
hh
mm
ss
W Week ( 1 - 7 )
EXAMPLE
02 S 0d
02 A 0d
Set Date = 2000 / 5 / 5
Set Time = 12 : 30 : 00 , Friday
YYYYMMDDhhmmssw
Year (1980 - 20xx )
Month (01 - 12 )
Date ( 01 - 31 )
Hour ( 00 - 23 )
Mintue ( 00 - 59 )
Second ( 00 - 59 )
200005051230006
SUN
MON
TUE
WED
THU
FRI
SAT
Week
1
2
3
4
5
6
7
5. GET DATE AND TIME:
STX T CR
STX A CR
EXAMPLE
02 T 0d
02 A 0d
Get Date : 2000 / 11 / 8
Get Time : 14 : 20 : 31 , Wednesday
6. GET PRODUCT VERSION :
STX F CR
YYYYMMDDhhmmssw
200011081420314
STX A CR
VxxRmm , Vxx : Firmware Version x.x , Rmm : Modify mm TimesVERSION
VERSION
- 15 -
EXAMPLE
02 F 0d
02 A 0dV1.0R00
Firmware Version = 1.0
Modify times = 0

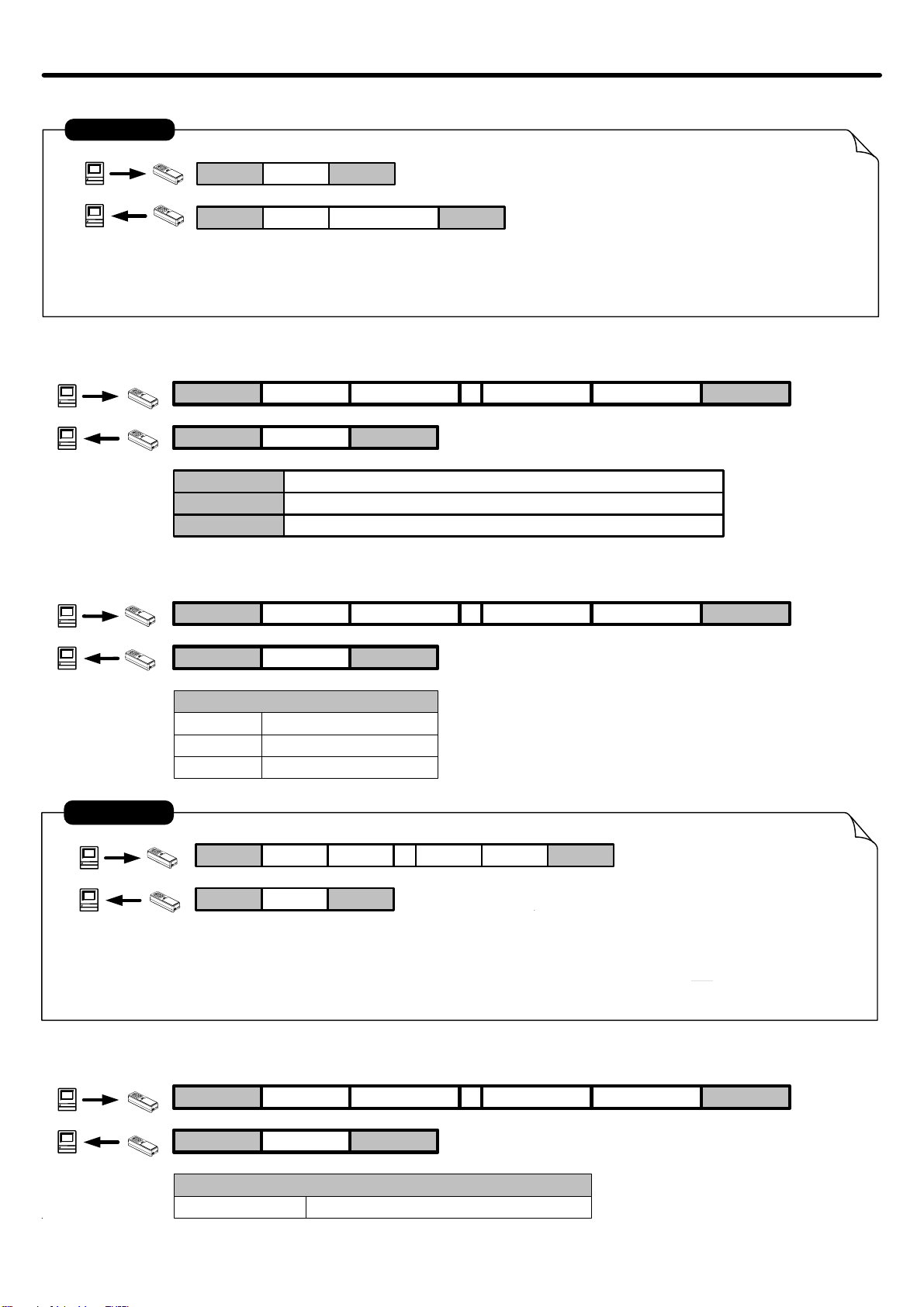

7. SET REGISTER :
Communication Protocol
STX C CR
STX A CR
REGISTER
PARAM
CHKSUM C + REGISTER + , + PARAM
Register Address . 2 Bytes Width ( 00h ~ FFh )
Set Parameters of Register
7-1. SET POWER MODE :
STX C CR
STX A CR
MODE
"00"
"01~FE"
"FF" Always Power ON
EXAMPLE
Real Control
Auto Power OFF
REGISTER , PARAM CHKSUM
12 , MODE CHKSUM
02 C 0d
02 A 0d
Write to Parameter Table Address : 12 h
Set Power Mode : Real Control
CHKSUM= 43h(C) + 31h(1)+ 32h(2) + 2Ch(,) +30h(0) + 30h(0) = 132
= 33h(3) + 32h(2)
12 , 00 32
7-2. SET AUTO POWER OFF TIME (LOW BYTE) :
STX C CR
STX A CR
"00-FF" 00h-FFh (0-255)/2 Second
10 , SECL CHKSUM
SECL
- 16 -
Modem : 2400
Non- modem : 9600
h
EXAMPLE
Communication Protocol
02 C 0d
02 A 0d
Write to Parameter Table Address : 10 h
Auto Power Off Time (Low Byte) : 5 Seconds
10 , 0A 41
7-3. SET AUTO POWER OFF TIME (HIGH BYTE) :
STX C CR
STX A CR
"00-FF"
EXAMPLE
11 , SECH CHKSUM
SECH
(00-FF)/2 *256 Seconds
Modem : 2400
Non- modem : 9600
02 C 0d
02 A 0d
Write to Parameter Table Address : 11 h
Auto Power Off Time (High Byte) : 2/2*256 Seconds
11 , 02 33
7-4. SET BUZZER ON/OFF :
STX C CR
STX A CR
"FF"
EXAMPLE
19 , MODE CHKSUM
MODE
BUZZER OFF
BUZZER ON"xx"
Modem : 2400
Non- modem : 9600
02 C 0d
02 A 0d
Write to Parameter Table Address : 19 h
xx : any value
19 , 48 45
Modem : 2400
Non- modem : 9600
- 17 -
7-5. SET TRACK ACTIVE MODE :
Communication Protocol
STX C CR
STX A CR
TRACK
"30"
EXAMPLE
02 C 0d
02 A 0d
Write to Parameter Table Address : 30 h
TRACK ACTIVE MODE : TRACK 1 ENABLE .
TRACK 1
TRACK2"31"
TRACK3"32"
30 , FF 5E
7-6. SET POWER SAVE MODE :
TRACK , MODE CHKSUM
MODE
ENABLE"FF"
DISABLE"00"
REQUIRED"01"
STX C CR
STX A CR
MODE
EXAMPLE
02 C 0d
02 A 0d
Write to Parameter Table Address : 1E h
Power Save Mode : Power Save Mode Disable .
POWER SAVE , MODE CHKSUM
DISABLE"FF"
ENABLE"00~FE"
1E , FF 71
- 18 -
8. GET REGISTER :
Communication Protocol
STX B CR
STX A CR
REGSTER
PARAM
Register Address . 2 Bytes Width ( 00h ~ FFh )
Set Parameters of Register
8-1. GET POWER MODE :
STX B CR
STX A CR
Same 7-1. SET POWER MODE
EXAMPLE
02 B 0d
REGSTER
PARAM CHKSUM
12
MODE CHKSUM
12
02 A 0d
Write to Parameter Table Address : 12 h
Get Power Mode : Real Control
00 A1
8-2. GET AUTO POWER OFF TIME (LOW BYTE) :
STX B CR
STX A CR
Same 7-2. SET AUTO POWER OFF TIME (LOW BYTE )
EXAMPLE
02 B 0d
02 A 0d
10
SECL CHKSUM
10
0A B2
Get Parameter From Parameter Table Address : 10 h
Auto Power Off Time Period (Low Byte) : 5 Seconds
- 19 -
8-3. GET AUTO POWER OFF TIME (HIGH BYTE) :
Communication Protocol
STX B CR
STX A CR
Same 7-3. SET AUTO POWER OFF (HIGH BYTE)
EXAMPLE
02 B 0d
02 A 0d
Get Parameter From Parameter Table Address : 11 h
Auto Power Off Time Period (High Byte) : 2*256/2 Seconds
11
SECH CHKSUM
11
02 A3
8-4. GET SOUND MODE :
STX B CR
STX A CR
19
SECH CHKSUM
EXAMPLE
02 B 0d
02 A 0d
Get Parameter From Parameter Table Address : 19 h
SOUND MODE : ENABLE
19
FF CD
8-5. GET TRACK ACTIVE MODE :
STX B CR
STX A CR
TRACK
TRACK
SECH CHKSUM
TRACK 1"30"
TRACK2"31"
TRACK3"32"
EXAMPLE
02 B 0d
02 A 0d
Get Parameter From Parameter Table Address : 30 h
TRACK 1 ACTIVE MODE : ENABLE
30
FF CD
- 20 -
9. LOGIN :
Communication Protocol
PASSWORD 4 Characters for Login. 0000=Initial value
EXAMPLE
Login password : 0000
10. LOGOUT :
STX L CR
STX A CR
02 L 0d
02 A 0d
STX O CR
STX A CR
PASSWORD
0000
EXAMPLE
02 O 0d
02 A 0d
Logout
11. SET PASSWORD :
STX P CR
STX A CR
PASSWORD New four digit password
EXAMPLE
02 P 0d
PASSWORD CHKSUM
1234 1A
02 A 0d
Set new password : 1234
- 21 -
Communication Protocol
12. GET/SET BLUETOOTH NAME(only workable with cable WAS-T0233)
:
STX K CR
STX A CR
NAME default setting=MINI400
EXAMPLE
02 K
02 A 0d
G=GET S=SET
1 G/S
1 G
NAME
MINI400B
0d
12-1. GET/SET BLUETOOTH PIN CODE(only workable with cable WAS-T0233)
:
STX K CR
STX A CR
2 G/S
PIN CODE
NAME default setting=MINI400
EXAMPLE
02 K
02 A 0d
G=GET S=SET
2 G
Set new PIN CODE : 1234
1234
0d
12. SET BLUETOOTH PAIR CLEAR(only workable with cable WAS-T0233)
:
STX K CR
STX A CR
NAME default setting=MINI400
EXAMPLE
3 S
S=SET
02 K
02 A 0d
3 S
0d
- 22 -
Loading...
