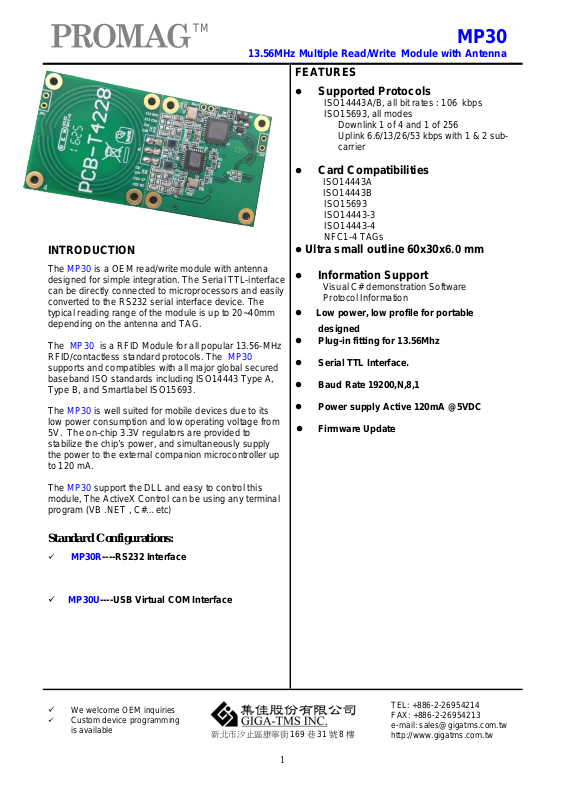

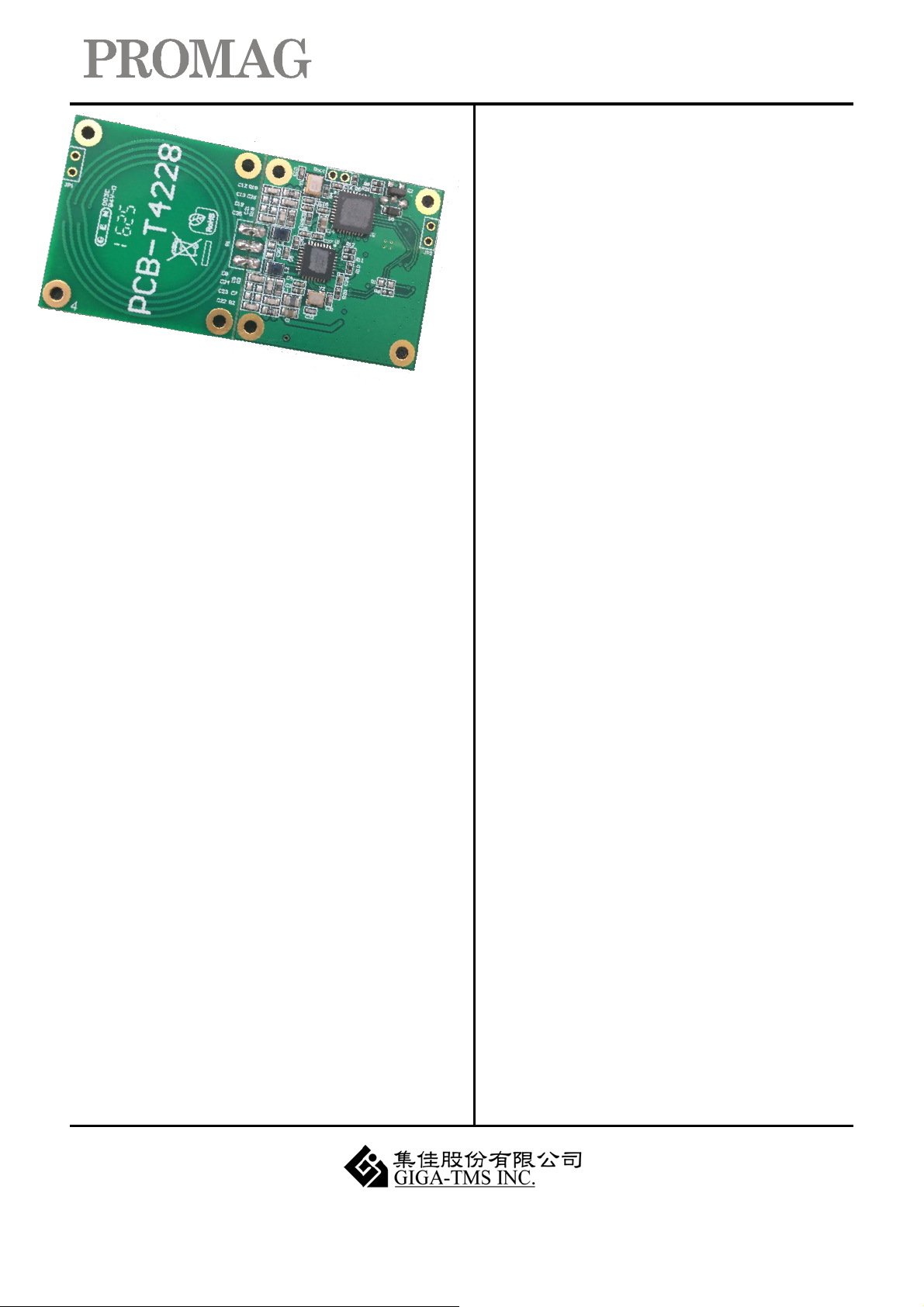

Page 1
INTRODUCTION
TM
MP30
13.56MHz Multiple Read/Write Module with Antenna
FEATURES
z Supported Protocols
ISO14443A/B, all bit rates : 106 kbps
ISO15693, all modes
Downlink 1 of 4 and 1 of 256
Uplink 6.6/13/26/53 kbps with 1 & 2 subcarrier
Card Compatibilities
z
ISO14443A
ISO14443B
ISO15693
ISO14443-3
ISO14443-4
NFC1-4 TAGs
z Ultra small outline 60x30x6.0 mm
The MP30 is a OEM read/write module with antenna
designed for simple integration. The Serial TTL-interface
can be directly connected to microprocessors and easily
converted to the RS232 serial interface device. The
typical reading range of the module is up to 20~40mm
depending on the antenna and TAG.
The MP30 is a RFID Module for all p
RFID/contactless standard protocols. The MP30
supports and compatibles with all major global secured
baseband ISO standards including ISO14443 Type A,
Type B, and Smartlabel ISO15693.
The MP30 is well suited for mobile devi
low power consumption and low operating voltage from
5V. The on-chip 3.3V regulators are provided to
stabilize the chip’s power, and simultaneously supply
the power to the external companion microcontroller up
to 120 mA.
The MP30 suppo
module, The ActiveX Control can be using any terminal
program (VB .NET , C#…etc)
rt the DLL and easy to control this
opular 13.56-MHz
ces due to its
Standard Configurations:
z Information Support
Visual C# demonstration Software
Protocol Information
z Low power, low profile for portable
designed
z Plug-in fitting for 13.56Mhz
z Serial TTL Interface.
z Baud Rate 19200,N,8,1
z Power suppl
z Firmware Up
y Active 120mA @5VDC
date
P30R----RS232 Interface
M
9
9 MP30U----USB Virtual COM Interface
9 We welcome OEM inquiries
9 Custom device programming
is available
新北市汐止區康寧街 169 巷 31號 8樓
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: [email protected]
http://www.gigatms.com.tw
1
Page 2

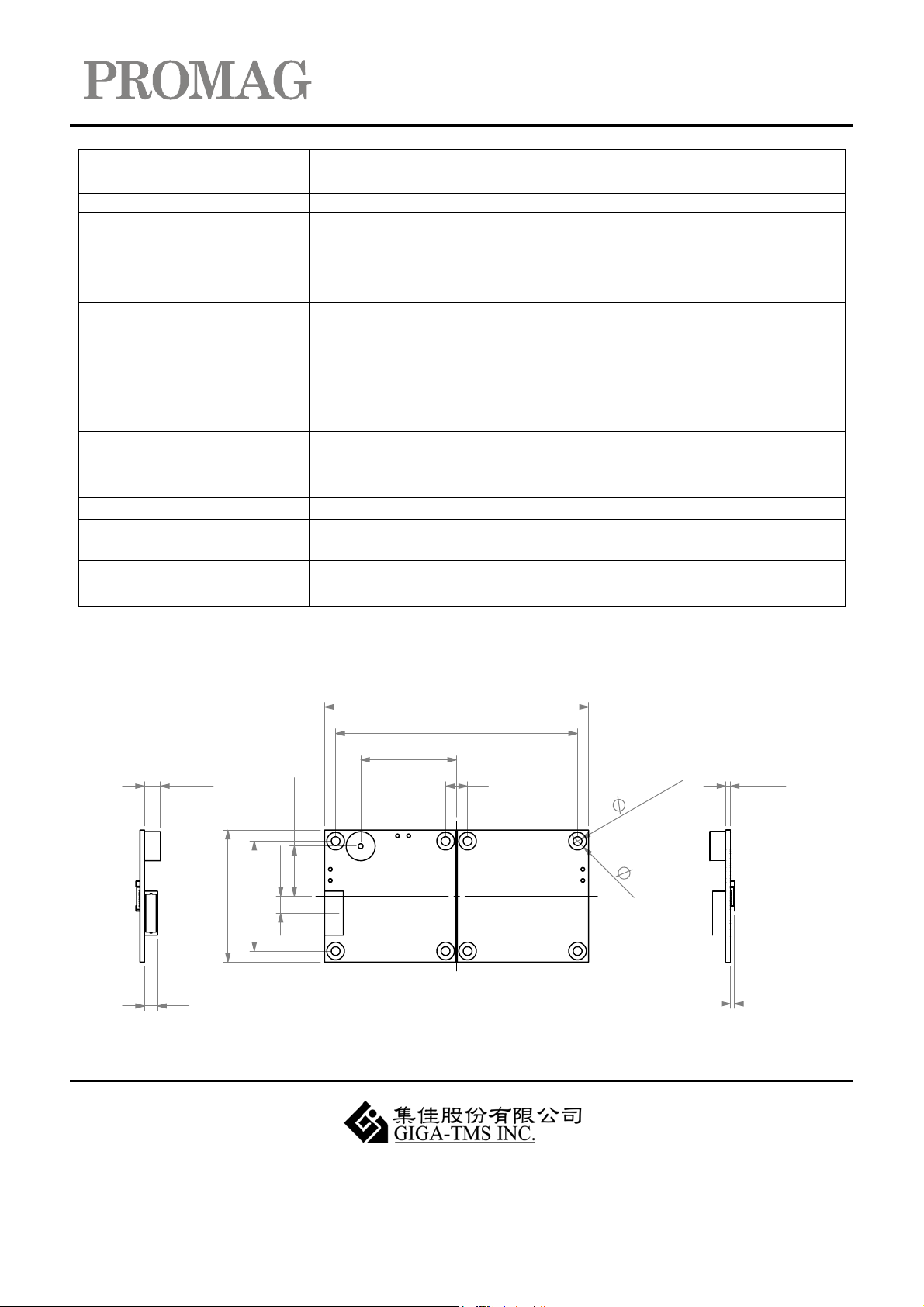

SPECIFICATIONS:
POWER REQUIREMENT
CURRENT REQUIREMENTS
INTERFACE
SUPPORTED PROTOCOLS
TM
MP30
13.56MHz Multiple Read/Write Module with Antenna
5V regulated for Operate Voltage . A linear regulator is recommended.
Active 120mA @5VDC
Serial TTL (reserved)/ RS232 / USB HID (reserved)/ USB Virtual COM Interface
ISO14443A/B, all bit rates : 106 kbps
ISO15693, all modes
Downlink 1 of 4 and 1 of 256
Uplink 6.6/13/26/53 kbps with 1 & 2 sub-carrier
CARD TYPE
FERQUENCY
READ RANGE
TRANSPONDER
BAUD RATE
DIMENSIONS
WEIGHT
ENVIRONMENT
PACKAGE DESCRIPTION
3.65
11.35
ISO14443A
ISO14443B
ISO15693
ISO14443-3
ISO14443-4
NFC1-4 TAGs
13.56MHz standard.
Mifare : 1~3 cm
ISO 15693 : 2~4 cm
Read / Write
19200,N,8,1
SMT: 60(L) x 30(W) x 6.0(H) mm
5.0g
Operating Temp : -20℃ ~ +80℃
Humidity : 10 ~ 90 % relative
60
55
21.80
5
T=1.0
2 Hole
8-
3.90
25
30
3
9 We welcome OEM inquiries
9 Custom device programming
is available
新北市汐止區康寧街 169 巷 31號 8樓
2
4
0.95
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: [email protected]
http://www.gigatms.com.tw
Page 3
TM
MP30
13.56MHz Multiple Read/Write Module with Antenna

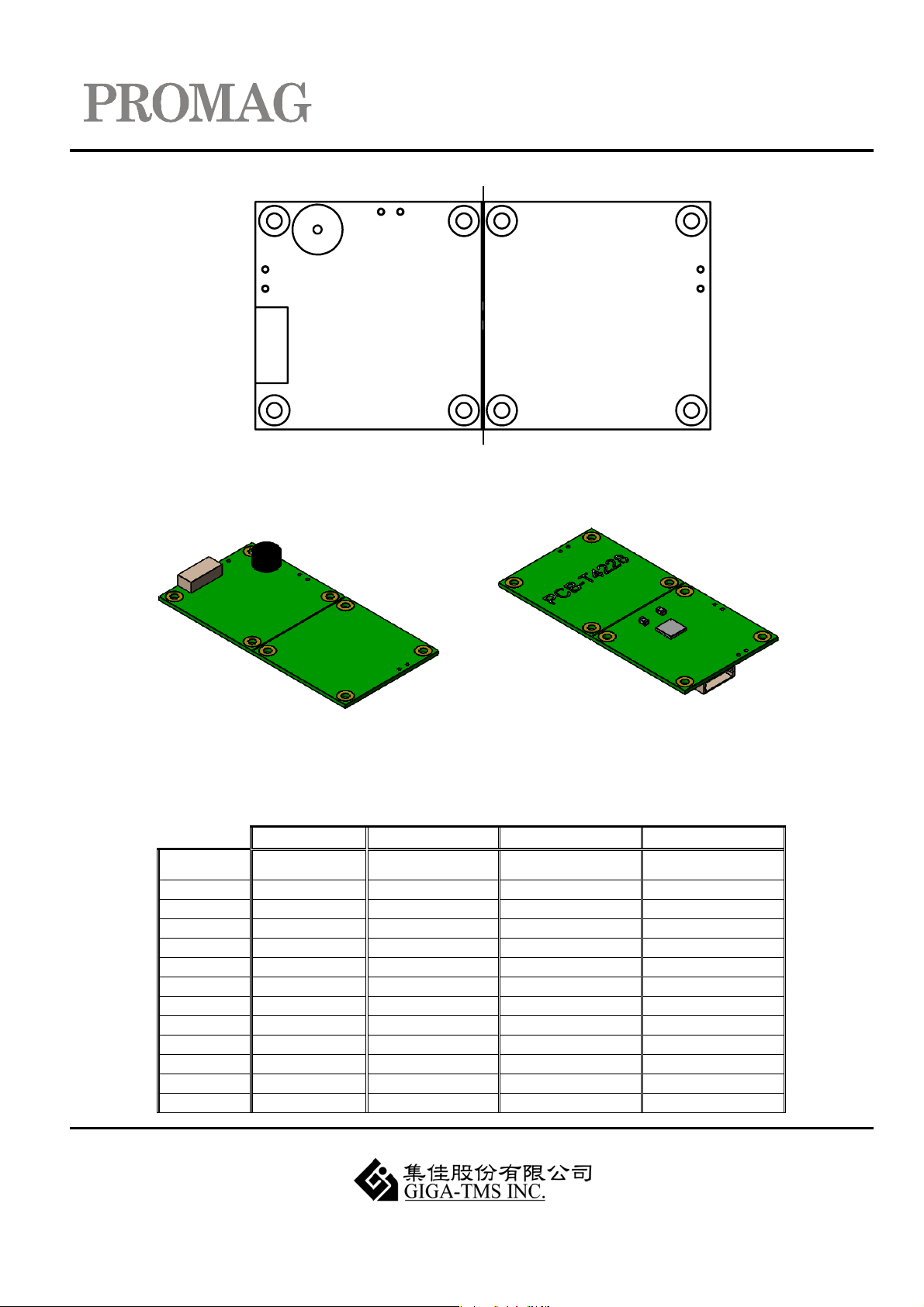

Main board
Antenna
V-Cut
MP30R- 00 MP30U- 00
Description RS232
Pin Numbers 8 8
Connector JST SH 1.0mm JST SH 1.0mm
PIN#
1 +5 VDD +5 VDD
2 TXD D3 RXD D+
4 GND GND
5 SHIELD
6 -- -7 -- -8 -- --
9 We welcome OEM inquiries
9 Custom device programming is
available
USB
(Virtual serial port)
SHIELD
新北市汐止區康寧街 169 巷 31號 8樓
3
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: [email protected]
http://www.gigatms.com.tw
Page 4

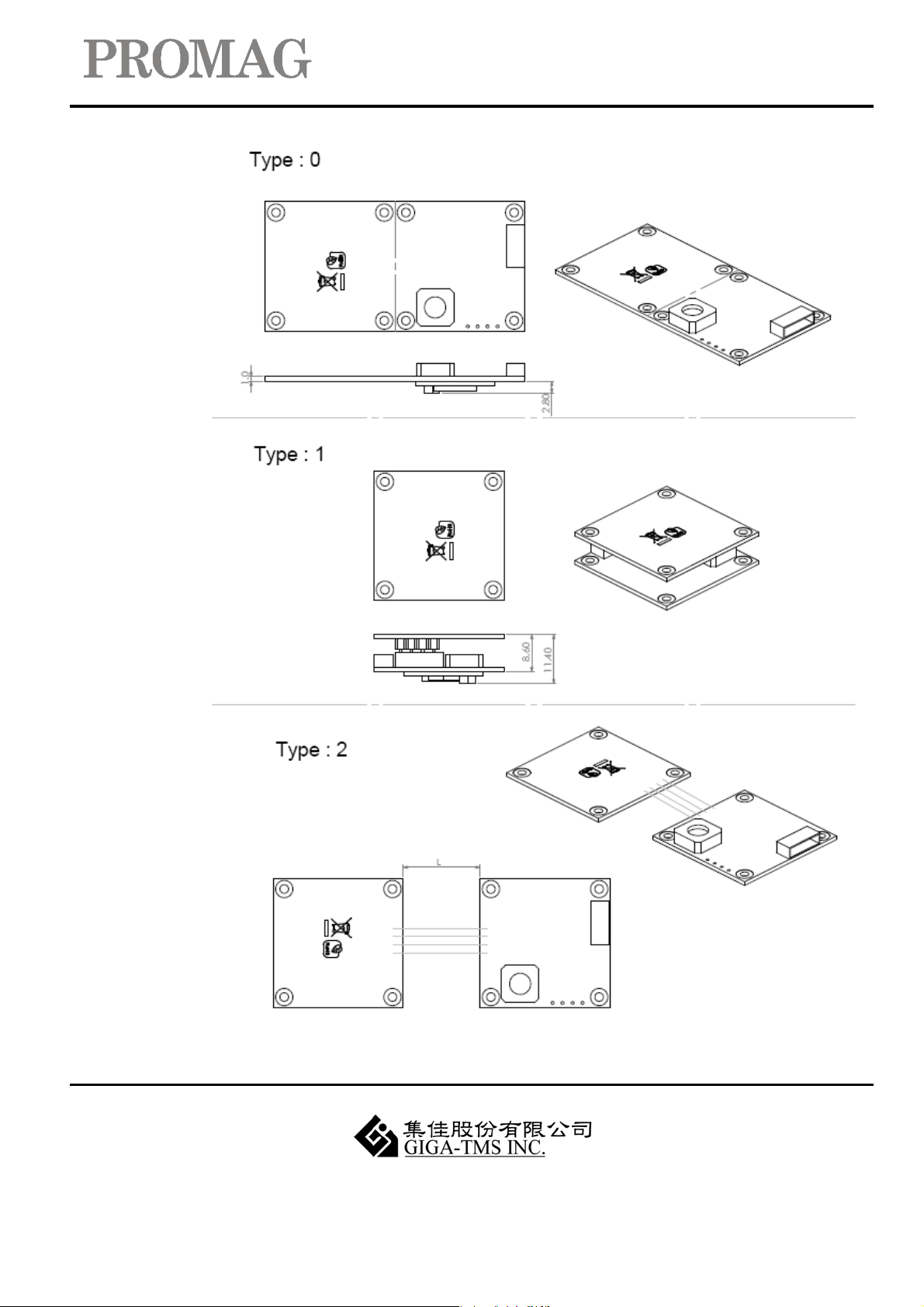

Appendix A
TM
MP30
13.56MHz Multiple Read/Write Module with Antenna
9 We welcome OEM inquiries
9 Custom device programming is
available
新北市汐止區康寧街 169 巷 31號 8樓
4
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: [email protected]
http://www.gigatms.com.tw
Page 5
TM
MP30
13.56MHz Multiple Read/Write Module with Antenna
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
The module must be installed in RFID Multi-ISO Protocol Modules.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the
following: “Contains FCC ID: WXAMP30”.
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the
end product which integrates this module.
9 9 We welcome OEM inquiries
Custom device programming is
available
新北市汐止區康寧街 169 巷 31號 8樓
5
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: [email protected]
http://www.gigatms.com.tw
