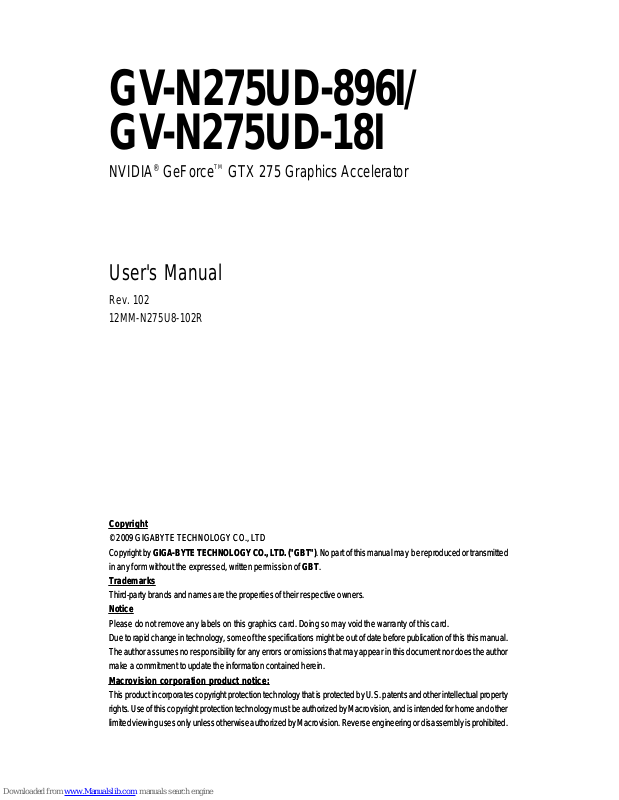

Gigabyte NVIDIA GeForce GTX 275 User Manual

GV-N275UD-896I/ GV-N275UD-18I
NVIDIA® GeForce
TM
User's Manual
Rev. 102 12MM-N275U8-102R
Copyright
© 2009 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT") . No part of this manual may be reproduced or transmitted in any form without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the properties of their respective owners.
Notice
Please do not remove any labels on this graphics card. Doing so may void the warranty of this card. Due to rapid change in technology, some of the specifications might be out of date before publication of this this manual. The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein.
Macrovision corporation product notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Copyright
© 2009 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT") . No part of this manual may be reproduced or transmitted in any form without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the properties of their respective owners.
Notice
Please do not remove any labels on this graphics card. Doing so may void the warranty of this card. Due to rapid change in technology, some of the specifications might be out of date before publication of this this manual. The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein.
Macrovision corporation product notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
VGA Card
GV-N275UD-896I
Apr.13,2009
Apr.13,2009
VGA Card
GV-N275UD-896I
VGA Card
GV-N275UD-18I
Sep.16,2009
Sep.16,2009
VGA Card
GV-N275UD-18I
- 4 -
Table of Contents
1. Introduction ................................................................................................................ 5
1.1. Features ......................................................................................................................... 5
1.2. Minimum System Requirements .................................................................................... 5
2. Hardware Installation.................................................................................................. 6
2.1. Board Layout ................................................................................................................. 6
2.2. Hardware Installation......................................................................................................8
3. Software Installation.................................................................................................. 10

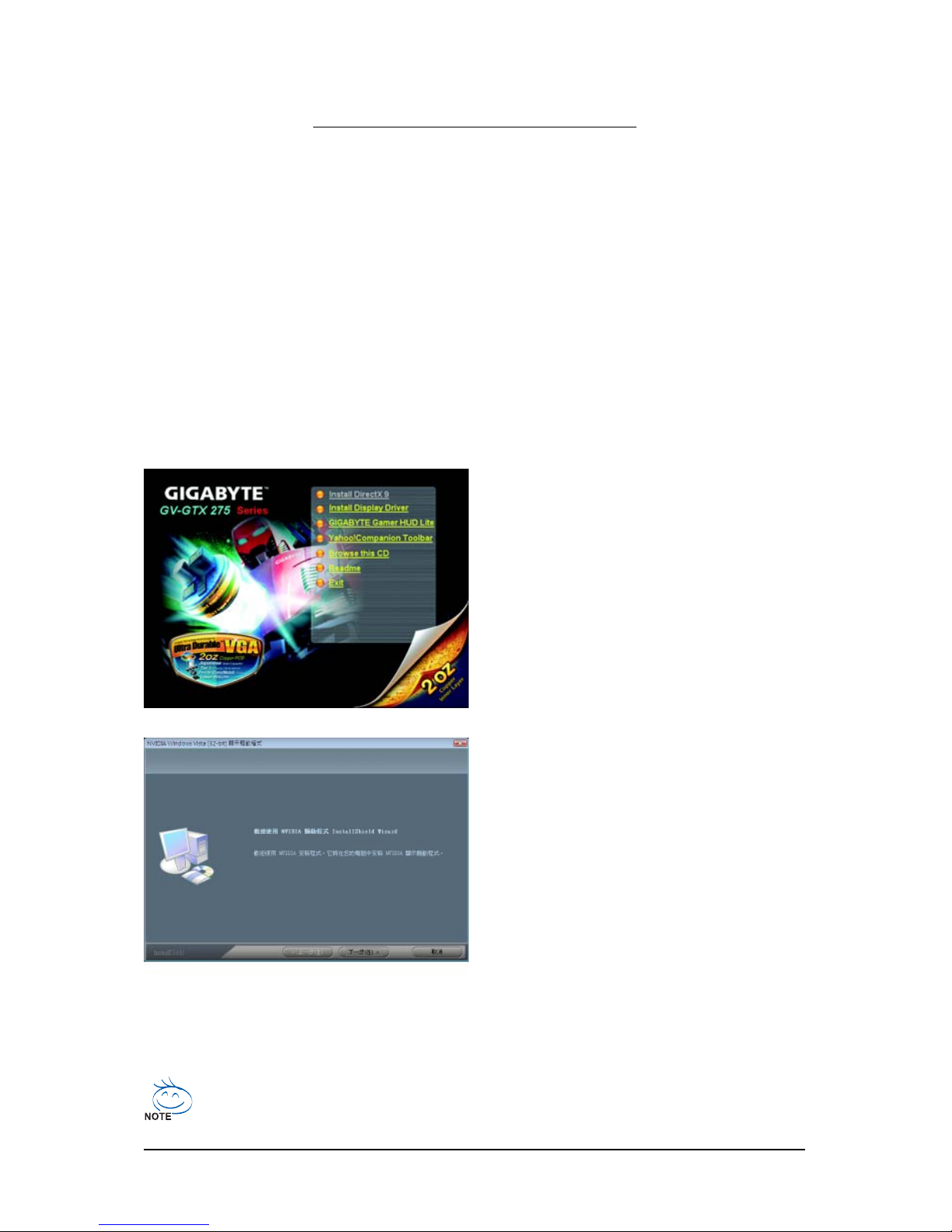

3.1. Driver and Utility Installation......................................................................................... 10
3.1.1. Driver Installation ......................................................................................................... 10
3.1.2. GIGABYTE Gamer HUD Lite on Driver Disk ........................................................... 12

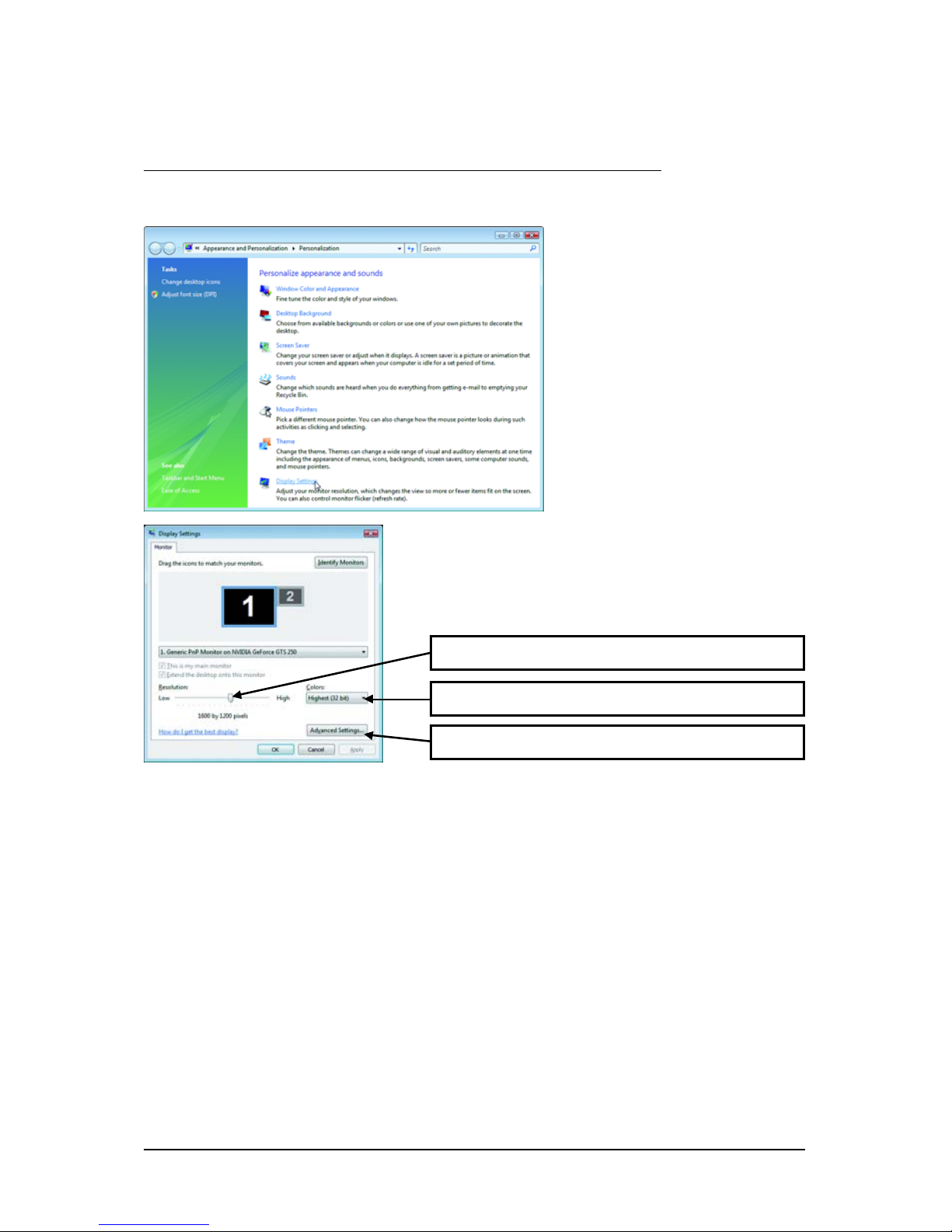

3.2. Display Properties Pages ........................................................................................ 14
3.3. Accessing NVIDIA Control Panel............................................................................ 15
4. Troubleshooting Tips................................................................................................ 23
5. Appendix ................................................................................................................. 24
5.1. How to Reflash the BIOS in MS-DOS Mode.............................................................. 24
5.2. Resolutions and Color Depth Tables............................................................................. 25
5.3. Regulatory Statements ................................................................................................. 27
- 5 - Introduction
1. Introduction
1.1. Features
Powered by NVIDIA® GeForce
TM
GTX 275 Graphics Processing Unit (GPU)
Supports PCI Express 2.0
Integrated with 1792 MB GDDR3 memory (For GV-N275UD-18I only)
Integrated with 896 MB GDDR3 memory (For GV-N275UD-896I only)
Supports DirectX 10
Supports NVIDIA
®
SLITM (Scalable Link Interface) technology
(Note)
Supports 1 HDMI connector
Supports 1 D-Sub connector
Support 1 DVI-I connectors
Supports HDCP (High-Bandwidth Digital Content Protection) technology
1.2. Minimum System Requirements
Hardware
- Intel
®
Pentium®/CoreTM 2 or AMD AthlonTM/Phenom
TM
- 512 MB of system memory; 2 GB or more for best performance
- Optical drive for software installation (CD-ROM or DVD-ROM drive)
- A 550 Watt power supply or above is a must
Operating System
- Windows
®
7
- Windows
®
Vista
- Windows
®
XP with Service Pack 2 (SP2)
- Windows
®
XP Professional x64 Edition
SLI
TM
Configuration
If you are planning on using this graphics card as part of an SLI system, the following are required:
- An SLI certified motherboard with two PCI Express x16 slots and correct chipset driver
- Two GV-N275UD-896I/GV -N275UD-18I
- A power supply with 700-watt or above is recommended
- An SLI bridge connector
(Note) SLI technology requires a PCI Express motherboard with two x16 physical connectors. Graphics cards working in an
SLI configuration must be with the same model name (e.g. GV-N275UD-896I/GV-N275UD-18I) and from the same vendor (e.g. GIGABYTE TECHNOLOGY).
- 6 -
GV-N275UD Series Graphics Accelerator
2. Hardware Installation
2.1. Board Layout
DVI-I Connector
D-Sub monitor Connector
(15-pin)
HDMI Connector
SLI Connector
DVI-I Connector
Analog LCD Monitor Analog Monitor
or
Digital LCD Monitor
DVI Output
D-Sub Output
DVI-I to D-Sub Adapter(optional)
HDMI TV
Analog LCD Monitor Analog Monitor
or
HDMI Connector
D-Sub monitor Connector (15-pin)
HDMI to DVI-I Adapter (Optional)
Digital LCD Monitor
- 7 - Hardware Installation
Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static electricity, so the card should be left in its original packing until it is installed. Unpacking and installation should be done on a grounded anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same point as the anti-static mat. Inspect the card carton for obvious damage. Shipping and handling may cause damage to your card. Be sure there are no shipping and handling damages on the card before proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF THE GRAPHICS CARD IS DAMAGED.
In order to ensure that your graphics card can work correctly, please use official GIGABYTE BIOS only. Using non-official GIGABYTE BIOS might
cause problem(s) on the graphics card.
- 8 -
GV-N275UD Series Graphics Accelerator
2.2. Hardware Installation
Now that you have prepared your computer, you are ready to install your graphics card. Step 1.
Locate the PCI Express x16 slot. If necessary, remove the metal cover from this slot; then align your graphics card with the PCI Express x16 slot, and press it in firmly until the card is fully seated.
Step 2. Replace the screw to fasten the card in place, and replace the computer cover.
Make sure that the gold edge connector of the graphics card is securely inserted.
Step 3. Plug the display cable into your card; then turn on the computer and monitor. To connect a D-Sub monitor to your graphics card, use the D-Sub connector. To connect a flat panel display to your graphics card, use the DVI-I connector. To connect an HDMI monitor to your graphics card, use the HDMI connector.
Connect a flat panel display
Connect a D-Sub monitor
Connect an HDMI monitor
To Flat Panel DisplayT o D-Sub MonitorT o HDMI Monitor
After installation, remember to connect the power cable to your graphics card, or the system will not boot (refer to page 8 to see the details). Do not touch the card when it's operating to prevent system instability.
- 9 - Hardware Installation
You are now ready to proceed with the installation of the graphics card driver. Please refer to next chapter for detailed instructions.
Step 4. To connect an HDMI TV, follow the steps below to enable the S/PDIF in function for the graphics card.
1. Connect the provided S/PDIF cable to the graphics card.
2. Connect the S/PDIF cable to the motherboard. (the red wire connects to the S/PDIF out pin and the black to the Ground pin)
How NVIDIA® SLITM (Scalable Link Interface) technology works:
In an SLI configuration, two SLI-ready graphics cards of the same model and the same manufacturers are connected together via SLI bridge connector in a system that provides two x16 PCI Express slots to scale graphics performance. The picture below shows that two graphics cards are linked in parallel in an SLI configuration.
SLI bridge connector
(provided by motherboard manufacturer)
Two SLI-ready graphics cards of the same type. (Example: GV-NX88X768H-RH)
