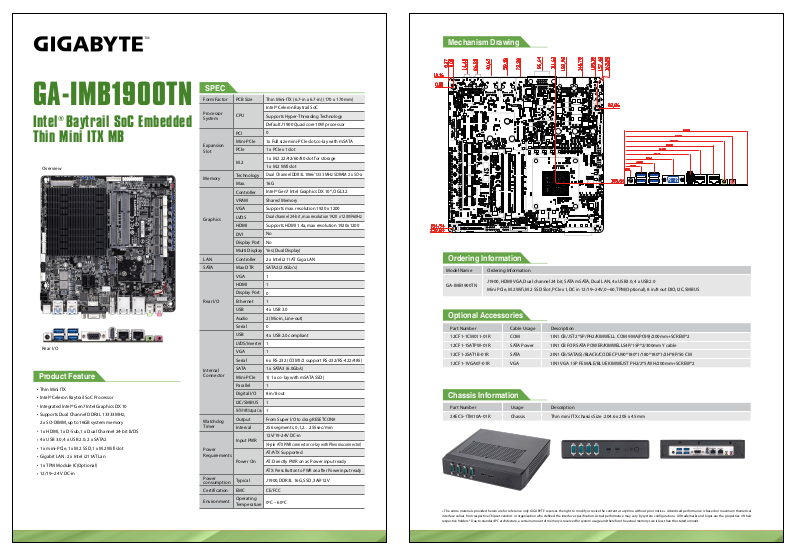

GIGABYTE GA-IMB1900TN Data Sheet

GA-IMB1900TN

Intel® Baytrail SoC Embedded Thin Mini ITX MB

Overview

Rear I/O

Product Feature

Thin Mini ITX

Intel® Celeron Baytrail SoC Processor

Integrated Intel® Gen7 Intel Graphics DX 10

Supports Dual Channel DDR3L 13333MHz,

2 x SO-DIMM, up to 16GB system memory

1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS

4 x USB 3.0, 4 x USB 2.0, 2 x SATA2

1 x mini-PCIe, 1 x M.2 SSD, 1 x M.2 Wifi slot

Gigabit LAN : 2 x Intel i211AT Lan

1 x TPM Module IC(Optional)

12/19~24 V DC-in

SPEC

Form Factor

Processor System

Expansion Slot

Memory

Graphics

LAN

SATA

Rear I/O

Internal Connector

Watchdog Timer

Power Requirements

Power consumption

Certification

Environment

PCB Size

CPU

PCI

Mini-PCIe

PCIe

M.2

Technology

Max.

Controller

VRAM

VGA

LVDS

HDMI

DVI

Display Port

Multi Display

Controller

Max DTR

VGA

HDMI

Display Port

Ethernet

USB

Audio

Serial

USB

LVDS/Inverter

VGA

Serial

SATA

Mini-PCIe

Parallel

Digital I/O

I2C/SMBUS

SATA PWR Output Con

Output

Interval

Input PWR

Power On

Typical

EMC

Operating Temperature

Thin Mini-ITX (6.7-in x 6.7-in) (170 x 170 mm)

Intel® Celeron Baytrail SoC

Supports Hyper-Threading Technology

Default J1900 Quad core 10W processor

1x Full size mini-PCIe slot,co-lay with mSATA

1 x PCIe x1 slot

1 x M.2 22/42/60/80 slot for storage

1 x M.2 Wifi slot

Dual Channel DDR3L 1066/1333 MHz SDRAM 2 x SO-a

16G

Intel® Gen7 Intel Graphics DX 10*, OGL3.2

Shared Memory

Supports max. resolution 1920 x 1200

Dual channel 24-bit , max resolution 1920 x 1200@60Hz

Supports HDMI 1.4a, max resolution 1920x1200

Yes (Dual Display)

2 x Intel i211AT Giga LAN

SATA2 (2.0Gb/s)

4 x USB 3.0

2 (Mic-in, Line-out)

4 x USB 2.0 compliant

6 x RS-232 (COM1/2 support RS-232/RS-422/485)

1 x SATA3 (6.0Gb/s)

1( 1 x co-lay with mSATA SSD)

8 in/8 out

From Super I/O to drag RESETCON#

256 segments, 0,1,2…255sec/min

12V/19-24V DC-in

(4-pin ATX PWR connector co-lay with Pheonix connector)

AT/ATX Supported

AT: Directly PWR on as Power input ready

ATX: Press Button to PWR on after Power input ready

J1900, DDR3L 16G, SSD ,3A@12V

CE/FCC

0ºC – 60ºC

Mechanism Drawing

Ordering Information

Model Name

GA-IMB1900TN

Ordering Information

J1900, HDMI VGA, Dual channel 24 bit, SATA mSATA, Dual LAN, 4 x USB3.0, 4 x USB2.0

Mini PCIe, M.2 Wifi, M.2 SSD Slot, PCIe x1, DC in 12/19~24V, 0~60, TPM(Optional), 8 in/8 out DIO, I2C, SMBUS

Optional Accessories

Part Number Cable Usage Description

12CF1-1CM011-01R

12CF1-1SATPW-01R

12CF1-2SAT1B-01R

12CF1-1VGA07-01R

COM

SATA Power

SATA

VGA

1IN1 CB/JST 2*5P/PH2/KIMWELL COM 9MA(PC99)/200mm+SCREW*2

1IN1 CB FOR SATA POWER/KIMWELLS4P/15P*2/300mm Y cable

2IN1 CB/SATA(S)/BLACK/CODE CPU90*180*1/180*180*1/2H*8P/50 CM

1IN1 VGA 15P FEMALE/BLUE KIMWEJST PH2/2*5/WH/200mm+SCREW*2

Chassis Information

Part Number

24EC5-1TM10A-01R

The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.* Advertised performance is based on maximum theoretical

* interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.* All trademarks and logos are the properties of their

respective holders.* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Usage

Chassis

Description

Thin mini ITX chassis Size : 204.6 x 205 x 45 mm
