Gigabyte GA-6VLEP Schematic Rev.1.0

5

4

3

2

1

D D

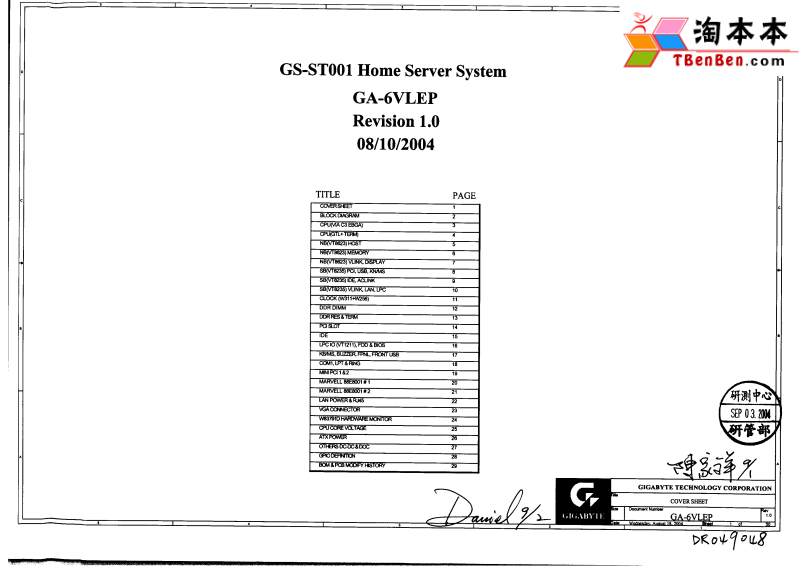

GS-ST001 Home Server System

GA-6VLEP Revision 1.0

08/10/2004

C C

B B

A A

TITLE

COVER SHEET

BLOCK DIAGRAM

CPU(VIA C3 EBGA)

CPU(GTL+ TERM)

NB(VT8623) HOST

NB(VT8623) VLINK, DISPLAY

SB(VT8235) PCI, USB, KN/MS

SB(VT8235) IDE, ACLINK

CLOCK (W311+W256)

DDR DIMM

DDR RES & TERM

PCI SLOT

IDE

LPC IO (VT1211), FDD & BIOS

KB/MS, BUZZER, FPNL, FRONT USB

COM1, LPT & RING 18

MINI PCI 1 & 2 19

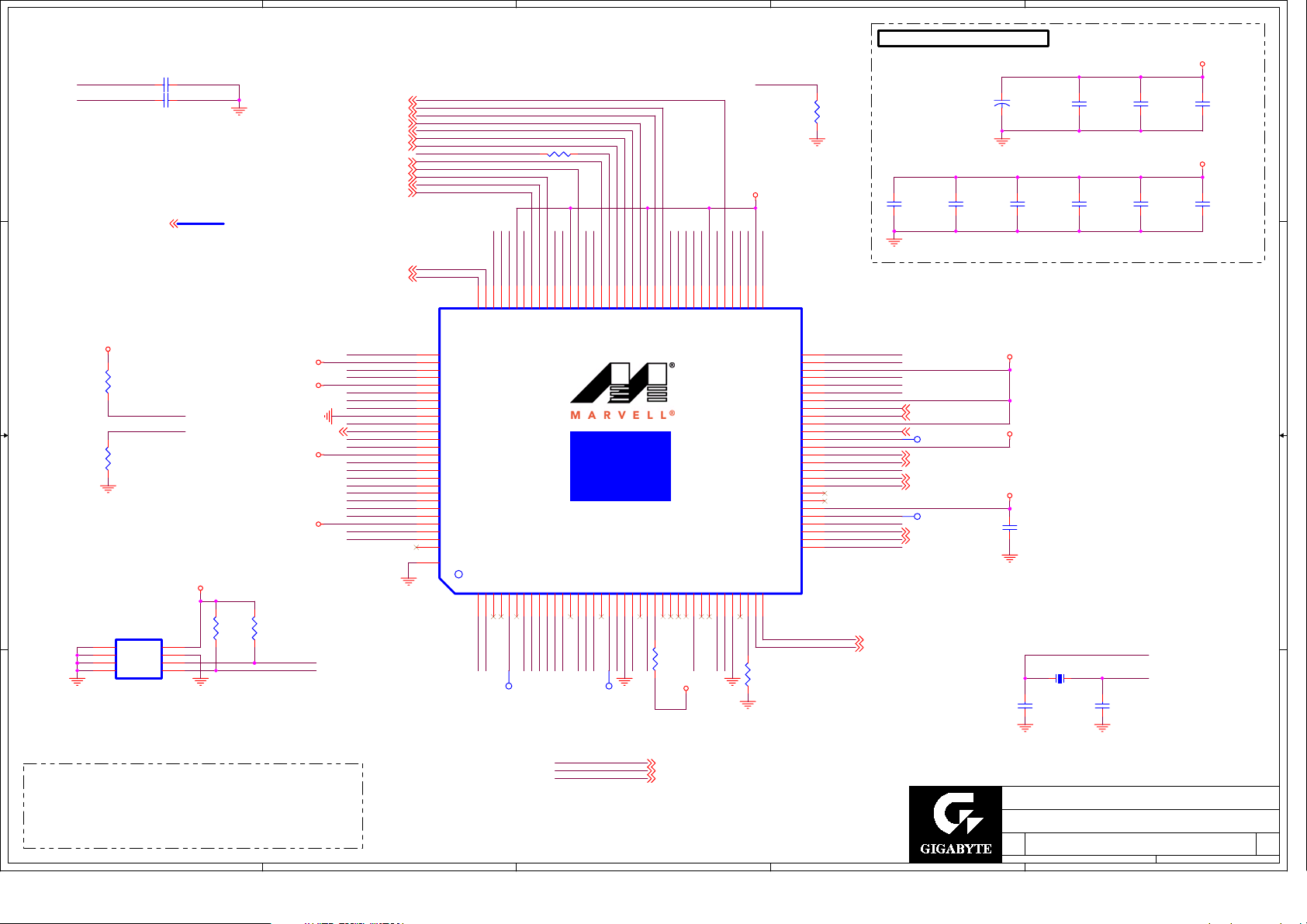

MARVELL 88E8001 # 1 20

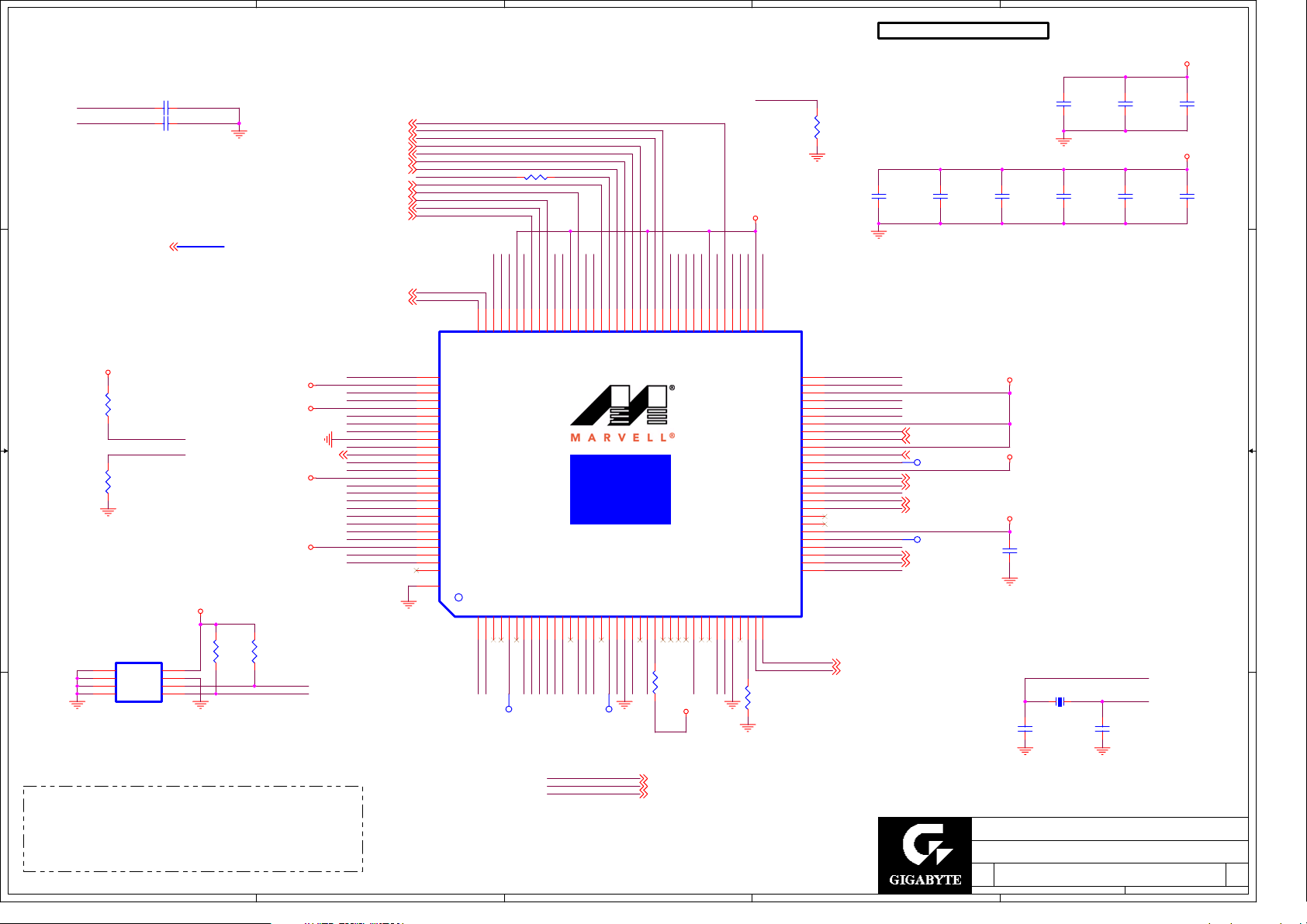

MARVELL 88E8001 # 2 21

LAN POWER & RJ45 22

VGA CONNECTOR 23

W83791D HARDWARE MONITOR

CPU CORE VOLTAGE

ATX POWER

OTHERS DC-DC & DOC

GPIO DEFINITION

BOM & PCB MODIFY HISTORY

PAGE

1

2

3

4

5

6NB(VT8623) MEMORY

7

8

9

10SB(VT8235) VLINK, LAN, LPC

11

12

13

14

15

16

17

24

25

26

27

28

29

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

5

4

3

2

Wednesday, August 18, 2004

COVER SHEET

GA-6VLEP

1

130

1.0

of

5

4

3

2

1

APIC CLK

D D

CPU

CPU CLK

VIA

C3 EBGA

GN-WIAG

HOST CLK

HOST BUS

14.318M

48M

PCI 33M

LPC CLK

CLOCK

GENERATOR

CYPRESS

W311H

SMBUS1

CPU CLK

HUST CLK

DDR CLK

VLINK CLK

RGB

VGA Connector

MINI PCI Connector

C C

PCI BUS

PCI 33M

LAN

MARVELL 88E8001

B B

RJ45

LAN

MARVELL 88E8001

RJ45

MINI PCI Connector

PCI 33M

USB1

USB2

USB 3 & 4

USB 2.0

VIA CLE266

PCI 33M 48M

SMBUS1

SMBUS2

APIC CLK

LPC CLK

NB

VT8623

V-LINK

SB

VIA

VT8235

LPC

SI/O

VIA

14.318M

VLINK CLK

P-IDE

S-IDE

266 DDR SDRAM*1

44 PIN SLIM HDD CONNECTOR

COM1 COM2

SMBUS1

DDR CLK

VT1211

PCI SLOT

USB 5 & 6

Hardware Monitor Circuit

Voltage: Vcore,2.5V,3.3V,12V Temp. Sensor: CPU

BIOS

2M

A A

SMBUS2

Winbond

CPU FAN

SYSTEM FAN

W83791D

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

5

4

3

2

Wednesday, August 18, 2004

BLOCK DIAGRAM

GA-6VLEP

1

230

1.0

of

8

VIA C3 PROCESSOR

7

6

5

4

3

2

1

HA[3:31]

D D

C C

HA[3:31]{4,5}

-ADS{4,5}

-DRDY{4,5}

-DBSY{4,5}

-HTRDY{4,5}

-HREQ0{4,5}

-HREQ1{4,5}

-HREQ2{4,5}

-HREQ3{4,5}

-HREQ4{4,5}

-BREQ0{4,5}

-BREQ1{4}

-BPRI{4,5}

-BNR{4,5}

-HLOCK{4,5}

-HIT{4,5}

-HITM{4,5}

-DEFER{4,5}

-RS0{4,5}

-RS1{4,5}

-RS2{4,5}

-CPURST{4,5}

C93 33P/4/N/50V

1 2

-ADS

-DRDY

-DBSY

-HTRDY

-HREQ0

-HREQ1

-HREQ2

-HREQ3

-HREQ4

-BREQ0

-BREQ1

-BPRI

-BNR

-HLOCK

-HIT

-HITM

-DEFER

-RS0

-RS1

-RS2

-CPURST

HA3 HA4 HA5 HA6 HA7 HA8 HA9 HA10 HA11 HA12 HA13 HA14 HA15 HA16 HA17 HA18 HA19 HA20 HA21 HA22 HA23 HA24 HA25 HA26 HA27 HA28 HA29 HA30 HA31

For LongHaul stability issue

C394

0.1U/4/Y/16V/S

12

C647

4.7U/8/Y/10V/S

-FERR

-IGNNE

-A20M INTR NMI

-SMI

-STPCLK

-SLP

-FLUSH

-CPUINIT

-P_REQ

CPUVREF

12

C648

4.7U/8/Y/10V/S

VTT

-FERR{4,10}

-IGNNE{4,10}

-A20M{4,10} INTR{4,10}

C325

0.1U/4/Y/16V/S

12

NMI{4,10}

-SMI{4,10}

-STPCLK{4,10}

-SLP{4,10}

-FLUSH{4}

-CPUINIT{4,10}

-P_REQ{4}

12

C355

0.1U/4/Y/16V/S

VTT

R257 75/6/1/S

1 2

12

B B

R261 150/6/1/S

C296

0.1U/4/Y/16V/S

C291

0.1U/4/Y/16V/S

12

C397

0.1U/4/Y/16V/S

12

1 2

C395

0.1U/4/Y/16V/S

12

C292

0.1U/4/Y/16V/S

MINIMUM 20MILL

AF10

AE10

AE20 AF18 AD19 AE16 AE13 AD11 AE12 AE14 AE11 AD20

AD12

AF14 AE17 AD16 AF13 AE18 AD15 AE19

AA25

AD21

AA26

AC15

AE15

AD13 AD22

AD6 AD9 AD5 AD7

AE8 AF6 AE3 AE9 AD4 AF5

AF4 AE6 AA2

U2

AB3

Y3 AC1 AB1

Y2

W3

AC3

T2

V1 AF2

U1

V2 AA1

AD1

AF9

T3

T24 Y25 W24 H25 H24

Y24

U25

U26

D23 D16

G4 L4

R4 AA4 AC9

W26 V26

AD8

AA3

U3

T25

P3

G2 G25 E24 C10 C13 C18 C21

U12

A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31

ADS DRDY DBSY TRDY REQ[0] REQ[1] REQ[2] REQ[3] REQ[4] BREQ BREQ[1] BPRI BNR LOCK HIT HITM DEFER RS[0] RS[1] RS[2] RESET

FERR IGNNE A20M INTR NMI SMI STPCLK SLP FLUSH INIT PREQ

VREF0 VREF1 VREF2 VREF3 VREF4 VREF5 VREF6 VREF7

VTT VTT VTT VTT VTT VTT VTT VTT VTT VTT VTT VTT VTT VTT VTT VTT VTT

EBGA376 1GHz

GND VCC2

AF1 AF7 AF11 AF15 AF19 AF23 AF26 AE1 AE2 AE5 AE25

GTL

AE26 AD3 AD17 AD24 AC5 AC7 AC8 AC12 AC13 AC16 AC17 AC20 AC21 AB2 AB8 AB13 AB23 AB25 Y1 Y4 Y26 W1 W4 W5 W22 W23 V23 V24 U4 T4 T26 R1 P22 P23 P24 P25 N3

CMOS I/O

HD0

R3

D0

HD1

N1

D1

HD2

H3

D2

HD3

F2

D3

HD4

P1

D4

HD5

M2

D5

HD6

BCLK

BSEL0

PWRGOOD

BSEL1 THERMDP THERMDN

VID[0] VID[1] VID[2] VID[3] VID[4]

PICD0

PICD1

PICCLK

NCHCTRL

RTTCTRL

DVIDEN

N2

D6

HD7

D3

D7

HD8

M3

D8

HD9

J1

D9

HD10

K1

D10

HD11

G3

D11

HD12

K2

D12

HD13

F1

D13

HD14

H2

D14

HD15

P2

D15

HD16

C4

D16

HD17

L3

D17

HD18

J2

D18

HD19

B1

D19

HD20

E3

D20

HD21

A3

D21

HD22

B9

D22

HD23

A2

D23

HD24

D1

D24

HD25

C5

D25

HD26

B4

D26

HD27

B12

D27

HD28

B7

D28

HD29

C7

D29

HD30

C2

D30

HD31

A6

D31

HD32

A5

D32

HD33

C6

D33

HD34

C8

D34

HD35

B6

D35

HD36

B10

D36

HD37

A10

D37

HD38

A9

D38

HD39

C11

D39

HD40

C15

D40

HD41

A14

D41

HD42

B13

D42

HD43

B8

D43

HD44

C12

D44

HD45

B11

D45

HD46

B20

D46

HD47

B15

D47

HD48

B18

D48

HD49

A13

D49

HD50

A22

D50

HD51

B14

D51

HD52

B17

D52

HD53

A21

D53

HD54

B19

D54

HD55

A18

D55

HD56

A23

D56

HD57

C19

D57

HD58

B21

D58

HD59

A17

D59

HD60

C23

D60

HD61

B24

D61

HD62

C22

D62

HD63

C16

D63

M23

-BSEL0

AF24 AF17

-BSEL1

AF22 AF21 AE21 AC24 AC26 AB24 AA24 AB26

BR0

R26

BR0

BR1

P26

BR1

BR2

N26

BR2

BR3

M26

BR3

BR4

E26

BR4

VCORE_PLL1

T23

PLL1

VCORE_PLL2

R23

PLL2

K23 M24 C20

NCHCTRL

K24

RTTCTRL

J23

DVIDEN

C26

E9

VTT

E18

VTT

J5

VTT

J22

VTT

V5

VTT

V22

VTT

AB9

VTT

AB18

VTT

VIA C3 EBGA 376

N4

AF3

J24 AF8 AF12 AF16 AF20 AE4 AE7 AE22 AE24 AD2 AD10 AD14 AD18 AD26 AC2 AC4 AC6 AC10 AC11 AC14 AC18 AC19 AC23 AC25 AB4 AB14 AB19 AA23 Y23 W2 W25 V3 V4 U23 U24 T1 R2 R25 P4 P5 N22 N24 M1 L2 K3 K4 K25 K26

H1

H22

H23

J26

F3

F4

F24

E1

E8

E13

E23

D2

D4

D5

D8

D9

D12

D13

D17

D20

D21

D24

C1

C9

C17

C25

B3

B16

B23

A4

A7

A11

A15

A19

A24

A25

000 0

000 000 0001 0

0 0

1 0

1

0

1

0

1

0

1

0

1

0

1

0

1 1

0 1

0

1

1 1

1

11

1

111

1

1 1 1 1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1

BR0BR1BR2BR3BR4 RATIO

00

1

0 1

000

1 0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

10.0X

12.0X

11.0X

12.0X

13.5X

11.5X

12.5X

10.5X

13.0X

15.0X

16.0X

14.0X

15.5X

14.5X

9.0X

3.0X

4.0X

5.5X

3.5X

4.5X

9.5X

5.0X

7.0X

8.0X

6.0X

7.5X

8.5X

6.5X

N5 N25 M4 L1 L23 L26 J3 J4 J25 H4 H5 H26 G1 G23 G24 F23 F25 E2 E4 E14 E19 E25 D6 D7 D10 D11 D14 D15 D18 D19 D22 D25 C3 C14 C26 B2 B5 B22 B25 B26 A1 A8 A12 A16 A20 A26

VTT

HD[0:63]

R314 1K/6/S

1 2

R313 1K/6/S

1 2

APICD0 {4,10} APICD1 {4,10} APICCLK {11}

R262 14/6/1/S/X

1 2

R256 56/6/1/S/X

1 2

R362 0/6/X

1 2

HD[0:63] {4,5}

C454 1000P/4/X7/50V/S

C345 1000P/4/X7/50V

R78 22/6/X

1 2

C357 10U/12/Y/10V/S

TP1

1

TP2

1

1 2

C356 10U/12/Y/10V/S

+12V

R371 22K/6/S

1 2

213

CVS

CPU_FAN1 FAN/1x3/W/HK/PINREX

+12V

R370 22K/6

1 2

12

213

CVS

SYS_FAN1 FAN/1x3/W/HK/PINREX

C91 10P/4/N/50V/X

12

CPUCLK {11}

PWRGD_CPU {26}

CPUVID0 {24,25} CPUVID1 {24,25} CPUVID2 {24,25} CPUVID3 {24,25} CPUVID4 {24,25}

C351

0.1U/4/Y/16V/S

1 2

C352

0.1U/4/Y/16V/S

VTT

CPU Default setting 1000MHz (133X7.5)

R532 0/6/S/X

1 2

R533 0/6/S

1 2

C484 470P/4/X7/50V/S

1 2

R534 0/6/S/X

1 2

R535 0/6/S

1 2

C483 470P/4/X7/50V

1 2

VTT

MINIMUM 30MILL

L7

4.7UH/8/MAG/S C649 1U/6/Y/10V/S

1 2

R87 0/6/X

BR0

1 2

R85 0/6

BR1

1 2

BR2

R83 0/6/X

1 2

BR3

R80 0/6/X

1 2

BR4

R74 0/6

1 2

R273 1/6/S

1 2

CPUFAN {16} HWCPUFAN {24}

SYSFAN {16} HWSYSFAN {24}

VCORE

A A

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

8

7

6

5

4

3

2

Wednesday, August 18, 2004

CPU(VIA_C3_EBGA)

GA-6VLEP

330

1

1.0

of

8

7

6

5

4

3

2

1

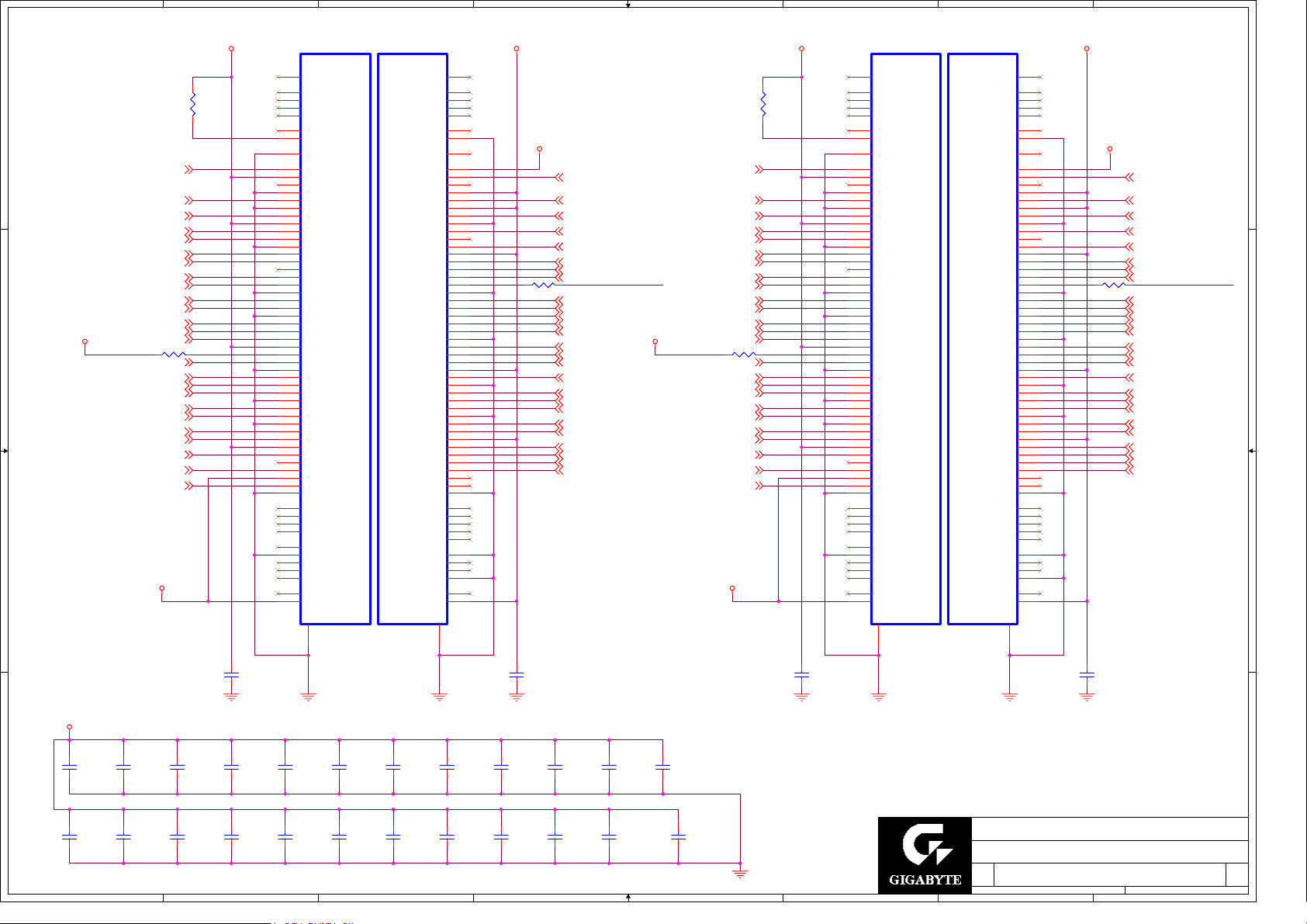

GTL+ PULL-UP RES NETWORK

The CLE266 add a feature for NB internal GTL pull-up, the internal pull-up strength is stronger than previous NB, so if enable the internal GTL pull-up, can remove t he CPU GTL pull-up R-PACK except -CPURST

D D

-BNR{3,5} HA11

HA6 HA8 HA4 HA7 HA14

-HREQ4{3,5} HA10

HA15 HA13 HA12 HA5 HA9 HA16 HA3 HA21 HA19 HA25 HA28 HA22 HA23 HA31 HA17 HA30 HA27 HA24 HA20 HA18

HA26 HA29

-HREQ1{3,5}

C C

B B

-HREQ2{3,5}

-HREQ0{3,5}

-DEFER{3,5}

-BPRI{3,5}

-HLOCK{3,5}

-HREQ3{3,5}

-RS1{3,5}

-HTRDY{3,5}

-HITM{3,5}

-RS0{3,5}

-HIT{3,5}

-DRDY{3,5}

-DBSY{3,5}

-RS2{3,5}

-BREQ0{3,5}

-ADS{3,5}

-CPURST{3,5}

-BREQ1{3}

-FLUSH{3} NMI{3,10}

INTR{3,10}

-SLP{3,10}

-SMI{3,10}

-IGNNE{3,10}

-STPCLK{3,10}

-A20M{3,10}

-CPUINIT{3,10}

-FERR{3,10}

APICD0{3,10} APICD1{3,10}

-P_REQ{3}

2 3 4 6 7 8 9

R494 56/6/S

1 2

R495 56/6/S

1 2

R502 56/6/S

1 2

2 3 4 6 7 8 9

R91 150/6

1 2

R89 150/6

1 2

R363 150/6/S

1 2

R364 150/6/S

1 2

R365 330/6/S

1 2

51 10

RP14 56/10P8R/S

51 10

RP13 56/10P8R/S

51 10

RP11 56/10P8R/S

51 10

RP9 56/10P8R/S

51 10

RP15 56/10P8R/S

51 10

RP12 56/10P8R/S

VTT

51 10

RP10 150/10P8R/S

HD62 HD53 HD58 HD46 HD56 HD61 HD50 HD60 HD63 HD55 HD59 HD40 HD52 HD57 HD54 HD48 HD42 HD27 HD44 HD39 HD49 HD51 HD47 HD41 HD22 HD34 HD43 HD28 HD38 HD36 HD45 HD37 HD33 HD25 HD26 HD16 HD29 HD31 HD32 HD35 HD24 HD7 HD20 HD3 HD30 HD19 HD23 HD21 HD9 HD18 HD12 HD10 HD2 HD14 HD13 HD11 HD6 HD4 HD15 HD0 HD1 HD5 HD17 HD8

HA[3:31]{3,5}

HD[0:63]{3,5}

VTTVTT

51

2

10 3 4 6 7 8 9

2 3 4 6 7 8 9

51

10

51

10

51

10

51

10

51

10

51

10

51

10

RP5 56/10P8R/S

RP4 56/10P8R/S

RP3 56/10P8R/S

RP2 56/10P8R/S

RP1 56/10P8R/S

RP6 56/10P8R/S

RP7 56/10P8R/S

RP8 56/10P8R/S

VCORE VCORE

C277 1U/6/Y/10V/S

C287 1U/6/Y/10V/S

C407 1U/6/Y/10V/S

C405 1U/6/Y/10V/S

C332 1U/6/Y/10V/S

C286 1U/6/Y/10V/S

C299 1U/6/Y/10V/S

C301 1U/6/Y/10V/S

C391 1U/6/Y/10V/S

C392 1U/6/Y/10V/S

VTT Decoupling Cap. for GTL+ Pull-up R-PAK

(Place 1 decouping capacitor for 2 R-pack.)

VTT

C79 0.1U/4/Y/16V

1 2

C78 0.1U/4/Y/16V

1 2

C77 0.1U/4/Y/16V

1 2

C76 0.1U/4/Y/16V

1 2

C276 0.1U/4/Y/16V/S

1 2

C89 0.1U/4/Y/16V

1 2

C90 0.1U/4/Y/16V

1 2

C92 0.1U/4/Y/16V

1 2

C94 0.1U/4/Y/16V

1 2

VTT

C101 0.1U/4/Y/16V

1 2

C110 0.1U/4/Y/16V

1 2

C111 0.1U/4/Y/16V

1 2

C112 0.1U/4/Y/16V

1 2

C113 0.1U/4/Y/16V

1 2

CPU VCORE Decoupling Cap.

1 2

C331 1U/6/Y/10V/S

1 2

C362 1U/6/Y/10V/S

1 2

C343 1U/6/Y/10V/S

1 2

C290 1U/6/Y/10V/S

1 2

C300 1U/6/Y/10V/S

1 2

C302 1U/6/Y/10V/S

1 2

C390 1U/6/Y/10V/S

1 2

C393 1U/6/Y/10V/S

1 2

C339 1U/6/Y/10V/S

1 2

C367 1U/6/Y/10V/S

1 2

C340 0.1U/4/Y/16V/S

C294 0.1U/4/Y/16V/S

C295 0.1U/4/Y/16V/S

C297 0.1U/4/Y/16V/S

C399 0.1U/4/Y/16V/S

C396 0.1U/4/Y/16V/S

C363 0.1U/4/Y/16V/S

C298 0.1U/4/Y/16V/S

C400 0.1U/4/Y/16V/S

C349 0.1U/4/Y/16V/S

VCORE VCORE

+1.5VCMOS Decoupling Cap. for Pull-up

NOTE:CLOSE TO CPU CMOS I/O TER MINATION

VTTVTT

C98

0.1U/4/Y/16V

1 2

C100

0.1U/4/Y/16V

1 2

VTT

C641 4.7U/8/Y/10V/S

12

C642 4.7U/8/Y/10V/S

12

C643 4.7U/8/Y/10V/S

12

C644 4.7U/8/Y/10V/S

12

C398 4.7U/8/Y/10V/S

12

C303 4.7U/8/Y/10V/S

12

C645 4.7U/8/Y/10V/S

12

C646 4.7U/8/Y/10V/S

12

MOUNTING HOLE COUPON

COMP

MH1

R374

1 2

0/8

A A

8

HOLE_3

4 3 2 9 7

1

7

5 6 8

MH2

HOLE_3

4 3 2 9 7

1

MH3

5 6 8

HOLE_3

4 3 2 9 7

6

5 6 8

1

H1 HOLE_2

H2 HOLE_2

MH4

HOLE_3

4 3 2 9 7

H3 HOLE_2

1

H4 HOLE_2

5 6 8

5

COUPON

SOLDER

COUPON

IN1_1

COUPON

IN2_2

COUPON

4

COMP

1 2

SOLDER

1

CVCC

2

IN1

1 2

IN2

1

CVCC

2

3

IN1A IN1B

IN1C IN1D

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

Wednesday, August 18, 2004

2

COUPON1 COUPON

1

3

123

2

COUPON2 COUPON

1

3

123

2

CPU(GTL+ TERM)

GA-6VLEP

430

1

1.0

of

A

B

C

D

E

CLE266

E16

E17

4 4

HA3

HA[3:31]{3,4}

3 3

-BPRI{3,4}

-BREQ0{3,4}

-ADS{3,4}

-HREQ0{3,4}

-HREQ1{3,4}

-HREQ2{3,4}

-HREQ3{3,4}

-HREQ4{3,4}

-HIT{3,4}

-HITM{3,4}

-HTRDY{3,4}

-DBSY{3,4}

-DRDY{3,4}

-RS0{3,4}

-RS1{3,4}

-RS2{3,4}

2 2

-DEFER{3,4}

-BNR{3,4}

-HLOCK{3,4}

HA4 HA5 HA6 HA7 HA8 HA9 HA10 HA11 HA12 HA13 HA14 HA15 HA16 HA17 HA18 HA19 HA20 HA21 HA22 HA23 HA24 HA25 HA26 HA27 HA28 HA29 HA30 HA31

P26 R25 N23 P23 T24 R24 P24 M26 R26 N24 N26 R23 M23 N25 K26 H23 K24 K23 M25 K25 L23

L26 H22

M24

L24

T26

AA26

AA25

U24 T23 U26 V24 T25

W23

V23

W25

W24

Y26

W26

V26 Y25

U23 R22 V25

J24

J25

J23 J26

Place close to NB ballout

VTT

1 1

75/6/1/S

1 2

R243 150/6/1/S

C278 1U/6/Y/10V/S

R242

1 2

GTLVREF

1 2

C281

0.1U/4/Y/16V/S C280 1000P/4/X7/50V/S

1 2

C652 1U/6/Y/10V/S

E20 T22

E22

VTT

A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31

BPRI BREQ0

ADS

HREQ0 HREQ1 HREQ2 HREQ3 HREQ4

HIT HITM HTRDY

DBSY

VIA VT8360

DRDY

RS0 RS1 RS2

DEFER BNR HLOCK

GTLVREF GTLVREF

GND

B13

B16

B19

B22

B25E6E10

VTT

G18

G19

H20

J20

J22

K20

K22

L20

M20

N20

P20

R20

T20

U20

F22

G14

G15

G16

G17

VTT

GND

E21

GND

E25

GND

G13

H25K5L11

J5

GND

VTT

GND

VTT

GND

VTT

GND

VTT

GND

E11

VTT

GND

E14

VTT

GND

E15

VTT

GND

E18

U22

VTT

GND

L12

L13

L14

L15

L16

L22

L25

V22

M11

VTT

GND

AVDD1

AA24

U11A

HD0 HD1 HD2 HD3 HD4

AVDDHCLK

HD5 HD6 HD7 HD8

HD9 HD10 HD11 HD12 HD13 HD14 HD15 HD16 HD17 HD18 HD19 HD20 HD21 HD22 HD23 HD24 HD25 HD26 HD27 HD28 HD29 HD30 HD31 HD32 HD33 HD34 HD35 HD36 HD37 HD38 HD39 HD40 HD41 HD42 HD43 HD44 HD45 HD46 HD47 HD48 HD49 HD50 HD51 HD52 HD53 HD54 HD55 HD56 HD57 HD58 HD59 HD60 HD61 HD62 HD63

HCLK

CPURST

AGNDHCLK

GND

VT8623

Y24

M12

M13

M14

M15

M16

AGNDHCLK

H26 G23 E23 C26 G24 G22 G25 C25 F23 E24 F26 D26 F24 D24 D25 G26 B26 F25 E26 B23 D23 A26 B21 A25 B24 C23 A24 D19 C21 D21 C24 C22 A22 A23 A21 D22 A20 B20 C20 A19 B17 C18 D18 D20 E19 C19 C15 A17 D17 B18 D13 A18 C16 D14 A15 B15 A14 A16 E13 D16 C14 B14 D15 C17

Y23

H24

HD0 HD1 HD2 HD3 HD4 HD5 HD6 HD7 HD8 HD9 HD10 HD11 HD12 HD13 HD14 HD15 HD16 HD17 HD18 HD19 HD20 HD21 HD22 HD23 HD24 HD25 HD26 HD27 HD28 HD29 HD30 HD31 HD32 HD33 HD34 HD35 HD36 HD37 HD38 HD39 HD40 HD41 HD42 HD43 HD44 HD45 HD46 HD47 HD48 HD49 HD50 HD51 HD52 HD53 HD54 HD55 HD56 HD57 HD58 HD59 HD60 HD61 HD62 HD63

HD[0:63] {3,4}

R90

12

22/6/X

HCLK_NB {11}

-CPURST {3,4}

C95

10P/4/N/50V/X

C379 1000P/4/X7/50V/S

NB Decoupling capacitors

12

(CPU Interface: 0.1uF x 10, 1000pF x5)

VTT

C306 0.1U/4/Y/16V/S

C307 0.1U/4/Y/16V/S

C308 0.1U/4/Y/16V/S

C313 0.1U/4/Y/16V/S

C324 0.1U/4/Y/16V/S

1 2

SB_HEATSINK

2

+2.5V

FB35 0/6/S

0.1U/4/Y/16V/SC279

12

0.1U/4/Y/16V/SC282

12

0.1U/4/Y/16V/SC327

12

0.1U/4/Y/16V/SC289

12

0.1U/4/Y/16V/SC293

12

21

1 2

1

12SP2-030010-11

Testing Point (Place near their respective balls of NB)

HCLK_NB

-ADS

AVDD1

C651

0.1U/4/Y/16V/S

AGNDHCLK

VTT

C329 1000P/4/X7/50V/S

C350 1000P/4/X7/50V/S

C344 1000P/4/X7/50V/S

1 2

HCLK_NB

1

-ADS

1

C374 1U/6/Y/10V/S

FB34 2.2/6/S

1000P/4/X7/50V/SC348

1000P/4/X7/50V/SC323

21

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

A

B

C

D

Wednesday, August 18, 2004

NB(VT8623)_HOST

GA-6VLEP

E

530

1.0

of

A

B

C

D

E

AA23 AC26 AD24 AF25 AB26 AB25 AE26 AF26 AE24 AF24 AD21 AD20 AE23 AF23 AE21 AF21 AE20 AD19 AD18 AF17 AF20 AF19 AE17 AD17 AD16 AE15 AF14 AF13 AF16 AF15 AE14 AD13 AC12 AE12 AF10

AF9 AF12 AD12

AD9

AE9

AC9

AE8

AC7

AF6

AD8

AF8

AE6

AE5

AF5

AF4

AF1

AD3

AD4

AC4

AF2

AE1

AD1

AB3

AA2

AD2

AC1

AA3

AA1

AB10 AC10

AVDD2

AB24

W11

W12

W13

MD0 MD1 MD2

AVMCLK

MD3 MD4 MD5 MD6 MD7 MD8 MD9 MD10 MD11 MD12 MD13 MD14 MD15 MD16 MD17 MD18 MD19 MD20 MD21 MD22 MD23 MD24 MD25 MD26 MD27 MD28 MD29 MD30 MD31 MD32 MD33 MD34 MD35 MD36 MD37 MD38 MD39 MD40 MD41 MD42 MD43 MD44 MD45 MD46 MD47 MD48 MD49 MD50 MD51 MD52 MD53 MD54 MD55 MD56 MD57 MD58

Y1

MD59 MD60 MD61 MD62 MD63

NC NC

VDD

AGNDMCK

AC24

AGND2

VDD

T8

T19U8U19

V8

V19

W8W9W10

VDD

W19

VDD

W18

VDD

W17

VDD

W16

VDD

W15

VDD

W14

VDD

AB22

VCCM

AB21

VCCM

AB19

VCCM

AB18

VCCM

AB9

VCCM

VIA VT8360

GND

R11

R12

R13

R14

R15

R16

T11

T12

T13

T14

CLE266

4 4

3 3

2 2

1 1

MD_[0:63]{13}

MD_0 MD_1 MD_2 MD_3 MD_4 MD_5 MD_6 MD_7 MD_8 MD_9 MD_10 MD_11 MD_12 MD_13 MD_14 MD_15 MD_16 MD_17 MD_18 MD_19 MD_20 MD_21 MD_22 MD_23 MD_24 MD_25 MD_26 MD_27 MD_28 MD_29 MD_30 MD_31 MD_32

MD_34 MD_35 MD_36 MD_37 MD_38 MD_39 MD_40 MD_41 MD_42 MD_43 MD_44 MD_45 MD_46 MD_47 MD_48 MD_49 MD_50 MD_51 MD_52 MD_53 MD_54 MD_55 MD_56 MD_57 MD_58 MD_59 MD_60 MD_61 MD_62 MD_63

TP7

1

TP8

1

AB8

VCCM

GND

P25

AA5

VCCM

GND

P22

Y19

VCCM

GND

P16

Y18

VCCM

GND

P15

Y17

VCCM

GND

P14

Y16

VCCM

GND

P13

+2.5V+2.5V

Y15

VCCM

GND

P12

Y14

VCCM

GND

P11

Y13

VCCM

GND

Y12

VCCM

GND

Y11

VCCM

GND

N22P2P5

VCCM

GND

N16

VCCM

GND

N15

VCCM

GND

N14

VCCM

GND

N13

VCCM

DCLKIN

MVREF0 MVREF1

GND

N12

V20W7W20Y5Y8Y9Y10

VCCM

MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8

MA9 MA10 MA11 MA12 MA13 MA14

CKE0 CKE1 CKE2 CKE3

CS0

CS1

CS2

CS3

DQM0 DQM1 DQM2 DQM3 DQM4 DQM5 DQM6 DQM7

DQS0 DQS1 DQS2 DQS3 DQS4 DQS5 DQS6 DQS7

SRAS SCAS

SWE

DCLKO

GND

V7

VCCM

GND

M22N5N11

U7

VCCM

U11B

AD10 AD11 AC11 AB13 AC13 AC14 AD14 AB16 AC16 AB17 AC6 AB6 AD6 AC17 AC19

AC20 AC22 AC21 AD23

AA4 Y3 AC3 W4

AD25 AD22 AF18 AC15 AE11 AF7 AF3 AB2

AD26 AF22 AE18 AD15 AF11 AD7 AE3 AB1

AD5 AB4 AB5

AB23 AC23

AB7 AB20

VT8623

MAA0 MAA1 MAA2 MAA3 MAA4 MAA5 MAA6 MAA7 MAA8 MAA9 MAA10 MAA11 MAA12 MAA13 MAA14

CKE0 CKE1 CKE2 CKE3

-DQM_0MD_33

-DQM_1

-DQM_2

-DQM_3

-DQM_4

-DQM_5

-DQM_6

-DQM_7

DCLKO_ DCLKI

1 2

R94 22/6/X

1 1

R92 22/6

1 2

MVREF_NB

CKE2 CKE3

1 2

10P/4/N/50V/XC102

MAA[0:14] {12,13}

CKE0 {12} CKE1 {12}

-CS0 {12,13}

-CS1 {12,13}

-CS2 {13}

-CS3 {13}

-DQM_0 {13}

-DQM_1 {13}

-DQM_2 {13}

-DQM_3 {13}

-DQM_4 {13}

-DQM_5 {13}

-DQM_6 {13}

-DQM_7 {13}

-DQS_0 {13}

-DQS_1 {13}

-DQS_2 {13}

-DQS_3 {13}

-DQS_4 {13}

-DQS_5 {13}

-DQS_6 {13}

-DQS_7 {13}

-SRASA {12,13}

-SCASA {12,13}

-SWEA {12,13}

DCLKO {11} DCLKI {11}

+2.5V

R96 1K/6/1

1 2

MVREF_NB

R93 1K/6/1

1 2

+2.5V

21

FB36 0/6/S

AVDD2

C389 1000P/4/X7/50V/S

1 2

AGND2

Place close to NB ballout

C99

0.1U/4/Y/16V

1 2

C650

0.1U/4/Y/16V/S

1 2

C96 1000P/4/X7/50V

1 2

Test Point (Place near their respective balls of NB)

DCLKI

1

DCLKO_

1

NB Decoupling capacitors

(Memory Interfa ce: 1uF x 4, .1uF x 12, 1000pF x 3)

+2.5V

1 2

0.1U/4/Y/16V/SC309

0.1U/4/Y/16V/SC305

0.1U/4/Y/16V/SC337

0.1U/4/Y/16V/SC328

0.1U/4/Y/16V/SC360

0.1U/4/Y/16V/SC358

0.1U/4/Y/16V/SC375

0.1U/4/Y/16V/SC376

0.1U/4/Y/16V/SC377

0.1U/4/Y/16V/SC365

0.1U/4/Y/16V/SC366

0.1U/4/Y/16V/SC378

+2.5V

C97 1000P/4/X7/50V/S

1 2

AVDD2

C401 1U/6/Y/10V/S

1 2

FB37 0/6/S

DCLKI DCLKO

C336 1U/6/Y/10V/S

1 2

C330 1U/6/Y/10V/S

1 2

C106 1000P/4/X7/50V

1 2

C103 1000P/4/X7/50V

1 2

C104 1000P/4/X7/50V

1 2

C107 1U/6/Y/10V

1 2

C105 1U/6/Y/10V

1 2

21

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

A

B

C

D

Wednesday, August 18, 2004

NB(VT8623)_MEMORY

GA-6VLEP

E

630

1.0

of

A

B

C

D

E

PLLVDD2

+3.3V

+2.5V

21

FB32 0/6/S

C285

0.1U/4/Y/16V/S

1 2

+3.3V

R253 1K/6/X

1 2

R255 4.7K/6

1 2

RN18 4.7K/8P4R

7 8 5 6 3 4 1 2

RN19 4.7K/8P4R

7 8 5 6 3 4 1 2

GFPD11 GFPD10 GFPD9 GFPD8

GFPD22 GFPD17 GFPD18 GFPD12

TVCLKR

GCLK_NB

GUICLK

LPAR LCOMPP GSTANDBY BISTIN DFTIN GFPDET

NB Decoupling

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

Wednesday, August 18, 2004

A12

VDD

PLLGNDA1

VCCDAC

VCCRGB

C11

D10

B12

VDD

VCCDAC

VCCRGB

PLLVDD1

GSTANDBY GSUSPEND

FPDVS/CAPVS

FPDHS/CAPHS

FPDCLK/DVICLK

FPDE/CAPD8

FPD0/CAPD9 FPD1/CAPD10 FPD2/CAPD11

FPD3/CAPCLK1

FPD4CAPD12 FPD5/CAPD13 FPD6/CAPD14 FPD7/CAPD15

FPD8/DVIVS

FPD9/DVIHS FPD10/DVIDE FPD11/DVID0 FPD12/DVID1 FPD13/DVID2 FPD14/DVID3 FPD15/DVID4 FPD16/DVID5 FPD17/DVID6 FPD18/DVID7 FPD19/DVID8 FPD20/DVID9

FPD21/DVID10 FPD22/DVID11

C

+3.3V

-SUSA{9}

FPD23/DVIDET

1 2

PLLGNDA2

PLLGNDA3

C12

A13

C13L2D12

U11C

AR AG AB

RSET

PLLVDD3

PLLVDD2

HSYNC VSYNC

SPCLK2

SPD2

STPAGP

AGPBUSY

DISPCLKI

DISPCLKO

SPCLK1

SPD1 GPIO0 GPIO1 GPIO2 GPIO3

GCLK

DFTIN

BISTIN

XIN

INTA

FPBKLP ENAVDD ENAVEE

DVIDET

VT8623

R238 4.7K/6/S

1 2

R63 4.7K/6

PLLVDD1 PLLVDD2 PLLVDD3

C10 B10 A10 A11

A9 B9

A8 C9

C8 B8 H4 J4 E9 D9 D7 E7 D8 E8 P4

A6 B7

E12

B6

H5 G4 G5

A7 C7

F3 F2 J3 C1 F1 G3 G2 G1 H3 H2 H1 J2 J1 K3 K2 K1 K4 L4 L3

L1 M4 M2 M1 M3 N3 N1 N2 N4

RGB_RSET

SPCLK2 SPD2

STPAGP AGPBUSY

GPIO0 GPIO1

DFTIN BISTIN

GSTANDBY GSUSPEND

GFPDET

GFPDE GFPD0 GFPD1 GFPD2 GFPD3 GFPD4 GFPD5 GFPD6 GFPD7 GFPD8 GFPD9 GFPD10 GFPD11 GFPD12 GFPD13 GFPD14 GFPD15 GFPD16 GFPD17 GFPD18 GFPD19 GFPD20 GFPD21 GFPD22

R501 4.7K/6

1 2

GSUSPEND

Q16 MMBT2222A/SOT23/S

132

AR {23} AG {23} AB {23}

HSYNC {23} VSYNC {23}

DISPCLKI

1

DISPCLKO

1

SPCLK1 {23} SPD1 {23}

GPIO0

1

GPIO1

1

GPIO2

1

GPIO3

1

GCLK_NB {11}

GUICLK {11}

-INTR_A {8,14,21}

FPBKLP

1

ENAVDD

1

ENAVEE

1

GFPVS

1

GFPHS

1

GFPCLK

1

GFPDE

1

GFPD0

1

GFPD1

1

GFPD2

1

GFPD3

1

GFPD4

1

GFPD5

1

GFPD6

1

GFPD7

1

GFPD13

1

GFPD14

1

GFPD15

1

GFPD16

1

NB Strapping Setting

D

CLE266

+2.5VDUAL

C640

1 2

A

0.1U/4/Y/16V/S

-PWROK_NB{9}

-RESET_CHIP{8}

TVD0 TVD1 TVD2 TVD3 TVD4 TVD5 TVD6 TVD7 TVD8 TVD9 TVD10 TVD11 TVCLK

TVBLK TVVS TVHS

CAPCLK

CAPD0 CAPD1 CAPD2 CAPD3 CAPD4 CAPD5 CAPD6 CAPD7

C82 1U/6/Y/10V

1 2

W5

VSUS2.5

+2.5V

21

FB13

1.2UH/8/MAG

C84 1000P/4/X7/50V

1 2

P7 R7 T7 U5 V5

P1 P3 U1 R4 V3 R1 V1 V2

R5 V4 T4 U3

T5 T2 T1

T3 R2 R3

W1 W3 W2

B2 A2 B3 A3 C4 B4 A4 C5 B5 A5 C6 D6 C2 C3 D5 A1 B1

E3 D4 D3 D2 D1 E2 E1 E4 F4

VCCRGB

GNDRGB

VCCVL VCCVL VCCVL VCCVL VCCVL

VAD0 VAD1 VAD2 VAD3 VAD4 VAD5 VAD6 VAD7

VBE LCOMP LVREF LPAR

UPCMD UPSTB UPSTB

DNCMD DNSTB DNSTB

PWROK RESETX SUSSTAT

TVD0/DVID0 TVD1/DVID1 TVD2/DVID2 TVD3/DVID3 TVD4/DVID4 TVD5/DVID5 TVD6/DVID6 TVD7/DVID7 TVD8/DVID8 TVD9/DVID9 TVD10/DVID10 TVD11/DVID11 TVCLK/DVICLK TVCLKR TVBLK/DVIDE TVVS/DVIVS TVHS/DVIHS

CAPCLK CAPD0 CAPD1 CAPD2 CAPD3 CAPD4 CAPD5 CAPD6 CAPD7

GND

T15

VCCRGBVCCDAC

C81 1U/6/Y/10V

1 2

+2.5V

VLAD0{10} VLAD1{10} VLAD2{10} VLAD3{10} VLAD4{10} VLAD5{10} VLAD6{10} VLAD7{10}

VBE0{10}

LCOMPP LVREF_NB LPAR

UPCMD{10}

UPSTB{10}

-UPSTB{10}

DNCMD{10}

DNSTB{10}

-DNSTB{10}

-SUSST{9}

1 1 1 1 1 1 1 1 1 1 1 1 1

TVCLKR

1 1 1

1 1 1 1 1 1 1 1 1

4 4

3 3

2 2

For VT8233: Connect NB to SB LPAR and do not need Pull-up. For VT8235: Do not connect the LPAR to SB,

1 1

leave the NB LPAR for float, and pull-up the SB LPAR to +2.5V.

+2.5V

21

FB14

1.2UH/8/MAG

C87 1000P/4/X7/50V

1 2

+3.3V +2.5V

G9

G10

G11

G12H7J7K7L5L7M5M7N7H8H9

E5F5G8

VCC3

VIA VT8360

GND

T16U2U4

GND

U25

GND

W22Y2Y4

GND

Y22

GND

AA22

+2.5V

B

GND

AB11

AB12

R271 3K/6/1/S

1 2

R268

1.69K/6/1/S

1 2

GND

AB14

AB15

AC2

LVREF_NB

GND

AC5

H10

H11

H12

H14

H15

H16

H17

H19

J19K8K19

J8

H18

H13

VDD

GND

AC8

AC18

AC25

AE2

AE4

For LVREF_NB : Due to CLE266 is VLINK 4x so LVREF_NB should be 0.9V whenever SB is 8233 or 8235.

C347

0.1U/4/Y/16V/S

1 2

GND

AE7

GND

AE10

GND

AE13

GND

AE16

GND

AE19

GND

AE22

GND

AE25

C653

0.1U/4/Y/16V/S

1 2

L8

L19M8M19N8N19P8P19R8R19

VDD

GNDDAC

GNDRGB

D11

B11

+2.5V

21

FB31

PLLVDD3

STPAGP AGPBUSY SPCLK2 SPD2

RGB_RSET

0/6/S

C284

0.1U/4/Y/16V/S

1 2

+3.3V

R76 1K/6/S

GFPD21

1 2

+3.3V

1 2

R77 4.7K/6/S/X

1 2

TV Mode GFPD21 GFPD20

PAL NTSC PAL-N PAL-NC

+3.3V

R75 1K/6/X

1 2

R250 4.7K/6/S

1 2

TV #Line 0: 525 Lines, 1:625 Lines

R72 22/6/X

R81 22/6/S/X

R263 22/6/S/X

RN12

1 2 3 4 5 6 7 8

4.7K/8P4R

R275 4.7K/6/S

1 2

R88 71.5/6/1/S

1 2 1 2 3 4 5 6 7 8

R70 160/6/1

1 2

RN61

4.7K/8P4R/S

0.1U/4/Y/16V/SC315

0.1U/4/Y/16V/SC326

0.1U/4/Y/16V/SC310

0.1U/4/Y/16V/SC304

0.1U/4/Y/16V/SC311

NB(VT8623)_VLINK,DISPLAY

GA-6VLEP

+2.5V

21

FB30

PLLVDD1

00 0 1 11

C80

1 2

C335

1 2

C320

1 2

E

0/6/S

C283

0.1U/4/Y/16V/S

1 2

GFPD20

1 0

GFPD19

5P/4/N/50V/X

5P/4/N/50V/S/X

+3.3V

730

of

1.0

A

B

C

D

E

VT8235

F12

F13

F16

4 4

3 3

2 2

1 2

1 1

A_D0 A_D1 A_D2 A_D3 A_D4 A_D5 A_D6 A_D7 A_D8 A_D9 A_D10 A_D11 A_D12 A_D13 A_D14 A_D15 A_D16 A_D17 A_D18 A_D19 A_D20 A_D21 A_D22 A_D23 A_D24 A_D25 A_D26 A_D27 A_D28 A_D29 A_D30 A_D31

C_-BE0 C_-BE1 C_-BE2 C_-BE3

-FRAME

-DEVSEL

-IRDY

-TRDY

-STOP

-SERR PAR

-PERR

-INTR_A

-INTR_B

-INTR_C

-INTR_D

-REQ0

-REQ0{14}

-REQ1

-REQ1{19}

-REQ2

-REQ2{19}

-REQ3

-REQ3{20}

-REQ4

-REQ4{21}

-REQ5

-GNT0

-GNT0{14}

-GNT1

-GNT1{19}

-GNT2

-GNT2{19}

-GNT3

-GNT3{20}

-GNT4

-GNT4{21}

-GNT5

SB_PCLK

-PCIRST

R280 10/6/S/X

C361 15P/4/N/50V/S/X

C83

0.1U/4/Y/16V

1 2

R22

C86

4.7U/8/Y/16V

1 2

A

E5F5F7

H3

AD0

J2

AD1

H2

AD2

VCC33

J1

AD3

G3

AD4

H1

AD5

G2

AD6

G1

AD7

G4

AD8

F2

AD9

F1

AD10

E1

AD11

F3

AD12

E2

AD13

E3

AD14

D2

AD15

B5

AD16

A5

AD17

C6

AD18

B6

AD19

K1

AD20

J3

AD21

K2

AD22

K3

AD23

L2

AD24

L3

AD25

M2

AD26

M1

AD27

M3

AD28

N1

AD29

N3

AD30

N2

AD31

F4

CBE0

D1

CBE1

A4

CBE2

L1

CBE3

B4

FRAME

B3

DEVSEL

C4

IRDY

A3

TRDY

C3

STOP

C1

SERR

D3

PAR

C2

PERR

P1

INTA

P2

INTB

P3

INTC

R1

INTD

D6

REQ0

C5

REQ1

D4

REQ2

H4

REQ3

L4

REQ4

N4

REQ5

E6

GNT0

D5

GNT1

E4

GNT2

J4

GNT3

M4

GNT4

P4

GNT5

PCICLK

R2

PCIRST

A1

+3.3VDUAL+3.3VSUSUSB

FB16

12

FB30/8/MAG

F17L5M5P5P21R5R21W5Y5

F8

VCC33

VIA VT8235

GND

B1B2E9

A2

C73

0.1U/4/Y/16V

1 2

E16

GND

E23

GND

+3.3V +3.3VSUSUSB

Y21

AA21

AB6

AB7

AB10

AB11

AB14

AB15

AB20

AB21

VCC33

USBGND

A22

B16

USBGND

B18

B20

VCC33

USBGND

B22

C16

E25

VCC33

GND

VCC33

GND

G5

H23

H25

K4

GND

L11

GND

AC9

GND

AC8

GND

USBGND

A16

A18

A20

Test Point Place near the ball of SB

SB_PCLK

B

AC18

AC19

VCC33

USBGND

C17

C18

USBGND

C19

C20

1

D24

A24

A25

A26

B24

B25

B26

C24

USBVDD

VSUS25 VSUS25

USBSUS25

PLLVDDA PLLVDDA

PLLGNDA PLLGNDA

USBP0+

USBP0-

USBP1+

USBP1-

USBP2+

USBP2-

USBP3+

USBP3-

USBP4+

USBP4-

USBP5+

USBP5-

USBOC0 USBOC1 USBOC2 USBOC3 USBOC4 USBOC5

USBCLK

USB REXT

KBCK/KA20G

KBDT/KBRC MSCK/IRQ1

MSDT/IRQ12

IPBTDFR/GPI14/GPO14 IPBRDFR/GPI10/GPO10 IPBTDCK/GPI15/GPO15 IPBRDCK/GPI11/GPO11

IPBOUT0/GPI12/GPO12

IPBOUT1/GPI13/GPO13

IPBIN0/GPI8/GPO8 IPBIN1/GPI9/GPO9

USBGND

C21

C22

D16

D18

D20

E18

E20

F18

F19

SPCLK1

C25

C26

USBVDD

USBGND

F21

F20

U13A

T4 U4

D15

D22 A23

B23 E22

A21 B21 E21 D21 A19 B19 E19 D19 A17 B17 E17 D17

A15 B15 C15 E15 D14 E14

D23

C23

V3 V2 W2 W1

D8 D7 C7 A6 A7 B8 C8 B7

VT8235

+2.5VDUAL

USBVCCA

USBGNDA

USBDT0+ USBDT0USBDT1+ USBDT1USBDT2+ USBDT2USBDT3+ USBDT3USBDT4+ USBDT4USBDT5+ USBDT5-

USBREXT

KB_CLK KB_DATA MS_CLK MS_DATA

1 2

-USBOC0

R247 0/6

1 2

R246 5.1K/6/1

1 2

GPIO14

1

GPIO10

1

GPIO15

1

GPIO11

1

GPIO12

1

GPIO13

1

BIOS_WE {16}

-DOCLOCK {27}

C637

0.1U/4/Y/16V/S

1 2

C88

0.1U/4/Y/16V/S

USBDT0+ {17} USBDT0- {17} USBDT1+ {17} USBDT1- {17} USBDT2+ {17} USBDT2- {17} USBDT3+ {17} USBDT3- {17} USBDT4+ {17} USBDT4- {17} USBDT5+ {17} USBDT5- {17}

-USBOC0 {17}

RN112

8.2K/8P4R

C

C638

0.1U/4/Y/16V/S

1 2

FB15

12

FB30/8/MAG

C85

4.7U/8/Y/16V

1 2

USBCLK {11}

R245 1.02K/6/1

1 2

+5VSUS 12 34 56 78

C639

0.1U/4/Y/16V/S

1 2

+2.5V

C74

0.1U/4/Y/16V

1 2

RN17

-PCIRST

C288

0.1U/4/Y/16V/S

15K/8P4R

RN16

15K/8P4R

RN15

15K/8P4R

HC14/TSSOP14/S

11 10

HC14/TSSOP14/S

USBDT0USBDT0+ USBDT1USBDT1+

USBDT2USBDT2+ USBDT3USBDT3+

USBDT4USBDT4+ USBDT5USBDT5+

+5V +5V

1 2

For VT1211 PCIRST glitch issue

Title

Size Document Number Rev

D

Date: Sheet

A_D[0:31] {14,19,20,21}

C_-BE[0:3] {14,19,20,21}

12 34 56 78

+5V

U19A

14

1 2

+5V

U19C

14

5 6

+5V

U19E

14

-FRAME

-DEVSEL

-IRDY

-TRDY

-STOP

-SERR PAR

-PERR

-INTR_A

-INTR_B

-INTR_C

-INTR_D

SB_PCLK

-IDERST

-RESET_CHIP

-PCIRSTX

+5V

U19B

14

3 4

HC14/TSSOP14/S

+5V

U19D

14

9 8

HC14/TSSOP14/S

U19F

14

13 12

HC14/TSSOP14/S

-FRAME {14,19,20,21}

-DEVSEL {14,19,20,21}

-IRDY {14,19,20,21}

-TRDY {14,19,20,21}

-STOP {14,19,20,21}

-SERR {14,19,20,21} PAR {14,19,20,21}

-PERR {14,19,20,21}

-INTR_A {7,14,21}

-INTR_B {14,19}

-INTR_C {14,19}

-INTR_D {14,19,20}

SB_PCLK {11}

-IDERST {15}

-RESET_CHIP {7}

-PCIRSTX {14,16,19,20,21}

RN13

-REQ3

-REQ2

-REQ1

-REQ0

-REQ4

-REQ5

-GNT2

-GNT1

-GNT0

-GNT3

-GNT4

-GNT5

1 2

2.2K/8P4R

1 2 3 4 5 6 7 8

R264 2.2K/6/S R267 2.2K/6/S

RN14

2.2K/8P4R

1 2 3 4 5 6 7 8

R269 2.2K/6/S R272 2.2K/6/S

R244 22/6/S

R252 22/6/S

R50 22/6/S

GIGABYTE TECHNOLOGY CORPORATION

SB(VT8235)_PCI,USB,KB/MS

Wednesday, August 18, 2004

GA-6VLEP

E

+5V

12 12

+3.3V

12 12

-IDERST

-RESET_CHIP

-PCIRSTX

C241 1000P/4/X7/50V/S

1 2

830

1.0

of

A

+2.5V+3.3VDUAL

VT8235

AA4

AB4

AC4

AC5

F14

PD_0

AA24

PD_1 PD_2 PD_3 PD_4

4 4

3 3

2 2

1 1

PD_5 PD_6 PD_7 PD_8 PD_9 PD_10 PD_11 PD_12 PD_13 PD_14 PD_15

PDREQ PDACK

-PIOR

-PIOW PDRDY

-PCS_1

-PCS_3 PD_A0 PD_A1 PD_A2 IRQ14_R

PIDEVREF

PIDECOMP

SD_0 SD_1 SD_2 SD_3 SD_4 SD_5 SD_6 SD_7 SD_8 SD_9 SD_10 SD_11 SD_12 SD_13 SD_14 SD_15

SDREQ

-SDACK

-SIOR

-SIOW SDRDY

-SCS_1

-SCS_3 SD_A0 SD_A1 SD_A2 IRQ15_R

SIDEVREF

SIDECOMP

-RSMRST

C404 1U/6/Y/10V/S

-PWRBTN

PDD0

AA25

PDD1

AB24

PDD2

AC26

AC24

AD25

AE26

AF25

AF26

AD24

AD26

AC25

AB23

AB26

AA26

AA22

W26

W24

AE24

W22

W23

AF15

AD16

AF16

AF17

AE17

AD18

AF18

AE18

AF19

AD19

AD20

AF20

AE20

AD21

AF21

AE21

AE15

AD22

AF22

AC21

AD15

AC23

AD23

AE23

AC22

AF23

AF24

AD17

AC15

Y22

Y24 Y25 Y26 V24

Y23 V25 V26

VSUS33

PDD3 PDD4 PDD5 PDD6 PDD7 PDD8 PDD9 PDD10 PDD11 PDD12 PDD13 PDD14 PDD15

PDDREQ PDDACK PDIOR/PHDMARDY/PHSTROBE PDIOW/PSTOP PDRDY/PDDMARDY/PDSTROBE PDCS1 PDCS3 PDA0 PDA1 PDA2 IRQ14

PVREF

PCOMPP

SA0/SDD0 SA1/SDD1 SA2/SDD2 SA3/SDD3 SA4/SDD4 SA5/SDD5 SA6/SDD6 SA7/SDD7 SA8/SDD8 SA9/SDD9 SA10/SDD10 SA11/SDD11 SA12/SDD12 SA13/SDD13 SA14/SDD14 SA15/SDD15

SDDRQ SDDACK SDIOR/SHDMARDY/SHSTROBE SDIOW/SSTOP SDRDY/SDDMARDY/SDSTROBE SDCS1 SDCS3 SDA0 SDA1 SDA2 IRQ15

SVREF

SCOMPP

12

1 2

+3.3VDUAL

R297

4.7K/6

1 2

C402

0.1U/4/Y/16V

1 2

A

F10F9H5J5J21

VDD

VSUS33

VIA VT8235

GND

L12

L13

L14

L15

L16

L23

R298 22K/6/S

1 2

C403 1U/6/Y/10V/S

R296 68/6

R541 22/6/S

VDD

GND

VDD

GND

L25

F15

VDD

GND

M11

M12

PW_BN

HW_PWR

VDD

GND

M13

K5

K21T5T21U5U21

VDD

GND

M14

M15

M16N5N11

+3.3VDUAL

VDD

GND

VDD

GND

VDD

GND

VDD

GND

N12

U22

V5

AB8

AB9

AB16

AB17

VDD

ACSDIN2/GPI20/GPO20 ACSDIN3/GPI21/GPO20

EXTSMI/GPI2

BATLOW/GPI5

SUSST1/GPO3

SUSCLK/GPO4

SMBALRT/GPI7

GPIOA/GPI24/GPO24 GPIOC/GPI25/GPO25 GPIOD/GPI30/GPO30 GPIOE/GPI31/GPO31

CPUSTP/GPO5

PCISTP/GPO6

ROMCS/KBCS

IORDY/GPI19

SA16/GPO16 SA17/GPO17 SA18/GPO18 SA19/GPO19

GND

N13

N15

N16

N14

P11

F11F6AB25

B

U13B

T3

ACBITCLK

ACSDIN0 ACSDIN1

ACSYNC

ACSDO ACRST

PWROK PWRGD

PWRBTN

RSMRST

RING/GPI3

PME/GPI6

LID/GPI4

SUSC

SMBCK1 SMBDT1

GPI1

GPO0

GPI0

PCLKRUN

MEMR

MEMW

SOE

IOW

TEST

XD0 XD1 XD2 XD3 XD4 XD5 XD6 XD7

GND

AB22

IOR

T2 U3 U2 V1 T1 U1 R3

AE2 AF4 AD2 AD5 Y2 AA1 W3 AC1 W4 Y3 AB1

AA2 AF2 AF1 AB2 AB3 AC2

AC3 AA3

AE3 AE5 AE6 AD6 AC6

AF5 AC7 AF6

AE12 AF10 AF12 AD12 AC10 AD9 AF9 AD10

AF11 AE11 AD11 AC11

AC14 AC13 AF14 AE14 AD14 AF13 AE13 AD13

VT8235

-PWROK_NB PWRGD_SB

-PWRBTN

-RSMRST

-RING

-SMI_791D

-PME

-LID

-BATLOW

-SUSST SUS_CLK

-SUSA

-SUSB

-SUSC

-SMBALT SMBCK SMBDT

GPI1

-PLED2

-PME_USB20 GPIOA GPIOC GPIOD

-SLEEPLED

-CLKRUN

-CPUSTP

-PCISTP

-MEMR

-MEMW

-ROMCS

-SOE

-IOR

-IOW TEST

-IORDY

SA16 SA17 SA18 SA19

XD0 XD1 XD2 XD3 XD4 XD5 XD6 XD7

VDD

SUSA/GPO1 SUSB/GPO2

GND

SB Strapping Selection

-SOE

12

R302

4.7K/6/S/X

B

-SUSC

1

GPI1

1

-PLED2

1

-SLEEPLED

1

R301 1K/6/S

1 2

-SOE1Auto Reboot Enable

0

Disable

+3.3V

C

R291 2.8K/6/1/S

1 2

PIDEVREF

PIDECOMP

R293 1.13K/6/1/S

1 2

R289 360/6/1/S

1 2

IDE Vref = 0.95 V

-SCS_1

SIDEVREF

SIDECOMP

-SCS_3

-SUSB

GPIOD TEST

-ROMCS: High enable LPC ROM

-MEMR

-MEMW

C

R323 4.7K/6/S

1 2

R305 2.8K/6/1/S

1 2

R304 1.13K/6/1/S

1 2

R303 360/6/1/S

1 2

R294 2.7K/6/S

1 2

RN70

4.7K/8P4R/S

1 2 3 4 5 6 7 8

R300 4.7K/6

1 2

R319 10K/6

1 2

R107 10K/6

1 2

SA17 SA16 Host Clock

0 66Mhz

0

1

0 1

1

SA18 IOQ Depth

0

1 Level

1

4 Level

SA19

GTL pullup Disable

0

Enable

1

SD_A2

SD_A1

SD_A0

SDA1:

+3.3V

0.1U/4/Y/16V/SC669

12

+3.3V

0.1U/4/Y/16V/SC670

12

+3.3V

+5V

+3.3V

RN71

SA19

1 2

SA18

3 4

SA17

5 6

SA16

7 8

4.7K/8P4R

100Mhz 133Mhz

R103 2.7K/6/S

1 2

R320 0/6/S/X

1 2

R295 2.7K/6/S

1 2

R306 0/6/S/X

1 2

R102 2.7K/6/S

1 2

R322 0/6/S/X

1 2

GTL DRIVING STRENGTHSDA0: GTL DRIVING STRENGTH

For leakage current issue

R100

1 2

1K/6/S

R307

1 2

1K/6/S

R315

1 2

1K/6/S

XD3 XD2 XD6 XD5

XD7 XD4 XD1 XD0

-CPUSTP

-PCISTP GPIOC

-CLKRUN

-IOR

-IORDY

-IOW-ROMCS

GPIOA

SMBCK SMBDT

-LID SUS_CLK

-SMBALT

-SUSA

-SMI_791D

-SUSST

-RING

-BATLOW

SMBCK2

-PWROK_NB GPI1 SMBDT2

-PME

-PME_USB20

+3.3V

D

1 2 3 4 5 6 7 8

R286 4.7K/6 R308 4.7K/6

1 2 3 4 5 6 7 8

R274 4.7K/6

1 2

R309 1M/6/S

1 2

D

E

RN69 33/8P4R

SD_3 SD_1 SD_2 SD_0 SD_5 SD_6 SD_7 SD_4

RN25 33/8P4R

RN68 33/8P4R

SD_12 SD_11 SD_8 SDD8 SD_9 SD_13 SD_15 SD_14 SD_10

RN24 33/8P4R

RN23 33/8P4R

-SCS_3 -SDCS3

+5V

RN72

4.7K/8P4R

RN28

4.7K/8P4R/S

+3.3V

RN26

4.7K/8P4R

RN27

4.7K/8P4R

12 12

+3.3VDUAL

RN21 10K/8P4R

12 34 56 78

RN66 10K/8P4R/S

RN22 10K/8P4R

+3.3VBAT

-SDCS3 {15}

-PDCS1 {15} PDA0 {15} PHDRDY {15}

-PDIOW {15} PDA2 {15} PDA1 {15}

-PDDACK {15}

-PDCS3 {15}

-PDIOR {15} PDDREQ {15}

Title

Size Document Number Rev

Date: Sheet

SD_A0 SD_A2

-SIOR SD_A1

-SDACK

-SCS_1

-SIOW

RN67 33/8P4R/S

RN77 33/8P4R

PD_2 PDD2 PD_3 PD_11 PD_4 PD_10 PD_6 PDD6 PD_8 PDD8 PD_9 PDD9

RN78 33/8P4R

RN76 33/8P4R

PD_14 PDD14 PD_1 PDD1 PD_0 PDD0 PD_13 PD_5 PD_7 PDD7 IRQ14_R IRQ15_R

RN79 33/8P4R

RN74 33/8P4R

PD_A1 PD_A2

-PCS_1 -PDCS1

-PCS_3 -PDCS3 PD_12 PDD12 PD_15 PDREQ

-PIOR

RN73 33/8P4R/S

PDACK -PDDACK PDRDY

-PIOW PD_A0 PDA0

RN75 33/8P4R

-SMI_791D

-LID GPIOA

IRQ14

-PWROK_NB PWRGD_SB

-RING

-PME

-SUSST

-SUSA

-SUSB

SMBCK SMBDT

HW_PWR PW_BN

SMBCK2 SMBDT2

SDREQ SDRDY

GIGABYTE TECHNOLOGY CORPORATION

SB(VT8235)_IDE,ACLINK

Wednesday, August 18, 2004

GA-6VLEP

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8

R105 33/6/S

1 2

R318 33/6/S

1 2

SDD3 SDD1 SDD2 SDD0 SDD5 SDD6 SDD7 SDD4

SDD12 SDD11

SDD9 SDD13 SDD15 SDD14 SDD10

PDD3 PDD11 PDD4 PDD10

PDD13 PDD5

IRQ14 IRQ15

PDA1 PDA2

PDD15 PDDREQ

-PDIOR

PHDRDY

-PDIOW

E

SDD[0:15] {15}

SDA0 {15} SDA2 {15}

-SDIOR {15} SDA1 {15}

-SDDACK {15}

-SDCS1 {15}

-SDIOW {15}

PDD2 {15} PDD3 {15} PDD11 {15} PDD4 {15} PDD10 {15} PDD6 {15} PDD8 {15} PDD9 {15}

PDD14 {15} PDD1 {15} PDD0 {15} PDD13 {15} PDD5 {15} PDD7 {15}

IRQ15 {15}

PDD12 {15} PDD15 {15}

-SMI_791D {24}

-LID {15} GPIOA {15}

IRQ14 {15}

-PWROK_NB {7} PWRGD_SB {26,27}

-RING {18}

-PME {14,19,20,21}

-SUSST {7}

-SUSA {7}

-SUSB {26}

SMBCK {11,12,24} SMBDT {11,12,24}

HW_PWR {24} PW_BN {17}

SMBCK2 {10,24} SMBDT2 {10,24}

SDDREQ {15} SHDRDY {15}

930

1.0

of

A

B

C

D

E

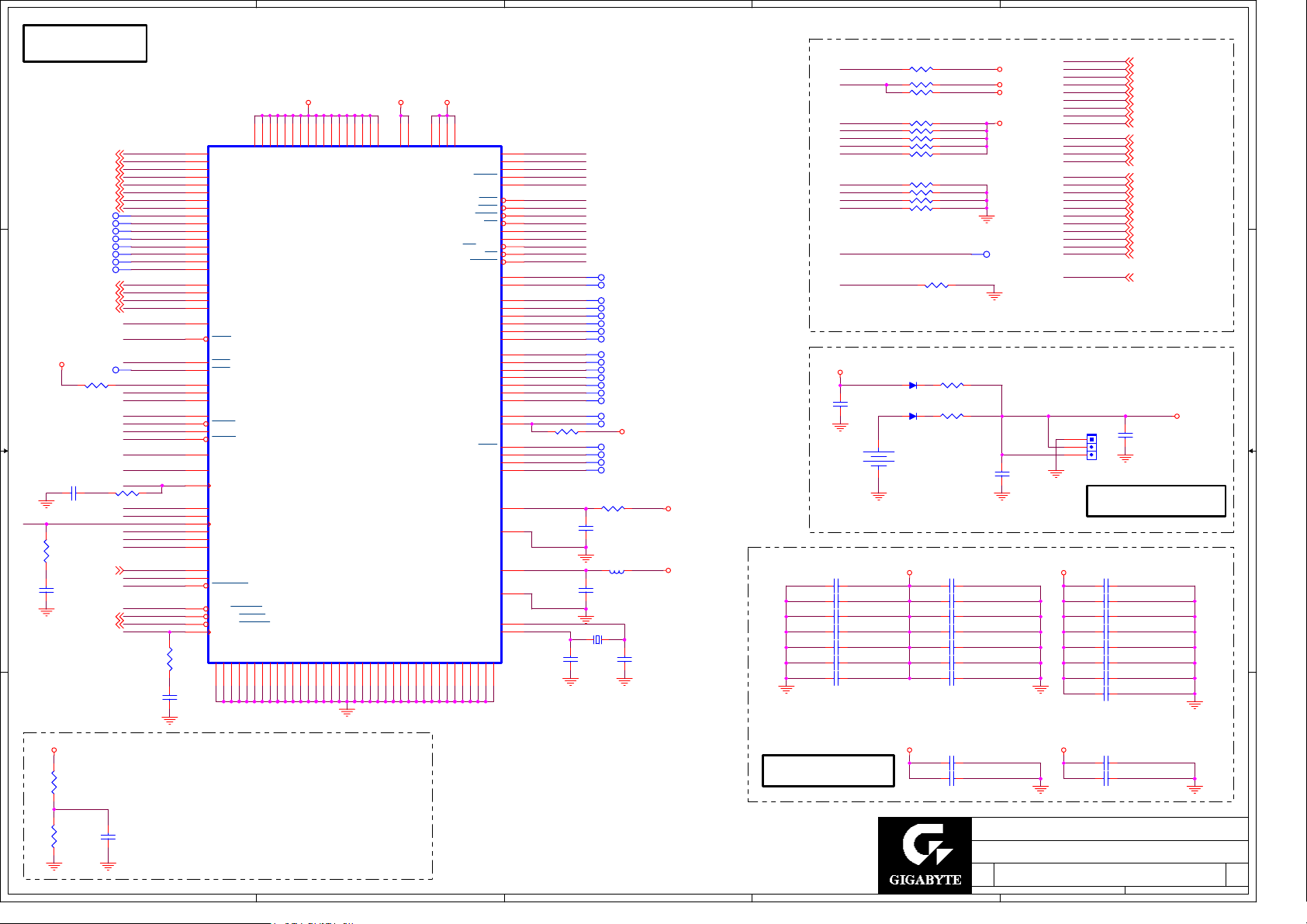

VT8235

INTRUDER

+2.5VDUAL +3.3VDUAL+2.5V

4 4

F22

G21

H21

L21

L22

M21

M22

M23

M24

M25

M26

N21

N22

N23

N24

N25

N26

D13

VCCVK

GND

AB18

AB19

VCCVK

GND

AE22

AE25

GND

AE19

E13

MIISUS25

GND

AC20

AE16

MIISUS25

GND

AC17

VLAD0{7} VLAD1{7} VLAD2{7} VLAD3{7} VLAD4{7} VLAD5{7} VLAD6{7} VLAD7{7}

3 3

+2.5V

R248

8.2K/6

C342

12

15P/4/N/50V/S/X

R288

2 2

10/6/S/X

-OVT_791D{24}

1 2

C383 15P/4/N/50V/S/X

1 2

APICD0{3,4} APICD1{3,4}

VLAD0 VLAD1 VLAD2 VLAD3 VLAD4 VLAD5 VLAD6 VLAD7

1

VD8

1

VD9

1

VD10

1

VD11

1

VD12

1

VD13

1

VD14

1

VD15

LAD0

LAD0{16}

LAD1

LAD1{16}

LAD2

LAD2{16}

LAD3

LAD3{16}

-LDRQ

-LFRAME

VBE0

VBE1

1

VPAR

12

UPCMD DNCMD

UPSTB

-UPSTB DNSTB

-DNSTB

LVREF_SB

VCOMPP

VCLK

R270 10/6/S/X

SERIRQ

SPK

SB_OSC

+3.3VBAT

SMBCK2

SMBDT2

-OVT_791D

-CPUMISS

INTRUDER

-WSC

APICD0

APICD1 RTCXI

APICCLK_SB

12

F25

VD0

F26

VD1

J26

VD2

J25

VD3

E26

VD4

E24

VD5

K24

VD6

K26

VD7

D25

VD8

F23

VD9

G23

VD10

G22

VD11

H22

VD12

G24

VD13

J22

VD14

K22

VD15

AF8

LAD0

AE8

LAD1

AD8

LAD2

AF7

LAD3

AD7

LREQ

AE7

LFRM

F24

VBE0

L26

VBE1

D26

VPAR

K25

UPCMD

J24

DNCMD

H24

UPSTB

H26

UPSTB

G25

DNSTB

G26

DNSTB

J23

VLREF

K23

VCOMPP

L24

VCLK

AE10

SERIRQ

AE9

SPKR

AC12

OSC

AE4

VBAT

AE1

SMBCK2/GPI27/GPO27

AD1

SMBDT2/GPI26/GPO26

Y4

AOLGPI/GPI18

Y1

CPUMISS/GPI17

AD3

INTRUDER/GPI16

U24

WSC/APICREQ

T22

APICD0/APICCS/GPI28/GPO28

V23

APICD1/APICACK/GPI29/GPO29

U23

APICCLK

12

R283 10/6/S/X

12

R14

C380 15P/4/N/50V/S/X

VCCVK

VIA VT8235

GND

R15

R16

T11

T12

T13

T14

T15

T16V4V21

AA5

W25

W21

V22

AA23

AB5

AB12

AB13

GND

AC16

D11P12

D12

MIIVCCGND

P13

E11

E12

MIIVCC

DPSLP/GP23

GND

P14

P15

U13C

GHI/GP22

VIDSEL

VRDSLP

AGPBZ

A20M

FERR

IGNNE

INIT

INTR

NMI

SLP/GPO7

SMI

STPCLK

MCRS MCOL

MTXENA

MTXD0 MTXD1 MTXD2 MTXD3

MTXCLK

MRXERR

MRXCLK

MRXDV MRXD0 MRXD1

MDRXD2

MRXD3

MDCK

MDIO

EECS EEDO

EEDI

EECK

RAMVCC

RAMGND

PLLVCC

PLLGND

RTCX1 RTCX2

GND

P16R4R11

R13

GND

R12

R24 P25 P24 A8 P26

T25 U26 T26 R25 T23 R23 U25 T24 R26

B13 C13

B12 C12 A11 B11 C11 A12

A10 B10 C10 E10 D10 D9 A9

C9 B9

A13 A14 B14 C14

E7

E8

P22

P23

AD4 AF3

VT8235

GHI VIDSEL VRDSLP AGPBZ DPSLP

-A20M

-FERR

-IGNNE

-CPUINIT INTR NMI

-SLP

-SMI

-STPCLK

MTEX MTXD0 MTXD1 MTXD2 MTXD3

R73 1K/6

+2.5VSBRAM

RTCXO

1 1

1 1 1 1 1 1

1 1 1 1 1 1 1

1 1

12

1 1 1 1

R265 2.2/8/S

1 2

C314

0.1U/4/Y/16V/S

1 2

2 1

C354

0.1U/4/Y/16V/S

1 2

X5 C109 10P/4/N/50V

1 2

32.768KHZ/CIT

CRS COL

TXEN MTXD0 MTXD1 MTXD2 MTXD3 MTXCLK

RXER RXCLK RXDV RXD0 RXD1 RXD2 RXD3

MDC MDIO

+3.3VDUAL

TP18 TP19 TP20 TP21

FB33 2.2/6/S

C108 10P/4/N/50V

1 2

+2.5V

-OVT_791D

SERIRQ

-WSC AGPBZ GHI DPSLP

-CPUMISS VCOMPP VIDSEL VRDSLP

VCLK

SPK

Low: Enable CPU Frequency Strapping

+3.3VDUAL

12

C257

0.01U/4/X7/16V

C662 4.7U/8/Y/10V/S

1 2

C663 1U/6/Y/10V/S

1 2

C664 0.1U/4/Y/16V/S

1 2

C665 0.1U/4/Y/16V/S

1 2

C666 0.1U/4/Y/16V/S

1 2

C667 0.1U/4/Y/16V/S

1 2

C338 1U/6/Y/10V/S

1 2

R310 1M/6/S

1 2

R292 4.7K/6/X

1 2

R540 4.7K/6

1 2

R287 4.7K/6

12

R279 1K/6

12

R249 4.7K/6

12

R86 4.7K/6

12

R84 4.7K/6

12

R290 4.7K/6

1 2

R266 360/6/1/S

1 2

R82 4.7K/6

12

R79 4.7K/6

12

R299 1K/6/X

12

D14

R196 1K/6

1 2

RB751V D13

R191 1K/6

1 2

RB751V

12

BAT1

CR2032SK/LOTES

+2.5V +3.3V

1 2

C385 0.1U/4/Y/16V/S

1 2

C388 0.1U/4/Y/16V/S

1 2

C364 0.1U/4/Y/16V/S

1 2

C334 1U/6/Y/10V/S

1 2

+3.3VBAT

+3.3VDUAL +3.3V

+3.3V

VCLK1

1

RTCVDD

12

C248

0.01U/4/X7/16V

0.01U/4/X7/16V/SC318

0.01U/4/X7/16V/SC333

0.1U/4/Y/16V/SC319

-A20M

-FERR

-IGNNE

-CPUINIT INTR NMI

-SLP

-SMI

-STPCLK

SPK

-LDRQ

-LFRAME VBE0

UPCMD DNCMD UPSTB

-UPSTB DNSTB

-DNSTB VCLK SERIRQ SB_OSC SMBCK2 SMBDT2

APICCLK_SB

+3.3VBAT

1 2 3

CLR_CMOS1 PH/1X3/PINREX

C346 0.1U/4/Y/16V/S

C384 0.1U/4/Y/16V/S

C387 0.1U/4/Y/16V/S

C322 1U/6/Y/10V/S

C382 1U/6/Y/10V/S

-A20M {3,4}

-FERR {3,4}

-IGNNE {3,4}

-CPUINIT {3,4} INTR {3,4} NMI {3,4}

-SLP {3,4}

-SMI {3,4}

-STPCLK {3,4}

SPK {18}

-LDRQ {16}

-LFRAME {16} VBE0 {7}

UPCMD {7} DNCMD {7} UPSTB {7}

-UPSTB {7} DNSTB {7}

-DNSTB {7} VCLK {11} SERIRQ {16} SB_OSC {11} SMBCK2 {9,24} SMBDT2 {9,24}

APICCLK_SB {11}

12

C406

0.01U/4/X7/16V/S

1,2 : CLEAR CMOS 2,3 : DEFAULT

0.01U/4/X7/16V/SC341

1 2

0.01U/4/X7/16V/SC317

1 2

0.1U/4/Y/16V/SC386

1 2

+3.3VBAT

+2.5V

The Difference Between VT8233A & VT8235

1 1

R260 3K/6/1/S

1 2

LVREF_SB

SB Decoupling Cap.

+2.5VDUAL

1 2

C321 1U/6/Y/10V/S

1 2

0.1U/4/Y/16V/SC359

+3.3VDUAL

C381 1U/6/Y/10V/S

1 2

0.1U/4/Y/16V/SC316

LVREF :

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

SB(VT8235)_VLINK,LAN,LPC

Wednesday, August 18, 2004

GA-6VLEP

10 30

E

of

1.0

1 2

R259 1K/6/1/S

C312

0.1U/4/Y/16V/S

1 2

A

8233A : 0.9V Load R 1.69K 1% 8235 : 0.625V Load R 1K 1%

B

C

D

A

B

C

D

E

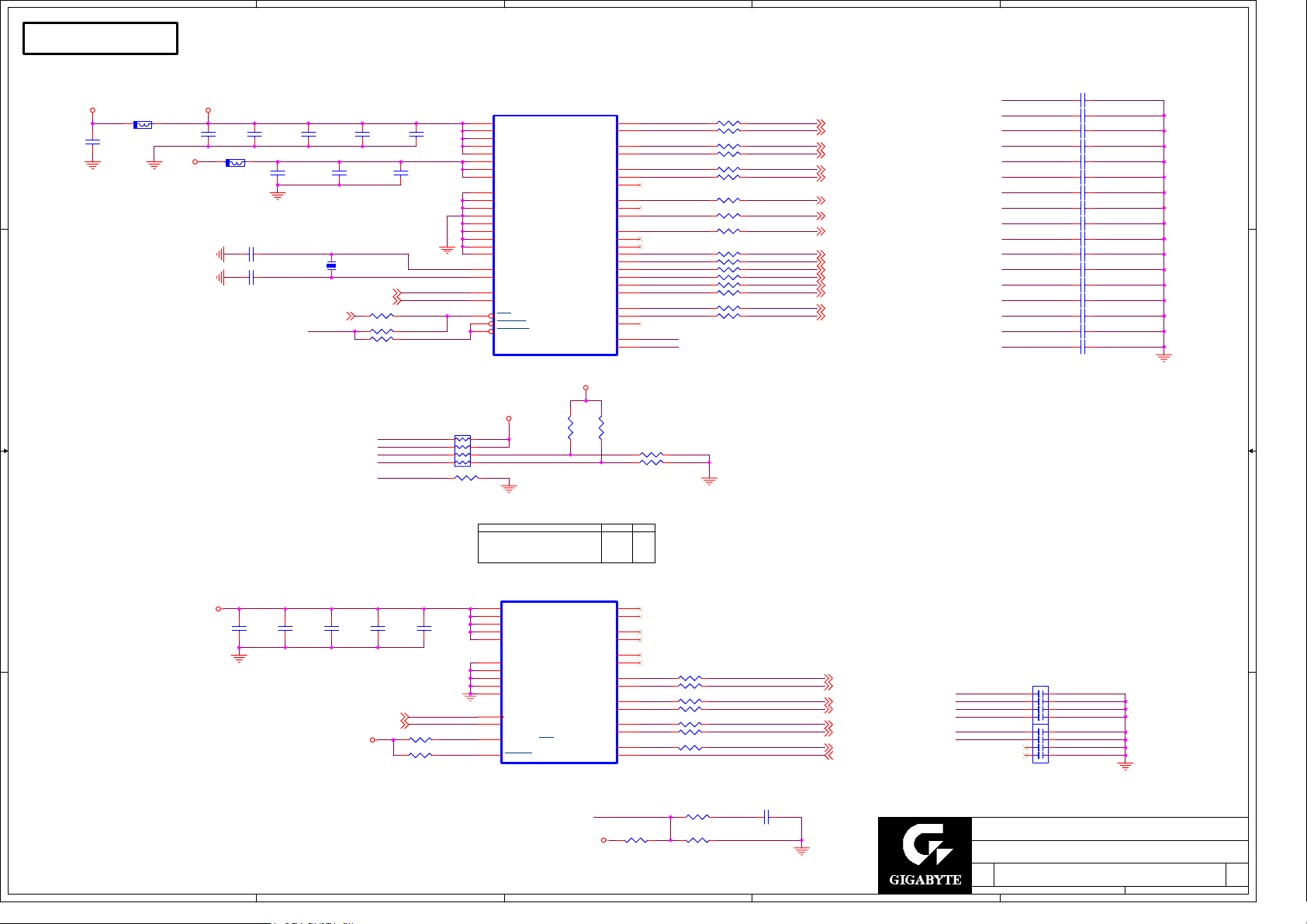

W311+W256

C421

+3.3V

FB38

4 4

3 3

12

FB30/8/MAG/S C453 10U/12/Y/10V/S

+3.3V_CLK

+2.5V

0.1U/4/Y/16V/S

12

FB39

12

FB30/8/MAG/S

C420

0.1U/4/Y/16V/S

12

C431

0.1U/4/Y/16V/S

C419

0.1U/4/Y/16V/S

12

+3.3V_CLK

+2.5V_HCLK

12

C418

0.1U/4/Y/16V/S

12

C432

0.1U/4/Y/16V/S

12

IF SUPPORT SDRAM VDDD IS CONNECT TO 3.3V

C114 10P/4/N/50V

12

C120 10P/4/N/50V

12

PWRGD_PWM{25,26}

1 2

+3.3V_CLK

X6

14.318MHZ/32PF/30PPM/TXC

SMBDT{9,12,24} SMBCK{9,12,24}

R132 0/6

1 2

R131 4.7K/6/X

1 2

R133 4.7K/6

1 2

FS3 FS2 FS0 FS1

FS4

C430

0.1U/4/Y/16V/S

12

C433

0.1U/4/Y/16V/S

RN80 8.2K/8P4R/S

1

5 15 24 31 37 41 46

2

8 12 19 25 30 36 40 43

3

4

29 28

32 33 34

12 34 56 78

R340 10K/6/S

1 2

U15

VCCREF VCC48 VCCPCI VCCAGP VCCCORE VCCCPU VCCCPU VCCAPIC

GNDREF GND48 GNDPCI GNDPCI GNDAGP GNDCORE GNDCPU GNDCPU GNDAPIC

X1 X2

SDATA SCLK

RST PCI_STP CPU_STP

W311/CYPRESS

+3.3V_CLK

FS0_ FS1_

REF0

REF1/FS4

FS3/48MHZ

FS2/24_48MHZ

APIC0 APIC1 APIC2

AGP0 AGP1 AGP2

PCI_F

PCI1 PCI2 PCI3 PCI4 PCI5 PCI6 PCI7 PCI8

CPU1 CPU2 CPU3

FS1 FS0

+3.3V_CLK

R330 220/6/S

1 2

R332 220/6/S

REF0

48

REF1

47

FS3

6

FS2

7

APIC0

45

APIC1

44 42

AGP0

23 26

AGP2

27

PCIF

9 10 11

PCI3

13

PCI4

14

PCI5

16

PCI6

17

PCI7

18

PCI8

20

CPU1

39

CPU2

38 35

FS1

21

FS0

22

R331 0/6/S/X

1 2

R333 0/6/S/X

1 2

R138 10/6

1 2

R137 10/6

1 2

R117 10/6

1 2

R116 10/6

1 2

R366 10/6/S

1 2

R136 10/6

1 2

R108 10/6

1 2

R130 10/6

1 2

R115 10/6

1 2

R114 10/6

1 2

R113 10/6

1 2

R112 10/6

1 2

R111 10/6

1 2

R110 10/6

1 2

R109 10/6

1 2

R135 10/6

1 2

R134 10/6

1 2

FS4

SB_OSC {10} GUICLK {7}

USBCLK {8} LPCSIO {16}

APICCLK {3} APICCLK_SB {10}

GCLK_NB {7}

VCLK {10}

SB_PCLK {8}

PCICLK2 {19} LAN1CK33 {20} LAN2CK33 {21} LPCCLK {16} PCICLK0 {14} PCICLK1 {19}

HCLK_NB {5} CPUCLK {3}

SB_OSC

C439 10P/4/N/50V/S/X

GUICLK

C441 10P/4/N/50V/S/X

USBCLK

C417 10P/4/N/50V/S/X

LPCSIO

C252 10P/4/N/50V/S/X

APICCLK_SB

C438 10P/4/N/50V/S/X

GCLK_NB

C409 10P/4/N/50V/S/X

VCLK

C440 10P/4/N/50V/S/X

SB_PCLK

C416 10P/4/N/50V/S/X

LAN1CK33

C414 10P/4/N/50V/S/X

LAN2CK33

C413 10P/4/N/50V/S/X

LPCCLK

C412 10P/4/N/50V/S/X

PCICLK0

C411 10P/4/N/50V/S/X

PCICLK1

C410 10P/4/N/50V/S/X

CPUCLK

C436 10P/4/N/50V/S/X

HCLK_NB

C437 10P/4/N/50V/S/X

PCICLK2

C415 10P/4/N/50V/S/X

APICCLK

C482 10P/4/N/50V/S/X

1 2

FS4

0

11 0 0

U16

5

VDD

9

VDD

14

VDD

21

VDD

25

VDD

6

GND

11

GND

17

GND

20

GND

24

GND

16

SCLK

15

SDATA

28

SEL_DDR/SDR

2

POWDN

W256/IMI

1

2 2

C122

+2.5V

1 1

A

0.1U/4/Y/16V

1 2

C121

0.1U/4/Y/16V

C118

0.1U/4/Y/16V

1 2

+2.5V

1 2

C117

0.1U/4/Y/16V

SMBCK{9,12,24} SMBDT{9,12,24}

1 2

B

C115

0.1U/4/Y/16V

1 2

R123 4.7K/6

R121 4.7K/6

FS0FS1FS2FS3

CPU

133

66

DCLKO

3 4

7 8

12 13

19 18

23 22

27 26

1 10

R119

510/6

PCI

33.3

33.3100 33

R125 0/6

1 2

R124 0/6

1 2

R127 0/6

1 2

R126 0/6

1 2

R129 0/6

1 2

R128 0/6

1 2

R122 10/6

1 2

R118 22/6/X

1 2

R120 4.7K/6/X

12

C

DCLK2

-DCLK2

DCLK1

-DCLK1

DCLK0

-DCLK0

DCLKI DCLKO

C613 5P/4/N/50V/X

1 2

12

DCLK2 {12}

-DCLK2 {12}

DCLK1 {12}

-DCLK1 {12}

DCLK0 {12}

-DCLK0 {12}

DCLKI {6}

DCLKO {6}

-DCLK1 DCLK1

-DCLK0 DCLK0

-DCLK2 DCLK2

Title

Size Document Number Rev

D

Date: Sheet

2 1 4 3 6 5 8 7

CP8 10P/8P4C/X

CP7 10P/8P4C/X

GIGABYTE TECHNOLOGY CORPORATION

CLOCK(W311H)

Wednesday, August 18, 2004

GA-6VLEP

E

11 30

1.0

of

1

011

1

0

1

DDRT0

DDRC0

DDRT1

DDRC1

DDRT2

DDRC2

DDRT3

DDRC3

DDRT4

DDRC4

DDRT5

DDRC5

FB_OUT

BUF_IN

+2.5V

A

B

C

D

E

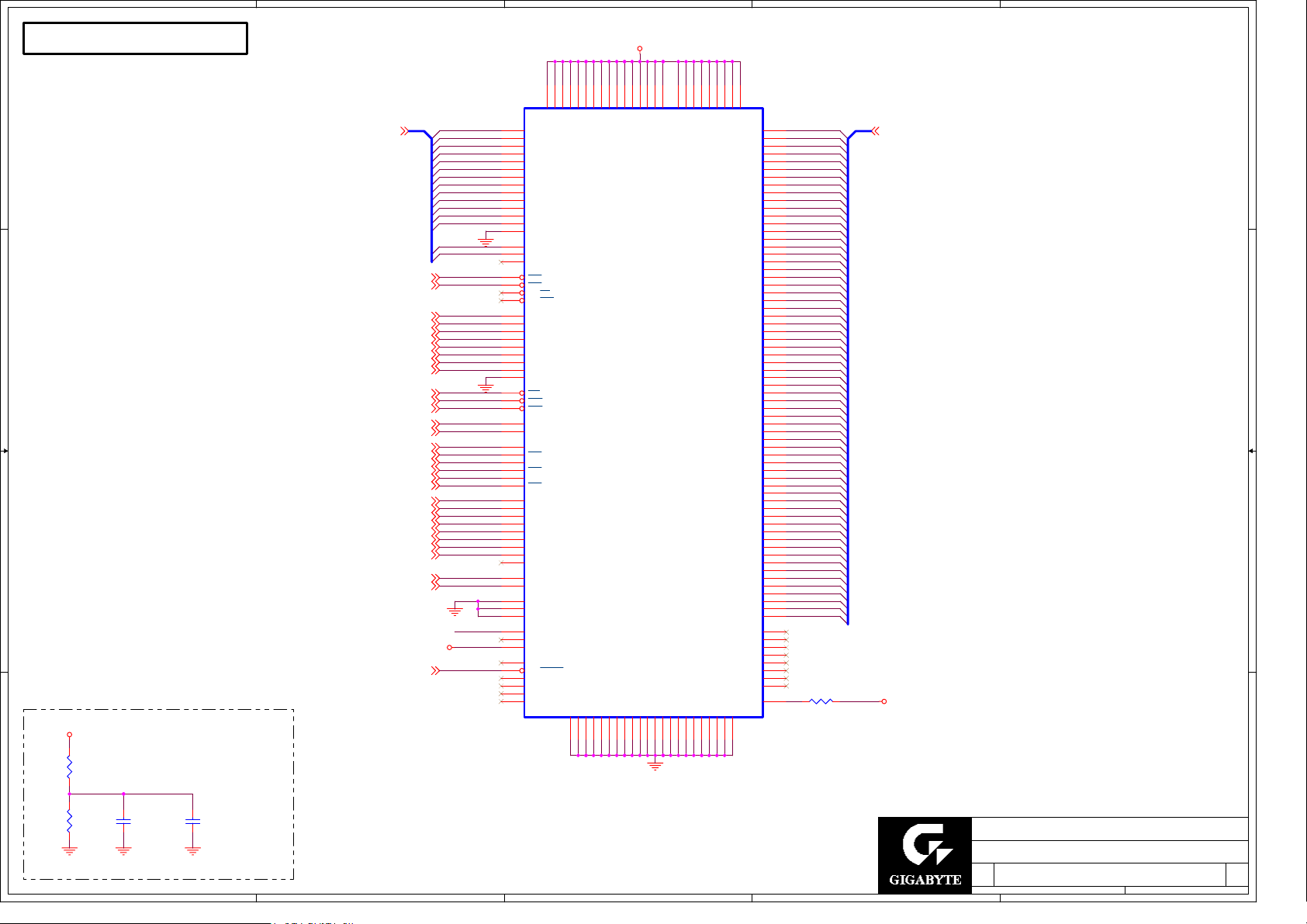

DIMM MODULE

15223054627796

4 4

3 3

2 2

RESET_DDR{26}

+2.5V

MAA0 MAA1 MAA2 MAA3 MAA4 MAA5 MAA6 MAA7 MAA8 MAA9 MAA10 MAA13 MAA14

MAA11 MAA12

-CS0{6,13}

-CS1{6,13}

-DQM0

-DQM0{13}

-DQM1

-DQM1{13}

-DQM2

-DQM2{13}

-DQM3

-DQM3{13}

-DQM4

-DQM4{13}

-DQM5

-DQM5{13}

-DQM6

-DQM6{13}

-DQM7

-DQM7{13}

-SWEA{6,13}

-SCASA{6,13}

-SRASA{6,13}

CKE0{6} CKE1{6}

DCLK0{11}

-DCLK0{11} DCLK1{11}

-DCLK1{11} DCLK2{11}

-DCLK2{11}

-DQS0{13}

-DQS1{13}

-DQS2{13}

-DQS3{13}

-DQS4{13}

-DQS5{13}

-DQS6{13}

-DQS7{13}

SMBDT{9,11,24} SMBCK{9,11,24}

MVREF_DIM

+2.5V

130

125

122

141 118 115 167

113

157 158

163

107 119 129 149 159 169 177 140

154

111

137 138

181 182 183

184

101 102 173 103

48 43 41

37 32

29

27

59 52

71

97

63 65

21

16 17

76 75

5 14 25 36 56 67 78 86 47

91 92

1 82

9 10

VDDQ

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13

BA0 BA1 BA2

CS0 CS1 NC/CS2 NC/CS3

DQM0 DQM1 DQM2 DQM3 DQM4 DQM5 DQM6 DQM7 DQM8

WE CAS RAS

CKE0 CKE1

CK0/DNU CK0/DNU CK1 CK1 CK2/DNU CK2/DNU

DQS0 DQS1 DQS2 DQS3 DQS4 DQS5 DQS6 DQS7 DQS8

SDA SCL

SA0 SA1 SA2

VREF VDDID VDDSPD

NC NC/RESET NC NC NC NC/FETEN

3111826344250586674818993

VDDQ

GND

+2.5V

104

112

128

136

143

VDDQ

DDR

GND

156

VDDQ

GND

164

VDDQ

GND

172

VDDQ

GND

180738467085108

VDD

VDDQ

GND

100

116

124

132

139

145

DIMM1

120

148

168

VDD

D0 D1 D2 D3 D4 D5 D6 D7 D8

D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 D33 D34 D35 D36 D37 D38 D39 D40 D41 D42 D43 D44 D45 D46 D47 D48 D49 D50 D51 D52 D53 D54 D55 D56 D57 D58 D59 D60 D61 D62 D63

CB0 CB1 CB2 CB3 CB4 CB5 CB6 CB7

WP

GND

152

160

176

DDR-184P/BLACK/FOXC

2 4 6 8 94 95 98 99 12 13 19 20 105 106 109 110 23 24 28 31 114 117 121 123 33 35 39 40 126 127 131 133 53 55 57 60 146 147 150 151 61 64 68 69 153 155 161 162 72 73 79 80 165 166 170 171 83 84 87 88 174 175 178 179

44 45 49 51 134 135 142 144

90

MD0 MD1 MD2 MD3 MD4 MD5 MD6 MD7 MD8 MD9 MD10 MD11 MD12 MD13 MD14 MD15 MD16 MD17 MD18 MD19 MD20 MD21 MD22 MD23 MD24 MD25 MD26 MD27 MD28 MD29 MD30 MD31 MD32 MD33 MD34 MD35 MD36 MD37 MD38 MD39 MD40 MD41 MD42 MD43 MD44 MD45 MD46 MD47 MD48 MD49 MD50 MD51 MD52 MD53 MD54 MD55 MD56 MD57 MD58 MD59 MD60 MD61 MD62 MD63

R339 4.7K/6

1 2

MD[0:63] {13}MAA[0:14]{6,13}

+2.5V

R341

1 1

1K/6/1

1 2

MVREF_DIM

R342

1K/6/1

1 2

C455

0.1U/4/Y/16V

1 2

A

C456 1000P/4/X7/50V

1 2

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

B

C

D

Wednesday, August 18, 2004

BLOCK DIAGRAM

GA-6VLEP

E

12 30

of

1.0

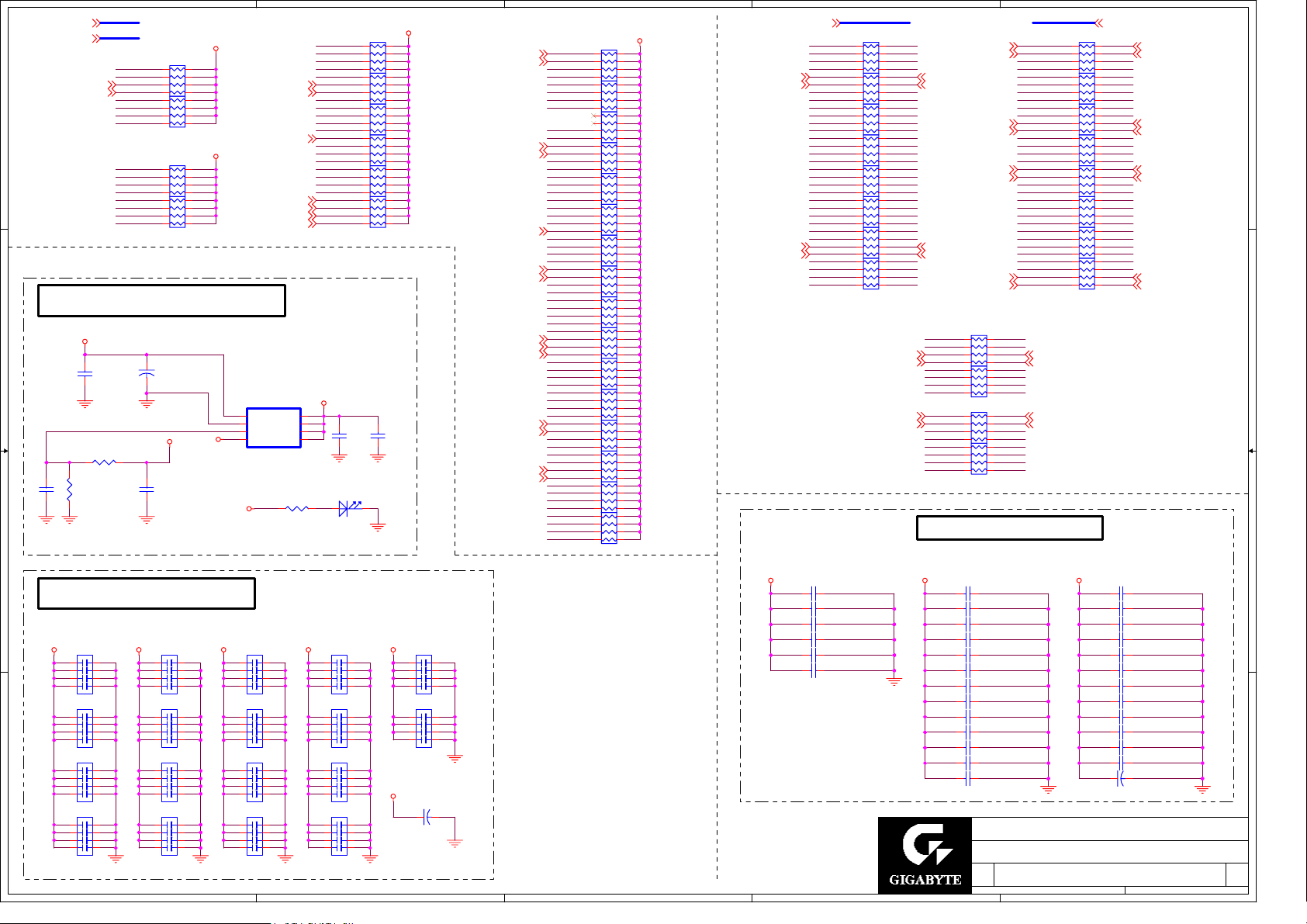

A

MD[0:63]

MD[0:63]{12}

MAA[0:14]{6,12}

4 4

MAA[0:14]

MD12

1 2

MD13

3 4

MD62 MD58 MD63 MD59

MAA1 MAA0 MAA10 MAA12 MD7 MD3 MD8 MD9

5 6 7 8 1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

-DQS1{12}

-DQM1{12}

VTT_MEM

RN51 56/8P4R

RN30 56/8P4R

VTT_MEM

RN41 56/8P4R

RN52 56/8P4R

MD22 MAA7 MAA8 MD19

-SRASA{6,12}

-SWEA{6,12}

-DQM3{12}

-DQM5{12}

-DQS5{12}

MD44

MD45 MD32 MD36 MD37 MD33

MAA4 MAA3 MD26 MAA14 MD17 MD21 MAA13

-CS3{6}

-CS2{6}

VTT_MEM GENERATE CIRCUIT

C462

0.1U/4/Y/16V/S

1 2

+3.3V

C461

0.1U/4/Y/16V/S

1 2

R343 10K/6/S

1 2

R344 10K/6/S

12

EC16 1000U/D/8C/6.3V

+2.5V

C457 1U/6/Y/10V/S

1 2

VTT_MEM

U35

1

VIN

2

GND

3

REFEN

4 5

VOUT Vcntl

RT9173-CS/S

+2.5V

8

Vcntl

7

Vcntl

6

Vcntl

R373

1 2

100/6/X

+5V

3 3

2 2

VTT_MEM Decoupling Caps

VTT_MEM Decoupling Caps: 1000uF x 1, .1uF x 62

VTT_MEM VTT_MEM VTT_MEM VTT_MEM

CP22

21 43 65 87

0.1U/8P4C CP17

21 43 65 87

0.1U/8P4C CP13

21 43

0.1U/8P4C CP10

0.1U/8P4C

65 87

21 43 65 87

1 1

CP20

21 43 65 87

0.1U/8P4C CP16

21 43 65 87

0.1U/8P4C CP12

21 43 65 87

0.1U/8P4C

CP9

21 43 65 87

0.1U/8P4C

A

CP19

0.1U/8P4C CP15

0.1U/8P4C CP11

0.1U/8P4C CP21

0.1U/8P4C

21 43 65 87

CP18

0.1U/8P4C CP14

0.1U/8P4C CP27

0.1U/8P4C CP28

0.1U/8P4C

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

C476

4.7U/8/Y/10V/S

1 2

C477

0.1U/4/Y/16V/S

LED

LED/X

21 43 65 87

B

1 2

VTT_MEM

B

VTT_MEM

CP29

0.1U/8P4C CP30

0.1U/8P4C

1 2

RN46 56/8P4R

RN38 56/8P4R

RN55 56/8P4R

RN43 56/8P4R

RN48 56/8P4R

RN36 56/8P4R

21 43 65 87

EC17 1000U/D/8C/6.3V

C

VTT_MEM

-DQS0{12}

-DQM0{12}

-DQS2{12}

-DQM2{12}

-DQS3{12}

-DQS4{12}

-DQM4{12}

-CS0{6,12}

-SCASA{6,12}

-CS1{6,12}

-DQM6{12}

-DQS6{12}

-DQM7{12}

-DQS7{12}

MD2 MD6 MD0 MD4 MD5 MD1

MD20 MD16

MAA9 MD18 MD23 MAA5 MAA6 MD24 MD28 MD25 MD29

MD30 MD27 MD31 MAA2

MD34 MD38 MD39 MAA11 MD35 MD40 MD41

MD46 MD42 MD43 MD47 MD52 MD48 MD49 MD53

MD54 MD50 MD61 MD57

MD55 MD51 MD60 MD56 MD11 MD10 MD15 MD14

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 7 8 5 6 3 4 1 2

RN53 56/8P4R

RN54 56/8P4R

RN49 56/8P4R

RN47 56/8P4R

RN45 56/8P4R

RN44 56/8P4R

RN42 56/8P4R

RN40 56/8P4R

RN39 56/8P4R

RN37 56/8P4R

RN35 56/8P4R

RN34 56/8P4R

RN33 56/8P4R

RN31 56/8P4R

RN32 56/8P4R

RN50 56/8P4R

C

MD_[0:63]{6}

MD_0

RN86

MD_4

10/8P4R

MD_5 MD_1

-DQS_0{6}

-DQM_0{6} MD_2

RN85

MD_6

10/8P4R

MD_3 MD3

RN84

MD_8 MD8 MD_9

10/8P4R

MD_14

RN82 10/8P4R

MD_10 MD_11 MD_19

RN99

MD_23

10/8P4R

MD_24 MD_28 MD_20 MD20

RN81

MD_16

10/8P4R

MD_17 MD_21

RN98

MD_25

10/8P4R

MD_29

-DQS_3{6} -DQS3 {12}

-DQM_3{6} -DQM3 {12}

RN97 10/8P4R

MD_27

+2.5V

C672 1U/6/Y/10V/S

12

C673 1U/6/Y/10V/S

12

C674 1U/6/Y/10V/S

12

C675 1U/6/Y/10V/S

12

C676 1U/6/Y/10V/S

12

C677 1U/6/Y/10V/S

12

MD_[0:63]

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

D

MD[0:63]

-DQS_1{6}

-DQM_1{6}

-DQS_2{6}

-DQM_2{6}

MD0 MD4 MD5 MD1

MD2 MD6 MD7MD_7

MD9 MD14 MD15MD_15 MD10 MD11 MD19 MD23 MD24 MD28

MD16 MD17 MD21 MD25 MD29

MD26MD_26 MD30MD_30 MD27 MD31MD_31

-DQM_4{6} -DQM4 {12}

-DQS0 {12}

-DQM0 {12}

MD_12 MD_13 MD13

MD_46 MD_42 MD42 MD_43 MD_47

MD_18 MD18

MD_32 MD_36 MD36 MD_37 MD_33 MD33

RN94 10/8P4R

RN93 10/8P4R

-DQS_5{6}

RN91 10/8P4R

-DQM_6{6}

RN90 10/8P4R

RN89 10/8P4R

RN87 10/8P4R

-DQM_7{6}

RN83 10/8P4R

1 2 3 4 5 6 7 8 1 2 3 4 5 6

7 8

RN92 10/8P4R RN100 10/8P4R

1 2

3 4

5 6

7 8

1 2

3 4

5 6

7 8

RN96 10/8P4R

MD12

MD46

MD43 MD47

MD22MD_22 MD32

MD37

1 2 3 4

MD_34

5 6

MD_38

7 8

MD_39 MD39

1 2

MD_35

3 4

MD_40

5 6 7 8

MD_45 MD45

1 2 3 4 5 6 7 8

MD_52

1 2

MD_48

3 4

MD_49

5 6

MD_53

7 8 1 2 3 4

MD_54

5 6

MD_50

7 8

MD_55

1 2

MD_51

3 4

MD_60

5 6

MD_56

7 8 1 2

MD_58

3 4

MD_63

5 6

MD_59

7 8

MD_61

1 2 3 4 5 6 7 8

-DQS1 {12}

-DQM1 {12}

-DQS2 {12}

-DQM2 {12}

RN88 10/8P4R

E

MD[0:63] {12}

MD34 MD38

MD35 MD40 MD44MD_44

MD41MD_41

MD52 MD48 MD49 MD53

MD54 MD50 MD55 MD51 MD60 MD56 MD62MD_62 MD58 MD63 MD59 MD61 MD57MD_57

-DQS4 {12}-DQS_4{6}

-DQM5 {12}-DQM_5{6}

-DQS5 {12}

-DQM6 {12}

-DQS6 {12}-DQS_6{6}

-DQM7 {12}

-DQS7 {12}-DQS_7{6}

RN95 10/8P4R

DIMM Module Decoupling Cap.

+2.5VDIMM Decoupling Caps: 220uF x 1, 1000uF x 2, 10uF x 2, 1uF x 17, 0.1uF x 12

+2.5V

C446 1U/6/Y/10V

12

C447 1U/6/Y/10V

12

C450 1U/6/Y/10V

12

C448 1U/6/Y/10V

12

C444 1U/6/Y/10V

12

C445 1U/6/Y/10V

12

C459 1U/6/Y/10V

12

C368 1U/6/Y/10V/S

12

C369 1U/6/Y/10V/S

12

C370 1U/6/Y/10V/S

12

C371 1U/6/Y/10V/S

12

C443 10U/12/Y/10V

12

C449 10U/12/Y/10V

12

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

D

Wednesday, August 18, 2004

+2.5V

EC18 1000U/D/8C/6.3V

1 2

0.1U/4/Y/16VC458

0.1U/4/Y/16VC451

0.1U/4/Y/16VC452

0.1U/4/Y/16VC442

0.1U/4/Y/16V/SC654

0.1U/4/Y/16V/SC655

0.1U/4/Y/16V/SC656

0.1U/4/Y/16V/SC657

0.1U/4/Y/16V/SC658

0.1U/4/Y/16V/SC659

0.1U/4/Y/16V/SC660

0.1U/4/Y/16V/SC661

DDR_RES & TERM

GA-6VLEP

E

13 30

of

1.0

A

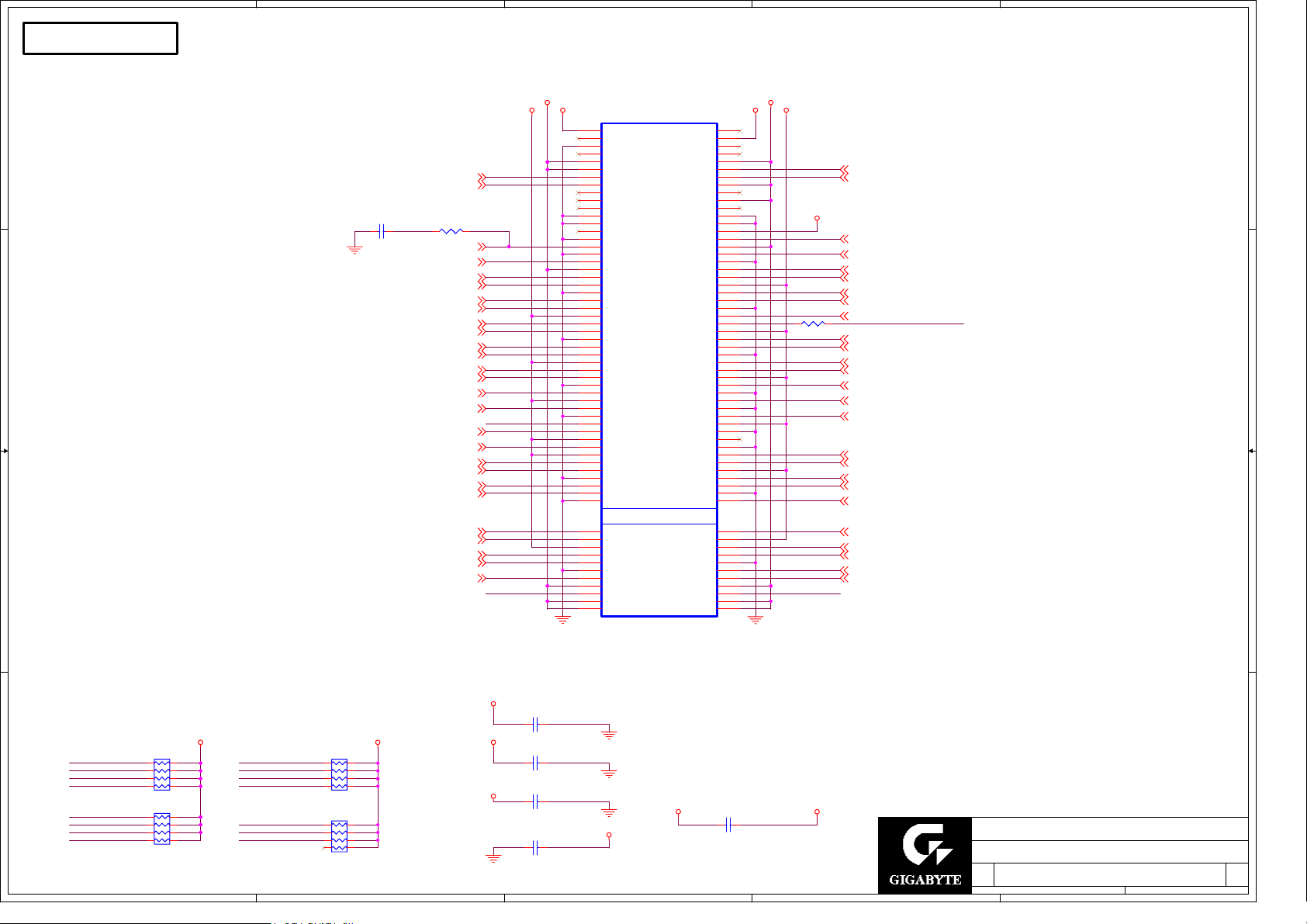

PCI SLOT

B

C

D

E

A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49

A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62

+5V

+12V +3.3V

+3.3VDUAL

R500

1 2

0/6

-REQ64

-INTR_A {7,8,21}

-INTR_C {8,19}

-PCIRSTX {8,16,19,20,21}

-GNT0 {8}

-PME {9,19,20,21} A_D30 {8,19,20,21}

A_D28 {8,19,20,21} A_D26 {8,19,20,21}

A_D24 {8,19,20,21}

A_D22 {8,19,20,21} A_D20 {8,19,20,21}

A_D18 {8,19,20,21} A_D16 {8,19,20,21}

-FRAME {8,19,20,21}

-TRDY {8,19,20,21}

-STOP {8,19,20,21}

PAR {8,19,20,21}

A_D15 {8,19,20,21}

A_D13 {8,19,20,21} A_D11 {8,19,20,21}

A_D9 {8,19,20,21}

C_-BE0 {8,19,20,21}

A_D6 {8,19,20,21} A_D4 {8,19,20,21}

A_D2 {8,19,20,21} A_D0 {8,19,20,21}

A_D19

+5V

+3.3V

-12V

4 4

-INTR_B{8,19}

-INTR_D{8,19,20}

C60

1 2

5P/4/N/50V/X

3 3

2 2

R57 22/6/X

1 2

PCICLK0{11}

-REQ0{8}

A_D31{8,19,20,21} A_D29{8,19,20,21}

A_D27{8,19,20,21} A_D25{8,19,20,21}

C_-BE3{8,19,20,21}

A_D23{8,19,20,21}

A_D21{8,19,20,21} A_D19{8,19,20,21}

A_D17{8,19,20,21}

C_-BE2{8,19,20,21}

-IRDY{8,19,20,21}

-DEVSEL{8,19,20,21}

-PERR{8,19,20,21}

-SERR{8,19,20,21}

C_-BE1{8,19,20,21}

A_D14{8,19,20,21}

A_D12{8,19,20,21} A_D10{8,19,20,21}

A_D8{8,19,20,21} A_D7{8,19,20,21}

A_D5{8,19,20,21} A_D3{8,19,20,21}

A_D1{8,19,20,21}

-PLOCK

-ACK64

PCI1

B1

-12V

B2

TCK

B3

GND

B4

TDO

B5

+5V

B6

+5V

B7

INTB#

B8

INTD#

B9

PRSNT#1

B10

RESERVED

B11

PRSNT#2

B12

GND

B13

GND

B14

RESERVED

B15

GND

B16

CLK

B17

GND

B18

REQ#

B19

+5V(I/O)

B20

AD[31]

B21

AD[29]

B22

GND

B23

AD[27]

B24

AD[25]

B25

+3.3V

B26

C/BE[3]#

B27

AD[23]

B28

GND

B29

AD[21]

B30

AD[19]

B31

+3.3V

B32

AD[17]

B33

C/BE[2]#

B34

GND

B35

IRDY#

B36

+3.3V

B37

DEVSEL#

B38

GND

B39

LOCK#

B40

PERR#

B41

+3.3V

B42

SERR#

B43

+3.3V

B44

C/BE[1]#

B45

AD[14]

B46

GND

B47

AD[12]

B48

AD[10]

B49

GND

B52

AD[08]

B53

AD[07]

B54

+3.3V

B55

AD[05]

B56

AD[03]

B57

GND

B58

AD[01]

B59

+5V(I/O)

B60

ACK64#

B61

+5V

B62

+5V

PCI_CON_32BIT

KEY

TRST#

+12V

TMS

+5V INTA# INTC#

+5V

RESERVED

+5V(I/O)

RESERVED

GND GND

3.3Vaux RST#

+5V(I/O)

GNT#

GND

PME#

AD[30]

+3.3V

AD[28] AD[26]

GND

AD[24]

IDSEL

+3.3 AD[22] AD[20]

GND AD[18] AD[16]

+3.3V

FRAME#

GND TRDY#

GND

STOP#

+3.3V

SDONE

SBO#

GND

PAR

AD[15]

+3.3V AD[13] AD[11]

GND

AD[09]

C/BE[0]#

+3.3V AD[06] AD[04]

GND AD[02] AD[00]

+5V(I/O) REQ64#

+5V +5V

TDI

+5V

C53 2.2U/8/Y/16V

+5V +5V

A

RN64

1 2 3 4 5 6 7 8

4.7K/8P4R

RN65

1 2 3 4 5 6 7 8

4.7K/8P4R

-INTR_B

-INTR_C

-INTR_D-STOP

-SERR

-ACK64

-REQ64-PERR

-FRAME -INTR_A

-IRDY

1 1

-TRDY

-DEVSEL

-PLOCK

PAR

RN62

1 2 3 4 5 6 7 8

4.7K/8P4R

RN63

1 2 3 4 5 6 7 8

4.7K/8P4R

B

1 2

+3.3V

C69 2.2U/8/Y/16V

1 2

+12V

C202 1U/8/Y/25V/S

1 2

C201 1U/8/Y/25V/S

1 2

-12V

+5V

C425 1000P/4/X7/50V

1 2

C

+3.3V

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

D

Wednesday, August 18, 2004

PCI SLOT

GA-6VLEP

E

14 30

of

1.0

A

B

C

D

E

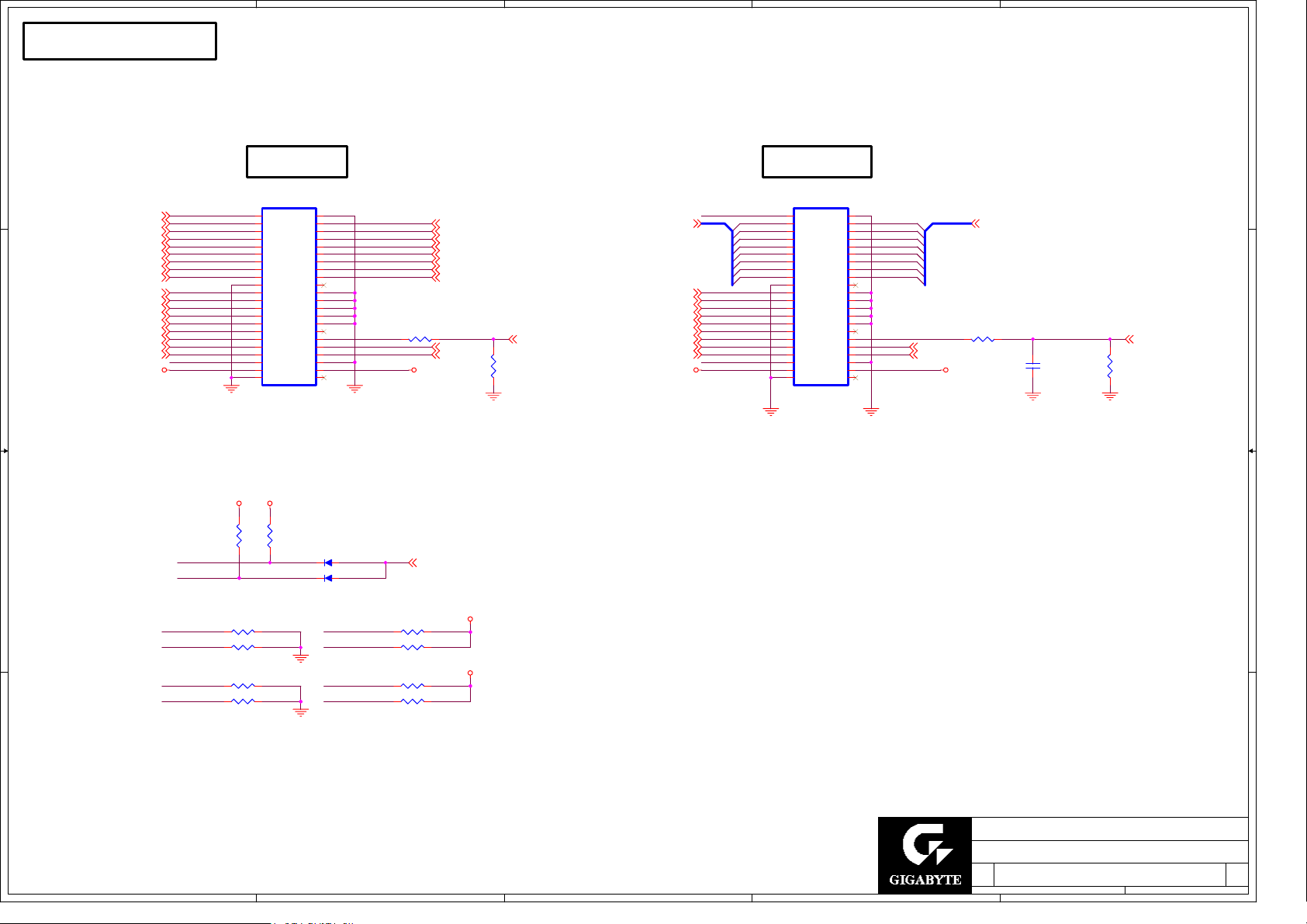

IDE Connector

4 4

PRIMARY

IDE1

-IDERST{8}

PDD6{9} PDD5{9} PDD4{9} PDD3{9} PDD2{9} PDD1{9} PDD0{9}

PDDREQ{9}

-PDIOW{9}

-PDIOR{9}

PHDRDY{9}

-PDDACK{9} IRQ14{9}

3 3

2 2

PDA1{9} PDA0{9}

-PDCS1{9}

PDD7 PDD6 PDD5 PDD4 PDD3 PDD2 PDD1 PDD0

-HD_LED1

+5V +5V

-HD_LED1

-HD_LED2

SDD7

SDDREQ

PDD7 PHDRDY

PDDREQ

1 3 5 7

9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43

BH2M-44GB/PINREX/S

+5V +5V

R481

4.7K/6

1 2

R483 10K/6

1 2

R485 5.6K/6

1 2

R487 10K/6

1 2

R489 5.6K/6

1 2

1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43

1 2

R482

4.7K/6

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

D20 1N4148

D21 1N4148

SHDRDY

IRQ15

IRQ14

PDD8 PDD9 PDD10 PDD11 PDD12 PDD13 PDD14 PDD15

PDA2

-PDCS3

1 2

PDD8 {9}PDD7{9} PDD9 {9} PDD10 {9} PDD11 {9} PDD12 {9} PDD13 {9} PDD14 {9} PDD15 {9}

R479 0/6/S

12

PDA2 {9}

-PDCS3 {9}

HD_LED {17}

R484 4.7K/6

R486 4.7K/6

R488 4.7K/6

R490 4.7K/6

+5V

SDD[0:15]{9}

SDDREQ{9}

-SDIOW{9}

-SDIOR{9}

SHDRDY{9}

GPIOA {9}

R480 0/6/S

1 2

-SDDACK{9}

-SDCS1{9}

-IDERST

IRQ15{9}

SDA1{9} SDA0{9}

+5V +5V

-HD_LED2

SDD7 SDD6 SDD5 SDD4 SDD3 SDD2 SDD1 SDD0

SECONDARY

IDE2

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

43

BH2M-44GB/PINREX/S

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

SDD8 SDD9 SDD10 SDD11 SDD12 SDD13 SDD14 SDD15

SDA2 {9}

-SDCS3 {9}

SDD[0:15] {9}

R503 0/6

12

C611

0.047U/4/Y/16V

-LID {9}

R504 0/6/X

1 2

1 1

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

A

B

C

D

Wednesday, August 18, 2004

IDE,FDD,BIOS

GA-6VLEP

E

15 30

of

1.0

A

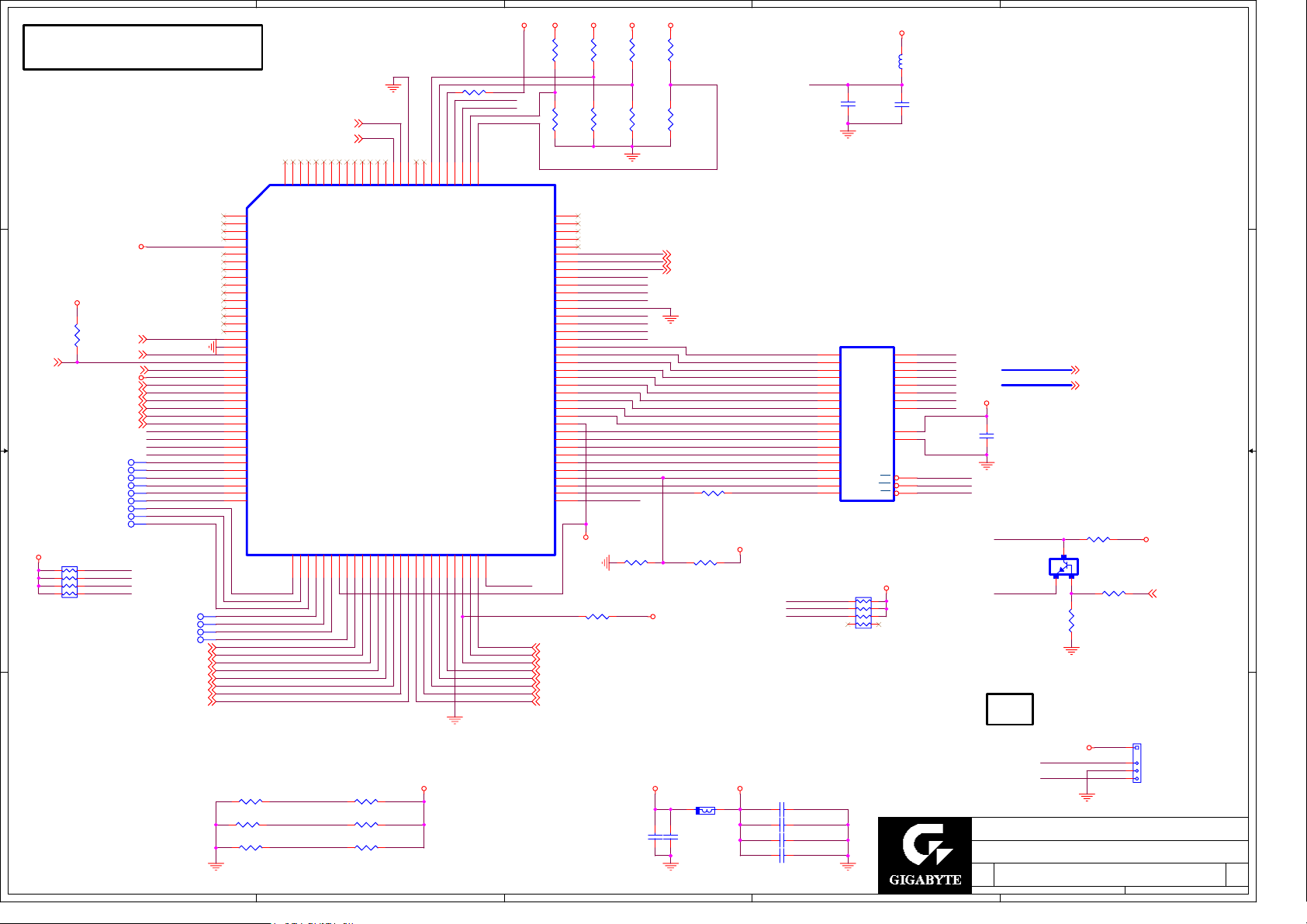

VT1211 LPC_IO

4 4

SYSFAN{3}

CPUFAN{3}

B

R459 10K/6

1 2

VCORE +3.3V

+2.5V

+12V_IN

HWMVREF HWMVCC

1 2

R455 2K/6/1

R460 10K/6/1

+12V

1 2

12

R456 47K/6/1

R461 10K/6/1

C

1 2

R457

6.8K/6/1

R462 10K/6/1

+5V

R542 10K/6/1/S

1 2

R543 10K/6/1/S

1 2

HWMVCC

12

C602

0.1U/4/Y/16V

D

+3.3VSIO

21

FB53

2.2/6

C603 1U/6/Y/10V

1 2

E

U33

1

DSEL0#

2

INDEX#

3

MTRA#

4

DRVB#

+3.3VSIO

R465

-LDRQ{10}

+5V

4.7K/6

RN106

7 8 5 6 3 4 1 2

2.2K/8P4R

3 3

2 2

1 1

1 2

LPCCLK{11}

+3.3VSIO

-LFRAME{10}

-PCIRSTX{8,14,19,20,21}

-LP_ERR

-LP_SLIN LP_D7 LP_D6 LP_D5 LP_D4 LP_D3 LP_D2 LP_D1

-LP_ACK LP_BUSY LP_PE LP_SLCT

LPCSIO{11}

-LDRQ

SERIRQ{10 }

SERIRQ

LAD3

LAD3{10}

LAD2

LAD2{10}

LAD1

LAD1{10}

LAD0

LAD0{10}

-LFRAME

-PCIRSTX LP_SLCT LP_PE LP_BUSY

-LP_ACK

1 1 1 1 1 1 1 1 1

LP_D0

-LP_INIT

-LP_AFD

-LP_STB

-CTS1{18}

-DSR1{18}

-RTS1{18}

-DTR1{18}

-DCD1{18}

0:Normal Opreation

0: Enable ROM I/F as GPIO 1:Enable Flash Rom

5

VCC

6

DRVA#

7

MTRB#

8

DIR#

9

STEP#

10

WDATA#

11

WGATE#

12

TRCAK0#

13

WPT#

14

RDATA#

15

HEAD#

16

DSKCHG#

17

CLKIN

18

GND

19

PCICLK

20

LDRQ#

21

SERIRQ

22

VCC

23

LAD3

24

LAD2

25

LAD1

26

LAD0

27

LFRAME#

28

LRESET#

29

SLCT

30

PE

31

BUSY

32

ACK#

33

ERR#

34

SLIN#

35

PD7

36

PD6

37

PD5

38

PD4

1 1 1 1

-RTS1

RD1{18}

TD1{18}

-RI1{18}

-DTR1

SOUT1

When use 697HF ISA BIOS remove R474

R473 10K/6/X

1 2

R475 2.2K/6

1 2

R477 10K/6/X

1 2

124

125

126

127

128

JBB1/P13/GP11

JAB1/P12/GP10

JBCY/P16/GP14

JBCX/P15/GP13

JACX/P14/GP12

VIA VT1211

PD3

PD2

PD1

PD0

39404142434445464748495051525354555657585960616263

-RTS1

-DTR1

SOUT1

117

118

119

120

121

122

123

BEEP

JAB2/GP17

JBB2/GP16

JACY/GP15

OVTEMP#/SMI#(W)

MSI/OVER_FAN(GP51)/WDTO

MSO/OVER_VOLT(PLED)/DSEL1(GP50)

INIT#

AFD#

VCC

STB#

CTS1#

DSR1#

RTS1#

R474 2.2K/6

1 2

R476 10K/6/X

1 2

R478 2.2K/6

1 2

110

111

112

113

114

115

116

DTDP

DTDN

GNDA

FANIO2

PLED/ITMOFF/GP22/OVER_VOLT//VBAT

FANIO1/DTEST

FANOUT2/GP21

FANOUT1/GP20

DTR1#

SIN1

SOUT1

DCD1#

RL1#

GP77/VID4/CTS2#

GP76/VID3/DSR2#

+3.3VSIO

Super I/O strapping for VT1211

A

B

103

104

105

106

107

108

109

UIC1

UIC2

UIC3

UIC4

UIC5

VREF

VCCA

COPEN/OVER_FAN/GP23/ATEST

IRRX/GP24//CIRRX

GNDD//VSB SMI#//PME#

MEMW#/GP25

MEMR#/GP26

ROMCS#/GP27

XD0/GP30 XD1/GP31 XD2/GP32 XD3/GP33

XD4/GP34 XD5/GP35 XD6/GP36 XD7/GP37 XA0/GP40 XA1/GP41 XA2/GP42 XA3/GP43 XA4/GP44 XA5/GP45 XA6/GP46 XA7/GP47 XA8/GP50 XA9/GP51

XA10/GP52 XA11/GP53 XA12/GP54 XA13/GP55 XA14/GP56 XA15/GP57 XA16/GP60 XA17/GP61 XA18/GP62

GP75/VID2/RTS2#

GP74/VID1/DTR2#

GP73/VID0/SIN2

GNDD

GP72/SMBCK/SOUT2

GP71/SMBDT/DCD2#

GP70/RI2#/ITMON_OFF

IRRX

64

IRRX

Base address 1:2Eh/2FhBase address 0:4Eh/4Fh

1:Test Mode

GNDD

VCC

IRTX

-RI2 {18}

-DCD2 {18} TD2 {18} RD2 {18}

-DTR2 {18}

-RTS2 {18}

-DSR2 {18}

-CTS2 {18}

102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

-SIO_MEMW

-SIO_MEMR

-SIO_ROMCS IOXD0 IOXD1 IOXD2 IOXD3

IOXD4 IOXD5 IOXD6 IOXD7

LPC_XA18_ IRTX

R468

1 2

10K/6/X

R471 10K/6

12

C607 1U/6/Y/10V

C

-SIO_MEMW {27}

-SIO_MEMR {27}

-SIO_ROMCS {27}

R466 2.2/6

1 2

+3.3VSIO+3.3VSIO

R469

12

10K/6

+3.3VSIO

For VT1211 Power sensitive issue.

+3.3V

1 2

+3.3VSIO

FB54

12

FB30/8/MAG

C608 1U/6/Y/10V

LPC_XA0 LPC_XA1 LPC_XA2 LPC_XA3 LPC_XA4 LPC_XA5 LPC_XA6 LPC_XA7 LPC_XA8 LPC_XA9 LPC_XA10 LPC_XA11 LPC_XA12 LPC_XA13 LPC_XA14 LPC_XA15 LPC_XA16 LPC_XA17 LPC_XA18

1 2

-SIO_MEMW

-SIO_MEMR

-SIO_ROMCS

0.1U/4/Y/16VC605

0.1U/4/Y/16VC606

0.1U/4/Y/16VC609

0.1U/4/Y/16VC610

12 11 10

9 8 7 6

5 27 26 23 25

4 28 29

3

2 30

1

U34

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18

PLCC32/AMP

RN111

1 2 3 4 5 6 7 8

4.7K/8P4R

GND

D

+5V

WE

+5V

D0 D1 D2 D3 D4 D5 D6 D7

OE

CE

14 15 17 18 19 20 21

32 16

24 31 22

IOXD1 IOXD2 IOXD3 IOXD4 IOXD5 IOXD6 IOXD7

-SIO_MEMR

-BIOS_WE

-SIO_ROMCS

+5V

1 2

IOXD[0:7]

LPC_XA[0:18]

C604

0.1U/4/Y/16V

-BIOS_WE

-SIO_MEMW

IOXD[0:7] {27}

LPC_XA[0:18] {27}

1 2

132

R472 1K/6

1 2

R467 1K/6

Q39 MMBT2222A/SOT23

R470

1 2

1K/6

+5V

BIOS_WE {8}

IOXD0

13

FIR

IR1

+5V

IRRX

IRTX

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

Wednesday, August 18, 2004

LPC_IO(VT1211)

GA-6VLEP

1

3 4 5

IR1X5/-2/X

E

16 30

of

1.0

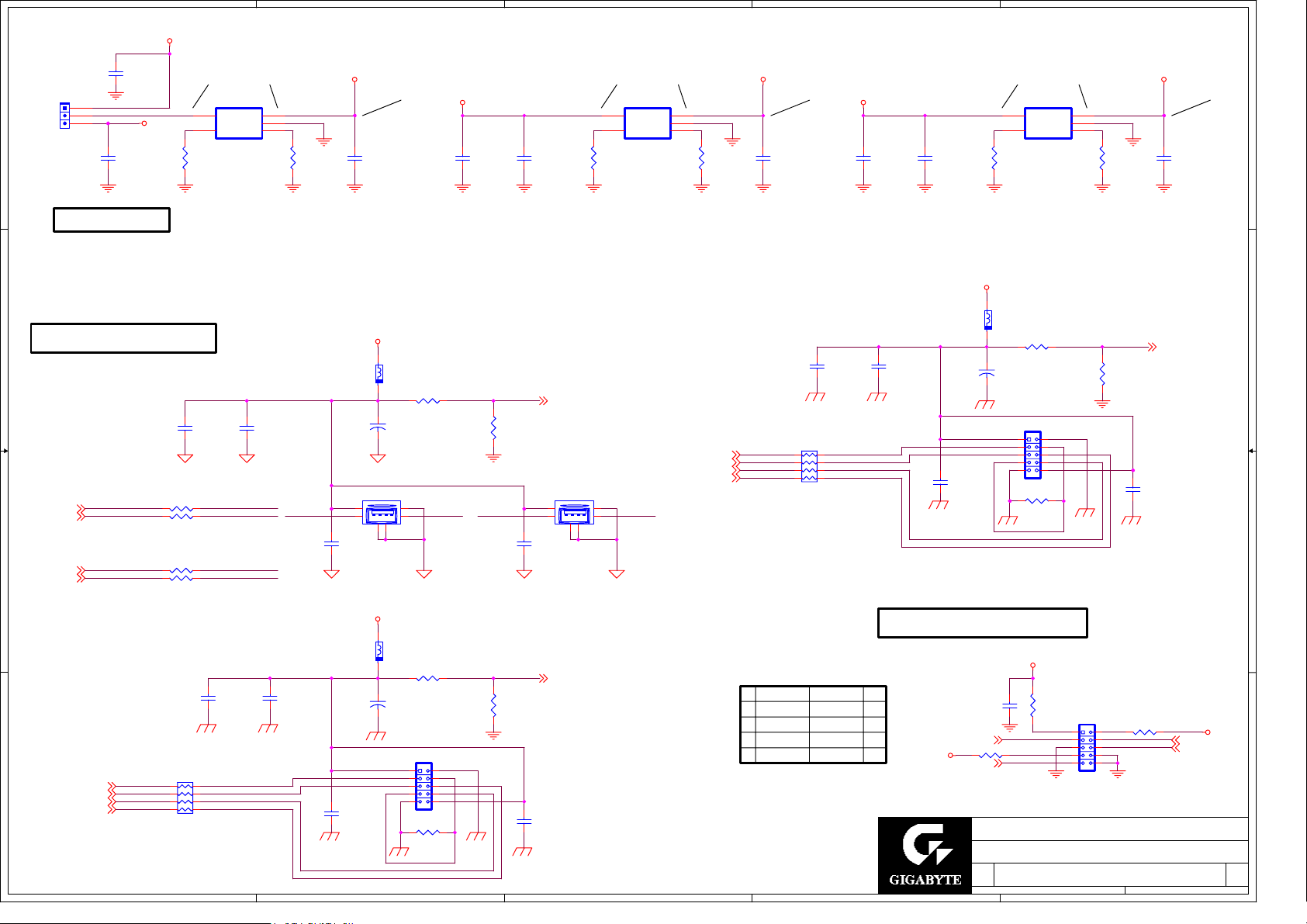

A

+5VDUAL

B

C

D

E

C580

0.1U/4/Y/16V

USB_VS1

4 4

PH/1X3/PINREX

1,2 : +5VDUAL 2,3 : +5V

1 2

1 2 3

C581

0.1U/4/Y/16V

1 2

+5V

R437 1K/6

1 2

U30

5

IN

AAT4610IGV

OUT

GND

SET/ON

40mil40mil

1 2 34

R438

4.53K/6/1

1 2

VCCUSB1

1 2

C582

0.1U/4/Y/16V

40mil

+5V

C583

0.1U/4/Y/16V

1 2

C584

0.1U/4/Y/16V

1 2

40mil 40mil

U31

5

OUT

IN

GND

SET/ON

AAT4610IGV

R439 1K/6

1 2

VCCUSB2

+5V

C586

0.1U/4/Y/16V

1 2

C587

0.1U/4/Y/16V

1 2

C585

0.1U/4/Y/16V

1 2

40mil

1 2 34

R440

4.53K/6/1

1 2

40mil 40mil

U32

5

OUT

IN

GND

SET/ON

AAT4610IGV

R441 1K/6

1 2

1 2 34

R442

4.53K/6/1

1 2

VCCUSB3

1 2

C588

0.1U/4/Y/16V

40mil

DEFAULT (SHORT 2-3)

VCCUSB3

2

FB50 FB30/8/MAG

1

12

EC31 1000U/D/8C/6.3V

1 3 4 5 6 7 8

1 2

R443 150K/6

12

USB56

2

109

H2X5

R447

0/6

12

R444 270K/6

C594

0.1U/6/Y/25V

1 2

-USBOC0 {8}

C595

0.1U/6/Y/25V

1 2

VCCUSB1

2

FB51 FB30/8/MAG

1

12

EC32 1000U/D/8C/6.3V

USB1 USB-HS

1234

5

6

R445 150K/6

12

41

FUSB0+FUSB0- FUSB1- FUSB1+

32

12

R446 270K/6

C596

0.1U/6/Y/25V

1 2

-USBOC0 {8}

USB2 USB-HS

1234

5

6

C589

0.1U/6/Y/25V

1 2

USBDT4-{8} USBDT4+{8} USBDT5-{8} USBDT5+{8}

41 32

USBD_T4USBD_T4+ USBD_T5USBD_T5+

RN113

7 8 5 6 3 4 1 2

0/8P4R

FUSB4FUSB4+ FUSB5FUSB5+

C590

0.1U/6/Y/25V

1 2

C593

0.1U/6/Y/25V

1 2

3 3

FRONT USB

C591

0.1U/6/Y/25V

1 2

USBDT0+{8} USBDT0-{8}

2 2

USBDT1+{8} USBDT1-{8}

USBD_T0+ USBD_T0-

USBD_T1+ USBD_T1-

R505 0/6

12

R506 0/6

12

R507 0/6

12

R508 0/6

12

C592

0.1U/6/Y/25V

1 2

FUSB0+ FUSB0-

FUSB1+ FUSB1-

VCCUSB2

2

FB52 FB30/8/MAG

1

R449 150K/6

12

C600

0.1U/6/Y/25V

1 2

12

EC33 1000U/D/8C/6.3V

1 3 4 5 6 7 8

1 2

B

USB34

H2X5

R454

0/6

2

109

FUSB2FUSB2+ FUSB3FUSB3+

C598

0.1U/6/Y/25V

1 2

C597

0.1U/6/Y/25V

1 2

1 1

USBDT2-{8} USBDT2+{8} USBDT3-{8} USBDT3+{8}

USBD_T2USBD_T2+ USBD_T3USBD_T3+

RN114

7 8 5 6 3 4 1 2

0/8P4R

A

12

R450 270K/6

C601

0.1U/6/Y/25V

1 2

-USBOC0 {8}

F_PANEL1

PVCC

1

3

HD_LED-

5

GND

7

HD_LED+

9

RST 10

C

ACT_LED+

ACT_LED-

PW_BN

GND

FRONT PANEL

VCC

2

4

6

8

D

C599

0.01U/4/X7/16V

+3.3V

1 2

HD_LED

R453 330/6

12

RST_SW{26}

RST_SW

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

KB/MS,BUZZER,FPNL,FRONT USB

Wednesday, August 18, 2004

R451 330/6

F_PANEL1

1 2 3 4 5 6 7 8 9 10

PW_BN

GA-6VLEP

E

R452 330/6

12

17 30

ACT_LED-HD_LED{15} PW_BN {9}

of

+3.3V

1.0

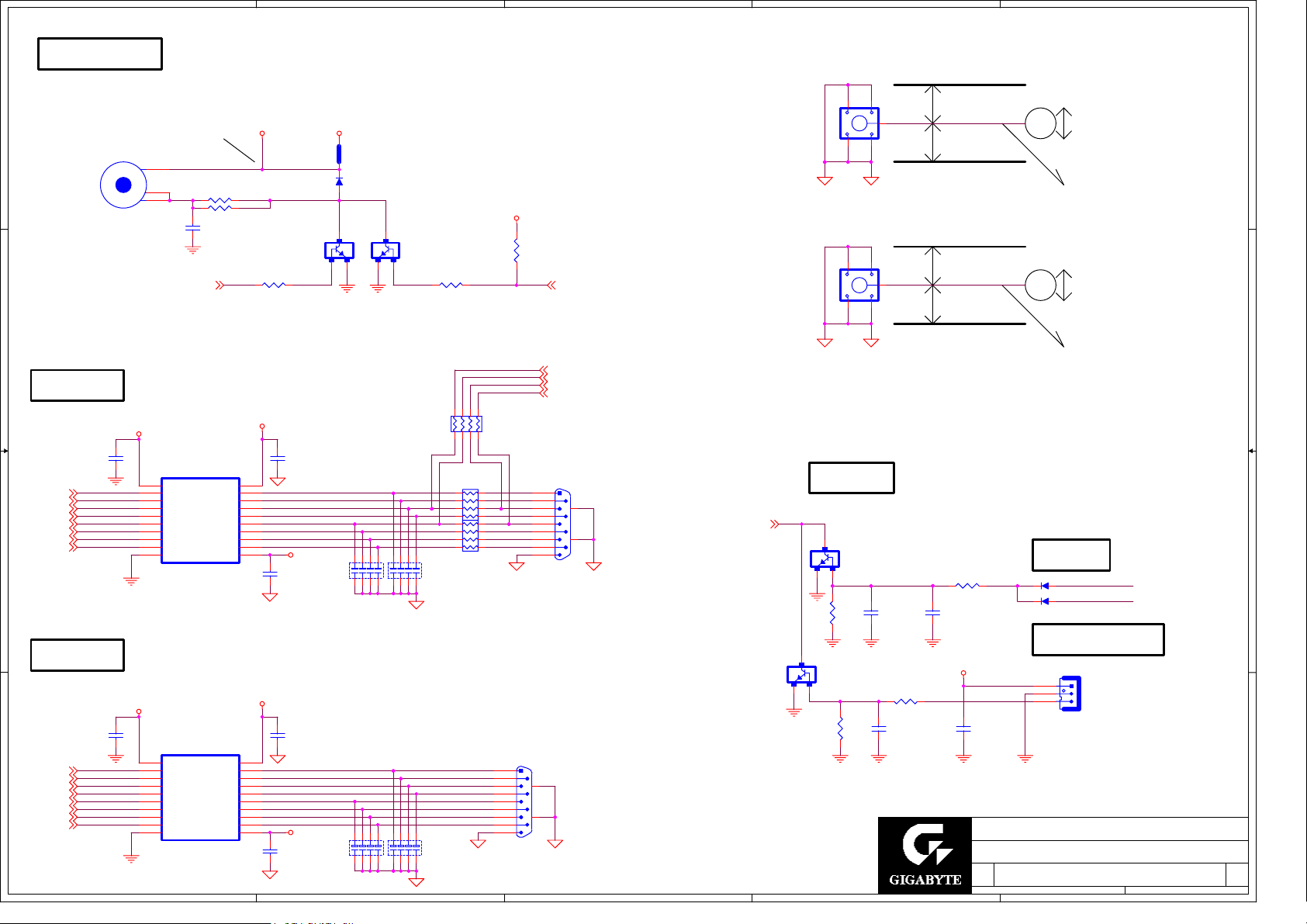

A

B

C

D

E

BUZZER

GND

3

25

4 4

20 MILS

BZ1

1

BZ

2 3

BUZZER

3 3

R433 75/6

1 2

R434 75/6

1 2

C578

0.1U/4/Y/16V

1 2

SPK{10}

Q38 MMBT2222A/SOT23

R435 1K/6

COM1

+5VVCC

R432 0/6/S

D19 1N4148

+5V

Q41 MMBT2222A/SOT23

132

12

132

R531 1K/6

1 2

R549 1K/6

1 2

BEEP {24}

RADIO_TX {24} RADIO_RX {24} RABBIT_RX {24} RABBIT_TX {24}

1

ANT1

4

3

25

1

ANT2

4

9mil

ANT1

GND

width=9mil

length<1000mil

GND

ANT2

GND

width=9mil

length<1000mil

40mil

U28

RIN1 RIN2

RIN3 DOUT1 DOUT2

RIN4 DOUT3

RIN5

+12V

12

C567

0.1U/6/Y/25V

1

V+

2 3 4 5 6 7 8 9 1011

V-GND

12

C570

0.1U/6/Y/25V

RIN11 RIN12 RIN13 DOUT11 DOUT12 RIN14 DOUT13

-XRI1

-12V

CP23

180P/8P4C

CP24

1

180P/8P4C

1

+5V

C566

0.1U/4/Y/16V

-DCD1{16}

-DSR1{16} RD1{16}

-RTS1{16} TD1{16}

-CTS1{16}

-DTR1{16}

-RI1{16}

2 2

12

20

VCC

19

ROUT1

18

ROUT2

17

ROUT3

16

DIN1

15

DIN2

14

ROUT4

13

DIN3

12

ROUT5

GD75232/TSSOP20

COM2

U29

RIN1 RIN2

RIN3 DOUT1 DOUT2

RIN4 DOUT3

RIN5

+12V

12

C574

0.1U/6/Y/25V

1

V+

2 3 4 5 6 7 8 9 1011

V-GND

12

C575

0.1U/6/Y/25V

RIN21 RIN22 RIN23 DOUT21 DOUT22 BRIN24 DOUT23

-XRI2

-12V

CP25

180P/8P4C

CP26 180P/8P4C

1

B

+5V

C573

0.1U/4/Y/16V

-DCD2{16}

-DSR2{16}

1 1

RD2{16}

-RTS2{16} TD2{16}

-CTS2{16}

-DTR2{16}

-RI2{16}

12

20

VCC

19

ROUT1

18

ROUT2

17

ROUT3

16

DIN1

15

DIN2

14

ROUT4

13

DIN3

12

ROUT5

GD75232/TSSOP20

A

1 2

3 4

5 6

RN115

0/8P4R/X

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

RN116

0/8P4R/X

RN117 0/8P4R/S

7 8

1 6 2 7 3 8 4 9 5

COM2

COM/P

COM1

1 6 2

10 7 3 8 4

11 9 5

-RING{9}

COM/P

10

11

C

RING

132

Q37 MMBT2222A/SOT23

132

Q36 MMBT2222A/SOT23

R428 10K/6

1 2

12

R430

8.2K/6

C568 10U/12/Y/10V

1 2

R429 8.2K/6

C571

0.1U/6/Y/25V

1 2

D

1 2

12

RING IN

R427 82K/6

1 2

C569 10U/12/Y/10V

D16 1N4148

D17 1N4148

-XRI1

-XRI2

WAKE ON LAN

+5VSUS

C572

0.1U/6/Y/25V

1 2

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

Wednesday, August 18, 2004

WOL1

1 2 3

WOL1x3

COM1, LPT & RING

GA-6VLEP

E

18 30

of

1.0

8

7

6

5

4

3

2

1

+3.3V +3.3V +3.3V +3.3V

12

R425

D D

4.7K/6

-INTR_C{8,14}

PCICLK1{11}

-REQ1{8}

A_D31{8,14,20,21} A_D29{8,14,20,21}

A_D27{8,14,20,21} A_D25{8,14,20,21}

C_-BE3{8,14,20,21}

A_D23{8,14,20,21}

A_D21{8,14,20,21} A_D19{8,14,20,21}

A_D17{8,14,20,21}

C C

+3.3V

C_-BE2{8,14,20,21}

-IRDY{8,14,20,21}

R498 4.7K/6

1 2

-SERR{8,14,20,21}

-PERR{8,14,20,21} C_-BE1{8,14,20,21}

A_D14{8,14,20,21}

A_D12{8,14,20,21} A_D10{8,14,20,21}

A_D8{8,14,20,21} A_D7{8,14,20,21}

A_D5{8,14,20,21}

A_D3{8,14,20,21}

A_D1{8,14,20,21}

B B

+5V

MPCI1A

1

TIP

3

8PMJ-3

5

8PMJ-6

7

8PMJ-7

9

8PMJ-8

11

LED1_GRNP

13

LED1_GRNN

15

CHSGND

17

INTB#

19

3.3V

21

RESERVED

23

GND

25

CLK

27

GND

29

REQ#

31

3.3V

33

AD[31]

35

AD[29]

37

GND

39

AD[27]

41

AD[25]

43

RESERVED

45

C/BE[3]#

47

AD[23]

49

GND

51

AD[21]

53

AD[19]

55

GND

57

AD[17]

59

C/BE[2]#

61

IRDY#

63

3.3V

65

CLKRUN#

67

SERR#

69

GND

71

PERR#

73

C/BE[1]#

75

AD[14]

77

GND

79

AD[12]

81

AD[10]

83

GND

85

AD[8]

87

AD[7]

89

3.3V

91

AD[5]

93

RESERVED

95

AD[3]

97

5V

99

AD[1]

101

GND

103

AC_SYNC

105

AC_SDATA_IN

107

AC_BIT_CLK

109

AC_CODEC_ID1#

111

MOD_AUDIO_MON

113

AUDIO_GND

115

SYS_AUDIO_OUT

117

SYS_AUDIO_OGND

119

AUDIO_GND

121

RESERVED

123

VCC5VA

G

127

MINI_PCI/S

MPCI1B

8PMJ-1 8PMJ-2 8PMJ-4 8PMJ-5

LED2_YELP LED2_YELN

RESERVED

3.3VAUX

RESERVED

FRAME#

TRDY# STOP#

DEVSEL#

C/BE[0]#

RESERVED RESERVED

M66EN

AC_SDATA_OUT

AC_CODEC_ID0#

AC_RESET#

RESERVED

SYS_AUDO_IN

SYS_AUDIO_IGND

AUDIO_GND

MPCIACT#

3.3VAUX

MINI_PCI/S

RING

INTA#

RST#

3.3V

GNT#

GND

PME#

AD[30]

3.3V AD[28] AD[26] AD[24]

IDSEL

GND AD[22] AD[20]

PAR AD[18] AD[16]

GND

3.3V

GND AD[15] AD[13] AD[11]

GND

AD[9]

3.3V AD[6] AD[4] AD[2] AD[0]

GND

MPCI2A

2

4 6 8 10

12 14

16

18

5V

20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90 92 94 96 98 100 102

104 106 108 110 112

114 116 118 120

122 124

+5V

-INTR_B {8,14}

-PCIRSTX {8,14,16,20,21}

-GNT1 {8} -GNT2 {8}

-PME {9,14,20,21}

A_D30 {8,14,20,21}

A_D28 {8,14,20,21} A_D26 {8,14,20,21}

R496

1 2

0/6

A_D24 {8,14,20,21}

A_D22 {8,14,20,21} A_D20 {8,14,20,21}

PAR {8,14,20,21} A_D18 {8,14,20,21} A_D16 {8,14,20,21}

-FRAME {8,14,20,21}

-TRDY {8,14,20,21}

-STOP {8,14,20,21}

A_D20 A_D21

+3.3V

-DEVSEL {8,14,20,21}

A_D15 {8,14,20,21} A_D13 {8,14,20,21} A_D11 {8,14,20,21}

A_D9 {8,14,20,21} C_-BE0 {8,14,20,21}

A_D6 {8,14,20,21} A_D4 {8,14,20,21} A_D2 {8,14,20,21} A_D0 {8,14,20,21}

-INTR_D{8,14,20}

PCICLK2{11}

-REQ2{8}

A_D31{8,14,20,21} A_D29{8,14,20,21}

A_D27{8,14,20,21} A_D25{8,14,20,21}

C_-BE3{8,14,20,21}

A_D23{8,14,20,21}

A_D21{8,14,20,21} A_D19{8,14,20,21}

A_D17{8,14,20,21}

C_-BE2{8,14,20,21}

-IRDY{8,14,20,21}

R499 4.7K/6

1 2

-SERR{8,14,20,21}

-PERR{8,14,20,21}

C_-BE1{8,14,20,21}

A_D14{8,14,20,21}

A_D12{8,14,20,21} A_D10{8,14,20,21}

A_D8{8,14,20,21} A_D7{8,14,20,21}

A_D5{8,14,20,21}

A_D3{8,14,20,21}

A_D1{8,14,20,21}

+5V

12

R426

4.7K/6

G

128

1

TIP

3

8PMJ-3

5

8PMJ-6

7

8PMJ-7

9

8PMJ-8

11

LED1_GRNP

13

LED1_GRNN

15

CHSGND

17

INTB#

19

3.3V

21

RESERVED

23

GND

25

CLK

27

GND

29

REQ#

31

3.3V

33

AD[31]

35

AD[29]

37

GND

39

AD[27]

41

AD[25]

43

RESERVED

45

C/BE[3]#

47

AD[23]

49

GND

51

AD[21]

53

AD[19]

55

GND

57

AD[17]

59

C/BE[2]#

61

IRDY#

63

3.3V

65

CLKRUN#

67

SERR#

69

GND

71

PERR#

73

C/BE[1]#

75

AD[14]

77

GND

79

AD[12]

81

AD[10]

83

GND

85

AD[8]

87

AD[7]

89

3.3V

91

AD[5]

93

RESERVED

95

AD[3]

97

5V

99

AD[1]

101

GND

103

AC_SYNC

105

AC_SDATA_IN

107

AC_BIT_CLK

109

AC_CODEC_ID1#

111

MOD_AUDIO_MON

113

AUDIO_GND

115

SYS_AUDIO_OUT

117

SYS_AUDIO_OGND

119

AUDIO_GND

121

RESERVED

123

VCC5VA

G

127

MINI_PCI/S

MPCI2B

8PMJ-1 8PMJ-2 8PMJ-4 8PMJ-5

LED2_YELP LED2_YELN

RESERVED

3.3VAUX

RESERVED

FRAME#

TRDY# STOP#

DEVSEL#

C/BE[0]#

RESERVED RESERVED

M66EN

AC_SDATA_OUT

AC_CODEC_ID0#

AC_RESET#

RESERVED

SYS_AUDO_IN

SYS_AUDIO_IGND

AUDIO_GND

MPCIACT#

3.3VAUX

MINI_PCI/S

RING

INTA#

RST#

3.3V

GNT#

GND

PME#

AD[30]

3.3V AD[28] AD[26] AD[24]

IDSEL

GND AD[22] AD[20]

PAR AD[18] AD[16]

GND

3.3V

GND AD[15] AD[13] AD[11]

GND

AD[9]

3.3V AD[6] AD[4] AD[2] AD[0]

GND

2

4 6 8 10

12 14

16

18

5V

20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90 92 94 96 98 100 102

104 106 108 110 112

114 116 118 120

122 124

+5V

R497

1 2

0/6

-INTR_C {8,14}

-PCIRSTX {8,14,16,20,21}

-PME {9,14,20,21}

A_D30 {8,14,20,21}

A_D28 {8,14,20,21} A_D26 {8,14,20,21} A_D24 {8,14,20,21}

A_D22 {8,14,20,21} A_D20 {8,14,20,21}

PAR {8,14,20,21} A_D18 {8,14,20,21} A_D16 {8,14,20,21}

-FRAME {8,14,20,21}

-TRDY {8,14,20,21}

-STOP {8,14,20,21}

-DEVSEL {8,14,20,21}

A_D15 {8,14,20,21} A_D13 {8,14,20,21} A_D11 {8,14,20,21}

A_D9 {8,14,20,21} C_-BE0 {8,14,20,21}

A_D6 {8,14,20,21} A_D4 {8,14,20,21} A_D2 {8,14,20,21} A_D0 {8,14,20,21}

G

128

C538 10U/12/Y/10V

1 2

C539 10U/12/Y/10V

1 2

C540 10U/12/Y/10V

1 2

C541 10U/12/Y/10V

1 2

+3.3V

C542

0.1U/4/Y/16V

A A

1 2

C554

0.1U/4/Y/16V

1 2

C543

0.1U/4/Y/16V

1 2

C555

0.1U/4/Y/16V

1 2

8

C544

0.1U/4/Y/16V

1 2

C556

0.1U/4/Y/16V

1 2

C545

0.1U/4/Y/16V

1 2

C557

0.1U/4/Y/16V

1 2

7

C546

0.1U/4/Y/16V

1 2

C558

0.1U/4/Y/16V

1 2

C547

0.1U/4/Y/16V

1 2

C559

0.1U/4/Y/16V

1 2

C548

0.1U/4/Y/16V

1 2

C560

0.1U/4/Y/16V

1 2

6

C549

0.1U/4/Y/16V

1 2

C561

0.1U/4/Y/16V

1 2

C550

0.1U/4/Y/16V

1 2

C562

0.1U/4/Y/16V

1 2

C551

0.1U/4/Y/16V

1 2

C563

0.1U/4/Y/16V

1 2

5

C552

0.1U/4/Y/16V

1 2

C564

0.1U/4/Y/16V/S

1 2

C553

0.1U/4/Y/16V

1 2

C565

0.1U/4/Y/16V/S

4

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

3

Wednesday, August 18, 2004

2

MINI PCI 1 & 2

GA-6VLEP

19 30

of

1

1.0

5

4

3

2

1

POWER DECOUPLING CAP.

+3.3VDUAL

LBC47 10P/4/N/50V/X

LAN1CK33

LBC48 100P/4/N/50V/X

-PCIRSTX

D D

A_D[0..31]{8,14,19,21}

12

A_D[0..31]

C_-BE3{8,14,19,21}

PAR{8,14,19,21}

-FRAME{8,14,19,21}

-TRDY{8,14,19,21}

-IRDY{8,14,19,21}

-STOP{8,14,19,21}

-DEVSEL{8,14,19,21}

LAN1CK33{11}

-PERR{8,14,19,21}

-SERR{8,14,19,21}

-REQ3{8}

-GNT3{8}

C_-BE3 PAR

-FRAME

-TRDY

-IRDY

-STOP

-DEVSEL A_D22

LAN1CK33

-PERR

-SERR

-REQ3

-GNT3

LR41 0/6

12

+3.3V

CLK_RUN

1 2

LR30

8.2K/6

12

LBC52

0.1U/4/Y/16V/S

12

LBC53

0.1U/4/Y/16V/S

12

LEC3 220U/6*11/10V

12

LBC54

0.1U/4/Y/16V/S

12

LBC49

0.1U/4/Y/16V/S

12

LBC55

0.1U/4/Y/16V/S

12

LBC50

0.1U/4/Y/16V/S

12

LBC56

0.1U/4/Y/16V/S

12

LBC51

0.1U/4/Y/16V/S

+3.3V

12

LBC57

0.1U/4/Y/16V/S

103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128

129

C_-BE2 C_-BE1

LU3

AD15 VDD AD14 AD13 VDDO_PCI AD12 AD11 AD10 M66EN AD9 CBE_[0] AD8 AD7 VDDO_PCI AD6 AD5 AD4 AD3 AD2 AD1 AD0 VDD BOND32 VPD_CLK VPD_DATA SPI_DI

EPAD

C_-BE2{8,14,19,21} C_-BE1{8,14,19,21}

C C

B B

+3.3V

LR31 27/6/1

1 2

ZN_REF1

ZP_REF1

LR32 33/6/1

1 2

LU4

1

A0

VCC

2

A1

WP

3

A2

SCL

4 5

GND SDA

AT24C08/SO8

8 7 6

+3.3VDUAL

1 2

LR33

8.2K/6

LR34

8.2K/6

1 2

VDD15_L

+3.3V

+3.3VDUAL

VPD_CLK1 VPD_DATA1

A_D15 VDD15_L A_D14 A_D13

A_D12 A_D11 A_D10 M66_EN1 A_D9

C_-BE0{8,14,19,21}

-C_BE0 A_D8 A_D7

A_D6 A_D5 A_D4 A_D3 A_D2 A_D1 A_D0 VDD15_L

VPD_CLK1 VPD_DATA1

A_D18

VDD15_L

A_D17

A_D16

100

101

102

VDD

AD18

AD17

AD16

GNT_

CBE_[2]

CBE_[1]

VDDO_PCI

AVDDLF

VDD

SPI_DO

SPI_CLK

CTRL15

SPI_CS

VDD

VDDO_TTL

12345678910111213141516171819202122232425262728293031323334353637

CTRL151

AVDD25_L

VDD15_L

+3.3VDUAL

1

TP29

ZN_REF1

ZP_REF1

REQ_

PERR_

SERR_

ZP_REF

ZN_REF

VDDO_PCI

88E8001

VDDO_TTL

LED_LINK1000

VDD

LED_TX_

LED_LINK10_

LED_LINK100_

LED1_1000

VDD15_L

+3.3VDUAL

LED_ACT1

LED1_100

CLK_RUN

VDD15_L

CLKRUN

VDDO_TTL

+3.3VDUAL

LED_ACT1

CLK

VDD

IDSEL

LED_RX_

LED_DUPLEX_

LED_STST_

LED_TEST1

1

TP25

DEVSEL

VDD

VDD15_L

IRDY_

STOP_

TESTMODE

VDDO_TTL

+3.3VDUAL

TRDY_

VDDO_PCI

TDO

VDD

VDD15_L

A_D19

VDD15_L

A_D20

PAR

VDD

AD19

FRAME_

VAUX_AVLBL

SWITCH[1]

SWITCH[0]

TDI

LR35 200K/6

+3.3VDUAL

1 2

A_D21

AD20

TRST

VDD15_L

A_D22

AD22

AD21

VDD

TMS

A_D23

AD23

VDDO_PCI

TCK

XTALO

XTALO1

25MCLK1

A_D25

A_D24

AD24

CBE_[3]

XTALI

VSSC

A_D26

AD25

VDD

RSET

1 2

A_D27

AD26

VDDO_PCI

RSET

MDIP[0]

LR36

2.49K/6/1

6566676869707172737475767778798081828384858687888990919293949596979899

AD27

TSTPT

AVDDL3

MDIN[3] MDIP[3]

AVDDL2

MDIN[2]

MDIP[2] HSDACN HSDACP

AVDDH

CTRL25

AVDDL1

MDIN[1]

MDIP[1]

AVDDL0

MDIN[0]

38

AD28 AD29

AD30 AD31

PME_

RST_ VIOB

INTA_

64 63 62 61

VDD

60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39

88E8001/LQFP128

LAN1_MDI0LAN1_MDI0+

A_D28 A_D29

VDD15_L A_D30 A_D31

-PME

-PCIRSTX

-INTR_D TSTPT1 AVDD25_L LAN1_MDI3LAN1_MDI3+ AVDD25_L LAN1_MDI2LAN1_MDI2+

CTRL251 AVDD25_L LAN1_MDI1LAN1_MDI1+ AVDD25_L

LAN1_MDI0- {22} LAN1_MDI0+ {22}

-PME {9,14,19,21}

-PCIRSTX {8,14,16,19,21}

-INTR_D {8,14,19}

1

TP24

LAN1_MDI3- {22} LAN1_MDI3+ {22}

LAN1_MDI2- {22} LAN1_MDI2+ {22}

1

TP28

LAN1_MDI1- {22} LAN1_MDI1+ {22}

+3.3V

AVDD25_L

AVDD33_L

12

LBC58

0.1U/4/Y/16V/S

LX2

12

25MHZ/XTAL_HALF

LC3 27P/4/N/50V

1 2

25MCLK1

XTALO1

LC4 27P/4/N/50V

1 2

# Layout Check 注意事項 :

A A

1. LU1 PIN129 需下內層GND,至少打 22 VIA

2. 3VDUAL , VCC3 , VDD15_L , AVDD25_L 至少走 20mil寬,並且電容擺設每兩pin至少放一顆Bypass Cap.

3. X'TAL 25MHz 兩訊號線,TRACE 愈短愈好,線寬12mil

4. MDI正負0~3,TRACE 8:7:8 , 每對之間保持 40mil

5

4

LED_ACT1 LED1_100 LED1_1000

LED_ACT1 {22} LED1_100 {22} LED1_1000 {22}

3

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

2

Wednesday, August 18, 2004

MARVELL 88E8001 # 1

GA-6VLEP

1

20 30

of

1.0

5

4

3

2

1

POWER DECOUPLING CAP.

+3.3VDUAL

12

LX1

12

25MHZ/XTAL_HALF

LC1 27P/4/N/50V

1 2

LBC36

0.1U/4/Y/16V/S

LBC43

0.1U/4/Y/16V/S

A_D24

A_D25

AD24

CBE_[3]

XTALI

VSSC

+3.3V

A_D26

AD25

VDD

RSET

1 2

A_D27

AD26

VDDO_PCI

RSET

MDIP[0]

LR29

2.49K/6/1

CLK_RUN

6566676869707172737475767778798081828384858687888990919293949596979899

AD27

PME_

INTA_

TSTPT

AVDDL3

MDIN[3] MDIP[3]

AVDDL2

MDIN[2]

MDIP[2] HSDACN HSDACP

AVDDH

CTRL25

AVDDL1

MDIN[1]

MDIP[1]

AVDDL0

MDIN[0]

38

LAN2_MDI0LAN2_MDI0+

AD28 AD29

AD30 AD31

RST_ VIOB

1 2

64 63 62 61

VDD

60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39

88E8001/LQFP128

LR23

8.2K/6

A_D28 A_D29

VDD15_L A_D30 A_D31

-PCIPME

-PCIRST

-INTR_A TSTPT2

AVDD25_L LAN2_MDI3LAN2_MDI3+ AVDD25_L LAN2_MDI2LAN2_MDI2+

CTRL252 AVDD25_L LAN2_MDI1LAN2_MDI1+ AVDD25_L

LAN2_MDI0- {22} LAN2_MDI0+ {22}

12

LBC40

0.1U/4/Y/16V/S

-PME {9,14,19,20}

-PCIRSTX {8,14,16,19,20}

-INTR_A {7,8,14}

1

LAN2_MDI3- {22} LAN2_MDI3+ {22}

LAN2_MDI2- {22} LAN2_MDI2+ {22}

1

LAN2_MDI1- {22} LAN2_MDI1+ {22}

TP22

TP26

12

LBC41

0.1U/4/Y/16V/S

12

LBC42

0.1U/4/Y/16V/S

+3.3V

AVDD25_L

AVDD33_L

12

LBC46

0.1U/4/Y/16V/S

LAN2CK33

LBC35 10P/4/N/50V/X

-PCIRSTX

D D

C C

B B

LBC39 100P/4/N/50V/X

A_D[0..31]{8,14,19,20}

+3.3V

LR24 27/6/1

1 2

LR25 33/6/1

1 2

LU2

1

A0

2

A1

3

A2

4 5

GND SDA

AT24C08/SO8

ZN_REF2

ZP_REF2

VCC

WP

SCL

8 7 6

12

A_D[0..31]

+3.3VDUAL

1 2

LR26

8.2K/6

LR27

8.2K/6

1 2

VDD15_L

+3.3V

+3.3VDUAL

VPD_CLK2 VPD_DATA2

C_-BE3{8,14,19,20} PAR{8,14,19,20}

-FRAME{8,14,19,20}

-TRDY{8,14,19,20}

-IRDY{8,14,19,20}

-STOP{8,14,19,20}

-DEVSEL{8,14,19,20}

LAN2CK33{11}

-PERR{8,14,19,20}

-SERR{8,14,19,20}

-REQ4{8}

-GNT4{8}

C_-BE2{8,14,19,20} C_-BE1{8,14,19,20}

A_D15 VDD15_L

A_D14 A_D13

A_D12 A_D11 A_D10 M66_EN2 A_D9

C_-BE0

C_-BE0{8,14,19,20}

A_D8 A_D7

A_D6 A_D5 A_D4 A_D3 A_D2 A_D1 A_D0 VDD15_L

VPD_CLK2 VPD_DATA2

C_-BE3 PAR

-FRAME

-TRDY

-IRDY

-STOP

-DEVSEL A_D23 LAN2CK33

-PERR

-SERR

-REQ4

-GNT4

C_-BE2 C_-BE1

LU1

103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128

129

LR42 0/6

12

A_D17

A_D16

A_D18

100

101

102

AD18

AD17

AD16

CBE_[2]

CBE_[1]

AD15 VDD AD14 AD13 VDDO_PCI AD12 AD11 AD10 M66EN AD9 CBE_[0] AD8 AD7 VDDO_PCI AD6 AD5 AD4 AD3 AD2 AD1 AD0 VDD BOND32 VPD_CLK VPD_DATA SPI_DI

EPAD

AVDDLF

VDD

SPI_DO

SPI_CLK

CTRL15

12345678910111213141516171819202122232425262728293031323334353637

CTRL152

VDD15_L

AVDD25_L

1

TP27

VDD

VDDO_PCI

SPI_CS

VDD

VDD15_L VDD15_L

+3.3VDUAL

GNT_

REQ_

VDDO_TTL

+3.3VDUAL

ZP_REF2

SERR_

LED_LINK1000

LED2_1000

VDD15_L

ZN_REF2

ZP_REF

ZN_REF

VDDO_PCI

VDD

LED_TX_

LED_LINK10_

LED_ACT2

LED2_100

VDD15_L

CLK_RUN

CLK

VDD

IDSEL

IRDY_

TRDY_

CLKRUN

STOP_

DEVSEL

FRAME_

VDDO_PCI

PERR_

88E8001

LED_LINK100_

VDDO_TTL

LED_RX_

LED_DUPLEX_

LED_STST_

VDD

TESTMODE

VDDO_TTL

TDO

VDD

VAUX_AVLBL

LR28

VDD15_L

LED_TEST2

VDD15_L

LED_ACT2

+3.3VDUAL

1

TP23

200K/6

1 2

VDD15_L

A_D19

PAR

VDD

SWITCH[1]

SWITCH[0]

+3.3VDUAL

A_D20

AD19

TDI

A_D21

AD20

TRST

VDD15_L

A_D22

AD22

AD21

VDD

TMS

A_D23

AD23

VDDO_PCI

TCK

XTALO

XTALO2

25MCLK2

XTALO2

LC2 27P/4/N/50V

1 2

12

LBC37

0.1U/4/Y/16V/S

12

LBC44

0.1U/4/Y/16V/S

12

LBC38

0.1U/4/Y/16V/S

+3.3V

12

LBC45

0.1U/4/Y/16V/S

# Layout Check 注意事項 :

A A

1. LU1 PIN129 需下內層GND,至少打 22 VIA

LED_ACT2 LED2_100 LED2_1000

LED_ACT2 {22} LED2_100 {22} LED2_1000 {22}

2. 3VDUAL , VCC3 , VDD15_L , AVDD25_L 至少走 20mil寬,並且電容擺設每兩pin至少放一顆Bypass Cap.

3. X'TAL 25MHz 兩訊號線,TRACE 愈短愈好,線寬12mil

4. MDI正負0~3,TRACE 8:7:8 , 每對之間保持 40mil

5

4

3

2

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

Wednesday, August 18, 2004

MARVELL 88E8001 # 2

GA-6VLEP

1

21 30

of

1.0

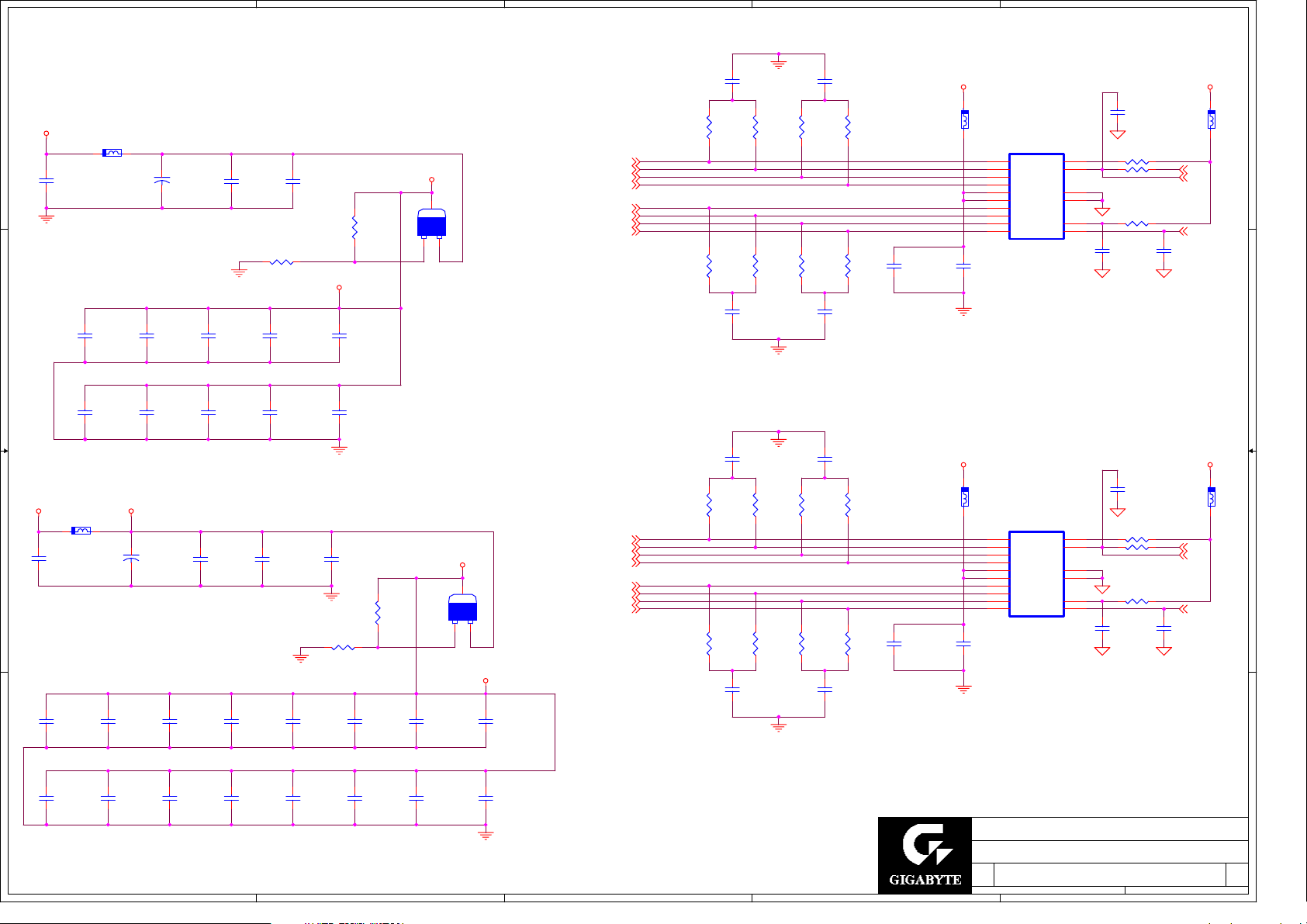

A

B

C

D

E

1 2

12

LR3

49.9/6/1

LR10

49.9/6/1

LBC2 1000P/6/Y/25V

1 2

12

LBC15 1000P/6/Y/25V

LR4

49.9/6/1

LR11

49.9/6/1

LBC12 1000P/6/Y/25V

1 2

1

LFB6 FB80/8

2

LBC13 1000P/6/Y/25V

1 2

LAN1

1

TRD0+ TRD0TRD1+ TRD1COM SH COM TRD2+ TRD2TRD3+ TRD3-

RJ45-100-T/FRE

G+

G-

SH

Y+

Y-

2 3 4 5 15 6 7 8 9

10

LBC72 22P/6/Y/25V/S/X

1 2

11 12

LR7 330/6 LR37 330/6

16

13 14

LR5 330/6

LBC6 1000P/6/Y/25V

1 2

LBC1 1000P/6/Y/25V

1 2

4 4

+5VDUAL

12

LFB1 0/8

LBC3

0.1U/6/Y/25V

12

LEC1 220U/6*11/10V

LBC4

4.7U/8/Y/10V

1 2

LBC5

0.1U/6/Y/25V

1 2

LR38 100/6/1

12

AVDD25_L

1 2

LR6 100/6/1

AVDD25_L

2

1

3

LQ1 APL1084/TO252

LAN1_MDI0+{20} LAN1_MDI0-{20} LAN1_MDI1+{20} LAN1_MDI1-{20}

LAN1_MDI2+{20} LAN1_MDI2-{20} LAN1_MDI3+{20} LAN1_MDI3-{20}

LAN1_MDI0+ LAN1_MDI0LAN1_MDI1+ LAN1_MDI1-

LAN1_MDI2+ LAN1_MDI2LAN1_MDI3+ LAN1_MDI3-

1 2

12

LR1

49.9/6/1

LR8

49.9/6/1

AVDD25_L

3 3

LBC7

0.1U/4/Y/16V/S

1 2

LBC8

0.1U/4/Y/16V/S

1 2

LBC9

0.1U/4/Y/16V/S

1 2

LBC10

4.7U/8/Y/10V/S

1 2

LBC11

0.1U/4/Y/16V/S

1 2

12

LBC14 1000P/6/Y/25V

LR2

49.9/6/1

LR9

49.9/6/1

12 12

12

LBC73 22P/6/Y/25V/S/X

1 2

+3.3VDUALAVDD25_L

1

LFB3 FB80/8

2

LED1_100 {20} LED1_1000 {20}

LED_ACT1 {20}

AVDD25_L

LBC62

4.7U/8/Y/10V/S

1 2

+3.3VDUAL

LBC59

0.1U/4/Y/16V/S

1 2

AVDD33_L

LBC60

0.1U/4/Y/16V/S

1 2

LBC61

0.1U/4/Y/16V/S

1 2

LFB2 0/8

12

LBC21

2 2

0.1U/6/Y/25V

LBC27

0.1U/4/Y/16V/S

1 2

12

LBC28

0.1U/4/Y/16V/S

1 2

LEC2 220U/6*11/10V

1 2

LBC22

4.7U/8/Y/10V

1 2

LBC29

0.1U/4/Y/16V/S

LBC30

0.1U/4/Y/16V/S

1 2

LBC23

0.1U/6/Y/25V

1 2

LR40

100/6/1

LBC31

0.1U/4/Y/16V/S

LBC63

0.1U/4/Y/16V/S

1 2

LBC24

0.1U/6/Y/25V

12

LBC32

0.1U/4/Y/16V/S

1 2

LR22 499/6/1

1 2

VDD15_L

LBC33

4.7U/8/Y/10V

1 2

VDD15_L

2

1

3

VDD15_L

1 2

LQ2 APL1084/TO252

LBC34

0.1U/4/Y/16V/S

12 12

12

LBC75 22P/6/Y/25V/S/X

1 2

+3.3VDUAL

1

LFB4 FB80/8

2

LED2_100 {21} LED2_1000 {21}

LBC19 1000P/6/Y/25V

AVDD25_L

1

2

1 2

LFB5 FB80/8

1 2 3 4 5 15 6 7 8 9

10

LBC20 1000P/6/Y/25V

LAN2

TRD0+ TRD0TRD1+ TRD1COM SH COM TRD2+ TRD2TRD3+ TRD3-

RJ45-100-T/FRE

LBC74 22P/6/Y/25V/S/X

1 2

11

G+

12

G-

16

SH

13

Y+

14

Y-

LR17 330/6 LR39 330/6

LR16 330/6

LBC18 1000P/6/Y/25V

1 2

12

LR14

49.9/6/1

LR20

49.9/6/1

LBC17 1000P/6/Y/25V

1 2

12

LBC26 1000P/6/Y/25V

LR15

49.9/6/1

LR21

49.9/6/1

1 2

LBC16 1000P/6/Y/25V

1 2

LR12

49.9/6/1

LAN2_MDI0+{21} LAN2_MDI0-{21} LAN2_MDI1+{21} LAN2_MDI1-{21}

LAN2_MDI2+{21} LAN2_MDI2-{21} LAN2_MDI3+{21} LAN2_MDI3-{21} LED_ACT2 {21}

LAN2_MDI0+ LAN2_MDI0LAN2_MDI1+ LAN2_MDI1-

LAN2_MDI2+ LAN2_MDI2LAN2_MDI3+ LAN2_MDI3-

1 2

12

LR18

49.9/6/1

1 2

12

LBC25 1000P/6/Y/25V

LR13

49.9/6/1

LR19

49.9/6/1

1 1

LBC64

0.1U/4/Y/16V/S

1 2

LBC65

0.1U/4/Y/16V/S

1 2

LBC66

0.1U/4/Y/16V/S

1 2

A

LBC67

0.1U/4/Y/16V/S

1 2

LBC68

0.1U/4/Y/16V/S

1 2

LBC69

0.1U/4/Y/16V/S

1 2

LBC70

4.7U/8/Y/10V/S

1 2

B

LBC71

0.1U/4/Y/16V/S

1 2

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

C

D

Wednesday, August 18, 2004

TRL8100BL & REAR USB

GA-6VLEP

E

22 30

of

1.0

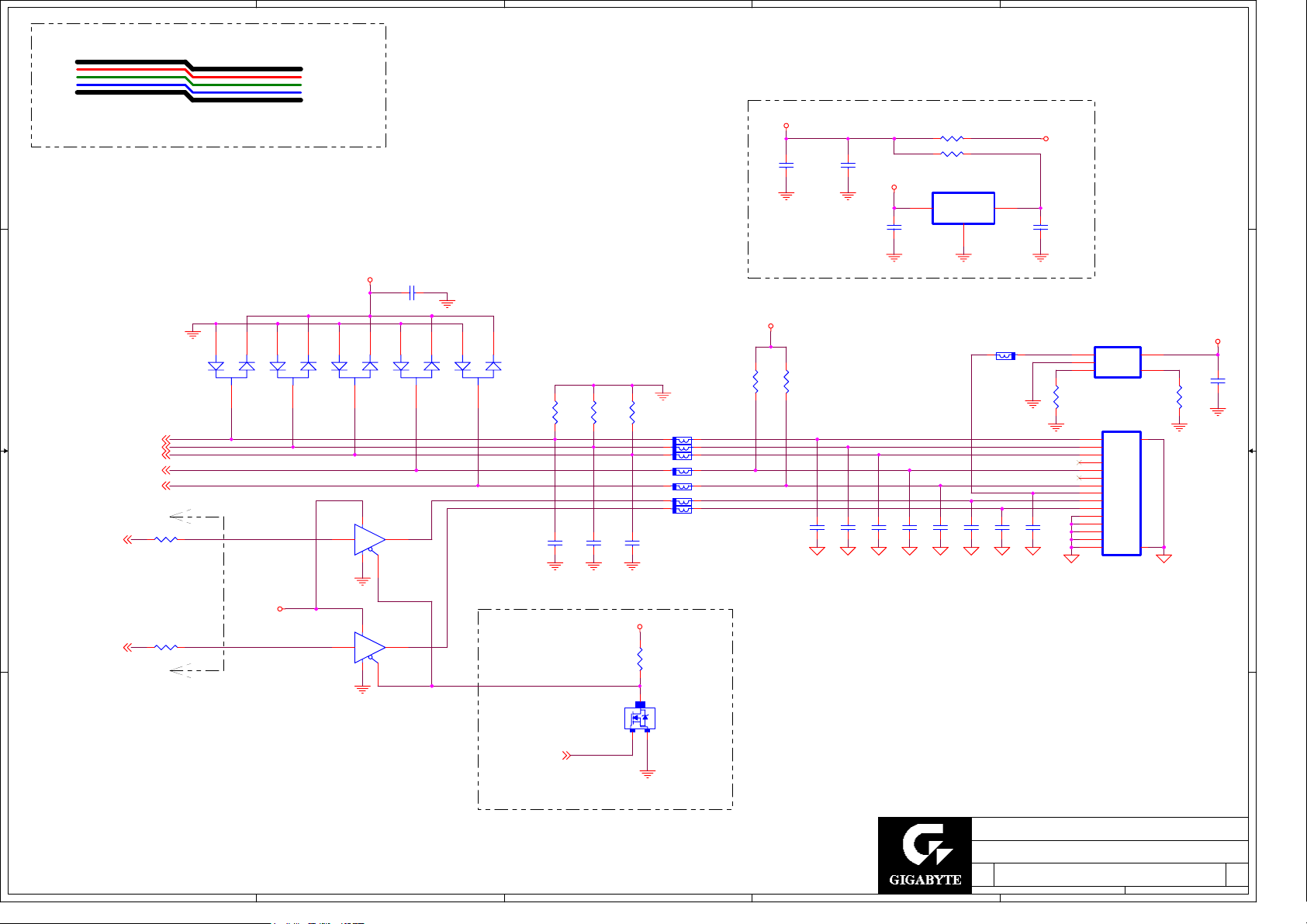

A

B

C

D

E

R

20mil

G B

GUARD TRACE

GND

12mil/12mil

GND

4 4

GROUND REF PLANE

The analog DAC outputs R, G and B are designed to drive a 37.5 Ohm equivalent load.

VCC5VGA

C525 0.1U/6/Y/25V

1 2

3 3

231

Three resisters near VGA connector

Q30 RB706F40

AR{7} AG{7} AB{7}

SPD1{7}

SPCLK1{7}

HSYNC{7}

2 2

1 2

SPD1

SPCLK1

R422 0/6

EMI Solution : Near VGA Chip

R423 0/6

VSYNC{7}

1 2

AR AG AB

H_SYNC

+5VSUS

V_SYNC

Q31 RB706F40

Q32 RB706F40

53

1

53

1

42

U26 NC7SZ125

42

U27 NC7SZ125

Q33 RB706F40

H V

Q34 RB706F40

C534 56P/6/N/50V

12

R416 75/6

12

+5VSUS

D

GS

2

R417 75/6

FB41 FB80/812 FB42 FB80/812 FB43 FB80/812

FB44 0/812

FB45 0/812

FB46 FB75/612 FB47 FB75/612

C536 56P/6/N/50V

12

R424 1K/6

3

Q35 2N7002

SOT23

1

12

R415 75/6

12

C535 56P/6/N/50V

PWRGD{26,27}

VCC5VGA

12

R411

4.7K/6

12

C522

0.1U/6/Y/25V

12

R412

4.7K/6

12

C527 22P/6/N/50V

12

C523

0.1U/6/Y/25V

12

C528 22P/6/N/50V

+12V

12

C529 22P/6/N/50V

1 2

3

C524 1U/8/Y/25V

12

C530 100P/6/N/50V

R409

R410

Q29

IN

2

12

C531 100P/6/N/50V

C532 100P/6/N/50V

0/6/X

0/6

OUT

GND

78L05/92

12

1

FB40

FB200/8

RGB-

MS1

MS3

HS VS

12

C533 100P/6/N/50V

+5V

12

EC28 22U/16V/D

12

BC1

0.1U/6/Y/25V

12

R413 10K/6

U25

1

OUT

IN

2

GND

3 4

SET /ON

AAT4610IGV

VGACON1

1

R

2

G

3

B

11

MS0

12

MS1

4

MS2

15

MS3

9

NC

13

HS

14

VS

5

VSS

6

VSS

7

VSS

8

VSS

10

VSSGG

VGA

+5V

5

12

R414 10K/6

C526

16

17

1U/6/Y/10V

1 1

VSYNC/HSYNC Isolation Circuit

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

A

B

C

D

Wednesday, August 18, 2004

DVI(VT1632)

GA-6VLEP

E

23 30

of

1.0

A

B

C

D

E

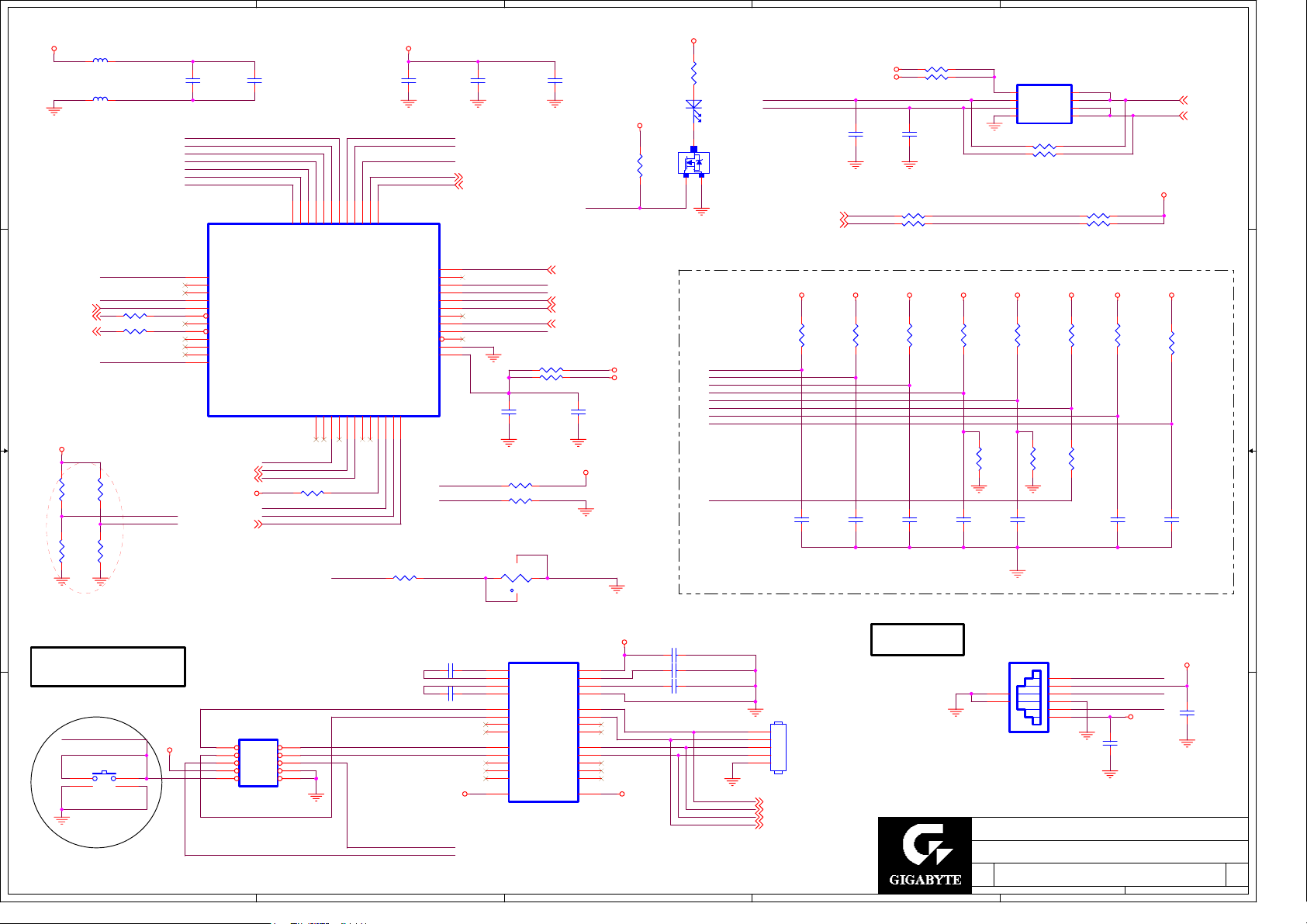

12

R547 1K/6/S

+12V

12

R538 270/8/1

D22 LED/S

3

D

GS

2

1

Q42 2N7002/SOT23

VIN0_791D VIN1_791D VIN2_791D VIN3_791D VIN4_791D VIN5_791D VIN6_791D VIN7_791D

VREF_791D

SMBCK_RM3700 SMBDT_RM3700

SMBCK{9,11,12} SMBDT{9,11,12}

12

R523 10K/6/1

12

C631

0.1U/4/Y/16V/S

Voltage Sensing

R550 0/8/S/X R551 0/8/S/X

12

C679 22P/6/N/50V

12 12

12

R512 10K/6/1

12

C626

0.1U/4/Y/16V/S

12 12

+5V VTT_MEM+2.5V

12

SMBCK_RM3700 SMBDT_RM3700

R513 10K/6/1

12

R516 10K/6/1

C627

0.1U/4/Y/16V/S

U37

8

VCC

1

Sx

7

SyRyTy

4

GND

12

R514 30K/6/1

12

C628

0.1U/4/Y/16V/S

R510 0/6/S/X R511 0/6/S/X

12

+5V

+5VSUS

12

C678 22P/6/N/50V

SMBCK

R554 0/6/S/X

SMBDT

R555 0/6/S/X

+3.3VVCORE +12V -12V +3.3VDUAL

12

R524 10K/6/1

12

C632

0.1U/4/Y/16V/S

Rx

P82B96/S

R515 10K/6/1/S

3

Tx

2 5 6

12 12

12

R525 232K/6/1

12

R528 56K/6/1/S

R521 4.7K/6/S

12

R522 4.7K/6/S

12

R526 10K/6/1

12

C633

0.1U/4/Y/16V/S

SMBCK2

SMBDT2

+5VSUS

SMBCK2 {9,10}

SMBDT2 {9,10}

12

R527 10K/6/1/S

12

C634

0.1U/4/Y/16V/S

+5VSUS

FB55 FB30/8/MAG/S

FB56 FB30/8/MAG/S

4 4

CPUVID0{3,25}

-OVT_791D{10}

3 3

2 2

-SMI_791D{9}

+5VSUS

12

R517 47K/6/X

R519 47K/6

21

VREF_791D

VTIN1

1 2

RED_LED

12

R518 47K/6

12

R520 47K/6/X

R544 0/6/S

R545 0/6/S

HW_A0 HW_A1

PVCC1

12

C624 10U/12/Y/10V/S

VIN6_791D VIN5_791D VIN4_791D VIN3_791D VIN2_791D VIN1_791D VIN0_791D

12

GNDA1

U39

37

VREF

38

VTIN3/PIITD3

39

VTIN2/PIITD2

40

VTIN1/PIITD1

41

VID0

42

OVT#

43

IRQ/GPIO10

44

SMI#

45

EVNTRAP1/GPIO5

46

EVNTRAP2/GPIO6/FANIN4

47

EVNTRAP3/GPIO7/FANIN5

48

EVNTRAP4/GPIO8/PWMOUT4

W83791D

HW_RST{26} HW_PWR{9}

+5VSUS

CPUVID1{3,25}

C625

0.1U/4/Y/16V/S

36

VCORE

REXT HW_RST HW_PWR

1 2

HW_A0 HW_A1

VBAT

VINR1

VINR0

-12VIN

+12VIN

+3.3VIN

REXT

ADDR/GPIO0

EVNTRAP5/GPIO9/PWMOUT5

EOP/GPIO11

34567891011

1

2

R548 10K/6/S

VREF_791D

I2C Address Strapping : 01

+5VSUS

2526272829303132333435

VID3

-5VIN

BEEP

GNDA

+5VSB

PWMOUT3/VID_V90

CASEOPEN

SLOTOCC#

CLKOUT/GPIO1

DATA/GPIO2

CTRL/GPIO3

MODE/GPIO4

SPEAKER/LED/SPEECH_SEL

PWMOUT1/A0

PWMOUT2/A1

VID1

12

R458 10K/6

1 2

12

C621

0.1U/4/Y/16V/S

PVCC1 VIN7_791D

GNDA1

VID2

SDA

SCL FANIN1 FANIN2 FANIN3

VID4

GNDD

VDD

W83791D

BEEP {18} CPUVID3 {3,25}

24 23 22 21 20 19 18 17 16 15 14 13

REXT

CASEOPEN

VTIN1

12

C622

0.01U/4/X7/16V/S

SMBDT_RM3700 SMBCK_RM3700 HWCPUFAN HWSYSFAN

CASEOPEN

12

C629

0.1U/4/Y/16V

R529 220K/6

1 2

R530 10K/6/S

1 2

RT1

t

3 4

12

C623

0.01U/4/X7/16V/S

CPUVID2 {3,25}

HWCPUFAN {3} HWSYSFAN {3}

CPUVID4 {3,25}

R552 0/8/S/X

1 2

R553 0/8/S

1 2

103JT-025-3P/SEMITEC

12

RED_LED

12

C630 10U/12/Y/10V

+5VSUS

+5VSUS +5V

I2C Address : 5AH

+5VSUS

0.1U/4/Y/16V/SC619

+5VSUS

C

1 2

0.1U/4/Y/16V/SC617

0.1U/4/Y/16V/SC618

J3

SERIAL PORTS

1

1:Rabbit Tx

2

2:Radio Tx

3

3:Rabbit Rx

4

4:Radio Rx

5

5:GND

H1X5

RABBIT_TX {18} RABBIT_RX {18} RADIO_RX {18} RADIO_TX {18}

0.1U/4/Y/16V/S

1 2

RCM3700

CM_RESET

SW1

1 1

SW_BUTTON

Need Check

+5VSUS

A

J4

H2X5

12 34 56 78 910

C615

C616

PC0_TXD PC2_TXC

RXD_PC1 RXC_PC3

SMBCK_RM3700 SMBDT_RM3700

B

0.1U/4/Y/16V/S

1 2

+5VSUS

U36

12

C1+

14

C1-

15

C2+

16

C2-

7

T1IN

6

T2IN

20

T3IN

21

T4IN

8

R1OUT

5

R2OUT

26

R3OUT

22

R4OUT

19

R5OUT

24 25

EN SHDN#

ADM213E/SSOP

VCC

GND

T1OUT T2OUT T3OUT T4OUT

R1IN R2IN R3IN R4IN R5IN

V+

V-

11 13 17 10

2 3 1 28

9 4 27 23 18

RJ11

D

RJ1

1

2

RJ11

3

7

4

8

5

6

7 8

Molex: 52018-6645

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

W83791 HARDWARE MONITOR

Wednesday, August 18, 2004

CM_RESET

SMBCK_RM3700

SMBDT_RM3700

12

C635

0.1U/4/Y/16V/S

GA-6VLEP

E

+12V

+5VSUS

12

C620

0.1U/4/Y/16V

24 30

of

1.0

A

B

C

D

E

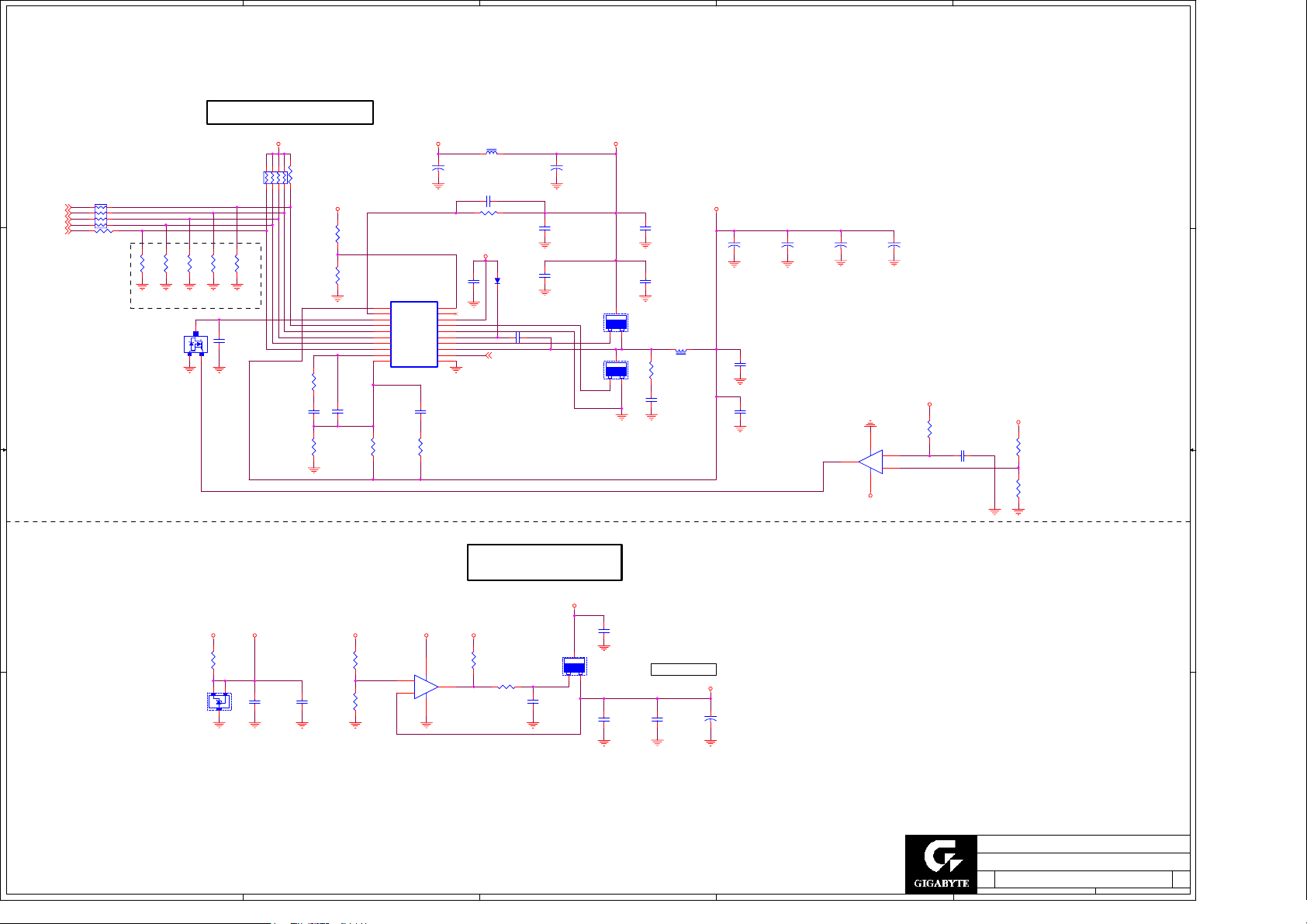

4 4

RN11 0/8P4R

CPUVID4{3,24} CPUVID0{3,24} CPUVID1{3,24} CPUVID2{3,24} CPUVID3{3,24}

12 34 56 78

12

R60 0/6

R210 0/6/S/X

1 2

Force VID setting

3 3

2 2

2N7002/SOT23/S

CPU VCORE PWM CIRCUIT

RN60

4.7K/8P4R/S

R211 0/6/S/X

Q13

R213

2

GS

0/6/S/X

1 2

C246

0.1U/4/Y/16V/S

1 2

R214 0/6/S/X

1 2

R212 0/6/S/X

1 2

3

D

1

+5V

1 2

3 4

5 6

7 8

1 2

C253

0.01U/4/X7/16V/S

R202

4.7K/6/S

R190 56K/6/1/S

1 2

R199 300K/6/S/X

1 2

+12V

R208 1M/6/S/X

1 2

R209 100K/6/S

1 2

PWMSS VID4 VID0 VID1 VID2 VID3 PWMCOMP

12

C245 470P/4/X7/50V/S

PWMOCSET

PWMFS

U8

1

VSEN

2

OCSET

3

VCC12

SS

4

LGATE

VID25

5

PGND

VID0

6

BOOT

VID1

7

UGATE

VID2

8

PHASE

VID3

9

PGOOD

COMP

10 11

FB GND

HIP6004ECB-T

PWMFB

1 2

R189

3.3K/6/S

1 2

VTT_PWRGD

12

EC9 270U/D/8/PSA/10V

20

RT

19

OVP

18 17 16 15 14 13 12

C254

0.022U/4/X7/16V/S

R188 27/6/S

L4 1UH/D/5A/1P

1000P/4/X7/50VC54

1 2

R184 4.7K/6/S

1 2

C262

0.1U/4/Y/16V/S

+12V

D15

1N4148/S

1 2

LGATE

C263

PGND BOOT

1 2

UGATE PHASE

PWRGD_PWM {11,26}

VTT(+1.5V) FOR GTL BUS TERMINATION

12

C208

4.7U/8/Y/16V

1 2

C235 1U/6/Y/10V

1 2

0.1U/4/Y/16V/S

PHD78NQ03LT/TO252

EC5 270U/D/8/PSA/10V

Q5

+5VPWM+5V

2

GDS

1

3

2

GDS

1

3

C209

4.7U/8/Y/16V

1 2

C234 1U/6/Y/10V

1 2

Q3

PHD78NQ03LT/TO252

L5 1UH/D/5A/1P

R192

1.5/6/S/X

1 2

C247

0.01U/4/X7/16V/S/X

1 2

VCORE

12

EC11 1500U/D/8K/6.3V

C269

4.7U/8/Y/10V/S

1 2

C268

4.7U/8/Y/10V/S

1 2

12

EC10 1500U/D/8K/6.3V

12

EC14 1500U/D/8K/6.3V

1

+5VDUAL

4 11

12

-

2

+

3

U9A LM324M/SO14

EC12 1500U/D/8K/6.3V

VTT

1VREF

R205 10K/6/S

1 2

C266 0.1U/4/Y/16V/S

12

2_5VREF

R218

1.5K/6/1/S

1 2

R219 1K/6/S

1 2

+3.3V

C671

4.7U/8/Y/10V/S

1 2

2_5VREF

1 2

R203 1K/6/S

R204

1.5K/6/S

B

+5VDUAL +5VDUAL

411

U9B

5

+

7

6

-

LM324M/SO14

C59 1U/6/Y/10V

1 2

12

C49

0.01U/4/X7/16V

GDS

1

2

3

Q4 FDD6530A/TO252

C265 1U/6/Y/10V/S

1 2

C

R52 1K/6

1 2

R51

12

100/6

TO NB, CPU VTT (1.5V)

12

C264

0.1U/4/Y/16V/S

VTT

12

EC13 1000U/D/8C/6.3V

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

D

Date: Sheet

CPU CORE VOLTAGE

Wednesday, August 18, 2004

GA-6VLEP

E

25 30

1.0

of

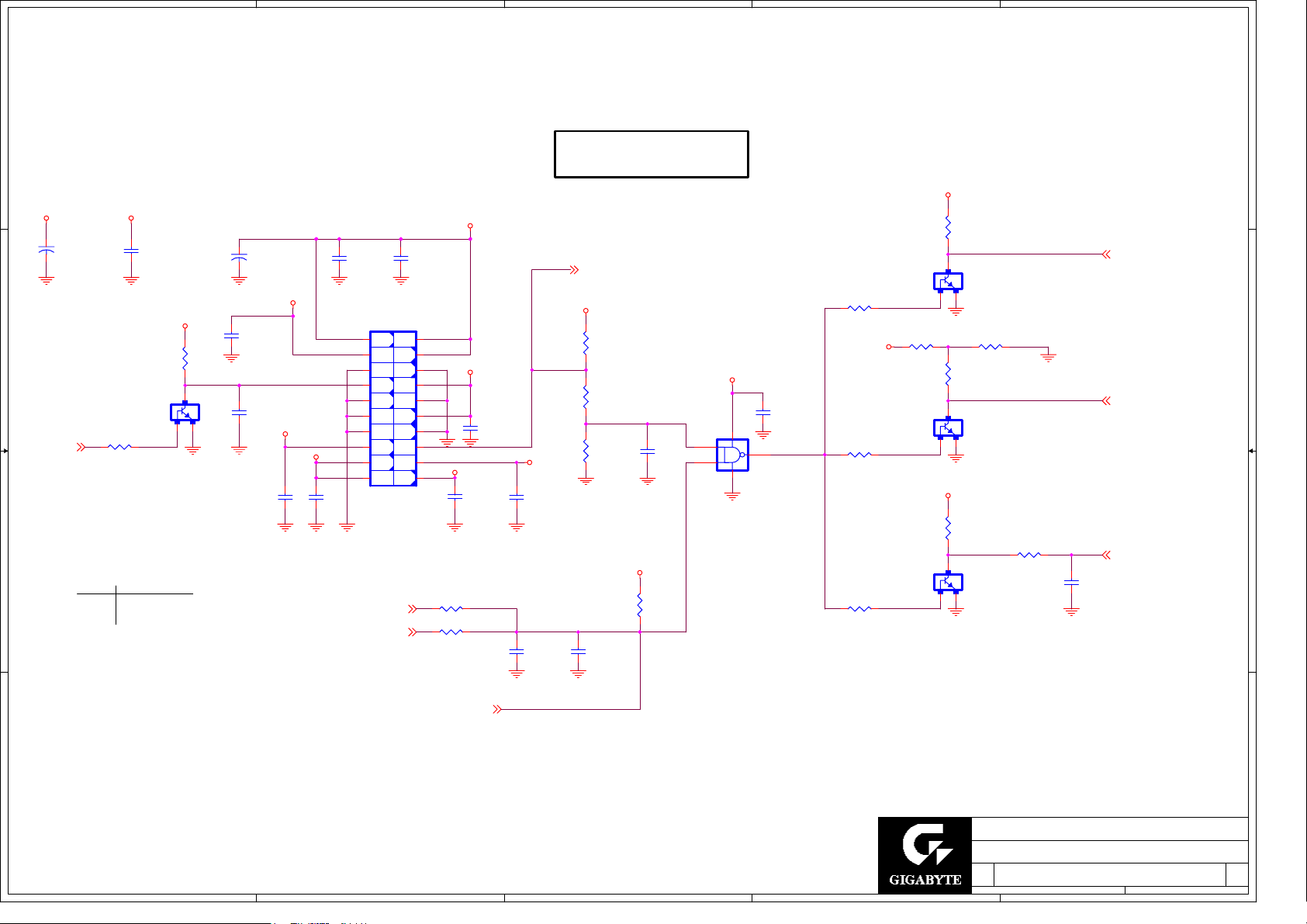

2_5VREF

+5VDUAL

R509 220/6/S

1 2

CAR

SOT23

Q40 SC431/SOT23/S

1 1

A

RAC

C614

0.1U/6/Y/10V/S

1 2

A

4 4

B

C

D

E

ATX POWER

+2.5V

+5V +5VSUS

12

EC38 1000U/D/8C/6.3V

3 3

-SUSB{9}

2 2

-SUSA

-SUSB

-SUSC

C636 10U/12/Y/10V/S

1 2

Q26 MMBT2222A/SOT23/S

R395 1K/6/S

1 2

S1 S3 S5 000

00

1 11

+5VSUS

0

R392

4.7K/6/S

1 2

132

12

EC27 1000U/D/8C/6.3V

C509

0.1U/4/Y/16V/S

1 2

-PSON

C510

0.1U/4/Y/16V/S

1 2

C514

0.1U/4/Y/16V/S/X

C507

0.1U/4/Y/16V/S

1 2

-12V

11

12

13

14

15

C515

0.1U/4/Y/16V/S

1 2

16

17

18

19

20

-5V

+5V

1 2

C508

0.1U/4/Y/16V/S

1 2

ATX1

3.3V

-12V

3.3V

GND

PSON

5V

GND

5V

GND

-5V

POK

5V

5VSB

5V

12V

ATX/WHITE/PINREX

HW_RST{24}

RST_SW{17}

1

2

3

4

5

6

7

8

9

+12V

10

R539 22/6/S

1 2

R402 22/6/S

1 2

+3.3V

+5V

1 2

12

C516 1U/8/Y/25V/S

C512

0.1U/4/Y/16V/S

+5VSUS

C517

0.1U/4/Y/16V/S

1 2

C519

0.1U/4/Y/16V/S

1 2

PWRGD

PWRGD {23,27}

+5V

R389

4.7K/6/S

1 2

R394

3.48K/6/1/S

1 2

PWR_GD

R396

6.65K/6/1/S

1 2

C520 10U/12/Y/10V/S

1 2

+3.3V

1 2

C513

0.1U/4/Y/16V/S

1 2

R400

4.7K/6/S

+5VDUAL

U23

1

2

C511

0.1U/4/Y/16V/S

1 2

53

POWER_GD

4

NC7SZ00/SOT23-5/S

R388

1 2

1K/6/S

+2.5V

R397

1 2

1K/6

R401

1 2

1K/6/S

RST_DDR

R390

1 2

100/6/1

PGD_CPU

PGD_SB

1 2

2V0

1 2

+3.3VDUAL

1 2

R387

4.7K/6/S

Q25 MMBT2222A/SOT23/S

132

R391 510/6/1

1 2

R393

4.7K/6

Q27 MMBT2222A/SOT23

132

R398 1K/6/S

PGDSB

Q28 MMBT2222A/SOT23/S

132

R399

1 2

22/6/S

C518

0.1U/4/Y/16V/S

1 2

RESET_DDR {12}

PWRGD_CPU {3}

PWRGD_SB {9,27}

PWRGD_PWM{11,25}

1 1

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

A

B

C

D

Wednesday, August 18, 2004

ATX POWER

GA-6VLEP

E

26 30

of

1.0

A

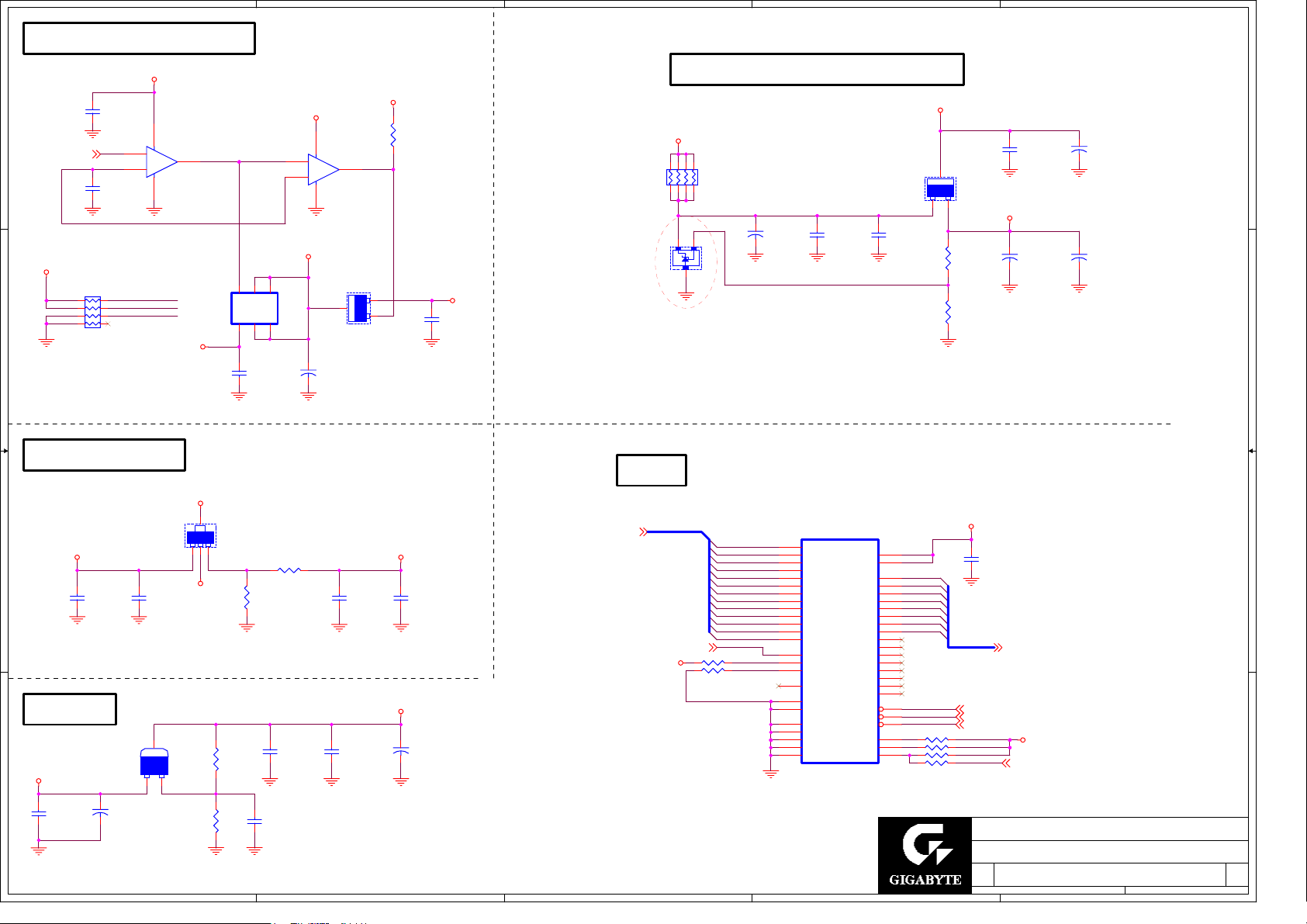

+5VDUAL GENERATE CIRCUIT

B

C

D

E

+5VSUS

12

C485

PWRGD{23,26}

12

RN102

1 2 3 4 5 6 7 8

1K/8P4R/S

0.1U/4/Y/16V/S

3

2

C487

0.1U/4/Y/16V/S

84

U20A KA393/SO8/S

+

-

U23A_1 U23A_2 U23A_2

SI3443DV/PMOS/TSOP-6

1

+5VSUS

U23A_1

U23A_2

2

34

GS

5

12

C491

0.1U/4/Y/16V

4 4

+5VSUS

3 3

+5VSUS

84

U20B KA393/SO8/S

5

+

6

-

+5VDUAL

1

U21

D

6

2

HUF76107/NMOS/TO252

12

EC36 220U/6*11/10V

+12V

R375

2.2K/6/S

Q19

D

1 2

Q18 SC431/SOT23

3

S

1

G

12

C490

0.1U/4/Y/16V

+5V

7

SC431 Dynatic R--> 2.5 ohm 5VSUS/470 ohm = 10mA | 10mA*2.5m ohm = 0.0025

DDR25V FOR DDR DIMM & NB & SB

+5VSUS

RN101 470/8P4R

1 2

3 4

5 6

7 8

12

C489

0.01U/4/X7/16V

SOT23

CAR

12

EC20

RAC

220U/6*11/10V

12

C488

0.1U/4/Y/16V

+3.3V

GDS

1

R1

R2

2

3

R376 100/6/1

1 2

R377 10K/6/1

1 2

Q17 FDD6530A/TO252

+2.5V

12

C486 1U/6/Y/10V

12

EC35 220U/6*11/10V

12

EC34

1000U/D/8C/6.3V

12

EC22

1000U/D/8C/6.3V

Vout = 2.5 (1+ R1/R2) = 2.500025-0.0025 = 2.49775 V

Suspend Power for SB

DOC

+2.5VDUAL

4

Q20

+2.5VDUAL

RC1117S/SOT223

123

1 2

R380 100/6/1

R378

1 2

100/6/1

C495

4.7U/8/Y/16V

1 2

+2.5VDUAL

C496

0.1U/4/Y/16V

1 2

2 2

+5VDUAL

1 2

C493

4.7U/8/Y/16V

C494

0.1U/4/Y/16V

1 2

LPC_XA[0:18]{16 }

Vo=1.25V(1+Rh/Rl)

C502

0.1U/4/Y/16V/S

+3.3VDUAL

12

EC37 220U/6*11/10V

+3.3VDUAL

Q24

12

R385

60.4/6/1

R386 100/6/1

1 2

C506

0.1U/4/Y/16V

1 2

C501 1U/6/Y/10V/S

1 2

2

+5VDUAL

1 1

C505

0.1U/4/Y/16V

1 2

12

EC26 220U/6*11/10V

1

3

APL1084/TO252

LPC_XA[0:18]

PWRGD_SB{9,26}

+3.3V

LPC_XA0 LPC_XA1 LPC_XA2 LPC_XA3 LPC_XA4 LPC_XA5 LPC_XA6 LPC_XA7 LPC_XA8 LPC_XA9 LPC_XA10 LPC_XA11 LPC_XA12

R403 10K/6/X

1 2

R404 0/6/X

1 2

U24

19

A0

18

A1

17

A2

16

A3

15

A4

14

A5

11

A6

10

A7

9

A8

8

A9

7

A10

6

A11

5

A12

1

RSTIN#

20

BHE#

22

IF_CFG

47

NC

24

ID0

26

ID1

13

GND

25

GND

36

GND

38

GND

48

GND

DOC/MILLENNIUM2000/S/X

LOCK#

VCC

D10 D11 D12 D13 D14 D15

OE# CE#

WE#

TEST# BUSY#

12 37

28

D0

29

D1

30

D2

31

D3

32

D4

33

D5

34

D6

35

D7

39

D8

40

D9

41 42 43 44 45 46

-SIO_MEMR

4

-SIO_ROMCS

2

-SIO_MEMW

3

21

1 2 1 2

27

1 2

23

1 2

Vo=1.25V(1+R2/R1)

A

B

C

D

+3.3V

IOXD0 IOXD1 IOXD2 IOXD3 IOXD4 IOXD5 IOXD6 IOXD7

IOXD[0:7]

-SIO_MEMR {16}

-SIO_ROMCS {16}

-SIO_MEMW {16}

R405 5.1K/6/S/X R406 10K/6/S/X R407 10K/6/S/X R408 0/6/S/X

C521

0.1U/4/Y/16V

1 2

IOXD[0:7] {16}

+3.3V

-DOCLOCK {8}

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

OTHERS DC-DC & DOC

Wednesday, August 18, 2004

GA-6VLEP

27 30

E

of

1.0

5

4

GA-TC2100 GPIO ASSIGN LIST

3

2

1

CHIPSET

VT8235

D D

VT8235

C C

VT8235

B B

VT8235

GPIO DEFINITIONDEFAULT

GPI0

GPI1

GPI2

GPI3

GPI4

GPI5

GPI6

GPI7

GPI/O8

GPI/O9

GPI/O10

GPI/O11

GPI/O12

GPI/O13

GPI/O14

GPI/O15

GPI16

GPI17

GPI18

GPI19

GPI/O20

GPI/O21

GPI22

GPI23

GPI24

GPI25

GPI/O26

GPI/O27

GPI/O28

GPI/O29

GPI/O30VT8235

VT8235

A A

VT8235

GPI/O31

GPO0

GPO1

GPO2

GPO3

GPO4

GPO5

GPO6

GPO7

EXTSMI#

RING#

LID#

BATLOW#

PME#

SMBALERT#

BIOS_WE

-DOCLOCK

INTRUDER#

CPUMISS

THERM#

IORDY

ACSDIN2/PCS0#/VGATE

ACSDIN3/PCS1#/AGPBZ# /SLPBTN#

IOR#

IOW#

GPIOA

GPIOC

SMBDT2

SMBCK2

APICD0

APICD1

GPIOD/GHI#

GPIOE/VIDSEL

DESCRIPTION

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

5

4

3

2

Wednesday, August 18, 2004

GPIO DEFINITION

GA-6VLEP

1

28 30

of

1.0

5

Model Name: GS-ST001

4

3

2

1

Circuit or PCB layout change for next version

D D

Date Change Item

Page

Rev.0.2

05/22/2004

3. 1. Add heatsink library for CPU.

2. Un-mount R83 & mount R85 for support 1GHz CPU.

3. Add C647, C648 4.7UF 0805 for CPUVREF.

4. Add C649 4.7UF 0805 for VCORE_PLL.

4.05/22/2004 1. Add C641, C642, C643, C644 4.7UF 0805 for VTT.

2. Add C645, C646 4.7UF 0805 for VCORE.

1. Change heatsink library for NB.

5.

2. Add C651 0.1uF 0402 for AVDD1.

Circuit or PCB layout change for next version

Date

Page

05/22/2004 18. 4. Add R549 1K ohm 0603 for pull up BEEP signal.

1. Changed the connection of LR6 form +5VDUAL to

22.05/22/2004 AVDD25_L.

2. Changed the connection of LR22 form +3.3VDUAL to VDD15_L.

3. Changed the connection of LFB5 & LFB6 from +3.3VDUAL to AVDD25_L.

4. The pin 15 & 16 of LAN1 & LAN2 connector change the connection GND to AGND.

5. Add LBC72, LBC73, LBC74, LBC75 for EMI issue.

Change Item

3. Add C652 1uF 0603 for GTL_VREF.

1. Add C650 0.1uF 0402 for AVDD2.6.05/22/2004

7.05/22/2004

C C

1. Add C650 0.1uF 0402 for AVDD2.

2. Add C640 for +2.5VDUAL.

3. Add C653 0.1uF 0402 for LVREF.

8.05/22/2004 1. RN112 change the pull up connection from +5V to +5VSUS.

2. Add C637, C638, C639 capacitors for +2.5VDUAL.

1. -SMI_791D changed connection from GPIOA to -EXTSMI.9.05/22/2004

2. GPIOA function changed for IDE cable detection.

3. GPIOC -OVT_791D connection changed to pull up only.

4. Add C669 0.1uF 0402 for PIDEVREF.

5. Add C670 0.1uF 0402 for SIDEVREF.

10.05/22/2004 1. AOLGPI was multi-function pin that used for THRM#. The connection changed to -OVT_791D to instead of pull up only.

2. Add R540 for pull up the -OVT_791D to +3.3V.

B B

3. Add C662, C663 1uF & C664~C667 0.1uF for +2.5V.

1. Un-mount R373 & LED.13.05/22/2004

2. Add CP27, CP28, CP29, CP30 for VTT_MEM.

3. Change C443, C449 1uF 0603 to 10uF 1206.

4. Add C654~C661 8 0.1uF 0402 for +2.5V.

5. Add C672~C677 1uF 0603 for +2.5V.

15.05/22/2004

1. Add mounting holes for IDE connector.

2. Add GPIOA for detect cable type of IDE1.

16.05/22/2004 1. Add R542, R543 for detect +5V on LPC_SIO HW monitor function.

05/22/2004 17. 1. Delete L10, L11.

2. USB34, USB56 pin 6 & 8 need to swap.

A A

05/22/2004 1. Changed the layout library for COM port.

18.

05/22/2004 24. 1. U36 MAX3380E changed to ADM213E for long lead time issue.

2. Add R547 for pull up RED_LED signal.

3. Add R548 for pull up pin 9 of W83791D.

4. Changed the pull up voltage name of R517, R518 from 5VSB to +5VSUS.

5. The pin 2 of RJ11 change the voltage to +5VSUS.

6. The pin 4 & pin 5 of RJ11 need swap the signal.

7. Delete R536 & R537.

8. Connect Rabbit RX/TX & Radio RX/TX to COM1.

9. Add D23, D24, R549, R550, U40 for control power of U37.

10. Add R550 & R551 for select +5V or +5VSUS for I2C buffer.

11. Add R552 & R553 to select +5V or +5VSUS for W83791D.

12. Add C678, C679 for EMI issue.

25. 1. EC5, EC9 change to 1000U 10V KZG series05/22/2004

2. Mount Q13 for control CPU Vcore PWM.

3. Add C671 10uF 1206 for 2_5VREF.

1. EC27 change to 1000U 6.3V05/22/2004 26.

2. Add EC38 1000U 10V for +5V.

3. Add C636 10U 1206 for +5VSUS.

05/22/2004

27.

1. EC22 change to 1000U 6.3V

2. SC1, SC2 changed to DIP type capacitor EC35 1000U 6.3V.

3. SC3 changed to DIP type capacitor EC34 220U 10V.

4. Delete C503, C504 and add EC37 for +3.3VDUAL.

5. Delete SC4 and add EC36 for +5VDUAL.

Rev.1.0

08/11/2004 24. 1. Un-mount R550 0/8/S

2. Un-mount R552 0/8/S

3. Mount R553 0/8/S

4. Add R554, R555 0/6/S/X connect MB SMBus to RCM3700 SMBus for debug only.

2. Un-mount RN115 & RN116.

3. RCM3700 serial port share circuit changed to COM1 and add RN117 to connect those signals to J4.

5

4

3

2

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

Date: Sheet

BOM & PCB MODIFY HISTORY

Wednesday, August 18, 2004

GA-6VLEP

29 30

1

of

1.0

5

Model Name: GS-ST001

4

3

2

1

Circuit or PCB layout change for next version

D D

Page

Circuit or PCB layout change for next version

DateDate Change Item

Page

Change Item

Rev.1.0

1. EC31, EC32, EC33 220UF change to 1000UF for slove USB

17.08/13/2004 droop issue.

C C

B B

A A

GIGABYTE TECHNOLOGY CORPORATION

Title

Size Document Number Rev

5

4

3

2

Date: Sheet

BOM & PCB MODIFY HISTORY

Wednesday, August 18, 2004

GA-6VLEP

1

30 30

1.0

of
