Gigabyte Aorus FI25F operation manual

LCD Monitor User's Manual

- 1 -

LCD Monitor User's Manual

Copyright

© 2020 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective
owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of
GIGABYTE.
Changes to the speci
GIGABYTE without prior notice.
No part of this manual may be reproduced, copied, translated, transmitted,
or published in any form or by any means without GIGABYTE’s prior written
permission.

•

In order to assist in the use of this monitor, carefully read the User Guide.

•

For more information, check on our website at:

https://www.gigabyte.com

cations and features in this manual may be made by

-2 -

LCD Monitor User's Manual

SAFETY INFORMATION

Regulatory Notices

United States of America, Federal Communications Commission
Statement

Supplier’s Declaration of Conformity

47 CFR § 2.1077 Compliance Information

Product Name: LCD monitor
Trade Name: GIGABYTE
Model Number: AORUS FI25F

Responsible Party – U.S. Contact Information: G.B.T. Inc.
Address: 17358 Railroad street, City Of Industry, CA91748
Tel.: [phone]
Internet contact information: https://www.gigabyte.com

FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules, Subpart B, Unintentional

Radiators.
Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with manufacturer’s instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit dierent from that to which
the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

- 3 -

LCD Monitor User's Manual

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications. This class B digital apparatus complies with
Canadian ICES-003.

Avis de conformité à la réglementation d’Industrie Canada

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

European Union (EU) CE Declaration of Conformity

This device complies with the following directives: Electromagnetic Compatibility
Directive 2014/30/EU, Low-voltage Directive 2014/35/EU, ErP Directive 2009/125/EC,
RoHS directive (recast) 2011/65/EU & the 2015/863 Statement.

This product has been tested and found to comply with all essential requirements of
the Directives.

European Union (EU) RoHS (recast) Directive 2011/65/EU & the European
Commission Delegated Directive (EU) 2015/863 Statement

GIGABYTE products have not intended to add and safe from hazardous substances
(Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components
have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE
are continuing our eorts to develop products that do not use internationally banned
toxic chemicals.

European Union (EU) Community Waste Electrical & Electronic Equipment
(WEEE) Directive Statement

GIGABYTE will fulll the national laws as interpreted from the 2012/19/EU WEEE (Waste
Electrical and Electronic Equipment) (recast) directive. The WEEE Directive species
the treatment, collection, recycling and disposal of electric and electronic devices and
their components. Under the Directive, used equipment must be marked, collected
separately, and disposed of properly.

WEEE Symbol Statement

The symbol shown below is on the product or on its packaging, which
indicates that this product must not be disposed of with other waste.
Instead, the device should be taken to the waste collection centers for
activation of the treatment, collection, recycling and disposal procedure.

For more information about where you can drop o your waste equipment for
recycling, please contact your local government oce, your household waste
disposal service or where you purchased the product for details of environmentally
safe recycling.

- 4 -

.

LCD Monitor User's Manual

End of Life Directives-Recycling

The symbol shown below is on the product or on its packaging, which
indicates that this product must not be disposed of with other waste.
Instead, the device should be taken to the waste collection centers
for activation of the treatment, collection, recycling and disposal
procedure.

Déclaration de Conformité aux Directives de l’Union européenne (UE)

Cet appareil portant la marque CE est conforme aux directives de l’UE suivantes:
directive Compatibilité Electromagnétique 2014/30/UE, directive Basse Tension
2014/35/UE, directive 2009/125/CE en matière d’écoconception, la directive RoHS II
2011/65/UE & la déclaration 2015/863.

La conformité à ces directives est évaluée sur la base des normes européennes
harmonisées applicables.

European Union (EU) CE-Konformitätserklärung

Dieses Produkte mit CE-Kennzeichnung erfüllen folgenden EU-Richtlinien: EMV­Richtlinie 2014/30/EU, Niederspannungsrichtlinie 2014/30/EU, Ökodesign-Richtlinie
2009/125/EC, RoHS-Richtlinie 2011/65/EU erfüllt und die 2015/863 Erklärung.

Die Konformität mit diesen Richtlinien wird unter Verwendung der entsprechenden
Standards zurEuropäischen Normierung beurteilt.

CE declaração de conformidade

Este produto com a marcação CE estão em conformidade com das seguintes Diretivas
UE: Diretiva Baixa Tensão 2014/35/EU; Diretiva CEM 2014/30/EU; Diretiva Conceção
Ecológica 2009/125/CE; Diretiva RSP 2011/65/UE e a declaração 2015/863.

A conformidade com estas diretivas é verificada utilizando as normas europeias
harmonizadas.

CE Declaración de conformidad

Este producto que llevan la marca CE cumplen con las siguientes Directivas de la
Unión Europea: Directiva EMC 2014/30/EU, Directiva de bajo voltaje 2014/35/EU,
Directiva de Ecodiseño 2009/125/EC, Directiva RoHS 2011/65/EU y la Declaración
2015/863.

El cumplimiento de estas directivas se evalúa mediante las normas europeas
armonizadas.

Deklaracja zgodności UE Unii Europejskiej

Urządzenie jest zgodne z następującymi dyrektywami: Dyrektywa kompatybilności
elektromagnetycznej 2014/30/UE, Dyrektywa niskonapięciowej 2014/35/UE,
Dyrektywa ErP 2009/125/WE, Dyrektywa RoHS 2011/65/UE i dyrektywa2015/863.

Niniejsze urządzenie zostało poddane testom i stwierdzono jego zgodność z
wymaganiami dyrektywy.

- 5 -

LCD Monitor User's Manual

ES Prohlášení o shodě

Toto zařízení splňuje požadavky Směrnice o Elektromagnetické kompatibilitě
2014/30/EU, Směrnice o Nízkém napětí 2014/35/EU, Směrnice ErP 2009/125/ES,
Směrnice RoHS 2011/65/EU a 2015/863.

Tento produkt byl testován a bylo shledáno, že splňuje všechny základní požadavky
směrnic.

EK megfelelőségi nyilatkozata

A termék megfelelnek az alábbi irányelvek és szabványok követelményeinek, azok
a kiállításidőpontjában érvényes, aktuális változatában: EMC irányelv 2014/30/
EU, Kisfeszültségű villamos berendezésekre vonatkozó irányelv2014/35/EU,
Környezetbarát tervezésről szóló irányelv 2009/125/EK, RoHS irányelv 2011/65/EU és
2015/863.

Δήλωση συμμόρφωσης ΕΕ

Είναι σε συμμόρφωση με τις διατάξεις των παρακάτω Οδηγιών της Ευρωπαϊκής

Κοινότητας: Οδηγία 2014/30/ΕΕ σχετικά με την ηλεκτρομαγνητική συμβατότητα,
Οοδηγία χαμηλή τάση 2014/35/EU, Οδηγία 2009/125/ΕΚ σχετικά με τον οικολογικό
σχεδιασμό, Οδηγία RoHS 2011/65/ΕΕ και 2015/863.

Η συμμόρφωση με αυτές τις οδηγίες αξιολογείται χρησιμοποιώντας τα ισχύοντα
εναρμονισμένα ευρωπαϊκά πρότυπα.

Japan Class 01 Equipment Statement

安全にご使用いただくために

接地接続は必ず電源プラグを電源につなぐ前に行って下さい。
また、接地接続を外す場合は、必ず電源プラグを電源から切り離してから行って下さい。

Japan VCCI Class B Statement

クラス

この装置は、クラス B 情報技術装置です。この装置は、家庭環境で使用することを目的として
いますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き
起こすことがあります。
取扱説明書に従って正しい取り扱いをして下さい。

B VCCI

基準について

VCCI-B

- 6 -

LCD Monitor User's Manual

10

China RoHS Compliance Statement

中国《废弃电器电子产品回收处理管理条例》提示性说明

为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守
国家废弃电器电子产品回收处理相关法律法规，将其交给当地具有国家认可的回
收处理资质的厂商进行回收处理。

环保使用期限

Environment-friendly use period

此标识指期限（十年），电子电气产品中含有的有害物质在正常使
用的条件下不会发生外泄或突变，电子电气产品用户使用该电子电
气产品不会对环境造成严重污染或对其人身、财产造成严重损害的
期限。

产品中有害物质名称及含量 :

有害物质

部件名称

印刷电路板及其电子组件 X ○ ○ ○ ○ ○
液晶面板 X ○ ○ ○ ○ ○
外壳 ○ ○ ○ ○ ○ ○
外部信号连接头及线材 X ○ ○ ○ ○ ○
本表格依据 SJ/T 11364 的规定编制。
This table is prepared in compliance with the requirements of SJ/T 11364
○ : 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以
下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要
求。

铅

(Pb)汞 (Hg)汞 (Hg)

六价铬

(Cr+6)

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

- 7 -

LCD Monitor User's Manual

限用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances
Marking

設備名稱：液晶顯示器 型號（型式）：AORUS FI25F
Equipment name Type designation (Type)

限用物質及其化學符號

Restricted substances and its chemical symbols

單元

Unit

塑料外框 ○ ○ ○ ○ ○ ○
後殼 ○ ○ ○ ○ ○ ○
液晶面板 － ○ ○ ○ ○ ○
電路板組件 － ○ ○ ○ ○ ○
底座 ○ ○ ○ ○ ○ ○
電源線 － ○ ○ ○ ○ ○
其他線材 － ○ ○ ○ ○ ○
備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量
基準值。
Note 1：〝Exceeding 0.1 wt %〞 and 〝exceeding 0.01 wt %〞 indicate that the percentage content
of the restricted substance exceeds the reference percentage value of presence condition.
備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：〝○〞 indicates that the percentage content of the restricted substance does not exceed
the percentage of reference value of presence.
備考 3.〝－〞係指該項限用物質為排除項目。
Note 3：The 〝－〞 indicates that the restricted substance corresponds to the exemption

鉛
Lead
(Pb)

汞

Mercury

(Hg)

鎘

Cadmium

(Cd)

六價鉻

Hexavalent

chromium

(Cr+6)

多溴聯苯

Polybrominated

biphenyls

(PBB)

多溴二苯醚
Polybrominated
diphenyls ethers

(PBDE)

- 8 -

LCD Monitor User's Manual

Safety Precautions

Read through the following Safety Precautions before using the monitor.

•

Only use the accessories that are provided with the monitor or that which are
recommended by the manufacturer.

•

Keep the plastic packaging bag for the product in a place that cannot be
reached by children.

•

Before connecting the monitor to the power outlet, make sure that the voltage
rating of the power cable is compatible with the power specification in the
country where you are located.

•

The power cord plug must be connected to a properly wired and grounded
power outlet.

•

Do not touch the plug with wet hands, otherwise easily cause electric
shock.

•

Place the monitor in a stable and well-ventilated place.

•

Do not place the monitor near any heat sources such as electric radiators or
direct sunlight.

•

The holes or openings on the monitor are for ventilation. Do not cover or
block the ventilation holes with any objects.

•

Do not use the monitor near water, drinks, or all types of liquids. Failure to do
so may result in electric shock or damage to the monitor.

•

Make sure to unplug the monitor from the power outlet before cleaning.

•

As the screen surface is easy to be scratched, avoid touching the surface with
any hard or sharp object.

•

Use a soft lint-free cloth instead of a tissue to wipe the screen. You may use a
glass cleaner to clean the monitor if required. However, never spray the cleaner
directly onto the screen.

•

Disconnect the power cable if the monitor is not being used for a long period
of time.

•

Do not attempt to disassemble or repair the monitor yourself.

- 9 -

LCD Monitor User's Manual

Contents

SAFETY INFORMATION ................................................................................. 3

Regulatory Notices .........................................................................................................3

Safety Precautions ..........................................................................................................9

INTRODUCTION ............................................................................................. 12

Unpacking ..........................................................................................................................12

Package Contents ...........................................................................................................14

Product Overview ...........................................................................................................15

GETTING STARTED ........................................................................................ 17

Installing the Stand Base ..............................................................................................17

Lift the monitor ................................................................................................................19

Adjusting the Viewing Angle ......................................................................................20

Installing a Wall-Mount Bracket (Optional) ............................................................22

Making Connections ......................................................................................................24

USING THE DEVICE ........................................................................................ 25

Turning the Power On/O ............................................................................................ 25

User Comfort Recommendations ..............................................................................26

Selecting the Input Source ..........................................................................................27

OPERATIONS .................................................................................................. 28

Quick Menu ................................................................................................... 28

Function Key Guide ........................................................................................................30

Congure the Device Settings ....................................................................................33

APPENDICES .................................................................................................. 42

Specications ....................................................................................................................42

Supported Timing List ................................................................................................... 43

Troubleshooting ..............................................................................................................45

Basic Care ...........................................................................................................................46

Notes on USB Charging .................................................................................................46

- 10 -

LCD Monitor User's Manual

GIGABYTE Service Information ...................................................................................46

- 11 -

LCD Monitor User's Manual

INTRODUCTION

Unpacking

1. Open the upper cover of the packaging box. Then observe the unpacking

instruction attached on the inner cover. Making sure the box is in the

correct orientation, carefully lay the box on the stable surface.

UP

2. Open the inner cover. Grab the EPS foam assembly (through the openings) to

pull it out of the box.

- 12 -

LCD Monitor User's Manual

3. Remove the items from the upper EPS foam.

4. Remove the upper EPS foam. Then you can remove the stand from the lower EPS

foam.

- 13 -

LCD Monitor User's Manual

Package Contents

The following items come with your packaging box. If any of them is missing, please
contact your local dealer.

Monitor Monitor Base Power Cable

USB CableStand DP Cable

Multilingual
Installation
Guide

HDMI Cable

Note: Please keep the packaging box and packing materials for future transporta­tion of the monitor.

Quick Start Guide Warranty Card

Warranty Card

- 14 -

LCD Monitor User's Manual

Product Overview

Front View

1

2

1 Power LED 2 Control button

- 15 -

Rear View

LCD Monitor User's Manual

1 2 3 4 6 7 8

1 AC Switch
2 AC IN jack
3 Kensington lock
4 Headphone jack

5

6 HDMI ports (x2)
7 DisplayPort
8 USB upstream port
9 USB 3.0 ports (x2)

5 Microphone jack

USB 3.0PDHDMI-1 HDMI-2

9

- 16 -

LCD Monitor User's Manual

GETTING STARTED

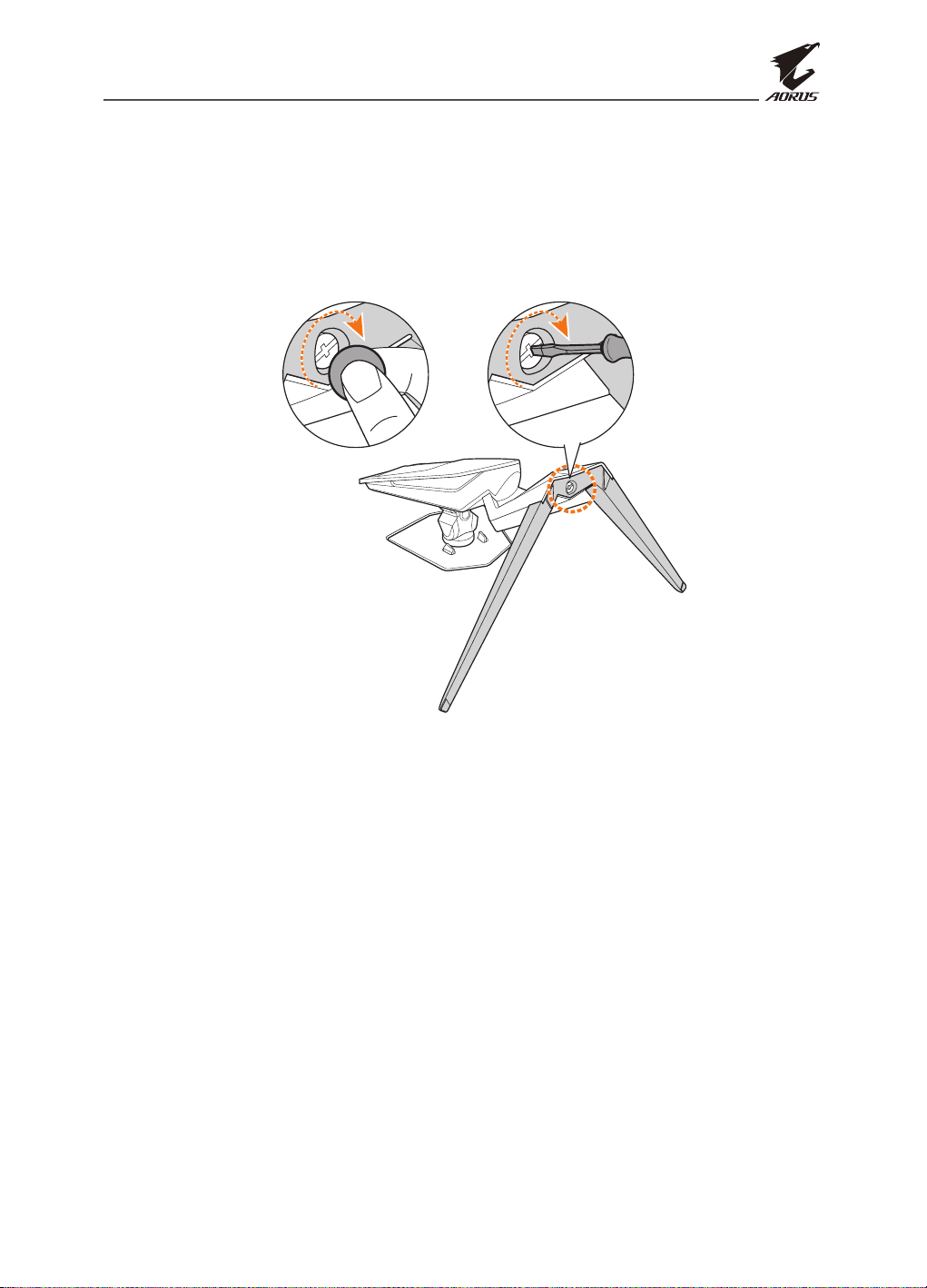

Installing the Stand Base

1.

Align the Stand base with the stand o underneath the stand. Then attach the
base onto the stand. Tighten the screw to secure the monitor base in place.

or

Note: You can either use a coin or a small athead screwdriver to tighten the screw.

- 17 -

LCD Monitor User's Manual

2

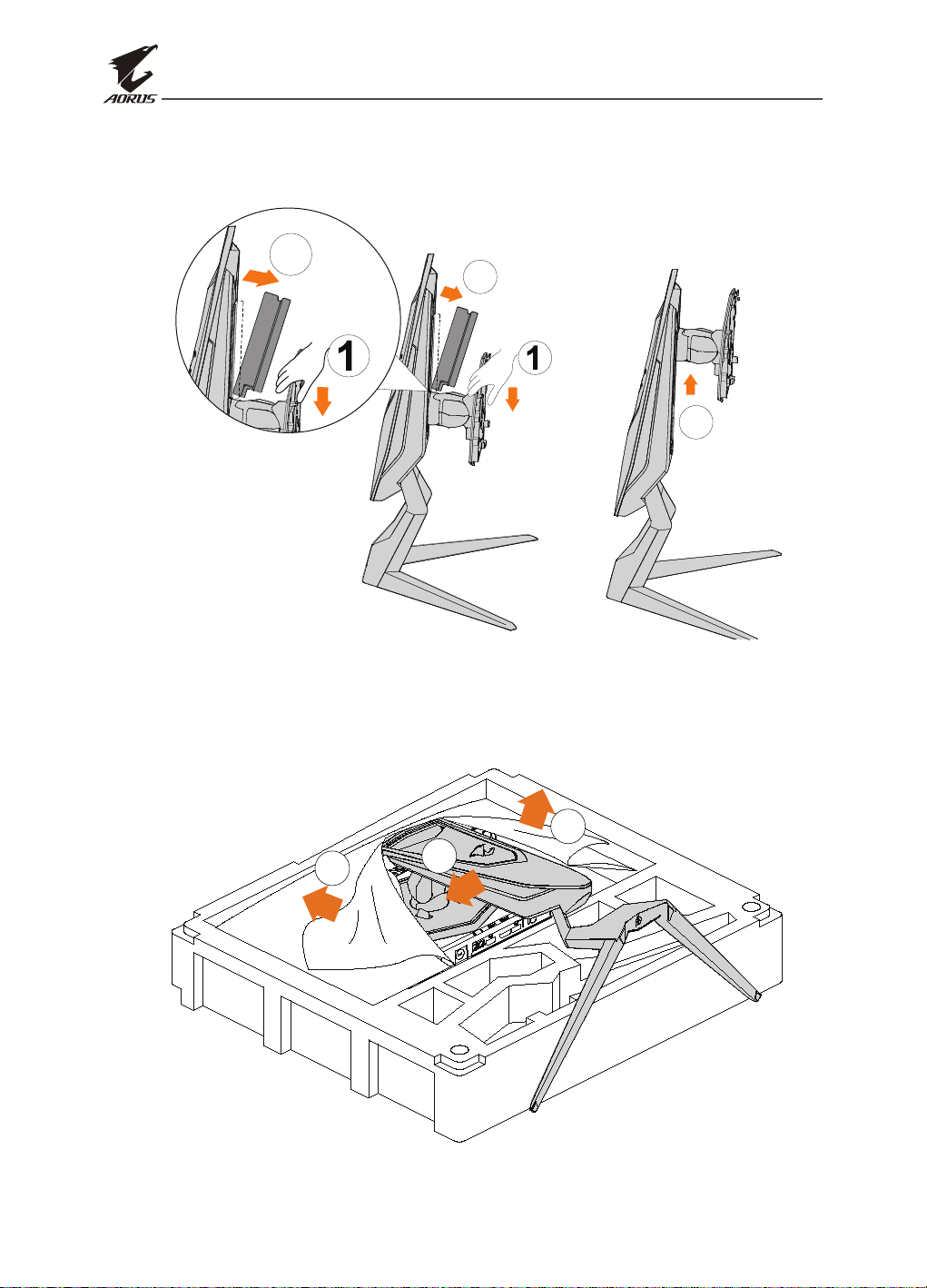

2.

Lift the assembled Stand & Base to an upright position and place it on a table.
Then lower the stand plate to allow the safety plate to automatically release
from its slot.

2

3

3.

Place the monitor on the package cushion or a at surface, with screen facing
down. Tear apart the EPE bag, install the stand on the rear side of the monitor.
Then you can take the monitor from the lower EPS foam by holding the stand
arm. Carefully lift the monitor. Place it upright on a table.

1

1

2

- 18 -

LCD Monitor User's Manual

Lift the monitor

Take the monitor out of the box by holding the stand arm. Carefully lift the
monitor, turn it over and place it upright on its stand on a at even surface.
Remove the foam wrap from the monitor.

Note: Consider keeping the box and packaging in storage for use in the future when you may
need to transport the monitor. The tted foam packing is ideal for protecting the monitor

during transport.

- 19 -

LCD Monitor User's Manual

Adjusting the Viewing Angle

Note: Hold the monitor base so that the screen does not topple when you make the
adjustment.

Adjusting the Tilt Angle

Tilt the screen forward or backward to the desired viewing angle (-5˚ to 21˚).

21°

5°

Adjusting the Swivel Angle

Swivel the screen to the left or right for the desired viewing angle (20˚).

20° 20°

- 20 -

LCD Monitor User's Manual

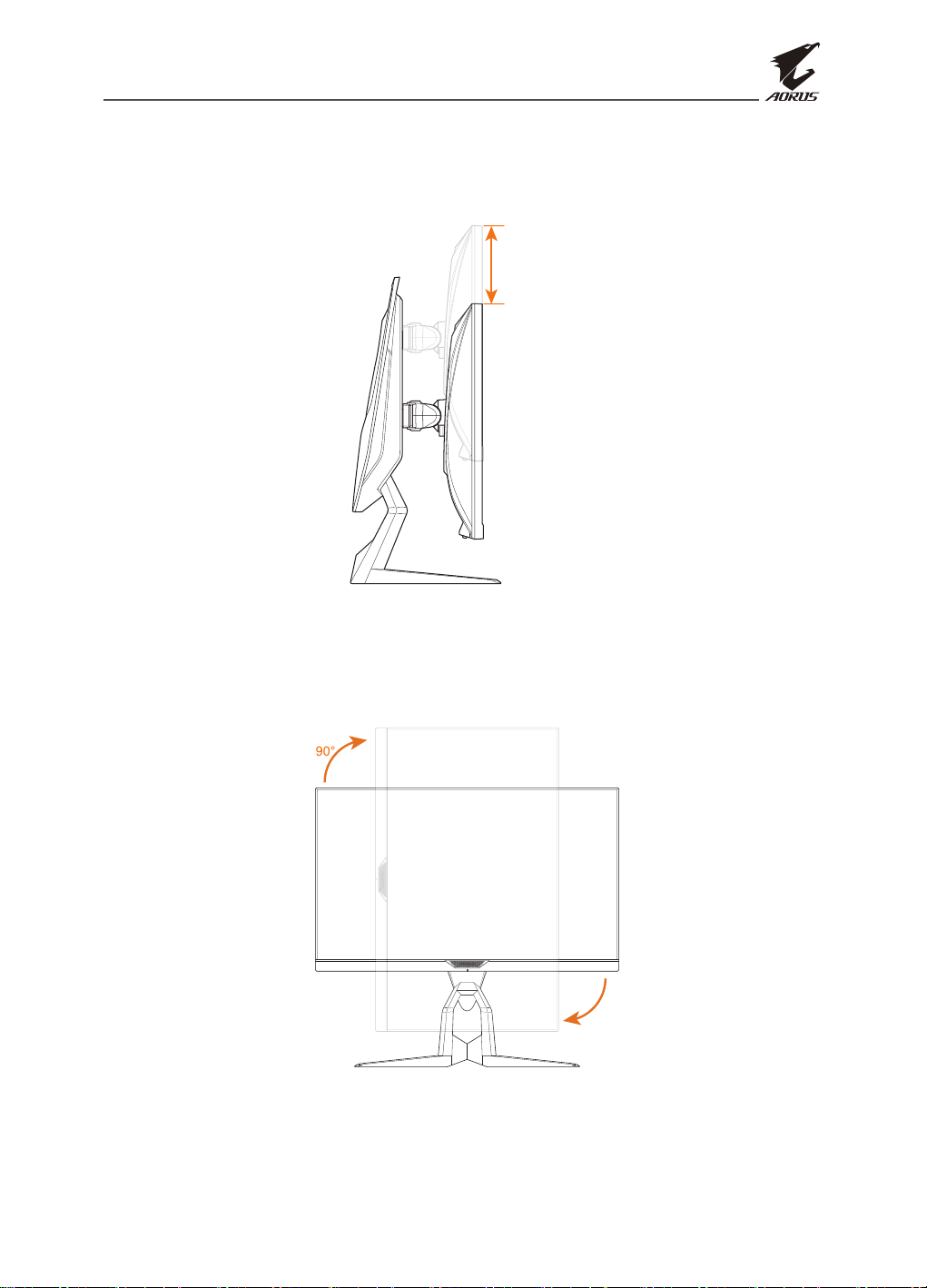

Changing the Screen Orientation

1. Raise the screen to the highest position (130mm).

130 mm

Note: Before making the height adjustment, make sure you have removed the safety plate
from the stand.

2. Rotate the monitor (90˚ clockwise) to portrait orientation.

- 21 -

LCD Monitor User's Manual

Installing a Wall-Mount Bracket (Optional)

Use only the 100 x 100 mm wall mount kit recommended by the
manufacturer.

1.

Place the monitor on a at surface, with the screen facing down.

Note: We recommend that you cover the table surface with soft cloth to prevent damage
to the monitor.

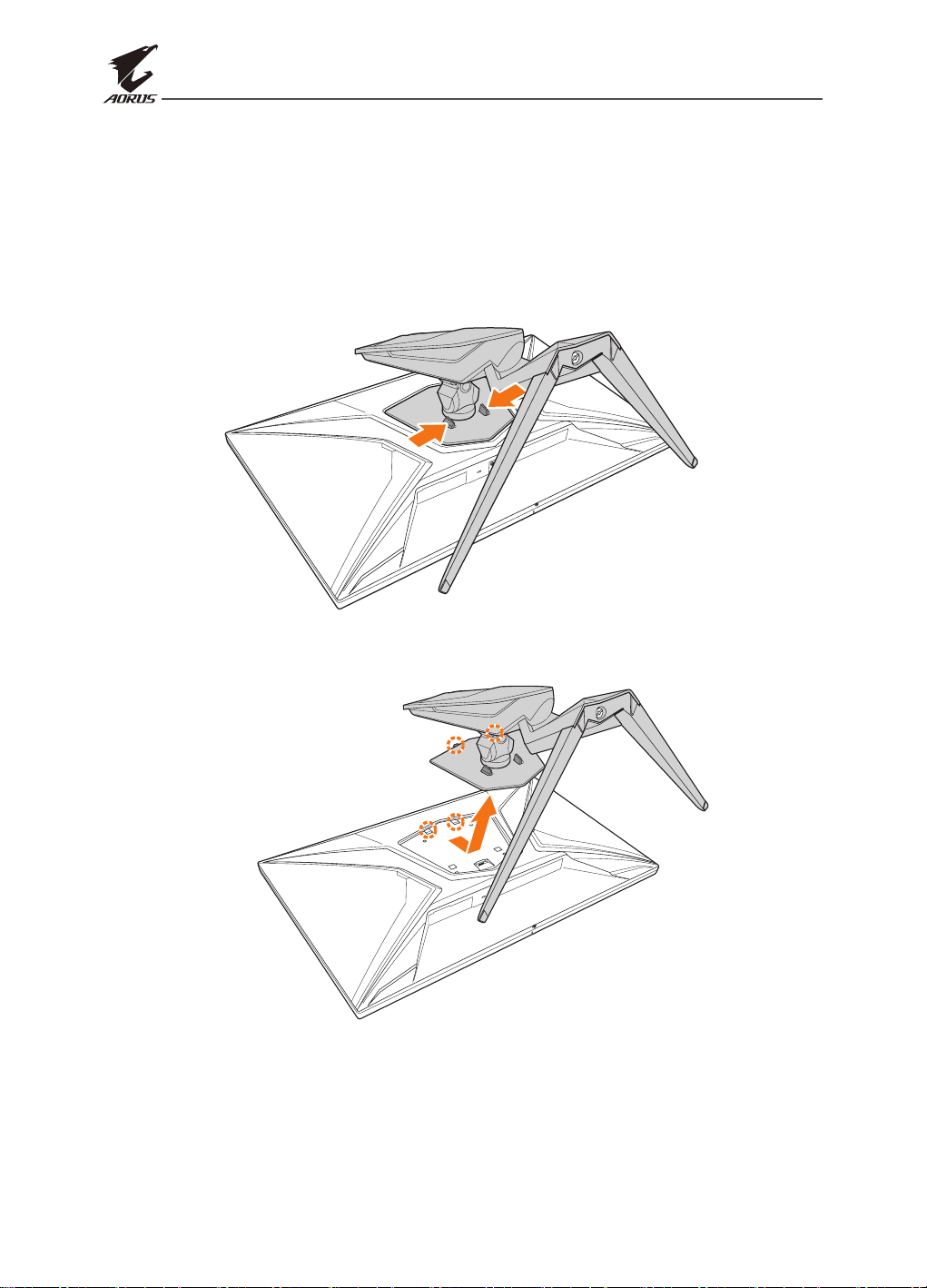

2.

Push the locking clips inward to detach the stand from the monitor.

3.

Pull down the stand slightly to disengage the hooks. Then remove the stand.

- 22 -

LCD Monitor User's Manual

4.

Attach the mounting bracket to the mounting holes at the rear of the monitor.
Then use the screws to secure the bracket in place.

100 mm

100 mm

Note: To mount the monitor on the wall, refer to the installation guide that is included in the
wall-mount bracket kit.

- 23 -

Making Connections

LCD Monitor User's Manual

USB 3.0HDMI-2 DPHDMI-1

7

Power outlet

Headphone

1

1

Microphone

2

2

4 6

3 5

Keyboard

Mouse & USB disk

drive

Computer

Computer

1 Power cable
2 Headphone cable
3 Microphone cable
4 HDMI cable

5 DisplayPort cable
6 USB (A-Male to B-Male) cable
7 USB cable

- 24 -

LCD Monitor User's Manual

USING THE DEVICE

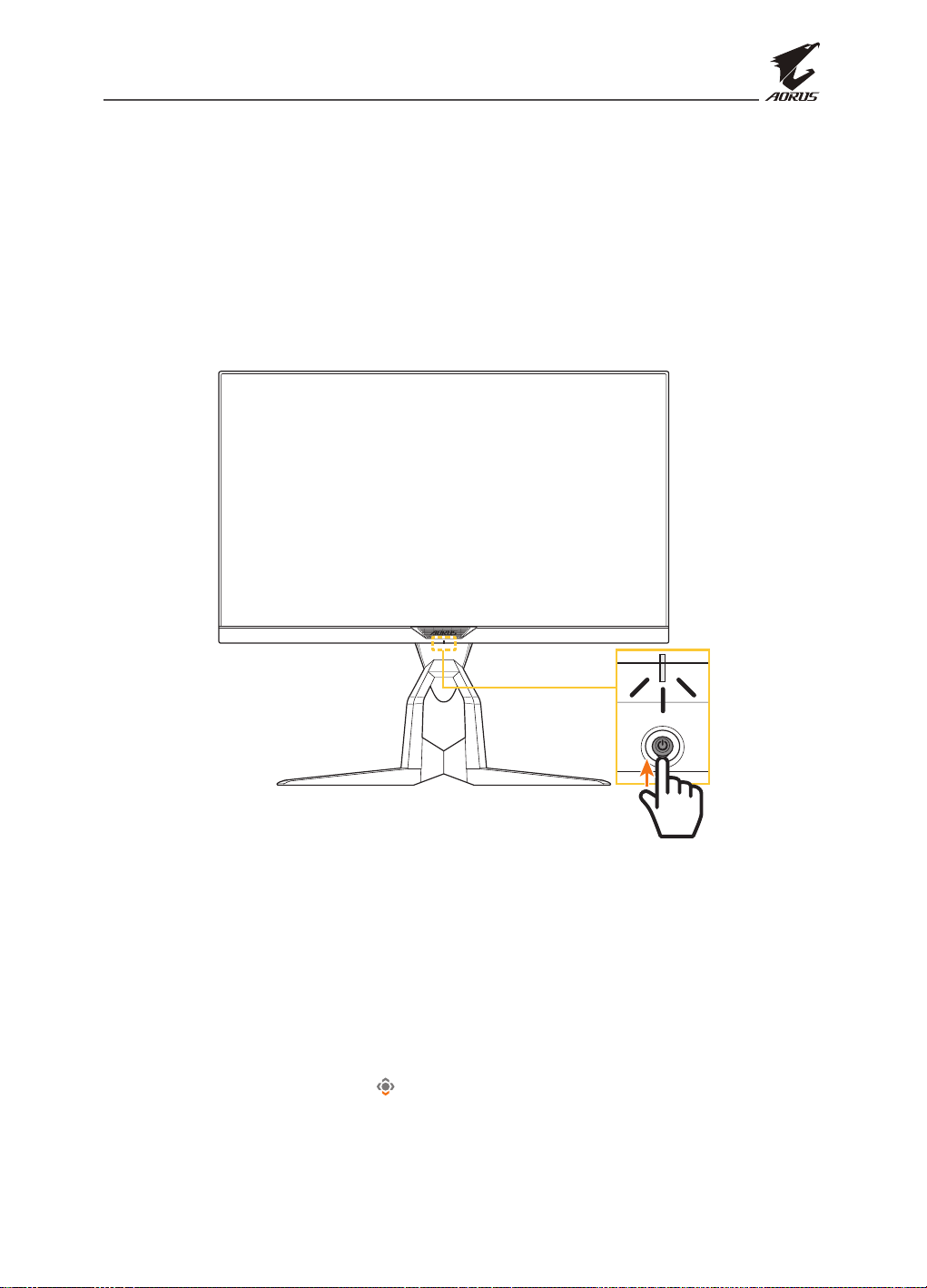

Turning the Power On/O

Make sure the power switch next to the AC power input jack is switched to ON.

Power On

1. Connect one end of the power cable to the AC IN jack at the rear of the monitor.

2. Connect other end of the the power cable to a power outlet.

3. Press the Control button to turn on the monitor. The Power LED will light in

white, indicating the monitor is ready to use.

Note: If the Power LED remains o after you turn on the monitor, please check the LED Indi-
cator setting in the Settings menu. Refer to page 37.

Note: When monitor power on, RGB LED on the rear side of monitor will turn o automatically

after 15 seconds in default setting. Please check the RGB LED setting in the System menu for
select dierent RGB LED patterns.

Power O

Press the Control button for 2 seconds to turn o the monitor.

Note: When the Main menu appears on the screen, you can also turn o the monitor by
moving the Control button down ( ). Refer to page 28.

- 25 -

LCD Monitor User's Manual

User Comfort Recommendations

The following are some tips for comfortable viewing of your monitor:

•

Optimal viewing distances for monitors range from approximately 510 mm to
760 mm (20” to 30”).

•

A general guideline is to position the monitor such that the top of the screen
is at or slightly below your eye-height when you are comfortably seated.

•

Use adequate lighting for the type of work you are performing.

•

Take regular and frequent breaks (at least for 10 minutes) every half- hour.

•

Be sure to periodically look away from your monitor screen and focus on a far
object for at least 20 seconds during the breaks.

•

Eye exercise can help reduce eye strain. Repeat these exercises frequently: (1)
look up and down (2) slowly roll your eye (3) move your eyes diagonally.

- 26 -

LCD Monitor User's Manual

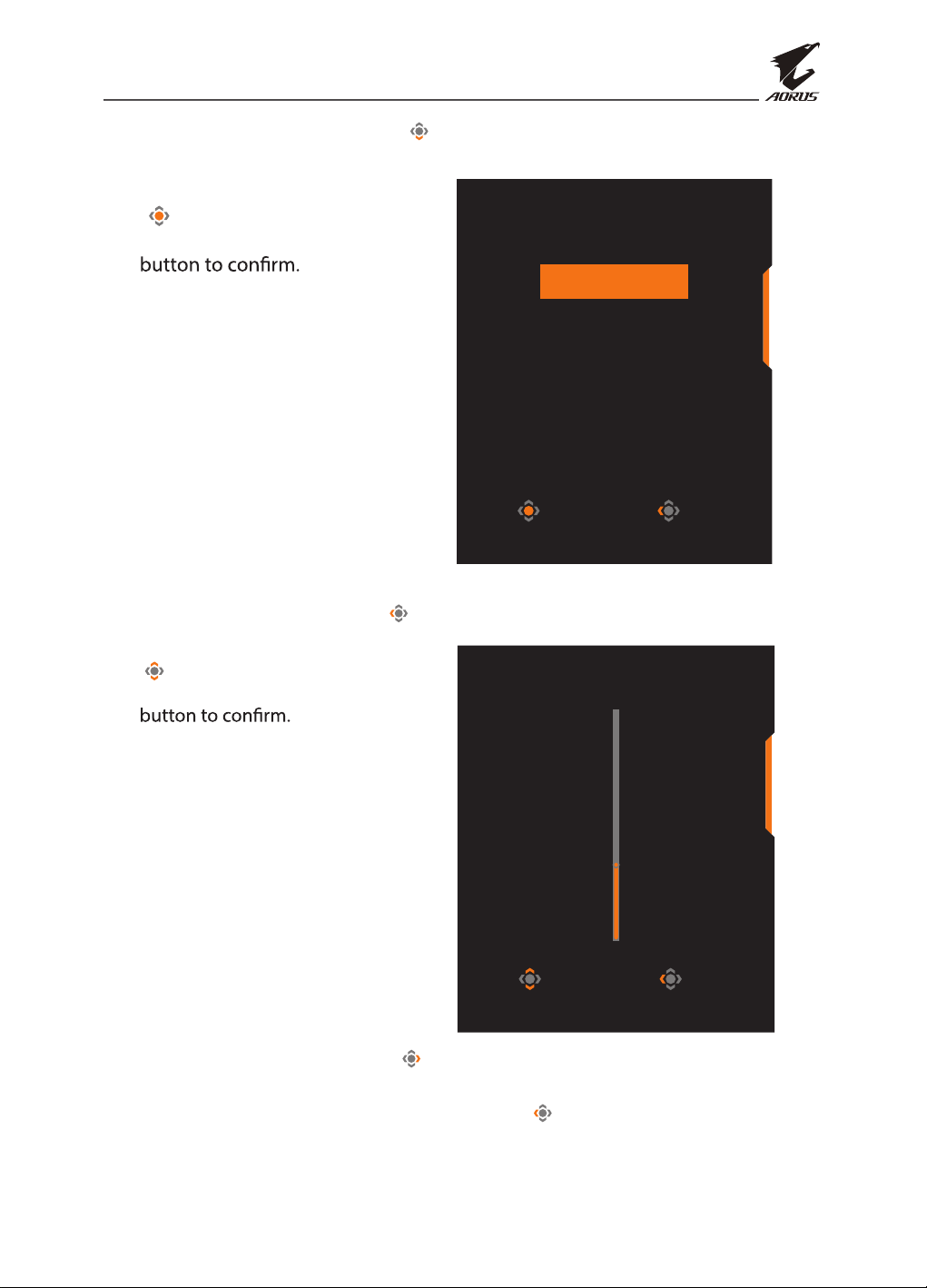

Selecting the Input Source

1.

Move the Control button right
( ) to enter the Input menu.

2.

Move the Control button center
( ) to select the desired
input source. Then press the

Control

Input

HDMI 1

HDMI2

DisplayPort

Select Exit

- 27 -

LCD Monitor User's Manual

Adjust Exit

Black Equalizer

10

Move the Control button up/down
(

) to adjust the setting and press

the

Control

OPERATIONS

Quick Menu

Hot Key

By default, the Control button has been assigned with the specic function.

Note: To change the preset hot key function, refer to the “Quick Switch” section on page 36.

To access the hot key function, do the following:

•

Move the Control button up ( ) to enter the Black Equalizer
menu.

- 28 -

LCD Monitor User's Manual

Move the Control button center
(

) to select the desired option

and press the Control

Select Exit

Picture Mode

Standard

AORUS

FPS

RTS/RPG

Movie

Reader

Move the Control button up/down

(

) to adjust the headphone

volume level and press the Control

Adjust Exit

Volume

30

•

Move the Control button down ( ) to enter the Picture Mode

menu.

•

Move the Control button left ( ) to enter the Volume menu.

•

Move the Control button right ( ) to enter the the Input menu. Refer to the
“Selecting the Input Source” section.

Note: To close the menu, move the Control button left

( )

.

- 29 -

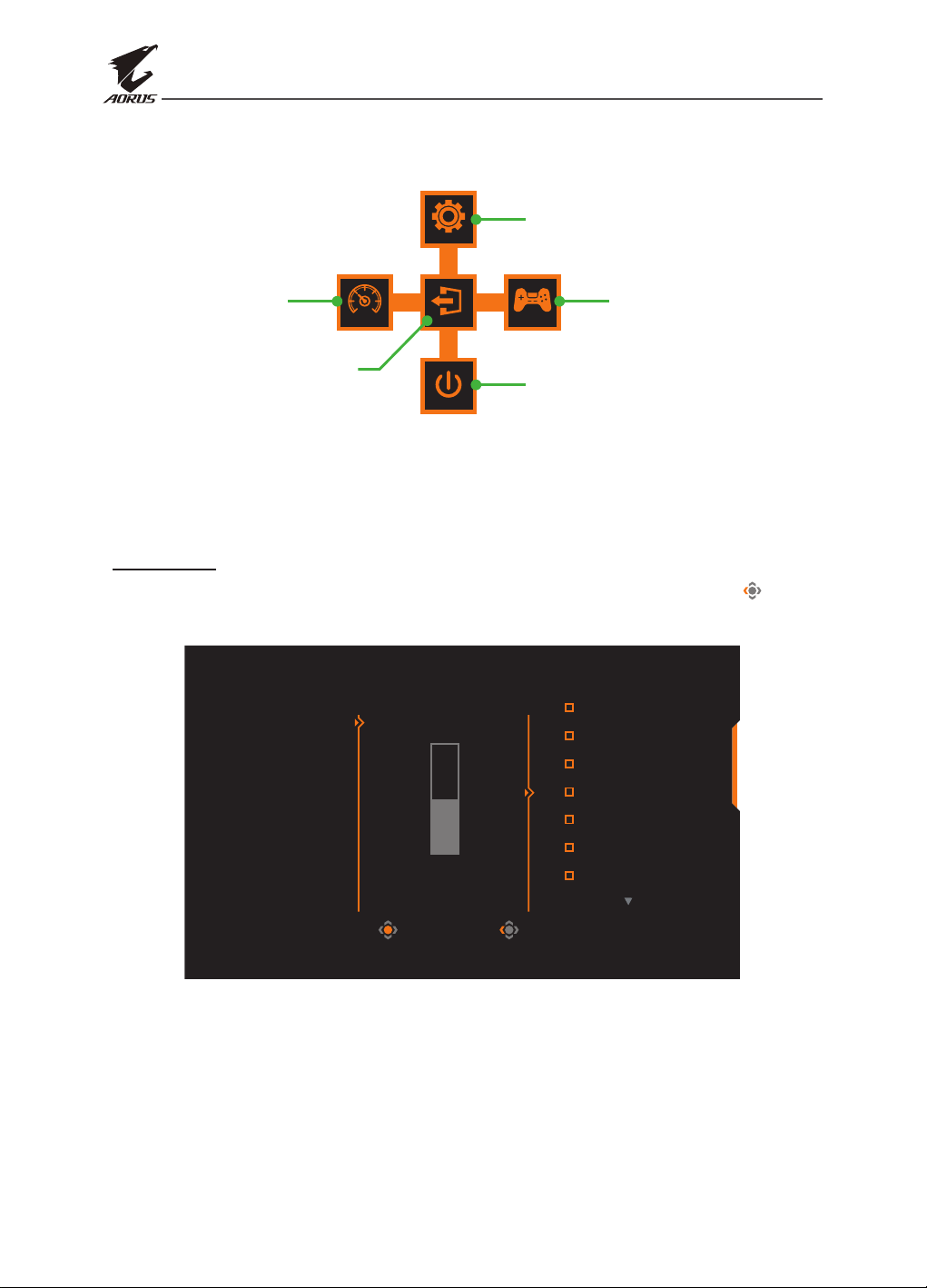

Function Key Guide

•

Press the Control button to display the Main menu.

LCD Monitor User's Manual

SETTING

Dashboard

EXIT

GAME ASSISTDASHBOARD

Game Assist

Exit

Power Off

Settings

POWER OFF

Then use the Control button to select the desired function and congure
the related settings.

Dashboard

When the Main menu appears on the screen, move the Control button left ( ) to
enter the Dashboard menu.

Dashboard

Function

Dashboard

Location

ON

OFF

CPU Temperature

CPU Frequency

CPU Fan Speed

CPU Usage Rate

GPU Temperature

GPU Frequency

CPU Fan Speed

Select Exit

•

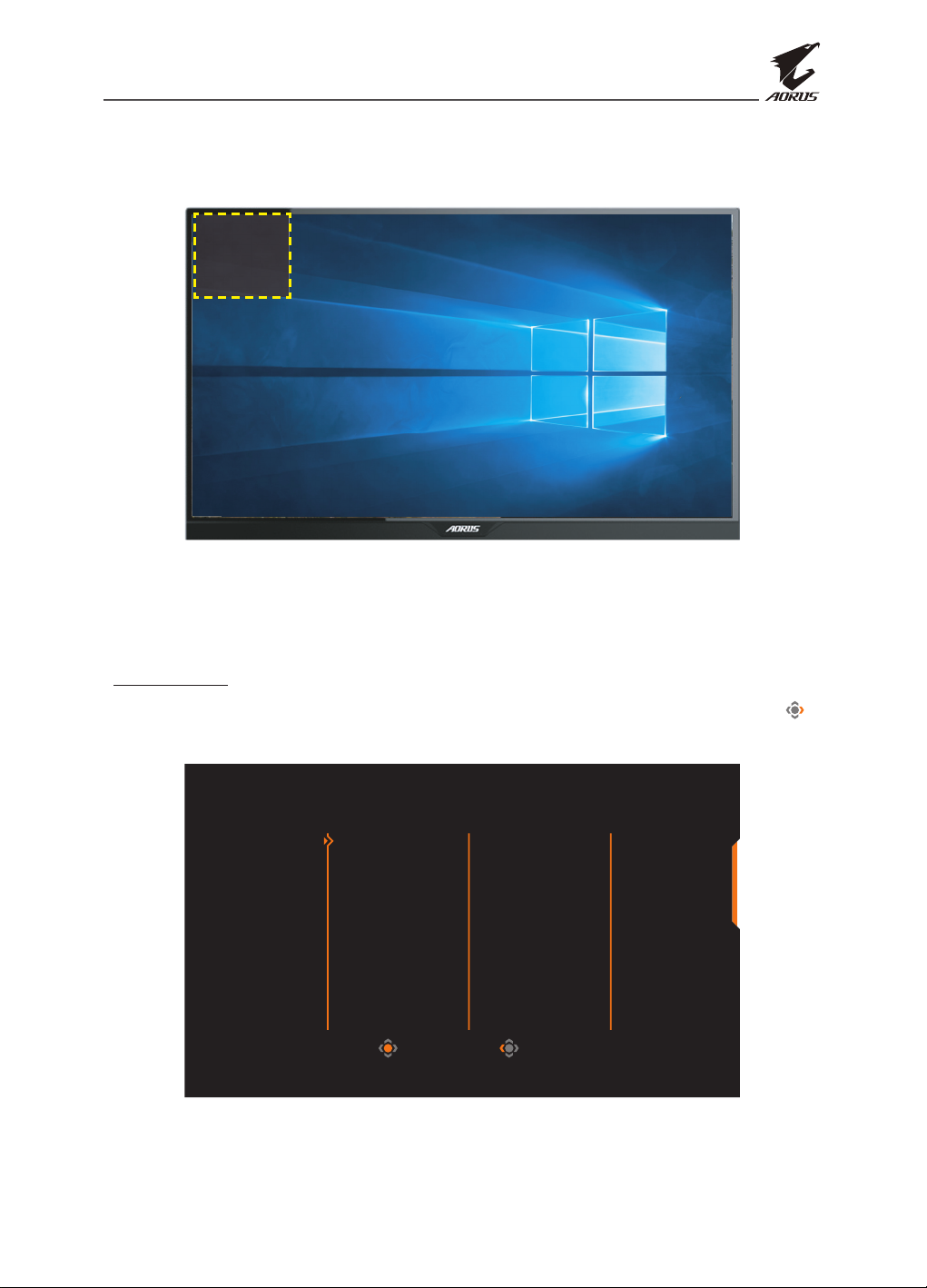

Function: Enable/Disable the function. When enabled, you can select the
desired option(s) to be shown on the screen.

•

Dashboard Location: Specify the location of the Dashboard information
to be shown on the screen.

- 30 -

LCD Monitor User's Manual

Once the Dashboard conguration is complete, it will transfer the system
data to the SOC through the USB port and display the value of the selected
function(s) on the screen.

CPU temperature
CPU frequency
CPU fan Speed
CPU usage Rate
GPU temperature
GPU frequency
GPU fan speed
GPU usage rate
AORUS Mouse DPI

Note: Make sure the USB cable is properly connected to the USB upstream port of the moni­tor and the USB port of your computer.

Note: “OSD Sidekick” software installation and execution required.

Game Assist

•

When the Main menu appears on the screen, move the Control button right ( )
to enter the Game Assist menu.

GameAssist

AORUS INFO

Crosshair

Display

Alignment

Gaming Timer

Gaming Counter

Refresh Rate

Info Location

Select Exit

- 31 -

LCD Monitor User's Manual

•

AORUS INFO: Congure the FPS (First Person Shooting) game related
settings.

√ Select Gaming Timer to select countdown timer mode. To disable this

function, set the setting to OFF.

√ Select Gaming Counter or Refresh Rate to enable/disable the gaming counter

or real-time refresh rate setting.

√ Select Info Location to specify the location of the information to be

shown on the screen.

01:57

0

60

•

Crosshair: Select the desired crosshair type to suit your gaming
environment. It makes aiming much easier.

•

Display Alignment: When the function is enabled, it displays the alignment lines
on the four sides of the screen, providing handy tool for you to line up multiple
monitors perfectly.

- 32 -

LCD Monitor User's Manual

Congure the Device Settings

When the Main menu appears on the screen, move the Control button up ( ) to
enter the Settings menu.

Note: Use the Control button to navigate through the menu and make adjustments.

Exit

Move/Adjust

Enter/Confirm

Button Guide

Gaming

Congure the game related settings.

Resolution Black Equalizer Aim Stabilizer Overdrive Refresh Rate FreeSync Premium
640x480 15 OFF Speed 60 HZ ON

Picture Mode AORUS

Gaming


Display

PIP/PBP

System

Save Settings

Reset All

Aim Stabilizer

Black Equalizer

Super Resolution

Display Mode

Overdrive

FreeSync Premium

ON

OFF

Exit

Move/Adjust

Enter/Conrm

- 33 -

LCD Monitor User's Manual

Item Description

Aim Stabilizer When this function is enabled, it reduces the motion blur in a

fast moving games.

Note: This function is not available under the following conditions:

- when the frequency setting is lower than 100Hz.

- when the FreeSync function is activated.

Black

Adjust the brightness of the black areas.

Equalizer

Super

Sharpen the low resolution images.

Resolution

Display Mode Select the aspect ratio of the screen.

•

Full: Scale the input image to ll the screen. Ideal for 16:9
aspect images.

•

Aspect: Display the input image without geometric
distortion lling as much of the screen as possible.

•

1:1: Display the input image in its native resolution without
scaling.

•

22”W (16:10): Display the input image as if on a 22”W
monitor of 16:10 aspect ratio.

•

23”W (16:9): Display the input image as if on a 23”W
monitor of 16:9 aspect ratio.

•

23.6”W (16:9): Display the input image as if on a 23.6”W
monitor of 16:9 aspect ratio.

•

24”W (16:9): Display the input image as if on a 24”W
monitor of 16:9 aspect ratio.

Note: This option is not compatible with FreeSync and PIP/ PBP
functions.

Overdrive Improve the response time of the LCD monitor.

FreeSync Premium When this function is enabled, it eliminates the screen lag and

tearing while playing games.

- 34 -

LCD Monitor User's Manual


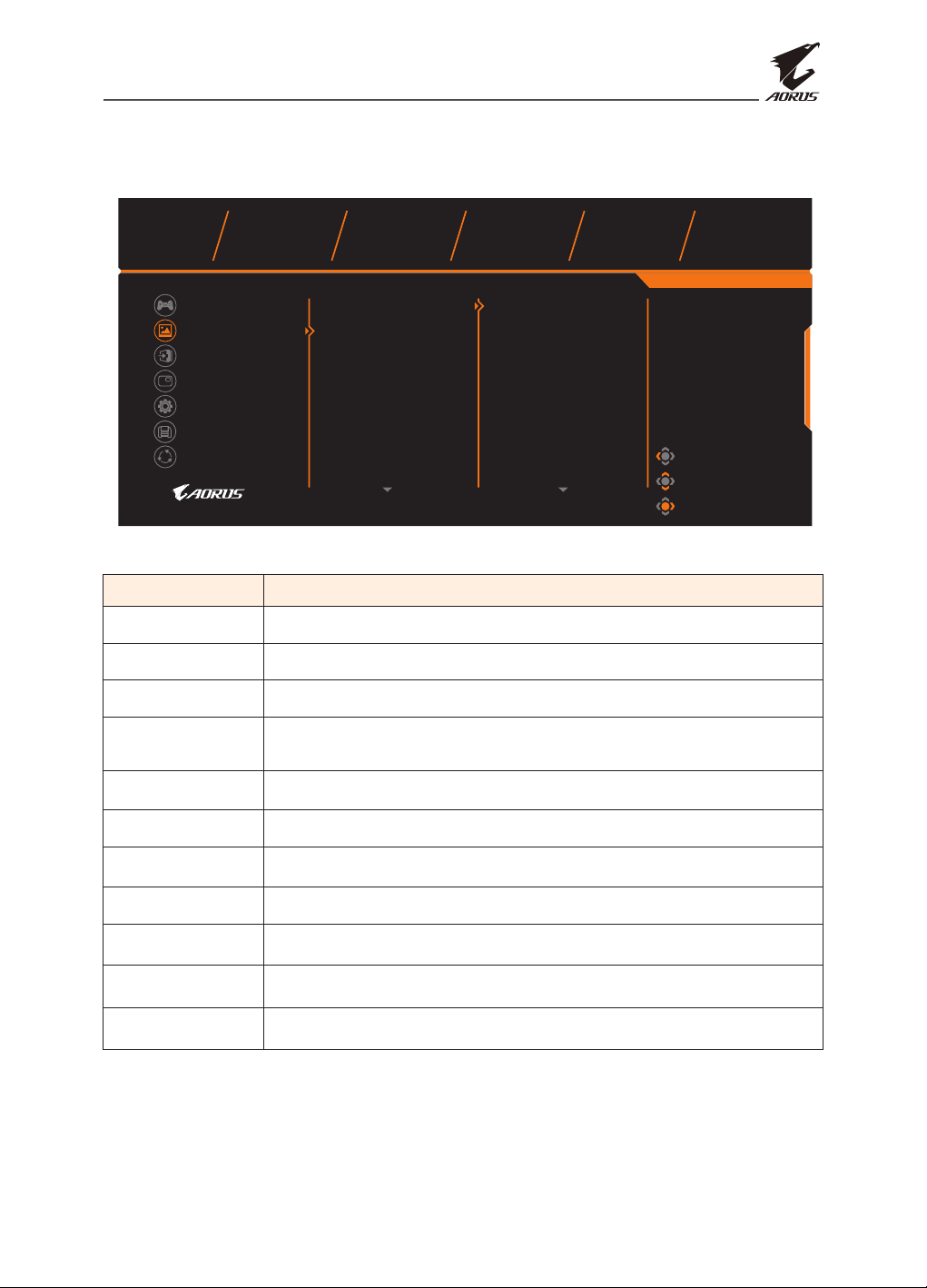

Congure the image related settings.

SDR

Brightness Contrast Sharpness Gamma Color Temperature

80ON 50 5 Gamma 3 User Dene

Picture Mode Standard

Gaming


Display

PIP/PBP

System

Save Settings

Reset All

Standard

AORUS

FPS

RTS/RPG

Movie

Reader

sRGB

Brightness

Contrast

Color Vibrance

Sharpness

Gamma

Color Temperature

Low Blue Light

Exit

Move/Adjust

Enter/Conrm

Item Description

Standard For editing documents or browsing websites.

AORUS For playing AORUS GAMER games.

FPS For playing FPS (First Person Shooting) games.

RTS/RPG For playing RTS (Real-Time Strategy) or RPG (Role-Playing Game)

games.

Movie For watching movies.

Reader For viewing documents.

sRGB For viewing photos and graphics on the computer

.

Custom 1 Customized picture mode settings.

Custom 2 Customized picture mode settings.

Custom 3 Customized picture mode settings.

Green For saving energy and low power consumption.

Note: Picture mode “Standard”, Low blue light “Level 10” is the optimized setting in compli­ance with TUV Low Blue Light Certication”.

- 35 -

Display

Congure the display screen related settings.

LCD Monitor User's Manual

SDR

ON

Brightness Contrast Sharpness Gamma Color Temperature

80 50 5 Gamma 3 Normal

Picture Mode Standard

Gaming


Display

PIP/PBP

System

Save Settings

Reset All

Input

HDMI RGB PC Range

Overscan

HDMI 1

HDMI 2

DisplayPort

Exit

Move/Adjust

Enter/Conrm

Item Description

Input Select the input source.

HDMI RGB PC
Range

Select an appropriate RGB range setting or let the monitor to
detect it automatically.

Note: This option is only available for HDMI input.

Overscan When this function is enabled, it slightly enlarges the input

image to hide the outermost edges of the image.

- 36 -

LCD Monitor User's Manual

PIP/PBP

Congure the multi-picture related settings.

SDR

ON

Brightness Contrast Sharpness Gamma Color Temperature

80 50 5 Gamma 3 User Dene

Picture Mode Standard

Gaming


Display

PIP/PBP

System

Save Settings

Reset All

OFF

PIP

PBP

Exit

Move/Adjust

Enter/Conrm

Item Description

OFF Disable the PIP/PBP function.

PIP Split the screen into 2 parts (main window and inset window).

• Source: Change the input source for the inset window.

• PIP Size: Adjust the inset window size.

• Location: Move the inset window position.

• Display Switch: Swap the two windows.

• Audio Switch: Select which audio source you want to hear the

sound from.

PBP Display 1x1 split screen (left and right windows).

• Source: Change the input source for the right window.

• Display Switch: Swap the two windows.

• Audio Switch: Select which audio source you want to hear the

sound from.

- 37 -

System

Congure the system related settings.

LCD Monitor User's Manual

SDR

ON

Brightness Contrast Sharpness Gamma Color Temperature

80 50 5 Gamma 3 User Dene

Picture Mode Standard

Gaming


Display

PIP/PBP

System

Save Settings

Reset All

Language

RGB LED

Headphone

OSD Setting

Quick Switch

Other Settings

OFF

Mode 1

Mode 2

Mode 3

Exit

Move/Adjust

Enter/Conrm

Item Description

Language Select the OSD language.

RGB LED Select the preset LED patterns to be displayed on the rear of

monitor.

Headphone Congure the headphone settings.

• Volume: Adjust the volume level.

• Mute: Enable/Disable the mute function.

OSD Settings Congure the on-screen display (OSD) menu related settings.

• Display Time: Set the length of time the OSD menu remains
on the screen.

• OSD Transparency: Adjust the OSD menu transparency.

OSD Settings

(continue)

• OSD Lock: When this function is enabled, no OSD adjustment is
allowed.

Note: To disable the OSD lock function, press the Control key. When the
message appears on the screen, select Yes to conrm.

The button is locked,

confirm to unlock OSD.

No Yes

- 38 -

LCD Monitor User's Manual

Item Description

Quick Switch Assign the function of the hot keys.

Available options: Aim Stabilizer, Black Equalizer, Low Blue Light,
Volume, Input, Contrast, Brightness, and Picture Mode.
The default setting of the hot keys as below:

Up

( )

: Black Equalizer
Down ( ): Picture Mode
Right

( )

: Input

Left

( ): Volume

Other Settings • Resolution Notice: When this function is enabled, the current

resolution message will appear on the screen when the monitor
switches to another input source.

• Input Auto Switch: When this function is enabled, it
automatically switches to an available input source.

• Auto Power O: When this function is enabled, the monitor
will automatically turn o after a certain amount of time.

Other Settings

(continue

)

• LED Indicator: By default, the LED indicator is set to ON.

LED Indicator OFF: Turn o the Power LED.
LED Indicator ON: The Power LED lights white during

operation and lights orange in standby mode.

LED Indicator Friendly: The Power LED lights orange in

standby mode.

When the power supply is switched o, the Power LED will

remain o.

• DisplayPort Ver.: Set the DisplayPort version to 1.1, 1.2+HDR

Note:

•

Make sure to configure this option based on the DisplayPort
version supported by your graphics card.

- 39 -

Save Settings

Save all data.

LCD Monitor User's Manual

SDR

Brightness Contrast Sharpness Gamma Color Temperature

80ON 50 5 Gamma 3 Normal

Picture Mode Standard

Gaming


Display

PIP/PBP

System

Save Settings

Reset All

Setting1

Setting2

Setting3

Save

Load

Exit

Move/Adjust

Enter/Conrm

Item Description

Setting1 After selecting, the Save and Load menu will appear for the player

to choose.

Setting2 After selecting, the Save and Load menu will appear for the player

to choose.

Setting3 After selecting, the Save and Load menu will appear for the player

to choose.

- 40 -

LCD Monitor User's Manual

Reset All

Restore the monitor to its factory default settings.

SDR

ON

Brightness Contrast Sharpness Gamma Color Temperature

80 50 5 Gamma 3 Normal

Picture Mode Standard

Gaming


Display

PIP/PBP

System

Save Settings

Reset All

Exit

Move/Adjust

Enter/Confirm

- 41 -

APPENDICES

Specications

Item Specications

Panel Size 24.5-inch
Aspect Ratio 16:9
Resolution 1920 x 1080
Refresh Rate 240Hz
LED Life 30000 hours (min.)
Pixel Pitch 0.2832 x 0.2802
Response Time 1ms(MPRT)
Brightness 400 nits (typ.) / 320 nits (min.)
Contrast Ratio 1000:1 (typ.)
Color Depth 16.7M ( 8Bit)
Active Display area 543.744(H) x 302.616(V)
Viewing Angle 178°(H)/178°(V)

LCD Monitor User's Manual

Frequency 48~240Hz
Input/Output Terminals • 2x HDMI 2.0

• 1xDP1.2

• 1x Headphone

• 1x Microphone

Power Supply AC 100 ~ 240V at 50/60Hz
Power Consumptions • On: 60W (Max.)

• Standby: 0.5W

• O: 0.3W

Dimensions (W x H x D) 558 X 485 X 236 mm (with Stand)
Weight 6.66kg (Net)

Note: Specications subject to change without notice.

• 2x USB 3.0
(downstream),
support BC

1.2 charging
(5V/1.5A)

• 1x USB upstream

- 42 -

LCD Monitor User's Manual

Supported Timing List

Timing List HDMI 2.0 DisplayPort 1.2

640x480@60Hz
640x480@75Hz
640x480@100Hz
640x480@120Hz
720x400@70Hz
800x600@60Hz
800x600@75Hz
800x600@100Hz
800x600@120Hz
800x600@240Hz
832x624@75Hz
1024x768@60Hz
1024x768@75Hz
1024x768@100Hz
1024x768@120Hz
1280x720@60Hz
1280x1024@60Hz
1280x1024@75Hz
1920x1080@60Hz
1920x1080@100Hz
1920x1080@120Hz
1920x1080@144Hz
1920x1080@240Hz

√ √
√ √
√ √
√ √
√ √
√ √
√ √
√ √
√ √
√ √

√ √

√ √

√ √

√ √

√ √

√ √

√ √

√ √

√ √
√ √
√ √
√ √
√ √

- 43 -

LCD Monitor User's Manual

Troubleshooting

Problem Possible Solution(s)

No power • Make sure the power cable is properly connected

to the power source and the monitor.

• Check the cable and plug to make sure they are not
broken.

• Make sure the monitor is turned on.

No image appears
on the screen

• Make sure the monitor and the computer are properly
connected and both devices are turned on.

• Make sure you have selected the correct input
source. Refer to page 25 or 34.

The image
does not ll the

•

Try dierent Display Mode (aspect ratio) setting.
Refer to page 34.

entire screen
The colors are

distorted

• Make sure the input signal cable is properly connected.

• Congure the image related settings. Refer to the “Picture”

section.

No sound or
volume is low

• Make sure the headphone cable is properly connected.

• Adjust the volume level. Refer to page 27 or 36.

• Check the Audio Source setting. If the setting is set

to USB Codec, make sure the USB cable is properly
connected to the monitor and your computer. Refer
to page 36.

• Adjust your computer sound related settings.

Note: If the problem persists, please contact our customer service for further assistance.

- 44 -

LCD Monitor User's Manual

Basic Care

When the screen becomes dirty, do the following to clean the screen:

•

Wipe the screen with your soft, lint-free cloth to remove any residual dust.

•

Spray or apply the cleaning uid onto a soft cloth. Then wipe the screen
gently with the damp cloth.

Note:

•

Make sure that the cloth is damp, but not wet.

•

When wiping, avoid applying excessive pressure on the screen.

•

Acidic or abrasive cleaners can damage the screen.

Notes on USB Charging

The following devices are not compatible with BC 1.2 of CDP mode. When the Hub
is connected to a PC, these devices cannot be charged using the USB cable.

Vendor Device PID/VID

Apple IPad PID_129A/VID_05AC
Samsung Galaxy Tab2 10.1 PID_6860/VID_04E8
Samsung GALAXY TabPro PID_6860/VID_04E8

GIGABYTE Service Information

More service information, please visit GIGABYTE ocial website:
https://www.gigabyte.com/
