B450M GAMING
User's Manual
Rev. 1001
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Motherboard
B450M GAMING
Motherboard
B450M GAMING
Sept. 14, 2018
Sept. 14, 2018
Copyright
© 2018 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
ChangestothespecificationsandfeaturesinthismanualmaybemadebyGIGABYTEwithoutpriornotice.
No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.
In order to assist in the use of this product, carefully read the User's Manual.
For product-related information, check on our website at: https://www.gigabyte.com
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS, drivers, or when looking for technical information.
Example:
Table of Contents
B450M GAMING Motherboard Layout............................................................................. |
4 |
|
Chapter 1 Hardware Installation...................................................................................... |
5 |
|
1-1 |
Installation Precautions..................................................................................... |
5 |
1-2 |
Product Specifications...................................................................................... |
6 |
1-3 |
Installing the CPU............................................................................................. |
9 |
1-4 |
Installing the Memory........................................................................................ |
9 |
1-5 Installing an Expansion Card.......................................................................... |
10 |
|
1-6 |
Back Panel Connectors.................................................................................. |
10 |
1-7 |
Internal Connectors........................................................................................ |
12 |
Chapter 2 BIOS Setup................................................................................................... |
20 |
|
2-1 |
Startup Screen................................................................................................ |
20 |
2-2 |
The Main Menu............................................................................................... |
21 |
2-3 |
M.I.T................................................................................................................ |
22 |
2-4 |
System............................................................................................................ |
26 |
2-5 |
BIOS............................................................................................................... |
27 |
2-6 |
Peripherals...................................................................................................... |
30 |
2-7 |
Chipset............................................................................................................ |
32 |
2-8 |

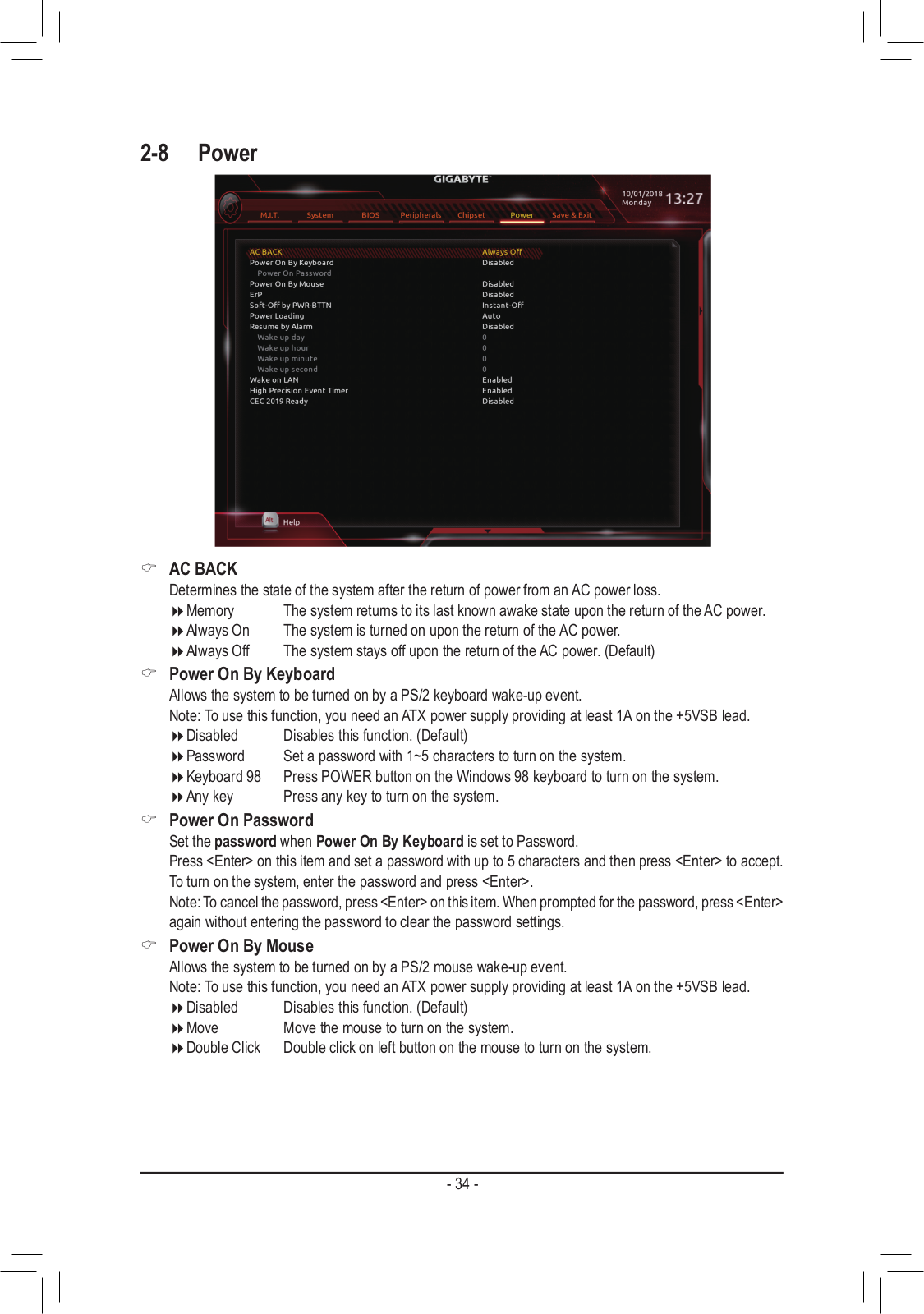

Power.............................................................................................................. |
34 |
2-9 |
Save & Exit..................................................................................................... |
36 |
Chapter 3 Appendix....................................................................................................... |
37 |
|
3-1 Configuring a RAID Set.................................................................................. |
37 |
|
3-2 |
Drivers Installation.......................................................................................... |
39 |
Regulatory Statements.............................................................................................. |
40 |
|
Contact Us................................................................................................................. |
42 |
- 3 -
KB_MS |
CPU_FAN |
|
|
|
ATX_12V |
VGA |
Socket AM4 |
|
|
DVI |
|
HDMI |
|
|
|
|
|
|
R_USB30_1 |
|
|
|
|
|
|
R_USB30_2 |
|
|
|
|
|
|
|
SYS_FAN1 |
|
|
|
|
|
USB_LAN |
|
|
|
|
|
|
AUDIO |
LED_CPU |
|
|
|
|
_2 |
|
M_BIOS |
|
|
DDR4 |
||
|
|
|
|
|
|
|
|
PCIEX1_1 |
M2A_SOCKET |
42 |
60 |
80 |
|
|
|
|
|
|
||
Realtek® |
PCIEX16 |
B450M GAMING |
|
|||
GbE LAN |
|
|
|
|
|
|
|
BAT |
|
|
|
AMD |
|
CODEC |
|
iTE® |
|
B450 |
|
|
|
|
Super I/O |
|
CI |
|
|
|
|
|
|
|
|
|
SPDIF_O |
PCIEX1_2 |
|
SPEAKER |
|
|
|
F_AUDIO |
TPM |
F_USB2 |
CLR_CMOS |
F_USB30 |
||
|
COMA |
|
F_USB1 |
|
F_PANEL |
|
ATX
DDR4_1
SATA3 3
SATA3
0 1 2
SYS_FAN2
Box Contents
55 |
B450M GAMING motherboard |
55 |
Two SATA cables |
55 |
Motherboard driver disk |
55 |
I/O Shield |
55 |
User's Manual |
|
|
*The box contents above are for reference only and the actual items shall depend on the product package you obtain. The box contents are subject to change without notice.
-4 -
