Gigabyte 7VM400AM-RZ User Manual

7VM400AM-RZ

AMD Athlon™/Athlon™ XP/Duron™ Socket A Processor Motherboard

User's Manual

Rev. 1003
12ME-VM400AMRZ-1003

Copyright

© 2005 GIGABYTE TECHNOLOGY CO., LTD

Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in

any from without the expressed, written permission of GBT.

Trademarks

Third-party brands and names are the property of their respective owners.

Notice

Please do not remove any labels on motherboard, this may void the warranty of this motherboard.

Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make

a commitment to update the information contained herein.

Oct. 7, 2004

7VM400AM-RZ

Mother Board

Oct. 7 ,2004

Motherboard

7VM400AM-RZ

Preparing Your Computer

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips.
To protect them against damage from static electricity, you should follow some precautions when­ever you work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the
power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or
other components.

4. Place components on a grounded antistatic pad or on the bag that came with the compo­nents whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX
power connector on the motherboard.

Installing the motherboard to the chassis

If the motherboard has mounting holes, but they don't line up with the holes on the base and
there are no slots to attach the spacers, do not become alarmed you can still attach the spacers to
the mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to
cut off, so be careful of your hands). In this way you can still attach the motherboard to the base
without worrying about short circuits. Sometimes you may need to use the plastic springs to iso­late the screw from the motherboard PCB surface, because the circuit wire may be near by the
hole. Be careful, don't let the screw contact any printed circuit write or parts on the PCB that are
near the fixing hole, otherwise it may damage the board or cause board malfunctioning.

Table of Contents

English

Chapter 1 Introduction ................................................................................................. 5

Chapter 2 BIOS Setup ............................................................................................... 21

Features Summary ................................................................................................................. 5

7VM400AM-RZ Motherboard Layout ...................................................................................... 7

Block Diagram ........................................................................................................................ 8

Hardware Installation Process ................................................................................................ 9

Step 1: Set System Jumper (JP1) .......................................................................................... 9

Step 2: Install the Central Processing Unit (CPU) ............................................................... 10

Step 2-1: CPU Installation ......................................................................................................... 10

Step 2-2: CPU Cooling Fan Installation .................................................................................... 10

Step 3: Install Memory Modules ........................................................................................... 11

Step 4: Install AGP Card....................................................................................................... 12

Step 5: Install I/O Peripherals Cables .................................................................................. 12

Step 5-1: I/O Back Panel Introduction ....................................................................................... 12

Step 5-2: Connectors Introduction ............................................................................................. 13

The Main Menu (For example: BIOS Ver. : F1).................................................................... 21

Standard CMOS Features .................................................................................................... 23

Advanced BIOS Features ..................................................................................................... 25

Integrated Peripherals ..........................................................................................................26

Power Management Setup ................................................................................................... 28

PnP/PCI Configurations ........................................................................................................ 29

PC Health Status .................................................................................................................. 30

Frequency/Voltage Control ................................................................................................... 31

Load Fail-Safe Defaults ........................................................................................................ 32

Load Optimized Defaults ...................................................................................................... 32

Set Supervisor/User Password............................................................................................. 33

Save & Exit Setup ................................................................................................................. 34

Exit Without Saving .............................................................................................................. 34

Chapter 3 Install Drivers............................................................................................. 35

- 4 -7VM400AM-RZ Motherboard

Chapter 1 Introduction

Features Summary

CPU y Socket A for AMD Athlon™ XP / Athlon™ / Duron™ processor

y 200/266/333/400MHz FSB

y Supports 1.4GHz and faster

Chipset y Northbridge : VIA KM400A

y Southbridge : VIA 8237

Memory y 2 184-pin DDR DIMM sockets, supports up to 2GB DRAM (Max)

y Supports DDR400/DDR333 DIMM

y Supports only 2.5V DDR SDRAM

Slots y 1 AGP slot supports 8X/4X(1.5V) mode

y 3 PCI slots support 33MHz & PCI 2.2 compliant

On-Board IDE y 2 IDE controller provide IDE HDD/CD-ROM(IDE1, IDE2) with PIO, Bus

Master (Ultra DMA33/ATA66/ATA100/ATA133) operation modes

y Can connect up to 4 IDE devices

On-Board Floppy y 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and 2.88M bytes

On-Board Serial ATA y 2 Serial ATA connectors

On-Board Peripherals y 1 Parallel port supports Normal/EPP/ECP mode

y 1 Serial port (COMA), 1 VGA port, COMB on-board

y 8 USB 2.0/1.1 ports (4 x Rear, 4 x Front by cable)

y 1 Front Audio connector

y 1 PS/2 Keyboard

y 1 PS/2 Mouse

On-Board VGA y Built-in VIA KM400A

On-Board LAN y Builit-in VIA VT6103 chipset

y 1 RJ45 port

On-Board Sound y VIA VT1617

y Supports 2/4/6-channel

y Line Out / Line In / Mic In

y SPDIF Out

y CD In / Game connector

On-Board SATA RAID y Built in VT8237

y Supports Disk striping (RAID0) or DISK Mirroring (RAID1)

y Supports UDMA up to 150 MB/sec

y Up to 2 SATA Device

(Note1)

English

(Note 1) It is recommended to use SATA (1.5Gb/s) hard disks.

Introduction- 5 -

BIOS y Licensed AWARD BIOS

I/O Control y ITE8705

Hardware Monitor y CPU/System fan revolution detect

English

Additional Features y Supports @BIOS

Overclocking y Over clock (CPU/DDR) by BIOS

Form Factor y Micro ATX size form factor, 24.3cm x 22.2cm

y Supports Q-Flash

™

y CPU/System temperature detect

y System voltage detect

y CPU/System fan fail warning

™

y Supports EasyTune 4

™

y Over voltage (DDR/AGP) br BIOS

- 6 -7VM400AM-RZ Motherboard

7VM400AM-RZ Motherboard Layout

22.2 cm

English

KB_MS

USB

VGA

USB

MIC_IN

COMA

LINE_OUT

CODEC

LPT

LAN

LINE_IN

F_AUDIO

VT6103

CD_IN

SUR_CEN

IT8705

BIOS

SPDIF

AGP

COMB

SOCKET A

GAME

VIA KM400A

PCI1

PCI2

PCI3

BAT

F_USB1

CPU_FAN

7VM400AM-RZ

JP1

F_USB2

DDR1

VIA VT8237

PWR_LED

DDR2

ATX

IDE1

SYS_FAN

CLR_CMOS

SATA1

SATA0

F_PANEL

FDD

24.3 cm

IDE2

CI

Introduction- 7 -

Block Diagram

English

PCICLK
(33MHz)

AGP 4X/8X

3 PCI

VGA Port

AGPCLK

66MHz

RJ45

PCI BUS 33MHz

6 Channel

VT6103

CODEC

MIC

LINE-IN

AC97 Link

LINE-OUT

TM

AMD-K7

CPU

System Bus
200/266/333/400MHz FSB

VIA

KM400A

66MHz V_Link

VIA

VT8237

Ports

ATA33/66/

100/133

IDE Channels

8 USB

CPUCLK+/- (100/133/166/200MHz)

200/266/333/400MHz

DDR

HCLK+/- (100/133/166/200MHz)

NBGCLK66 MHz

33 MHz

48 MHz

14.318 MHz

BIOS

LPC BUS

IT8705

24 MHz

33 MHz

PS/2 KB/Mouse

Game Port

Floppy

LPT Port

2 COM Ports

PCICLK (33MHz)

USBCLK (48MHz)

14.318 MHz
33 MHz

CLK

GEN

HCLK+/- (100/133/166/200MHz)
CPUCLK+/- (100/133/166/200MHz)
AGPCLK (66MHz)

V_Link (66MHz)

- 8 -7VM400AM-RZ Motherboard

Hardware Installation Process

To set up your computer, you must complete the following steps:

Step 1- Set System Jumper (JP1)
Step 2- Install the Central Processing Unit (CPU)
Step 3- Install Memory Modules
Step 4- Install Expansion Cards
Step 5- Install I/O Peripherals Cables

English

Step 2

Step 3

Step 5

Step 5

Step 4

Step 1

Step 1: Set System Jumper (JP1)

The system bus frequency can be switched at 100/133/166/200MHz by adjusting system jumper (JP1).
(The internal frequency depend on CPU.)

Short: 100MHz

1

Open: 133/166/200MHz

1

JP1

100MHz : Fix FSB 200MHz CPU

133/166MHz : Supports FSB 266/333MHz CPU

If you want to use a CPU with 200MHz FSB, please
set JP1 to 100MHz.

- 9 -

Hardware Installation Process

Step 2: Install the Central Processing Unit (CPU)

English

Step 2-1: CPU Installation

Figure 1.
Pull the rod to the 90-degree
directly.

Before installing the processor, adhere to the following warning:

1. Please make sure the CPU type is supported by the motherboard.

2. The processor will overheat without the heatsink and/or fan, resulting in permanent
irreparable damage.

3. If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause improper
installation. Please change the insert orientation.

4. Apply thermal grease between the processor and cooling fan.

5. Never run the processor without the heatsink properly and firmly attached. Permanent damage
will result.

6. Please set the CPU host frequency in accordance with your processor's specifications.
We don't recommend you to set the system bus frequency over the CPU's specification
because these specific bus frequencies are not the standard specifications for CPU, chipset
and most of the peripherals. Whether your system can run under these specific bus frequencies
properly will depend on your hardware configurations, including CPU, Memory, Cards…etc.

Socket Actuation Lever

Figure 2.
Locate Pin 1 in the socket and look
for a cut edge on the CPU upper

corner. Insert the CPU into the
socket. (Do not force the CPU into the socket.) Then move the socket
lever to the locked position while holding pressure on the center of the
CPU.

Step 2-2: CPU Cooling Fan Installation

Figure 1.
Apply the thermal tape(or grease)
to provide better heat conduction
between your CPU and cooling
fan.

Figure 2.
Fasten the cooling fan support­ing-base onto the CPU socket on
the motherboard.

- 10 -7VM400AM-RZ Motherboard

Figure 3.
Make sure the CPU fan is plugged
to the CPU fan connector, than the
install completely.

Step 3: Install Memory Modules

Before installing the memory modules, adhere to the following warning:

1. Please note that the DIMM module can only fit in one direction due to the one notch. Wrong
orientation will cause improper installation. Please change the insert orientation.

The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS will automatically detects
memory type and size. To install the memory module, just push it vertically into the DIMM socket. The DIMM
module can only fit in one direction due to the notch. Memory size can vary between sockets.

Notch

DDR

1. The DIMM socket has a notch, so the DIMM memory
module can only fit in one direction.

English

2. Insert the DIMM memory module vertically into the
DIMM socket. Then push it down.

3. Close the plastic clip at both edges of the DIMM
sockets to lock the DIMM module.
Reverse the installation steps when you wish to re­move the DIMM module.

- 11 -

Hardware Installation Process

Step 4: Install AGP Card

1. Read the relate AGP card's instruction document before install the AGP card into the computer.

2. If your AGP card has "AGP 4X/8X(1.5V) notch"(show below), please make sure your AGP card is AGP

English

3. Please carefully pull out the small white-drawable bar at the end of the AGP slot when you try to install/

Step 5: Install I/O Peripherals Cables

Step 5-1: I/O Back Panel Introduction

4X/8X(1.5V).

AGP 4X/8X notch

uninstall the AGP card. Please align the AGP card to the onboard AGP slot and press firmly down on the
slot. Make sure your AGP card is locked by the small white-drawable bar.

X

Y

Z

[

]

\

^

_

`

a

X PS/2 Keyboard and PS/2 Mouse connector

This connector supports standard PS/2 keyboard and PS/2 mouse.

Y/^ USB port

Before you connect your device(s) into USB connector(s), please make sure your device(s) such as
USB keyboard, mouse, scanner, zip, speaker...etc. Have a standard USB interface. Also make sure
your OS supports USB controller. If your OS does not support USB controller, please contact OS
vendor for possible patch or driver upgrade. For more information please contact your OS or
device(s) vendors.

Z Parallel port (LPT)

Device like printer can be connected to Parallel port.

[ Serial port (COMA)

Mouse and modem etc. can be connected to Serial port.

\ VGA port

Monitor can be connected to VGA port.

] LAN port

LAN is fast Ethernet with 10/100Mbps speed.

_ Line In jack

Devices like CD-ROM, walkman etc. can be connected to Line In jack.

- 12 -7VM400AM-RZ Motherboard

` Line Out jack

Connect the stereo speakers or earphone to this connector.

a MIC In jack

Microphone can be connect to MIC In jack.
After installation of the audio driver, you are able to use 2/4/6-channel audio feature by software
selection. You can connect "Front speaker" to "Line Out" jack, Connect "Rear speaker" to "Line In"
jack and connect "Center/Subwoofer" to "MIC In" jack.

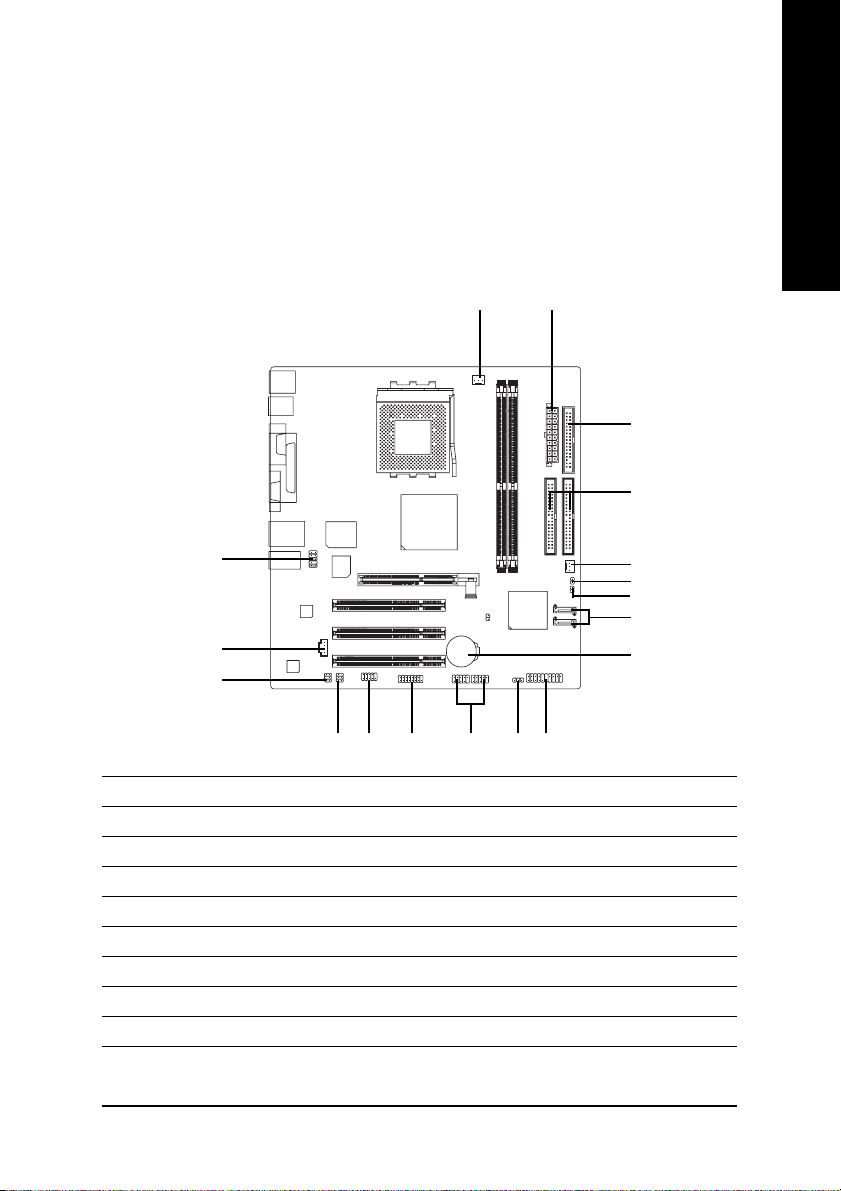

Step 5-2: Connectors Introduction

2

1

English

4

5

9

12

10

1) ATX

2) CPU_FAN

3) SYS_FAN

4) FDD

5) IDE1 / IDE2

6) SATA0/SAT1

7) PWR_LED

8) F_PANEL

9) F_AUDIO

1311 15

10) SUR_CEN

11) SPDIF

12) CD_IN

13) COMB

14) GAME

15) F_USB1 / F_USB2

16) CLR_CMOS

17) CI

18) BAT

- 13 -

714

8

Hardware Installation Process

3

16

17

6

18

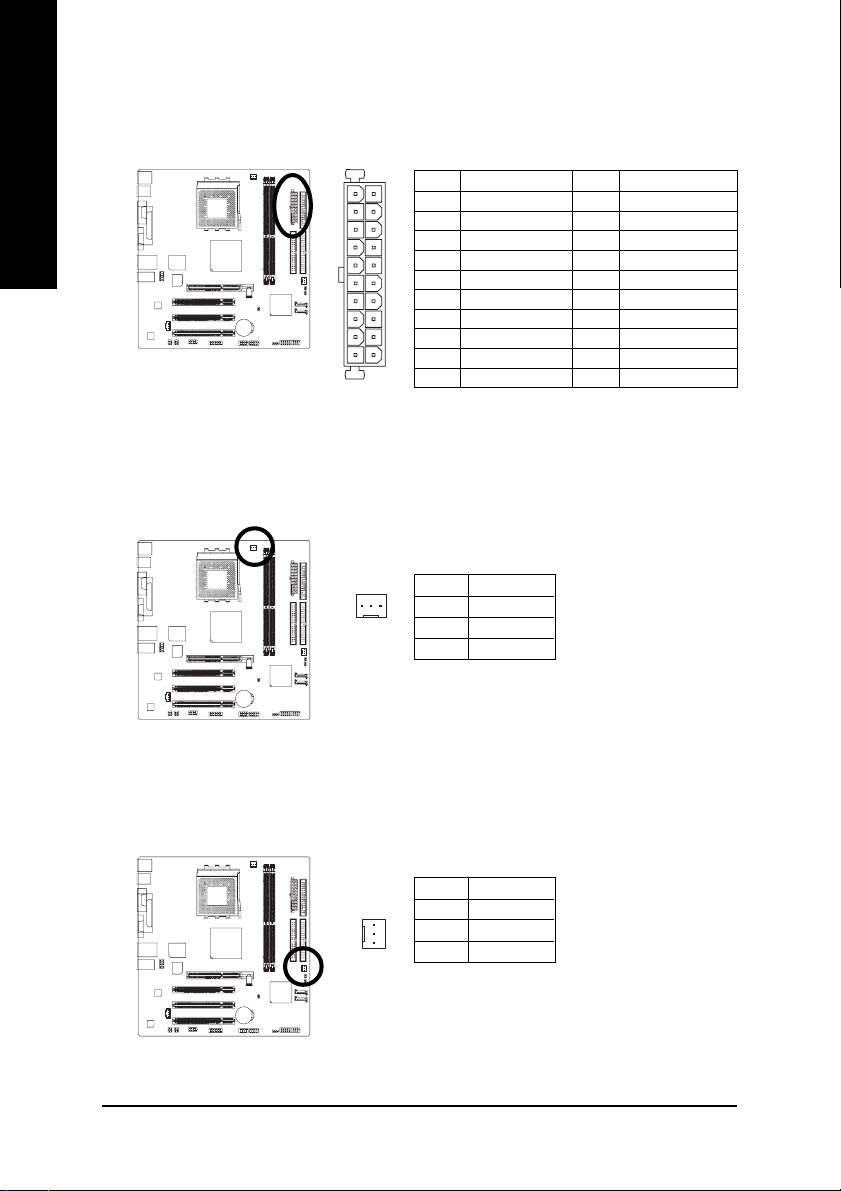

1) ATX (ATX Power)

AC power cord should only be connected to your power supply unit after ATX power cable and other
related devices are firmly connected to the mainboard.

English

2) CPU_FAN (CPU Fan Connector)

Pin No. Definition

11

20

1

1 3.3V

2 3.3V

3 GND

4 VCC

5 GND

6 VCC

7 GND

8 Power Good

9 5V SB (stand by +5V)

10

10 +12V

Pin No. Definition

11 3.3V

12 -12V

13 GND

14 PS_ON(soft on/off)

15 GND

16 GND

17 GND

18 -5V

19 VCC

20 VCC

Please note, a proper installation of the CPU cooler is essential to prevent the CPU from running under
abnormal condition or damaged by overheating. The CPU fan connector supports Max. current up to
600 mA.

1

Pin No. Definition

1 GND

2 +12V

3 Sense

3) SYS_FAN (System Fan Connector)

This connector allows you to link with the cooling fan on the system case to lower the system temperature.

Pin No. Definition

1

1 GND

2 +12V

3 Sense

- 14 -7VM400AM-RZ Motherboard

4) FDD (Floppy Connector)

Please connect the floppy drive ribbon cables to FDD. It supports 360K, 1.2M, 720K, 1.44M and

2.88M bytes floppy disk types.
The red stripe of the ribbon cable must be the same side with the Pin1.

34

33

2

1

5) IDE1 / IDE2 (IDE1 / IDE2 Connector)

Please connect first hard disk to IDE1 and connect CD-ROM to IDE2.
The red stripe of the ribbon cable must be the same side with the Pin1.

English

40

IDE1

2

39

IDE2

1

6) SATA0 / SATA1 (Serial ATA Connector)

Serial ATA can provide 150MB/s transfer rate. Please refer to the BIOS setting for the Serial ATA
and install the proper driver in order to work properly.

Pin No. Definition

1 GND

2TXP

1

7

3 TXN

4 GND

5 RXN

6 RXP

7 GND

- 15 -

Hardware Installation Process

7) PWR_LED

English

8) F_PANEL (2 x 10 pins Connector)

PWR_LED is connect with the system power indicator to indicate whether the system is on/off.
It will blink when the system enters suspend mode.

1

Pin No. Definition

1 MPD+

2 MPD-

3 MPD-

Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis front
panel to the F_PANEL connector according to the pin assignment below.

MSG+

MSG-

HD-

HD+

Power
Switch

PW+

PW-

1

RES+

NC

RES-

Reset Switch

Speaker Connector

SPEAK+

SPEAK-

1

20
19

Message LED/
Power/
Sleep LED

2
1

11

1

IDE Hard Disk Active LED

HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)

Pin 2: LED cathode(-)

SPK (Speaker Connector) Pin 1: VCC(+)

Pin 2- Pin 3: NC

Pin 4: Data(-)

RES (Reset Switch) Open: Normal Operation

Close: Reset Hardware System

PW (Power Switch) Open: Normal Operation

Close: Power On/Off

MSG (Message LED/ Power/ Sleep LED) Pin 1: LED anode(+)

Pin 2: LED cathode(-)

NC NC

- 16 -7VM400AM-RZ Motherboard

9) F_AUDIO (Front Audio Connector)

If you want to use Front Audio connector, you must remove 5-6, 9-10 Jumper.
In order to utilize the front audio header, your chassis must have front audio connector. Also please
make sure the pin assigment on the cable is the same as the pin assigment on the MB header. To find
out if the chassis you are buying support front audio connector, please contact your dealer. Please note,
you can have the alternative of using front audio connector or of using rear audio connector to play
sound.

1

2

109

Pin No. Definition

1 MIC

2 GND

3 REF

4 Power

5 Front Audio (R)

6 Rear Audio (R)

7 Reserved

8 No Pin

9 Front Audio (L)

10 Rear Audio (L)

10) SUR_CEN (Surround Center Connector)

Please contact your nearest dealer for optional SUR_CEN cable.

English

2

1

5

6

Pin No. Definition

1 SUR OUTL

2 SUR OUTR

3 GND

4 No Pin

5 CENTER_OUT

6 BASS_OUT

11) SPDIF (SPDIF Out Connector)

The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to
an external Dolby Digital Decoder. Use this feature only when your stereo system has digital input
function. Be careful with the polarity of the SPDIF connector. Check the pin assignment carefully while
you connect the SPDIF cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional SPDIF cable, please contact your local dealer.

Pin No. Definition

261

5

- 17 -

1 VCC

2 No Pin

3 SPDIF

4NC

5 GND

6 GND

Hardware Installation Process

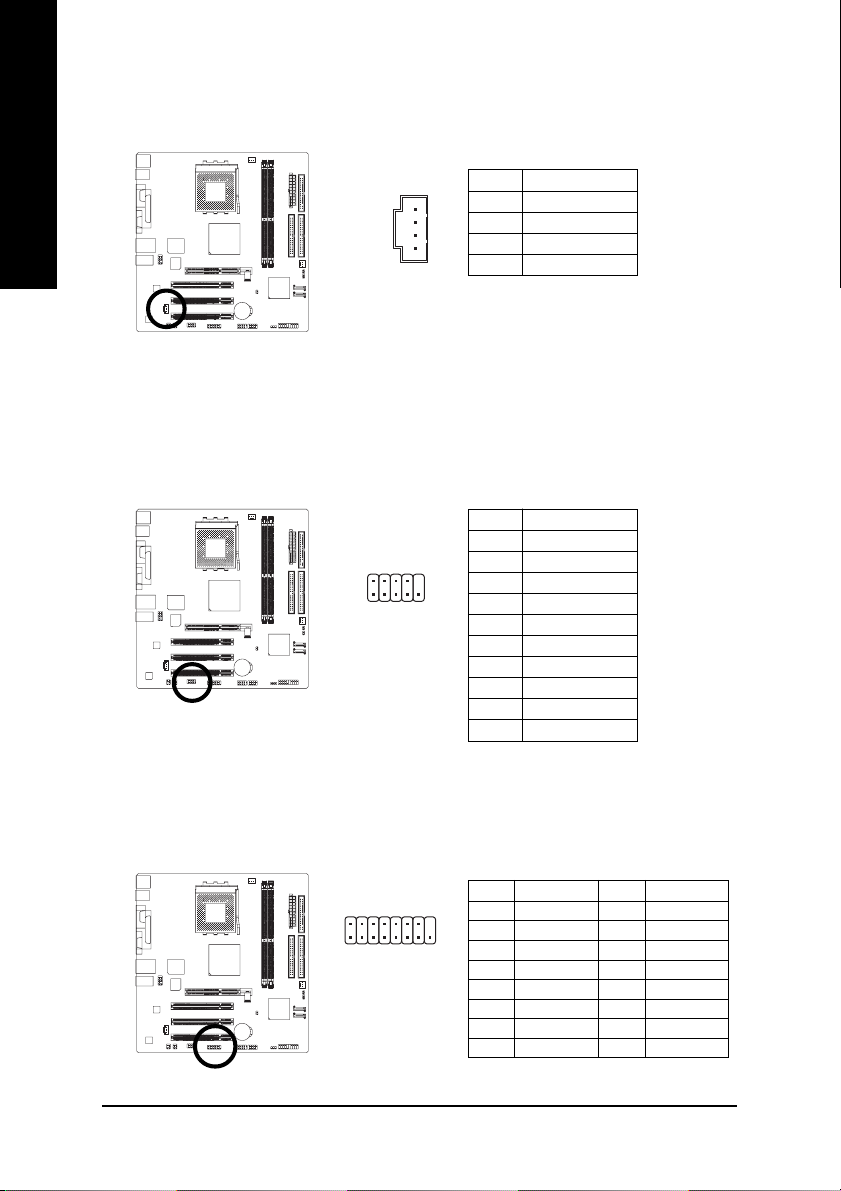

12) CD_IN (CD In Connector)

English

13) COMB (COM B Connector)

Connect CD-ROM or DVD-ROM audio out to the connector.

Pin No. Definition

1

1 CD-L

2 GND

3 GND

4 CD-R

Be careful with the polarity of the COMB connector. Check the pin assignment carefully while you
connect the COMB cable, incorrect connection between the cable and connector will make the device
unable to work or even damage it. For optional COMB cable, please contact your local dealer.

Pin No. Definition

1 NDCDB-

2

19

10

2 NSINB

3 NSOUTB

4 NDTRB-

5 GND

6 NDSRB-

7 NRTSB-

8 NCTSB-

9 NRIB-

10 No Pin

14) GAME (Game Connector)

This connector supports joystick, MIDI keyboard and other relate audio devices. Check the pin assign­ment while you connect the game cables. Please contact your nearest dealer for optional game cables.

2

1

16

15

Pin No. Definition

1 VCC

2 GRX1_R

3 GND

4 GPSA2

5 VCC

6 GRX2_R

7 GRY2_R

8 MSI_R

- 18 -7VM400AM-RZ Motherboard

Pin No. Definition

9 GPSA1

10 GND

11 GRY1_R

12 VCC

13 GPSB1

14 MSO_R

15 GPSB2

16 No Pin

15) F_USB1 / F_USB2 (Front USB Connector)

Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you
connect the front USB cable, incorrect connection between the cable and connector will make the de­vice unable to work or even damage it. For optional front USB cable, please contact your local dealer.

Pin No. Definition

1 Power

2

10

1

9

2 Power

3 USB Dx-

4 USB Dy-

5 USB Dx+

6 USB Dy+

7 GND

8 GND

9 No Pin

10 NC

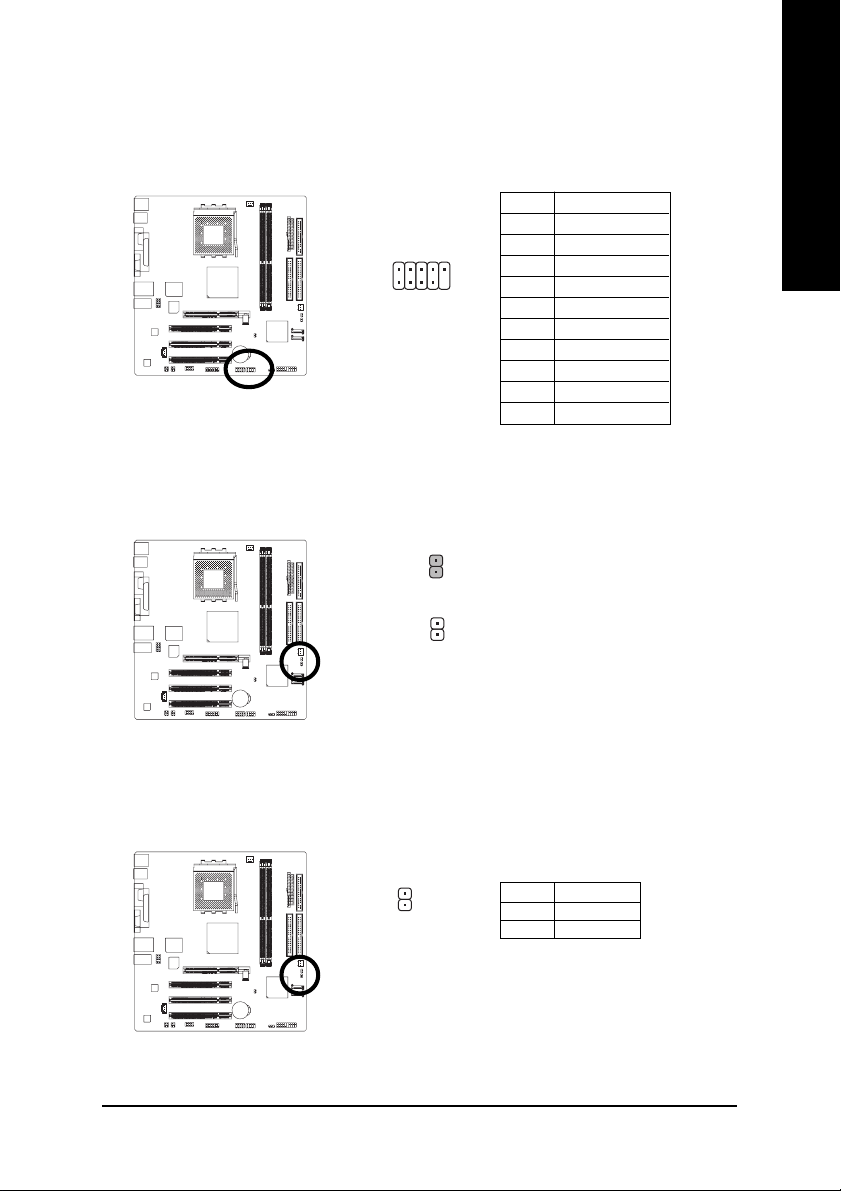

16) CLR_CMOS (Clear CMOS)

You may clear the CMOS data to its default values by this jumper. To clear CMOS, temporarily short
1-2 pin. Default doesn't include the "Shunter" to prevent from improper use this jumper.

Short: Clear CMOS

1

Open: Normal

1

English

17) CI (Chassis Intrusion, Case Open)

This 2-pin connector allows your system to enable or disable the "case open" item in BIOS if the
system case begin remove.

Pin No. Definition

1

- 19 -

1 Signal
2 GND

Hardware Installation Process

18) BAT (Battery)

English

CAUTION

Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent type rec­ommended by the manufacturer.
Dispose of used batteries according to the
manufacturer's instructions.

If you want to erase CMOS...

1. Turn OFF the computer and unplug the power cord.

2. Remove the battery, wait for 30 second.

3. Re-install the battery.

4. Plug the power cord and turn ON the computer.

- 20 -7VM400AM-RZ Motherboard

Chapter 2 BIOS Setup

BIOS Setup is an overv iew of the BIOS Setup Program. The program that allows users to modify the
basic system configuration. This type of information is stored in battery-backed CM OS RAM so that it
retains the Setup information when the pow er is turned off.

ENTERING SETUP

Pow ering ON the computer and pressing <Del> immediately will allow you to enter Setup. If you require
more advanced BIOS settings, please go to "Advanced BIOS" setting menu. To enter Advanced BIOS
setting menu, press "Ctrl+F1" k ey on the BIOS screen.

CONTROL KEYS

< >< >< >< > Move to select item
<Enter> Select Item
<Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu

and Option Page Setup Menu - Ex it current page and return to Main Menu
<+/PgUp> Increase the numeric value or make changes
<-/PgDn> Decrease the numeric v alue or make changes
<F1> General help, only for Status Page Setup Menu and Option Page Setup Menu
<F2> Item Help
<F5> Restore the prev ious CMOS value from CMOS, only for Option Page Setup Menu
<F6> Load the file-safe default CMOS value from BIOS default table
<F7> Load the Optimized Defaults
<F8> Q-Flash utility
<F9> Sy stem Information
<F10> Save all the CMOS changes, only for Main Menu

Main Menu

The on-line description of the highlighted setup function is display ed at the bottom of the screen.

Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate key s to use and the possible
selec tions for the highlighted item. To exit the Help Window press <Esc>.

English

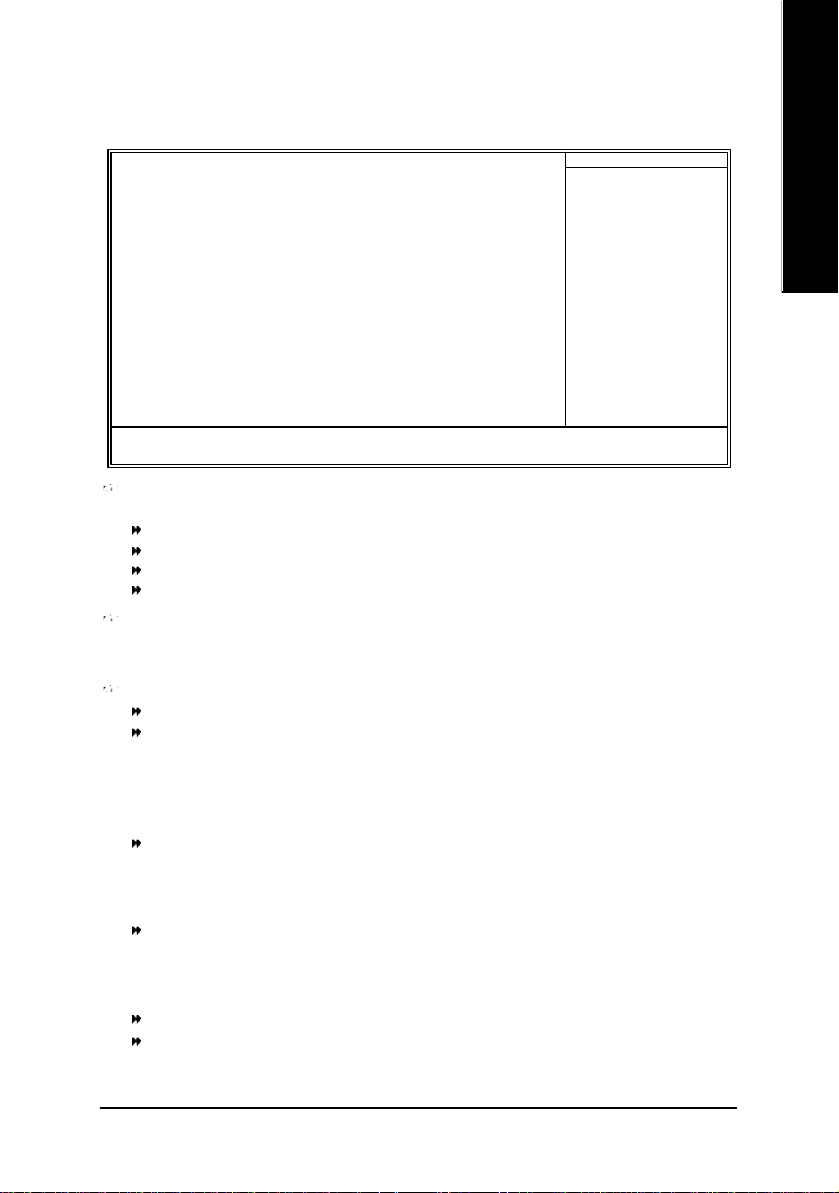

The Main Menu (For example: BIOS Ver. : F1)

Once you enter Award BIOS C MOS Setup Utility, the Main Menu (as figure below) will appear on the
screen. The Main Menu allow s y ou to select from eight setup functions and two ex it choices. Use
arrow keys to s elect among the items and press <Enter> to accept or enter the sub-menu.

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

} Standard CMOS Features
} Advanced BIOS Features
} Integrated Peripherals
} Power Management Setup
} PnP/PCI Configurations
} PC Health Status
} Frequency/Voltage Control

ESC: Quit higf: Select Item
F8: Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

- 21 - BIOS Setup

If you can't find the setting you want, please press "Ctrl+F1" to search the advanced
option hidden.

English

• Standard CMOS Features

• Advanced BIOS Features

• Integrated Peripherals

• Power Management Setup

• PnP/PCI Configuration

• PC Health Status

• Frequency/Voltage Control

• Load Fail-Safe Defaults

• Load Optimized Defaults

• Set Supervisor Password

• Set User Password

• Save & Exit Setup

• Exit Without Saving

This setup page includes all the items in standard compatible BIOS.

This setup page includes all the items of Award special enhanced features.

This setup page includes all onboard peripherals.

This setup page includes all the items of Green function features.

This setup page includes all the configurations of PCI & PnP ISA resources.

This setup page is the System auto detect Temperature, voltage, fan, speed.

This setup page is control CPU clock and frequency ratio.

Fail-Safe Defaults indicates the value of the sys tem parameters which the system would be in safe
configuration.

Optim ized Defaults indicates the value of the sy stem parameters which the system would be in
best performance configuration.

Change, set, or disable passw ord. It allow s y ou to limit access to the system and Setup, or just
to Setup.

Change, set, or disable passw ord. It allow s y ou to limit access to the system.

Sav e CMOS v alue settings to CMOS and exit s etup.

Abandon all CMOS value changes and exit setup.

- 22 -7VM400AM-RZ Motherboard

Standard CMOS Features

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

Date (mm:dd:yy) wed, Sep 1 2004
Time (hh:mm:ss) 22:31:24

} IDE Channel 0 Master [None]
} IDE Channel 0 Slave [None]
} IDE Channel 1 Master [None]
} IDE Channel 1 Slave [None]
} IDE Channel 2 Master [None]
} IDE Channel 3 Master [None]

Drive A [1.44M, 3.5"]
Drive B [None]
Floppy 3 Mode Suport [Disa bled]

Halt On [All, But Keyboard]

Base Memory 640K
Extended Memory 127M
Total Memory 128M

higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Default F7: Optimized Defaults

Date

The date format is <week>, <month>, <day >, <y ear>.

Week The week, from Sun to Sat, determined by the BIOS and is display only
Month The month, Jan. Through Dec.
Day The day, from 1 to 31 (or the maximum allow ed in the m onth)
Year The y ear, from 1999 through 2098

Time

The times form at in <hour> <minute> <sec ond>. The time is calculated base on the 24-hour
military -time clock. For ex ample, 1 p.m. is 13:00:00.

IDE Channel 0/1 Master, Slave / IDE Channel 2/3 Master

IDE HDD Auto-Detection Press "Enter" to select this option for automatic device detection.
IDE C hannel 0 Master(Slave) IDE Device Setup. You can use one of three methods:

Auto Allows BIOS to automatically detect IDE devices during POST(default)
None Selec t this if no IDE devices are used and the sy stem will skip the automatic

detec tion step and allow for faster system start up.

Manual User can manually input the correct settings

IDE C hannel 2/3 Master IDE Device Setup. You can use one of tw o methods:

Auto Allows BIOS to automatically detect IDE devices during POST(default)
None Selec t this if no IDE devices are used and the sy stem will skip the automatic

detec tion step and allow for faster system start up.

Access Mode Use this to set the access mode for the hard drive. The four options are:

CHS/LBA/Large/Auto(default:Auto)

Hard drive information should be labeled on the outside drive casing. Enter the appropriate option
based on this information.

Cy linder Number of cylinders
Head Number of heads

Standard CMOS Features

Item Help
Menu Level}
Change the day, month,
year

<Week>
Sun. to Sat.

<Month>
Jan. to Dec.

<Day>
1 to 31 (or maximum
allowed in the month)

<Year>
1999 to 2098

English

- 23 - BIOS Setup

English

Prec omp Write precomp
Landing Zone Landing zone
Sec tor Number of sectors

If a hard disk has not been installed, select NONE and press <Enter>.

Drive A / Drive B

The c ategory identifies the types of floppy disk driv e A or driv e B that has been installed in the
computer.

None No floppy driv e installed
360K, 5.25" 5.25 inch PC-ty pe standard driv e; 360K byte capacity.

1.2M, 5.25" 5.25 inch AT-ty pe high-density drive; 1.2M byte capacity
(3.5 inch when 3 Mode is Enabled).

720K, 3.5" 3.5 inch double-sided driv e; 720K byte capacity

1.44M, 3.5" 3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3.5" 3.5 inch double-sided drive; 2.88M byte capacity.

Floppy 3 Mode Support (for Japan Area)

Disabled Normal Floppy Drive. (Default value)
Drive A Driv e A is 3 mode Floppy Drive.
Drive B Driv e B is 3 mode Floppy Drive.
Both Driv e A & B are 3 mode Floppy Drives.

Halt on

The c ategory determines whether the computer will stop if an error is detected during power up.

No Errors The sy stem boot w ill not stop for any error that may be detected and y ou

w ill be prompted.
All Errors Whenever the BIOS detects a non-fatal error the system will be stopped.
All, But Keyboard The sy stem boot will not stop for a keyboard error; it will stop for all other

errors . (Default value)
All, But Diskette The system boot w ill not stop for a disk error; it will stop for all other errors.
All, But Disk/Key The system boot will not stop for a keyboard or disk error; it will stop for all

other errors.

Memory

The c ategory is display-only which is determined by POST (Pow er On Self Test) of the BIOS.

Base Memory

The POST of the BIOS will determine the amount of base (or conventional) memory ins talled
in the system.
The v alue of the base memory is ty pically 512K for systems w ith 512K memory installed on
the motherboard, or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory

The BIOS determines how much ex tended memory is present during the POST.
This is the amount of memory located abov e 1 MB in the CPU's memory address map.

- 24 -7VM400AM-RZ Motherboard

Advanced BI OS Features

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

} Hard Disk Boot Priority [Press Enter]

First Boot Device [Floppy]
Second Boot Device [Hard Disk]
Third Boot Device [CDROM]
Password Check [Setup]

higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Default F7: Optimized Defa ults

Hard Disk Boot Priority

Selec t boot sequence for onboard(or add-on cards) SCSI, RAID, etc.
Use < > or < > to select a device, then press<+> to move it up, or <-> to move it dow n the list.
Pres s <ESC> to ex it this m enu.

First / Second / Third Boot Device

Floppy Selec t your boot dev ice priority by Floppy .
LS120 Select your boot dev ice priority by LS120.
Hard Disk Select your boot dev ice priority by Hard Disk.
CDROM Selec t your boot dev ice priority by CDROM.
ZIP Selec t your boot device priority by ZIP.
USB-FDD Selec t your boot dev ice priority by USB-FDD.
USB-ZIP Select your boot device priority by USB-ZIP.
USB-C DROM Selec t your boot dev ice priority by USB-C DROM.
USB-HDD Selec t your boot devic e priority by USB-HDD.
Legac y LAN Select y our boot dev ice priority by Legacy LAN.
Disabled Select y our boot dev ice priority by Disabled.

Passwor d Check

Sy stem The sy stem can not boot and can not access to Setup page will be denied
Setup The s ystem w ill boot, but access to Setup will be denied if the correct

if the correct password is not entered at the prompt.

password is not entered at the prompt. (Default value)

Advanced BIOS Features

Item Help
Menu Level}
Select Hard Disk Boot
Device Priority

English

- 25 - BIOS Setup

Integrated Peripherals

English

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

OnChip IDE Channel0 [Enab led]
OnChip IDE Channel1 [Enab led]
OnChip Serial ATA [Enabled]
SATA Mode [RAID]
AC97 Audio [Auto]
VIA Onboard LAN [Enabled]
USB 1.1 Controller [Enab led]
USB 2.0 Controller [Enab led]
USB Keyboard Support [Disa bled]
USB Mouse Support [Disabled]
Onboard Serial Port 1 [3F8/IRQ4]
Onboard Serial Port 2 [2F8/IRQ3]
Onboard Parallel Port [378/IRQ7]
Parallel Port Mode [SPP]
Game Port Address [201]
Midi Port Address [Disabled]

x Midi Po rt IRQ 10

higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Default F7: Optimized Defa ults

Integrated Peripherals

Item Help
Menu Level}

If a hard disk
controller card is
used, set at Disabled

[Enabled]
Enable onboard IDE
channel

[Disabled]
Disable onboard IDE
channel

OnChi p IDE Channel0

When set at "Enabled", it allows y ou to use the onboard primary PCI IDE. If a hard disk controller
card is used, please set at "Disabled".

Enabled Enable onboard 1st channel IDE port. (Default value)
Disabled Disable onboard 1st channel IDE port.

OnChi p IDE Channel1

When set at "Enabled", it allow s you to use the onboard secondary PCI IDE. If a hard disk controller
card is used, please set at "Disabled".

Enabled Enable onboard 2nd channel IDE port. (Default value)
Disabled Disable onboard 2nd channel IDE port.

OnChip Serial ATAA

Enabled Enable onboard VT8237 Serial ATA support. (Default value)
Disabled Disabled VT8237 Serial ATA support.

SATA Mode

RAID Selec t SATA chip function as RAID. (Default value)
IDE Select SATA chip function as IDE.

AC97 Audio

Auto Enable onboard AC'97 audio function. (Default value)
Disabled Disable this function.

VIA Onboard LAN

Enabled Enable onboard LAN function. (Default value)
Disabled Disable this function.

USB 1.1 Controller

Disable this function if you are not using the onboard USB feature.

Enabled Enable USB 1.1 controller. (Default v alue)
Disabled Disable USB 1.1 controller.

USB 2.0 Controller

Disable this function if you are not using the onboard USB feature.

- 26 -7VM400AM-RZ Motherboard

Enabled Enable USB 2.0 controller. (Default v alue)
Disabled Disable USB 2.0 controller.

USB Keyboard Support

Enabled Enable USB keyboard support.
Disabled Disable USB keyboard support. (Default value)

USB Mouse Support

Enabled Enable USB mouse support.
Disabled Disable USB mouse support. (Default value)

Onboar d Serial Port 1

Auto BIOS will autom atically setup the port 1 address.
3F8/ IRQ4 Enable onboard Serial port 1 and address is 3F8. (Default value)
2F8/ IRQ3 Enable onboard Serial port 1 and address is 2F8.
3E8/ IRQ4 Enable onboard Serial port 1 and address is 3E8.
2E8/ IRQ3 Enable onboard Serial port 1 and address is 2E8.
Disabled Disable onboard Serial port 1.

Onboar d Serial Port 2

Auto BIOS will autom atically setup the port 2 address.
3F8/ IRQ4 Enable onboard Serial port 2 and address is 3F8.
2F8/ IRQ3 Enable onboard Serial port 2 and address is 2F8. (Default value)
3E8/ IRQ4 Enable onboard Serial port 2 and address is 3E8.
2E8/ IRQ3 Enable onboard Serial port 2 and address is 2E8.
Disabled Disable onboard Serial port 2.

Onboar d Parallel port

This feature allow s you to select from a given set of parameters if the parallel port uses the onboard
I/O controller.

378/ IRQ7 Enable onboard LPT port and address is 378/IRQ7. (Default value)
278/ IRQ5 Enable onboard LPT port and address is 278/ IRQ5.
Disabled Disable onboard LPT port.
3BC/ IRQ7 Enable onboard LPT port and address is 3BC/ IRQ7.

Paral lel Port Mode

SPP Using Parallel port as Standard Parallel Port. (Default value)
EPP Using Parallel port as Enhanced Parallel Port.
ECP Using Parallel port as Extended Capabilities Port.
ECP+EPP Using Parallel port as ECP & EPP mode.

Game Port Address

201 Set Game Port Address to 201. (Default value)
209 Set Game Port Address to 209.
Disabled Disable this function.

Midi Port Address

300 Set Midi Port Address to 300.
330 Set Midi Port Address to 330.
Disabled Disable this function. (Default value)

Midi Port IRQ

5 Set Midi Port IRQ to 5.
10 Set Midi Port IRQ to 10. (Default value)

English

- 27 - BIOS Setup

Power Management Setup

English

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

ACPI Suspend Type [S1(POS)]

x USB D evice Wake-Up from S3 Disa bled

Power LED in S1 state [Blinking]
Soft-Off by PWRBTN [Instan t-Off]
AC Back Function [Soft-Off]
Keyboard Power On [Disabled]
Mouse Power On [Disabled]
PME Event Wake Up [Enabled]
ModemRingOn/WakeOnLan [Enabled]

Resume by Alarm [Disabled]

x Date ( of Month) Alarm Ever yday
x Time ( hh:mm:ss) Alarm 0 : 0 : 0

higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Default F7: Optimized Defa ults

Power Management Setup

Item Help
Menu Level}
[S1]
Set suspend type to
Power On Suspend under
ACPI OS

[S3]
Set suspend type to
Suspend to RAM under
ACPI OS

ACPI Suspend Type

S1(POS) Set ACPI suspend type to S1. (Default value)
S3(STR) Set ACPI suspend type to S3.

USB Device Wake-Up From S3

This function will av ailable w hen "ACPI Suspend Type" set at "S3/ STR".

Disabled USB dev ice can't w ake up system from S3.
Enabled USB device can w ake up sy stem from S3. (Default value)

Power LED in S1 state

Blinking In standby mode(S1), power LED w ill blink. (Default value)
Dual/Off In standby mode(S1):

a. If y ou use single color LED, pow er LED will ture off.
b. If y ou use dual color LED, power LED will ture to another c olor.

Soft-off by PWR-BTTN

Instant-off Press pow er button then Power off instantly . (Default value)
Delay 4 Sec. Press power button 4 sec to Power off. Enter suspend if button is pressed

less than 4 sec.

AC Back Function

Soft-Off Alw ay s in Off state w hen AC back to the sy stem. (Default v alue)
Full-On Always power on the system when AC back.
Mem ory System power on depends on the status before AC lost.

Keyboard Power On

Disabled Disable this function. (Default value)
Pass word Enter from 1 to 8 charac ters to set the keyboard power on passw ord.
Key board 98 If your key board has a "POWER Key" button, you can press the key to

pow er on y our sy stem.

Mouse P ower On

Disabled Disabled this function. (Default value)
Enabled Power on system by mouse ev ent.

- 28 -7VM400AM-RZ Motherboard

PME Event Wake Up

When set at Enabled, any PCI-PM event can awak e the system from a PCI-PM controlled stated.
This feature requires an ATX pow er supply that provides at least 1A on the +5VSB lead.

Disabled Disable this function.
Enabled Enable PME as wake up event. (Default value)

ModemRingOn/WakeOnLan

An incom ing call via modem or an input s ignal comes from the other client server on the LAN can
aw ake the sy stem from any suspend s tate.

Disabled Disable Modem Ring on func tion.
Enabled Enable Modem Ring on function. (Default value)

Resume by Alarm

You c an set "Resume by Alarm" item to enabled and key in Date/time to power on system.

Disabled Disable this function. (Default Value)
Enabled Enable alarm function to POWER ON system.

If RTC Alarm Lead To Pow er On is Enabled.
Date (of Month) Alarm : Ev eryday, 1~31
Time (hh: mm: ss) Alarm : (0~23) : (0~59) : (0~59)

KB Power ON Password

Enter Input passw ord (from 1 to 5 characters) and press Enter to set the keyboard

pow er on pass word.

PnP/PCI Configurations

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

PCI 1 IRQ Assignment [Au to]
PCI 2 IRQ Assignment [Au to]
PCI 3 IRQ Assignment [Au to]

PnP/PCI Configurations

Item Help
Menu Level}

Device(s) using this
INT:

Display Cntrlr

-Bus 1 Dev 0 Func 0

English

higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Default F7: Optimized Defa ults

PCI 1 IRQ Assignment

Auto Auto assign IRQ to PCI 1. (Default value)
3,4, 5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 1.

PCI 2 IRQ Assignment

Auto Auto assign IRQ to PCI 2. (Default value)
3,4, 5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 2.

PCI 3 IRQ Assignment

Auto Auto assign IRQ to PCI 3. (Default value)
3,4, 5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 3.

- 29 - BIOS Setup

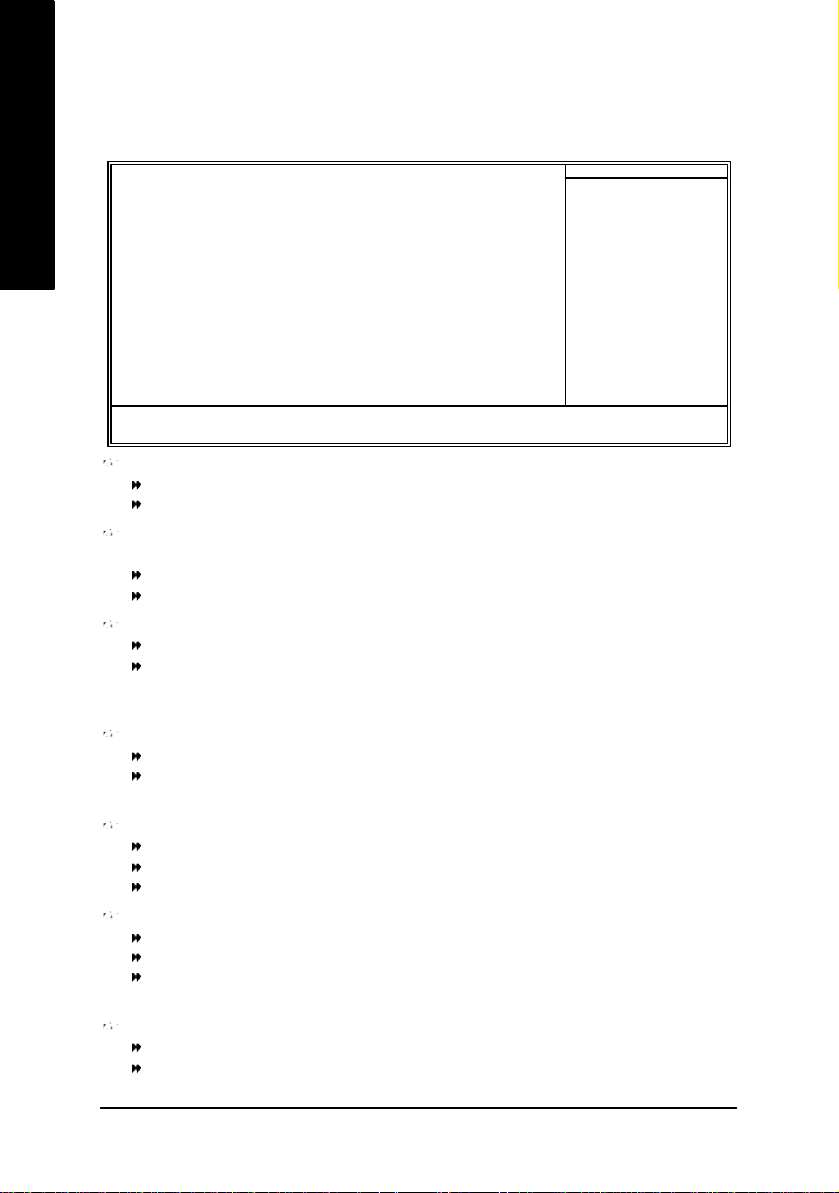

PC Healt h Status

Reset Case Open Status [Disabled]

English

Case Opened No
Vcore OK
25VSTR OK
+3.3V OK
+12V OK
Current System Temperature 32oC
Current CPU Temperature 45oC
Current CPU FAN Speed 4687 RPM
Current SYSTEM FAN Speed 0 RPM

CPU FAN Fail Warning [Disabled]
SYSTEM FAN Fail Warning [Disabled]

higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

PC Health Status

Item Help
Menu Level u

[Disabled]
Don't reset case
open status

[Enabled]
Clear case open
status at next boot

F5: Previous Values F6: Fail-Save Default F7: Optimized Defa ults

Reset Case Open Status
Case O pened

If th e case is closed, "Case Opened" wi ll show "No".

If the case have been opened, "Case Opened" w ill show "Yes".
If y ou w ant to reset "Case Opened" v alue, set "Res et Case Open Status" to "Enabled" and save
CMOS, your computer w ill restart.

Current Voltage (V) Vcore / 25VSTR / +3.3V / +12V

Detec t system's voltage status automatically.

Current System/CPU Temperature

Detec t system/CPU temperature automatically.

Current CPU/SYSTEM FAN Speed (RPM)

Detec t CPU/system Fan speed status automatically.

CPU FAN Fail Warning

Disabled Fan w arning function disable. (Default v alue)
Enabled Fan warning function enable.

SYSTEM FAN Fail Warning

Disabled Fan w arning function disable. (Default v alue)
Enabled Fan warning function enable.

- 30 -7VM400AM-RZ Motherboard

Frequency/Voltage Control

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

Auto Detect PCI/DIMM Clk [Enabled]
Spread Specturm [Enabled]
CPU Host Clock Control [Disabled]

x CPU C lock 100MHz

DRAM Clock(MHz) [By SPD]
AGP OverVoltage Control [Auto]
DIMM OverVoltage Control [Auto]

higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Default F7: Optimized Defa ults

Incorrect using these features may cause your system broken. For power End-User use only !

Auto Detect PCI/DIMM Clk

Disabled Disable this function.
Enabled Auto detect PCI/DIMM clock. (Default value)

Spread S pectrum

Disabled Disable this function.
Enabled Enable clock spread spectrum. (Default value)

CPU Host Clock Control

Pleas e note that if your sy stem is overcloc ked and cannot restart, please wait 20secs.
for automatic system restart or clear the CMOS setup data and perform a safe restart.

Disabled Disable CPU Host Clock Control. (Default value)
Enabled Enable CPU Host Clock Control.

CPU Clock

100MHz Set CPU Clock to 100MHz~132MHz.
133MHz Set CPU Clock to 133MHz~165MHz.

DRAM Clock (MHz)

Wrong frequency may make system can't boot, clear CMOS to overcome wrong frequency issue.

By SPD Set memory frequency by DRAM SPD data. (Default value)
133-DDR266 If you use DDR266 DRAM m odule, please set at "133-DDR266".

AGP OverVoltage Control

Increase AGP v oltage may get stable for over-clock. But it may damage to AGP card when enable
this feature.

Auto Supply voltage as AGP required. (Default value)
+0.1V Increase AGP voltage +0.1V.
+0.2V Increase AGP voltage +0.2V.
+0.3V Increase AGP voltage +0.3V.

Frequency/Voltage Control

Item Help
Menu Level}

English

- 31 - BIOS Setup

English

Load Fail-S afe Defaults

Fail-Safe defaults contain the most appropriate values of the system parameters that allow minimum
sy stem performance.

DIMM O verVoltage Control

Increase DIMM voltage may get stable for over-clock. But it may damage to memory module
w hen enable this feature.

Auto Supply voltage as DIMM required. (Default value)
+0.1V Increase DIMM voltage +0.1V.
+0.2V Increase DIMM voltage +0.2V.
+0.3V Increase DIMM voltage +0.3V.

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

} Standard CMOS Features
} Advanced BIOS Features
} Integrated Peripherals
} Power Management Setup
} PnP/PCI Configurations
} PC Health Status
} Frequency/Voltage Control

ESC: Quit higf: Select Item
F8: Q-Flash F10: Save & Exit Setup

Load Fail-Safe Defaults (Y/N)? N

Load Fail-Safe Defaults

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

Load Optimi zed Defaults

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

} Standard CMOS Features
} Advanced BIOS Features
} Integrated Peripherals
} Power Management Setup
} PnP/PCI Configurations
} PC Health Status
} Frequency/Voltage Control

ESC: Quit higf: Select Item
F8: Q-Flash F10: Save & Exit Setup

Load Optimized Defaults (Y/N)? N

Load Optimized Defaults

Selecting this field loads the factory defaults for BIOS and Chipset Features which the sy stem automatically
detects.

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

- 32 -7VM400AM-RZ Motherboard

Set Supervisor/User P assword

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

} Standard CMOS Features
} Advanced BIOS Features
} Integrated Peripherals
} Power Management Setup
} PnP/PCI Configurations
} PC Health Status
} Frequency/Voltage Control

ESC: Quit higf: Select Item
F8: Q-Flash F10: Save & Exit Setup

Enter Password:

Change/Set/Disable Password

When y ou select this function, the following message will appear at the center of the screen to assist y ou
in creating a passw ord.
Ty pe the password, up to eight characters, and press <Enter>. You will be asked to confirm the passw ord.
Ty pe the password again and press <Enter>. You may also press <Esc> to abort the selection and not
enter a password.
To disable passw ord, just press <Enter> w hen y ou are prompted to enter passw ord. A message
"PASSWORD DISABLED" will appear to confirm the password being disabled. Once the password is
disabled, the sy stem will boot and y ou can enter Setup freely .
The BIOS Setup program allow s you to specify two separate passwords:
SUPERVISOR PASSWORD and a USER PASSWORD. When disabled, anyone may access all BIOS
Setup program function. When enabled, the Supervisor password is required for entering the BIOS
Setup program and having full configuration fields, the User password is required to access only basic
items.
If y ou select "System" at "Password Check" in Advance BIOS Features Menu, y ou will be prompted
for the passw ord ev ery time the sy stem is rebooted or any time y ou try to enter Setup Menu.
If y ou select "Setup" at "Password Check" in Advance BIOS Features Menu, you will be prompted only
w hen y ou try to enter Setup.

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

English

- 33 - BIOS Setup

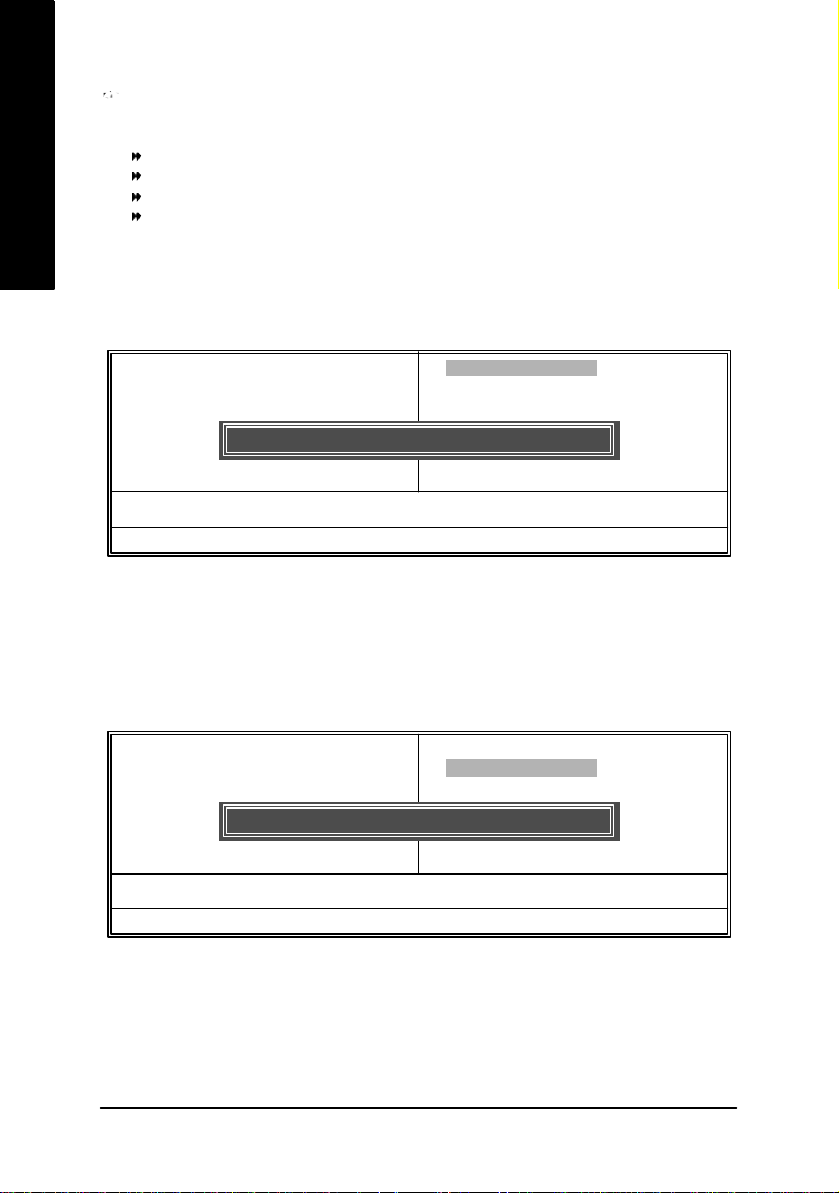

Save & E xit Setup

English

Ty pe "Y" w ill quit the Setup Utility and sav e the user setup value to RTC CMOS.
Ty pe "N" w ill return to Setup Utility.

Exit Without Saving

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

} Standard CMOS Features
} Advanced BIOS Features
} Integrated Peripherals
} Power Management Setup
} PnP/PCI Configurations
} PC Health Status
} Frequency/Voltage Control

ESC: Quit higf: Select Item
F8: Q-Flash F10: Save & Exit Setup

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software

} Standard CMOS Features
} Advanced BIOS Features
} Integrated Peripherals
} Power Management Setup
} PnP/PCI Configurations
} PC Health Status
} Frequency/Voltage Control

ESC: Quit higf: Select Item
F8: Q-Flash F10: Save & Exit Setup

Save to CMOS and EXIT (Y/N)? Y

Save & Exit Setup

Quit Without Saving (Y/N)? N

Abandon all Data

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

Ty pe "Y" w ill quit the Setup Utility without saving to RTC CMOS.
Ty pe "N" w ill return to Setup Utility.

- 34 -7VM400AM-RZ Motherboard

Revision History

Chapter 3 Install Drivers

Install Drivers

Pictures below are shown in Windows XP

Insert the driver CD-tit le that came with your motherboard into your CD-ROM drive, the driver
CD-tit le will auto start and show the installation guide. If not, please double click the CD-ROM
device ic on in "My computer", and execute the s etup.exe.

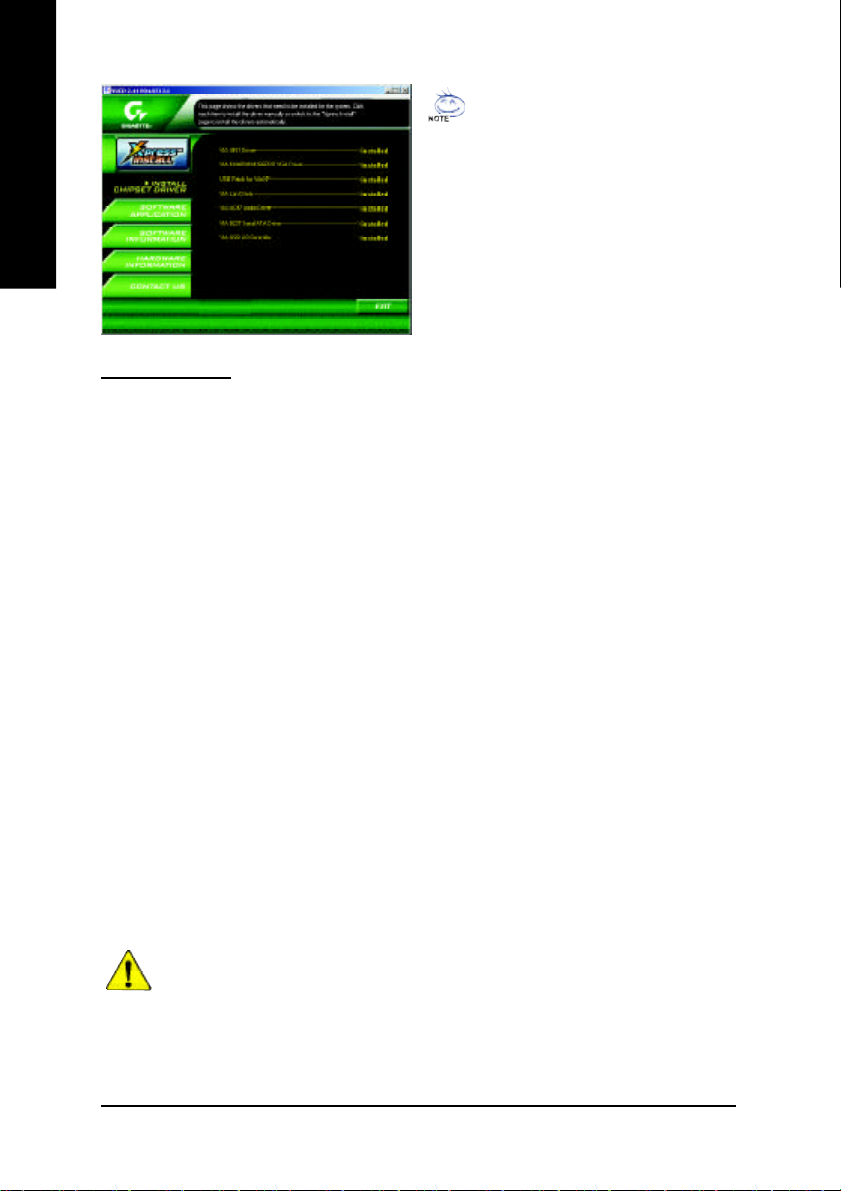

Install Chipset Drivers

This page shows the drivers that need to be installed for the system. Click each item to install t he driver
manually or switch to the to install t he drivers automatically.

English

The "Xpress Install" uses the"Click and Go" technology to install the drivers autom atically. Just select the
drivers you want then click the "GO" button. The will finish the installation for you automatically..

Mass age: Some devic e drivers w ill restart
your syst em automatically. After restarting
y our system the "Xpress Install" will
continue to install other drivers.

We recomm end that you install all components in the list.

Driver Installation- 35 -

English

Item Description

n VIA 4IN1 Driver

n VIA KM400/KM266PRO VGA Driver

n USB Patch for WinXP

n VIA Lan Driver

n VIA AC97 Audio Driver

n VIA 8237 Serial ATA Driver

For VIA 8237 SATA Driver
n VIA USB 2.0 Controller

Driver inst all finished !
You have to reboot system !

For IN F, AGP, IDE and DMA driver

For KM 400/KM266PRO drvier

This pat ch driver can help you to resolve the USB device wake up S3 hang up issue in XP

For VIA Phy family Lan driver

Audio driver for VIA codec chips et

For VIA VT8233 (VT6203) / VIA VT8235 / VIA VT8237 south bridge

For U SB2.0 driver s upport under Windows XP operating sy stem, please use Window s Service
Pack. After install Windows Service Pack, it will show a question mark "?" in "Universal Serial Bus
cont roller" under "Device Manager". Please remove the question mark and restart the sy stem
(System will auto-detect the right USB2.0 driver).

- 36 -7VM 400AM-RZ Motherboard

English

Driver Installation- 37 -

English

- 38 -7VM 400AM-RZ Motherboard

Contact Us

English

— Taiwan (Headquarters)

GIGA-BYTE TECHNOLOGY CO., L TD.
Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien,
Taiwan
TEL: [phone]
FAX: [phone]
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address (English): http://www.gigabyte.com.tw
WEB address (Chinese): http://chinese.giga-byte.com

— U.S.A.

G.B.T. INC.
Address: 17358 Railroad St, City of Industry, CA 91748.
TEL: [phone]
FAX: [phone]
Tech. Support :
http://www.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.giga-byte.com

— Germany

G.B.T. TECHNOLOGY TRADING GMBH
Address: Friedrich-Ebert-Damm 112 22047 Hamburg
TEL: [phone] (Sales)
[phone] (Tech.)
FAX: [phone] (Sales)
[phone] (Tech.)
Tech. Support :
http://de.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.gigabyte.de

— Japan

NIPPON GIGA-BYTE CORPORATION
WEB address : http://www.gigabyte.co.jp

— Singapore

GIGA-BYTE SINGAPORE PTE. LTD.
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp

— U.K.

G.B.T. TECH. CO., LTD.
Address: GUnit 13 Avant Business Centre 3 Third Avenue,
Denbigh West Bletchley Milton Keynes, MK1 1DR, UK, England
TEL: [phone]
FAX: [phone]
Tech. Support :
http://uk.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://uk.giga-byte.com

— The Netherlands

GIGA-BYTE TECHNOLOGY B.V.
TEL: [phone]
NL Tech.Support: 0900-GIGABYTE (0900-44422983)
BE Tech.Support: 0900-84034
FAX: [phone]
Tech. Support :
http://nz.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.giga-byte.nl

Driver Installation- 39 -

— China

NINGBO G.B.T. TECH. TRADING CO., LTD.
Tech. Support :
http://cn.giga-byte.com/TechSupport/ServiceCenter.htm

English

Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.gigabyte.com.cn

Shanghai

TEL: [phone]
FAX: [phone]

Beijing

TEL: [phone]
FAX: [phone]

Wuhan

TEL: [phone]
FAX: [phone]

GuangZhou

TEL: [phone]
FAX: [phone]

Chengdu

TEL: [phone]
FAX: [phone]

Xian

TEL: [phone]
FAX: [phone]

Shenyang

TEL: [phone]
FAX: [phone]-809

— Australia

GIGABYTE TECHNOLOGY PTY. LTD.
Tech. Support :
http://www.giga-byte.com.au/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.giga-byte.com.au

— France

GIGABYTE TECHNOLOGY FRANCES S.A.R.L.
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.gigabyte.fr

— Russia

Moscow Representat ive Office Of Giga-Byte Technology Co.,
Ltd.
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.gigabyte.ru

— Poland

Representative Office Of Giga-Byte Technol ogy Co., Ltd.
POLAND
Tech. Support :
http://tw.giga-byte.com/TechSupport/ServiceCenter.htm
Non-Tech. Support(Sales/Marketing) :
http://ggts.gigabyte.com.tw/nontech.asp
WEB address : http://www.gigabyte.pl

- 40 -7VM 400AM-RZ Motherboard
