Quick Start Guide
GV-IP Speed Dome
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
ISD-QG-G
© 2015 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in
part, without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any
kind and assumes no responsibility for errors or omissions. No liability is
assumed for incidental or consequential damages arising from the use of
the information or products contained herein. Features and specifications
are subject to change without notice. Note that memory card slot (local
storage) is not supported for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: +886-2-8797-8377
Fax: +886-2-8797-8335
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows
XP are registered trademarks of Microsoft Corporation.
February 2015
Contents
Note for Recording......................................................iv
Note for Installing Camera Outdoor..
Options.........................................................................
. Introduction.....................................
1 .......................... 1
. GV-SD220 / GV-SD220-S / GV
2 -SD2300.................... 2
2.1 Packing List.........................................................................
2.1.1 Indoor GV-IP Speed Dome (GV-
2.1.2 Outdoor GV-IP Speed Dome (GV
GV-2300)…………………………………
2.2 Overview.................................
2.2 Overview.........................................................................
2.3 Installation..............................................
2.3.1 Indoor GV-IP Speed Dome: Hard-Ceiling M
(GV-SD220).........................................
2.3.2 Outdoor GV-IP Speed Dome: Wall
(GV-SD220-S / GV-SD2300)................................................7
2.4 Connecting the Camera ......................................................... 9
2.5 Accessing the Camera ......................................................... 12
..........................v
vi
SD220) ....................2
-SD220-S /
……………………….3
........................................ 4
................................ 5
ount
................................ 5
Pendant Mount
2
4
2.5.1 System Requirements ................................................ 12
2.5.2 Looking Up the IP Address and Logging In................. 13
2.6 The Web Interface................................................................ 15
2.7 The PTZ Control Panel......................................................... 17
i
2.8 Configuring a Preset Position............................................... 19
2.9 Configuring a Sequence Route ..............
2.10 Configuring a Cruise ............................
2.11 Configuring an Auto Pan .....................................................
2.12 Configuring a Tour................................
2.13 Upgrading System Firmware................
2.14 Restoring to Default Settings................
2.14.1 Restoring All the Settings............
2.14.2 Restoring System Settings Onl 31
2.14.3 Restoring PTZ Configuration Sett
.............................. 21
.............................. 24
.............................. 27
.............................. 29
.............................. 31
.............................. 31
y ...............................
ings Only............... 32
3. GV-SD200 / SD200-S...............................................
3.1 Packing List ...........................................
3.1.1 Indoor GV-IP Speed Dome...........
3.1.2 Outdoor GV-IP Speed Dome......................................
3.2 Overview................................................
3.3 Installation............................................................................ 36
3.3.1 Indoor Speed Dome Mount: Surface Mount................ 36
3.3.2 Outdoor Speed Dome Mount: Mini Pendent Mount..... 39
.............................. 33
.............................. 33
.............................. 35
25
33
34
3.4 Connecting the Cables......................................................... 41
3.5 Accessing the Camera ......................................................... 43
3.5.1 System Requirements ................................................ 43
3.5.2 Looking up the IP Address and Logging in.................. 44
ii
3.6 The Web Interface................................................................ 46
3.7 The PTZ Control Panel...........................
3.8 Configuring a Preset Position.................
3.9 Configuring a Sequence Route ............................................
3.10 Configuring a Cruise ............................
3.11 Configuring an Auto Pan .......................
3.12 Configuring a Tour.............................................................. 58
3.13 Upgrading System Firmware.............................................. 61
3.14 Restoring to Default Settings.............................................. 63
.............................. 47
.............................. 49
51
.............................. 54
.............................. 56
iii
Note for Recording
1. By default, the images are recorded to the mem
GV-IP Speed Dome camera.
2. Mind the following when using a memory card f
• Recorded data on t
re accessed while the camera is under physical shock,
data a
power interruption, memory card detachm
memory card reaches the end of its lifespa
provided for such causes.
o avoid power outage, it is highly suggested to apply a battery
• T
backup (UPS).
he memory card can be da
ory card inserted in the
or recording:
maged or lost if the
ent or when the
n. No guarantee is
• For better performance, it is highly suggested to use Micro SD
card o f MLC NAND flash, Class 10.
• Replace the memory card when its read/write speed is lower than
6 MB/s or when the memory card is frequently undetected by the
camera.
iv
Note for Installing Camera Outdoor
When installing the GV -IP Speed Dome, be sure that any PoE, power, audio
and I/O cables are waterproofed using w erproof silicon rubber or the like. at
v
Options
Opti can ex
onal devices pand the capabilities and versatility of your camera.
Contact your de ler for more information.
Name Details
GV-Mount Acce sories provide a
In-Ceiling Installation
Package
Power Adapter s designed to convert AC
GV-PA901 PoE Adapter The GV-PA901 is a Power over Ethernet (PoE)
GV-PoE Switch The GV-PoE Switch is designed to provide
a
ssories The GV-Mount Acces
comprehensive lineup of
ation on ceiling, wall corner and pole. For
install
details, see GV-Mount A
Guide on the softwa
The in-ceiling package is used to install the
indoor GV-IP Speed Do
camera to the ceili
The power adapter i
100 ~ 240V 2.5A to D
the power to indoor a
Speed Dome. The p
n the regions: US, AU, A R, EU, JU and UK.
i
adapter designed to provide power and
network connection through a single Ethernet
cable to outdoor GV-IP Speed Dome.
power along with network connection for IP
devices. The GV-PoE Switch is available in
various models with different numbers and
types of ports.
accessories for
ccessories Installation
re CD.
me by embedding the
ng.
C 24V 3.75A and supply
nd outdoor GV-IP
ower adapter is available
vi
1. Intr
oduction
Welcome to the GV-IP S me Quipeed Do
sec will be guided through t
tions, you he basic installations and
configuratio of the P Speed Dome. For detail
GV-IP Speed Dome Us
Model Application Description
GV-SD220 (PoE) Indoor
GV-SD220-S (PoE) Outdoor
GV-SD200 Indoor
GV-SD200-S Outdoor
GV-2300 Outdoor 2 MP H.264, 20x optical zoom, 12x
ns GV-I ed information, see
e CD.
r’s Manual on the Software
ck Start Guide. In the following
2 MP H.264, 20x / 30x optical
zoom, 12x digital zoom, WDR Pro
2 MP H.264, 18x optical zoom, 8x
digital zoom, WDR Pro
digital zoom, WDR Pro
1
2. GV-SD220 / GV-SD220-S / GV-SD2300
2.1 Packing L t
2.1.1 Indoor GV-IP Speed Dome (GV-SD220)
• Indoor GV-IP Speed Dome
is
• Hard-Ceiling Cover
Mounting Plate •
• GV-IP Speed Dome
Software CD
• GV-NVR Software DVD
2
GVGV-SD220 / SD220-S / GV-SD2300
2
2.1.2 Outdoor GV-IP Speed Dome (GV-SD220-S /
GV-2300)
• Outdoor GV-IP Speed Dome
• Pendant Tube
• Hex Key x 2
• M6 Screw x 4
• Desiccant Pack x 4 • GV-IP Speed Dome
Software CD
• GV-NVR Software DVD
3
2.2 Overview
1
234
5
6
No. Name Description
1. De
2. atus
3. Power The power LED turns green when the power is on.
4. ACT
5. Link The Link LED turns green with Internet connectivity.
6.
St
fault
Memory
Card Slot
Restores all the settings to th
For details, see 2.13 Restoring to Default Settings.
The status LED turns green when t
fades when the camera is ready for use.
The ACT LED flashes orange light upon data
transmission.
Insert a micro SD/SDHC card to store recording data.
e factory default values.
he power is on and
4
GVGV-SD220 / SD220-S / GV-SD2300
2
2.3 Installation
There are multiple ways to install the GV-IP Speeds Dome. Only the
tandard installation methods are introduced in the Quick Start Guide. For
details on optional installations, see Installing the GV-SD220 / 220-S / 2300
IP Speed Dome, Chapter 5, GV-Mount Installatio
CD.
n Guide on the Software
2.3.1 Indoor G d-Ceiling Mount
V-IP Speed Dome: Har
(GV-SD220)
Required Items
• Indoor packing (supplied)
• ceiling screws x
1. Secure the mounting plate to the ceiling with self-prepared screws.
3 (user-prepared)
5
2. Secure the indoor GV-IP Speed Dome to the mounting plate.
A. Loosen the screw on the mounting plate
B. Align the camera to the mounting plate and rotate the camera
body to the right.
C. Tighten the screw.
3. Put on the hard-ceiling cover.
Note: Cut away a side of the cover if you want to run the cable through.
6
GVGV-SD220 / SD220-S / GV-SD2300
2
2.3.2 Outdoor GV-IP Speed Dome: Wall Pendant Mount (GV-SD22 0-S / GV-SD2300)
Required Items
• Outdoor packing (supplied)
• Ceiling screws x 4
(user-prepared)
1. Insert the desiccants to the camera.
IMPORTANT: Be sure t o conceal the des iccants i n the GV-IP Speed
Dome within 2 minutes of opening the desiccant pack.
A. Remove the camera cover using the supplied hex key.
7
B. In rt w cant packs to the indicated places.
se t o desic
C. Follow step 1A to secure the camera cover with the supplied
C. Follow step 1A to secure the camera cover with the supplied
hex key.
hex key.
2. Assemble the camera with the pendant tube.
2. Assemble the camera with the pendant tube.
A. Thread the camera cable through the pendant tube.
A. Thread the camera cable through the pendant tube.
B. Rotate the camera and lock it to the pendant tube.
B. Rotate the camera and lock it to the pendant tube.
C. Secure the camera to the pendant tube with the supplied M6
screws.
8
GVGV-SD220 / SD220-S / GV-SD2300
2
2.4 Connecting the Camera
Connect power to the camera using one of the following methods.
• Connect the Power er to the data cable.
• Use t he Power over Ethernet (PoE) funct i on and the power will be
provided over the netw
Note:
1. The Power Adapter is an optional device.
The Optional GV-PA901 PoE Adapter is required
2.
for applying PoE function.
The Data Cable
With the Data Cable, you can connect the power, mi
I/O devices to the GV-IP Speed Dome. The Data Cabl
ow.
bel
Adapt
ork cable.
crophone, speaker, and
e is illustrated as

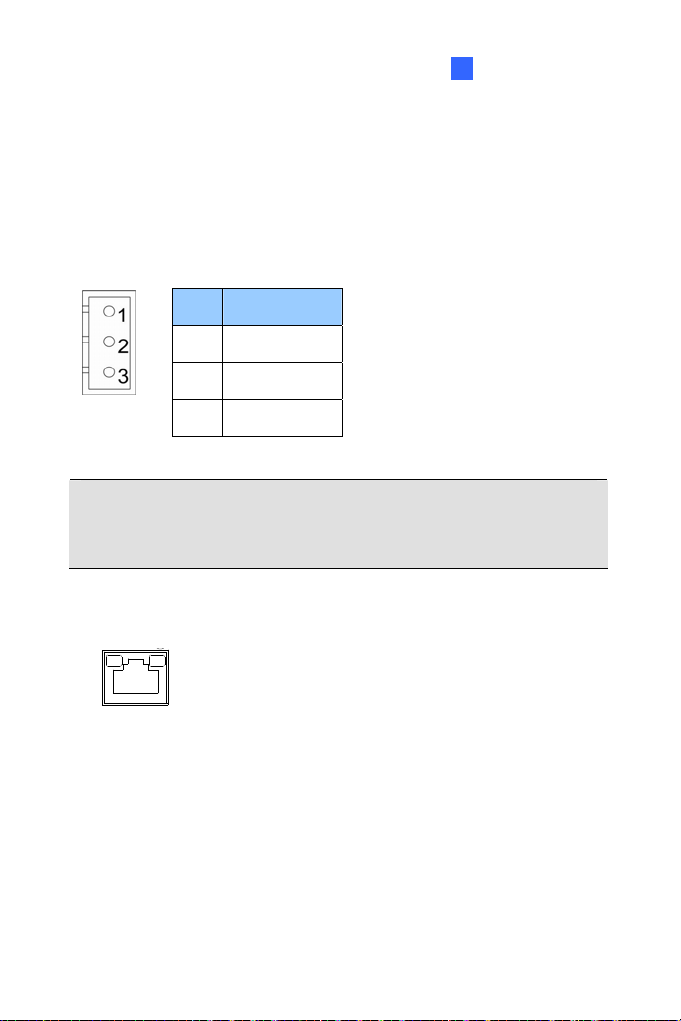

I/O Wires
Microphone
Speaker
Ethernet
No. Wire Definition
1 Orange Alarm In 1
2 Yellow Alarm In 2
3 Green Alarm In 3
Power Adapter
9
Blue Alarm In 4
4
5 Pink Ground
6 Purple Alarm Out
7 White Alarm Out Open
8 Alarm Out Close Gray
10
GVGV-SD220 / SD220-S / GV-SD2300
2
GV-PA901 PoE Adapter
The GV-PA901 PoE Adapter is only for the Outdoor GV-IP Speed Dome.
Prepare two Ethernet cables for the connection.
NOTE: PoE function is available for the outdoor GV-IP Speed Dome only
w applied for connection.hen GV-PA901 PoE Adapter (optional device) is
1. Connect one end of an Ethernet cable to the
the GV-PA901 and the other end to the L
2. Connect one end of an Ethernet cable to the PoE 10 / 100 port on
the GV-PA901, and the other end to the Outdoor GV-IP Speed
Dome.
3. Connect the connector end of the GV-PA901 Power Adapter to the
GV-PA901 PoE Adapter and the plug end to the power outlet.
LAN 10 / 100 Port on
AN port on a Hub / Router.
11
2.5 Accessing the Camera
2.5.1 System Requirements
To access GV-IP Speed Dome
PC is in good net
browsers:
work connection and use one of the following web
• Microsoft Internet Explorer 7.x or later
•
Google Chrome
•
Mozilla Firefox
• Safari
Note:
1. al settings are required. For users of Internet Explorer 8, addition
For details, see Appendix C. For more details, see 1.2 System
Requirements, GV-IP Speed Dome GV-SD220 User’s Manual on
the Software CD.
2. With non-IE browsers,
A. Motion Detect i on, Text Overlay, two-way audio and GPS
map settings are not supported.
B. The Play function is only available on the live view window.
C. RTSP streaming must be kept as enabled.
functions through Web browser, ensure your
12
GVGV-SD220 / SD220-S / GV-SD2300
2
2.5.2 Looking Up the IP Address and L
By default, the IP address of your GV-IP Speed Do
DHCP server unless your router does not support DHCP. In this case, the
efault IP address will be 192.168.0.10. Follow t
d he steps below to look up
the dynamic IP address.
1. Install the GV-IP Device Utility program from the Software CD.
Note: The PC installed with GV-IP Device Utility must be under the same
LAN with the camera you wish to configure.
2. On the PC desktop, select Start, sele ct Programs and select GV IP
Device Utility to execute the program. The GV IP Device Utility
window appears and automatically searches for the GV IP devices
on the same LAN.
3. Click the Name or Mac Address o n sort. c lum to
ogging In
me is assigned by the
4. Find the Mac A ddress of the cam era to see its IP address.
13

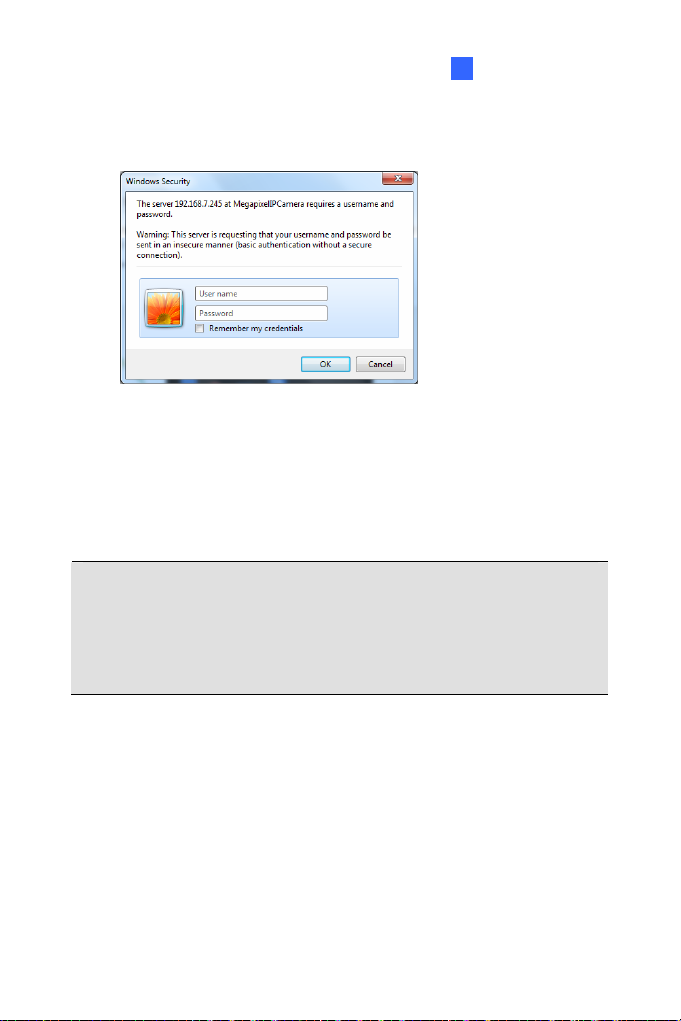

5. To login, type the IP address in the browser. The login page appears.
6. Type the default ID and password admin and c
7. When accessing the GV-IP Speed Dome for t
set your browser to allow a one-time install
ActiveX
component onto your computer.
Note: If your router does not support DHCP, the default IP address will
be 192.168.0.10. In this case, it is strongly suggested to modify the IP
address to avoid IP address conflict with other GeoVision IP device on
the same LAN. For details, see Changing the IP Address in 2.1 Looking
Up the IP Address, GV-IP Speed Dome GV-SD220 User’s Manual on
the Software CD.
14
lick Apply to log in.
he first time, you must
ation of GeoVision
2.6 The Web Interface
1
2
3114
5 6
GVGV-SD220 / SD220-S / GV-SD2300
2
12
10
9
8
7
No. Name Description
1 Play Plays live video.
2 Stop Stops playing video.
3 Microphone
4 Speaker Listens to the audio around the camera.
Tal ks to the surveillance area from the local
computer.
15
No. Name Description
5 Snap shot Takes a snapshot of live video.
6 File S cal computer. ave Records live video to the lo
Switches to full screen vi
7 Full S
8 Visual PTZ
9 PTZ to the home position.Home Click to return the dome view
10 I/O Control Starts the I/O Control Panel.
11 PTZ Control Starts the PTZ Control Panel and the Visual PTZ.
12
For detail, see 3.1 The Live View Window, GV-IP Speed Dome GV-SD220
User’s Manual on the Software CD.
creen
Show
System
Menu
to have these options: Snap
Resolution, Wide Angle Lens Dewarping, PIP,
PAP, GPS and Google Map
Clicks to swi
control modes: Fixed Direction Move, Random
Move or Center Move.
Brings up these functions: Alarm Notify, Video
and Audio Configuration, Remote Config, Show
Camera Name and Image Enhance.
tch to one of the three visual PTZ
ew. Right-click the image
shot, Full Screen,
s.
16
GVGV-SD220 / SD220-S / GV-SD2300
2
2.7 The PTZ Control Panel
Click the PTZ Control button on the Live View window and select PTZ
Control Panel. The PTZ Control Panel appears.
17
Description No. Name
xit Closes the PTZ control panel. 1 E
2
3 Home back to the home point. Brings the camera view
4
5
ol
Co
ntr
Zoo I /
m n
Out
us
Foc In /
Out
Tilt
Pan /
Moves the PTZ Camera to
left, right, left up, left down,
down.
Shortens (
apparent distance b
view.
Adjusts t
Brings up these functions
zoom in) or lengthens (zoom out) the
he sharpness of the camera view.
• Dome move
Sequence, A
• Image settings
6 Option
• PTZ settings
• System settings
For detail, see PTZ Control Panel, Chapter 4,
GV-IP Speed Dome GV-SD220 User’s Manual
on the Software CD.
7 Show Preset
Opens and closes the number pad.
8 directions: up, down,
right up and right
etween the camera and the
:
ment settings (Preset,
uto Pan, Cruise and Tour)
18
2
2.8 Configuring a Preset Position
GVGV-SD220 / SD220-S / GV-SD2300
You can set up
255 preset points can be configured and saved.
Setting Up a Preset
1. Use the direction keys on the PTZ Control Pan
a desired position in
2. Click Option on the PTZ Control Panel, click Preset Set, and select
the desired preset number to save the preset.
3. To create another preset position, repeat Steps 1 and 2, and select a
different preset number to save.
a preset position toward which the dome view moves. Up to
el to move the dome to
Live View.
19
Using a Preset
To move the dome view to a previously defined preset position, click Option
on the PTZ Control Panel, click Preset Go, and select a Preset number
which has been set up.
20
GVGV-SD220 / SD220-S / GV-SD2300
2
2.9 Configuring a Sequence Rou
You can have the dome vi
Create a Sequence by linking a number of presets points. Up to 8
Sequences can b
selected for a Sequence route to work.
Setting Up a Sequence
1. From the PTZ control panel, click Option and select Setup. This dialog
box appears.
ew move in a series of predefined movements.
e created and a minimum of 2 preset points must be
te
21

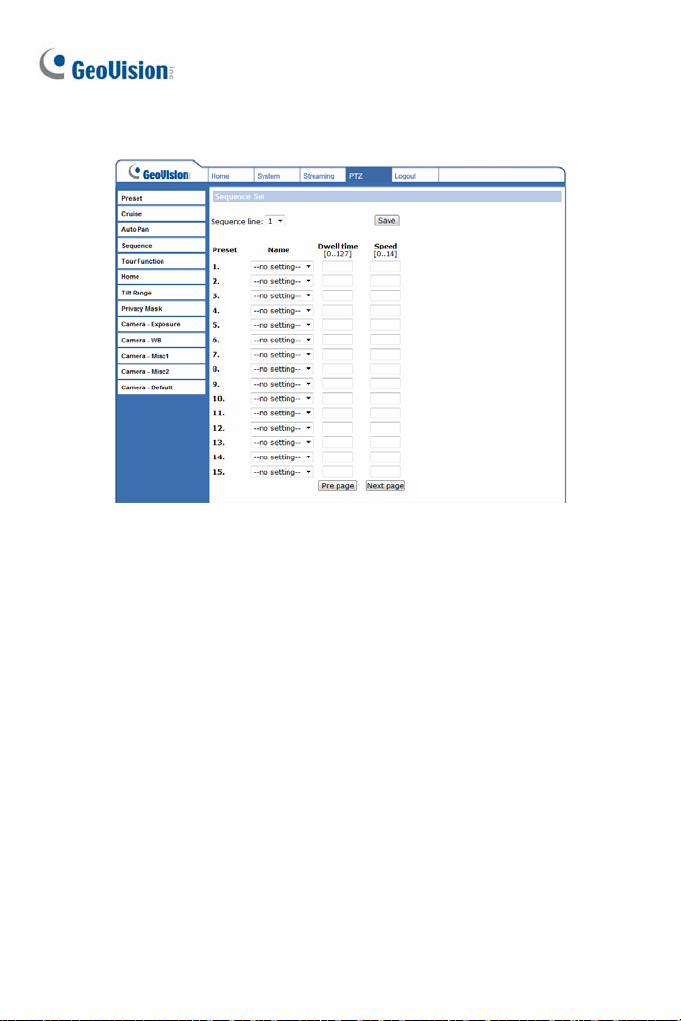

2. Click Open and click Sequence located under PTZ Setting on the left
menu.
3. Use the Index drop-down list to select the Sequence group number to
be configured. Up to 8 Indexes (Sequence g
4. One Sequence group can include up to 16 Pres
Point drop-dow
Sequence group.
5. Use the Preset drop-down list to select the Pres ets f or this Sequence
group.
6. Use the Dwell Time drop-down list to set the duration for the dome to
stay at this Preset. The duration time ranges from 1 to 255 seconds.
7. Use the Speed drop-down list to set the speed at which the dome
travels from one Preset to another.
8. To create another Sequence group, repeat Steps 1 to 6, and select a
different Index number.
9. Click Save to complete the settings.
n list to select the number of Preset Points in this
roups) can be created.
et Points. Use the
22
GVGV-SD220 / SD220-S / GV-SD2300
2
Starting and Stopping a Sequence
To start the dome view on a Sequence route, click OptiCoon on the PTZ
ntrol Panel, click Auto Go and select a Go Sequence number which has
been previously set. The dome view will continue moving once a Sequence
is started. T o stop the movements, click any button on the PTZ Control
Panel.
23
2.10 Configuring a Cruise
You can set up a route consisting of different directions, angles, and zooms
for the GV-IP Speed Dome to follow. Up to 4 Cruises
Setting Up a Cruise
1. Click Option on the PTZ Control Panel, click Au
Cruise 1.
2. Use Pan/Tilt C
route path and zoom.
3. When you are finished with setting up a Cruise
click Auto and select Set Cruise Stop.
4. To set up another Cruise route, repeat Steps 1
different Cruise number.
Starting and Stopping a Cruise
To start the GV-IP Speed Dome on a defined Cruise route, click Option on
the PTZ Control Panel, click Auto Go and select a Go Cruise number
which has been previously set. To stop a Cruise route in action, click any
button on the PTZ Control Panel.
ontrol keys and zoom in / out keys to set the desired
can be created.
to Set and select Set
1 route, click Option,
to 3, and select a
24
GVGV-SD220 / SD220-S / GV-SD2300
2
2.11 Configuring an Auto Pan
The GV-IP S peed Dome can pan up to 360° endlessly to survey the
horizontal view b
sets of Auto Pan routes.
Setting Up an Auto Pan
1. Set up the vertical position of your GV-IP Speed
vertical direction set during or after the horiz
will not be effective.
2. et up the start position of the Auto Pan.
S
A. Use the co
B. Click Option on the PTZ Control Panel
3. Set up the end position of the Auto Pan.
A. Use the control buttons on the PTZ co
B. Click Option, click Auto Set and select
4. To create another Auto Pan route, repeat Steps 1 to 4, and select a
different Auto Pan number.
For details on pan speed and the duration of dome view at the start/stop
positions, see 4.11 PTZ Settings-Other, GV-IP Speed Dome GV-SD220
User’s Manual on the Software CD.
Note: The zoom ratio of an Auto Pan’s Start Point will persist throughout
the whole path.
etween 2 pre-defined positions. You can configure up to 8
Dome first. The
ontal movement settings
ntrol buttons on the PTZ control panel to move to a
desired start position.
, click Auto Set and
select Set
desired end po
Position.
Auto Pan 1 Start Position.
ntrol panel to move to a
sition.
Set Auto Pan 1 Stop
25
Starting and Stopping an Auto Pan
To start the GV-IP Speed Dome on an Auto Pan mode, click Option on the
PTZ Control Panel, click Auto and select an Auto Pan number which has
been previously set. To stop an Auto Pan, click any button on the PTZ
Control Panel.
26
GVGV-SD220 / SD220-S / GV-SD2300
2
2.12 Configuring a Tour
You can set up your GV-IP Speed Dome to move in a combination of preset
positions, Sequence, Cruise and Auto Pan. You can configure up to 8 Tour
routes.
Setting Up a Tour
1. Follow the steps in Accessing the PTZ Configuration Dialog Box above
and click Open to display the PTZ Conf igurat i on dialog box, click
Tour located under PTZ Setting on the left menu.
2. Use the Index drop-down list to select the Tour group number to be
configured. Up to 8 Indexes (Tour groups) can be created.
3. One Tour group can include up to 16 sets of Preset Points, Sequence,
Cruise and Auto Pan. Use the Type drop-down list to select the
move ment type.
27
4. Use the Index drop-down list to select the m
move ment typ
5. To create another Tour
different Index n
6. Click Save to complete the settings.
Starting and Stoppin
To start the GV-IP Speed Dome on a Tour route, click Option on the PTZ
Control Panel, click Auto Go and select a Go Tour number which has been
previously set. An enabled Tour will repeat until it is stopped by clicking any
button on the PTZ Control Panel.
e.
group, repeat Steps 1 to 6, and select a
umber.
g a Tour
ovement number for each
28
GVGV-SD220 / SD220-S / GV-SD2300
2
2.13 Upgrading System Firmware
GeoVision periodically updates the latest firmware
You can update your GV-IP Speed Dome firmw
interfac
e or GV IP Device Utility included in the Software CD. For details on
firmware upgrade us
Device Utility, GV-IP Speed Dom
Software CD.
IMPORTANT:
1. While the firmware is being updated,
A. the power supply must not be interrupted, and
B. do not unplug the Ethernet cable if the cable is the source of
2. Interruption of power supply during the upgrade causes not only
upgrade failure but also damages to the camera. In this case,
contact your sales representative and send your device back to
GeoVision for repair.
3. Do not turn the power off 10 minutes after the firmware is updated.
4. If firmware upgrade fails, you will need to restore the camera to
the factory default settings.
ing GV IP Device Utility, see 7.1.2 Using the GV IP
e GV-SD220 User’s Manual on the
power supply.
to the company website.
are through the Web
29
1. In the Live View window, click the Show System Menu button and
select Remote Config. This dialog box appears.
2. Click the Browser button to locate the firmware file (.img) saved at
your local computer.
3. Click the Upgrade button to start upgrading.
30
GVGV-SD220 / SD220-S / GV-SD2300
2
2.14 Restoring to Default Settings
There are two parts to the GV-IP Speed Dom
e settings:
• System settings: this refers to all the settings except the PTZ settings
• PTZ configuration settin
configuration dialog b
2.14.
1 Restoring All the Settings
1. Press and hold the Default bu
2. When the status LED flashes twice, release th
shall take about
3. The status LED fades when the default loading is completed.
2.14.2 Restoring System Settin gs Onl y
On the Web interface, select Tools and click the Load Default button. The
default loading will start shortly.
6 seconds.
gs: this refers to settings in the PTZ
ox
tton.
e Default button. This
31
2.14.3 Restoring PTZ Configuration S
1. Access the PTZ Configuration dialog box. For det
the PTZ Control Panel and Accessing the PTZ
GV-IP Speed Dome GV-SD220 User’s Manual on the Software CD.
2. On the PTZ Configuration dialog box, select System Configuration.
This dialog box appears.
3. To restore default settings to all the settings in PTZ Configuration, click
Load Camera Default (Include PTZ). To restore default settings to
Image Settings and System Configuration settings only, click Load
Camera Default (Exclude PTZ).
ettings Only
ails, see Calling Up
settings, Chapter 4,
32
3. GV-SD200 / SD200-S
3.1 Packing List
3.1.1 Indoor GV-IP Speed Dome
• Indoor GV-IP Speed
Dome
• Hard Ceiling Mount
(GV-MountD603)
• Terminal Block
• GV-IP Speed Dome
Software CD
• GV-NVR Software DVD
• M3 Standard Screw (x1)
• M4 Screw (x5)
• Plastic Anchor (x5)
33
3.1.2 Outdoor GV-IP
• Outdoor GV-IP Spe
• Outdoor Mounting Kit
(GV-Mou
(GV-MountD202)
• Security Torx
ntD902)
Speed Dome
ed Dome • M3 Standard Screw (x1)
• M3 Security Screw (x1)
• M5 Standard Screw (x1)
• M Security Screw (x1)
5
• Waterproof Rubber
• Lubricant • Mini Pendent Mount
• GV-IP Speed Dome Software
CD
• GV-NVR Software DVD
34
3

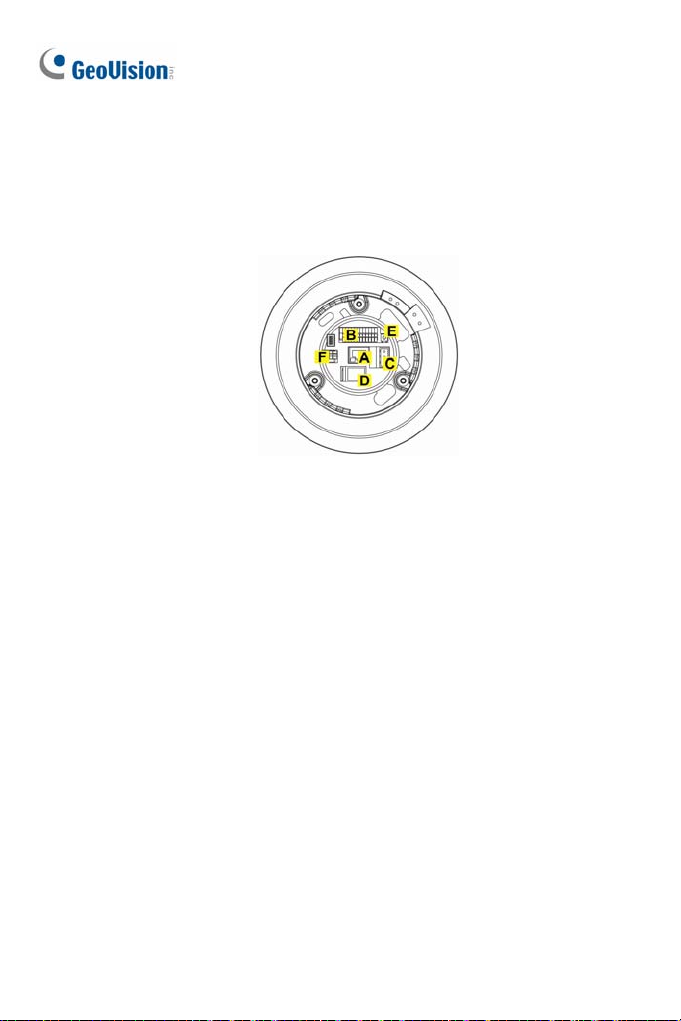

3.2 Overview
No. Name Description
High
LAN / Power Connects to a 10/100
A
PoE
I/O Term l Block Connects to I/O dev
B ina ices. For details, see
C Power Port Connects to power of AC 24V.
D
Memory Card Slot
E
Reset Button
F
Two Way Audio
Power PoE (for
3.4 Connec
Start Guide.
Inserts a micr o SD / SDHC card to sto r e
recording data.
Resets to factory default. For details, see
3.13 Restoring to Default Settings in the
Quick Start Guide.
Connects audio input and output. For
details, see 3.4 Connect the Cables in the
Quick Start Guide.
ting the Cables in the Quick
Ethernet or High
GV-SD200 only).
GV-SD200 / SD200-S
35
3.3 Installation
There are several mounting methods for GV-IP Speed Dome. In this Quick
Start Guide, we only show you the standard mounting methods with the
standard packing. For other mounting method
GV-SD200 User’s Manual.
s, refer to GV-IP Speed Dome
3.3.1 Indoor Speed Dome Mount: Surface Mount
GV-MountD603
(Supplied)
1. Mark the positions of the three screw holes on the Hard Ceiling
Mount at the chosen installation location.
2. In the marked locations, drill each hole slightly smaller than the
supplied Screw Anchors, and put supplied Anchors into these drilled
holes.
36
GV-SD200 / SD200-S
3
3. Fasten the Hard Ceiling Mount with the thre
Self-tapping Screws.
Thread the connected cables and wires throu
4. gh the center hole of
the Mount and connect the cable to the came
5. Users can choose to hide the cables and wires inside the ceiling, and
put the rubber from the accessory package to fill the gap at the side
of the Fixing Plate. Or let the cables out from the gap on the side of
the Fixing Plate (as shown in the diagram).
e supplied M4
ra body.

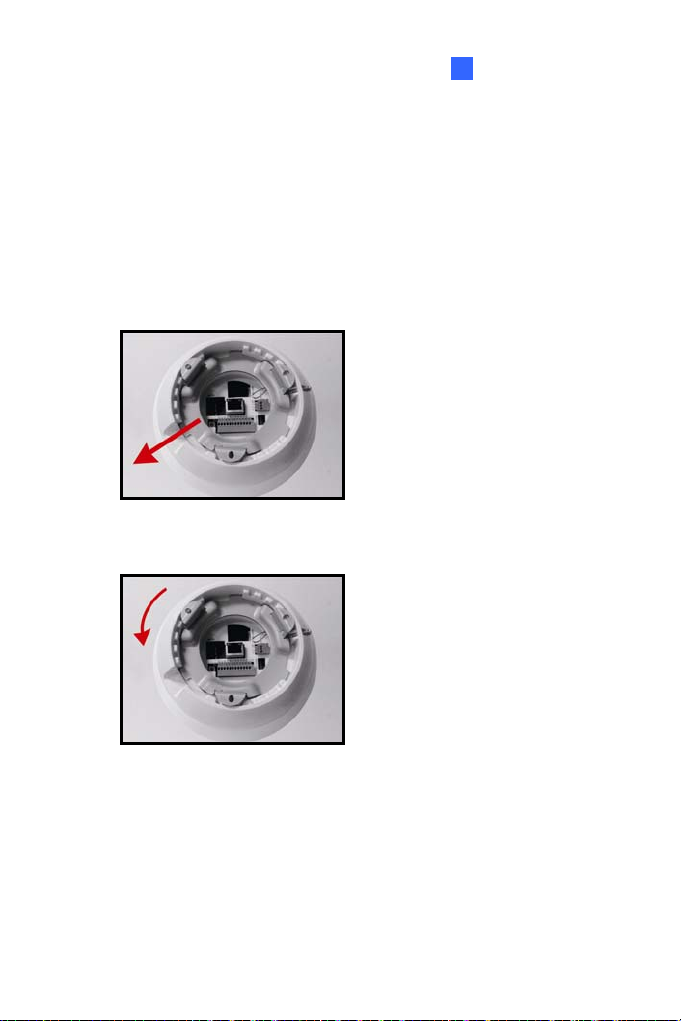

6. Install e the fixed Hard Ceiling Mount by turning the
th Camera on
Camera clockwise.
37
7. Fasten the screw at the side of the Fixing Plate.
8. After installing the Camera on the Hard Ceiling Mount, put the Dome
Cover back, and use a flat screw drive to fasten two supplied Flat
Screws on the Dome Cover.
9. Fasten the supplied Standard Screw on the Dome Cover.
38
GV-SD200 / SD200-S
3
3.3.2 Outdoor Speed Dome endent Mount Mount: Mini P
Required items:
• Outdoor packing
(supplied)
GV-MountD202
(Supplied)
• Wall screws x 4
(user-prepared)
GV-MountD902
(Supplied)
1. Make a cable entry hole on the wall to recess the cables. You can
also push up the Cable Entry Board on the Mini Pendent Mount’s
Mounting Plate to place the cables, as shown in the photo below.
Mounting Plate
Cable Entry Board
2. Fix the Mini Pendent Mount on the wall with suitable screws and
screw anchors of your choice.
39
3. Attach the Waterproof Rubber to the Mini Pendent Mount.
nt Mount. 4. Run the cable(s) through the Mini Pende
Note: Block the cable entry hole with the supplied sponge to avoid
insects entering the Pendent Mount. The sponge can be placed in two
ways as shown in the illustrations below.
Sponge
5. Thread the cable(s) through the Mounting Kit and join the Mounting
Kit to the Mini Pendent Mount with the supplied screws and washers.
Then adjust the Waterproof Rubber to the joint.
6. Connect the cable(s) to the Dome Camera.
7. Join the Dome Camera to the Mounting Kit with the supplied screw
and washers.
40
Sponge
3.4 Connecting the Cables
GV-SD200 / SD200-S
3
Connect you
Connect
r IP Speed Dome to power, network and other cables.
ing Power
Pin De ition fin
1 AC 24_1
2 GND
3 AC 24_2
Note: y g GeoVision’s optional power adapters, connect the If ou are usi n
green or green/yellow wire to GND. The two remaining wires are
interchangeable, and both wires can be connected to AC_2 or AC_1.
Connecting Ethernet Cable
The High Power PoE function is only supported for
GV-SD200.
41
Connecting Alarm I/O
Pin Definition Pin Definition
1 Alarm_Out_NC_1 7 Alarm_Out_COM_2
2 Alarm_Out_NO 8 GND _1
3 Alarm_Out_COM_1 9 Alarm_In_4
4 GND 10 Alarm_In_3
5 Alarm_ _ 11 Alarm_In_2 Out NC_2
6 Alarm_ _ 12 Alarm_In_1 Out NO_2
Connecting Audio
Pin Definition
1 Line_Out
42
2 GND
3 Line_In
3
3.5 Accessing the Camera
3.5.1 System Requirements
To perf orm t he GV-IP Speed Do
good netwo
rk connection, and use one of the following web browsers.
• Internet Explorer 7.0 or later
• Firefox
Google Chrome
•
• Safari
Note: With non-IE browsers, only the Play function is available on the
live view window.
me via web browser, ensure your PC is in
GV-SD200 / SD200-S
43
3.5.2 Looking up the IP Address and L
By default, the IP address of your GV-IP Speed Do
DHCP server unless your router does not support DHCP. In this case, the
d eps below to look up
efault IP address will be 192.168.0.10. Follow the st
the dynamic IP address.
1. Install the GV-IP Device Utility program from the Software CD.
ogging in
me is assigned by the
Note: The PC installed with GV-IP Device Utility must be under the same
LAN with the camera you wish to configure.
2. On the GV-IP Utility window, click the
GV-IP Speed Dome. Click the Name or Mac Address column to
sort.
button to search for the
3. Find the camera with its Mac Address to see the IP address.
44
3
4. To login, type the IP address in your web browser. A dialog box
appears.
5. Type the default username and password admi
6. Click OK to access the Web interface.
7. When accessing the GV-IP Speed Dome fo
set your browser to allow a one-time
your computer.
Note: If your router does not support DHCP, the default IP address will
be 192.168.0.10. In this case, it is strongly suggested to modify the IP
address to avoid IP address conflict with other GeoVision IP device on
the same LAN. For details, see 3.1.2 Changing the IP Address, GV-IP
Speed Dome GV-SD200 User’s Manual on the Software CD.
installation of DC Viewer onto
n.
r the first time, you must
GV-SD200 / SD200-S
45
3.6 The Web Interface
After logging onto the GV-IP Speed Dome, users will see the Home page as
shown below:
Select Video
Format
Display Mode
Focus Mode
Codec Info
Main Tabs
Speaker
Talk
PTZ Control Panel
Web Recording
Pause Video Streaming
Snapshot
Time Display
Language Selection
Note: Refer to Administrator Mode, Chapter 4, GV-IP Speed Dome
GV-SD200 User’s Manual on the Software CD for details.
46
3.7 The PTZ Control Panel
GV-SD200 / SD200-S
3
Click the
button on the home page. The PTZ Control Panel appears.
Button Description
Moves the camera to 8 directions.
Zooms in. Shortens the apparent distance between the
camera and the view.
Zooms out. Lengthens the apparent distance between
the camera and the view.
47
Button Description
Pre et
s
Cruise
Sequence
Focuses in. Changes the sharpness of the view.
Focuses out. Changes the sharpness of the view.
Automatically adjusts the focus.
Enlarges the aperture opening.
Automatically adjusts the aperture opening.
Reduces the aperture opening.
Moves to a defined Preset point.
Starts a defined Cruise path.
Starts a defined Sequence route.
PT Speed
48
Adjusts the pan/tilt speed.
GV-SD200 / SD200-S
3
3.8 Configuring a Preset Position
You can set u
256 preset points can be configured and saved.
Setting up a Preset
1. Click the PTZ tab and select Preset from the left menu of the Web
2. Click the dome view and drag the cursor to a desired position.
3. Use the Zoom and Focus buttons to adjust the dome view.
4. Use the Num drop-down list to select a number to define a Preset point.
5. Type a name to describe the selected number in the Name field.
6. To create another Preset point, repeat Steps 2 to 5 and select a
7. Click Set to save the settings.
8. Use the Preset Go drop-down list to select a Preset point to test your
p a preset position toward which the dome view moves. Up to
interface.
Click Pre page or Next Page button to select numbers from 1 to 256.
different preset number.
settings.
49
Using a Preset
To move the do me view to a previous ined Ply def reset point, click the Home
tab and click on the PTZ Control Panel button
number from the Preset drop-down list and cli
.
Select the defined
ck the
button.
50
GV-SD200 / SD200-S
3
3.9 Configuring a Sequence Rou
You can have the dome v
Create a Sequence by linking a number of presets points. Up to 8
Sequences can be c
selected for a Sequence line to work.
Setting up a Sequence
1. Click the PTZ tab and select Sequence from the left menu of the Web
interface.
iew move in a series of predefined movements.
reated and a minimum of 2 Preset Points must be
te
51
2. Click the Edit butt on under Sequence Setting.
3. Use the Sequence Line drop-down list to sele
number to be configured.
4. Use the Name drop-dow
Sequence route.
5. One Sequenc
and Next Page buttons to reach numbers1 to 64.
6. Type a number in the Dwell Time field to set the duration for the dome
to stay at this Preset. The duration time ranges from 0 to 127 seconds.
7. Type a number in the Speed field to set the speed level at which the
dome travels from one Preset to another. The speed level ranges from
0 to 14.
8. Click Save to complete the settings.
9. To create another Sequenc e, repeat Steps 3 to 8 and select a different
Sequence line number.
e line include up to 64 Preset points. Use the Pre Page
n list to select the desired Preset points for the
ct a Sequence route
52
GV-SD200 / SD200-S
3
10. Return to the Sequence page. Use the Sequence Line drop-down list
to select a Sequenc
Starting and Stopping a Sequence
To start t
PTZ Control Panel button
has been previously set. The dome view will continue moving once a
Sequence is started. To stop the movements, click any button on the PTZ
Control Panel.
he dome view on a Sequence route, click the Home tab, cl i ck the
e route number and click Go to test your settings.
and select a Sequence number which
53
3.10 Configuring a Cruise
You can set u
for the GV-IP Speed Dome to follow. Up to 8 Cruis
Setting up a Cruise
1. Click the PTZ tab and select Cruise from the left menu of the Web
2. Use the Cruise Path drop-down list to select a Cruise path number to
3. Click the dome view and drag the cursor to a desired position as the
4. Click the Set button of Record Start and start programming the Cruise
5. Use the Zoom and Focus buttons to adjust the dome view.
6. Click the Set button of Record End to quit.
7. To create another Cruise, repeat Steps 2 to 6 and select a different
p a path consisting of different directions, angles, and zooms
es can be created.
interface.
be configured.
Start Poi nt of a Cruise path.
path by dragging the red cursor on the dome view.
Cruise path number.
54
GV-SD200 / SD200-S
3
8. Use the Cruise Path drop-down list to select a Cruise path number
and click the Run
Starting and Stopping a Cruise
To start the dome view on a Cruise path, click the Home tab, click the PTZ
Control Panel button
previously set. The dome view will continue moving once a Cruise is started.
To stop the movements, click any buttons on the PTZ Control Panel.
button to test your settings.
and select a Cruise number which has been
55
3.11 Configuring an Auto Pan
The GV-IP S peed Dome can pan up to 360° endlessly to survey the
horizontal view b
sets of Auto P an paths.
Setting up a Auto Pan
1. Click the PTZ tab and select Auto Pan from the left menu of the Web
interface.
2. Use the Auto Pan Path drop-down list to select an Auto Pan path
number to be configured.
3. Use the Speed drop-down list to set the speed level from 0 to 3 at
which the dome travels from the Start Point to the End Point.
4. Click the dome view and drag the cursor to a desired position. Click the
Set button of Start Point to save the setting.
5. Click the dome view and drag the cursor to a desired position. Click the
Set button of End Point to complete the setting.
6. To create another Auto Pan path, repeat Steps 2 to 5 and select a
different path number.
etween 2 pre-defined positions. You can configure up to 4
56
GV-SD200 / SD200-S
3
Note: The zoom ratio of an Auto Pan’s Start Point will persist throughout
the whole path.
Starting and Stopping a Auto Pan
To start the dome view on an Auto Pan path, click the Run button on the
Auto Pan page. The dome view will continue moving once an Auto Pan is
started. To stop the movements, move the cursor on the dome view and
drag it to any directions.
57
3.12 Configuring a Tour
You can set up your GV -IP S peed Dome to move in a combination of Preset,
Sequence, Cruise and Auto Pan. You can configure u
Setting up a Tour
1. Click the PTZ tab and select Tour Function from the left menu of the
Web interface.
p to 16 T our routes.
58
3
2. Click the Edit button under Tour Function Setting.
3. select a number to be
Use the Tour Function drop-down list to
configured.
4. reset, Sequence,
Use the Function drop-down list to select a P
Cruise or Auto Pan.
5. Type a number i n the No. field to specify the Preset, Sequence,
Cruise, and Auto Pan.
6. Click the Save button to complete the setting.
7. To create another Tour route, repeat Steps 3 to 6 and select a
different T our Function number.
8. Return to the Tour Function page. Use the Tour Function Line
drop-down list to select a Tour route number and click Go to test your
settings.
GV-SD200 / SD200-S
59
Starting and Stopping a Tour
To start the dome view on a Tour pat h, click the Run button on the Tour
Function page. The dome view will continue moving once a Tour is started.
To st op the movements, move the cursor on the dome view and drag it to
any directions.
60
3
3.13 Upgrading System Firmware
GeoVision periodically releases the updated firmware on the website.
our camera to the latest firmware through its Web interface. Update y
IMPORTANT:
1. Stop monitoring of the camera.
2. Stop the connection to GV-System.
3. While the firmware is being updated,
A. the power supply must not be interrupted, and
B. do not unplug the Ethernet cable if the cable is the source of
power supply (Power over Ethernet or PoE supported).
4. The interruption of power supply during updating causes not only
update failures but also damages to your camera. In this case,
please contact your sales representative and send your device back
to GeoVision for repair.
5. Do not turn the power off for 10 minutes after the firmware is
updated.
GV-SD200 / SD200-S
61
1. Click the System tab and select Software Upgrade from the le ft
menu.
2. Click the Browse button and select one firmware file to be uploaded.
Note: Do not change the upgrade file name, or the system will fail to find
the file.
3. Use the drop-down list to select the corresponding type of file you want
to upgrade. For example, if the file you uploaded is
GV-SD200_switch_V103_130115, select SD200_switch from the
drop-down list.
4. Click the Upgrade button.
5. Repeat the above steps for all remaining firmware files. All four
firmware files must be upgraded for the camera to function properly.
62
GV-SD200 / SD200-S
3
3.14 Restoring to Default Setting
You can restore the camera to factory default settings using the Web
interface or direc
to do a full restoration or partial restoration of defaul
Using the Web Interface
1. Click the System tab and select Factory Default from the left menu.
tly on the camera. On the Web interface, you can choose
s
t settings.
2. To restore all settings to factory default, click the Full Restore button.
The system will restart in 30 seconds. Note that the IP address will be
restored to default.
3. To restore all settings to factory default except for the network and the
PTZ settings, click the Partial Restore button. The system will restart
in 30 seconds.
63
Directly on the Camera
To restore to default settings directly on the cam
such as the tip of a pen to hold down the Load default button (Button E
below) for about 30 seconds while the power is on. The lens will rotate
briefly when load default is completed.
era, use a pointy object,
64
Loading...
