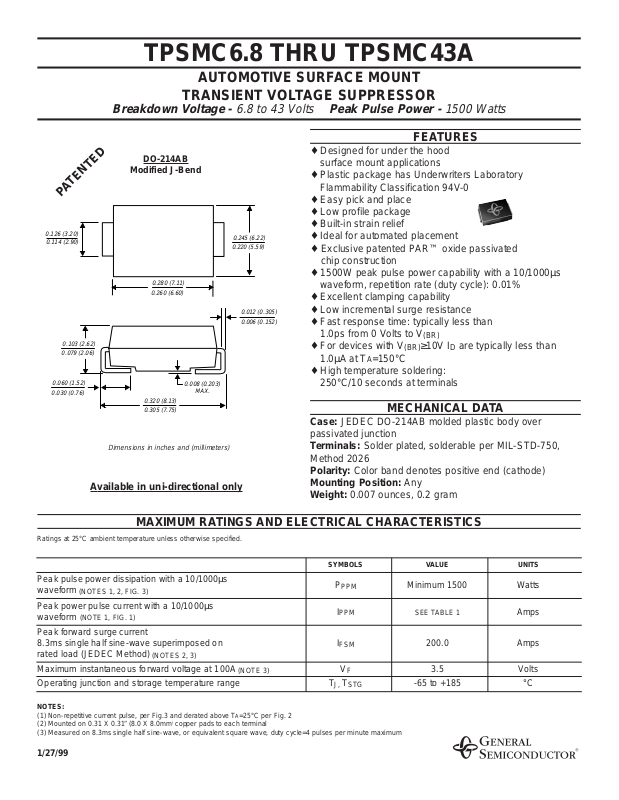

TPSMC6.8 THRU TPSMC43A

AUTOMOTIVE SURFACE MOUNT

TRANSIENT VOLTAGE SUPPRESSOR

Breakdown Voltage - 6.8 to 43 Volts Peak Pulse Power - 1500 Watts

	PATENTED				DO-214AB
					Modified J-Bend
0.126 (3.20)
							0.245 (6.22)
0.114 (2.90)
							0.220 (5.59)

0.280 (7.11)

0.260 (6.60)

0.012 (0.305)

0.006 (0.152)

0.103 (2.62)

0.079 (2.06)
0.060 (1.52)	0.008 (0.203)
0.030 (0.76)	MAX.
	0.320 (8.13)
	0.305 (7.75)

Dimensions in inches and (millimeters)

Available in uni-directional only

FEATURES

♦Designed for under the hood surface mount applications

♦Plastic package has Underwriters Laboratory Flammability Classification 94V-0

♦Easy pick and place

♦Low profile package

♦Built-in strain relief

♦Ideal for automated placement

♦Exclusive patented PAR™ oxide passivated chip construction

♦1500W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01%

♦Excellent clamping capability

♦Low incremental surge resistance

♦Fast response time: typically less than 1.0ps from 0 Volts to V(BR)

♦For devices with V(BR)≥10V ID are typically less than 1.0µA at TA=150°C

♦High temperature soldering: 250°C/10 seconds at terminals

MECHANICAL DATA

Case: JEDEC DO-214AB molded plastic body over passivated junction

Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes positive end (cathode)

Mounting Position: Any

Weight: 0.007 ounces, 0.2 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

SYMBOLS

VALUE

UNITS

	Peak pulse power dissipation with a 10/1000 s	PPPM	Minimum 1500	Watts
	waveform (NOTES 1, 2, FIG. 3)
	Peak power pulse current with a 10/1000 s	IPPM	SEE TABLE 1	Amps
	waveform (NOTE 1, FIG. 1)
	Peak forward surge current
	8.3ms single half sine-wave superimposed on	IFSM	200.0	Amps
	rated load (JEDEC Method) (NOTES 2, 3)
	Maximum instantaneous forward voltage at 100A (NOTE 3)	VF	3.5	Volts
	Operating junction and storage temperature range	TJ, TSTG	-65 to +185	°C

NOTES:

(1)Non-repetitive current pulse, per Fig.3 and derated above TA=25°C per Fig. 2

(2)Mounted on 0.31 X 0.31” (8.0 X 8.0mm) copper pads to each terminal

(3)Measured on 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minute maximum

1/27/99

ELECTRICAL CHARACTERISTICS at (TA=25°C unless otherwise noted) TABLE 1

						Maximum	Maximum
						Reverse	Reverse	Maximum	Maximum
	Device	Breakdown Voltage		Test		Leakage	Leakage at	Peak Pulse	Clamping
	Marking	V(BR) (Volts) (NOTE 1)		Current	Stand-off Voltage	at VWM	VWM, TJ =150°C	Surge Current IPPM	Voltage at IPP
Device	Code	Min.	Max.	at IT (mA)	VWM (Volts)	IR ( A)	ID ( A)	(NOTE 2) (Amps)	Vc (Volts)
TPSMC6.8	DDP	6.12	7.48	10.0	5.50	1000	10000	139.0	10.8
TPSMC6.8A	DEP	6.45	7.14	10.0	5.80	1000	10000	143.0	10.5
TPSMC7.5	DFP	6.75	8.25	10.0	6.05	500	5000	128.0	11.7
TPSMC7.5A	DGP	7.13	7.88	10.0	6.40	500	5000	133.0	11.3
TPSMC8.2	DHP	7.38	9.02	10.0	6.63	200	2000	120.0	12.5
TPSMC8.2A	DKP	7.79	8.61	10.0	7.02	200	2000	124.0	12.1
TPSMC9.1	DLP	8.19	10.0	1.0	7.37	50	500	109.0	13.8
TPSMC9.1A	DMP	8.65	9.55	1.0	7.78	50	500	112.0	13.4
TPSMC10	DNP	9.00	11.0	1.0	8.10	20	200	100.0	15.0
TPSMC10A	DPP	9.50	10.5	1.0	8.55	20	200	103.0	14.5
TPSMC11	DQP	9.90	12.1	1.0	8.92	5.0	50	92.6	16.2
TPSMC11A	DRP	10.5	11.6	1.0	9.40	5.0	50	96.2	15.6
TPSMC12	DSP	10.8	13.2	1.0	9.72	2.0	10	86.7	17.3
TPSMC12A	DTP	11.4	12.6	1.0	10.2	2.0	10	89.8	16.7
TPSMC13	DUP	11.7	14.3	1.0	10.5	2.0	10	78.9	19.0
TPSMC13A	DVP	12.4	13.7	1.0	11.1	2.0	10	82.4	18.2
TPSMC15	DWP	13.5	16.5	1.0	12.1	2.0	10	68.2	22.0
TPSMC15A	DXP	14.3	15.8	1.0	12.8	2.0	10	70.8	21.2
TPSMC16	DYP	14.4	17.6	1.0	12.9	2.0	10	63.8	23.5
TPSMC16A	DZP	15.2	16.8	1.0	13.6	2.0	10	66.7	22.5
TPSMC18	EDP	16.2	19.8	1.0	14.5	2.0	10	56.6	26.5
TPSMC18A	EEP	17.1	18.9	1.0	15.3	2.0	10	59.5	25.2
TPSMC20	EFP	18.0	22.0	1.0	16.2	2.0	10	51.5	29.1
TPSMC20A	EGP	19.0	21.0	1.0	17.1	2.0	10	54.2	27.7
TPSMC22	EHP	19.8	24.2	1.0	17.8	2.0	10	47.0	31.9
TPSMC22A	EKP	20.9	23.1	1.0	18.8	2.0	10	49.0	30.6
TPSMC24	ELP	21.6	26.4	1.0	19.4	2.0	10	43.2	34.7
TPSMC24A	EMP	22.8	25.2	1.0	20.5	2.0	10	45.2	33.2
TPSMC27	ENP	24.3	29.7	1.0	21.8	2.0	10	38.4	39.1
TPSMC27A	EPP	25.7	28.4	1.0	23.1	2.0	10	40.0	37.5
TPSMC30	EQP	27.0	33.0	1.0	24.3	2.0	10	34.5	43.5
TPSMC30A	ERP	28.5	31.5	1.0	25.6	2.0	10	36.2	41.4
TPSMC33	ESP	29.7	36.3	1.0	26.8	2.0	10	31.4	47.7
TPSMC33A	ETP	31.4	34.7	1.0	28.2	2.0	10	32.8	45.7
TPSMC36	EUP	32.4	39.6	1.0	29.1	2.0	10	28.8	52.0
TPSMC36A	EVP	34.2	37.8	1.0	30.8	2.0	10	30.1	49.9
TPSMC39	EWP	35.1	42.9	1.0	31.6	2.0	10	26.6	56.4
TPMSC39A	EXP	37.1	41.0	1.0	33.3	2.0	10	27.8	53.9
TPSMC43	EYP	38.7	47.3	1.0	34.8	2.0	10	24.2	61.9
TPSMC43A	EZP	40.9	45.2	1.0	36.8	2.0	10	25.3	59.3

NOTES:

(1)V(BR) measured after IT applied for 300 s, IT=square wave pulse or equivalent

(2)Surge current waveform per Fig. 3 and derate per Fig. 2

(3)All terms and symbols are consistent with ANSI/IEEE C62.35
