General GSE-110, GSE-112, GSE-109 User Manual

TABLE OF CONTENTS
GSE-109-110-112 SLICER
Owner Information ...............................................1-2
General....................................................................1
Limited Warranty Provisions ...................................1
Service/Technical Assistance..................................2
General Product Information ..............................2-3
General Features .................................................2-3
Important Safety Information ..............................3-4
Specifications .......................................................5-7
Electrical
Electrical Cord & Plug Configurations.....................5
Weights and Dimensions .....................................6-7
Recieving..................................................................7
Installation................................................................8
Unpacking ...............................................................8
Equipment Setup.....................................................8
Electrical..................................................................8
Ratings ....................................................5
Operation ............................................................9-12
Cleaning...............................................................10-11
Maintenance........................................................11-12
Replacement Parts ...........................................13-17
GSE-110...........................................................13-15
GSE-112...........................................................16-17

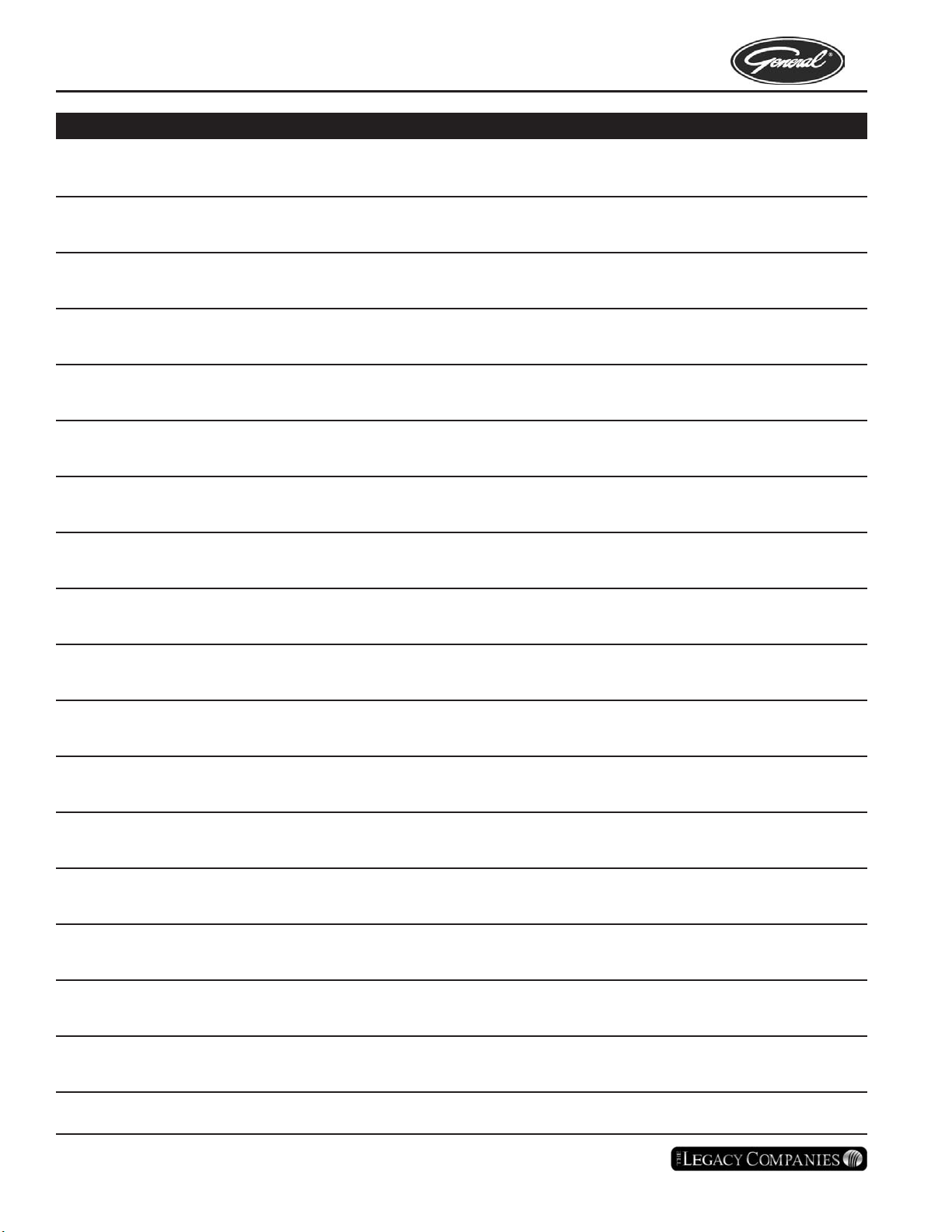

Notes.......................................................................18
OWNER INFORMATION
GENERAL LIMITED WARRANTY PROVISIONS
Thank you for purchasing this quality General product brought to you by The Legacy Companies. Your new General GSE-109, GSE-110 and/or GSE-112 was designed with advanced performance and safety fea­tures that make it a valued addition to your kitchen equipment package. Like all General products and accessories the GSE-109, GSE-110 and GSE-112 are manufactured to give years of reliable service.
GENERAL warrants to the original purchaser of the GSE-109, GSE-110 and GSE-112 slicers, all parts thereof to be free from defects in material and work­manship while under normal use. Outlined below are the specific warranty periods and leval of coverage:
GSE-109 90 days parts
GSE-110 90 days parts
The General and
GSE-112 (twelve inch) slicers are heavy duty pre­cision crafted, versatile units. These all-purpose slicers use an all stainless steel drive system that provides for years of corrosion free operation. The heat treated carbon steel knife was designed for years of use.
Each slicer comes standard with a stainless steel drive system, On board knife sharpener, s switch, and edges and a anti-microbrial finish. The power con­trol switch has a moisture resistant protective covering and all units come equipped with a motor overload switch to protect the motor from amperage overload.
The GENERAL brand GSE-109, GSE-110 and GSE­112 SLICERS remove the guesswork and produce a uniform finished product from one
GSE-109 (nine inch), GSE-110 (ten inch)
afety interlock
easy to use controls, smooth rounded corners
operator to the next.
Thank You Again for Your Purchase!
GSE-112 90 days parts
Warranty registration must be completed and received­within 10 days o
arranty registration can be mailed by completing the
W enclosed warranty card or can be completed at our website; www.thelegacycompanies.com.
GENERAL’s obligation under this warranty shall be lim­ited to the repair or at the sole discretion of TLC Technical Service, the replacement of the appliance. Authorized on-site service is not authorized for these appliances, t
ake the appliance to the nearest authorized service agency. In the event of a malfunction, GENERAL will not be held responsible for spoilage of products, loss of sales or consequential damages. In the event a replacement unit is to be supplied, TLC will cover all costs to replace the defective product including associ­ated shipping costs to deliver a new produc tomer but only after satisfactory evaluation of the origi­nal unit by an authorized TLC service agent. See the back cover of this manual for all limited warranty details.
1
f installation for warranty activation.
however the end user may be directed to
t to the cus-
P/N GENSLICERMAN
RevA 10-2011
GSE-109-110-112 SLICER
OWNER INFORMATION
SERVICE/TECHNICAL ASSISTANCE
If you experience any problems with the installation or operation of your GSE-109, GSE-110 or GSE-112 slicer, contact your local The Legacy Companies Authorized Service Agency. You can also contact TLC Technical Service at anytime to find your local servicer or visit our website for more details
Please fill in the information below and have it handy when calling your authorized service agency for assis­t
ance. The serial number is on the specification plate
located
Purchased From:
Date of Purchase:
Model No.:
Serial No.:
Mfg. No.:
on the rear of the unit.
(CONTINUED)
Refer to the service agency directory and fill in the information below:
Authorized Service Agency
Name:
Phone No.:
Address:
When having your quality General product serviced please use only genuine General replacement parts. Use of replacement parts other tha
manufacturer will void the warranty. Your
the Authorized Service Agency has access to a complete supply of parts for this unit.
You may also contact TLC at 1-877-368-2797 if you have trouble locating your local authorized service agency.
n those supplied by
GENERAL PRODUCT INFORMATION
GENERAL FEATURES
• GENERAL’s all purpose slicers use a solid all stainless steel belt driven drive shaft powered by powerful 115 Volt motor.
• Aluminum die cast base finished in a silver epoxy powder coating with an added anti-microbrial fin­ish for easy cleaning and sanitizing
• Stainless steel ball bearings for long lasting quiet use.
• Safety interlock switch to prevent harm when cleaning an
Safety gard edge around the knife to help prevent
• injury
• Strong, reliable, moisture resistant switches pro­vide for continuous operation.
• Motor overload switches
d removing the knife.
GSE-109 is equipped with a 110 Watt, motor that is completely enclosed, permanently lubricated and thermally protected motor
• Cut Capacity: 7.5” x 5” (191mm x 127mm)
• Cut Thickness: 9/16” (143mm)
• Knife Diameter: 9” (229mm)
• Dimensions: 16” W x 18” D x 15” H
(406mm W x 457mm D x 381mm H)
GSE-110 is equipped with a 120 Watt, motor that is completely enclosed, permanently lubricated and thermally protected m
Capacity: 8” x 6.5” (203mm x 165mm)
• Cut
• Cut Thickness: 9/16” (143mm)
• Knife Diameter: 10” (254mm)
otor
• The GSE-109, GSE-110 and GSE-112 utilize a six foot, NEMA 5-15P, 120 volt insulated power cord for use in a standard 5-15R, 15 amp power receptacle
P/N GENSLICERMAN RevA 10-2011
• Dimensions: 17” W x 21” D x 15” H
(432mm W x 533mm D x 381mm H)
2
GSE-109-110-112 SLICER
GENERAL PRODUCT INFORMATION
GSE-112 is equipped with a 250 Watt, motor that completely enclosed, permanently lubricated
is and thermally protected motor
• Cut Capacity: 9” x 7” (229mm x 178mm)
• Cut Thickness: 9/16” (143mm)
• Knife Diameter: 12” (305mm)
• Dimensions: 20” W x 22” D x 18” H
(508mm W x 559mm D x 457mm H)
(CONTINUED)
IMPORTANT SAFETY INFORMATION
Throughout this manual, you will find the following safety words and symbols that signify important safety issues
with regards to operating or maintaining the unit.
WARNING
GENERAL WARNING. INDICATES INFORMATION IMPORTANT TO THE PROPER OPERATION OF THE EQUIPMENT. FAILURE TO OBSERVE MAY RESULT IN DAMAGE TO THE EQUIPMENT AND/OR SEVERE BODILY INJURY OR DEATH.
ELECTRICAL WARNING: INDICATES IMPORTANT INFORMATION RELATING TO POSSIBLE SHOCK HAZARD. FAILURE TO OBSERVE PROPER PRE­CAUTIONS MAY RESULT IN DAMAGE TO THE EQUIPMENT AND/OR SEVERE BODILY INJURY OR
DEATH
.
WARNING
CAUTION
GENERAL CAUTION: INDICATES INFORMATION IMPORTANT TO THE PROPER OPERATION OF THE EQUIPMENT. FAILURE TO OBSERVE THIS CAUTION COULD RESULT IN DAMAGE TO THE EQUIPMENT
In addition to the warnings and cautions in this manual, use the following guidelines for safe operation of your new
General product.
• Read all instructions before using equipment.
• For your safety, the equipment is furnished
with a properly grounded cord connector. Do not attempt to defeat the grounded connector.
• Install or locate the equipment only for its
intended use as described in this manual. Do not use corrosive chemicals on or in this equipment.
• Keep cord away from heated surfaces.
• Do not immerse cord or plug in water.
HOT SURFACE WARNING. INDICATES INFORMA­TION IMPORTANT TO THE HANDLING OF EQUIP­MENT AND PARTS. FAILURE TO OBSERVE CAU­TION COULD RESULT IN PERSONAL INJURY.
• Do not operate this equipment if it has a dam­aged cord or plug; if it is not working proper­ly, or if it has been damaged or dropped.
• This equipment should be serviced by quali­fied personnel only. Contact the nearest General authorized service facility for repair.
• Do not block or cover any openings on the unit.
• Do not allow cord to hang over edge of table or counter.
WARNING
3
P/N GENSLICERMAN
RevA 10-2011
GSE-109-110-112 SLICER
IMPORTANT SAFETY INFORMATION
The following warnings and cautions appear throughout this manual and should be carefully observed.
• Turn the unit off, disconnect the power source and allow unit to cool down before performing any service or maintenance on the unit.
• The procedures in this chapter may include the use of chemical products. These chemi­cal products will be highlighted with bold face letters followed by the abbreviated HCS (Hazard Communication Standard). See Hazard the appropriate Material Safety Data Sheets (MSDS).
• The equipment should be grounded according to local electrical codes to prevent the possi­bility of electrical shock. It requires a ground­ed receptacle with separate electrical lines, protected by fuses or circuit breaker of the proper rating.
• All electrical connections must be in accor­dance other applicable codes.
- Electrical ground is required on this appli-
- Do not modify the power supply cord plug.
- Do not use an extension cord with this
- Check with a qualified electrician if you are
Communication Standard manual for
with local electrical codes and any
ance.
If it does not fit the outlet, have a proper outlet installed by a qualified electrician.
appliance.
indoubt as to whether the appliance is properly grounded.
(continued)
This equipment is to be installed to comply
• with the basic plumbing code of the Building Officials and Code Administrators, Inc. (BOCA) and the Food Service Sanitation Manual of the Food and Drug Administration (FDA).
• Do not clean this appliance with a water jet.
• Do not use a sanitizing solution or abrasive materials. The use of these may cause dam­age to the stainless steel finish.
• Chlorides or phosphates in cleansing agents (e.g.
bleach, sanitizers, degreasers or deter­gents) could cause permanent damage to stainless steel equipment. The damage is usually in the form of discoloration, dulling of metal surface finish, pits, voids, holes or cracks. This damage is permanent and not covered by warranty:
The following tips are recommended for main­tenance of your stainless steel equipment,
- Always use soft, damp cloth for cleaning, with clear water and wipe dry. When
rinse required, always rub in direction of metal polish lines.
- Routine cleaning should be done daily
using soap, mild detergent and water.
- Stains and spots should be sponged using
a vinegar solution as required.
- Finger marks and smears should be
rubbed off using soap and water.
- Hard water spots should be sponged using
a distilled white vinegar solution.
IMPORTANT
General reserves the right to change specifications and product design without notice. Such revisions do
not entitle the buyer to corresponding changes, improvements, additions or replacements for previously
purchased equipment.
P/N GENSLICERMAN RevA 10-2011
4
SPECIFICATIONS
GSE-109-110-112 SLICER
ELECTRICAL RATINGS
GSE-109
Voltage Wattage Amperage Hertz
120
220
220
GEM-120
Voltage Wattage Amperage Hertz
120
220
220
GEM-130
Voltage Wattage Amperage Hertz
120
220
220
110
110
110
120
120
120
250
250
250
1.0
.5
.5
1.0
.5
.5
2.1
1.1
1.1
60
50
60
60
50
60
60
50
60
WARNING
ELECTRICAL SHOCK HAZARD
FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL COULD RESULT IN SERIOUS INJURY OR DEATH.
Electrical ground is required on this appliance.
Do not modify the power supply cord plug. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.
Do not use an extension cord with this appli­ance.
Check with a qualified electrician if you are in do
ubt as to whether the appliance is properly
grounded.
CAUTION
ALL ELECTRICAL CONNECTIONS MUST BE IN ACCORDANCE WITH LOCAL ELECTRICAL CODES OR OTHERWISE IN ACCORDANCE WITH FEDERAL, STATE AND LOCAL AUTHORITIES
ELECTRICAL PLUG CONFIGURATIONS
UNITED STATES
5
P/N GENSLICERMAN
RevA 10-2011
GSE-109-110-112 SLICER
WEIGHTS AND DIMENSIONS
GSE-109
MODEL
GSE-109
DIM A DIM B DIM C WEIGHT
16.0 in 18.0 in 15.0 in 37.5 lbs
SPECIFICATIONS
B
(CONTINUED)
C
A
GSE-110
MODEL
GSE-110
406 mm 457 mm 381 mm 17 Kgs
C
B
A
DIM A DIM B DIM C WEIGHT
17.0 in 21.0 in 15.0 in 44.1 lbs
P/N GENSLICERMAN RevA 10-2011
432 mm 533 mm 381 mm 20.0 Kgs
6
GSE-109-110-112 SLICER
GSE-112
MODEL
GSE-112
SPECIFICATIONS
(CONTINUED)
DIM A DIM B DIM C WEIGHT
20.0 in 22.0 in 18.0 in 55.1 lbs
508 mm 559 mm 457 mm 25 Kgs
DROP N TELL
To help assure you receive your GENERAL prod­uct in the best possible condition, General has installed a “G-Shock” device many of our products. Designed to indicate if there was any unusual shock during transportation The Legacy Companies wants to be assured your product arrives safely without damage.
you first receive your new GENERAL prod-
When uct and before opening the box, you should first inspect the Drop N Tell “G-Shock” device located on the outside of the box near the packing slip. Review the adjacent pictures and determine which picture identifies your device.
Figure 1 does not have an exposed blue chevron indicating your mixer has not sustained unusual shock while being delivered to you from your deal­er or distributor and you may continue to the sec­tion marked UNPACKING.
Figure 2 has an exposed blue chevron indicating your mixer may have been subject to unusual shock during transportation. Although Figure 2 is not an indicator of actual damage, it does indicate that there may have been an issue during the ship-
RECIEVING
ping process. If your “G-Shock” device looks like this, you should immediately notify your shipper, dealer or distributor. You are also encouraged to notify Technical Service at The Legacy Companies at 1-877-368-2797.
Fig. 1: No Chevron OK! Fig. 2: Chevron Exposed FAILED!
SHIPPING DAMAGE
In the unfortunate event your new GENERAL product arrived damaged, contact the carrier immediately (with- in 24 hours) and file a freight damage claim with them. General recomends taking supportive pictures and to save all packing materials when filing a claim. We also recomend ccontacting TLC Technical Service at 1-877­368-2797.
Freight damage claims are the responsibility of the pur­chaser and are not covered under General’s limited warranty.
7
P/N GENSLICERMAN
RevA 10-2011
GSE-109-110-112 SLICER
INSTALATION
UNPACKING
1. Carefully open the box. It should contain the fol­lowing:
GSE-109, GSE-110 or GSE-112 Slicer,
• Warranty Packet,
• Operation Manual,
• Plexi-Gard
2. Remove information packet.
3. Remove all packing materials and protective cov­erings from the slicer.
3. Install Plexi-Gard
CAUTION
WHEN USING CHEMICAL CLEANERS, BE SURE THEY ARE SAFE TO USE ON CAST ALUMINUM SURFACES. SOME CLEANERS WILL TARNISH AND PIT THE SURFACE
NOTE: Do not use a dripping wet cloth. Wring out before use.
4. Wash all removable parts in soap and water. Rinse with clean hot water and allow to air dry.
5.
Wipe all surfaces of the unit with a hot damp cloth and a mild detergent.
EQUIPMENT SETUP
• Do not allow the cord to hang over edge of table or counter.
• Before attaching any accessories or attachments to the slicer, refer to the operating instructions.
• Tighten the black thumb screw to secure the knife sharpener located at the top of the slicer.
• Tighten the black thumb screw to secure the knife
, located on the rear of the slicer directly
cover behind the knife
• Tighten the large black hand screw locate on the front slide to secure the product pusher arm.
• Turn the depth gage to assure free movement of the product tray.
(CONTINUED)
ELECTRICAL
1. Place the unit on a sturdy, level table or other solid work surface.
WARNING
FAILURE TO FOLLOW ESTABLISHED OPERATING PROCEDURES CAN BE HAZZARDOUS TO YOUR HEALTH. FAILURE TO COMPLY CAN RESULT IN ELETRICAL SHOCK, SERIOUS INJURY OR DEATH.
6. Re-install all removed parts.
EQUIPMENT SETUP
When placing the unit into service, pay attention to the following guidelines:
• Assure the appliance is placed upon a solid, sta­ble platform.
• Do not block or cover any openings on your GSE slicer.
• Assure the chosen installation location is solid and level.
• Do not use extention cords
• Install the slicer in a well-lighted area with ade­quate unobstructed space to allow free move­ment by the operator..
P/N GENSLICERMAN RevA 10-2011
2. Ensure that the line voltage corresponds to the stated voltage on the mixer specification label and power cord warning tag.
3. Connect the unit to the power supply.
NOTE:
NOTE: Do not conncet without an approved earth
8
Do not use extension cords with this appli-
ance.
ground.
OPERATING INSTRUCTIONS
GSE-109-110-112 SLICER
OPERATION
WARNING
OPERATING THIS MACHINERY CAN BE HAZ­ARDOUS TO YOUR HEALTH. FAILURE TO FOLLOW INSTRUCTIONS CAN CAUSE SERIOUS INJURY OR DEATH. PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE OPERATING.
OPERATION - PREP FOR USE
CAUTION
USE CARE WHEN REMOVING PACKING MATERI­ALS SUCH AS TAPE AND BAGS. SOME EDGES ARE SHARP AND CAN CAUSE INJURY.
1. Set the slicer on a stable platform.
2. Be sure all shipping materials have been com­pletely removed.
WARNING
BEFORE PROCEDING TO STEP (3), BE SURE THE UNIT IS UNPLUGGED. FAILURE TO DO SO COULD CAUSE SEVERE INJURY.
WARNING
THE WEARING OF LOOSE CLOTHING OR HANGING JEWELRY CAN BECOME CAUGHT IN THE CAR­RIAGE AND KNIFE AND CAN CAUSE SEVERE BOD­ILY INJURY.
7. Wearing protective gloves, cup the carriage assembly and lift in an upward motion to remove it from its mount.
8. Carefully take all of the removed parts to the sink to be washed in a warm soapy solution, sanitized, then set to air dry.
9. Using a warm soapy solution and a clean hand cloth, wipe all of the machine surface useing extra care when cleaning the knife.
NOTE: Use extra care when cleaning the surface of
slicer as the knife has a very sharp edge.
the
10. Once washed, use an new cloth and rinse the slicer with a sanitizing solution and let air dry.
11. After the slicer dries, reinstall all of the removed parts in the reverse order in which they were removed.
3. Un-screw the knfe sharpener assembly located at the top of the slicer knife by loosening the black knob/screw behind it. Gently lift and remove the sharpener.
NOTE: With the knife sharpener removed a portion
of the knife will be exposed
4 Located at the center rear of the slicer in the
cover lock. Turn the knob counter clock-
knife wise until it slides free from the machine.
5. Remove the locking rod about 2 inches from its housing then push it back in until it stops. The cover over the knife will move away from the disk allowing you to carefully remove it.
6. Un-screw the large black knob located under the carriage at the front of the machine.
NOTE: The GSE-110 and 112 have a locking screw
located just below the knob. It must be turned counter clockwise to loosen.
CAUTION
USE EXTREME CAUTION WHEN CLEANING A SLICER AS THERE ARE AREAS THAT ARE VERY SHARP AND EXPOSED DURING THE CLEANING PROCESS.
OPERATION - PREPERATION
1. Be sure the table is secure and the slicer does not move.
2. Check the knife sharpener to assure it is in the “normal operating position” and locked in place by turning rotation until it stops
3. Check the carriage lock and assure it is locked by turning it clockwise until it stops.
4. Verify the knife cover is secured by turning the knob clockwise until it stops.
9
the black locking knob in a clock wise
P/N GENSLICERMAN
RevA 10-2011
GSE-109-110-112 SLICER
OPERATION
OPERATION - PREP (CONTINUED)
5. Verify the cut thickness dial located on the front left of the slicer turns freely and moves the guide
accordingly.
plate
6. Loosen the guide plate locking screws located adjecent to the knife sharpening tool and back the lock screw away from the plate.
7. Adjust the cut thickness to your desired setting.
8. Adjust the guide plate lock to rest against the plate and secure by tightening the locking nut on the screw.
NOTE: The guide plate locking screw is used to
assure a consistant cut depth each time you
your product.
slice
9. Plug the slicer in to a grounded 120VAC plug.
WARNING
REMOVING THE GROUND OR CONNECTING TO AN UN-APPROVED OUTLET CAN RESULT IN ELETRI­CAL SHOCK, SERIOUS INJURY OR DEATH.
(CONTINUED)
SLICING PRODUCT
1. With your right hand. Hold the black handle on the press plate and push in a forward motion with an easy even motion.
2. With your left hand, place behind the carriage to catch the product after it has been cut.
WARNING
DO NOT REACH FOR OR GRAB THE PRODUCT AS IT IS BEING SLICED. DOING SO RUNS THE RISK OF BODILY HARM.
3. When you are done slicing the product, be sure to pull the carriage back so the product is off the knife.
Turn off the slicer by pressing the black button
4. with the white circle. This is a momentary button and will sring out when you release it.
5. When the knife stops, remove the remaining un sliced product by lifting the press plate away from the product, then removing the product.
10. Before applying product, be sure all locking screws are secure.
CAUTION
WHEN OPERATING A SLICER DO NOT WEAR LOSE FITTING CLOTHING, JEWELRY, ETC... DOING SO RUNS THE RISK OF BECOMING CAUGHT IN THE KNIFE OR CARRIAGE AND CAN CAUSE BODILY HARM.
11. Apply product to the cutting plate by sliding the press plate away from the guide plate.
12. Once the product to be sliced is in the carriage, lower the press plate against the product.
13. Turn the slicer on by pressing the white square power button with the horizontal line through it located slicer.
near the depth dial on the left side of the
CLEANING
1. Un-plug the slicer.
2. Set the slicing depth dial to zero.
NOTE: Setting the slicing depth to zero covers the
leading edge of the knife to protect against harm.
3. Remove the knife sharpener, knife cover, and carriage assembly as described on page 9 “OPERATING INSTRUCTIONS” and wash in the sink using warm soapy water to wash, a warm sanitizing solution to rinse and let stand to air dry
NOTE:
Never use an abrasive pad or cleaner to wash the slicer or its parts. Doing so will damage the finish.
4. Using a clean warm soapy cloth, wash all sur­faces of the slicer taking special care when cleaning the knife.
5. Once the slicer has been washed, use a clean soft dry cloth to towel dry the machine.
.
P/N GENSLICERMAN RevA 10-2011
10
GSE-109-110-112 SLICER
OPERATION
CLEANING (CONTINUED)
6. RInse the slicer with warm sanitizing solution, again taking care on and around the knife. the let the machine air dry.
7. Once dry, reassemble the slicer with the parts cleaned at the sink.
8. Leave the unit unplugged until its next use.
MAINTENANCE
KNIFE:
1. After each use and after the slicer has been
cleaned and sanitized, With the cutting surface with a liquid vegetable oil (seasoning). This pre-
s pitting and any possibility of corrosion.
vent
2. Sharpen the knife daily to remove and chipping
that may have occurred and to assure a sharp clean edge every time. (Refer to the knife sharen-
ing information found latr in this section)
CARRIAGE GUIDE:
(CONTINUED)
PRESSER AXEL LUBRICATION
3. The presser guide bar can be lubricated daily for optimal use.
SHARPENER LUBRICATION:
1. Remove the sharpener from its mounted position by loosening the black locking knob.
2. Using a clean dry towel, clean the guide bar of any debris.
3. Apply cooking oil to the guide bar and re-assem­ble.
4. This operation can be done daily or weekly depending on usage.
THICKNESS
1. With the slicer placed carefully on its side, locate the thickness dial on the left sideof the machine.
2. Turn the dial to its maximum setting. Using a clean dry cloth, wipe away and dirt and debris. Turn the dial to its minimum setting and repeat.
DIAL LUBRICATION:
(Continued):
1. Carefully lift the front of the machine up so the slicer rests on its back side exposing the under­side of the carriage and slide bar.
2. Push the carriage to one side and with a clean
towel wipe away the dirt and grease that may
dry have accumulated. Push the carriage to the opposite side and repeat the process.
3. Using a food grade grease, smear a liberal amount onto the guide bar.
4. Slide the guide back and forth to work the grease evenly onto the guide bar.
5. Lubricate weekly for optimum trouble free opera­tion.
PRESSER AXEL LUBRICATION:
1. Clean the pusher slide bar by first wiping the exposed the pusher to the opposite end and repeat the cleaning to the lower portion of the bar.
2. Using liquid cooking oil, wipe a libral amount onto the bar, then raise oan lower the pusher to evenly distribute the oil along the guide bar.
portion with a clean dry cloth. Then lift
3. Using a food grade grease, apply a liberal amount into the channel of the dial.
4. Turn the dial to its maximum position and then to
s lowest to work the grease into the cam.
it
5. This operation can be done weekly or as needed
KNIFE SHARPENING:
1. loosen the sharpener locking screw on the back, bottom of the knife sharpener.
2. Lift the sharpener about 2 inches and rotate it 180 degrees.
NOTE: Once turned the sharening stones will be
over the blade. Use care when handling.
3. Secure the sharpener by tightening the locking screw.
4. With the slicer off, press the rear button (facing
from the slicer) gently and verify it is flush
away with the blade. If no, the loosen the locking screw to adjust.
5. Once the sharpening stones are flush with the blade, secure the sharpener by tightenng.
11
P/N GENSLICERMAN
RevA 10-2011
GSE-109-110-112 SLICER
OPERATION
MAINTENANCE (CONTINUED)
6. Turn the machine on and press the rear silver button on the sharpener lightly until you hear the stone against the blade.
CAUTION
WHEN SHARPENING THE KNIFE, PROTECTIVE EYEWEAR SHOULD BE WORN AT ALL TIMES TO PROTECT AGAINST FLYING DEBRIS.
7. Hold the button in for at least one minute then release
(CONTINUED)
8. Press the front silver button gently until you hear the stone against the blade. Hold for 3 to 5 sec­onds to clean the oposite side of the knife of burrs created from the sharpening process.
9. Once sharp, turn off the slicer and unplug. With a clean dry towel, carefully wipe the blade clean of any remaing debris. Clean with a warm soapy solution, wipe, then using a warm sanitizing solu­tion wipe the blade again.
Once dry, apply liquid vegatable iol to the cutting
10. edge to season the steel against pitting and cor­rosion.
11. This operation can be performed as needed.
P/N GENSLICERMAN RevA 10-2011
12
GEM-110/120/130 MIXER
REPLACEMENT PARTS (GSE-110)
13
P/N GENSLICERMAN
RevA 10-2011
GSE-109-110-112 SLICER
REPLACEMENT PARTS (GSE-110)
P/N GENSLICERMAN RevA 10-2011
14
GSE-109-110-112 SLICER
REPLACEMENT PARTS (GSE-110)
15
P/N GENSLICERMAN
RevA 10-2011
GSE-109-110-112 SLICER
REPLACEMENT PARTS (GSE-112)
P/N GENSLICERMAN RevA 10-2011
16
GSE-109-110-112 SLICER
REPLACEMENT PARTS (GSE-112)
17
P/N GENSLICERMAN
RevA 10-2011
GSE-109-110-112 SLICER
NOTES
P/N GENSLICERMAN RevA 10-2011
18
Loading...
