HIGH POWER MULTI
AIR CONDITIONER
WALL MOUNTED
type
Models Indoor unit Outdoor unit
ASY12EMBCW AOY32ESAM4
ASH12EMBCW AOH32ESAM4
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . 3
ERROR DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

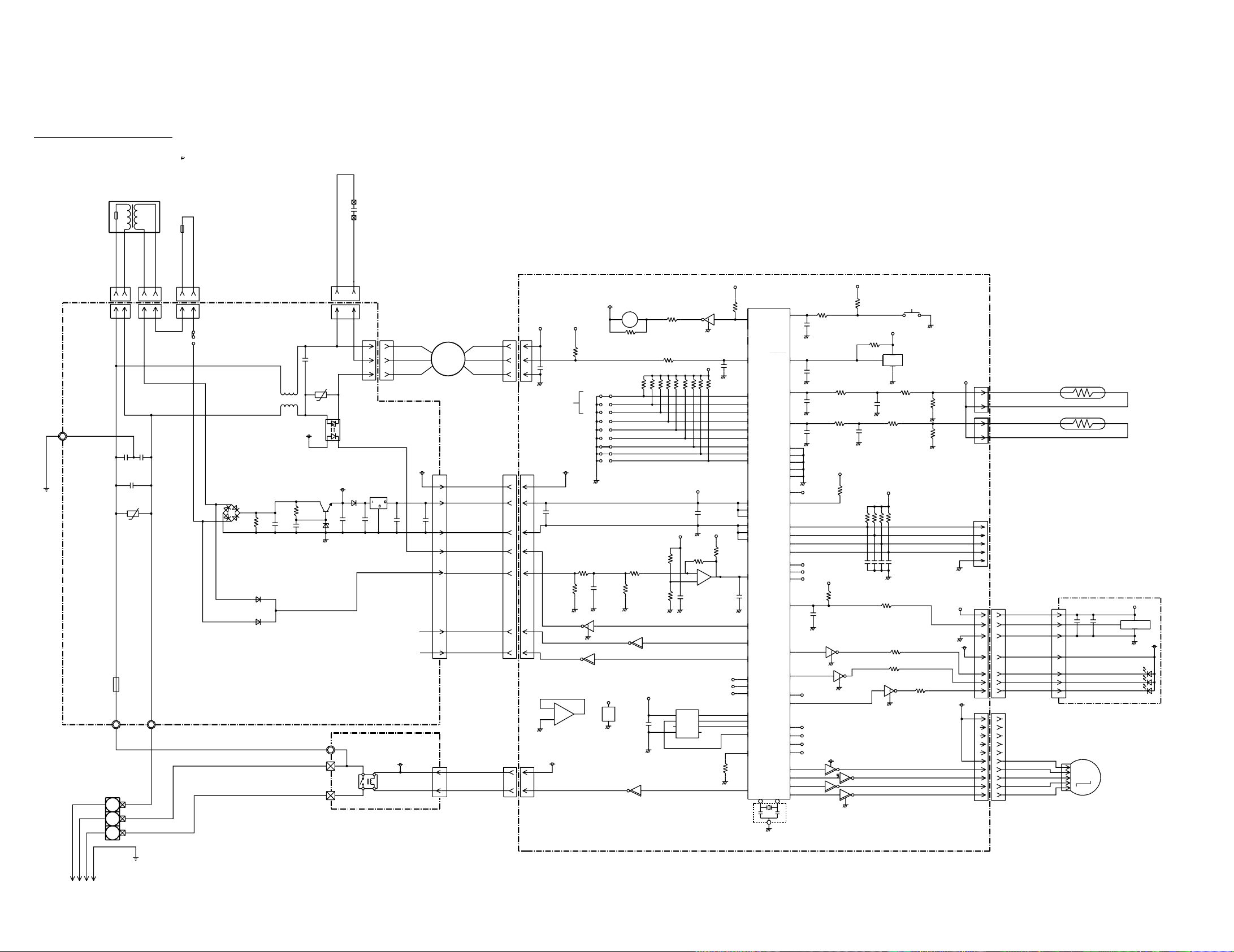

CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
INDOOR PRINTED CIRCUIT BOARD CIRCUIT DIAGRAM . . . . . 6
OUTDOOR PRINTED CIRCUIT BOARD CIRCUIT DIAGRAM . . . 7
DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SPECIFICATIONS
TYPE
OPERATION
INDOOR UNIT
OUTDOOR UNIT
COOLING CAPACITY (kW )
ELECTRICAL DATA
POW ER S OURCE (V)
FREQUENCY (Hz)
RUNNING CURRENT (A)
INPUT WATTS (kW )
E.E.R. (kW /kW)
MOIS TURE REMOVAL ( /hr)
AIR CIRCULATION-Hi (m
COMPRES S OR
TYPE
CODE
3
/hr)
COOL
1 UNIT 4 UNITS
ASY12EMBCW, ASH12EMBCW
AOY32ESAM4, AOH32ESAM4
3.45 - 3.50 9.10 - 9.40
220 - 240
50
6.5 - 6.5 13.7 - 13.7
1.35 - 1.43 2.85 - 3.10
2.55 - 2.45 3.19 - 3.03
1.2 0.8 x 4
500
Hermetic type, Permanent split condenser,
2 pole, Single phase, Induction motor,Rotary
802 356 45 E
FAN MOTOR
POW ER SOURCE (V)
HI-SPEED (r.p.m.)
INDOOR UNIT
OUTDOOR UNIT HI-SPEED (r.p.m.)
MED-SPEED (r.p.m.)
LO-SPEED (r.p.m.)
QUITE (r.p.m.)
240
1,330
1,260
1,190
1,100
790
DIMENSIONS
INDOOR UNIT
OUTDOOR UNIT
H x W x D (mm)
260 x 815 x 175
1,152 x 940 x 370
WEIGHT
INDOOR UNIT
OUTDOOR UNIT
GROSS / NET (kg)
10 / 8
115 / 101
REFRIGERANT CHARGE R407C
TOTAL PIPE LENGTH 0 to 20 m 25 m 30 m
A1 + A2 or B1 + B2 (0 to 66 ft) (82 ft) (98 ft)
FULL CHARGE AMOUNT
1,150 g 1,250 g 1,350 g
(40.6 oz) (44.1 oz) (47.7 oz)
- 1 -2003.08.04
DIMENS IONS
INDOOR UNIT
260
OUTDOOR UNIT
Unit : mm
815
175
370
1,152
23
425
400
650
940
- 2 -2003.08.04
Pipe
Thermistor
Heat Exchanger
(Evaporator)
Heat Exchanger
(Condenser)
Compressor B
( Rotary )
Compressor A
( Rotary )
Main
Capillary
Tube
Main
Capillary
Tube
DistributorDistributor
Balance
Capillary
Tube
Balance
Capillary
Tube
Refrigerant pipe
(LIQ) : 6.35mm
(1/4") x 4
Refrigerant pipe
(GAS) : 12.7mm
(1/2") x 4
OUTDOOR UNIT
INDOOR UNIT A2
UNIT A UNIT B
3-way
Valve
2-way
Valve
3-way
Valve
2-way
Valve
Pipe
Thermistor
Heat Exchanger
(Evaporator)
INDOOR UNIT B1
2-way
Valve
Solenoid
Valve B1
Solenoid
Valve A1
Solenoid
Valve A2
3-way
Valve
Dryer
Dryer
Pipe
Thermistor
Heat Exchanger
(Evaporator)
INDOOR UNIT B2
2-way
Valve
Solenoid
Valve B2
3-way
Valve
Pipe
Thermistor
Heat Exchanger
(Evaporator)
INDOOR UNIT A1
REFRIGERANT SYSTEM DIAGRAM
SPECIFICATIONS
Models : ASY12EMBCW / AOY32ESAM4
ASH12EMBCW / AOH32ESAM4
- 3 -2003.08.04
INDOOR UNIT
ERROR DISPLAY
Error contents
Error display
OPERATION TIMER SWING
(RED) (GREEN) (ORANGE)
Indoor unit circuit board error
Indoor unit room temperature sensor wire
error
Indoor unit piping sensor wire error
Indoor unit fan error
Fast flashing
O :
OUTDOOR UNIT
THERMISTOR DISCHARGE PIPE abnormal
Slow flashing
● :
OO
2 times
3 times
6 times
LED D18 blinking display 0.1 sec ON / 0.1 sec OFF
● O
● O
● O
Off
:
Error display (PCB)Error contents
¥ Above PCB : UNIT A, below PCB : UNIT B.
- 4 -2003.08.04
