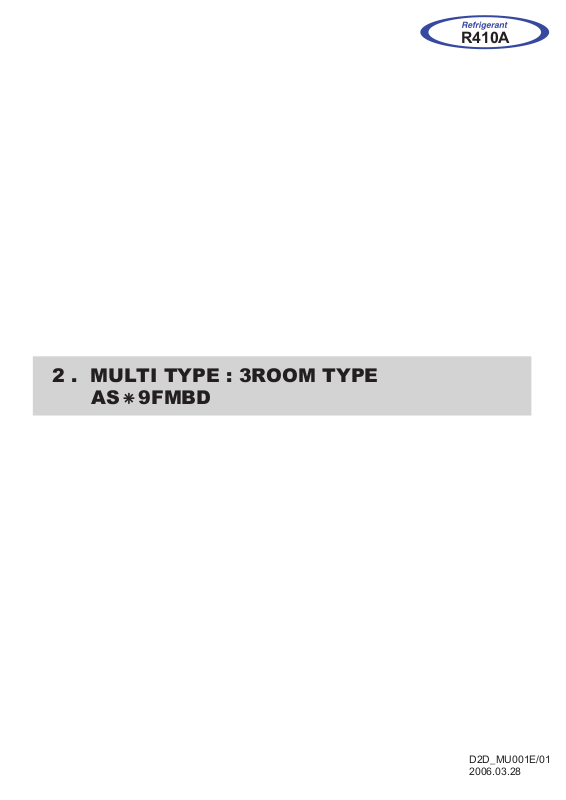

R410A
2 . MULTI TYPE : 3ROOM TYPE
AS 9FMBD
D2D_MU001E/01
2006.03.28
Page 2
2-1. FEATURE
MODELS :
AS 9FMBD / AO 20FSAV3
MULTI TYPE
3ROOM TYPE
FEATURES
MULTI TYPE
3ROOM TYPE
Symmetrical design
Symmetrical, clean design that suits all interiors.
Compact size
Powerful output in spite of small size
Though the indoor unit is compact, it features a large, high
pressure cross fan (90mm diameter) in a centre mounted
configuration and a Lambda type heat exchanger to provide
plenty of power.
Unit: mm
Height 257
Width 808
Depth 187
Auto swing louvre
The Auto Swing Louvre function ensures that the
air direction corresponds to the mode selected.
Cooling : 3-step ( - )
Heating : 6-step ( - )
S
win
Step
Swing
*1 : Heating only
g
Swin
g
*1
Washable open panel
Cleaning the washable panel
removes mould and dust.
A regular wipe with a dry cloth
keeps the casing clean.
- (02 - 01) -
Since the panel is removed and
easily washed, it is always
clean. Filter cleaning is also
simple.
Page 3
2-2.
REMOTE CONTROLLER
2-2-1. WIRELESS REMOTE CONTROLLER
FEATURES
Three kinds of timer setup (ON / OFF / SLEEP) are possible.
Three kinds of timers. Easy operation.
MULTI TYPE
3ROOM TYPE
Built-in timers
Select from three different timer programs (On/Off/Sleep).
Sleep timer
The sleep timer function automatically corrects the temperature thermostat setting according to the
time setting to prevent excessive cooling and heating while sleeping.
MULTI TYPE
3ROOM TYPE
Cooling operation/dry operation
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Timer setting
60min.
1 °C
2 °C
SPECIFICATION
SIZE (H x W x D mm) 138 x 56 x 19
WEIGHT ( g ) 68
ACCESSORY Holder
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The
set temperature can drop to a maximum of 4 °C.
1 °C
2 °C
3 °C
4 °C
30min.
60min.
90min.
Timer setting
- (02 - 02) -
Page 4
2-3. SPECIFICATIONS
1 ROOM RATED 1 ROOM RATED
EUROPEAN ENERGY LABEL COOLING - -
kW 2.50 2.80
BTU/h 8,500 9,600
INPUT POWER COOLING RATED k W 0.85 1.05
CURRENT COOLING RATED A 4.0 4.8
A 19.5 21.0
EER COOLING kW /kW 2.94 2.66
l/h (pints/h) 0.8 ( 1.7 ) 1.0 ( 2.1 )
High 520 520 520 520 520
Med 470 470 470 470 470
Low 420 420 420 420 420
Quiet 380 380 380 380 380
High 3200 3200
Low
High 1310 1310 1310 1310 1310
Med 1190 1190 1190 1190 1190
Low 1070 1070 1070 1070 1070
Quiet 960 960 960 960 960
High 780 780
Low - -
INDOOR
OUTDOOR
INDOOR 13 13 13 13 13
OUTDOOR 67 67
High 40.0 40.0 40.0 40.0 40.0
Med 37.0 37.0 37.0 37.0 37.0
Low 34.0 34.0 34.0 34.0 34.0
Quiet 31.0 31.0 31.0 31.0 31.0
- -
OUTPUT W 700 900
Rows x Stages
Fin Pitch
Coil Dimensions
Rows Stages
Fin Pitch
Coil Dimensions
INDOOR
OUTDOOR
INDOOR
OUTDOOR
INDOOR
OUTDOOR
INDOOR
OUTDOOR
INDOOR
OUTDOOR
LIQUID
GAS
m 15(chargeless:7.5) B1+B2:20(chargeless:15)
m 8 8
CHARGE g 750 850
COOLING
HEATING
mm
Wireless
Soft PVC
Outer diameter 17.0 / Inner diameter 12.0
FLARE
6.35(1/4 inc.)
9.52(3/8 inc.)
15(chargeless:7.5) / 20 (chargeless:15)
R410A
-
ROTARY
230V 50Hz
-
8 / 8
750 + 850
POE
18 to 43
-
61 (134)
10 (22)
White (10Y8.5/0.5NN)
Beige(10YR7.5/1.0NN)
257×808×187
700×900×330
840×1050×445
8 (10)
2×12
1.3
252×632×26.6
Copper tube
Aluminium
Propeller ×1
52.0
700 + 900
67
780
3200
Permanent Starting Condenser
Copper tube
MULTI SATELLITE SYSTEMS
COOLING TYPE
A
6.05
3 ROOMS RATED
8.4
19.5 + 21.0
68 (150)
198-264V 50Hz
20,700
1.88
Cross flow fan ×1
3.22
2.0 ( 4.2 )
270×850×310
mm
mm
Aluminium
2×32
1.45
672×900×36.4
AVAILABLE VOLTAGE RANGE
CAPACITY
COOLING
TYPE
MODEL NAME
INDOOR
OUTDOOR
POWER SOURCE
RATED
INDOOR
FAN SPEED
INDOOR
STARTING CURRENT
MOISTURE REMOVAL
AIR
CIRCULATION
r.p.m
OUTDOOR
m3/h
OUTDOOR
FAN TYPE x Q'ty
FAN MOTOR OUTPUT
W
NOISE LEVEL
(SOUND
PRESSURE)
INDOOR
dB(A)
OUTDOOR
COMPRESSOR
TYPE
STARTING METHOD
HEAT
EXCHANGER
TYPE
INDOOR
Coil
Fin
OUTDOOR
Coil
Fin
TYPE
CASING COLOR
DIMENSIONS
H ×W ×D
NETmmGROSS
NET
kg(lb)
GROSS
PIPE
DRAIN HOSE
DRAIN PIPE
MATERIAL
SIZE
OPERATION(OUTDOOR)
REFRIGERANT OIL
MAX HEIGHT
WEIGHT
REMOTE CONTROLLER TYPE
REFRIGERANT
TYPE
CONNECTION METHOD
SIZE
mm
MAX LENGTH
AS 9FMBD (UNIT A) AS 9FMBD (UNIT B1/ B2) AS 9FMBD (UNIT A) AS 9FMBD(UNIT B1) AS 9FMBD (UNIT B2)
MULTI TYPE
3ROOM TYPE
AO 20FSAV3
MULTI TYPE
3ROOM TYPE
Note: Specifications are based on the following conditions.
Cooling: Indoor temperature of 27 °CDB / 19 °CWB,and outdoor temperature of 35 °CDB/24 °CWB.
Pipe length : 7.5 m, Height difference : 0 m.(Outdoor unit - Indoor unit)
OUTDOOR UNIT INDOOR UNIT
COMP A
°C
A
COMP B
B 1
B 2
- (02 - 03) -
Page 5
2-4. DIMENSIONS
2-4-1. OUTDOOR UNIT
MODEL : AO 20F3
MULTI TYPE
3ROOM TYPE
(Unit : mm)
MULTI TYPE
3ROOM TYPE
Top view
Front view
Bottom view
MOUNTING POSITION
When there are obstacles at the
back or front sides.
When there are obstacles at the
back, side(s), and top.
Side view
When there are obstacles at the
back, side with the installation of
more than one unit.
600 mm
or more
100 mm
or more
100 mm
or more
250
(
S
er
mm or
v
i
c
e s
more
pac
- (02 - 04) -
600 mm or more
250 mm
300 mm
or more
e)
or more
250 mm
or more
300 mm
or more
Page 6
2-4-2. INDOOR UNIT
MODEL : AS 9F
(Unit : mm)
WALL MOUNTED TYPE
808
MULTI TYPE
3ROOM TYPE
257
Front view Side view
187
MULTI TYPE
3ROOM TYPE
MOUNTING POSITION
Left side
50 mm or over
60 mm or over
Right side
50 mm or over
1500 mm
or over
2300 mm or over
- (02 - 05) -
Page 7
2-5. REFRIGERANT CIRCUIT
MODELS : AS 9F / AO 20F3
MULTI TYPE
3ROOM TYPE
MULTI TYPE
3ROOM TYPE
- (02 - 06) -
Page 8

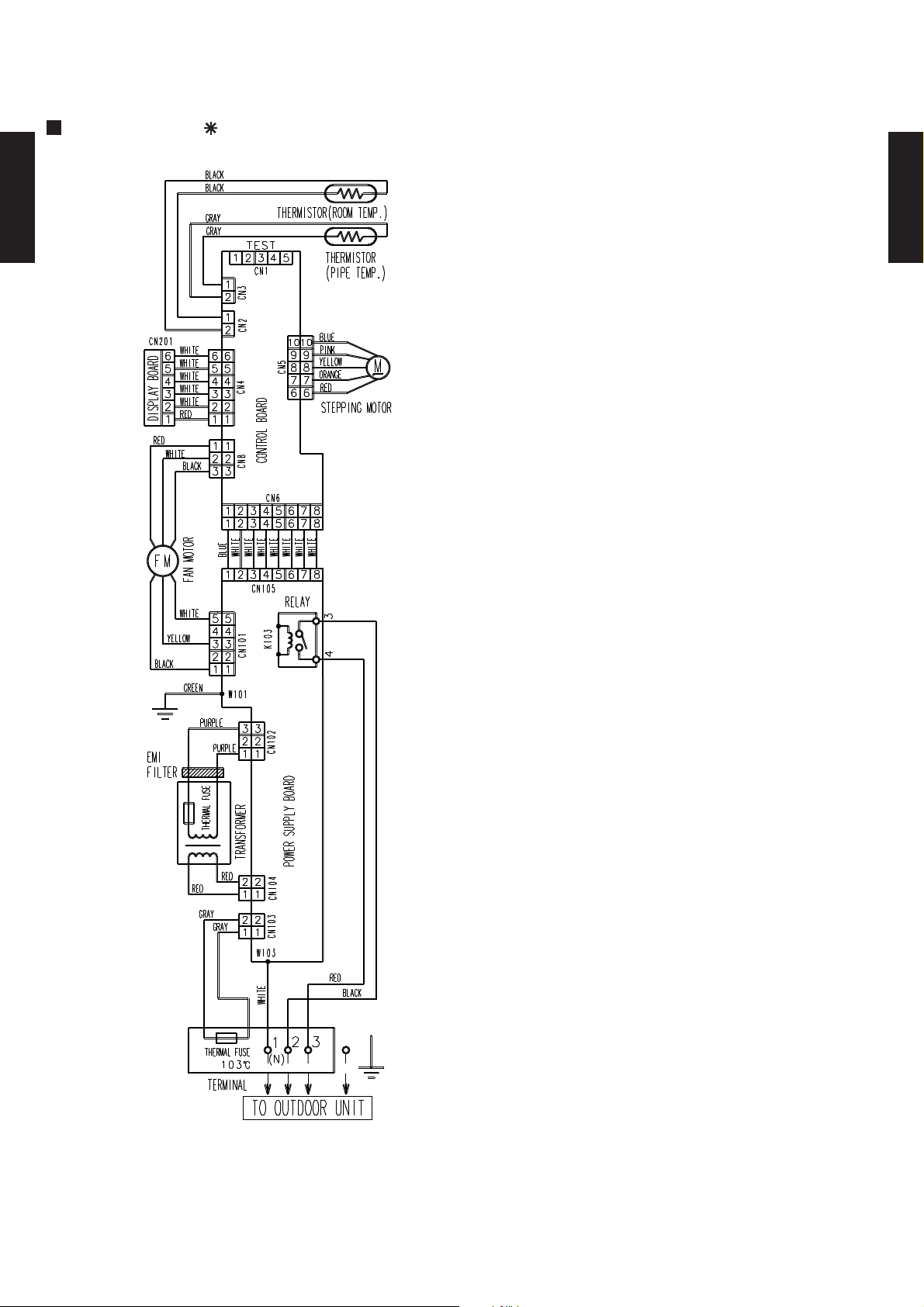

2-6. WIRING DIAGRAMS
2-6-1. OUTDOOR UNIT
MODEL : AO 20F3
MULTI TYPE
3ROOM TYPE
MULTI TYPE
3ROOM TYPE
TO INDOOR UNIT
TO POWER SUPPLY
- (02 - 07) -
Page 9
2-6-2. INDOOR UNIT
MODEL : AS 9F
MULTI TYPE
3ROOM TYPE
MULTI TYPE
3ROOM TYPE
- (02 - 08) -
Page 10
2-7. CAPACITY TABLE
Outdoor temperature
19°CWB
21°CWB
22°CWB
23°CWB
12°CWB
15°CWB
16°CWB
18°CWB
Indoor temperature
18°CDB
21°CDB
23°CDB
26°CDB
27°CDB
29°CDB
30°CDB
32°CDB
Outdoor temperature
32°CDB
12°CWB
15°CWB
16°CWB
18°CWB
19°CWB
21°CWB
22°CWB
23°CWB
Indoor temperature
18°CDB
21°CDB
23°CDB
26°CDB
27°CDB
29°CDB
30°CDB
2-7-1. 1ROOM OPERATION
MODELS : AS 9F(A UNIT) / AO 20F3
COOLING
AFR 8.7
MULTI TYPE
3ROOM TYPE
(°CDB) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
18 2.71 2.07 0.62 2.77 2.08 0.63 2.84 2.09 0.63 2.94 2.21 0.64 2.99 2.20 0.65 3.07 2.18 0.65 3.11 2.16 0.66 3.14 2.27 0.66
21 2.65 2.03 0.65 2.72 2.04 0.66 2.78 2.05 0.67 2.88 2.17 0.68 2.93 2.16 0.68 3.01 2.13 0.69 3.05 2.12 0.69 3.08 2.22 0.70
25 2.60 1.99 0.69 2.67 2.00 0.69 2.73 2.01 0.70 2.83 2.12 0.71 2.87 2.11 0.72 2.95 2.09 0.72 2.99 2.08 0.73 3.02 2.18 0.73
30 2.44 1.90 0.75 2.51 1.91 0.76 2.56 1.93 0.77 2.66 2.04 0.78 2.70 2.04 0.78 2.78 2.02 0.79 2.82 2.01 0.80 2.86 2.11 0.80
35 2.27 1.82 0.82 2.31 1.83 0.83 2.37 1.84 0.83 2.46 1.95 0.84 2.50 1.95 0.85 2.58 1.94 0.86 2.62 1.93 0.87 2.66 2.04 0.87
40 2.06 1.73 0.89 2.09 1.74 0.89 2.14 1.74 0.90 2.23 1.86 0.91 2.27 1.85 0.92 2.35 1.84 0.93 2.39 1.84 0.94 2.43 1.95 0.95
43 1.92 1.65 0.93 1.95 1.67 0.93 2.00 1.67 0.94 2.08 1.79 0.95 2.12 1.79 0.96 2.20 1.79 0.97 2.25 1.79 0.98 2.29 1.90 0.99
MODELS : AS 9F(B1 or B2 UNIT) / AO 20F3
COOLING
MULTI TYPE
3ROOM TYPE
AFR 8.7
(°CDB) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
18 3.03 2.24 0.77 3.11 2.25 0.77 3.18 2.27 0.78 3.30 2.39 0.79 3.35 2.38 0.80 3.44 2.36 0.81 3.48 2.34 0.81 3.52 2.46 0.82
21 2.97 2.20 0.81 3.05 2.21 0.82 3.12 2.22 0.82 3.23 2.35 0.83 3.28 2.34 0.84 3.37 2.31 0.85 3.41 2.30 0.86 3.45 2.41 0.86
25 2.91 2.16 0.85 2.99 2.17 0.86 3.05 2.18 0.87 3.17 2.30 0.88 3.22 2.29 0.88 3.30 2.27 0.90 3.34 2.25 0.90 3.38 2.36 0.91
30 2.73 2.06 0.93 2.81 2.07 0.94 2.87 2.09 0.95 2.98 2.21 0.96 3.03 2.21 0.97 3.11 2.19 0.98 3.16 2.18 0.99 3.20 2.29 0.99
35 2.54 1.97 1.01 2.59 1.99 1.02 2.65 2.00 1.03 2.75 2.12 1.04 2.80 2.11 1.05 2.89 2.10 1.06 2.93 2.09 1.07 2.98 2.21 1.08
40 2.31 1.87 1.10 2.34 1.88 1.10 2.40 1.89 1.11 2.50 2.01 1.13 2.54 2.01 1.14 2.63 2.00 1.15 2.68 1.99 1.16 2.72 2.11 1.18
43 2.15 1.79 1.15 2.18 1.81 1.15 2.23 1.81 1.16 2.33 1.94 1.18 2.38 1.94 1.19 2.47 1.93 1.20 2.52 1.93 1.21 2.56 2.05 1.22
AFR: Air flow rate (m3/min)
TC : Total capacity (kW)
SHC: Sensible Heat capacity (kW)
PI : Power Input (kW)
- (02 - 09) -
Page 11
2-7-2. 3ROOM OPERATION
8.7 + 8.7 + 8.7
Outdoor temperature
32°CDB
12°CWB
15°CWB
16°CWB
18°CWB
19°CWB
21°CWB
22°CWB
23°CWB
Indoor temperature
18°CDB
21°CDB
23°CDB
26°CDB
27°CDB
29°CDB
30°CDB
MODELS : AS 9Fx3(A+B1+B2 UNIT) / AO 20F3
COOLING
AFR
MULTI TYPE
3ROOM TYPE
(°CDB) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
18 6.55 4.96 1.37 6.71 4.98 1.39 6.87 5.01 1.40 7.12 5.29 1.42 7.23 5.27 1.43 7.43 5.22 1.45 7.52 5.19 1.46 7.60 5.44 1.46
21 6.42 4.87 1.44 6.58 4.89 1.46 6.73 4.92 1.47 6.98 5.19 1.49 7.09 5.17 1.50 7.28 5.11 1.52 7.37 5.08 1.53 7.45 5.33 1.54
25 6.30 4.77 1.52 6.45 4.79 1.54 6.60 4.82 1.55 6.84 5.09 1.57 6.95 5.07 1.58 7.14 5.01 1.60 7.23 4.98 1.61 7.31 5.22 1.62
30 5.90 4.55 1.67 6.06 4.58 1.68 6.20 4.63 1.69 6.44 4.90 1.72 6.54 4.89 1.73 6.73 4.84 1.75 6.82 4.82 1.76 6.91 5.07 1.77
35 5.48 4.36 1.82 5.59 4.39 1.83 5.73 4.42 1.84 5.95 4.69 1.87 6.05 4.67 1.88 6.24 4.64 1.90 6.34 4.63 1.92 6.43 4.88 1.93
40 4.99 4.14 1.97 5.07 4.16 1.98 5.18 4.17 1.99 5.39 4.45 2.02 5.50 4.44 2.03 5.69 4.42 2.06 5.78 4.41 2.08 5.87 4.67 2.10
43 4.64 3.95 2.06 4.72 4.00 2.07 4.83 4.01 2.08 5.04 4.29 2.11 5.14 4.29 2.12 5.33 4.28 2.16 5.43 4.28 2.17 5.53 4.55 2.18
AFR: Air flow rate (m3/min)
TC : Total capacity (kW)
SHC: Sensible Heat capacity (kW)
PI : Power Input (kW)
MULTI TYPE
3ROOM TYPE
- (02 - 10) -
Page 12

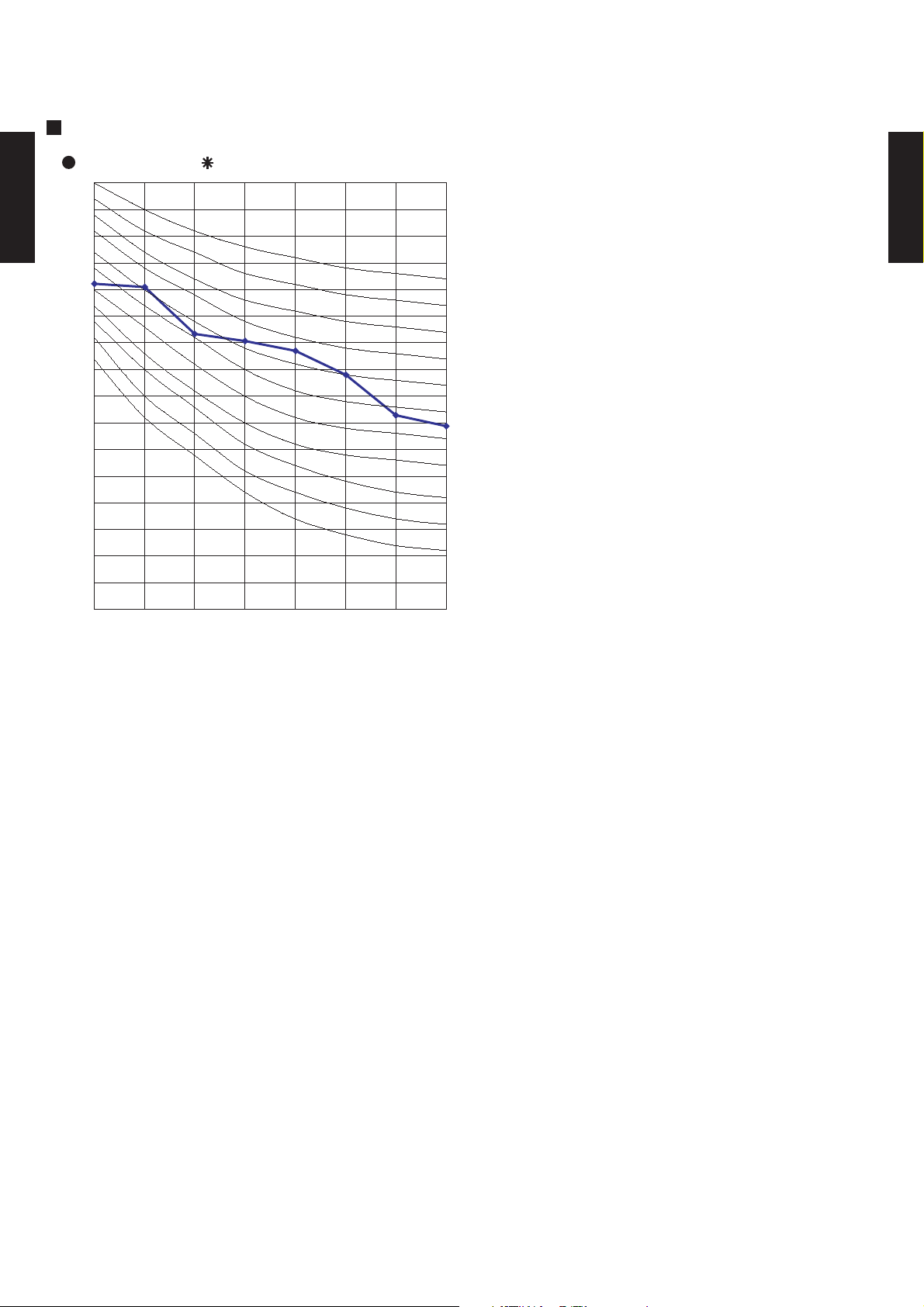

2-8. CAPACITY COMPENSATION FOR PIPE LENGTH
HEIGHT DIFFERENCE (m)
Outdoor unit
is bottom-side
Outdoor unit
is up-side
COOLING
PIPE LENGTH (m)
PIPE LENGTH (m)
COOLING
HEIGHT DIFFERENCE (m)
Outdoor unit
is bottom-side
Outdoor unit
is up-side
AND HEIGHT DIFFERENCE
MODELS : AS 9F(UNIT A) / AO 20F3
COEFFICIENT OF COMPENSATION FOR HEIGHT DIFFERENCE
5 7.5 10 15
MULTI TYPE
3ROOM TYPE
8
- - 0.985 0.952
MULTI TYPE
3ROOM TYPE
5
0
-5
-8 - - 0.973 0.941
1.010 1.000 0.985 0.952
1.010 1.000 0.985 0.952
1.002 0.992 0.977 0.944
MODELS : AS 9F+AS 9F(UNIT B1+B2) / AO 20F3
COEFFICIENT OF COMPENSATION FOR HEIGHT DIFFERENCE
5 7.5 10 15 20
8
- - 0.985 0.952 0.919
5
0
-5
-8 - - 0.973 0.941 0.908
1.010 1.000 0.985 0.952 0.919
1.010 1.000 0.985 0.952 0.919
1.002 0.992 0.977 0.944 0.912
- (02 - 11) -
Page 13
2-9. ADDITIONAL CHARGE CALCULATION
R410A
UNIT A 750 / UNIT B 850
7.5 10 15(max)
0 (Charge less)
10g/m
15 20(max)
0 (Charge less)
10g/m
MODELS : AS 9F / AO 20F3
REFRIGERANT TYPE
REFRIGERANT AMOUNT g
REFRIGERANT CHARGE
MULTI TYPE
3ROOM TYPE
(UNIT A)
PIPE LENGTH m
ADDITIONAL CHARGE g
+25 +75
MULTI TYPE
3ROOM TYPE
(UNIT B1+B2)
PIPE LENGTH (B1+B2) m
ADDITIONAL CHARGE g
+50
- (02 - 12) -
Page 14
2-10. OPERATION RANGE
AS 9F AO 20F3 Cooling 18 to 32°C About 80% or less 18 to 43°C
Model
Mode
Operation Range
Indoor unit Outdoor unit Indoor temperature Indoor humidity Outdoor temperature
MULTI TYPE
3ROOM TYPE
MULTI TYPE
3ROOM TYPE
- (02 - 13) -
Page 15
2-11. FAN PERFORMANCE AND AIR FLOW

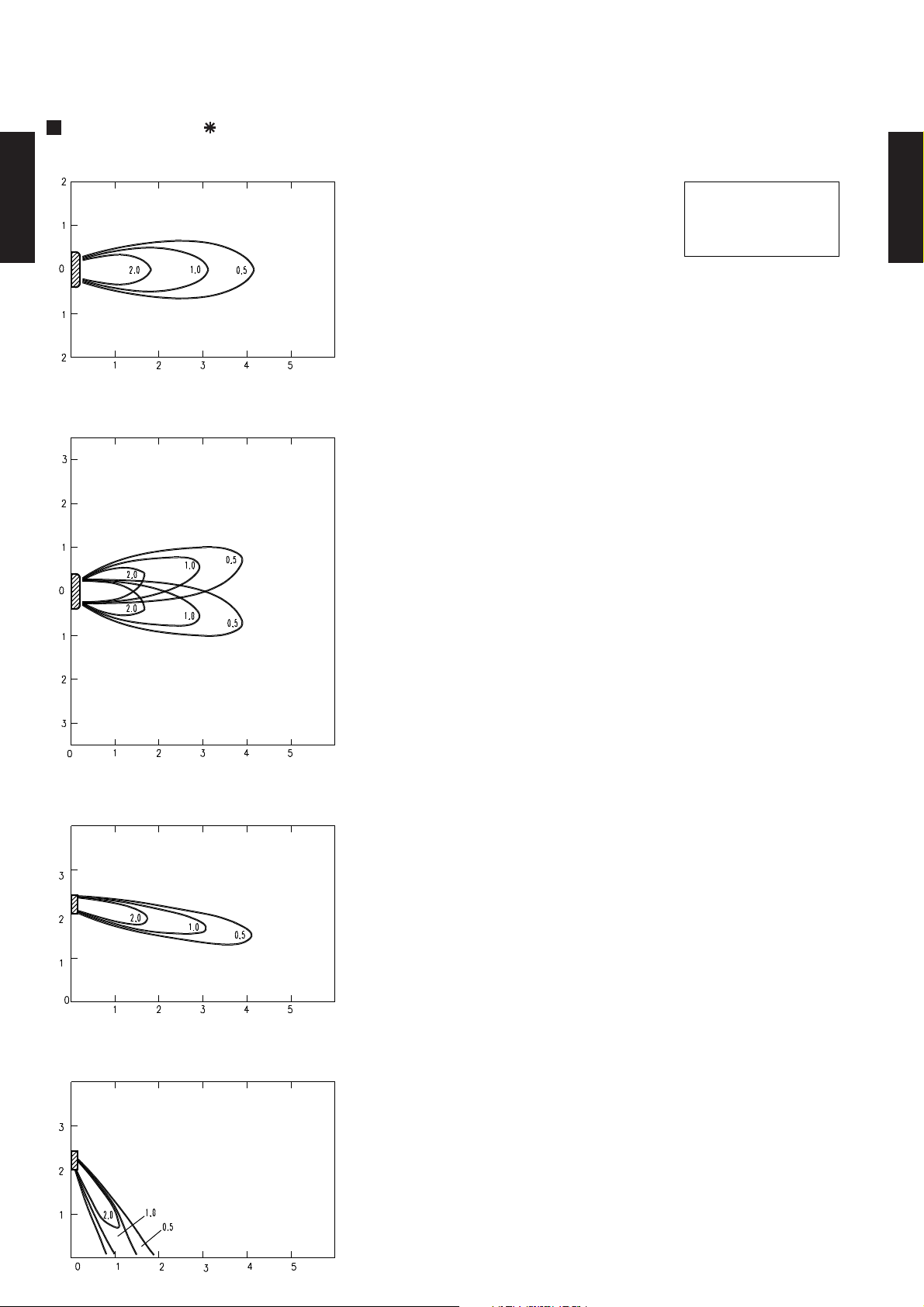

2-11-1. AIR VELOCITY DISTRIBUTION
MODEL : AS 9F
(m)
MULTI TYPE
3ROOM TYPE
Unit : m/s
TOP VIEW
VERTICAL FLAP : Horiz.
HORIZONTAL FLAP : Center
Note :
Condition
Fan speed : High
Operation mode :FAN
MULTI TYPE
3ROOM TYPE
(m)
(m)
Unit : m/s
TOP VIEW
VERTICAL FLAP : Horiz.
HORIZONTAL FLAP : Right & Left
(m)
(m)
(m)
Unit : m/s
SIDE VIEW
VERTICAL FLAP : Horiz.
HORIZONTAL FLAP : Center
(m)
Unit : m/s
SIDE VIEW
VERTICAL FLAP : Vert.
HORIZONTAL FLAP: Center
(m)
- (02 - 14) -
Page 16
2-11-2. AIR FLOW
NUMBER OF
ROTATIONS
(r.p.m)
m3/h
520
m3/h
470
m3/h
420
m3/h
380
m3/h
3200
1190
1070
960
780
AIR FLOW
Outdoor unit
Indoor unit
HIGH
MED
LOW
QUIET
HIGH
1310
MODELS : AS 9F / AO 20F3
MULTI TYPE
3ROOM TYPE
FAN SPEED
l/s 144
CFM 306
l/s 131
CFM 277
l/s 117
CFM 247
l/s 106
MULTI TYPE
3ROOM TYPE
CFM 224
l/s 889
CFM 1883
- (02 - 15) -
Page 17
2-12. NOISE LEVEL CURVE
2-12-1. OUTDOOR UNIT
COOLING
MODEL : AO 20F3
80
70
MULTI TYPE
3ROOM TYPE
60
50
40
30
20
Octave band sound pressure level, dB:(0dB=0.0002µbar)
10
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
MULTI TYPE
3ROOM TYPE
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
- (02 - 16) -
Page 18

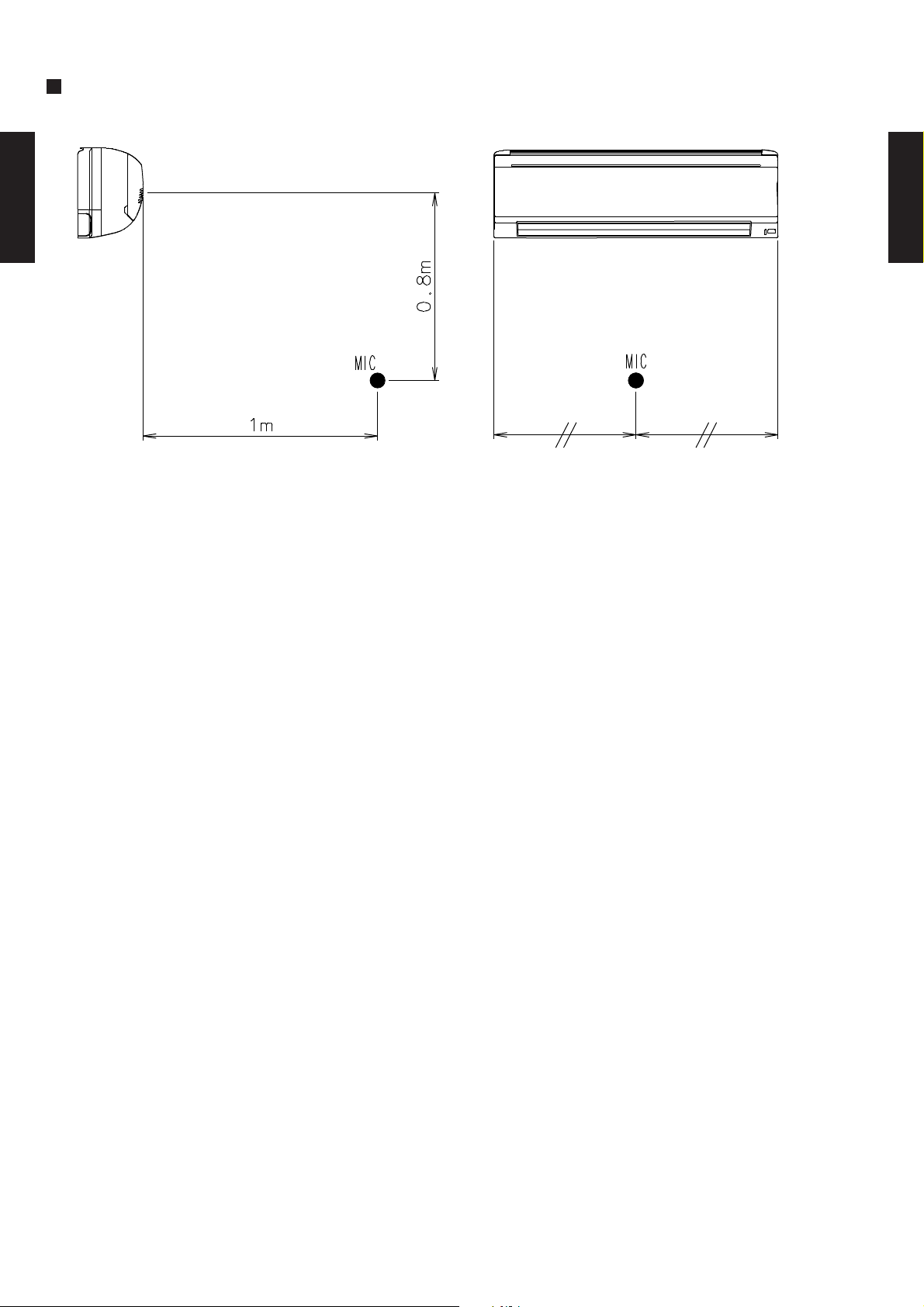

SOUND LEVEL CHECK POINT
MULTI TYPE
3ROOM TYPE
MULTI TYPE
3ROOM TYPE
- (02 - 17) -
Page 19

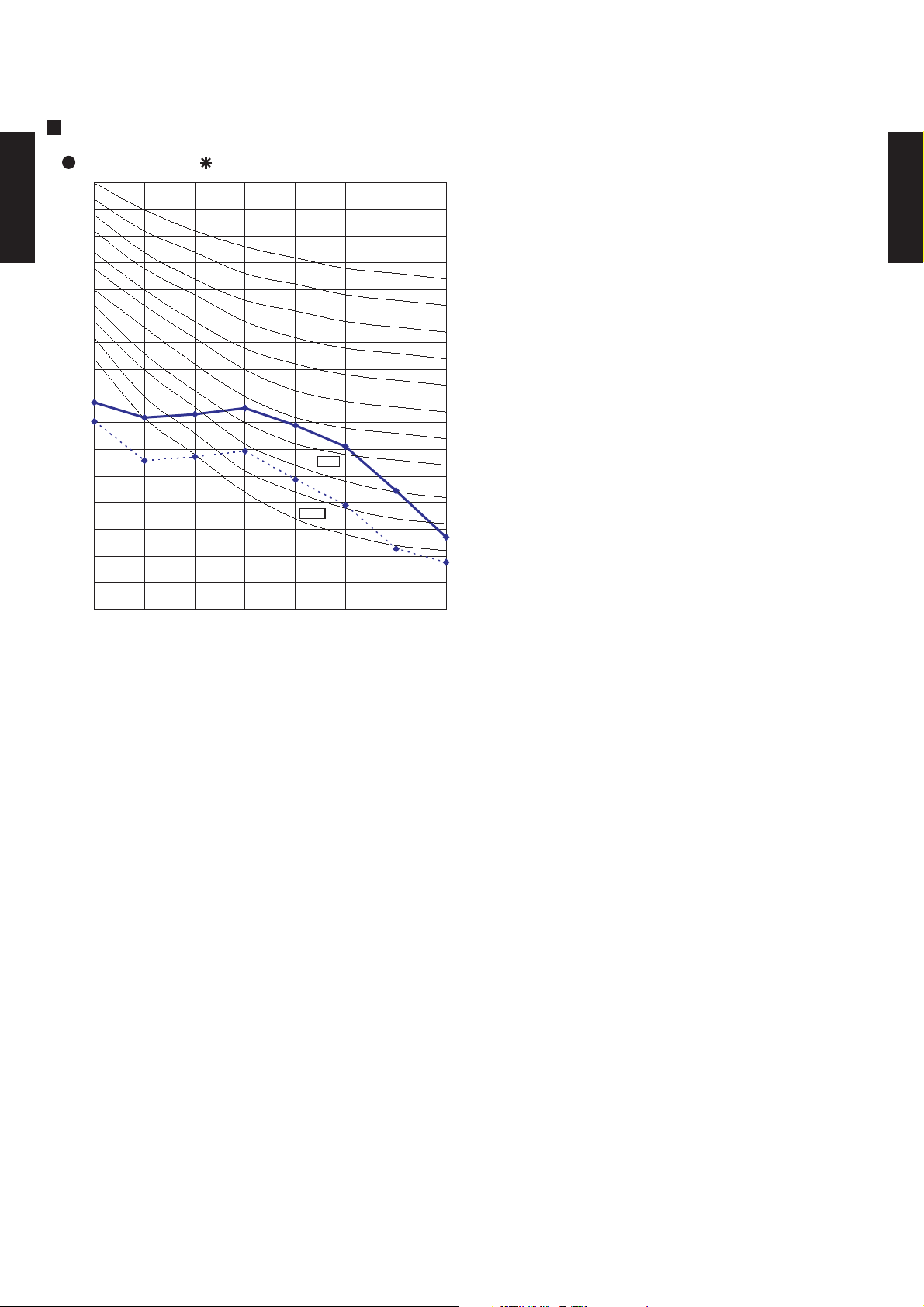

2-12-2. INDOOR UNIT
HIGH
QUIET
COOLING
MODEL : AS 9F
80
70
MULTI TYPE
3ROOM TYPE
60
50
40
30
20
Octave band sound pressure level, dB:(0dB=0.0002µbar)
10
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
MULTI TYPE
3ROOM TYPE
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
- (02 - 18) -
Page 20

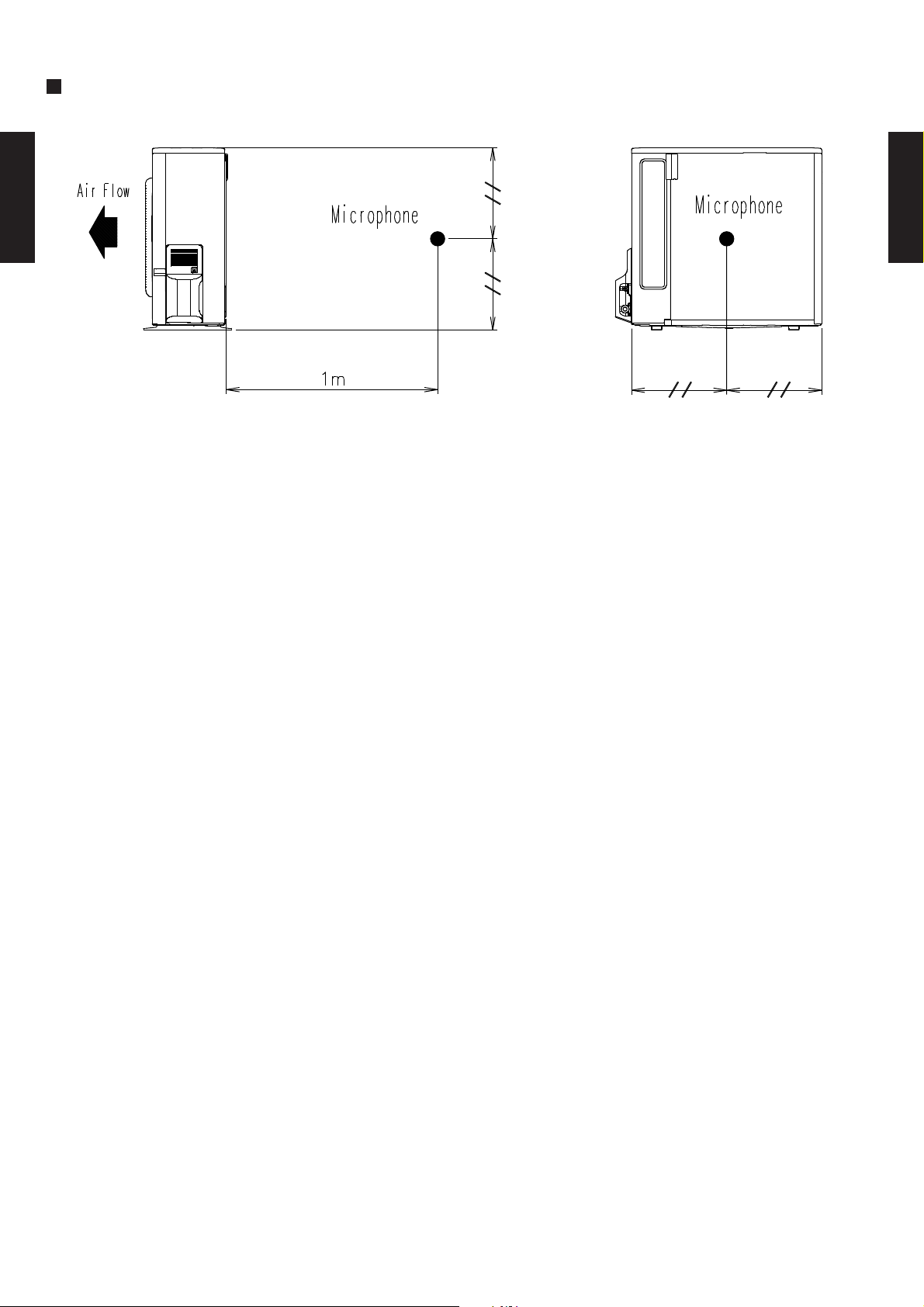

SOUND LEVEL CHECK POINT
MULTI TYPE
3ROOM TYPE
MULTI TYPE
3ROOM TYPE
- (02 - 19) -
Page 21
2-13. ELECTRIC CHARACTERISTICS
Main Fuse (Circuit breaker)
Current
Model Name
Power Supply
Max Operating Current
Starting Current
Outdoor Fan Motor
Indoor Fan Motor
*1) Wiring Spec.
Mode
Rated Value
23
0.039
8.4
1.88
Cooling
0.2
0.140
AS 9F(UNIT A+B1+B2)
AO 20F3
230
50
0.7
11.0
20
2.5
40.5
MODELS : AS 9F(UNIT A+B1+B2) / AO 20F3
Indoor unit
Outdoor unit
Voltage V
Frequency Hz
MULTI TYPE
3ROOM TYPE
Current A
Input kW
MULTI TYPE
3ROOM TYPE
A
A
A
Power Cable
mm
2
*2) Limited wiring length m
Input kW
Full Load Amp. A
Input kW
Full Load Amp. A
*1) Wiring Spec. : Selected Sample (Selected based on Japan Electrotechnical Standard
and Codes Committee E0005)
*2) Limited Wiring length : This is the wiring length in case voltage descent is less than 2%.
When the wiring length becomes long, please select the wiring
of a more larger diameter.
- (02 - 20) -
Page 22
2-14. SAFETY DEVICE
PCB FUSE CURRENT FUSE
OFF 150±5°C(16.5A/25°C , 6A/80°C)
ON 69±11°C
OFF 145±5°C(16.5A/25°C , 7A/80°C)
ON 69±11°C
AO 20F3
6.3A 250V
150±5°C OFF
COMPRESSOR PROTECTION
THERMAL PROTECTOR
AS 9F
3.15A 250V
135±2°C OFF
103±2°C
OUTDOOR UNIT
PROTECTION FORM
FAN MOTOR PROTECTION THERMAL PROTECTOR
MULTI TYPE
3ROOM TYPE
INDOOR UNIT
PROTECTION FORM
PCB FUSE CURRENT FUSE
FAN MOTOR PROTECTION THERMAL PROTECTOR
TERMINAL FUSE THERMAL FUSE
COMP.A
COMP.B
MULTI TYPE
3ROOM TYPE
- (02 - 21) -
Page 23
2-15. FUNCTION SETTING
connect
JM1
-2 deg
0 deg
-2 deg
0 deg
-2 deg
0 deg
-2 deg
JM2
0 deg
4 deg
4 deg
connect
0 deg
Jumper wire
cooling
dry
heating
0 deg
Disconnect
connect
Disconnect
Disconnect
Disconnect
connect
2-15-1. INDOOR UNIT(WALLMOUNTED MODEL)
Room temperature correct coefficient
The room temperature adjustment coefficient can be changed to match
the conditions of the room by setting the jumper wire at the indoor unit
control board.
( Factory setting)
MULTI TYPE
3ROOM TYPE
MULTI TYPE
3ROOM TYPE
- (02 - 22) -
Page 24
2-16. OPTIONAL PARTS
2-16-1. WALLMOUNTED MODEL
AIR PURIFYING FILTER
APS-03B
NORMAL FILTER (FILTER+ FRAME) x 2
UTR-FA04-1
MULTI TYPE
3ROOM TYPE
APPLE-CATECHIN FILTER (FILTER + FRAME) x 2
UTR-FC04-1
APPLE-CATECHIN FILTER (FILTER ONLY) x 2
UTR-FA04-2
LONG-LIFE ION DEODORIZATION FILTER (FILTER + FRAME) x 2
UTR-FC04-2
LONG-LIFE ION DEODORIZATION FILTER (FILTER ONLY) x 2
MULTI TYPE
3ROOM TYPE
NORMAL FILTER
The Air Purifying Filter can catch various kinds of dust undetectable to the eye,
including mites, pollen, cigarette smoke, and all other tiny particles down to 0.01 m.
APPLE-CATECHIN FILTER
Fine dust, invisible mold spores, and harmful microorganisms are adsorbed onto
the filter by static electricity , and further growth is inhibited and deactivated by
the polyphenol ingredient extracted from apples.
LONG-LIFE ION DEODORIZATION FILTER
The filter deodorizes by powerfully decomposing adsorbed odors using the oxidizing
and reducing effects of ions generated by the ultra-fine-particle ceramic.
(The filter can be used for approximately 3 years if it is washed under water to restore
its surface action when it is dirty.)
- (02 - 23) -
Loading...
