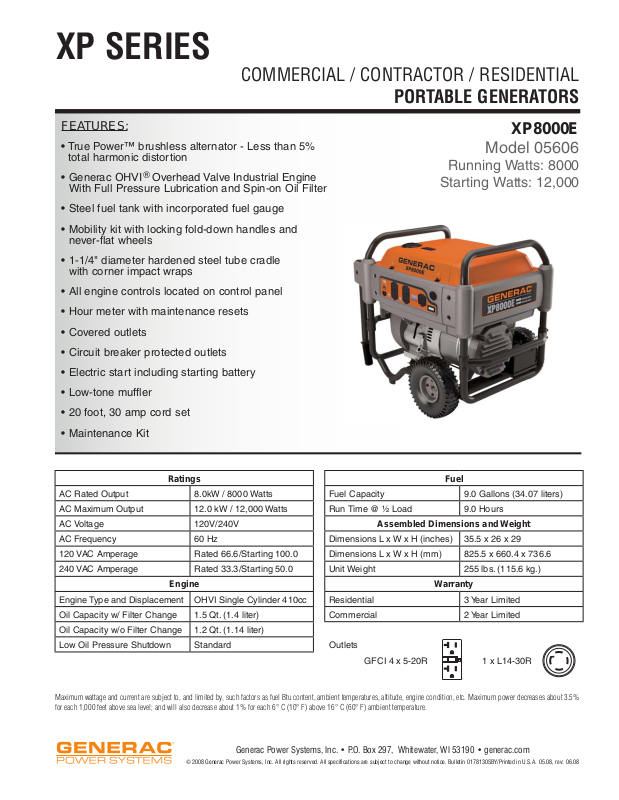

XP SERIES
COMMERCIAL / CONTRACTOR / RESIDENTIAL
PORTABLE GENERATORS
FEATUREs:
• True Power™ brushless alternator - Less than 5%
total harmonic distortion
• Generac OHVI
With Full Pressure Lubrication and Spin-on Oil Filter
• Steel fuel tank with incorporated fuel gauge
• Mobility kit with locking fold-down handles and
never-flat wheels
• 1-1/4" diameter hardened steel tube cradle
with corner impact wraps
• All engine controls located on control panel
• Hour meter with maintenance resets
• Covered outlets
• Circuit breaker protected outlets
• Electric start including starting battery
• Low-tone muffler
• 20 foot, 30 amp cord set
®
Overhead Valve Industrial Engine
XP8000E
Model 05606
Running Watts: 8000
Starting Watts: 12,000
• Maintenance Kit
Ratings
AC Rated Output 8.0kW / 8000 Watts
AC Maximum Output 12.0 kW / 12,000 Watts
AC Voltage 120V/240V
AC Frequency 60 Hz
120 VAC Amperage Rated 66.6/Starting 100.0
240 VAC Amperage Rated 33.3/Starting 50.0
Engine
Engine Type and Displacement OHVI Single Cylinder 410cc
Oil Capacity w/ Filter Change 1.5 Qt. (1.4 liter)
Oil Capacity w/o Filter Change 1.2 Qt. (1.14 liter)
Low Oil Pressure Shutdown Standard
Maximum wattage and current are subject to, and limited by, such factors as fuel Btu content, ambient temperatures, altitude, engine condition, etc. Maximum power decreases about 3.5%
for each 1,000 feet above sea level; and will also decrease about 1% for each 6° C (10° F) above 16° C (60° F) ambient temperature.
Fuel Capacity 9.0 Gallons (34.07 liters)
Run Time @ ½ Load 9.0 Hours
Assembled Dimensions and Weight
Dimensions L x W x H (inches) 35.5 x 26 x 29
Dimensions L x W x H (mm) 825.5 x 660.4 x 736.6
Unit Weight 255 lbs. (115.6 kg.)
Residential 3 Year Limited
Commercial 2 Year Limited
Outlets
GFCI 4 x 5-20R
Fuel
Warranty
1 x L14-30R
Generac Power Systems, Inc. • P.O. Box 297, Whitewater, WI 53190 • generac.com
©2008 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Bulletin 0178130SBY/Printed in U.S.A. 05.08, rev: 06.08
