Gemini Speakerphone User Manual

1

This Interquartz telephone has been manufactured to very high standards
and is very easy to use. Please read this manual carefully to find out how to
use the features.

Contents

1. Important Notes .............................................................................. 2

Intended use ....................................................................................... 2

Telephone facilities .............................................................................. 2

REN number ........................................................................................ 3

Emergency calls................................................................................... 3

2. Installation ...................................................................................... 4

Connection ......................................................................................... 4

Wall mounting ..................................................................................... 4

3. Telephone Features ....................................................................... 6

Store Button ....................................................................................... 6

Handsfree button ................................................................................. 6

Ringer Indicator ................................................................................... 7

Ringer Volume Switch .......................................................................... 7

Recall Button....................................................................................... 7

Memory Stores .................................................................................... 7

Speaker Volume Control ....................................................................... 7

Mute Button........................................................................................ 7

Redial / Pause Button ........................................................................... 8

4. Operation ........................................................................................ 9

5. PABX & System Usage ................................................................ 11

6. Maintenance and Problem Solving ............................................. 13

7. Warranty and Service .................................................................. 14

Figure 1 Wall Mounting......................................................................... 4

Figure 2 Handset Retainer for Wall Mount ............................................... 5

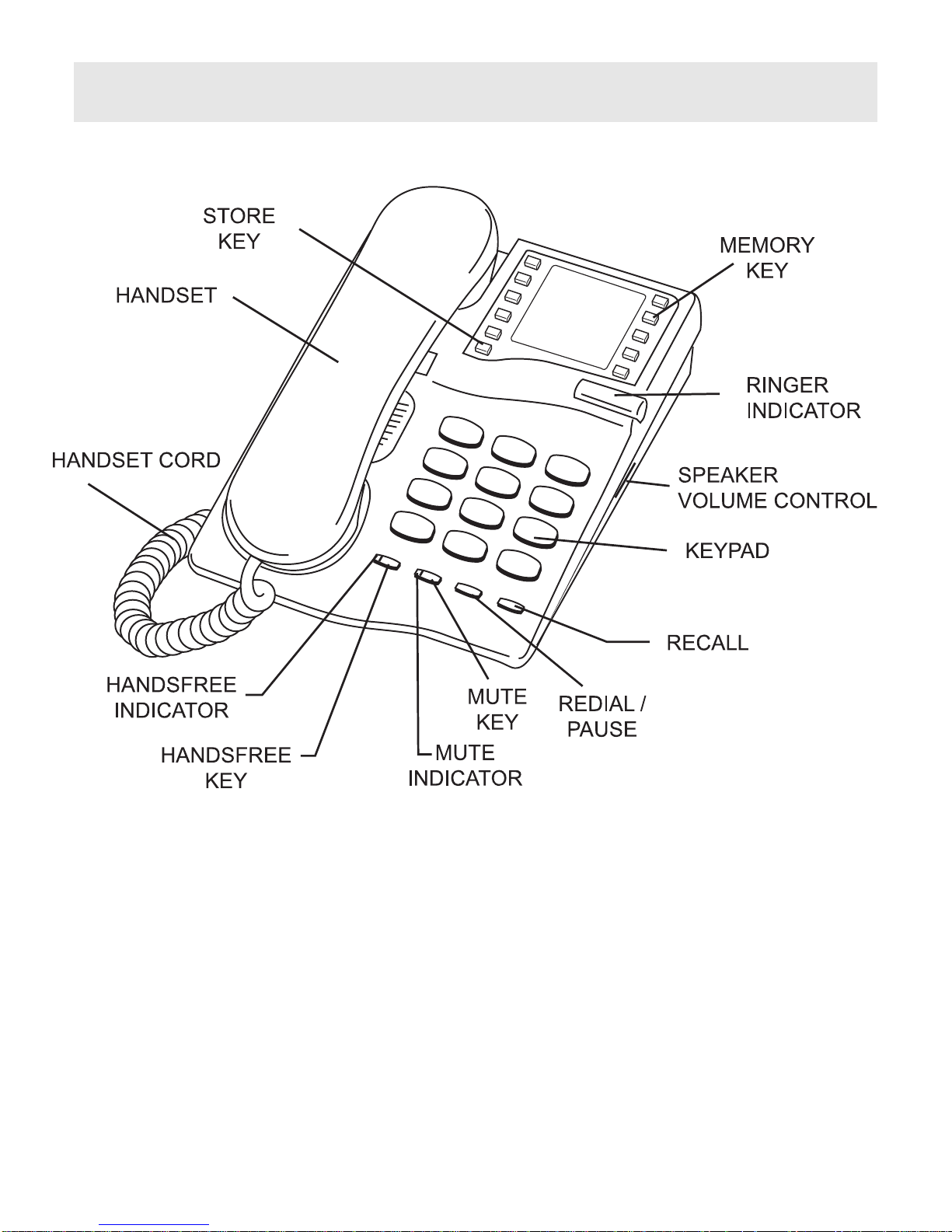

Figure 3 General Appearance ................................................................. 6

Figure 4 Bottom View........................................................................... 8

Figure 5 Recall Switch ........................................................................ 11

2

1. Important Notes

Intended use

This apparatus is intended for use on 2 wire analogue PSTN and PABX
circuits within Europe.

Declaration of Conformity

Interquartz (UK) Limited declares under its sole responsibility that
this product

Model : GEMINI Speakerphone

Is in conformity with the following relevant harmonized standards

Health & Safety EN60950 : 1992
Electromagnetic CompatibilityEN55022 : 1998 & EN55024 : 1998
Telecoms EN301437 : 1999 & TBR38 : 1998

Following the provisions of Council Directive on radio equipment and
telecommunications terminal equipment.

January 2001

Telephone facilities

This telephone has been designed for the use of the following facilities :

 manual dialling
 recall (earth or timed break selectable)
 MF signalling
 ringer volume control
 ringing indicator
 last number re-dial
 pause function
 mute function
 speakerphone function

3

 line powered
 10 memory buttons
 inductive loop hearing aid compatible

REN number

The REN number of this telephone is 1.

If you wish to connect any other equipment to the line, simply add the
REN numbers of each device together and ensure that the total does
not exceed 4. If too many phones are connected to the line, the
circuit may be overloaded and your telephone may not ring.

Not all telephones have the same REN.
If a British Telecom phone is supplied unmarked, you can assume that

it has a REN of 1.

Emergency calls

Calls can be made on this telephone to contact the emergency services. The
European code for emergency services is 112, however, you can still use 999
in the UK. An access code may also be required, if the phone is connected
to a PABX.

4

Figure 1 Wall Mounting

2. Installation

This telephone is designed to plug straight into a modular style socket. If you
do not have one of these sockets, they can be obtained from your Network
Supplier.

Connection

Insert the line cord into the socket. Set the ringer volume control, as desired.

Wall mounting

Using the template supplied, position the telephone where you want to wall
mount. Drill two holes and fix roundheaded screws, leaving them slightly
proud of the surface. Position the telephone over the screws and slide
downwards into place.

S1 S2 N

TBR ER

.

.

.

FOR WALL
MOUNT

5

To enable the handset to be supported in the cradle when the phone is
mounted on the wall, follow the procedure shown in Figure 2 to reserve the
HANDSET RETAINER.

1. Use your thumb to press the
HANDSET RETAINER

2. Push the HANDSET RETAINER
out of the slot

4. Insert the HANDSET RETAINER
back into it's slot

3. Turn the HANDSET
RETAINER 180°

Figure 2 Handset Retainer for Wall Mounting
