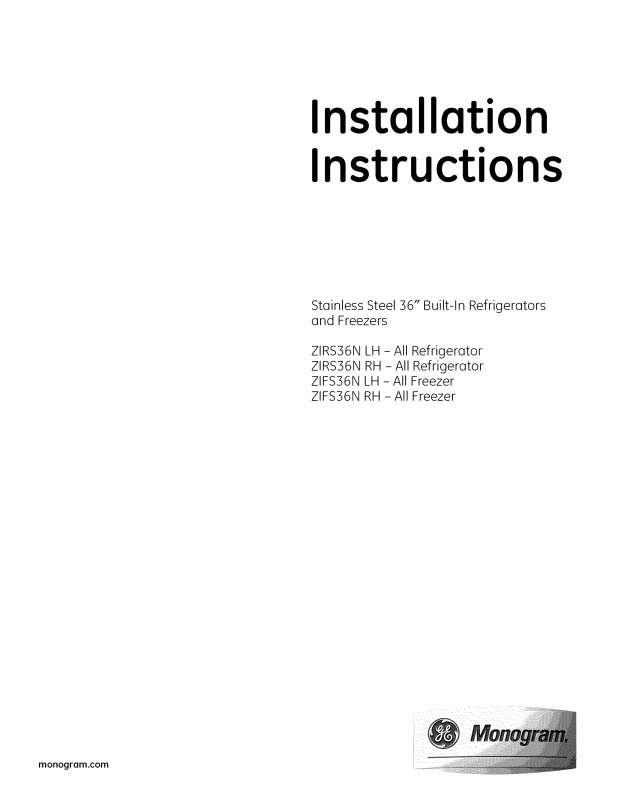

Installation
Instructions
Stainless Steel 36" Built-In Refrigerators
and Freezers
ZIRS36N LH -All Refrigerator
ZIRS36N RH - All Refrigerator
ZIFS36N LH -All Freezer
ZIFS36N RH - All Freezer
monogram.corn
Before Uou begin - Read these instructions completel U and carefull U.
IMPORTANT - Save these instructions for local inspector's use.
IMPORTANT - OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer - Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these instructions with your Owner's Manual for future reference.
IM -YI-'I | II G This appliance must be properly grounded. See "Grounding the Refrigerator," page 7.
Cet appareil dolt _tre correctement mis 6 la terre.Consulter <<Mise 6 terre du r_frig_rateur >>,page 7.
If you received a damaged product, you should
immediatel 9 contact 9our dealer or builder. Proper
installation is the responsibilit 9 of the installen
Product failure due to improper installation is not
covered under the GE Appliance Warranty. See the
Owner's Manual for warranty information.
For Monogram local service in gour area,
1.800.444.1845.
For Monogram Service in Canada,
1.800.561.3344.
For Monogram Parts and Accessories, call
1.800.626.2002.
Due to the weight and size of this refrigerator,
and to reduce the risk of personal injury or
damage to the product- THREE PEOPLE ARE
REQUIRED FOR PROPER INSTALLATION.
A cause du poids et de la taille de ce r_frig6rator
et pour r_duire le risque de blessure et de
dommages, IL FAUT TROIS PERSONNES POUR
FAIRE L'INSTALLATION CORRECTEMENT.
• Use this appliance only for its intended purpose.
• Immediately repair or replace electric service
cords that have become frayed or damaged.
• Unplug the refrigerator before cleaning or
making repairs.
• Repairs should be made by a qualified service
technician.
• II ne faut utiliser cet appareil que pour I'usage
pour lequel il a _t_ construit.
• II faut r6parer ou remplacer imm6diatement
tout cordon d'alimentation _lectrique effiloch_
ou endommag&
• D_brancher le r_frig6rateur avant le nettoyage
ou toute intervention.
• Les r_parations doivent &tre fakes par un
technicien qualifi&
Contents
Design Information
Flush or Semi-Flush Enclosure Installations ....3
Enclosure Cutout and
Product Dimensions ................................................3, 4
Accessory Grille Panel Kits .......................................4
Installation Examples .............................................4, 5
Product Dimensions .....................................................5
Installation Preparation
Clearances .......................................................................6
Electrical and Water Connection Location .......6
Grounding the Refrigerator ......................................7
Tools Required ................................................................8
Materials Required ........................................................8
Hardware Supplied .......................................................8
Hardware Recommendations .................................8
Flooring ..............................................................................8
Step 1:Remove Packaging .......................................8
Installation Instructions
Step 2: Install Water Line ...........................................9
Step 3: Install Side Panels ........................................10
Step 4: Install Anti-Tip Brackets ............................10
Step 5: Level Refrigerator ........................................11
Step 6: Optional Anti-Tip Precaution ..................11
Step 7: Connect Water Supply ..............................12
Step 8: Check Power ..................................................12
Step 9: Mount Top Grille Panel ..............................12
Step 10: Adjust Door Alignment ......................... 13
Step 11: Install Toekick .............................................13
Step 12: Set Temperature Controls .....................13
Step 13: Start Icemaker ............................................13
Problem Solving ...........................................................13
ZUGSS Unified Grille Panel Kit ........................... 14
Design Information
Flush or
Semi-Flush
Enclosure
Instollations
Advance Planning
True Flush Installation
In a flush installation,
the refrigerator door
will align evenly with the
front face of adjacent cabinet
doors. The refrigerator blends
into the surrounding
Honogram built-in refrigerators and freezers can be
installed flush with tupical 24-3/4" deep cabinetry.
When installed semi-flush, the case trim will conceal
slight gaps around the enclosure. The refrigerator
will project forward approximatel U 3/4" beyond the
front face of surrounding cabinetry.
cabinetry.
36" Stainless Steel Refrigerators, Freezers
Semi-Flush Installation
These refrigerators
can also be installed
semi-flush into on enclosure
using the minimum cutout
width. The case trim creates o
frame around the opening.
Side Panel Requirements:
• Side panels are not required whenever the
refrigerator or freezer is installed into an enclosure
or between pantry and oven cabinets.
• Side panels are required whenever the sides of the
product are exposed.
• Side panel sizes varg depending on the type of
installation being made.
To accomplish an attractive installation, gou must:
1. Determine the need for side panels.
2. Determine side panel thickness.
S. Order matching side panels from the cabinet
manufacturen Be sure to provide the exact
dimensions.
Enclosure
Cutout and
Product
Dimensions
• To achieve a flush fit, the finished cutout width
must be at least 56" wide.
• In a semi-flush installation, the finished cutout must
be 35-1/2".
• The electrical and water locations must be located
as shown for either type of installation.
35" 24-3/4"
Case _LCase
Width/Depth
84 "e
j 55-1/2" Hin. for a semi-flush installation.
26-3/4",..._36" Frameto Frame
Including
Tubular
Handles
*Shipped Qt 84" installation height.
Can be odjusted to 83-1/2"
or 84-1/2"with grille panel kits.
_Finished Width-
,_--2-1/2" [] Wall View
_- ,f_Electrical
./1
II1- Area
I
84-1/2" max
83-1/2" rain
Finished
Opening
£
*36" for a flush installation.
NOTE: Additional cutout width may be required when side
panels are used. Add side panel thickness to the finished
cutout to calculate rough-in width. Seeinstallation
examples on the following page.
-M'
5"
_-24-3/4" Total II 75" FromFloor
Depth I I to Bottom
-5'z_-/3-1/2"Water Supply3-1/2X'L_L 5" t! Area
-10" 3-1/2" 10'
II
II of Electrical
iN_
Design Information
36" Stoinless Steel Refrigerotors, Freezers
Side By Side
Installation
Of Freezer
And Refrigerator
84-1/2"max
83-1/2"rain
Finished
Opening
For a complete food storage centec install a
Monogram Freezer and Refrigerator side bg side.
For even more capacitg, install two refrigerators
and one or two freezers.
• Order ZUGSS Unified Grille Panel Kit for one
continuous stainless steel grille panel.
• Electrical and water locations must be
located as shown for either tgpe of installation.
A separate 115V, 60Hz, 20 amp power supplg
is recommended for each product.
t *FinishedWidth
5"
24-3/4" Total
Depth
5"
Freezer Refrigerator
*72" min. for a flush installation
71-1/2" min. for a semi-flush installation
NOTE:Additional cutout width ma Nbe required when side
panels are used. Add side panel thickness to the finished
cutout to calculate rough-in width. See installation examples
below.
WallView
75"FromFloor
toBottom
ofElectrical
Area
Accessory
Grille Panel
Kits
Installation
Examples
Installation
Between
Base and
Wall Cabinets
These models are factorg set for 84" installation
height. Adjustments to 85-1/2" or 84-1/2" heights
can be made bg changing the grille panel.
Order ZGCSS36RH(right hand) or ZGCSS36LH
(left hand) Grille Panel Kit.These kits include 2 grille
panels, for 83-1/2" and 84-1/2" installation heights.
Side panels are required whenever the sides of the
product will be exposed.
1/2" to 3/4" side panels are normallg set into place
and fastened to adjacent cabinetrg or to the back
wall before rolling the refrigerator or freezer into
the opening.
I II1/4"ThickII I
FinishedDim_3.5-1/2' 1
Rough-In Dim. _36'_ I
NOTE: 1/4"thick side panels can be
Refrigerator or Freezer
inserted into the case trim, making the
rough-in the same as the outside trim
width: 56".
ZUGSS Unified Grille Panel Kit
For side bg side installation, order ZUGSS grille panel
kit. This kit provides one continuous panel to span
the width of two products installed together for a
unified appearance.
Therefore, the rough-in dimensions must allow for
side panel thickness. In both a flush and semi-flush
installation, the finished dimension (the width of
the opening after side panels are installed) must
accommodate the full width of the product.
See page 10 for side panel sizes.
liiiii
Refrigerat0r_
Refrigerator door _
Cabinet
Design Information
36" Stoinless Steel Refrigerotors, Freezers
Installation
At End-of-Run
Frameless
Cabinets
I I
H 1/2" Thick II I
Finished
Rougheddn Dim._37"_
Refrigerator or Freezer
II 1/2"Thick II I
SidePanels
Refrigerator and Freezer
installed side-bg-side
Side panels, 1/2" minimum thickness are required --_
FinishedDim.i_ _
Rough-InDim.
CaL
NOTE: 1/2" thick side panels
shown. Side panels can be ang
thickness. Add side panel thickness
to outside trim width, (36" or 72"
for two models) to calculate the
rough-in dimension. The leading
(front) edge must be finished to
match surrounding cabinetrg.
Refrigerator_
Cabinet k
/ Refrigeratordoor
Product
Dimensions
and prevents interference with cabinet door swing. Refrigerat
The leading (front) edge must be finished to match Cabinet
surrounding cabinetry.
when using frameless cabinets. The side panel acts _ _ k
1/2" To 3/4" Side Panels. he _ Refrigerator door \
Edge Flush With Cabinet _
ZIRS36N RH, Refrigerator
ZIFS36N RH, Freezer
Handle on the left side, the door swings left to right.
ZIRS36N LH, Refrigerator
ZIFS36N LH, Freezer
Handle on the right side, the door swings right to left.
Refrigerators are much heavier at the top than at
73 /2"
10-3/4"Max.
10"Min.
_ 24-3/4"--
_6-3/4'--
35"Casef
36"Overall
the bottom - be extra careful when moving.
Les r_frig_rateurs sont beaucoup plus Iourds
en haut qu'en bas. II faut &tre prudent Iors des
d_placements.
84-1/2"Max.
83-1/2"Min.
Installation Preparation
36" Stainless Steel Refrigerators, Freezers
Clearances
130° Door Wall
Swing
Min. to
""130 ° "_{':')
, 90° Door Swing
[__
i,
'\\
....... --1 ,"._
,.
J i36-3/4"
4"_Min.
to Wall
Factory set for a 130° door swing. Order WX14X99
adjustable door stop to reduce swing to as little
as 90 °.
When Installed into a corner:
Allow 25" for a full 130 ° door swing. Allow 15" for pan
removal. Allow 4" min. clearance when door swing is
adjusted to a 90 ° opening for pan access, but pan
removal is restricted.
25 _'_
Min. to 130° Door 130° Door
--25" H
Wa Swing Swing
,,1 I I
// 1-' '-r
:::!:::::i::x ,,"
"--. ........ j/j
Clearances for Multiple Single Door Installations
In a side-by-side installation of a left and right door
swing product, no clearance between the units is
required. Order ZUGSS Stainless Steel Unified Grille
Panel Kit for one continuous grille panel.
,/
Min. to
Wall
[,,
2"
H _15'%
•)\ ! J\
• ','-[ \\ '\
\\
, \\ %
"'.. .;,_: "-.. .;,,_
Clearances for two products installed side-by-side
with the same (left or right) door swing
Allow 2" minimum clearance between the products
to prevent door swing interference. Order the
WX14X99 adjustable door stop to reduce the factory
set 150 ° door swing. Allow 15" minimum to a wall to
achieve full drawer extension and pan removal.
NOTE: ZUGSS Grille Panel Kit will not fit this
installation.
! '\/' !
'-i \v:':,i' ]"
'_ , //'// \,'\\, jJ
Clearances for two products installed side-by-side
with right and left side hinges together
Allow 5" minimum between the two products to
prevent one door from striking the othen Use the
WX14X99 adjustable door stop to reduce the factory
set 130 ° door swing and to allow pan removal.
NOTE: ZUGSS Grille Panel Kit will not fit this
installation.
5"
A A /
////'\ \ /
/ / \ ',, /
\\
\,'\
Electrical
end Water
Connection
Locations
The water line can be routed through the floor or
back wall.
• The icemaker water line should be:
- Approximately 3-1/2" from the floor on the back
wall, or 3-1/2" from the back wall on the floon
- At least 5" from either side of the opening.
A 115 volt, 60 Hz 15 or 20 amp power supply is
recommended. An individual properly grounded
branch circuit or circuit breaker is recommended,
as noted on the rating plate.
• Locate the electrical outlet within 5" x 6" shaded
area shown.
- 2-1/2" from the left side.
Between 75" and 81" from the floon
IMPORTANT: To insure a flush fit and access to the
power cord, locate the electrical outlet as shown.
Electrical Outlet
Location 2-1/2"
y6I
75"
Water Supply |
3-1/2" / \ 3-1/2"|
3-1/2"
Installation Preparation
36" Stainless Steel Refrigerators, Freezers
Grounding the
Refrigerator
IMPORTANT- (Please read carefullg)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
The power cord of this appliance is equipped with a
5-prong (grounding) plug that mates with a standard
three-prong (grounding) wall receptacle to minimize
the possibility of electric shock hazard from this
appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a standard 2-prong wall outlet is encountered,
it is your personal responsibility and obligation to
have it replaced with a properly grounded 3-prong
wall outlet.
IMPORTANT:
We recommend two separate 115V, 60Hz, 20 amp
properlg grounded electrical outlets for a side-bg-side
installation of two products. Each electrical outlet
should hove a voltage rating that matches the
rating plate.
Use of Adapter plug
Because of potential hazards under certain
conditions, we strongly recommend against use of
an adapter plug. However, if you still elect to use an
adapter, where local codes permit, a TEMPORARY
CONNECTION may be made to a properly grounded
2-prong wall outlet by use of a UL listed adapter
available at most hardware stores.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE THIRD (GROUND) PRONG FROM THE
POWER CORD.
When disconnecting the power cord from the
adapter, always hold the adapter in place with one
hand and pull the power cord with the other hand. If
this is not done, the adapter ground terminal is very
likely to break with repeated use.
Should the adapter ground terminal break, DO NOT
USE the appliance until a proper ground has again
been established.
Use of Extension Cords
Because of potential safetg hazards under certain
conditions, we strongly recommend against the use
of an extension cord. However, if you still elect to use
an extension cord, it is absolutely necessary that it
be a UL listed, 3-wire grounding type appliance
extension cord having a grounding type plug and
outlet, and that the electrical rating of the cord be
15 amperes (minimum) and 120 volts.
FICHED'ADAPTATION
(Fiches d'adaptation non permises au Canada)
The larger slot in the adapter must be aligned with
the larger slot in the wall outlet to provide proper
polarity in the connection of the power cord.
Attaching the adapter ground terminal to
a wall outlet cover screw does not ground the
appliance unless the cover screw is metal, and
not insulated, and the wall outlet is grounded
through the house wiring. You should have the
circuit checked by a qualified electrician to make
sure the outlet is properly grounded.
Installation Preparation
36" Stainless Steel Refrigerators, Freezers
Tools
Required
Naterials
Required
Hardware
Supplied
Hardware
Recommendations
• Tinsnips to cut banding
• Stepladder
• Bucket
• Level
• 1-1/4" open-end wrench
• 2x4, 55" long, for Anti-Tip support, see page 10 • Water shut-off valve
• Stick-on hook and loop fastener strips for 1/4" side panels • Screws to secure refrigerator to cabinetry
• 1/4" copper water line tubing or GE SmartConnect TM Tubing Kit
• 1/4-1/4 union with nuts
• Anti-tip mounting brackets
• Water shut-off valve
• Water filter WR97X0214
• Appliance hand truck
• Tubing cutter
• 7/16" open-end wrench
• #2 Phillips screwdriver
• Stubbg Phillips screwdriver
Flooring For proper installation, the refrigerator and freezer
must be placed on a level surface of hard material
that is at the same height as the rest of the flooring.
The floor must be strong enough to support a fully
loaded product, or approximatelg 1,200 Ibs.
• Drill and appropriate bits
• 7/16" socket with 5" extension for
ratchet
• Safetg glasses
NOTE: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under the
product where gou are working.
Step 1
Remove
Packaging
Refrigerator is much heavier at the top than at
the bottom-be careful when moving. When
using a hand truck, handle from side onlg.
Le r6frig6rateur est beaucoup plus Iourd
en haut qu'en bas. IIfaut &tre prudent Iors des
d_placements. Si un diable est utilis&, il faut
soulever le r6frig_rateur sur le c6t6 seulement.
• Remove outer carton.
- Carefullg cut banding at the top and bottom.
• Slide out back corner posts (2).
• Slide carton off top of cabinet.
• Remove stgrofoam pads taped to base cabinet.
NOTE: IT IS NOT NECESSARY TO LAY CABINET DOWN
IN ORDER TO REMOVE SKID!
• The unit is secured to the skid with 5 slotted
tie-down straps. First remove the 5/16" bolts from
the base channels in the tie-downs, then remove
the 7/16" bolts securing the straps to the skid.
• Protect the flooring. Cut a large piece of the
cardboard carton and place under the product
where gou are working.
• Support blocks on the bottom must be removed
before the refrigerator is taken off the skid or
damage will occun Remove support blocks bg
carefullg tilting cabinet to side and sliding out.
• Lift the refrigerator off the skid with an appliance
dollg. Handle from the sides.
DO NOT ATTEMPT TO ROLL UNIT OFF SKID.
IL NE FAUT PAS ESSAYER DE FAIRE ROULER LE
REFRIGERATEUR POUR L'ENLEVER DE LAY PALETTE.
Installation
36" Stainless Steel Refrigerators, Freezers
Step 2
Install
Freezer
Water Line
• A cold water supply is required for automatic
icemaker operation. The water pressure must be
between 20 and 120 p.s.i.
• Route 1/4" OD copper or GE SmartConnect TM tubing
between house cold water line and the water
connection location
• Tubing should be long enough to extend to the
front of the freezer Allow enough to accommodate
bend leading into the water valve
NOTE: The only GEapproved plastic tubing is
supplied in the GE SmartConnect TM Refrigerator
Tubing Kits Do not use any other plastic water
supply line because the line is under pressure at all
times Other types of plastic may crack or rupture
with age and cause water damage to your home
GE SmartConnect T" Refrigerator Tubing Kits are
available in the following lengths:
2' (06 m) WX08X10002
6' {18 m) WX08Xl0006
15' (46 m) WX08X1001g
25' (76 m) WX08X10025
Shut offthe main water supplg
Turn on the nearest faucet long enough to clear the
line of waten
\ Waterline Tubing
• Install optional water filter in the water line near
the freezen Awater filter is recommended in areas
where water supply contains sand or particles.
Installation instructions are packed with the filten
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CP1R shall be adhered to
Saddle valves are illegal and use is not permitted
in Plassachusetts Consult with your licensed
plumben
Install a shutoff valve between the icemaker water
valve and cold water pipe in a basement or cabinet
The shut off valve should be located where it will be
easily accessible
NOTE: Saddle type shut offvalves are included in
many water supply kits but are not recommended for
this application
Installation
36" Stainless Steel Refrigerators Freezers
Step 3
Install
Side Panels
• Side panels are required whenever the sides of
the product will be exposed and when installed
between frameless cabinets. See pages 3 and/4.
• Side panels are not required when installed into
an enclosure
• Side panel installation will be determined bU the
design of the side panel you have previously
chosen
• Side panels must be installed plumb
Illustration A
1/4" Side Panels 23-9/16"
Insert end of side
panel into case trim
84" "_2 9/16
Top View
Standard 4" high toekick or trim to fit Height may vary
depending on application
• If gou choose to use 1/4" side panels theg should
be inserted into the case trim as illustrated Fasten
the panels to the product with stick on hook and
loop fastener strips before setting in place See
illustration A
• 1/2" to 3/4" side panels are normallg set into
place and fastened to adjacent cabinetry or
the back wall before rolling the product into
the opening See illustration B
Illustration B 243/4
1/2" to 3/4" Side
edge of side panel
is flush with cabinet
front Fasten to the
back wall using a
Panels - Leading i
c_ _ 3 3/4
Top View
Standard 4" high toekick or trim to fit
Height mag varg depending on
application
Step 4
Install
Anti-Tip
Brackets
10
ANTI-TIP PRECAUTIONS
The refrigerator is top-heavg and must be
secured to prevent the possibility of tipping
forward.
PRECAUTIONSCONTRELESBASCULEMENTS
Le r_frig_rateur est beaucoup plus Iourd en
haut et il faut le maintenir en place pour _viter
la possibilit_ de son basculement vers I'avant.
• Cut a 2"x 4"x 35" block and secure the block to
the mounting brackets provided using #12 or #14
wood screws
• Secure the bracket with wood block to the back
wall so that it is 84" (or gour installation height)
from the finished floor Use #12 or #14 wood
screws See illustration
• Screws must penetrate at least one inch into
vertical wall studs
• Before pushing the refrigerator into the opening
plug the power cord into the receptacle Open the
grille panel and reach into the opening at the back
to grasp the power cord Pull the power cord into
the opening as gou push the refrigerator back
• Gentlg push refrigerator into the opening with
hands against front corners
Brackets
Required
Height
Brackets
NotRequired
Beneatha
Soffit
From
Floor
to
Bottom
ofWood
Block
SideView
2x4 CutJ
35Length
Installation Mounting
Height Bracket
FromFloor
ScrewsMountedintoJ_
VerticalWall Studs
IMPORTANT NOTE: When the refrigerator is installed under
a soffit or if there is not enough height for this method of
securitg, brackets cannot be used. Proceed to step 5 to level
the refrigerator and then to step 6 to secure refrigerator to
cabinets. The refrigerator must be secured to prevent
tipping.
Installation
36" Stainless Steel Refrigerators, Freezers
Step 5
Level
Refrigerator
These products have a A-point leveling system.
The front is supported by leveling legs, the rear is
supported by wheels.
• Adjust rear wheels beneath the product to just
barely touch the 2x4 block.
• Turn the 7/16" hex nut located above the front
wheels. Turn to raise or Iowen
• For front leveling legs, use a 1-1/4" open-end
wrench.
• Adjust carefully; the product should be level and
plumb with cabinetry, and should align with toekick
height.
The rear leveling wheels and front leveling legs are
limited to a maximum height adjustment of 1". If
the installation requires more than 84-1/2" height,
the installer should elevate the refrigerator on a
sheet of plywood or runners. Cabinetry trim could
also be added across the top of the opening to
shorten the opening. If you attempt to raise the
refrigerator more than 1", you will damage the
front leveling legs and rear leveling wheels.
Hex Nut Adjusts_:::=_:_=411 i
RearWheels )l_Jl J
Les roues de nivellement arri@re et les pattes de
nivellement avant permettent un r6glage maximal
de 25 mm (1 po). Si I'ouverture pour le r_frig_rateur
a une hauteur sup&rieure _ 2,15 m (84-1/2 po),
I'installateur dolt _lever le r_frig_rateur sur une
feuille de contre-plaqu& ou des glissi@res. II est
_galement possible d'ajouter des baguettes de
finition des placards sur le haut de I'ouverture afin
de la r_duire. Lever le r_frig_rateur de plus de 25
mm (1 po) endommage les pattes de nivellement
avant et les roues de nivellement arri_re.
o ZOo o
Step 6
Secure
Product
to Sides
NOTE: Whenever possible, perform
this step for additional anti-tip
security. This step can be used as
an alternate to Step 4, Anti-Tip
bracket installation, whenever
brackets cannot be used.
When using 1/2" to 3/4" side panels, the front flange
of the case trim is attached to the side panel.
• Open door to access case trim.
• Drill hole in trim below interior opening. Drive screw
through trim and side panel.
• Follow the same procedure on opposite side.
_/ Refrigerator \
Studj_LCabinet \
OR _
If installed between cabinets with no side panels
or in a custom enclosure, install a spacer block as
shown.
• Open door to access case trim.
• Drill hole in trim below opening. Drive screw
through trim and into block.
• Follow the same procedure on opposite side.
11
Installation
36" Stainless Steel Refrigerators, Freezers
Step 7
Connect
Freezer
Water Supply
Step 8
Check Power
• Locate and bring tubing to the front of the cabinet.
• Turn the water on to flush debris from the line. Run
about a quart of water through the tubing into a
bucket, then shut off waten
Copper Tubing:
• Slip a i14" nut and ferrule (provided) over both ends
of the copper tubing. Insert tube into the union
fitting on the unit and tighten nut to union.
• Turn on the water to check for leaks.
GE SmartConnect'" Tubing:
• Insert the molded end of the tubing into the
refrigerator connection. Tighten the compression
nut until it is just hand tight.
• Tighten one additional turn with a wrench.
Overtightening can cause leaks!
• Turn on the water to check for leaks.
NOTE: Hake sure excess tubing length does not
interfere with toekick installation.
• Check to make sure power is on bg opening the
door to see if interior lights are on.
Step 9
Mount Top
Grille Panel
For shipping purposes, the top case trim is secured
at 84" installation height.
To raise case trim to 84-1/2" installation height or
to lower case trim to 83-1/2":
• Loosen 2 screws on both sides and raise or lower
the top case trim to meet soffit height or to the top
of adjacent cabinets
• Tighten all 4 screws
• Mount the grille panel bg dropping into slots on the
case trim
The grille panel assemblg is factorg set for an 84"
installation height. If installation height is 83-1/2"
or 84-1/2", order ZGCSSS6RH(right hand) or
ZGCSSS6LH(left hand) grille panel kit.
TopCaseTrim
Installation
Height
1-1/2"
rain.
gap
/
IMPORTANT: Maintain 1-1/2" rain gap between top of doors
and bottom of grille panel
12
Installation
36" Stainless Steel Refrigerators, Freezers
Step IO
Adjust Door
Alignment
Step "/2
Install
Toekick
Step 22
Temperature
Controls
Check door alignment. The top of the door
should be parallel with the grille panel. If the door
appears to be too high or too low on the handle side,
adjustments can be made bg turning the hinge.
• To raise the door, turn adjustable hinge pin toward
the right.
• To lower the door, turn hinge pin toward the left.
Turn the hinge pin with a 5/16" wrench of. on some
models, use the 3/16" Allen wrench taped to the
hinge.
• A standard toekick is supplied. Install with 2 screws
provided, adjust to desired height and tighten
screws.
IMPORTANT:Thevented toekick must remain
unobstructed for proper air circulation and operation.
• Set temperature control at "5".
IMPORTANT: Allow 24 hours for temperatures to
stabilize before making adjustments.
_, oor Should be Parallel
With Grille Panel
t
5/16"Wrench
Step 23
Start
Icemoker
Problem
Solving
• Set the switch to I (on). The green light will
come on and the icemaker will begin operation
automaticallg.
• Be sure nothing interferes with the sweep of the
feeler arm.
• Discard the first few batches of ice cubes.
• To turn the icemaker off, set the switch to O {off).
Allow 45 minutes for the icemaker to resume
operation.
Operation of Refrigerator and Freezer
If the product does not operate after checking the
installation instructions:
• Check to be sure power cord is plugged in the wall
outlet.
• Check to be sure that fuse or circuit breaker is
turned on.
If ang of these problems persist:
Call for Monogram local service in gour area,
1.800.444.1845.
GreenPowerLight
Cleaning the Stainless Steel Exterior
Stainless Steel has some unique cleaning
characteristics. In order to keep gour refrigerator or
freezer looking like new, we suggest cleaning it with
Stainless Steel Magic or a similar product.
Stainless Steel Magic is available at Ace, True Value,
Home Depot, Servistar, HWl and other leading stores.
It is also available through GE Parts bg calling
1.800.626.2002. Order part number WX10X15.
13
ZUGSS Trim Kit
Unified Stainless Steel Custom Grille Panel
Step 1
Install
Spacer Pads, Replace
Side Case Trims
Tools and Materials Required:
• #1 and #2 Phillips screwdrivers or sockets
• 1/4" angled wrench and 1-1/2" open ended
wrench
• Drill and appropriate bits
• Custom grille panel
• Safety glasses
• Gloves to protect against
sharp edges
Parts List:
A. Soffit Vent Top
B.Left Side Case Trim
° B
C.Right Side Case Trim
D.Center U-Shape Trim
E.Grille Base Wrap
F. Stainless Steel Unified Panel
G.Foam Spacer Pads
CAUTION: Handle parts with care to avoid scratching.
In a side bU side installation, the inside case trim of
both products will be removed and replaced with a
shorter trim.
• Lift up to remove the supplied grille panel assembly
on both products. Discard both assemblies.
Completion Time: Allow approximately 3 hours to
install this kit.
IMPORTANT: 2 People are required to install this kit.
CAUTION: Disconnect power before 9ou begin.
A
14
D _Spacer
Foam
Pads
• ApplUthe supplied foam spacer pads to the mating
side of one product as shown.
• Remove the Phillips head screws from the inside
case trim of each product as shown. Remove and
discard side trim. Retain screws.
• Install new side case trim with notches toward the
bottom. Install with original screws.
ZUGSS Trim Kit
Unified Stainless Steel Grille Panel
Step 2
Install
Anti-Tip
Brackets
ANTI-TIP PRECAUTIONS
These products are heavg at the top and must
be secured to prevent the possibilitg of tipping
over.
PRECAUTIONS CENTRE LES BASCULEMENTS
Le r@frig@rateur est beaucoup plus Iourd en haut
et il faut le maintenir en place pour 8viter la
possibilit@ de son basculement vers I'avant.
• Cut a 2"x4" block, 71" long. Secure the 2"x4" to the
4 mounting brackets provided using #12 or #14
wood screws.
• Secure the brackets with wood block to the buck
wall so that it is 84" (or 9our installation height)
from the finished floor. Use #12 or #14 wood
screws. See illustration.
• Screws must penetrate at least one inch into
vertical wall studs.
Roll Both Products into Opening
• Gently push each product into opening with hands
against front corners. Push buck into the opening
until it is flush or semi-flush with adjacent cabinets.
Brackets Brackets
Required NetRequired
SideView
2x4Cut _-_'-
71" Length
Installation Mounting
Height Bracket
FromFloor
Screws Mounted intoJ_
Vertical Wall Studs
IMPORTANT NOTE: When the products ere installed under
o soffit or if there is not enough height for this method of
security, use Step/4 Qs an Qlternative. The refrigerator end
freezer must be secured to prevent tipping.
Beneatha
Soffit
Step 3
Level Both
Products
Both products MUST BE LEVEL AND PLUMB with each
other and adjacent cabinetrg on each side. Toekick
heights should elign with cebinetrg.
• Adjust carefull 9. Both models have 4-point leveling.
The front is supported by leveling legs, the reer is
supported by wheels.
• Raise units to the some level, eligning with adjecent
toekick heights.
• Adjust rear wheels beneath the product to just barel 9
touch the 2×4 block.
• Turn the 7/16" hex nut Ioceted ebove the front wheels
to raise or lower the buck of the refrigeraton
• To udjust the front leveling legs: Use a 1/4" angled
wrench to turn the top of the leveling leg, or turn the and bottom. The inside case trims must align, top
bottom of the legs with a 1-1/4" wrench, and bottom.
The rear leveling wheels and front leveling legs
(]re limited to a maximum height adjustment of
l". If the installation requires more then 84-1/2"
height, the installer should elevate the
refrigerator on a sheet of pigweed or runners.
Cabinetrg trim could also be added across the
top of the opening to shorten the opening. If you
attempt to raise the refrigerator more than 1",
gou will damage the front leveling legs and
rear leveling wheels.
HexNutAdj usts ] o ii i
RearWheels )l_l] I
Units must be i" apart and evenly aligned at top
Les roues de nivellement arri_re et les pattes de
nivellement avant permettent un r6glage maximal
de 25 mm (1 po). Si I'ouverture pour le r6frig_reteur
a une hauteur sup_rieure 6 2,15 m (84-Z/2 po),
I'installateur dolt 61ever le r_frig_rateur surune
feuille de contre-plaqu& ou des glissi6res. II est
_galement possible d'ajouter des baguettes de
finition des placards sur le haut de I'ouverture (]fin
de la r_duire. Lever le r_frig_rateur de plus de 25
mm (1 po} endommoge les pattes de nivellement
event et les roues de nivellement arri_re.
L
o o0_ o
15
ZUGSS Trim Kit
Unified Stainless Steel Grille Panel
Step 4
Secure
Products
ToSides
Step 5
Install Center
Trim Strip
NOTE: This step can be used
as an alternative to Step 2,
Anti-Tip bracket installation,
whenever brackets cannot
be used. Whenever possible,
perform this step for additional
anti-tip security.
When using 1/2" to 3/4"thick side panels, the front
flange of the case trim is attached to the side panel.
• Open door to access case trim.
• Drill hole in trim slightly below the interior opening.
• Drive screw through the trim and into the side
panel.
• Follow the same procedure on the opposite outside
product trim.
• Open doors fully.
• Starting at the top, press trim strip over inside case
trims of both products.
• Continue pressing trim until you reach the bottom
of the case trims. The trim will align with the top
and bottom of the case trim.
_/ Refrigerator
Stud LLZ Cabinet \
xg:
OR _
If the product is installed between cabinets with
no side panels or into a custom enclosure, install
a spacer block as shown.
CaseTrim
U-Shape
Trim
Step 5
Remove
Wire Fence and
Switch Cover
16
• Remove 3 screws holding the wire fence on both
products. Retain fences and all screws.
j_
j"
Grille Base Cover
• Lift off grille base covers. Discard covers.
Step 7
Install
Grille Base
Cover
Unified Base Cover
• Open doors fully.
• Install the double width grille base cover by
slipping the notched ends over the hinges.
ZUGSS Trim Kit
Unified Stainless Steel Grille Panel
Place
9im Over
Hinges
Step 8
Remove
Grille Frame
Install Install
3 Screws 3 Screws
• Place wire fence over the grille base cover (textured
side out). Drive original wire fence screws through
the fence, the grille base cover and into the frame.
• Back out 2 screws on each side of the top
case trim.
• The top piece is secured to the unit with a rubber
dust gasket. Roll the trim upward to access and
remove end screws as shown. Remove and discard
inside pieces.
• Slide assembly out of the rubber gasket.
Remove
Screws
Dust
6asket
17
ZUGSS Trim Kit
Unified Stainless Steel Grille Panel
Step 9
Install
Soffit
Vent Top
SlipDustGasket
Int0TrimOnOneEnd SlipSecondDust
• Separate the top and hinge side trim pieces bg
removing side screws. Discard top piece; retain
screws.
• Install one end piece to unified top piece with
2 original screws.
• Slip end of rubber dust gasket into end of top
unified piece and slide trim towards the centen
Engage the second piece of gasket and continue
sliding trim until even with opposite ends.
• Reinstall end pieces to case trims. Push top piece
up against soffit or to installation height. Tighten
screws on both sides.
• Whenever possible, place a level on the top trim.
Adjust side trims until entire grille frame is level.
GasketIntoTrim
Screws
\
Step 10
Mount
Unified
Grille Panel
• Mount the unified grille panel bg dropping into slots
on the outside case trim.
18
Step 11
Adjust
Door
Alignment
ZUGSS Trim Kit
Unified Stainless Steel Grille Panel
5/16"Wrench
Check door alignment. The top of the door
should be parallel with the grille panel. If the door
appears to be too high or too low on the handle side,
adjustments can be made.
• Use a 5/16" wrench to turn the hinge.
• To raise the door, turn adjustable hinge pin toward
the right.
• To lower the door, turn hinge pin toward the left.
19
Pub. No. 49-60073-4
Part No. 197DBOOBPO01
08-07JR
Note: While performing installations described in this book,
safetg glasses or goggles should be worn.
For Monogram ®local service in your area, coil
1.800.444.1848.
Note: Product improvement is a continuing endeavor at
General Electric. Therefore, materials, appearance and
specifications are subject to change without notice.
GE Consumer & Industrial
Appliances
General Electric Company
Louisville, KY 40225
ge.com
Loading...
