TPX24PPDBB—GE Profile Performance™ 23.7 Cu. Ft. CustomStyle™ Side-by-Side Refrigerator with Dispenser

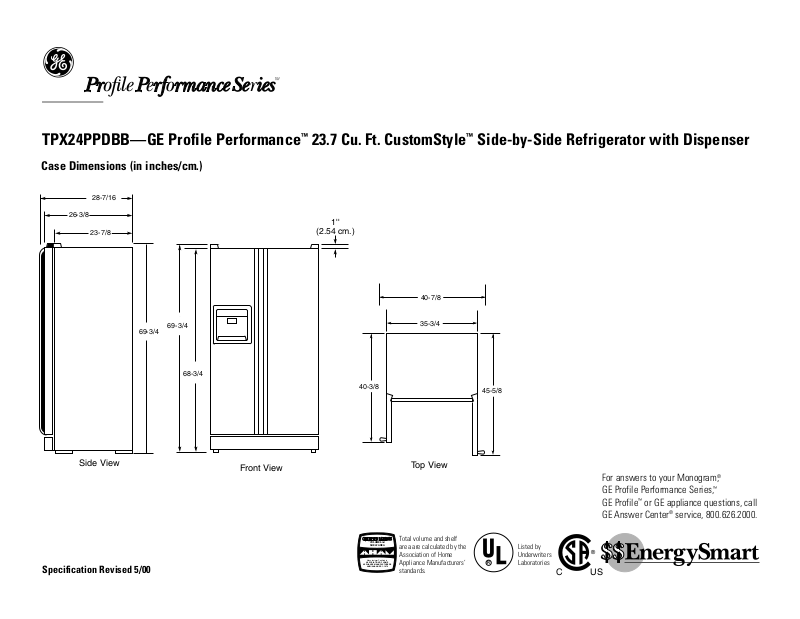

Case Dimensions (in inches/cm.)
C |
|
|
28-7/16 |
|
|
26-3/8 |
|
|
D |
1'' |
|
23-7/8 |
(2.54 cm.) |
|
E |
|
|
|
|
40-J7/8 |
A |
|
35-G3/4 |
69-3/4 |
|
|
69-3/4 |
|
|
F |
|
|
B |
|
|
68-3/4 |
|
|
|
40-H3/8 |
45-5/8I |
|
|
Side View |
Front View |
Top View |
|
|
Specification Revised 5/00
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME APPLIANCE MANUFACTURERS ANSI/AHAN HRF-1-1979
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
R
Listed by Underwriters Laboratories
C
For answers to your Monogram,® GE Profile Performance Series,™
GE Profile™ or GE appliance questions, call GE Answer Center® service, 800.626.2000.
®
US
TPX24PPDBB—GE Profile Performance™ 23.7 Cu. Ft. CustomStyle™ Side-by-Side Refrigerator with Dispenser
Rough-In Dimensions (in inches)
8' Ceiling
12" Soffit
13" to 14" Cabinet
70-1/4"*
24"
36"
*The rough-in dimension of 70-1/4" is minimum and is measured from the finished floor to top of opening (or the underside of the overhead cabinets). For Models with Trim Kit: If frameless style cabinets are planned for above the refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to height of opening to allow additional clearance between cabinet doors and top of refrigerator trim when cabinet doors are in open position.
Specification Revised 5/00
Standard, New Construction and
Replacement Installation
Installation Tips to Maximize the Built-In Look
•All wall/floor moulding should be remove prior to installation.
•Water recess on rear wall recommended to prevent water line damage. 48" minimum length 1/4" diameter water line tubing recommended.
•When possible, recess both water line and electrical outlet. (See local codes)
•Front and rear leveling legs are adjustable for the “Built-In” look. (See owner’s manual)
•If optional collar trim kit is to be used or anticipated, see collar trim installation on next page for different rough-in dimensions.
Installation of Water and Electrical Outlets
Water |
Electrical |
|
3/4" Airspace |
|
|
(1/2" Gap + 1/4" |
|
|
Wall Plates) |
|
|
24" |
25" |
|
Cabinet |
||
Counter |
||
|
||
|
Top |
