GE TPX24PPBWW Specification
TPX24PPBWW—GE Profile Performance™ CustomStyle™ Side-by-Side Refrigerator

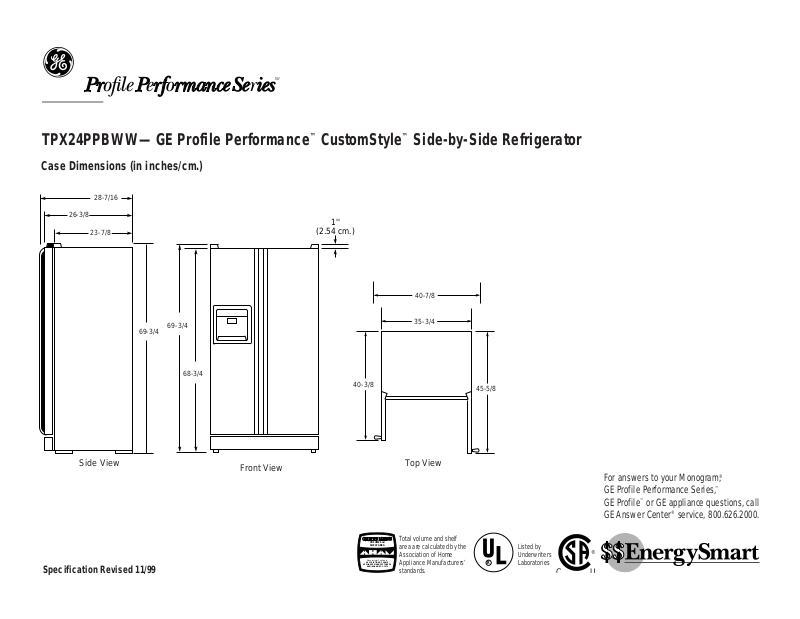

Case Dimensions (in inches/cm.)
C |
|
|
28-7/16 |
|
|
26-3/8 |
|
|
D |
1'' |
|
23-7/8 |
(2.54 cm.) |
|
E |
|
|
|
|
40-J7/8 |
A |
|
35-G3/4 |
69-3/4 |
|
|
69-3/4 |
|
|
F |
|
|
B |
|
|
68-3/4 |
|
|
|
40-H3/8 |
45-5/8I |
|
|
Side View |
Front View |
Top View |
|
|
|
VOLUME and |
Total volume and shelf |
|
|
|
|
area are calculated by the |
|
Listed by |
|
|
|
SHELF AREA |
|
|
||
|
|
Association of Home |
|
Underwriters |
® |
|
|
|
|
||
|
Manufacturer Certified to |
Appliance Manufacturers’ |
R |
Laboratories |
|
|
ANSI/AHAN HRF-1-1979 |
|
|||
Specification Revised 11/99 |
ASSOCIATION OF HOME |
|
|
|
|
APPLIANCE MANUFACTURERS |
|
|
C |
||
|
standards. |
|
|
For answers to your Monogram,® GE Profile Performance Series,™
GE Profile™ or GE appliance questions, call GE Answer Center® service, 800.626.2000.
TPX24PPBWW—GE Profile Performance™ CustomStyle™ Side-by-Side Refrigerator
Rough-In Dimensions (in inches)
70-1/4"
36"
24"
Standard, New Construction and Replacement Installation
Installation Tips to Maximize the Built-In Look
•All wall/floor moulding should be removed prior to installation.
•Water recess on rear wall recommended to prevent water line damage. 48" minimum length 1/4" diameter water line tubing recommended.
•When possible, recess both water line and electrical outlet. (See local codes)
•Front and rear leveling legs are adjustable for the “Built-In” look. (See owner’s manual)
•If optional collar trim kit is to be used or anticipated, see collar trim installation on next page for different rough-in dimensions.
Specification Revised 11/99
Installation of Water and Electrical Outlets
Water hook-up
on the refrigerator
Recommended single loop of 1/4" copper water line
Allow 48" minimum water
line to enable refrigerator 24" to be pulled forward.
18"
Recommended water line
location using recess Rear Wall View in rear wall
Water |
Electrical |
Water |
Electrical |
|
|
|
|||
3/4" Airspace |
|
3/4" Airspace |
|
|
(1/2" Gap + 1/4" |
|
(1/2" Gap + 1/4" |
|
|
Wall Plates) |
|
Wall Plates) |
|
|
24" |
25" |
24" |
25" |
|
Cabinet |
Cabinet |
|||
Counter |
Counter |
|||
24"* Side panels |
Top |
24-1/2"* Side panels |
Top |
Trim
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME APPLIANCE MANUFACTURERS ANSI/AHAN HRF-1-1979
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
R
Listed by Underwriters Laboratories
C
For answers to your Monogram,® GE Profile Performance Series,™
GE Profile™ or GE appliance questions, call GE Answer Center® service, 800.626.2000.
®
