Specification Revised 5/00
TPX24PBDBB—GE Profile Performance™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser

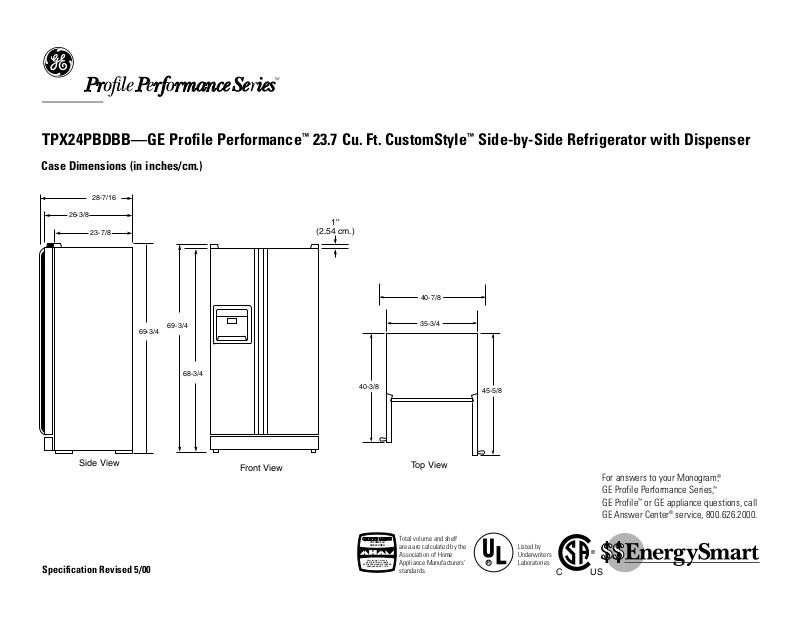

Case Dimensions (in inches/cm.)
C
F
D
E
Side View
28-7/16
26-3/8
23-7/8
69-3/4
A
1''
(2.54 cm.)
B
Front View
69-3/4
68-3/4
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
I
H
G
J
Top View
40-3/8
35-3/4
45-5/8
40-7/8
TPX24PBDBB—GE Profile Performance™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Specification Revised 5/00
Rough-In Dimensions (in inches)
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Installation of Water and Electrical Outlets
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Standard, New Construction and
Replacement Installation
Installation Tips to Maximize the
Built-In Look
• All wall/floor moulding should be remove
prior to installation.
• Water recess on rear wall recommended
to prevent water line damage. 48"
minimum length 1/4" diameter water
line tubing recommended.
• When possible, recess both water line
and electrical outlet. (See local codes)
• Front and rear leveling legs are adjustable
for the “Built-In” look. (See owner’s manual)
• If optional collar trim kit is to be used or
anticipated, see collar trim installation on
next page for different rough-in dimensions.
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36"
24"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Specification Revised 5/00
TPX24PBDBB—GE Profile Performance™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Features and Benefits
• 23.7 cu. ft. Capacity (Fresh Food 14.48 cu ft / Freezer 9.25 cu ft)
• Refreshment Center
• Electronic Monitor System
• Exclusive Water-By-Culligan
™
Provides Cleaner, Better Tasting Water and
Ice through the LightTouch! Dispenser (Chilled Water, Cubed and Crushed Ice)
• Freshness Center
™
(1 Adjustable Humidity Crisper, 1 Convertible
Meat Keeper with Cold Control and 1 Adjustable Humidity Snack Pan)
with Spill-Proof Cover
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide Out, Spill Proof)
• Quick Space
™
Shelf
• ShelfSaver
™
• 4 ClearLook™Modular Fresh Food Door Shelves (2 Adjustable with
Gallon Storage)
• Beverage Rack
• Dairy Compartment with Glass Butter Dish
• Egg Bin
• 3 Cantilevered Freezer Shelves (2 Adjustable)
• 1 Wire Everwhite, Slide Out Freezer Basket
• 1 Sliding Wire Everwhite Freezer Storage Bin
• 4 Freezer Door Shelves (2 Adjustable)
• Quiet Package II
• Color-Matched Premium Deluxe Door Handles
• Model TPX24PBDWW—White on White
• Model TPX24PBDBB—Black on Black
• Model TPX24PBDAA—Almond on Almond
• Model TPX24PBDCC—Bisque
• Model TPS24PBDBS––Stainless Steel
