GE PSB9120EF, PSB9120BL Specification

PSB9120EF/BL

C

2x4’s or
equivalent
solid floor

4-3/16"

25-1/4"

Cutout width

Junction
box location

17-1/2"

Cutout height

29-3/4"

19"

21-1/2"

Back of Control

Conduit

(48-1/2"

long)

B

30"

5" min.from
floor 1" min.

above toekick

A

Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)

Note: Cabinets installed adjacent

to wall ovens must have an adhesion
spec of at least 194° F temperature rating.

23-1/2"

Cutout depth

Construct Solid Bottom
MIN. 3/8" Plywood
Supported by 2 x 4
or 1 x 2 Runners,
all Four Sides.
(Platform must be
able to support cabinet
load, weight of oven,
and additional
oven loads)

A = The unit overlap is 1/2" but allow 5/8" clearance from top edge of cutout
B = The unit overlap is 2-1/4" but allow 2-3/8" clearance from side edges of cutout
C = The unit overlap is 1" but allow 1-1/8" clearance from bottom edge of cutout

C

4-3/16"

25-1/4"

Cutout width

Junction
box location

17-1/2"

Cutout height

29-3/4"

19"

21-1/2"

Back of Control

Conduit

(48-1/2"

long)

B

30"

5" min.from
floor 1" min.

above toekick

A

Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)

Note: Cabinets installed adjacent

to wall ovens must have an adhesion
spec of at least 194° F temperature rating.

23-1/2"

Cutout depth

Construct Solid Bottom
MIN. 3/8" Plywood
Supported by 2 x 4
or 1 x 2 Runners,
all Four Sides.
(Platform must be
able to support cabinet
load, weight of oven,
and additional
oven loads)

A = The unit overlap is 1/2" but allow 5/8" clearance from top edge of cutout
B = The unit overlap is 2-1/4" but allow 2-3/8" clearance from side edges of cutout
C = The unit overlap is 1" but allow 1-1/8" clearance from bottom edge of cutout

4-3/16"

C

C

L

2x4’s or
equivalent
solid floor

21-5/8"

over centerline

of cabinet

4-3/16"

25-1/4"

Cutout width

Junction
box location

17-1/2"

Cutout height

29-3/4"

19"

21-1/2"

Back of Control

Conduit

(48-1/2"

long)

B

30"

5" min.from
floor 1" min.

above toekick

A

Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)

Note: Cabinets installed adjacent

to wall ovens must have an adhesion
spec of at least 194° F temperature rating.

23-1/2"

Cutout depth

Construct Solid Bottom
MIN. 3/8" Plywood
Supported by 2 x 4
or 1 x 2 Runners,
all Four Sides.
(Platform must be
able to support cabinet
load, weight of oven,
and additional
oven loads)

A = The unit overlap is 1/2" but allow 5/8" clearance from top edge of cutout
B = The unit overlap is 2-1/4" but allow 2-3/8" clearance from side edges of cutout
C = The unit overlap is 1" but allow 1-1/8" clearance from bottom edge of cutout

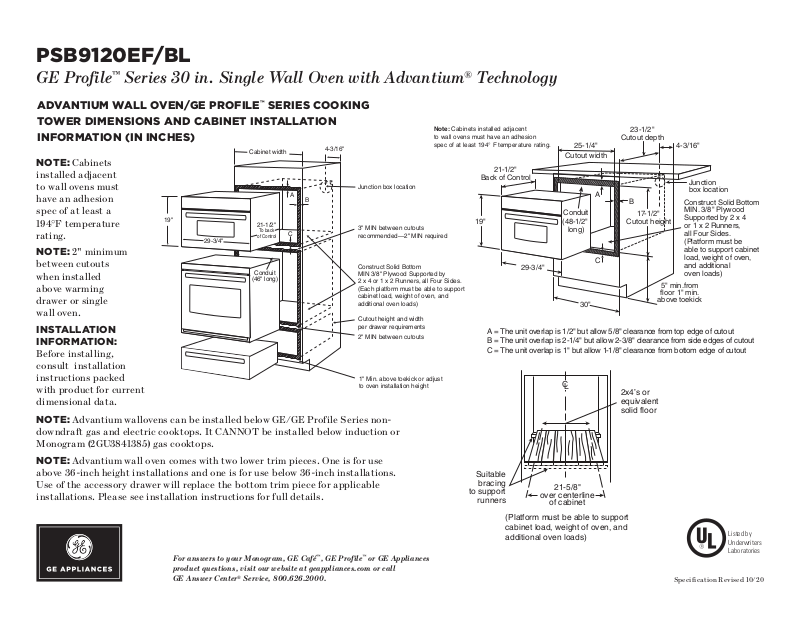

GE Profile™ Series 30 in. Single Wall Oven with Advantium

ADVANTIUM WALL OVEN/GE PROFILE™ SERIES COOKING
TOWER DIMENSIONS AND CABINET INSTALLATION
INFORMATION (IN INCHES)

NOTE: Cabinets

installed adjacent
to wall ovens must
have an adhesion
spec of at least a
194°F temperature
rating.

NOTE: 2" minimum
between cutouts
when installed
above warming
drawer or single
wall oven.

INSTA L L ATION
INFORMATION:

Before installing,
consult installation
instructions packed
with product for current
dimensional data.

NOTE: Advantium wallovens can be installed below GE/GE Profile Series non­downdraft gas and electric cooktops. It CANNOT be installed below induction or
Monogram (2GU3841385) gas cooktops.

NOTE: Advantium wall oven comes with two lower trim pieces. One is for use
above 36-inch height installations and one is for use below 36-inch installations.
Use of the accessory drawer will replace the bottom trim piece for applicable
installations. Please see installation instructions for full details.

Cabinet width

19"

29-3/4"

29-3/4"

21-1/2"

To back

of Control

Conduit

(46" long)

A

B

C

For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances

GE Answer Center® Service, 800.626.2000.

product questions, visit our website at geappliances.com or call

Junction box location

3" MIN between cutouts
recommended—2" MIN required

Construct Solid Bottom
MIN 3/8" Plywood Supported by
2 x 4 or 1 x 2 Runners, all Four Sides.
(Each platform must be able to support
cabinet load, weight of oven, and
additional oven loads)

Cutout height and width
per drawer requirements

2" MIN between cutouts

1" Min. above toekick or adjust
to oven installation height

®

Technology

Suitable

bracing

to support

runners

(Platform must be able to support
cabinet load, weight of oven, and
additional oven loads)

over centerline

C

L

21-5/8"

of cabinet

2x4’s or
equivalent
solid floor

Listed by
Underwriters
Laboratories

Speci fication Revise d 10/20

PSB9120EF/BL

Installation over Warming Drawer:

Installation over a Wall Oven and Warming Drawer:

GE Profile™ Series 30 in. Single Wall Oven with Advantium

PREPARATION WITH AN ACCESSORY DRAWER

®

Technology

PREPARE THE OPENING: The Advantium 120V
can be installed in combination with other Built-In
appliances. Always follow each product's Installation
Instructions to compete the installation.

SIN G LE OVE N I NSTALLATI O N: Order a 30" wide
single oven cabinet or cut the opening in a wall to the
dimensions shown.

* For existing cutouts, a maximum
width of 28-1/2" is acceptable.
If the opening is slightly wider,
secure a furring strip on each side
of the cutout for securing the oven.

- The unit overlap on the top is
1/2" but allow 5/8" clearance
from top edge of cutout. The unit
overlap on each side is 2−1/4" but
allow 2−3/8" clearance from side
edges of cutout. The unit overlap
on the bottom is 5/8" but allow
3/4" clearance from bottom edge
of cutout.

- Oven overlaps will conceal cut edges on all sides of the opening.

NOTE: PSB9120 series Advantium can be installed below GE/GE
Profile non-downdraft gas and electric cooktops. It CANNOT be
installed below induction or Monogram (2GU3841385) gas cooktops.

NOTE: PSB9120 series Advantium oven comes with two lower trim
pieces. One is for use above 36-inch height installations and one is
for use below 36-inch installations. Use of the accessory drawer will
replace the bottom trim piece for applicable installations. Please see
installation instructions for full details.

36-3/4" Min.

from floor

1" Min.

above

toekick

PREPARE THE OPENING (CONT.)

When installed over a single oven

INSTALLATION OVER A BUILT-IN
OVEN AND WARMING DRAWER:

or a warming drawer, allow at least
2" between the two openings. This

30"

separation will provide clearance for
bottom overlap of the Advantium and
the other appliance overlaps.

30"

23-1/2"

Construct a solid oven floor of 3/8" min.
thick plywood supported by 2 x 4 or 2 x

25-1/4"

2 runners on all sides.

- The support must be level and rigidly

21"

Construct base -
Min. 3/8" plywood
supported by 2x4
or 2x2 runners all
four sides.

mounted, flush with the bottom edge of
the cutout.

23-1/2"

Construct solid
bottom - Min. 3/8"

25-1/4"

Min.

21"

plywood supported
by 2x4 or 2x2
runners all four
sides

2" Min.

(3" recommended)

Per warming
drawer
requirement

36-3/4" Min.

from floor

1" Min.

above

toekick

30"

45-1/4" Min.

from floor

1" Min.

above

toekick

NOTE: Additional clearances between
the cutouts may be required. Check
to be sure the oven supports above
the Warming Drawer location do not
obstruct the required interior depth and
height. See Warming Drawer installation
instructions for details.

CAUTION: For personal safety, the

23-1/2"

25-1/4"

Min.

21"

Per warming drawer requirement

Construct solid
bottom - Min. 3/8"
plywood supported
by 2x4 or 2x2
runners all four
sides

2" Min.

(3" recommended)

Per oven
requirement

2" Min.

mounting surface must be capable of
supporting the cabinet load, in addition
to the added weight of the oven and
drawer, plus additional oven loads.

NOTE: Additional clearances between the
cutouts may be required. Check to be sure
the oven supports above the Warming
Drawer location do not obstruct the
required interior depth and height. See
Warming Drawer installation instructions
for details.

Listed by
Underwriters
Laboratories

Speci fication Revise d 10/20
