MFL59060917
Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT ³ Save these instructions
for local inspector’s use.
IMPORTANT ³ Observe all governing codes
and ordinances.
• Note to Installer ³ Be sure to leave these
instructions with the Consumer.
• Note to Consumer ³ Keep these instructions
with your Owner’s Manual for future reference.
• Skill Level ³ Installation of this appliance
requires basic mechanical and electrical skills.
• Completion Time ³ 1 Hour.
• Proper installation is the responsibility
of the installer. Product failure due to improper
installation is not covered under the warranty. See
Owner’s Manual for warranty information.
NOTE: This oven is only approved to be installed
under the specific models as labeled on this unit.
IMPORTANT ³ Use this oven only
for its intended purpose. Never use the oven
for warming or heating a room. Prolonged use
of the oven without proper ventilation can
be hazardous.
CAUTION:
For personal safety, remove house fuse or oven
circuit breaker before beginning installation
to avoid severe or fatal shock injury.
CONTENTS
Design Information
Models Available ......................................................................2
Product Dimensions and Clearances ............................4
Tools and Parts Required ....................................................4
Parts Supplied ...........................................................................4
Advance Planning ...................................................................4
Installation Preparation
Electrical Requirements .......................................................5
Preparing the Opening (Installation without
an accessory storage drawer) .................................6-9
Preparing the Opening (Installation with
an accessory storage drawer) ............................10-13

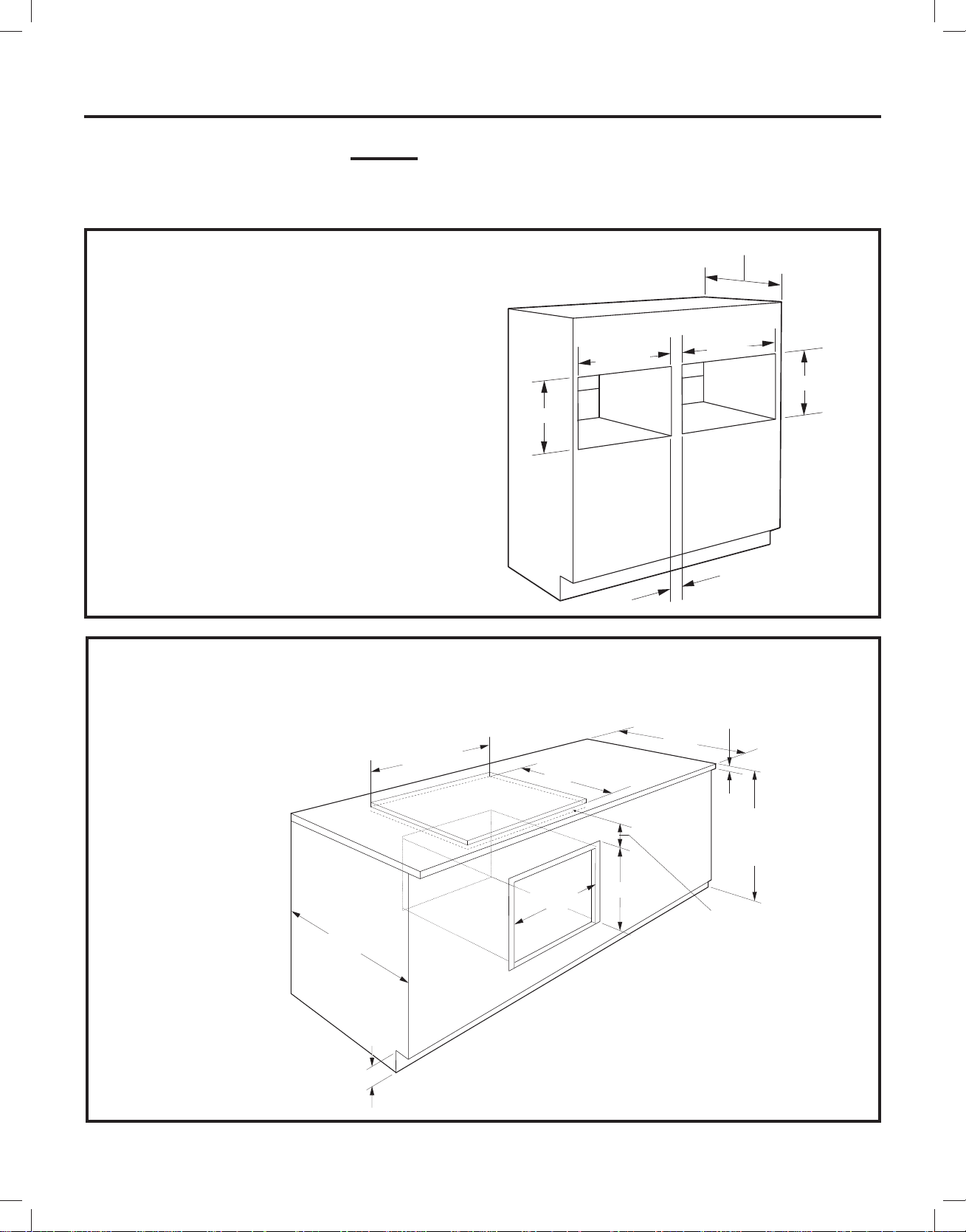

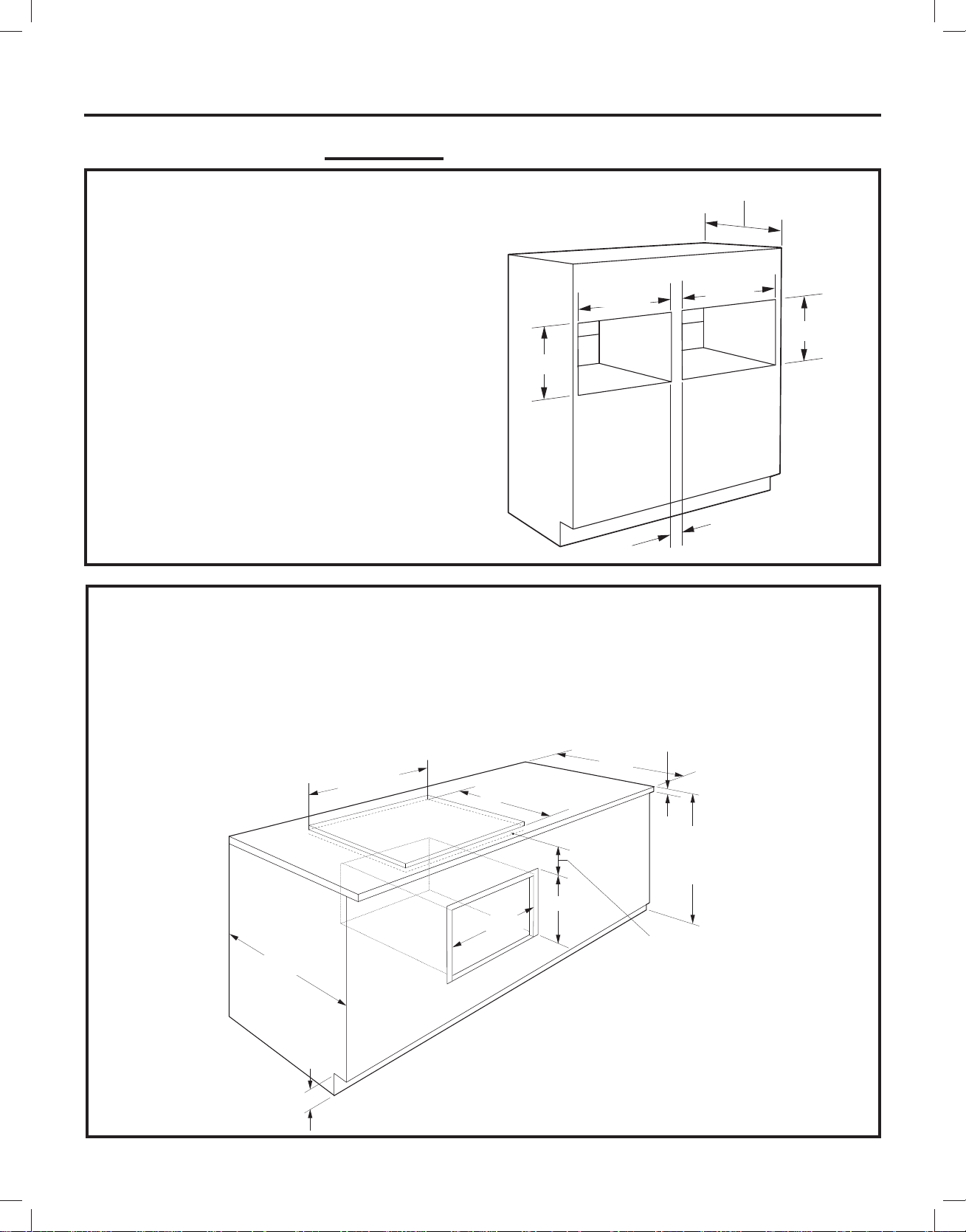

Installation Under a 36s Cooktop .................................13
Installation Instructions

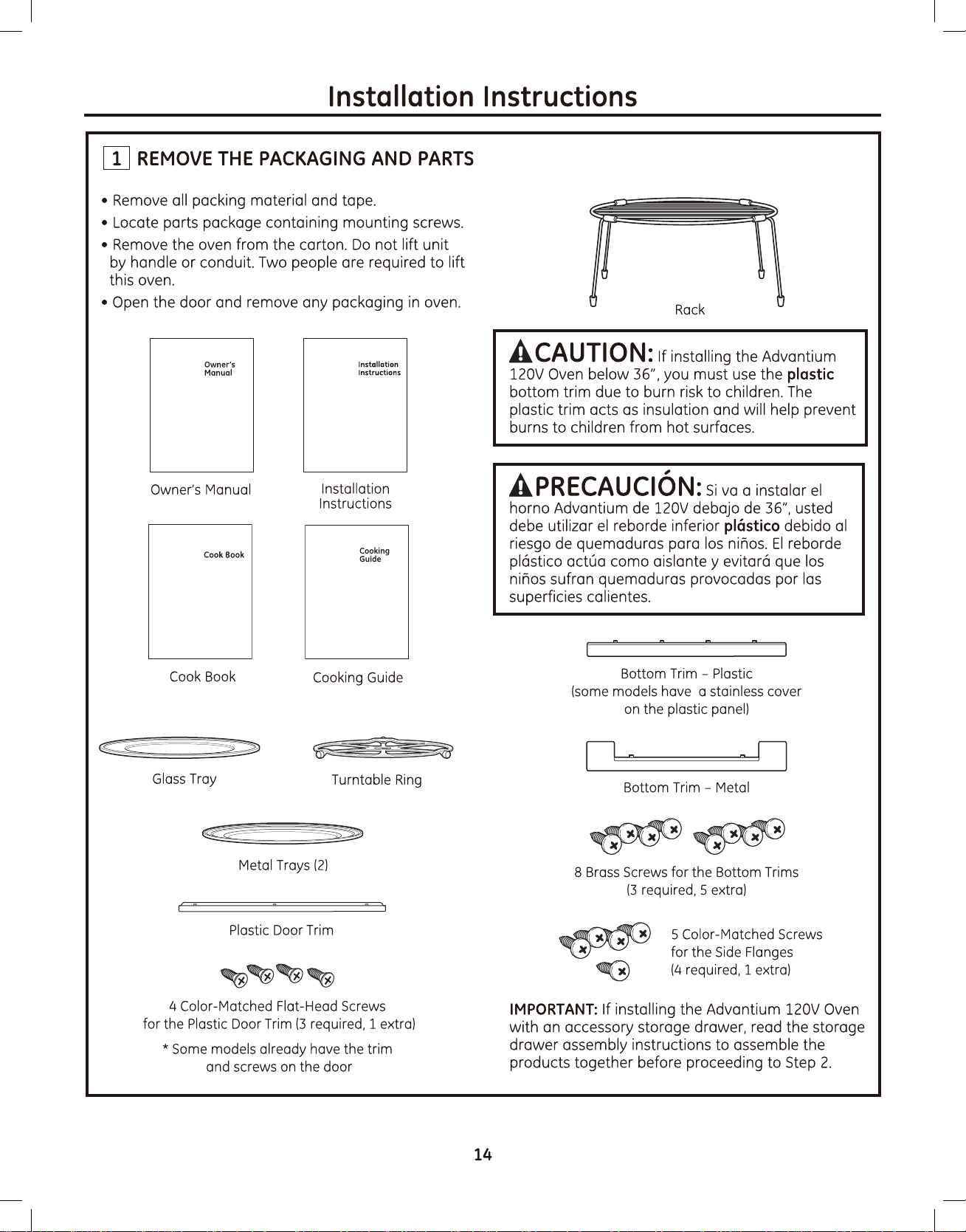

Step 1, Remove Packaging and Parts ........................14
Step 2, Door Trim Removal for above 36”
Installation only ...................................................................15

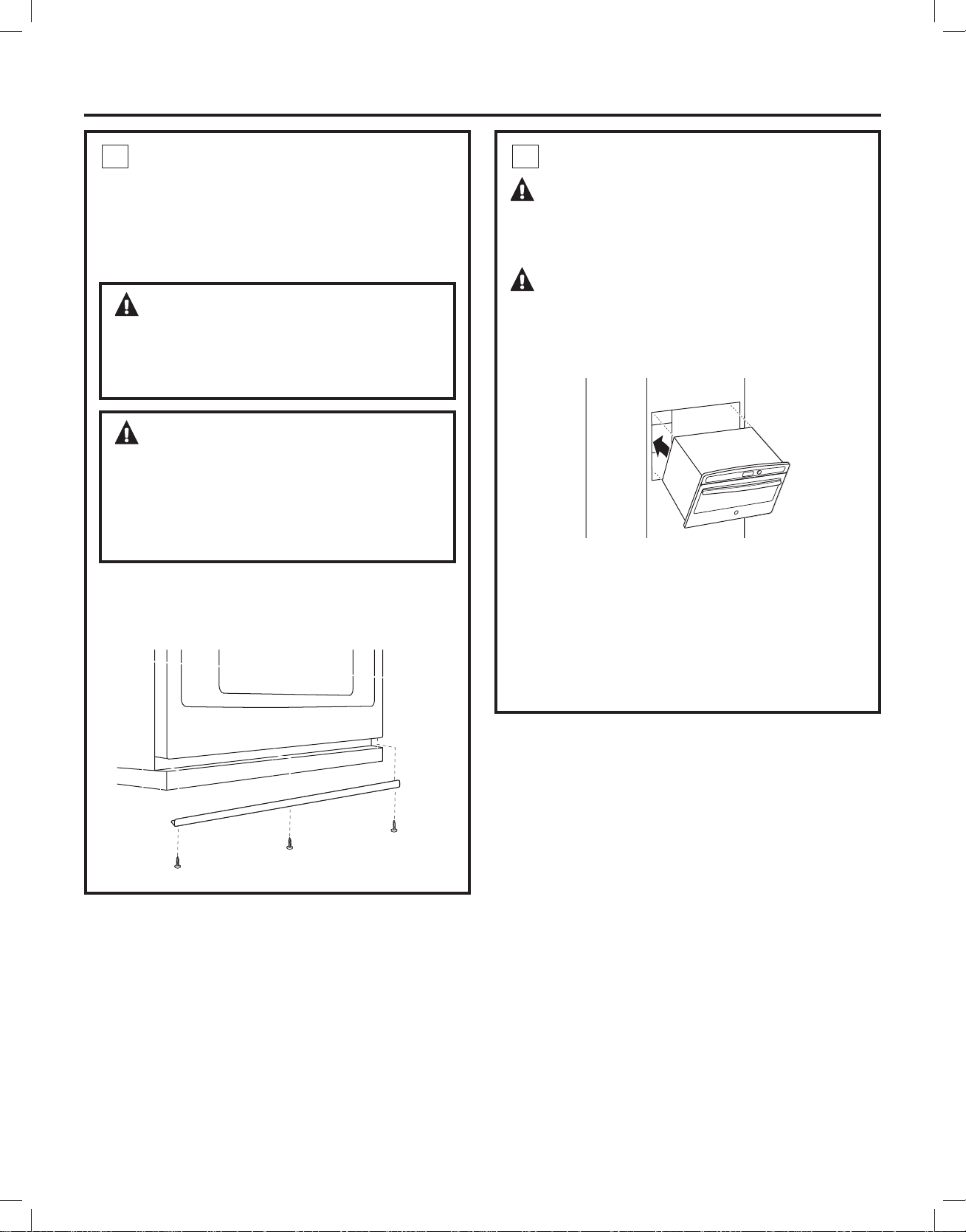

Step 3, Slide the Oven into the Cutout ....................... 15

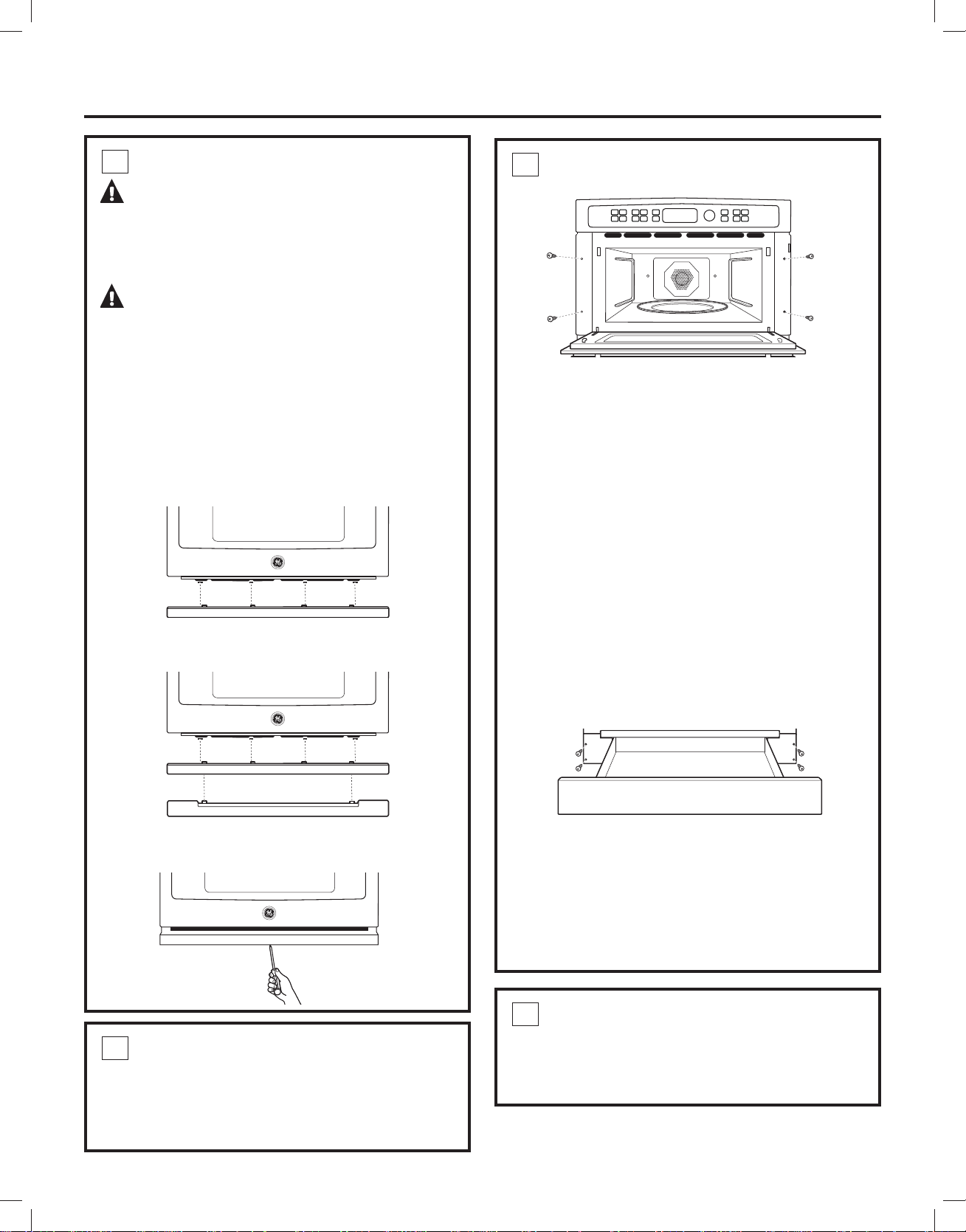

Step 4, Install Bottom Trim ..............................................16

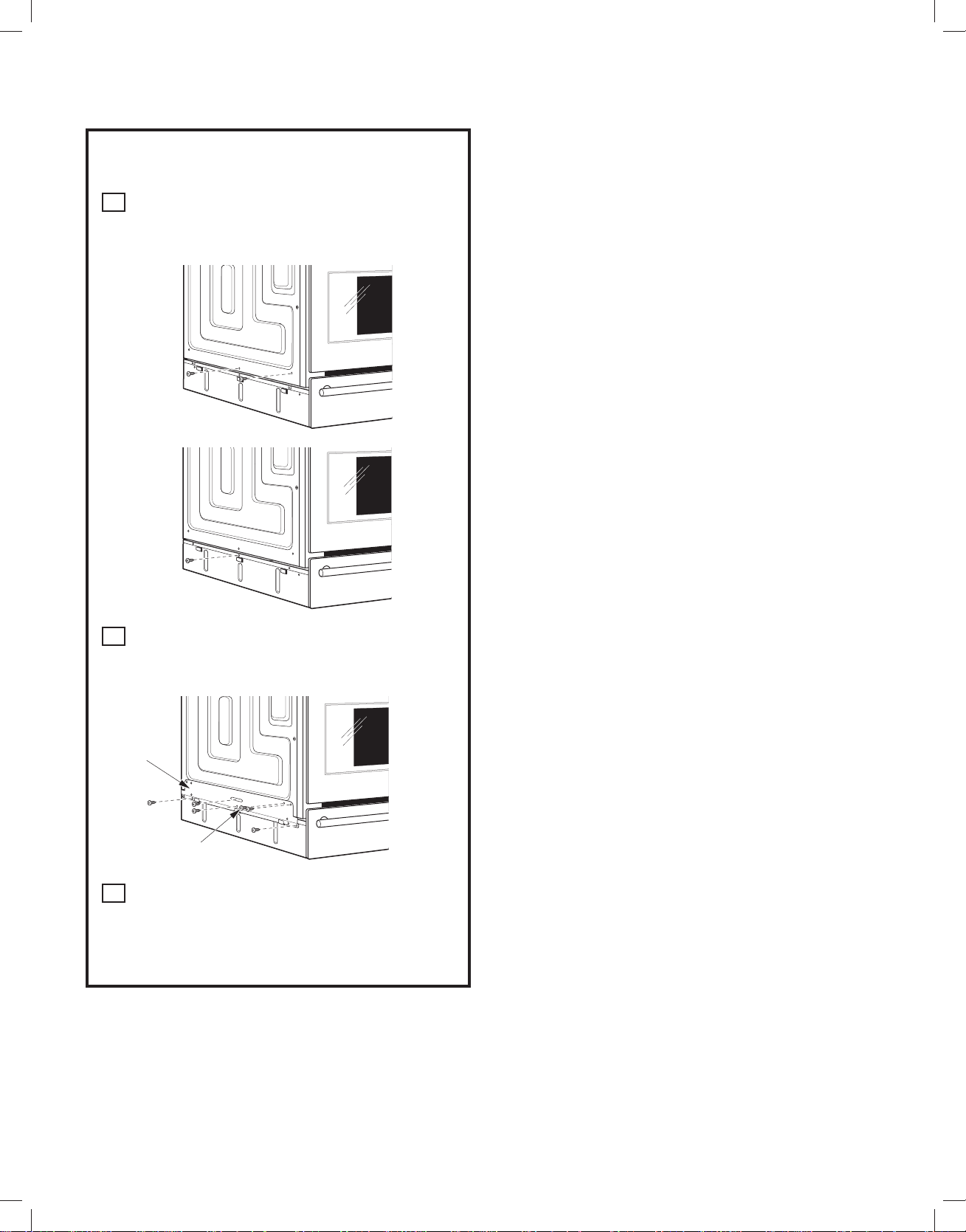

Step 5, Install Bottom Trim with Accessory
Drawer ....................................................................................16
Step 6, Install Mounting Screws ....................................16
Step 7, Finalize Installation ..............................................16
MODELS AVAILABLE
Profile Models:
PSB9120WW–White*
PSB9120BB–Black
PSB9120SS–Stainless Steel
CAUTION:
For personal safety, the mounting surface
must be capable of supporting the cabinet load,
in addition to the added weight of the 80-pound
oven and 30-pound drawer, plus additional oven
loads of up to 50 pounds or a total weight of up
to 160 pounds.
CAUTION:
If installing the Advantium 120V Oven below 36s,
you must use the plastic bottom trim due to burn
risk to children. The plastic trim acts as insulation
and will help prevent burns to children from hot
surfaces.
CAUTION:
If installing the Advantium 120V Oven below 36s,
do not remove the plastic door trim due to burn
risk to children. The plastic trim acts as insulation
and will help prevent burns to children from hot
surfaces.
Monogram Models:
ZSC1201SS–Stainless Steel
ZSC1202SS
Café Model:
CSB9120SS–Stainless Steel
*No color-matched drawer available for this model.
** This unit cannot be installed with an accessory
storage drawer.
–Stainless Steel**
2
Información de seguridad
ANTES DE COMENZAR
Lea estas instrucciones por completo y con
detenimiento.
IMPORTANTE ³ Guarde estas instrucciones
para el uso de inspectores locales.
IMPORTANTE ³ Cumpla con todos los
códigos y ordenanzas vigentes.
• Nota al instalador ³ Asegúrese de dejar estas
instrucciones con el Consumidor.
• Nota al consumidor ³ Mantenga estas
instrucciones con el Manual del Propietario para
referencia futura.
• Nivel de capacidad ³ La instalación de este
aparato requiere capacidades mecánicas y eléctricas
básicas.
• Tiempo de finalización ³ 1 hora.
• El instalador tiene la responsabilidad de efectuar una
instalación adecuada. La Garantía no cubre las fallas
del producto debido a una instalación incorrecta. Ver
el Manual del Propietario para información sobre la
garantía.
NOTA: Este horno sólo puede instalarse debajo
de los modelos específicos como se indica en la etiqueta
de esta unidad.
IMPORTANTE ³ Utilice este horno sólo con
el objetivo para el que fue creado. Nunca use el
horno para entibiar o calentar una habitación. El uso
prolongado del horno sin una ventilación adecuada
puede resultar peligroso.
PRECAUCIÓN:
Para seguridad personal, quite el fusible o el interruptor
de circuitos de la vivienda antes de comenzar la
instalación a fin de evitar una lesión grave o fatal.
PRECAUCIÓN:
Para seguridad personal, la superficie de montaje debe
poder soportar la carga del gabinete, además de las 80
libras del horno y las 30 libras del cajón, más las cargas
adicionales del horno de hasta 50 libras o un peso total
de hasta 160 libras.
PRECAUCIÓN:
Si va a instalar el horno Advantium de 120V debajo
de 36”, usted debe utilizar el reborde inferior plástico
debido al riesgo de quemaduras para los niños.
El reborde plástico actúa como aislante y evitará
que los niños sufran quemaduras provocadas
por las superficies calientes.
PRECAUCIÓN:
Si va a instalar el horno Advantium de 120V debajo
de 36”, usted no debe quitar el reborde plástico de
la puerta debido al riesgo de quemaduras para los
niños. El reborde plástico actúa como aislante y evitará
que los niños sufran quemaduras provocadas por las
superficies calientes.
3
Installation Preparation
ELECTRICAL REQUIREMENTS
Single Advantium 120 Installation:
This product requires a 120-volt, 60 Hz, 15-amp
circuit and draws 1.8 kilowatts. This product must be
connected to a supply circuit of the proper voltage
and frequency.
• Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilowatt rating.
• The power supply cord and plug should be brought
to a separate 15 or 20 ampere branch circuit single
grounded receptacle. The outlet box should be
located within reach of the 48” power cord.
ELECTRICAL LOCATION
6”
9”
Locate outlet box in the shaded area
Install a recessed electrical outlet in the back wall
of the opening within 6s of either side and at least
9s above the cutout floor.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for electric current. This appliance is equipped with
a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING: Improper use of the grounding
plug can result in a risk of electric shock.
¡ADVERTENCIA!: El uso inadecuado del
enchufe de conexión a tierra puede provocar un
riesgo de descarga eléctrica.
Important: (Please read carefully).
The power cord of this appliance is equipped with
a three-prong (grounding) plug that mates with a
standard three-prong grounding wall receptacle to
minimize the possibility of electric shock. Consult a
qualified electrician or serviceman if the grounding
instructions are not completely understood, or if
doubt exists as to whether the appliance is properly
grounded.
• Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the consumer to have it replaced with a
properly grounded three-prong wall receptacle.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
DO NOT USE AN EXTENSION CORD. If the power
supply cord is too short, have a qualified electrician or
serviceman install an outlet near the appliance.
5
Installation Preparation
Preparation WITHOUT an Accessory Storage Drawer
PREPARE THE OPENING
The Advantium 120V can be installed in
combination with other GE/Monogram appliances.
Always follow each product’s Installation
Instructions to complete the installation.
Single Advantium 120V Installation:
Order a 30s wide single oven cabinet or cut the
opening in a wall to the dimensions shown.
30s
17-1/2s
23-1/2s
25-1/4s
Construct
Base
Min. 3/8s
Plywood
Supported
by 2 x 4 or
2 x 2 Runners
all Four Sides

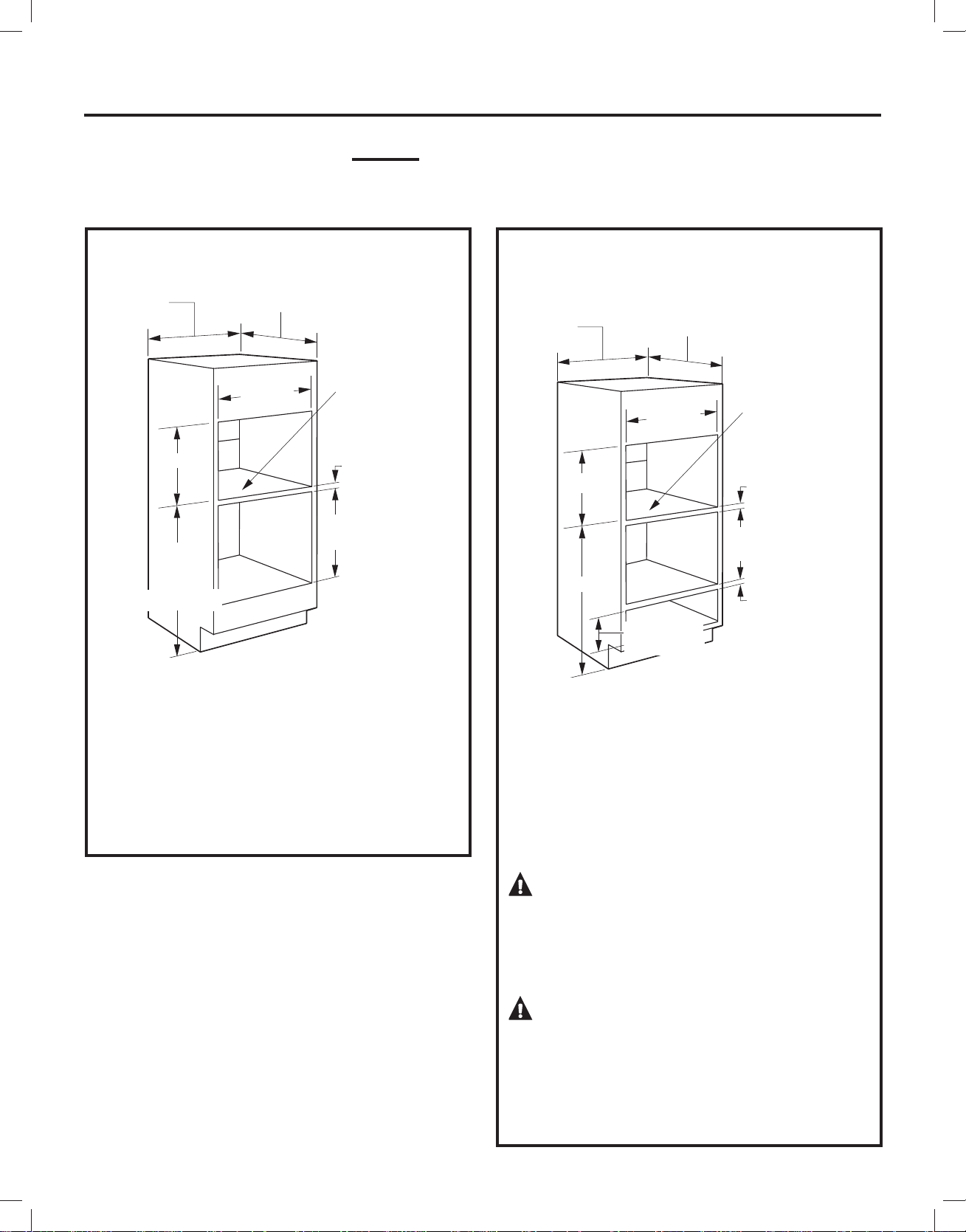

PREPARE THE OPENING (cont.)
Installation over a GE/Monogram
Warming Drawer:
30s
17-1/2s
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location do not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
23-1/2s
25-1/4s
Construct
Solid Bottom
Min. 3/8s
Plywood
Supported
by 2 x 4 or 2 x
2 Runners all
Four Sides
2s Min.
(3
s Recommended)
Per Warming
Drawer
Requirement
• Allow 2-1/8s case trim overlap on the sides,
1-1/16s overlap on the top and 7/8s overlap
on the bottom of the opening for all models.
• Oven overlaps will conceal cut edges on all sides
of the opening.
When installed over a single oven or a warming
drawer, allow at least 2s between the two
openings. This separation will provide clearance
for bottom overlap of the Advantium 120V and the
other appliance overlaps.
Construct a solid oven floor of 3/8s min. thick plywood
supported by 2 x 4 or 2 x 2 runners on all sides.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
6
Installation Preparation
Preparation WITHOUT an Accessory Storage Drawer

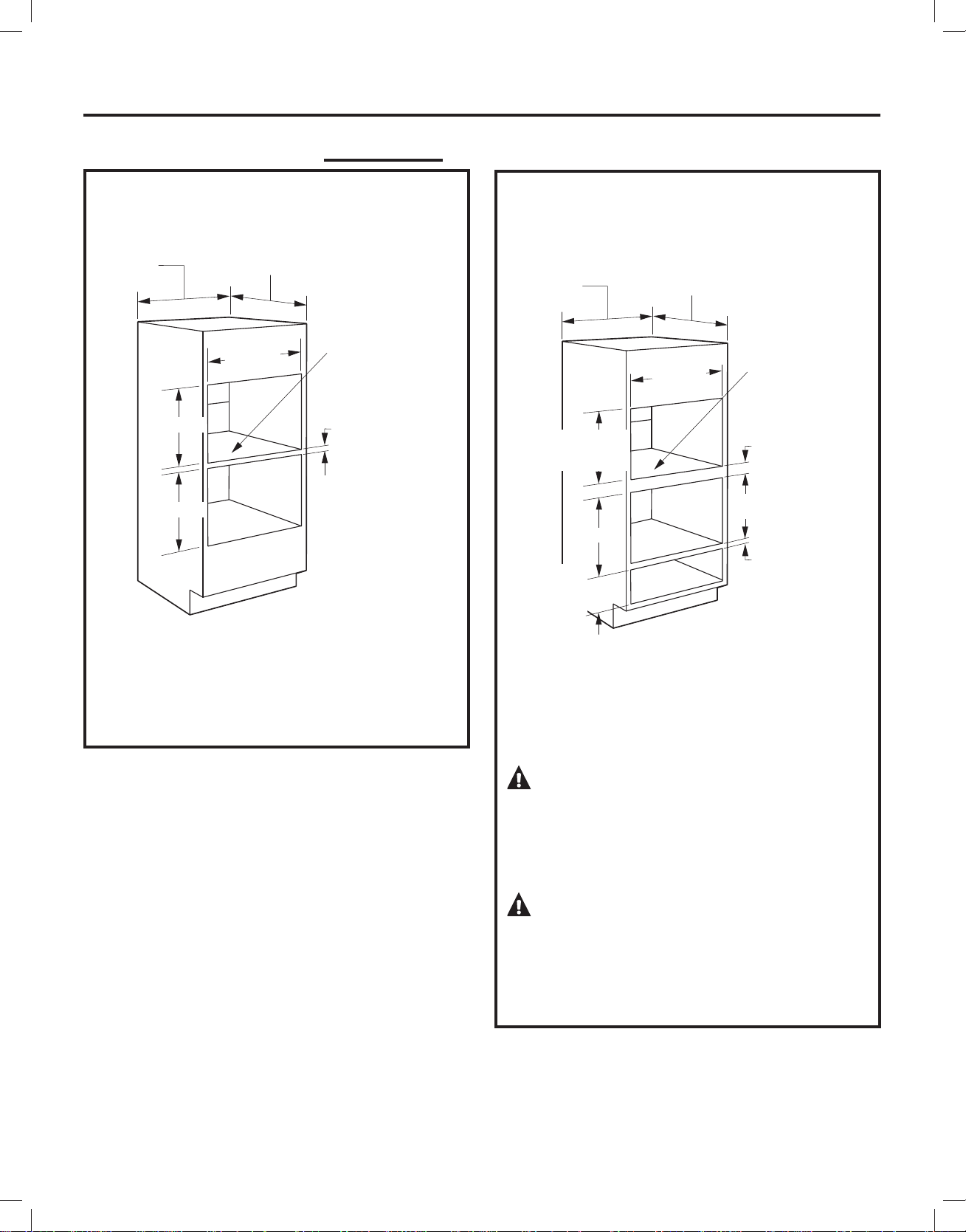

PREPARE THE OPENING (cont.)

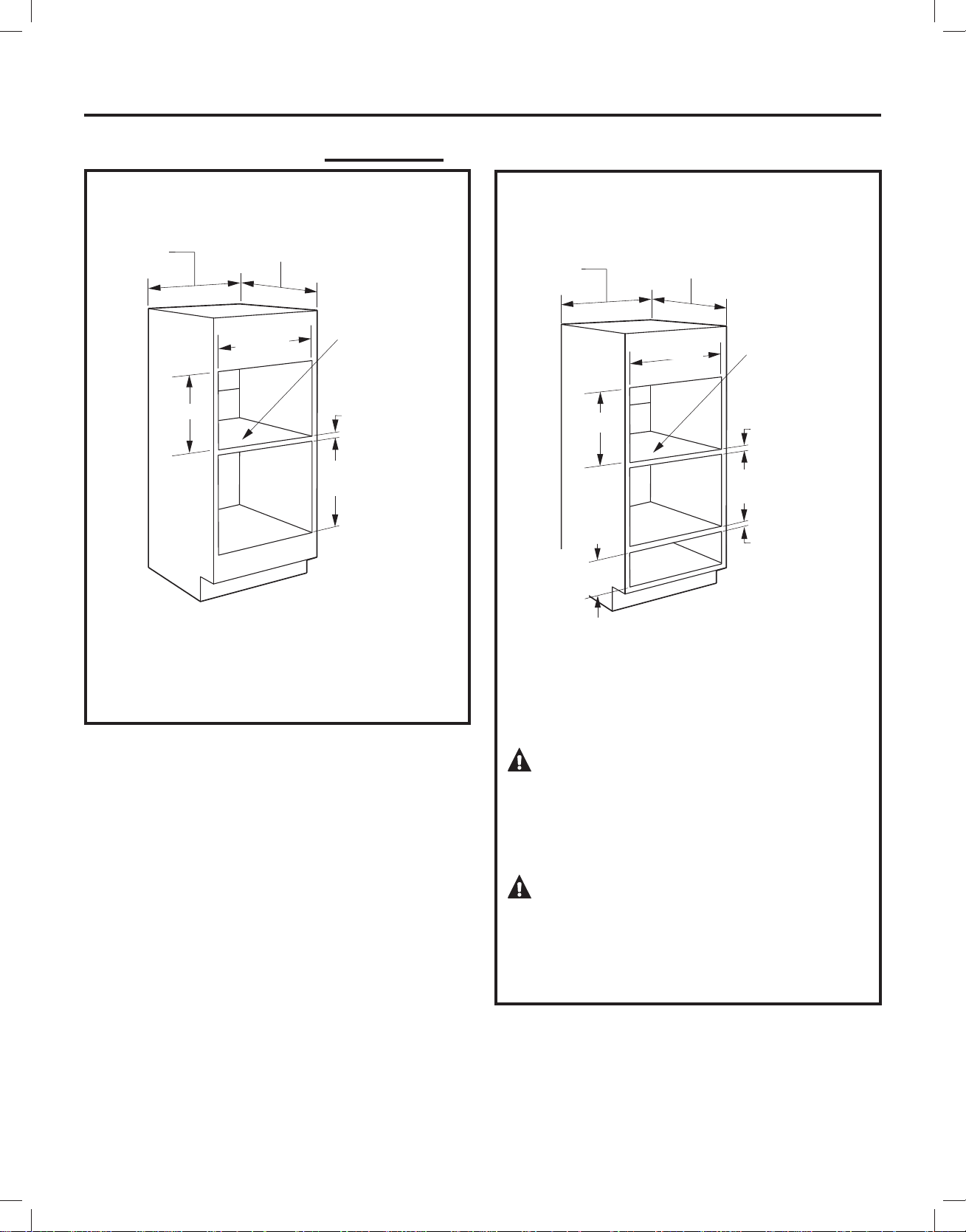

Installation over a GE/Monogram oven:
30s
17-1/2s
• If you are replacing a GE/Monogram electric
double oven with the combined installation of
an Advantium 120V and a single oven, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than the
2s minimum shown.
23-1/2s
25-1/4s
Construct Solid
Bottom Min.
3/8s Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
2s Min.
(3
s Recommended)
Per Oven
Requirement
PREPARE THE OPENING (cont.)
Installation over a GE/Monogram Oven and
Warming Drawer:
30s
17-1/2s
Per Warming
Drawer
Requirement
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
23-1/2s
25-1/4s
Construct Solid
Bottom Min.
3/8s Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
2s Min.
(3
s Recommended)
Per Oven
Requirement
2s Min.
(3
s Recommended)
CAUTION: For personal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added
weight of this approximate 80-pound oven, plus
additional oven loads of up to 50 pounds or a
total weight of 130 pounds.
PRECAUCIÓN: Para seguridad
personal, la superficie de montaje debe poder
soportar la carga del gabinete, además del peso
aproximado de 80 libras del horno, más las
cargas adicionales del horno de hasta 50 libras
o un peso total de hasta 130 libras.
7
Installation Preparation
Preparation WITHOUT an Accessory Storage Drawer
PREPARE THE OPENING (cont.)
Installation over another GE/Monogram
Under-the-Counter (UTC) oven:
30s
17-1/2s
17-1/2s
23-1/2s
25-1/4s
Construct Solid
Bottom Min.
3/8s Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
2s Min.
(3
s Recommended)
PREPARE THE OPENING (cont.)
Installation under a GE/Monogram
Microwave Oven and over a Warming
Drawer:
30s
Per Oven
Requirement
17-1/2s
Per Warming
Drawer
Requirement
23-1/2s
25-1/4s
Construct Solid
Bottom Min.
3/8s Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
3.5s Min.
(4.5
s Recommended)
2s Min.
(3s Recommended)
• If you are mounting an Under-the-Counter
GE/Monogram oven over another, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2s minimum shown.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
CAUTION: For personal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added
weight of this approximate 80-pound oven, plus
additional oven loads of up to 50 pounds or a
total weight of 130 pounds.
PRECAUCIÓN: Para seguridad
personal, la superficie de montaje debe poder
soportar la carga del gabinete, además del peso
aproximado de 80 libras del horno, más las
cargas adicionales del horno de hasta 50 libras
o un peso total de hasta 130 libras.
8
Installation Preparation
Preparation WITHOUT an Accessory Storage Drawer
PREPARE THE OPENING (cont.)
Installation beside another GE/Monogram
Built-in Speedcook Oven:
• If you are mounting one Under-the-Counter
GE/Monogram oven beside the other, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 4-1/2s minimum shown.
PREPARE THE OPENING (cont.)
17-1/2s
25-1/4s
23-1/2s
25-1/4s
17-1/2s
4-1/2s Min.
(5-1/2s Recommended)
Installation under a GE/Monogram 30s or 36s Cooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout
size. See the label on top of the oven for approved cooktop models. This oven requires a separate, properly
grounded 15-Amp, 120-Volt, 60Hz power supply. The cooktop requires a separate power supply. Use a 36s
or wider base cabinet.
1-1/2s Min.
25s
36s
Countertop
Height
s
Cooktop height including depth
of electrical box on some models.
Refer to cooktop installation
instructions.
No minimum clearance required
between cooktop and oven.
23-1/2
s
Cooktop
Cooktop
25-1/4
17-1/2
s
4s High
Toekick
NOTE: The oven is only approved to be installed
under the specific models as labeled on the unit.
9
Installation Preparation
Preparation WITH an Accessory Storage Drawer
NOTE: MODEL ZSC1201 CAN ONLY BE INSTALLED WITH AN ACCESSORY STORAGE DRAWER IF INSTALLED ABOVE 36-3/4
MODEL ZSC1202 CANNOT BE INSTALLED WITH AN ACCESSORY STORAGE DRAWER. SEE INSTALLATION PREPARATION WITHOUT
AN ACCESSORY STORAGE DRAWER FOR THIS MODEL.
PREPARE THE OPENING (cont.)
The Advantium 120V can be installed in
combination with other GE/Monogram appliances.
Always follow each product’s Installation
Instructions to complete the installation.
PREPARE THE OPENING (cont.)
Installation over a GE/Monogram
Warming Drawer:
30s
23-1/2s
s
.

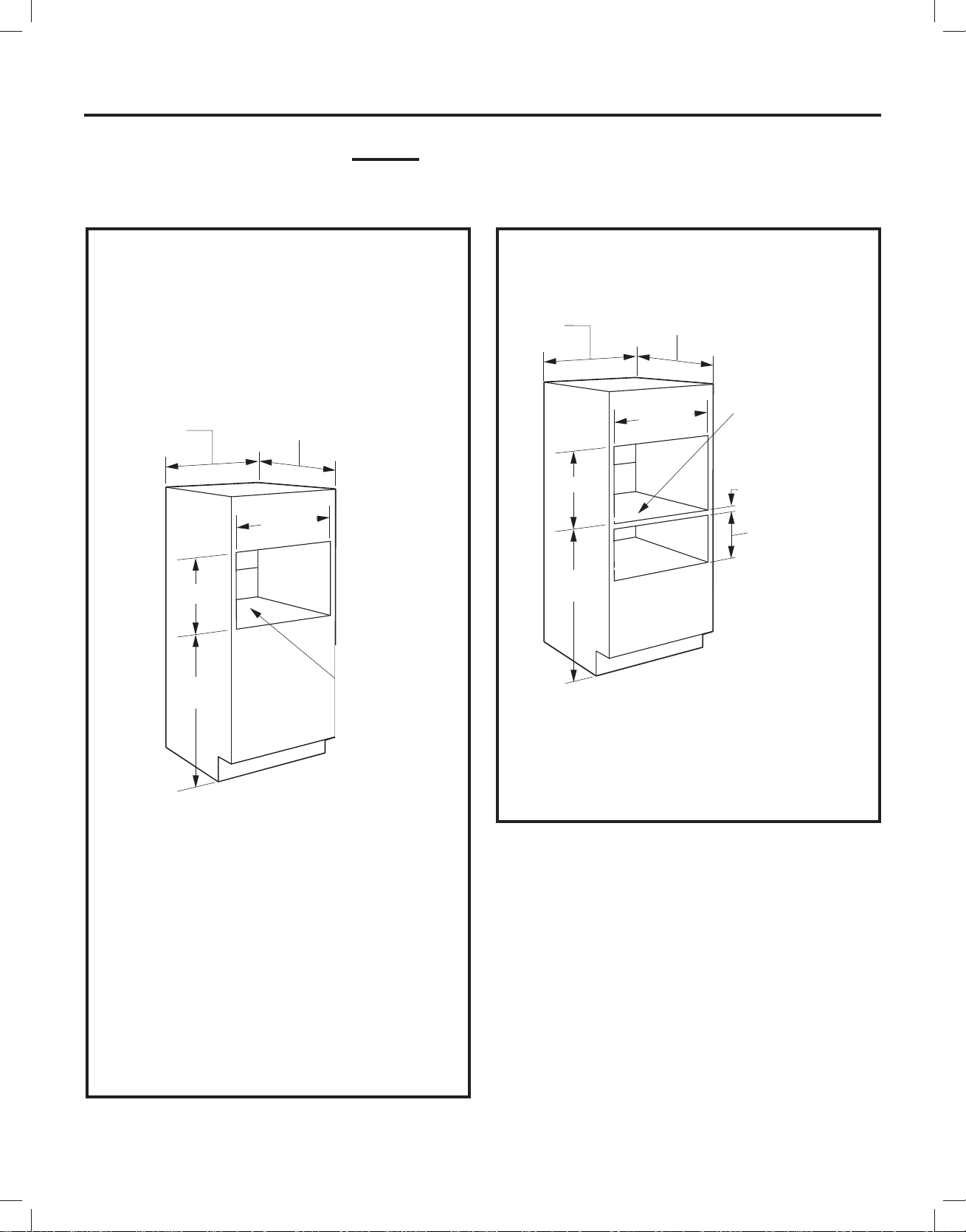

Single Advantium 120V Installation:
Order a 30s wide single oven cabinet or cut
the opening in a wall to the dimensions shown.
30s
21s
23-1/2s
25-1/4s
Min.
25-1/4s
Min.
21s
36-3/4s
Min.*
Construct Solid
Bottom Min. 3/8s
Plywood Supported
by 2 x 4 or 2 x 2
Runners all Four
Sides
2s Min.
(3
s Recommended)
Per Warming
Drawer
Requirement
Construct Base
Min. 3/8s Plywood
36-3/4s
Min.*
• Allow 2-1/8s case trim overlap on the sides,
1-1/16s overlap on the top and 7/8s overlap
on the bottom of the opening for all models.
• Oven overlaps will conceal cut edges on all sides
of the opening.
When installed over a single oven or a warming
drawer, allow at least 2s between the two
openings. This separation will provide clearance
for bottom overlap of the Advantium 120V and the
other appliance overlaps.
Construct a solid oven floor of 3/8s min. thick plywood
supported by 2 x 4 or 2 x 2 runners on all sides.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
Supported by 2 x
4 or 2 x 2 Runners
all Four Sides
* Required for
Monogram models
* Required for
Monogram models
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
10
Installation Preparation
Preparation WITH an Accessory Storage Drawer
NOTE: MODEL ZSC1201 CAN ONLY BE INSTALLED WITH AN ACCESSORY STORAGE DRAWER IF INSTALLED ABOVE 36-3/4
MODEL ZSC1202 CANNOT BE INSTALLED WITH AN ACCESSORY STORAGE DRAWER. SEE INSTALLATION PREPARATION WITHOUT
AN ACCESSORY STORAGE DRAWER FOR THIS MODEL.
PREPARE THE OPENING (cont.)

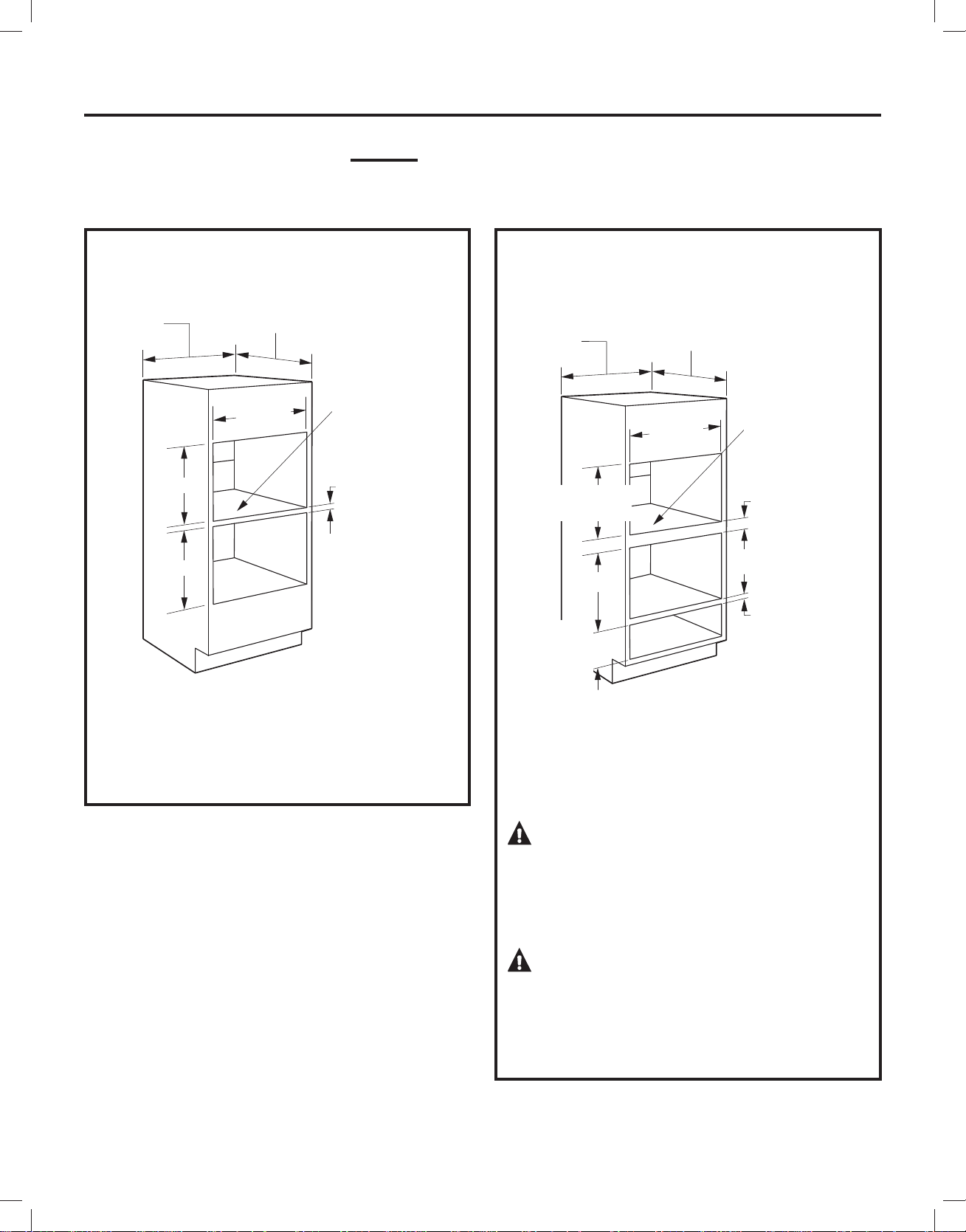

Installation over a GE/Monogram Oven:
30s
21s
36-3/4s
Min.
45-1/4s
Recommended*
* For existing cutouts, a maximum width of 28-1/2s
is acceptable. If the opening is slightly wider,
secure a furring strip on each side of the cutout
for securing the oven.
• If you are replacing a GE/Monogram electric
double oven with the combined installation
of an Advantium 120V and a single oven, use
the dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2s minimum shown.
23-1/2s
25-1/4s
Min.*
Construct Solid
Bottom Min.
3/8s Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
2s Min.
(3
s Recommended)
Per Oven
Requirement
* Required for
Monogram models
PREPARE THE OPENING (cont.)
Installation over a GE/Monogram Oven and
Warming Drawer:
30s
21s
45-1/4s
* For existing cutouts, a maximum width of 28-1/2s
is acceptable. If the opening is slightly wider,
secure a furring strip on each side of the cutout
for securing the oven.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
23-1/2s
Construct Solid
Bottom Min.
25-1/4s
Min.*
Per Warming
Drawer Requirement
3/8s Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
2s Min.
(3
Per Oven
Requirement
2s Min.
(3
s Recommended)
s Recommended)
s
.
CAUTION: For personal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added weight
of this approximate 80-pound oven and 30-pound
drawer, plus additional oven loads of up to 50
pounds or a total weight of 160 pounds.
PRECAUCIÓN: Para seguridad
personal, la superficie de montaje debe poder
soportar la carga del gabinete, además del peso
aproximado de 80 libras del horno y las 30 libras
del cajón, más las cargas adicionales del horno
de hasta 50 libras o un peso total de hasta
160 libras.
11
Installation Preparation
Preparation WITH an Accessory Storage Drawer
NOTE: MODEL ZSC1201 CAN ONLY BE INSTALLED WITH AN ACCESSORY STORAGE DRAWER IF INSTALLED ABOVE 36-3/4
MODEL ZSC1202 CANNOT BE INSTALLED WITH AN ACCESSORY STORAGE DRAWER. SEE INSTALLATION PREPARATION WITHOUT
AN ACCESSORY STORAGE DRAWER FOR THIS MODEL.
PREPARE THE OPENING (cont.)
Installation over another GE/Monogram
Under-the-Counter (UTC) oven:
30s
21s
21s*
23-1/2s
25-1/4s
Construct Solid
Bottom Min.
3/8s Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
2s Min.
(3
s Recommended)
PREPARE THE OPENING (cont.)
Installation under a GE/Monogram
Microwave Oven and over a Warming
Drawer:
30s
Per Oven
Requirement
21s*
23-1/2s
25-1/4s
Construct Solid
Bottom Min. 3/8s
Plywood Supported
by 2 x 4 or 2 x 2
Runners all Four
Sides
3.5s Min.
(4.5
s
.
s Recommended)
* PSB9120 model only
• If you are mounting an Under-the-Counter
GE/Monogram oven over another, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2s minimum shown.
2s Min.
Per Warming
Drawer
Requirement
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
(3
s Recommended)
*PSB9120 model only
CAUTION: For personal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added
weight of this approximate 80-pound oven, plus
additional oven loads of up to 50 pounds or a
total weight of 130 pounds.
PRECAUCIÓN: Para seguridad
personal, la superficie de montaje debe poder
soportar la carga del gabinete, además del peso
aproximado de 80 libras del horno, más las
cargas adicionales del horno de hasta 50 libras
o un peso total de hasta 130 libras.
12
Installation Preparation
Preparation WITH an Accessory Storage Drawer
NOTE: MODEL ZSC1201 CAN ONLY BE INSTALLED WITH AN ACCESSORY STORAGE DRAWER IF INSTALLED ABOVE 36-3/4
MODEL ZSC1202 CANNOT BE INSTALLED WITH AN ACCESSORY STORAGE DRAWER. SEE INSTALLATION PREPARATION WITHOUT
AN ACCESSORY STORAGE DRAWER FOR THIS MODEL.
PREPARE THE OPENING (cont.)
23-1/2s
s
.
Installation beside another GE/Monogram
Built-in Speedcook Oven:
• If you are mounting one Under-the-Counter GE/
Monogram oven beside the other, use
the dimensions shown. The middle rail separating
the two openings may need to be larger than
the 4-1/2s minimum shown.
25-1/4s
21s
25-1/4s
4-1/2s Min.
(5-1/2
21s
s Recommended)
PREPARE THE OPENING (cont.)
Installation under a GE Profile 30s or 36s Cooktop or Countertop:
Gas or electric cooktops may be installed
over this oven. See cooktop installation
instructions for the cutout size. See the
label on top of the oven for approved
cooktop models. This oven requires
a separate, properly
grounded 15-Amp,
120-Volt, 60Hz power
supply. The cooktop
requires a separate power
supply. Use a 36s or wider
base cabinet.
23-1/2
IMPORTANT:
For PSB9120 model only.
The Monogram oven
and drawer combination
cannot be installed below
a countertop.
4s High
Toekick
Cooktop
IMPORTANT:
s
For Profile models only.
Cooktop
25-1/4
NOTE: The oven is only approved to be installed
under the specific models as labeled on the unit.
s
21
1-1/2s Min.
25s
36s
Countertop
Height
s
Cooktop height including
depth of electrical box on
some models. Refer to cooktop
installation instructions.
No minimum clearance
required between cooktop and
oven.
13
Installation Instructions
DOOR TRIM REMOVAL FOR ABOVE
2
36sINSTALLATION ONLY
If installing the Advantium 120V Oven above 36s
from the floor, you may remove the plastic trim
from the bottom of the door for esthetic purposes
if desired.
CAUTION: If installing the Advantium
120V Oven below 36s, do not remove the
plastic door trim due to burn risk to children.
The plastic trim acts as insulation and will help
prevent burns to children from hot surfaces.
PRECAUCIÓN: Si va a instalar el
horno Advantium de 120V debajo de 36”, usted
no debe quitar el reborde plástico de la puerta
debido al riesgo de quemaduras para los
niños. El reborde plástico actúa como aislante
y evitará que los niños sufran quemaduras
provocadas por las superficies calientes.
• If installing above 36s, remove the 3 screws that
secure the plastic trim to the bottom of the door.
• Discard plastic trim. Replace screws.
SLIDE THE OVEN INTO THE CUTOUT
3
CAUTION: Two people are required to
lift the oven into the opening. Grasp the bottom
at front and rear. DO NOT USE THE HANDLE TO LIFT
THE OVEN. DAMAGE WILL OCCUR.
PRECAUCIÓN: Se necesitan dos
personas para levantar el horno hasta la abertura.
Tómelo de la parte inferior desde el frente y la parte
trasera. NO USE LA MANIJA PARA LEVANTAR EL
HORNO. SE PRODUCIRÁN DA³OS.
• Lift and hold the oven at the front of the opening.
Hold the oven at an angle and plug in the power
cord.
• Carefully, slide the oven into the cabinet part
way. Leave the oven a few inches forward of
the cabinet frame.
• Check to be sure the power cord is not trapped
under the oven or along the sides of the oven.
15
Installation Instructions
INSTALL BOTTOM TRIM
4
CAUTION: If installing the Advantium
120V Oven below 36s, you must use the plastic
bottom trim due to burn risk to children. The plastic
trim acts as insulation and will help prevent burns
to children from hot surfaces.
PRECAUCIÓN: Si va a instalar el horno
Advantium de 120V debajo de 36”, usted debe utilizar
el reborde inferior plástico debido al riesgo de
quemaduras para los niños. El reborde plástico
actúa como aislante y evitará que los niños sufran
quemaduras provocadas por las superficies calientes.
NOTE: If installing the Advantium 120V Oven
with an accessory storage drawer, the bottom trim
is not required. Proceed to Step 5.
• Installation Below 36s, align trim tabs on the plastic
trim to slots in the bottom of the oven.
INSTALL MOUNTING SCREWS
6
• Slide the oven the remaining way into the opening
so that the side flanges and control panel are
against the cabinet frame. Make sure that the oven
is centered in the opening.
• Open the door, place a turntable tray in the oven
and make sure that the tray in the unit is level.
• Drill pilot holes through the side flanges.
• Drive the color-matched screws into the side
flanges. It is recommended that the screws
be hand tightened.
Plastic
Trim
• Installation Above 36s, align trim tabs on the plastic
or metal trim to slots in the bottom of the oven.
Plastic
Trim OR
Metal
Trim
• Secure the bottom trim to the bottom of the oven
using 3 screws provided.
If installing oven with an accessory storage
drawer:
• Open the drawer.
• Drill pilot holes through the side flanges.
• Drive color-matched screws into the side flanges.
It is recommended that the screws be hand
tightened.
NOTE: If installing the Profile Advantium 120V Oven
with an accessory storage drawer, you must use
the Under-the-Counter (UTC) mounting bracket for
the drawer.
If installing the Monogram Advantium integrated
model
for the accessory storage drawer must be used.
ZSC1201 above 36s, the UTC mounting bracket
INSTALL BOTTOM TRIM WITH
5
ACCESSORY DRAWER
If installing with an accessory drawer, see
installation instructions on page 17 or instructions
that come with the accessory drawer.
7 FINALIZE INSTALLATION
• Turn power on at the source. The interior light
should come on when the door is opened.
• Refer to Owner’s Manual for operating instructions.
16
GE Consumer & Industrial Appliances
Assembly Instructions
Advantium® Built-In Accessory Storage Drawer
JX2200, JX2201, ZX2201
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Read the Installation Instructions for the Advantium
120V or 240V oven completely and carefully for cutout
dimensions and step-by-step instructions.
IMPORTANT ³ Save these instructions for
local inspector’s use.
IMPORTANT ³ Observe all governing codes
and ordinances.
NOTE TO INSTALLER: Be sure to leave these
•
instructions with the Consumer.
NOTE TO CONSUMER: Keep these instructions with
•
your Advantium 120V or 240V Oven Owner’s Manual
for future reference.
SKILL LEVEL: Installation of this appliance requires
•
basic mechanical skills.
COMPLETION TIME: One hour with the installation
•
of an Advantium 120V or 240V oven.
• Proper installation is the responsibility of the installer.
MODELS AVAILABLE
Profile Models:
JX2200BB–Black
JX2201SS–Stainless Steel
Monogram Models:
ZX2201SS–Stainless Steel (for installation above 36s only)
NOTE: Advantium 240V model ZSC2202SS and
Advantium 120V model ZSC1202 CANNOT be
installed with an accessory storage drawer. See
Installation Preparation Without an Accessory Storage
Drawer in the Installation Instructions for these models.
PRODUCT DIMENSIONS AND CLEARANCES
5s
Allow 15s clearance
when fully open
• Product failure due to improper installation is not
covered under the Warranty. See the Advantium
120V or 240V Oven Owner’s Manual for warranty
information.
NOTE: Appearance will vary by model.
TOOLS REQUIRED
• #2 Phillips screwdriver
PARTS SUPPLIED
• 2 Side Supports
• Screws (8)
• Screws (color-matched) (5)
• Under-the-Counter Mounting Bracket (1)
17
ASSEMBLY TO ADVANTIUM BUILT-IN SPEEDCOOK OVEN

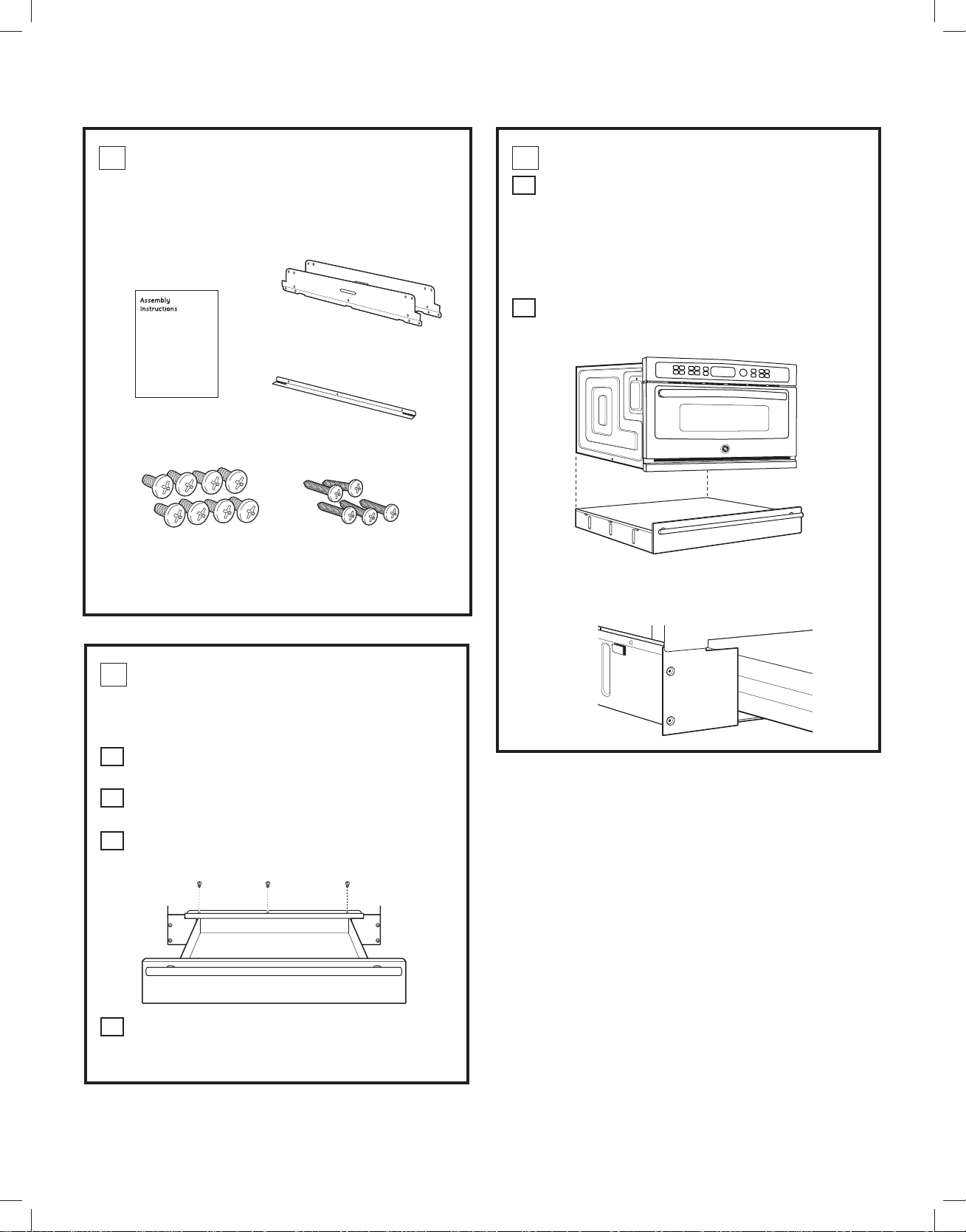

REMOVE PACKAGING AND PARTS
1
• Remove the drawer from the carton.
• Remove all packing material and tape.
• Open the drawer and remove any parts inside.
• Locate parts.
Side Supports (2)
Assembly Instructions
Under-the-Counter
(UTC) Mounting Bracket
ASSEMBLING THE OVEN TO DRAWER
3
Place storage drawer on a surface with
A
the front of drawer hanging over the edge
of the surface. Not placing the front edge
of drawer over the edge of the surface may
result in damage to the drawer since the front
edge of drawer hangs below the bottom
of drawer.
Place the oven on top of the storage drawer.
B
Make sure that the back and sides of the oven
align with the back and sides of drawer.
Screws
(6 required,
2 extra)
UNDER-THE-COUNTER (UTC)
2
Color-Matched
Screws
(4 required,
1 extra)
MOUNTING BRACKET INSTALLATION
NOTE: For UTC models PSB9120 and ZSC1201 only.
Open the accessory drawer so you have
A
access to the top bracket.
Remove the three screws securing the top
B
bracket.
Install the new UTC mounting bracket using
C
the screws removed previously.
NOTE: The bottom of the oven side flanges will
sit directly in front of the top of the storage
drawer side flanges.
Close the drawer and proceed with the
D
installation.
18
ASSEMBLY TO ADVANTIUM BUILT-IN SPEEDCOOK OVEN
ASSEMBLING THE OVEN TO DRAWER
(cont.)
Remove the front two bottom screws on each
C
side of the oven and the top center screw on
each side of the storage drawer.
Place the side supports into the tabs on the
D
drawer and secure using the screws supplied
and the screws removed in Step C.
Side
Support
120v only
The oven and storage drawer assembly is now
E
ready to be installed. Return to the Advantium
120V or 240V Built-In SpeedCook Oven
Installation Instructions to complete
the installation.
19
Printed in Korea
NOTE: While performing installations described in this book,
safety glasses or goggles should be worn.
NOTE: Product improvement is a continuing endeavor at
General Electric. Therefore, materials, appearance and
specifications are subject to change without notice.
GE Appliances & Lighting
Appliances
General Electric Company
Louisville, KY 40225
GEAppliances.com
Loading...
