PSA9240SP

GE Profile Series Advantium® 240 Over-the-Range Oven

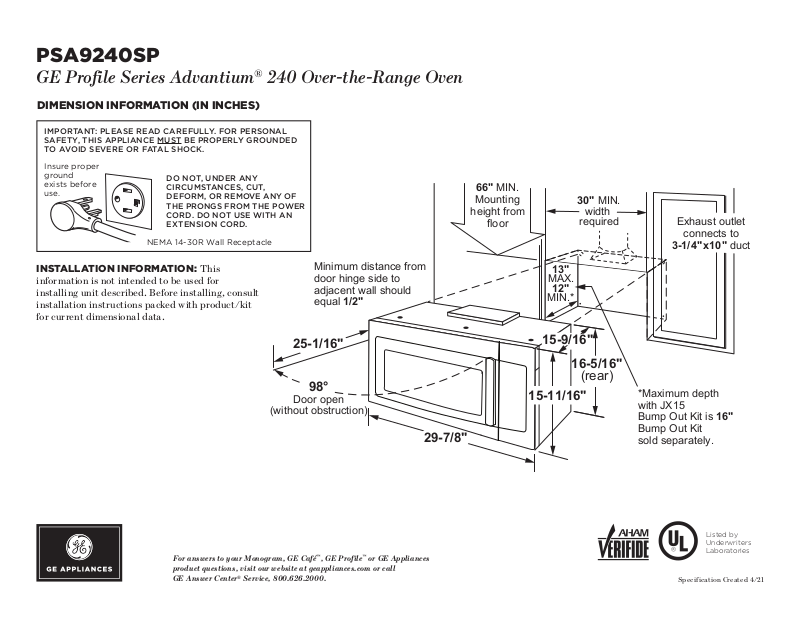

DIMENSION INFORMATION (IN INCHES)

IMPORTANT: PLEASE READ CAREFULLY. FOR PERSONAL
SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED
TO AVOID SEVERE OR FATAL SHOCK.

Insure proper
ground
exists before
use.

DO NOT, UNDER ANY
CIRCUMSTANCES, CUT,
DEFORM, OR REMOVE ANY OF
THE PRONGS FROM THE POWER
CORD. DO NOT USE WITH AN
EXTENSION CORD.

NEMA 14-30R Wall Receptacle

66" MIN.

Mounting

height from

floor

30" MIN.

width

required

Exhaust outlet

connects to

3-1/4"x10" duct

INSTALLATION INFORMATION : This
information is not intended to be used for
installing unit described. Before installing, consult
installation instructions packed with product/kit
for current dimensional data.

For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.

Minimum distance from
door hinge side to
adjacent wall should
equal 1/2"

25-1/16"

98°

Door open

(without obstruction)

29-7/8"

13"

MAX.

12"

MIN.*

15-9/16"

16-5/16"

15-11/16"

(rear)

*Maximum depth
with JX15
Bump Out Kit is 16"
Bump Out Kit
sold separately.

Listed by
Underwriters
Laboratories

Speci fication Created 4/21

PSA9240SP

GE Profile Series Advantium® 240 Over-the-Range Oven

DIMENSION INFORMATION (IN INCHES)

HOOD EXHAUST DUCT

Outside ventilation requires a HOOD EXHAUST DUCT. Read the following
carefully.

EXHAUST CONNECTION:
The hood exhaust has been designed to mate with a standard 3-1/4" x 10"
rectangular duct.

If a round duct is required, a rectangular-to-round transition adaptor must
be used. Do not use less than a 6” diameter duct.

REAR EXHAUST:
If a rear or horizontal exhaust is to be used, care should be taken to align
exhaust with the space between studs, or wall should be prepared at the time
it is constructed by leaving enough space between the wall studs to
accommodate exhaust.

FILTER KIT ACCESSORY

FILTER KIT JX81D–

Recirculating
Charcoal Filter Kit
To be used when
the Advantium
oven cannot be

Grille

vented to the out­side.

MAXIMUM DUCT LENGTH:
For satisfactory air movement, the total duct length of 3-1/4" x
10" rectangular or 6" diameter round duct should not exceed 140
equivalent feet.

ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc.,

present additional resistance to airflow and are equivalent to a
section of straight duct which is longer than their actual physical
size. When calculating the total duct length, add the equivalent
length of all transitions and adaptors plus the length of all straight
duct sections. The chart below shows the approximate feet of
equivalent length of some typical ducts.

DUCT EQUIVALENT

A. Rectangular-To-Round 5 Ft.
Transition Adaptor

B. Wall Cap 40 Ft.

C. 90° Round Elbow 10 Ft.

D. 45° Round Elbow 5 Ft.

E. 90° Rectangular Elbow 25 Ft.

F. 45° Rectangular Elbow 5 Ft.

G. Roof Cap 24 Ft.

Speci fication Created 4/21
