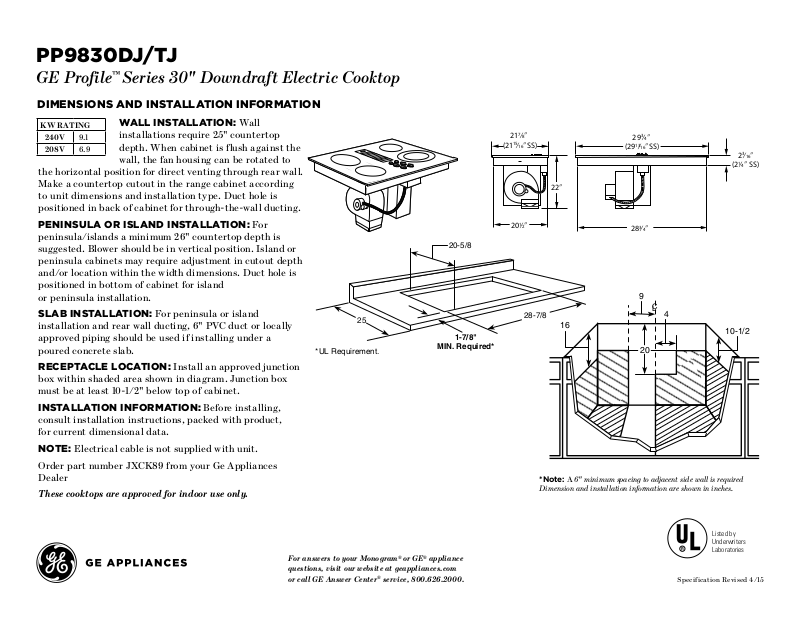

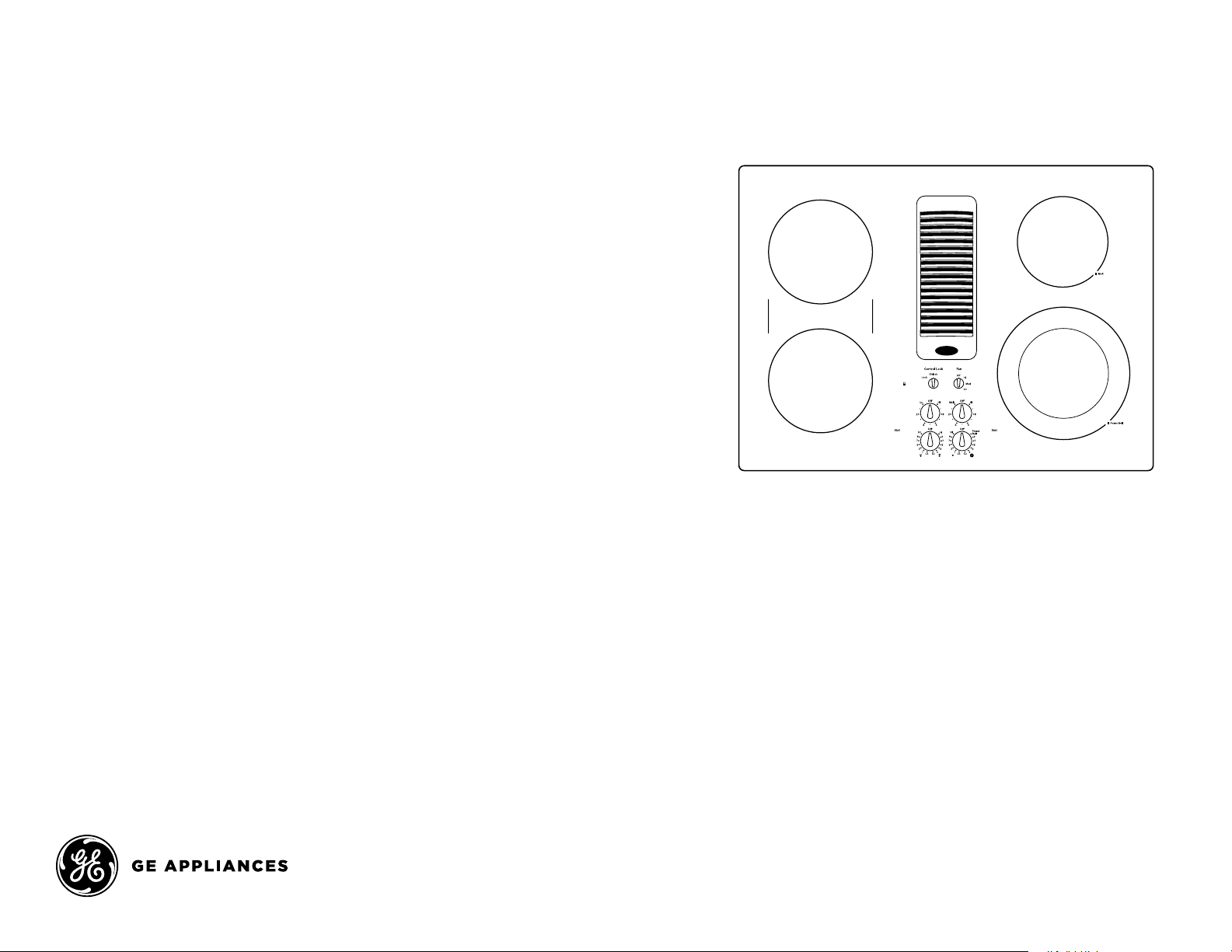

GE PP9830TJWW, PP9830DJBB Specification Sheet

PP9830Dj/tj

SS)

Cut-out Dimensions (in inches)

*UL Requirement.

9

Cabinet Dimensions (in inches)

GE Profile

Dimensions anD installation information

™

Series 30" Downdraft Electric Cooktop

KW RATI NG

240V 9.1

208V 6.9

Wall I n stallatI o n: Wa l l
installations require 25" countertop
depth. When cabinet is f lush against the

wall, the fan housing can be rotated to
the horizontal position for direct venting through rear wall.
Make a countertop cutout in the range cabinet according
to unit dimensions and installation type. Duct hole is
positioned in back of cabinet for through-the-wall ducting.

PenInsula or Island InstallatIon: For
peninsula/islands a minimum 26" countertop depth is
suggested. Blower should be in vertical position. Island or
peninsula cabinets may require adjustment in cutout depth
and/or location within the width dimensions. Duct hole is
positioned in bottom of cabinet for island
or peninsula installation.

slab InstallatIon: For peninsula or island
installation and rear wall ducting, 6" PVC duct or locally
approved piping should be used if installing under a
poured concrete slab.

rece Ptac le locatIon : Install an approved junction
box within shaded area shown in diagram. Junction box
must be at least 10-1/2" below top of cabinet.

Insta l l atIon I n form at I on: Before installing,
consult installation instructions, packed with product,
for current dimensional data.

note: Electrical cable is not supplied with unit.

Order part number JXCK89 from your Ge Appliances
Dealer

These cooktops are approved for indoor use only.

25

20-5/8

1-7/8"

MIN. Required*

(21

217⁄8ʺ

15

⁄16ʺ SS)

22ʺ

201⁄2ʺ

28-7/8

16

*Note: A 6" minimum spacing to adjacent side wall is required
Dimension and installation information are shown in inches.

293⁄4ʺ

(2913⁄16ʺ SS)

283⁄4ʺ

20

C
L

4

23⁄16ʺ

1

(2

⁄4ʺ

10-1/2

For answers to your Monogram® or GE® appliance
questions, visit our website at geappliances.com
or call GE Answer Center® service, 800.626.2000.

Listed by
Underwriters
Laboratories

Speci fication Revise d 4/15

PP9830dj/Tj

Venting Options

Through Cabinet Toe Space

Inside Wall to Roof Direct to Outside

Between Floor Joist

GE Profile

dimensions and insTallaTion informaTion

InstallIng the ductWork: Use
galvanized or aluminum duct in 6" round
or 3-1/4" x 10" size, or combination of
both. PVC duct or locally approved

piping should be used if installing under
a poured concrete slab. Local building

code must be followed in specifying type
and schedule of all duct used.

note: Ductwork must be vented to
outside. Do not vent into a wall, ceiling,
crawlspace, attic or any concealed space.
Always use an appropriate roof or wall
cap with damper.

Laundry-type wall caps should never
be used. For maximum efficiency use

the shortest and straightest duct run
possible, with as few fittings as possible.

For satisfactory performance the
duct run should not exceed 100
feet equivalent length. Refer to the
table of equivalent lengths (shown in
installation instructions) for various duct
configurations.

™

Series 30" Downdraft Electric Cooktop

10-1/8

6-1/8

9-1/8

18-3/4

For answers to your Monogram® or GE® appliance
questions, visit our website at geappliances.com
or call GE Answer Center® service, 800.626.2000.

Rear Wall VentingDownward Venting

NOTE: Dimension and installation information are shown in inches.

Listed by
Underwriters
Laboratories
