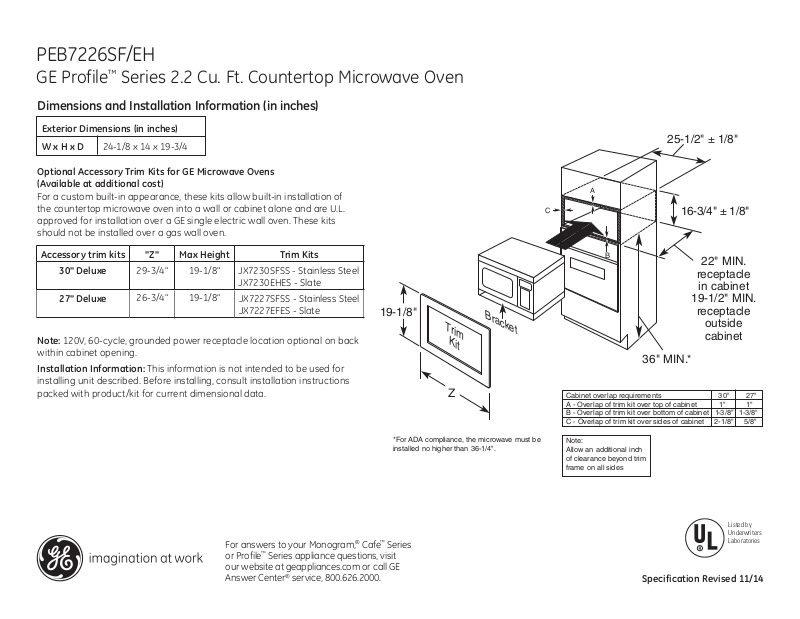

GE PEB7226EHES Specification Sheet

PEB7226SF/EH

GE Profile™ Series 2.2 Cu. Ft. Countertop Microwave Oven

Dimensions and Installation Information (in inches)

Exterior Dimensions (in inches)

W x H x D 24-1/8 x 14 x 19-3/4

Optional Accessory Trim Kits for GE Microwave Ovens
(Available at additional cost)

For a custom built-in appearance, these kits allow built-in installation of
the countertop microwave oven into a wall or cabinet alone and are U.L.
approved for installation over a GE single electric wall oven. These kits
should not be installed over a gas wall oven.

25-1/2" ± 1/8"

A

C

16-3/4" ± 1/8"

Accessory trim kits "Z" Max Height Trim Kits

30" Deluxe

27" Deluxe

Note: 120V, 60-cycle, grounded power receptacle location optional on back

within cabinet opening.

Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.

29-3/4" 19-1/8" JX7230SFSS - Stainless Steel

JX7230EHES - Slate

26-3/4" 19-1/8"

JX7227SFSS - Stainless Steel

JX7227EFES - Slate

For answers to your Monogram,® Cafe™ Series
or Profile™ Series appliance questions, visit
our website at geappliances.com or call GE
Answer Center® service, 800.626.2000.

19-1/8"

Bracket

Trim

Kit

Z

*For ADA compliance, the microwave must be
installed no higher than 36-1/4".

B

22" MIN.

receptacle

in cabinet

19-1/2" MIN.

receptacle

outside
cabinet

36" MIN.*

Cabinet overlap requirements 30" 27"
A - Overlap of trim kit over top of cabinet 1" 1"
B - Overlap of trim kit over bottom of cabinet 1-3/8" 1-3/8"
C - Overlap of trim kit over sides of cabinet 2-1/8" 5/8"

Note:
Allow an additional inch
of clearance beyond trim
frame on all sides

Listed by
Underwriters
Laboratories

Specification Revised 11/14

PEB7226SF/EH

GE Profile™ Series 2.2 Cu. Ft. Countertop Microwave Oven

Features and Benefits

• 2.2 cu. ft. capacity - 1100 watts (IEC-705 test procedure)

• Sensor cooking controls - Automatically adjusts time and power

• Optional built-in trim kit - Custom appearance and built-in

convenience

• Weight and time defrost - Simply enter the weight of the food,

and the oven automatically sets the optimal defrosting time
and power level or set your desired time for defrosting

• Extra-large 16" turntable - Rotates food throughout the cycle

and accommodates large cookware

• Instant on controls - One-touch instant operation

• Control lockout - Helps prevent accidental activation

• Add 30 seconds - Add 30 seconds of microwave cooking time

• Kitchen timer - Minute timer helps keep you on track

• Model PEB7226SFSS – Stainless steel

• Model PEB7226EHES - Slate

Listed by
Underwriters
Laboratories

Specification Revised 11/14
