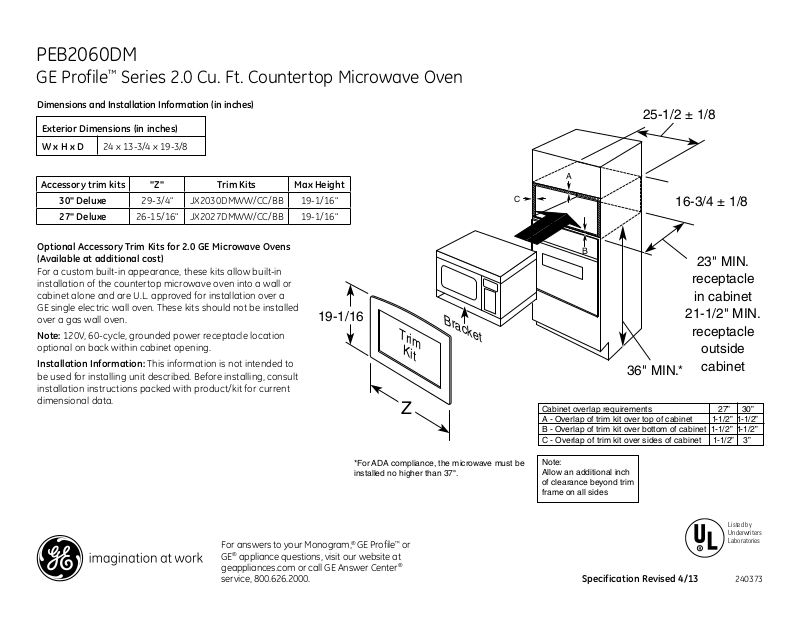

GE PEB2060DM Specification
PEB2060DM
GE Profile™ Series 2.0 Cu. Ft. Countertop Microwave Oven
Dimensions and Installation Information (in inches)
Exterior Dimensions (in inches)
W x H x D 24 x 13-3/4 x 19-3/8
25-1/2 ± 1/8
Accessory trim kits "Z" Trim Kits Max Height
30" Deluxe
27" Deluxe
Optional Accessory Trim Kits for 2.0 GE Microwave Ovens
(Available at additional cost)
For a custom built-in appearance, these kits allow built-in
installation of the countertop microwave oven into a wall or
cabinet alone and are U.L. approved for installation over a
GE single electric wall oven. These kits should not be installed
over a gas wall oven.
Note: 120V, 60-cycle, grounded power receptacle location
optional on back within cabinet opening.
Installation Information: This information is not intended to
be used for installing unit described. Before installing, consult
installation instructions packed with product/kit for current
dimensional data.
29-3/4" JX2030DMWW/CC/BB 19-1/16"
26-15/16" JX2027DMWW/CC/BB 19-1/16"
19-1/16
C
Bracket
Trim
Kit
Z
*For ADA compliance, the microwave must be
installed no higher than 37".
A
16-3/4 ± 1/8
B
23" MIN.
receptacle
in cabinet
21-1/2" MIN.
receptacle
outside
36" MIN.*
Cabinet overlap requirements 27” 30”
A - Overlap of trim kit over top of cabinet 1-1/2” 1-1/2”
B - Overlap of trim kit over bottom of cabinet 1-1/2” 1-1/2”
C - Overlap of trim kit over sides of cabinet 1-1/2” 3”
Note:
Allow an additional inch
of clearance beyond trim
frame on all sides
cabinet
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Specification Revised 4/13
Listed by
Underwriters
Laboratories
240373
PEB2060DM
START
PAUSE
CLEAR
OFF
H
ELP
C
LOCK
R
EMINDER
AM/PM
B
EEPER
V
OLUME
D
ELAY
S
TART
GE Profile™ Series 2.0 Cu. Ft. Countertop Microwave Oven
Features and Benefits
• 2.0 Cu. Ft. Capacity - 1200 Watts (IEC-705 test procedure)
• Sensor Cooking Controls - Automatically adjust the time and
power for exceptional cooking results
• Optional Trim Kit - Offers a built-in appearance of a
countertop model
• Auto and Time Defrost - Automatically defrosts for a specified
amount of time
• Turntable - Continually rotates food to ensure even cooking
• Instant On Controls - Allow quick, one-touch cooking
and reheating
• Child Lock Out - Enables you to lock the keypad to prevent the
oven from being accidentally started
• Kitchen Timer - Operates as a minute timer and can be used at
any time, even when the oven is operating
• Add 30 Seconds - Increases cooking times with one touch
• Electronic Touch Controls - Offer easy point-and-cook convenience
• Model PEB2060DMWW – White on white
• Model PEB2060DMCC – Bisque on bisque
• Model PEB2060DMBB – Black on black
Specification Revised 4/13
Listed by
Underwriters
Laboratories
240373
