GE PEB1590DMWW Specification Sheet

PEB1590DM

24 ± 1/16

18-3/4 ± 1/16

36" MIN.

23" MIN.

receptacle

in cabinet

21-1/2" MIN.

receptacle

outside
cabinet

20-13/16

Z

Bracket

Trim

Kit

Cabinet overlap requirements 27” 30”
A - Overlap of trim kit over top of cabinet 1-1/2” 1-1/2”
B - Overlap of trim kit over bottom of cabinet 1-1/2” 1-1/2”
C - Overlap of trim kit over sides of cabinet 1-1/2” 3”

Note:
Allow an additional inch
of clearance beyond trim
frame on all sides

B

A

C

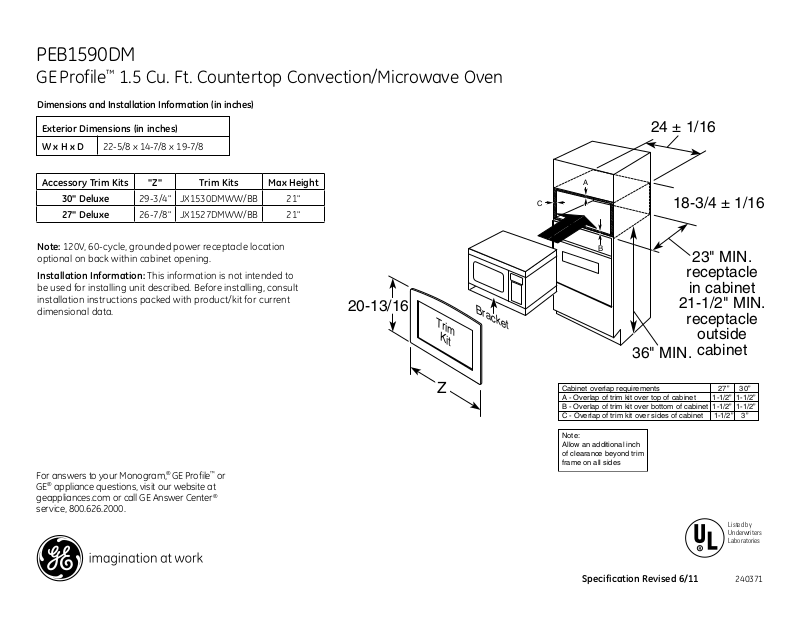

GE Profile™ 1.5 Cu. Ft. Countertop Convection/Microwave Oven

Dimensions and Installation Information (in inches)

Exterior Dimensions (in inches)

W x H x D 22-5/8 x 14-7/8 x 19-7/8

Accessory Trim Kits "Z" Trim Kits Max Height

30" Deluxe

27" Deluxe

Note: 120V, 60-cycle, grounded power receptacle location

optional on back within cabinet opening.

Installation Information: This information is not intended to
be used for installing unit described. Before installing, consult
installation instructions packed with product/kit for current
dimensional data.

29-3/4" JX1530DMWW/BB 21"

26-7/8" JX1527DMWW/BB 21"

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.

Specification Revised 6/11

Listed by
Underwriters
Laboratories

240371

PEB1590DM

GE Profile™ 1.5 Cu. Ft. Countertop Convection/Microwave Oven

Features and Benefits

• 1.5 cu. ft. capacity - 1000 Watts (IEC-705 test procedure)

• Convection cooking - Choose this setting when baking or

browning is desired

• Sensor cooking controls - Automatically adjusts time and power

for delicious cooking results

• Easy-set control dial - Enjoy how simple the control dial makes

setting the oven or selecting recipes

• Optional built-in trim kit - Achieve a custom appearance and

built-in convenience with a sleek, matching trim kit

• Removable oven rack - Full-width cooking rack allows for

multi-level cooking simultaneously, allowing you to cook large
quantities of your family’s favorites

• Recessed turntable - Maximizes oven space and flush design

easily accommodates multiple dishes

• Model PEB1590DMWW – White on white

• Model PEB1590DMCC – Bisque on bisque

• Model PEB1590DMBB – Black on black
