GE MTX16EABWW Specification
Created 4/98

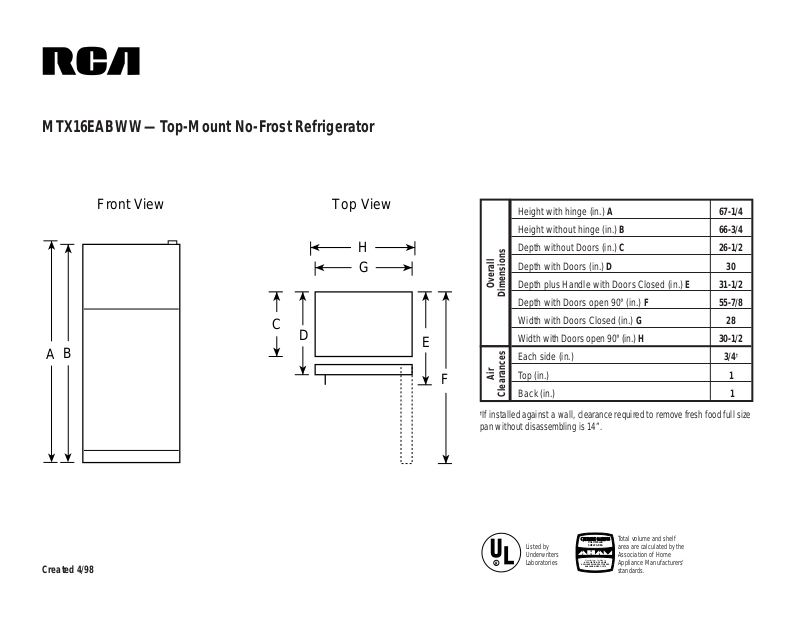

MTX16EABWW—Top-Mount No-Frost Refrigerator
Front View Top View
A
G
E
C
F
B
D
H
†
If installed against a wall, clearance required to remove fresh food full size
pan without disassembling is 14”.
Height with hinge (in.) A 67-1/4
Height without hinge (in.) B 66-3/4
Depth without Doors (in.) C 26-1/2
Depth with Doors (in.) D30
Depth plus Handle with Doors Closed (in.) E 31-1/2
Depth with Doors open 90° (in.) F 55-7/8
Width with Doors Closed (in.) G28
Width with Doors open 90° (in.) H 30-1/2
Each side (in.) 3/4
†
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Created 4/98
MTX16EABWW—Top-Mount No-Frost Refrigerator
Features and Benefits
• 15.6 cu ft Capacity (Fresh Food 11.69 cu ft / Freezer 3.86 cu ft)
• 2 Vegetable/Fruit Crispers
• Snack Pan
• 2 Adjustable Wire Everwhite Fresh Food Cabinet Shelves
• Fixed Fresh Food Gallon Door Storage
• Dairy Compartment
• Utility Bin
• 1 Adjustable Full-Width Wire Everwhite Freezer Shelf
• 2 Freezer Door Shelves
• Equipped for Optional Automatic Icemaker
• Ice Tray Shelf with Ice Storage Bin
• Color-Matched Recessed Door Handles
• MTX16EABWW–White on white
• MTX16EABAA–Almond on almond
