GE MSX22GRBAA Specification

Created 4/98

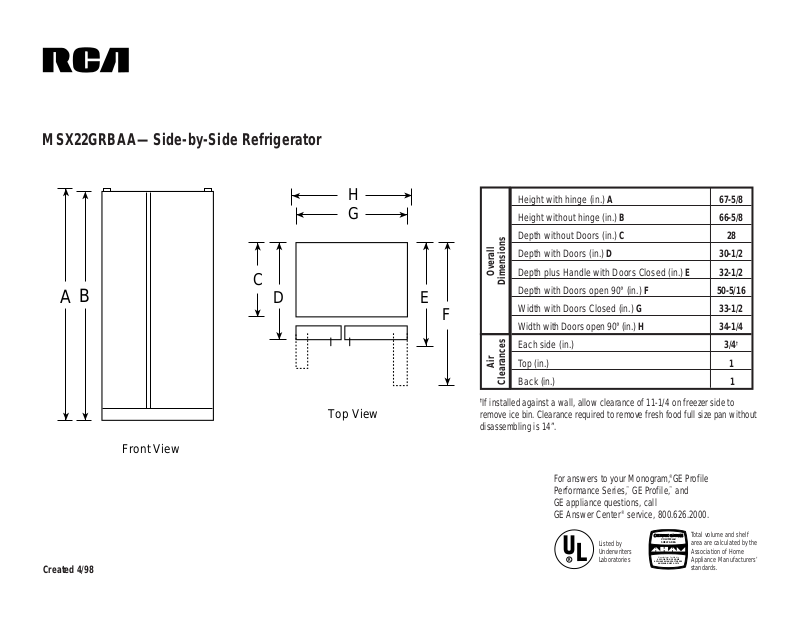

MSX22GRBAA—Side-by-Side Refrigerator

†

If installed against a wall, allow clearance of 11-1/4 on freezer side to
remove ice bin. Clearance required to remove fresh food full size pan without
disassembling is 14”.

A

Front View

Top View

G

D

C

F

B

E

H

Height with hinge (in.) A 67-5/8
Height without hinge (in.) B 66-5/8
Depth without Doors (in.) C28
Depth with Doors (in.) D 30-1/2
Depth plus Handle with Doors Closed (in.) E 32-1/2
Depth with Doors open 90° (in.) F 50-5/16
Width with Doors Closed (in.) G 33-1/2
Width with Doors open 90° (in.) H 34-1/4
Each side (in.) 3/4

†

Top (in.) 1
Back (in.) 1

Overall

Dimensions

Air

Clearances

Manufacturer Certified to

ASSOCIATION OF HOME

APPLIANCE MANUFACTURERS

ANSI/AHAN HRF-1-1979

VOLUME and
SHELF AREA

R

Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.

Listed by
Underwriters
Laboratories

For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™and
GE appliance questions, call
GE Answer Center®service, 800.626.2000.

Created 4/98

Features and Benefits

• 21.7 cu. ft. Capacity (Fresh Food 14.96 cu. ft. / Freezer 6.75 cu. ft.)

• One Touch! Dispenser Delivers Chilled Water, Cubed and Crushed Ice
through the Door

• 1 Clear Adjustable Humidity Fruit/Vegetable Crispers

• 1 Clear Adjustable Temperature Meat Pan

• 3 Adjustable Glass Fresh Food Cabinet Shelves

• 4 Fresh Food Door Shelves (2 Adjustable Gallon Door Bins)

• Dairy Compartment

• 3 Adjustable Wire Everwhite Freezer Shelves

• Sliding Freezer Storage Bin

• 5 Freezer Door Shelves

• Color-Matched Door Handles

• MSX22GRBWW–White on white

• MSX22GRBAA–Almond on almond

MSX22GRBAA—Side-by-Side Refrigerator
