JV338H
5-1/2
29-7/8
17-1/2
12
1/2
10
3-1/4
5-3/4
Center
line of hood
1-1/4
1-1/4
Optional power
supply connection
1-1/8" Typ.
7-3/4
1-3/8" Typ.
8-1/4" Typ.
Center
line of hood
1-1/4
1-1/4
Optional power
supply connection
1-1/8" Typ.
7-3/4
1-3/8" Typ.
8-1/4" Typ.
5-3/4
Center
line of hood
1-1/4
1-1/4
Optional power
supply connection
1-1/8" Typ.
7-3/4
1-3/8" Typ.
8-1/4" Typ.

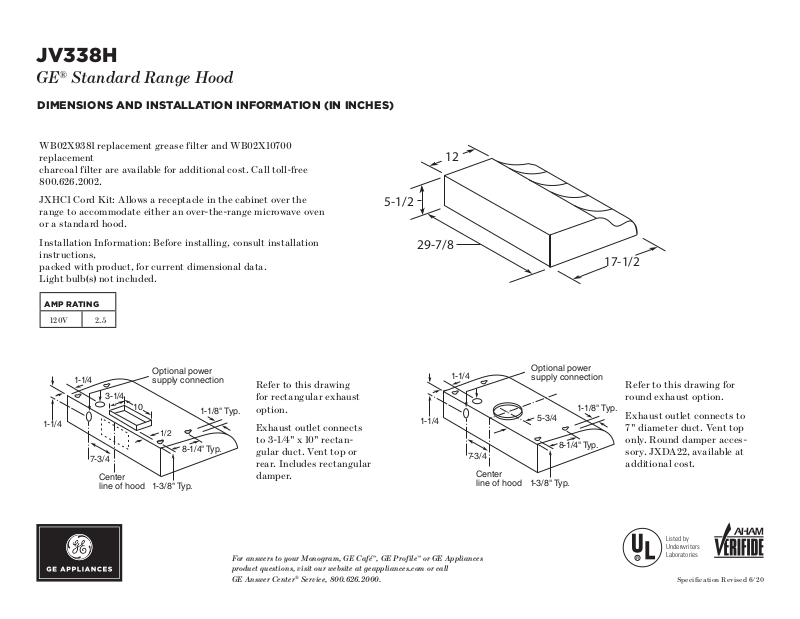

GE® Standard Range Hood
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
WB02X9381 replacement grease filter and WB02X10700
replacement
charcoal filter are available for additional cost. Call toll-free
800.626.2002.
JXHC1 Cord Kit: Allows a receptacle in the cabinet over the
range to accommodate either an over-the-range microwave oven
or a standard hood.
Installation Information: Before installing, consult installation
instructions,
packed with product, for current dimensional data.
Light bulb(s) not included.
AM P R AT I N G
120V 2.5
Refer to this drawing
for rectangular exhaust
option.
Exhaust outlet connects
to 3-1/4" x 10" rectangular duct. Vent top or
rear. Includes rectangular
da m per.
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
Refer to this drawing for
round exhaust option.
Exhaust outlet connects to
7" diameter duct. Vent top
only. Round damper accessory. JXDA22, available at
additional cost.
Listed by
Underwriters
Laboratories
Speci fication Revise d 6/20
JV338H
GE® Standard Range Hood
FEATURES AND BENEFITS
Vented – Effectively pulls smoke and vapors out of the cooking area and vents them
outside through an external wall.
Vertical and rear exhaust – Provides the option of connecting duct work to either the rear
or the top of the hood.
Cooktop light – Provides light to illuminate cooking surface below hood.
Removable grease filter – Durable filters can be removed for easy cleaning and maintenance.
Rectangular ducting – Hood is designed to fit standard rectangular duct work.
Damper Included
Model JV338HWW – White on white
Model JV338HCC – Bisque on bisque
