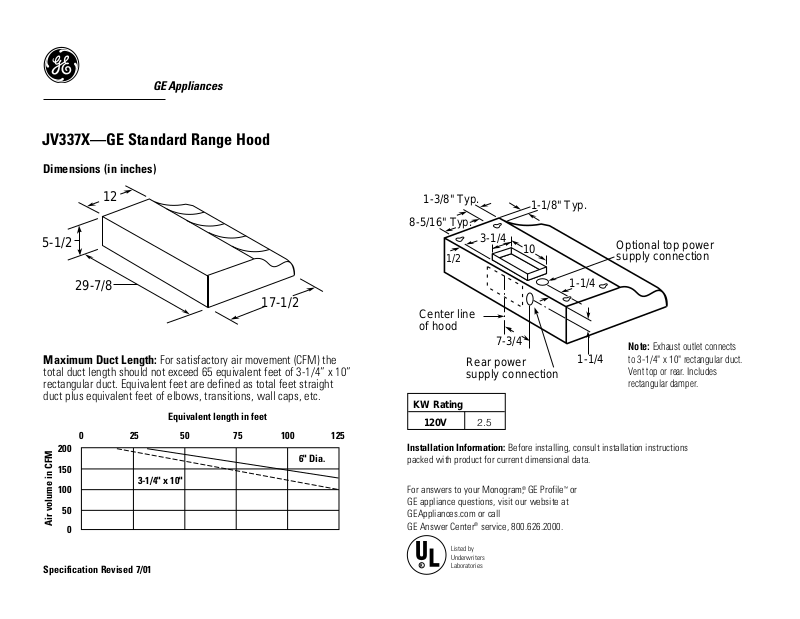

JV337X—GE Standard Range Hood
5-1/2
29-7/8
17-1/2
12
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
1-3/8" Typ.
8-5/16" Typ.
Center line
of hood
1-1/4
1-1/4
Optional top power
supply connection
1-1/8" Typ.
7-3/4
10
3-1/4
1/2
Rear power
supply connection
Dimensions (in inches)
KW Rating
120V 2.5
Note: Exhaust outlet connects
to 3-1/4" x 10" rectangular duct.
Vent top or rear. Includes
rectangular damper.
GE Appliances
Specification Revised 7/01
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Maximum Duct Length: For satisfactory air movement (CFM) the
total duct length should not exceed 65 equivalent feet of 3-1/4” x 10”
rectangular duct. Equivalent feet are defined as total feet straight
duct plus equivalent feet of elbows, transitions, wall caps, etc.
25
Equivalent length in feet
Air volume in CFM
50 75 100 1250
50
0
100
150
200
6" Dia.
3-1/4" x 10"
Page 2
JV337X—GE Standard Range Hood
Features and Benefits
• 30" Width
• Vertical Exhaust 160 CFM, Rear Exhaust 150 CFM
• Easy-To-Use Rocker Switches
• Two-Speed Fan
• 3-1/4" x 10" Rectangular Duct
• Rectangular Damper Included
• Furnished With Removable Grease Filter
• Cooktop Light*
• Model JV337XWH–White
• Model JV337XAD–Almond
• Model JV337XCT–Bisque
* Light Bulbs Not Included
GE Appliances
Specification Revised 7/01
