GE JV327X Specification
GE Appliances

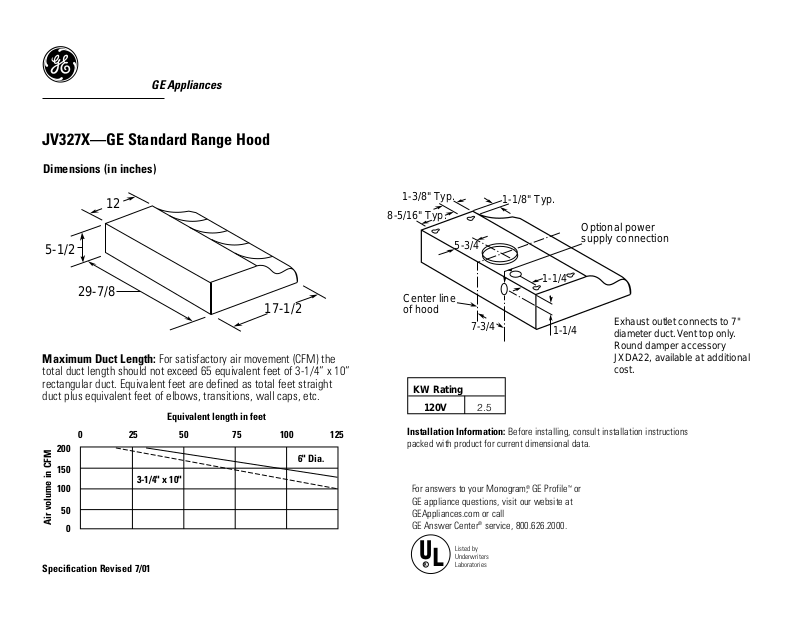

JV327X—GE Standard Range Hood
Specification Revised 7/01
5-1/2
29-7/8
17-1/2
12
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
1-3/8" Typ.
8-5/16" Typ.
Center line
of hood
1-1/4
1-1/4
Optional power
supply connection
1-1/8" Typ.
7-3/4
5-3/4
Dimensions (in inches)
KW Rating
120V 2.5
Exhaust outlet connects to 7"
diameter duct.Vent top only.
Round damper accessory
JXDA22, available at additional
cost.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Maximum Duct Length: For satisfactory air movement (CFM) the
total duct length should not exceed 65 equivalent feet of 3-1/4” x 10”
rectangular duct. Equivalent feet are defined as total feet straight
duct plus equivalent feet of elbows, transitions, wall caps, etc.
25
Equivalent length in feet
Air volume in CFM
50 75 100 1250
50
0
100
150
200
6" Dia.
3-1/4" x 10"
GE Appliances
Specification Revised 7/01
JV327X—GE Standard Range Hood
Features and Benefits
• Available In 30" Width
• Vertical Exhaust 180 CFM
• Easy to Use Rocker Switches
• Two-Speed Fan
• Furnished With Removable Grease Filter
• Cooktop Light*
• Model JV327XWH–White
• Model JV327XAD–Almond
• Model JV327XCT–Bisque
* Light Bulbs Not Included
