GE JD750SF Specification
JD750SF
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
Recommended
6" Min.
from walls
2-7/8"
To Front Surface
of Countertop
30
27-1/2
25
23-3/16
If necessary,
build up sides
to 1-1/4" thick
to provide
countertop
support
27
20-5/8" Door
Clearance
From Front
Surface of
Countertop
24
31-1/4
30
4
Accessory
Backguard
JXS32
28-1/2
23-3/16
30
If you are NOT using the
Filler strip or Backguard:
DROP-IN ELECTRIC RANGE
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
Recommended
6" Min.
from walls
30
27-1/2
25
23-3/16
If necessary,
build up sides
to 1-1/4" thick
to provide
countertop
support
30
4
Accessory
Backguard
JXS32
28-1/2
DROP-IN ELECTRIC RANGE
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
Recommended
6" Min.
from walls
30
27-1/2
25
23-3/16
If necessary,
build up sides
to 1-1/4" thick
to provide
countertop
support
28-1/2
DROP-IN ELECTRIC RANGE
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
Recommended
6" Min.
from walls
30
27-1/2
25
23-3/16
28-1/2

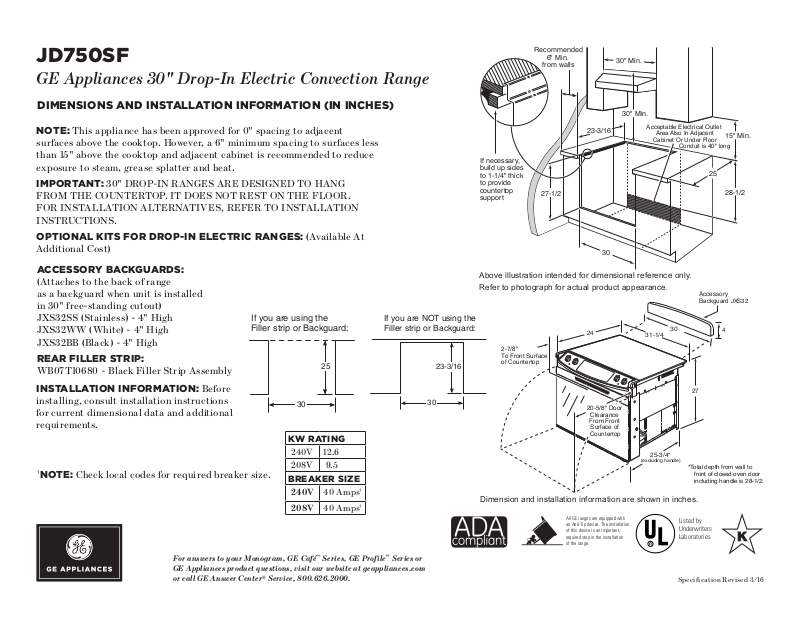

GE Appliances 30" Drop-In Electric Convection Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: This appliance has been approved for 0" spacing to adjacent
surfaces above the cooktop. However, a 6" minimum spacing to surfaces less
than 15" above the cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
IMPORTANT: 30" DROP-IN RANGES ARE DESIGNED TO HANG
FROM THE COUNTERTOP. IT DOES NOT REST ON THE FLOOR.
FOR INSTALLATION ALTERNATIVES, REFER TO INSTALLATION
INSTRUCTIONS.
OPTIONAL KITS FOR DROP-IN ELECTRIC RANGES: (Available At
Additional Cost)
ACCESSORY BACKGUARDS:
(Attaches to the back of range
as a backguard when unit is installed
in 30" free-standing cutout)
JXS32SS (Stainless) - 4" High
JXS32WW (White) - 4" High
JXS32BB (Black) - 4" High
REAR FILLER STRIP:
WB07T10680 - Black Filler Strip Assembly
INSTALL ATIO N I N FORMATION: Before
installing, consult installation instructions
for current dimensional data and additional
requirements.
†
NOTE: Check local codes for required breaker size.
If you are using the
Filler strip or Backguard:
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
25
30
KW R AT I NG
240V 12.6
208V 9.5
BREAKER SIZE
24 0V 40 Amps
208V 40 Amps
If you are NOT using the
Filler strip or Backguard:
†
†
23-3/16
30
Above illustration intended for dimensional reference only.
Refer to photograph for actual product appearance.
24
2-7/8"
To Front Surface
of Countertop
20-5/8" Door
Clearance
From Front
Surface of
Countertop
Dimension and installation information are shown in inches.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
31-1/4
25-3/4*
(excluding handle)
Accessory
Backguard
30
27
*Total depth from wall to
front of closed oven door
including handle is 28-1/2.
Listed by
Underwriters
Laboratories
Speci fication Revi sed 3/16
JXS32
4
JD750SF
GE Appliances 30" Drop-In Electric Convection Range
FEATURES AND BENEFITS
True European Convection with Precise Air - Enjoy perfectly even
results without turning the pan
6"/9"/12" 3600W Power Boil - Pots and pans fit perfectly on the f lexible
heating element
Bridge zone - Cook griddle favorites from the convenience of your range
Fifth element warming zone - Provides low heat capability
for foods
Self-clean heavy-duty oven racks - Conveniently clean your oven and
racks together
Self-clean with Steam Clean Option - Clean your oven the way you want
Black gloss oven interior - Enjoy a clean and sleek
appearance
Model JD750SFSS - Stainless steel
Speci fication Revi sed 3/16
