GE JD630DF Specification
JD630DF
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
Recommended
6" Min.
from walls
2-7/8"
To Front Surface
of Countertop
30"
27-1/2"
25"
23-3/16"
If necessary,
build up sides
to 1-1/4" thick
to provide
countertop
support
27"
20-5/8" Door
Clearance
From Front
Surface of
Countertop
24"
31-1/4"
28-1/2"
23-3/16"
30"
DROP-IN ELECTRIC RANGE
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
Recommended
6" Min.
from walls
30"
27-1/2"
25"
23-3/16"
If necessary,
build up sides
to 1-1/4" thick
to provide
countertop
support
24"
31-1/4"
28-1/2"
DROP-IN ELECTRIC RANGE
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
Recommended
6" Min.
from walls
30"
27-1/2"
25"
23-3/16"
If necessary,
build up sides
to 1-1/4" thick
to provide
countertop
support
28-1/2"
DROP-IN ELECTRIC RANGE
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
Recommended
6" Min.
from walls
30"
27-1/2"
25"
23-3/16"
28-1/2"

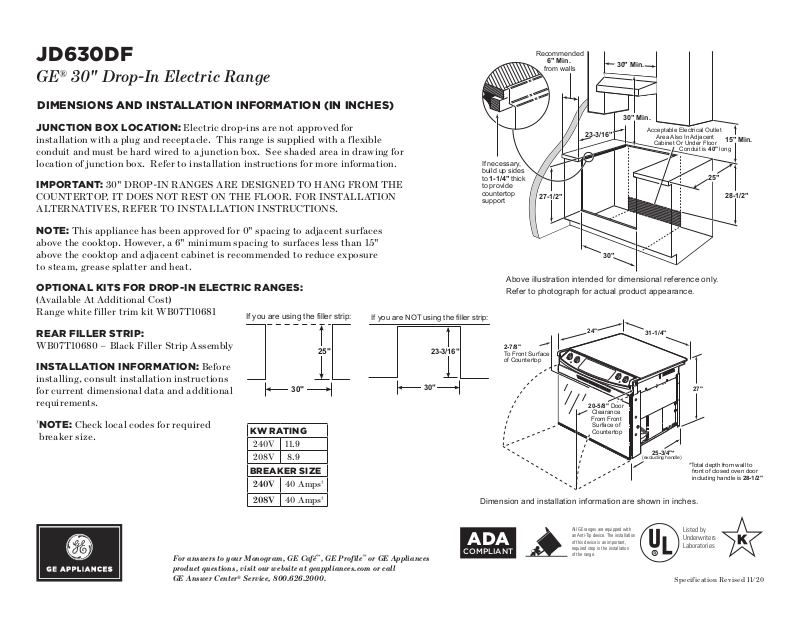

GE® 30" Drop-In Electric Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
JUNCTION BOX LOCATION: Electric drop-ins are not approved for
installation with a plug and receptacle. This range is supplied with a flexible
conduit and must be hard wired to a junction box. See shaded area in drawing for
location of junction box. Refer to installation instructions for more information.
IMPORTANT: 30" DROP-IN RANGES ARE DESIGNED TO HANG FROM THE
COUNTERTOP. IT DOES NOT REST ON THE FLOOR. FOR INSTALLATION
ALTERNATIVES, REFER TO INSTALLATION INSTRUCTIONS.
NOTE: This appliance has been approved for 0" spacing to adjacent surfaces
above the cooktop. However, a 6" minimum spacing to surfaces less than 15"
above the cooktop and adjacent cabinet is recommended to reduce exposure
to steam, grease splatter and heat.
OPTIONAL KITS FOR DROP-IN ELECTRIC RANGES:
(Available At Additional Cost)
Range white filler trim kit WB07T10681
REAR FILLER STRIP:
WB07T10680 – Black Filler Strip Assembly
INS TA LLATI O N IN F O RMATI O N: Before
installing, consult installation instructions
for current dimensional data and additional
requirements.
†
NOTE: Check local codes for required
breaker size.
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
If you are using the filler strip:
25"
30"
KW RATI N G
240V 11.9
208V 8.9
BREAKER SIZE
24 0V 40 Amps
208V 40 Amps
†
†
If you are NOT using the filler strip:
30"
23-3/16"
Above illustration intended for dimensional reference only.
Refer to photograph for actual product appearance.
2-7/8"
To Front Surface
of Countertop
24"
20-5/8" Door
Clearance
From Front
Surface of
Countertop
31-1/4"
25-3/4"*
(excluding handle)
Dimension and installation information are shown in inches.
All GE ranges are equipped with
an Anti-Tip device. The installation
ADA
COMPLIANT
of this device is an important,
required step in the installation
of the range.
27"
*Total depth from wall to
front of closed oven door
including handle is 28-1/2"
Listed by
Underwriters
Laboratories
Speci fication Revised 11/20
JD630DF
GE® 30" Drop-In Electric Range
FEATURES AND BENEFITS
6"/9" Power Boil element – Produces rapid, powerful heat
Self-clean oven – Cleans the oven cavity without the need for scrubbing
Ceramic glass cooktop – Smooth cooktop easily wipes clean
Black gloss oven interior – Enjoy a clean and sleek appearance
Dual element bake – Upper and lower elements produce even heat
and great results
Electronic oven controls – Electronic touch pads are easy to operate
Model JD630DFWW – White on white
Model JD630DFBB – Black on black
Speci fication Revised 11/20
