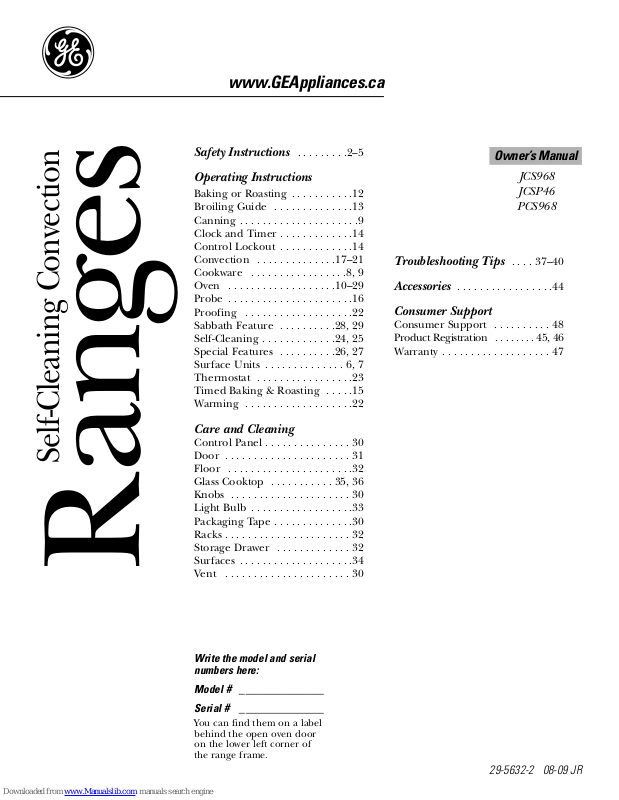

Page 1
www.GEAppliances.ca
Self-Cleaning Convection
Ranges
Safety Instructions . . . . . . . . .2–5
Operating Instructions
Baking or Roasting . . . . . . . . . . .12
Broiling Guide . . . . . . . . . . . . . .13
Canning . . . . . . . . . . . . . . . . . . . . .9
Clock and Timer . . . . . . . . . . . . .14
Control Lockout . . . . . . . . . . . . .14
Convection . . . . . . . . . . . . . .17–21
Cookware . . . . . . . . . . . . . . . . .8, 9
Oven . . . . . . . . . . . . . . . . . . .10–29
Probe . . . . . . . . . . . . . . . . . . . . . .16
Proofing . . . . . . . . . . . . . . . . . . .22
Sabbath Feature . . . . . . . . . .28, 29
Self-Cleaning . . . . . . . . . . . . .24, 25
Special Features . . . . . . . . . .26, 27
Surface Units . . . . . . . . . . . . . . 6, 7
Thermostat . . . . . . . . . . . . . . . . .23
Timed Baking & Roasting . . . . .15
Warming . . . . . . . . . . . . . . . . . . .22
Care and Cleaning
Control Panel . . . . . . . . . . . . . . . 30
Door . . . . . . . . . . . . . . . . . . . . . . 31
Floor . . . . . . . . . . . . . . . . . . . . . .32
Glass Cooktop . . . . . . . . . . . 35, 36
Knobs . . . . . . . . . . . . . . . . . . . . . 30
Light Bulb . . . . . . . . . . . . . . . . . .33
Packaging Tape . . . . . . . . . . . . . .30
Racks . . . . . . . . . . . . . . . . . . . . . . 32
Storage Drawer . . . . . . . . . . . . . 32
Surfaces . . . . . . . . . . . . . . . . . . . .34
Vent . . . . . . . . . . . . . . . . . . . . . . 30
Owner’s Manual
JCS968
JCSP46
PCS968
Troubleshooting Tips . . . . 37–40
Accessories . . . . . . . . . . . . . . . . .44
Consumer Support
Consumer Support . . . . . . . . . . 48

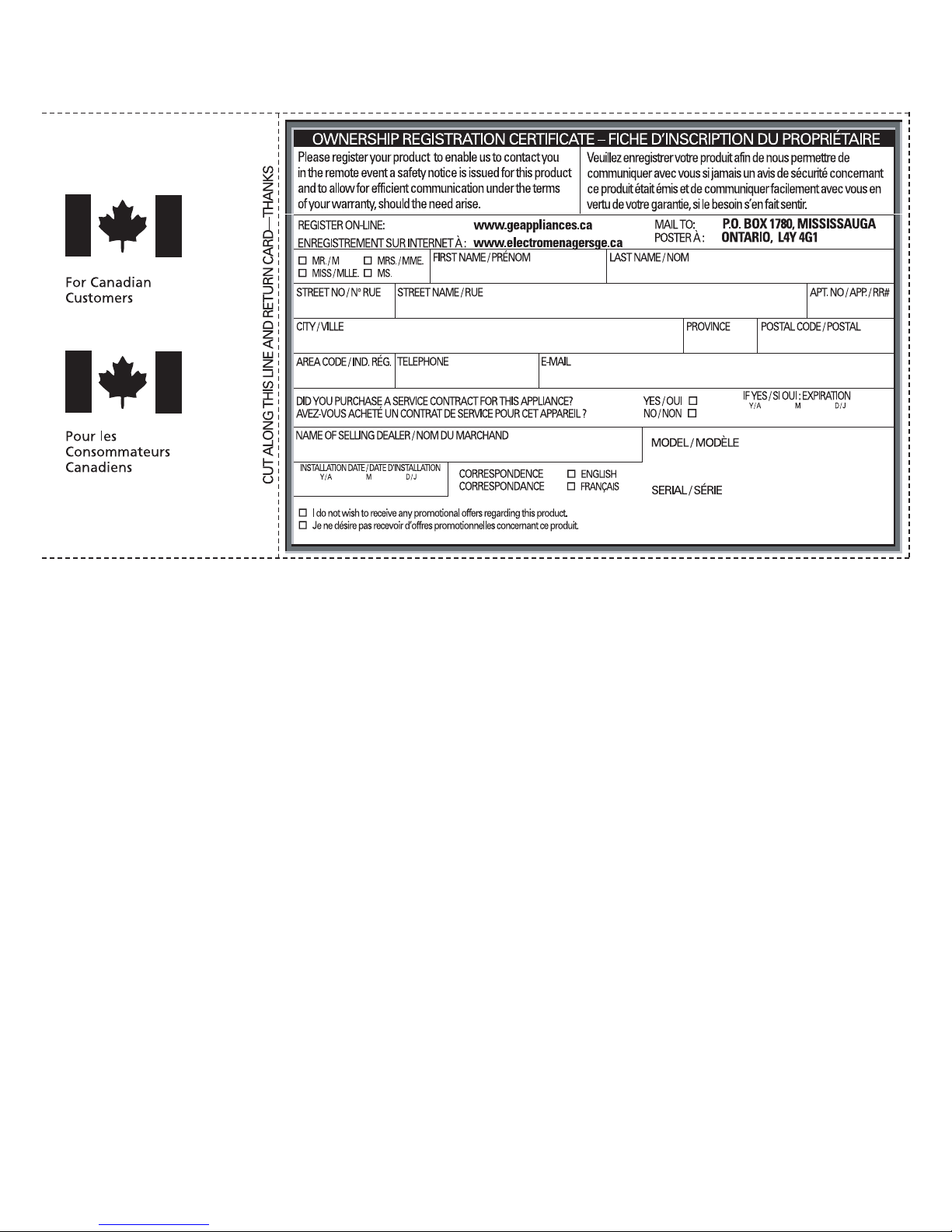

Product Registration . . . . . . . . 45, 46
Warranty . . . . . . . . . . . . . . . . . . . 47
Write the model and serial
numbers here:
Model
Serial # ______________
You can find them on a label
behind the open oven door
on the lower left corner of
the range frame.
# ______________
29-5632-2 08-09 JR
Page 2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric
shock, or to prevent property damage, personal injury, or loss of life.
ANTI-TIP DEVICE
To reduce the risk of tipping the range, the range must
be secured by a properly installed anti-tip bracket.
See installation instructions shipped with the bracket
for complete details before attempting to install.
To check if the bracket is installed and engaged properly,
remove the storage drawer or kick panel and look underneath
the range to see that the leveling leg is engaged in the bracket.
If the range is pulled from the wall for any reason, always
repeat this procedure to verify the range is properly secured
by the anti-tip bracket.
If you did not receive an anti-tip bracket with your
purchase, call 1.800.626.8774 to receive one at no
cost (in Canada, call 1.800.561.3344). For installation
instructions of the bracket, visit GEAppliances.com
(in Canada, GEAppliances.ca).
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause cancer, birth defects or other reproductive
harm, and requires businesses to warn customers of potential exposure to such substances.
The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during
the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation
fan or hood.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
■ Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■ Be sure your appliance is properly
installed and grounded by a qualified
installer in accordance with the provided
installation instructions.
■ Have the installer show you the location of
the circuit breaker or fuse. Mark it for easy
reference.
■ Do not attempt to repair or replace any
part of your range unless it is specifically
recommended in this manual. All other
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
2
servicing should be referred to a qualified
technician.
■ Before performing any service, disconnect
the range power supply at the household
distribution panel by removing the fuse or
switching off the circuit breaker.
■ Do not leave children alone—children
should not be left alone or unattended in
an area where an appliance is in use. They
should never be allowed to sit or stand on
any part of the appliance.
■ Do not allow anyone to climb, stand or
hang on the door, storage drawer or
cooktop. They could damage the range
and even tip it over, causing severe
personal injury.
Page 3
ww.GEAppliances.ca
w
WARNING!
SAFETY PRECAUTIONS
Do not operate the oven or cooktop controls if the glass is broken. Food splatter or cleaning solution
may penetrate a broken control panel or cooktop and create a risk of electrical shock. Contact a
qualified technician immediately should your glass control panel or cooktop become broken.
Safety Instructions Operating Instructions
■ Do not store flammable materials in an
oven or near the cooktop.
■
■ Never wear loose-fitting or hanging
■ Use only dry pot holders—moist or damp
■ Do not use water on grease fires. Never
■ Flaming grease outside a pan can be put
■ Flame in the oven can be smothered
■ For your safety, never use your appliance
CAUTION: Items of interest to
children should not be stored in cabinets
above a range or on the back of a range—
children climbing on the range to reach
items could be seriously injured.
garments while using the appliance.
Be careful when reaching for items stored
over the range. Flammable material could
be ignited if brought in contact with hot
surface units or heating elements and may
cause severe burns.
pot holders on hot surfaces may result in
burns from steam. Do not let pot holders
touch hot surface units or heating
elements. Do not use a towel or other
bulky cloth in place of pot holders.
pick up a flaming pan. Turn the controls
off. Smother a flaming pan on a surface
unit by covering the pan completely with
a well-fitting lid, cookie sheet or flat tray.
Use a multi-purpose dry chemical or
foam-type fire extinguisher.
out by covering it with baking soda or,
if available, by using a multi-purpose dry
chemical or foam-type fire extinguisher.
completely by closing the oven door
and turning the oven off or by using
a multi-purpose dry chemical or
foam-type fire extinguisher.
for warming or heating the room.
■ Do not let cooking grease or other
flammable materials accumulate in or
near the range.
■ Do not touch the surface units, the
heating elements or the interior surface
of the oven. These surfaces may be hot
enough to burn even though they are
dark in color. During and after use, do not
touch, or let clothing or other flammable
materials contact the surface units, areas
nearby the surface units or any interior
area of the oven; allow sufficient time for
cooling first.
■ Potentially hot surfaces include the
cooktop, areas facing the cooktop, oven
vent opening, surfaces near the opening,
crevices around the oven door.
■ REMEMBER: The inside surface of the oven
may be hot when the door is opened.
■ Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
■ Keep the hood and grease filters clean
to maintain good venting and to avoid
grease fires.
■ Teach children not to play with the
controls or any other part of the range.
■ Always keep dish towels, dish cloths, pot
holders and other linens a safe distance
from your range.
■ Always keep wooden and plastic utensils
and canned food a safe distance from
your range.
■ Always keep combustible wall coverings,
curtains or drapes a safe distance from
your range.
Care and Cleaning
Troubleshooting Tips Consumer Support
COOK MEAT AND POULTRY THOROUGHLY…
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F (71°C) and poultry
to at least an INTERNAL temperature of 180°F (82°C). Cooking to these temperatures usually protects against
foodborne illness.
3
Page 4
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
RADIANT SURFACE UNITS
Use proper pan size—select cookware having flat bottoms large enough to cover the surface unit
heating element. The use of undersized cookware will expose a portion of the surface unit to direct
contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will
also improve efficiency.
■ Never leave the surface units unattended
at high heat settings. Boilovers cause
smoking and greasy spillovers that may
catch on fire.
■ Only certain types of glass, glass ⁄ceramic,
earthenware or other glazed containers
are suitable for cooktop service; others
may break because of the sudden change
in temperature.
■ To minimize the possibility of burns,
ignition of flammable materials and
spillage, the handle of a container
should be turned toward the center of
the range without extending over nearby
surface units.
■ Always turn the surface units off before
removing cookware.
■ When preparing flaming foods under
the hood, turn the fan on.
■ Use care when touching the cooktop. The
glass surface of the cooktop will retain heat
after the controls have been turned off.
■ Keep an eye on foods being fried at high
or medium high heat settings.
■ Foods for frying should be as dry as
possible. Frost on frozen foods or moisture
on fresh foods can cause hot fat to bubble
up and over the sides of the pan.
■ Use little fat for effective shallow or deep
fat frying. Filling the pan too full of fat can
cause spillovers when food is added.
■ If a combination of oils or fats will be used
in frying, stir together before heating,
or as fats melt slowly.
■ Always heat fat slowly, and watch as it heats.
■ Large scratches or impacts to glass doors
or cooktops can lead to broken or
shattered glass.
■ Do not operate the radiant surface units if
the glass is broken. Spillovers or cleaning
solution may penetrate a broken cooktop
and create a risk of electrical shock.
Contact a qualified technician immediately
should your glass cooktop become broken.
■ Never use the glass cooktop surface as a
cutting board.
■ Do not place or store items that can melt
or catch fire on the glass cooktop, even
when it is not being used.
■ Be careful when placing spoons or other
stirring utensils on glass cooktop surface
when it is in use. They may become hot
and could cause burns.
■ Clean the cooktop with caution. If a wet
sponge or cloth is used to wipe spills on a
hot surface unit, be careful to avoid steam
burns. Some cleaners can produce
noxious fumes if applied to a hot surface.
NOTE: We recommend that you avoid
wiping any surface unit areas until they
have cooled and the indicator light has
gone off. Sugar spills are the exception to
this. Please see the Cleaning the glass
cooktop section.
■ When the cooktop is cool, use only
the Ceramic Cooktop Cleaner and the
Ceramic Cooktop Cleaning Pad to clean
the cooktop.
■ To avoid possible damage to the cooking
surface, do not apply cleaning cream to
the glass surface when it is hot.
■ Use a deep fat thermometer whenever
possible to prevent overheating fat beyond
the smoking point.
■ Avoid scratching the glass cooktop. The
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
4
cooktop can be scratched with items such
as sharp instruments, rings or other
jewelry, and rivets on clothing.
■ After cleaning, use a dry cloth or paper
towel to remove all cleaning cream residue.
■ Read and follow all instructions and
warnings on the cleaning cream labels.
Page 5
ww.GEAppliances.ca
w
WARNING!
OVEN
Stand away from the range when opening the oven door. Hot air or steam which escapes can cause
burns to hands, face and/or eyes.
Safety Instructions Operating Instructions
■ Do not heat unopened food containers.
Pressure could build up and the container
could burst, causing an injury.
■ Keep the oven vent unobstructed.
■ Keep the oven free from grease buildup.
■ Place the oven rack in the desired position
while the oven is cool. If racks must be
handled when hot, do not let pot holder
contact the heating elements.
■ When using cooking or roasting bags in
the oven, follow the manufacturer’s
directions.
■ Pulling out the rack to the stop-lock is a
convenience in lifting heavy foods. It is
also a precaution against burns from
touching hot surfaces of the door or oven
walls.
SELF-CLEANING OVEN
■ Do not use the oven to dry newspapers.
If overheated, they can catch on fire.
■ Do not use the oven for a storage area.
Items stored in an oven can ignite.
■ Do not leave paper products, cooking
utensils or food in the oven when not
in use.
■ Do not use aluminum foil to line
oven bottoms. Improper installation
of aluminum foil may result in a risk
of electric shock or fire.
Care and Cleaning
Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven. Residue from oven cleaners will damage the inside
of the oven when the self-clean cycle is used.
■ Do not clean the door gasket. The door
gasket is essential for a good seal. Care
should be taken not to rub, damage or
move the gasket.
■ Before self-cleaning the oven, remove
shiny, silver-colored oven racks (on some
models) and all other cookware.
■ Be sure to wipe up excess spillage before
starting the self-cleaning operation.
■ If the self-cleaning mode malfunctions,
turn the oven off and disconnect the
power supply. Have it serviced by a
qualified technician.
■ Clean only parts listed in this Owner’s
Manual.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Troubleshooting Tips Consumer Support
5
Page 6
Using the surface units.
W
ARM/
MIN
MAX
1
2
4
3
5
6
7
9
8
R
ÉCHAUD
MIN
M
AX
1
2
4
3
5
6
7
9
8
B
A
K
E
P
R
O
B
E
C
o
n
v
e
c
t
i
o
n
C
L
O
C
K
B
R
O
I
L
C
O
N
V
B
A
K
E
R
O
A
S
T
S
E
L
F
C
L
E
A
N
C
OO
K
I
N
G
T
I
M
E
C
L
E
A
R
O
F
F
D
E
L
A
Y
S
T
A
R
T
C
O
N
T
R
O
L
L
O
C
K
O
U
T
S
U
R
F
A
C
E
W
A
R
M
E
R
S
E
T
O
F
F
K
I
T
C
H
E
N
T
I
M
E
R
O
V
E
N
L
I
G
H
T
O
N
O
F
F
O
V
E
N
C
O
N
T
R
O
L
S
T
I
M
E
C
O
N
T
R
O
L
S
S
T
A
R
T
MIN
MAX MAX
2
2
4
4
6
6
8
8
MIN
MAX MAX
2
2
4
4
6
6
8
8
NOTE: Throughout this manual, features and appearance may vary from your model.
How to Set
Be sure you turn the control knob to
OFF when you finish cooking.
WARMING ZONE GUIDE
SETTING FOOD
1 (Low) Bread/Pastries
2 (Medium) Chocolate/Butter
2 (Medium) Sauces, Stews,
Cream Soups
2 (Medium) Vegetables
3 (High) Soups (liquid)
3 (High) Tea or Coffee
The Warming Zone Guide is for
reference only and the SETTING
that you need will depend on the
amount and type of food, the
starting temperature of the food
and the length of the holding time.
Push the knob in and turn in either
irection to the setting you want.
d
At both OFF and HI the control clicks
into position. You may hear slight clicking
sounds during cooking, indicating the
control is keeping the power level you
set.
A HOT SURFACE indicator light, on the
cooktop, will glow when any radiant
element is turned on. It will remain
on until the surface is cooled to
approximately 150°F (66°C).
Hot surface indicator light will:
■ come on when the unit is hot to the touch.
■ stay on even after the unit is turned off.
Using the Warming Zone
The WARMING ZONE, located in the
center of the glass cooktop surface,
will keep hot, cooked food at serving
temperature. Always start with hot food.
Do not use to heat cold food. Placing
uncooked or cold food on the WARMING
ZONE could result in food-borne illness.
Touch the WARMING ZONE pad.
Touch the number pads 1, 2 or 3
to select low (1), medium (2) or
high (3) warming setting.
Touch the START pad.
To turn the WARMING ZONE off, touch
the WARMING ZONE pad until WARMER
disappears from the display.
For best results, all foods on the
WARMING ZONE should be covered with
a lid or aluminum foil. When warming
pastries or breads, the cover should be
vented to allow moisture to escape.
■ glow until the unit is cooled to approximately
150°F (66°C).
The WARM setting on the right REAR
surface unit keeps already heated food
warm until ready to serve. Do not use to
heat cold food.
Always use pot holders or oven mitts
when removing food from the WARMING
ZONE, since cookware and plates will
be hot.
CAUTION: Do not warm food
WARMING ZONE for more than two
on the
hours.
NOTE: The warming zone will not glow red like
the cooking elements.
HOT will be displayed when the glass
surface is hot and will remain on until
the surface is cool enough to touch.
NOTE: Lower settings may not heat the glass
surface enough to cause the HOT indicator light to
come on.
A warming zone ON light will glow when
the unit is on.
■ Do not use plastic wrap to cover food. Plastic
may melt onto the surface and be very difficult
to clean.
■ Use only cookware recommended for
top-of-range cooking.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
6
Using the Bridge Surface Unit
To use the bridge surface unit, turn the
left front control knob to the BRIDGE
settings.
For full bridge surface unit operation,
also turn on the left rear surface unit.
To use only the front surface unit, turn
the control knob to the FRONT settings.
Page 7
DRAGGING
MIN
M
IN
MIN
MAX
MAX
MAX
3
3
3
6
6
6
www.GEAppliances.ca
SURFACE
COOKING
OFF CENTER
Safety Instructions Operating Instructions
Small surface
unit setting
Medium surface
unit setting
Never cook directly on the glass.
Always use cookware.
Always place the pan in the center of
the surface unit you are cooking on.
Large
surface
unit setting
Using the tri-ring surface unit
The right front Tri-Ring surface unit has 3 sizes to
select from so you can match the size of the unit
to the size of the cookware you are using.
To use the large surface unit, press and
turn the right front control knob
clockwise to , stopping at the desired
setting. This will activate the entire
heating area.
To use the medium surface unit,
press and turn the right front control
About the radiant surface units…
WARNING: The surface
units are automatically disabled during
the self-clean cycle. Make sure that all
surface unit controls are turned off at all
times during the self-clean cycle. Any
surface unit that is set to an on position,
while the self-clean cycle is operating, will
automatically come on after the self-clean
cycle is finished, and could result in an
on, unattended surface unit. Wait until
the self-clean cycle is finished to set and
use the surface units.
The radiant cooktop features heating
units beneath a smooth glass surface.
NOTE: A slight odor is normal when a new
cooktop is used for the first time. It is caused by
the heating of new parts and insulating materials
and will disappear in a short time.
NOTE: On models with light-colored glass
cooktops, it is normal for the cooking zones to
change color when hot or cooling down. This is
temporary and will disappear as the glass cools to
room temperature.
knob clockwise to , stopping at the
desired setting. This will activate the
edium-size heating area.
m
To use the smallest surface unit,
press and turn the right front control
knob clockwise to ,stopping at the
desired setting. This will activate the
smallest, inside heating area.
The surface unit will cycle on and off to
maintain your selected control setting.
It is safe to place hot cookware on the
glass surface even when the cooktop
is cool.
Even after the surface units are turned
off, the glass cooktop retains enough
heat to continue cooking. To avoid
overcooking, remove pans from the
surface units when the food is cooked.
Avoid placing anything on the surface
unit until it has cooled completely.
■ Water stains (mineral deposits) are removable
using the cleaning cream or full-strength white
vinegar.
■ Use of window cleaner may leave an iridescent
film on the cooktop. The cleaning cream will
remove this discoloration.
■ Don’t store heavy items above the cooktop.
If they drop onto the cooktop, they can cause
damage.
■ Do not use the surface as a cutting board.
Care and Cleaning
Troubleshooting Tips Consumer Support
Do not slide cookware across the
cooktop because it can scratch the
glass—the glass is scratch-resistant,
not scratch-proof.
Temperature Limiter
Every radiant surface unit has a
temperature limiter.
The temperature limiter protects the
glass cooktop from getting too hot.
The temperature limiter may cycle the
units off for a time if:
■ The pan boils dry.
■ The pan bottom is not flat.
■ The pan is off center.
■ There is no pan on the unit.
7
Page 8
Selecting types of cookware.
The following information will help you choose cookware which will give good performance on glass cooktops.
Check pans for flat bottoms by
using a straight edge.
Stainless Steel:
recommended
Aluminum:
heavyweight recommended
Good conductivity. Aluminum residues
sometimes appear as scratches on the
cooktop, but can be removed if cleaned
immediately. Because of its low melting
point, lightweight aluminum should not
be used.
Copper Bottom:
recommended
Copper may leave residues which can
appear as scratches. The residues can be
removed, as long as the cooktop is
cleaned immediately. However, do not let
these pots boil dry. Overheated metal can
bond to glass cooktops. An overheated
copper bottom pot will leave a residue
that will permanently stain the cooktop
if not removed immediately.
Glass-Ceramic:
usable, but not recommended
Poor performance. May scratch the
surface.
Stoneware:
usable, but not recommended
Poor performance. May scratch the
surface.
Home Canning Tips:
Be sure the canner is centered over the
surface unit.
Make sure the canner is flat on the
bottom.
Use recipes and procedures from
reputable sources. These are available
from manufacturers such as Ball®and
Kerr®.
To prevent burns from steam or heat,
use caution when canning.
Pans with rounded, curved, ridged
or warped bottoms are not
recommended.
Use only flat-bottomed woks.
Porcelain Enamel-Covered Cast Iron:
recommended
As long as the cookware is covered
completely with porcelain enamel, this
cookware is recommended. Caution is
recommended for cast iron cookware
that is not completely covered with
smooth porcelain enamel, since it may
scratch the glass ceramic cooktop.
Wok Cooking
We recommend that you use only a flat-bottomed
wok. They are available at your local retail store.
Do not use round-bottom woks. You
could be seriously burned if the wok
tipped over.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
8
Page 9
Right!
Wrong!
Note: Flat-bottomed canners are
required for glass cooktops.
Observe the Following Points in Canning
Pots that extend beyond 2.5 cm
of the surface unit’s circle are not
ecommended for most surface
r
cooking. However, when canning
with water-bath or pressure canner,
larger-diameter pots may be used.
This is because boiling water
temperatures (even under pressure)
are not harmful to the cooktop
surfaces surrounding the surface units.
HOWEVER, DO NOT USE LARGEDIAMETER CANNERS OR OTHER
LARGE-DIAMETER POTS FOR
FRYING OR BOILING FOODS
OTHER THAN WATER. Most syrup
or sauce mixtures—and all types of
frying—cook at temperatures much
higher than boiling water. Such
temperatures could eventually harm
the glass cooktop surfaces.
Be sure the canner fits over the
center of the surface unit. If your
cooktop or its location does not
allow the canner to be centered
on the surface unit, use smallerdiameter pots for good canning
results.
Flat-bottomed canners must be
used. Do not use canners with
flanged or rippled bottoms (often
found in enamelware) because
they don’t make enough contact
with the surface units and take
a long time to boil water.
NOTE: If your house has low voltage,
canning may take longer than expected,
even though directions have been
carefully followed. The process time will
be shortened by:
(1) using a pressure canner, and
( 2) starting with HOT tap water for fastest
■ Safe canning requires that harmful
■ After you have adjusted the controls,
■ Since you must make sure to process
www.GEAppliances.ca
Remember that canning is a
process that generates large
mounts of steam. To avoid burns
a
from steam or heat, be careful
when canning.
heating of large quantities of water.
CAUTION:
microorganisms are destroyed and
that the jars are sealed completely.
When canning foods in a water-bath
canner, a gentle but steady boil must be
maintained for the required time. When
canning foods in a pressure canner, the
pressure must be maintained for the
required time.
it is very important to make sure the
prescribed boil or pressure levels are
maintained for the required time.
the canning jars for the prescribed
time, with no interruption in processing
time, do not can on any cooktop
surface unit if your canner is not flat.
Safety Instructions Operating Instructions
Care and Cleaning
Troubleshooting Tips Consumer Support
When canning, use recipes and
procedures from reputable
sources. Reliable recipes and
procedures are available from the
manufacturer of your canner;
manufacturers of glass jars for
canning, such as Ball
brand; and the United States
Department of Agriculture
Extension Service.
®
and Kerr
®
9
Page 10
Using the oven controls.
(Throughout this manual, features and appearance may vary from your model.)
Features and appearance may vary.
Oven Control, Clock and Timer Features and Settings
BAKE Pad
Touch to select the bake function.
BROIL Pad
Touch to select the broil function.
CONVECTION BAKE Pad
Touch to select baking with the convection
function.
CONVECTION ROAST Pad
Touch to select roasting with the
convection function.
PROOF Pad
Touch to select a warm environment useful
for rising yeast-leavened products.
START Pad
Must be touched to start any cooking or
cleaning function.
Display
Shows the time of day, oven temperature,
whether the oven is in the bake, broil or
self-cleaning mode and the times set for
the timer or automatic oven operations.
If “F–” and a number or letter flash in the display
and the oven control signals, this indicates a function
error code. Touch the RESET/OFF pad. Allow the oven to
cool for one hour. Put the oven back into operation. If the
function error code repeats, disconnect the power to the
oven and call for service.
If your oven was set for a timed oven operation
and a power outage occurred, the clock and all
programmed functions must be reset.
The time of day will flash in the display when there
has been a power outage.
CLEAN Pad
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
10
Touch to select self-cleaning function. See
the Using the self-cleaning oven section.
Light ( ) Pad
Touch to turn the oven light on or off.
START TIME Pad
Use along with COOK TIME or
CLEAN STD/LOW pads to set the oven
to start and stop automatically at a time
you set.
COOK TIME Pad
Touch and then touch the number pads to
set the amount of time you want your food
to cook. The oven will shut off when the
cooking time has run out.
RESET/OFF Pad
Touch to cancel ALL oven operations
except the clock and timer.
CLOCK Pad
Touch before setting the clock.
Number Pads
Use to set any function requiring numbers
such as the time of day on the clock, the
timer, the oven temperature, the internal
food temperature, the start time and
length of operation for timed baking
and self-cleaning.
TIMER Pad
Touch to select the timer feature.
PROBE Pad
Touch when using the probe to cook food.
WARM Pad
Touch to keep cooked foods warm. See the
How to Set the Oven for Warming section.
WARMING ZONE Pad
Touch this pad when using the center
surface unit to keep food warm until ready
to serve.
Page 11
Using the oven controls.
(Throughout this manual, features and appearance may vary from your model.) w
Features and appearance may vary.
Oven Control, Clock and Timer Features and Settings
Safety Instructions Operating Instructions
ww.GEAppliances.ca
BAKE Pad
Touch to select the bake function.
BROIL Pad
Touch to select the broil function.
CONVECTION BAKE Pad
Touch to select baking with the convection
function.
CONVECTION ROAST Pad
Touch to select roasting with the
convection function.
PROOF Pad
Touch to select a warm environment useful
for rising yeast-leavened products.
START Pad
Must be touched to start any cooking or
cleaning function.
Display
Shows the time of day, oven temperature,
whether the oven is in the bake, broil or
self-cleaning mode and the times set for
the timer or automatic oven operations.
If “F–” and a number or letter flash in the display
and the oven control signals, this indicates a function
error code. Touch the RESET/OFF pad. Allow the oven to
cool for one hour. Put the oven back into operation. If the
function error code repeats, disconnect the power to the
oven and call for service.
If your oven was set for a timed oven operation
and a power outage occurred, the clock and all
programmed functions must be reset.
The time of day will flash in the display when there
has been a power outage.
CLEAN Pad
Touch to select self-cleaning function. See
the Using the self-cleaning oven section.
Light ( ) Pad
Touch to turn the oven light on or off.
DELAY START Pad
Use along with COOK TIME or CLEAN pads
to set the oven to start and stop
automatically at a time you set.
COOK TIME Pad
Touch and then touch the number pads to
set the amount of time you want your food
to cook. The oven will shut off when the
cooking time has run out.
RESET/OFF Pad
Touch to cancel ALL oven operations
except the clock and timer.
CLOCK Pad
Touch before setting the clock.
Number Pads
Use to set any function requiring numbers
such as the time of day on the clock, the
timer, the oven temperature, the internal
food temperature, the start time and
length of operation for timed baking
and self-cleaning.
TIMER Pad
Touch to select the timer feature.
PROBE Pad
Touch when using the probe to cook food.
WARM Pad
Touch to keep cooked foods warm. See the
How to Set the Oven for Warming section.
WARMING ZONE Pad
Touch this pad when using the
center surface unit to keep food
warm until ready to serve.
11
Care and Cleaning
Troubleshooting Tips Consumer Support
Page 12
Using the oven.
To avoid possible burns, place the racks in the desired position before you turn the oven on.
Before you begin…
The oven has 7 rack positions.
The racks have stops, so that when placed
correctly on the supports, they will stop
before coming completely out, and will
not tilt.
When placing and removing cookware,
pull the rack out until it stops.
The bake heating element is under the
oven floor. Do not place foods on the
oven bottom for cooking.
To remove a rack, pull it toward you,
tilt the front end up and pull it out.
How to Set the Oven for Baking or Roasting
To replace, place the end of the rack
(stop-locks) on the support, tilt up the
front and push the rack in.
CAUTION: When you are using
the rack in the lowest position (A), you will need
to use caution when pulling the rack out. We
recommend that you pull the rack out several
inches and then, using two pot holders, pull the
rack out by holding the sides of it. The rack is low
and you could be burned if you place your hand in
the middle of the rack and pull all the way out. Be
very careful not to burn your hand on the door
when using the rack in the lowest position (A).
Do not place foods directly on the
oven floor.
Touch the BAKE pad.
Touch the number pads to set
the desired temperature.
Touch the START pad.
Check food for doneness at
minimum time on recipe. Cook
longer if necessary.
Touch the RESET/OFF pad when
cooking is complete.
NOTE: A cooling fan may automatically turn on
and off to cool internal parts. This is normal, and
the fan may continue to run even after the oven
in turned off.
Preheating and Pan Placement
Preheat the oven if the recipe calls for it.
Preheating is necessary for good results
when baking cakes, cookies, pastry and
breads.
To preheat, set the oven at the correct temperature.
The control will beep when the oven is preheated
and the display will show your set temperature.
This will take approximately 15–20 minutes.
Type of Food Rack Position
Frozen pies (on cookie sheet) C or D
Angel food cake A
Bundt or pound cakes B or C
Biscuits, muffins, brownies, C or D
cookies, cupcakes,
layer cakes, pies
Casseroles C or D
Turkey A
If baking four cake layers at the same time,
place two layers on rack B and two layers on
rack D. Stagger pans on the rack so one is
not directly above the other.
Baking results will be better if baking
pans are centered in the oven as much as
possible. If baking with more than one
pan, place the pans so each has at least
1 to 11⁄2″ (2.5 cm to 3.8 cm) of air space
around it.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
12
Aluminum Foil
Do not use aluminum foil on the bottom
of the oven.
Never entirely cover a rack with
aluminum foil. This will disturb the heat
circulation and result in poor baking.
A smaller sheet of foil may be used to
catch a spillover by placing it on a lower
rack several inches below the food.
Page 13
Using the oven. www.GEAppliances.ca
How to Set the Oven for Broiling
Safety Instructions Operating Instructions
If your range is connected to
208 volts, rare steaks may be
broiled by preheating the broiler
and positioning the oven rack one
position higher.
The size, weight, thickness,
starting temperature
and your preference
of doneness will affect
broiling times. This guide
is based on meats at
refrigerator temperature.
† The U.S. Department of
Agriculture says “Rare beef is
popular, but you should know that
cooking it to only 140°F (60°C)
means some food poisoning
organisms may survive.” (Source:
Safe Food Book. Your Kitchen
Guide. USDA Rev. June 1985.)
The oven has 7 rack positions.
Leave the door open to the broil stop position.
The door stays open by itself, yet the proper
Touch the BROIL pad once for HI
Broil.
temperature is maintained in the oven.
NOTE: Food can be broiled with the door
closed, but it may not brown as well because
the oven heating element will cycle on and off.
Place the meat or fish on a broiler
grid in a broiler pan designed
for broiling.
Follow suggested rack positions in
the Broiling Guide.
To change to LO Broil, touch the
BROIL pad again.
Use LO Broil to cook foods such as
poultry or thick cuts of meat thoroughly
without over-browning them.
Touch the START pad.
When broiling is finished, touch the
RESET/OFF pad.
NOTE: Broil will not work if the temperature
probe is plugged in.
Broiling Guide
Food or Thickness Position Time (min.) Time (min.) Comments
Ground Beef 1 lb (0.45 kg) (4 patties) E9 6Space evenly. Up to 8
Well Done 1/2″ to 3/4″ E 11 10 patties take about the
Beef Steaks
Rare† 1″ (2.5 cm) thick F7 5Steaks less than 1″
Medium 1 to 11⁄2 lbs E9 6–7 (2.5 cm) thick cook
Well Done (0.45 kg to 0.68 kg) E 11 8–9 through before
Rare† 11⁄2″ (3.8 cm) thick D 14 11
Medium 2 to 21⁄2 lbs D 18 14–16
Well Done (0.91 kg to 1.13 kg) D 22 20
Chicken 1 whole cut up C 25 10 Broil skin-side-down
Lobster Tails 2–4 C 18–20 Do not Cut through back of
Fish Fillets 1/4″ to 1/2″ E6 5Handle and turn very
Ham Slices 1/2″ (1.3 cm) thick D6 6Increase time 5 to 10
(precooked) minutes per side for
Pork Chops 2 (1/2″ [1.3 cm] thick) E 10 10 Slash fat.
Well Done
Lamb Chops
Medium 2 (1″ [2.5 cm] thick) about E8 7–8 Slash fat.
Well Done 10 to 12 oz. (283 g to 340 g) E 10 9–10
Medium
Well Done E 17 12–14
Salmon Steaks 2 (
Quantity and/ Rack First Side Second Side
(1.3 cm to 1.9 cm) thick same time.
browning. Pan frying
is recommended.
Slash fat.
2 to 21⁄2 lbs (0.91 kg to 1.13 kg)
split lengthwise
2 Breasts C 25 10–15
10 to 12 oz. turn shell. Spread open.
(283 g to 340 g) each over. Brush with melted
(0.6 cm to 1.3 cm) thick carefully. Brush with
2 (1″ [2.5 cm] thick) about 1 lb (0.45 kg)
2 (11⁄2″ [3.8 cm] thick) about 1 lb (0.45 kg)
1″ [
2.5 cm] thick) D 10 7–8 Grease pan. Brush
4 (
1″
[2.5 cm] thick) D 12 10 steaks with melted
about 1 lb (0.45 kg) butter.
D 15 15
E 14 12
first.
butter before broiling
and after half of
broiling time.
lemon butter before
and during cooking,
if desired.
11⁄2″ (3.8 cm) thick or
home-cured ham.
Care and Cleaning
Troubleshooting Tips Consumer Support
13
Page 14
Using the clock, timer and control lockout.
To Set the Clock
Make sure the clock is set to the
correct time of day.
The timer is a minute timer only.
The timer does not control oven
operations. The maximum setting on
the timer is 9 hours and 59 minutes.
The clock must be set to the correct time
of day for the automatic oven timing
functions to work properly. The time of
ay cannot be changed during a timed
d
baking or self-cleaning cycle.
To Set the Timer
Touch the TIMER pad.
Touch the number pads until the
amount of time you want shows
in the display. For example, to set
2 hours and 45 minutes, touch 2, 4
and 5 in that order. If you make a
mistake touch the TIMER pad and
begin again.
Touch the START pad.
Touch the CLOCK pad.
Touch the number pads.
Touch the START pad.
After touching the START pad, SET disappears;
this tells you the time is counting down, although
the display does not change until one minute has
passed. Seconds will not be shown in the display
until the last minute is counting down.
When the timer reaches :00, the
control will beep 3 times followed
by one beep every 6 seconds until
the TIMER pad is touched.
The 6-second tone can be canceled by following
the steps in the Special features of your oven
control section under Tones at the End of a
Timed Cycle.
To Reset the Timer
If the display is still showing the time
remaining, you may change it by
touching the TIMER pad, then touch the
number pads until the time you want
appears in the display.
To Cancel the Timer
Touch the TIMER pad twice.
Control Lockout
Your control will allow you to lock out the touch
pads so they cannot be activated when pressed.
To lock/unlock the controls:
Touch the 9 and 0 pads at the same
time for 3 seconds, until the display
shows LOC ON.
To unlock the control, touch the 9
and 0 pads at the same time for 3
seconds, until the display shows
LOC OFF.
If the remaining time is not in the
display (clock, delay start or cooking time
are in the display), recall the remaining
time by touching the TIMER pad and then
touching the number pads to enter the
new time you want.
When this feature is on and the touch
pads are touched, the control will beep
and the display will show LOC ON.
■ The control lockout mode affects all touch
pads. No touch pads will work when this
feature is activated.
■ The adjustment will be retained in memory
after a power failure.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
14
Page 15
Using the timed baking and roasting features. www.GEAppliances.ca
NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for
more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that
the oven light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
Safety Instructions Operating Instructions
The oven will turn on immediately and cook for a
selected length of time. At the end of the cooking
time the oven will turn off automatically.
Touch the BAKE pad.
Using the number pads, enter the
desired temperature.
Touch the COOK TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Using the number pads, enter
the desired baking time. The oven
temperature and the cooking time
that you entered will be displayed.
Touch the START pad.
The display will show the changing
temperature (starting at 100°F [38ºC])
and the cooking time. The display starts
changing once the temperature reaches
100°F (38ºC).
The oven will continue to cook for the
programmed amount of time, then shut
off automatically, unless the WARM
feature was set. See the How to Set the Oven
for Warming section.
Touch the RESET/OFF pad to clear the
display.
How to Set a Delayed Start and Automatic Stop
You can set the oven control to delay-start the
oven, cook for a specific length of time and then
turn off automatically.
Make sure the clock shows the correct
time of day.
Touch the BAKE pad.
Using the number pads, enter the
desired temperature.
Touch the COOK TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Using the number pads, enter the
desired baking time.
Touch the START TIME or DELAY
START pad.
Using the number pads, enter the
time of day you want the oven to
turn on and start cooking.
If you would like to check the times you
have set, touch the START TIME or DELAY
START pad to check the start time you
have set or touch the COOK TIME pad to
check the length of cooking time you
have set.
When the oven turns on at the time of
day you have set, the display will show the
changing temperature (starting at 100°F
[38ºC]) and the cooking time. The
display starts changing once the
temperature reaches 100°F (38ºC).
The oven will continue to cook for the
programmed amount of time, then shut
off automatically, unless the WARM
feature was set. See the How to Set the Oven
for Warming section.
Touch the RESET/OFF pad to clear the
display.
Care and Cleaning
Troubleshooting Tips Consumer Support
Touch the START pad.
NOTE: An attention tone will sound if you are
using timed baking and do not touch the START
pad after entering the baking temperature.
15
Page 16
Using the probe.
For many foods, especially roasts and poultry, internal food temperature is the best test for doneness. The
temperature probe takes the guesswork out of roasting by cooking foods to the exact doneness you want.
The temperature probe has a
skewer-like probe at one end and a
plug at the other end that goes into
the outlet in the oven.
Use of probes other than the one
provided with this product may result in
damage to the probe or oven control.
Use the handles of the probe and plug
when inserting and removing them from
the food and outlet.
■ To avoid damaging your probe, do not use
tongs to pull on the cable when removing it.
■ To avoid breaking the probe, make sure food
is completely defrosted before inserting.
■ To prevent possible burns, do not unplug the
probe from the outlet until the oven has
cooled.
After preparing the meat and placing
it on a trivet or a broiler pan grid
designed for broiling, follow these
directions for proper probe placement.
Insert the probe completely into the
meat. It should not touch bone, fat or
gristle.
Plug
■ Never leave your probe inside the oven during
a self-cleaning cycle.
■ Do not store the probe in the oven.
For roasts with no bone, insert the probe
into the meatiest part of the roast. For
bone-in ham or lamb, insert the probe
into the center of the lowest large muscle.
Insert the probe into the center of dishes
such as meat loaf or casseroles.
Insert the probe into the meatiest part of
the inner thigh from below and parallel
to the leg of a whole turkey.
Cable
Probe
Handles
How to Set the Oven For Roasting When Using the Probe
Insert the probe into the food.
Plug the probe into the outlet in the
oven. Make sure it’s pushed all the
way in. Close the oven door. Make
sure the probe cable is not touching
the broil element.
Touch the PROBE pad.
Touch the number pads to set the
desired internal food or meat
temperature. The maximum
internal temperature for the food
that you can set is 200°F (93ºC).
Touch the BAKE pad.
Touch the number pads to set the
desired oven temperature.
Touch the START pad.
The display will flash if the probe is inserted
into the outlet and you have not set a probe
temperature and touched the START pad.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
16
After the internal temperature of the
food reaches 100°F (38ºC), the changing
internal temperature will be shown in the
display.
When the internal temperature of
the food reaches the number you
have set, the probe and the oven
turn off and the oven control
signals. To stop the signal, touch the
RESET/OFF pad. Use hot pads to
remove the probe from the food.
Do not use tongs to pull on it—
they might damage it.
To change the oven temperature during
the Roast cycle, touch the BAKE pad and
then the number pads to set the new
temperature.
■ If the probe is removed from the food before
the final temperature is reached, a tone will
sound and the display will flash until the probe
is removed from the oven.
■ You can use the timer even though you
cannot use timed oven operations while
using the probe.
Page 17
Using the convection oven. w
OTE: The convection fan will cycle on
Convection Fan
In a convection oven, a fan circulates hot air
over, under and around the food.
This circulating hot air is evenly distributed
throughout the oven cavity. As a result, foods
are evenly cooked and browned—often in less
time with convection heat.
1-Rack Convection Baking
N
and off while cooking to best distribute
hot air in the oven.
The convection oven fan shuts off when
the oven door is opened. DO NOT leave
the door open for long periods of time
while using convection cooking or you
may shorten the life of the convection
heating element.
Safety Instructions Operating Instructions
ww.GEAppliances.ca
Multi-rack position.
The convection fan circulates the heated
air evenly over and around the food
using the bake and broil elements.
When convection baking with only 1 rack,
use CONVECTION BAKE 1 GRILLE and for best
results place the rack on rack C or D at the center
of the oven. Cook times may decrease, so food
should be checked earlier than package directions
to make sure that it does not overcook.
Multi-Rack Convection Baking
Because heated air is circulated evenly
throughout the oven, foods can be
baked with excellent results using
multiple racks.
The amount of time required for
multi-rack baking may increase slightly
for some foods, but overall time is saved
because two to three times as much food
is cooked at once. Cookies, muffins,
biscuits, and other quick breads give
good results with multi-rack baking.
Adapting Recipes…
Ideal for cooking large casseroles and
lasagna with good results.
Care and Cleaning
To cook food on more than one rack in
convection bake, use CONVECTION BAKE
MULTI.
When baking on 3 racks, place one
rack in the second (B) position, one
in the fourth (D) position and one in
the sixth (F) position.
Troubleshooting Tips Consumer Support
You can use your favorite recipes in the
convection oven.
When convection baking, the Auto
Recipe™Conversion feature automatically
reduces the set regular baking
temperature by the recommended 25°F
(14°C). See Auto Recipe™Conversion in the
Special Features section.
■ Use pan size recommended.
■ Some package instructions for frozen
casseroles or main dishes have been
developed using commercial convection ovens.
For best results in this oven, preheat the oven
and use the temperature on the package.
17
Page 18
Using the convection oven.
When baking cookies, you will
get the best results if you use a
flat cookie sheet instead of a
pan with low sides.
Convection Roast
■ Good for large tender cuts of meat, uncovered.
he convection fan circulates the heated
T
air evenly over and around the food.
Meat and poultry are browned on all
sides as if they were cooked on a
rotisserie. The heated air seals in juices
quickly for a moist and tender product
while, at the same time, creating a rich
golden brown exterior.
Cookware for Convection Cooking
Before using your convection oven,
check to see if your cookware leaves
room for air circulation in the oven.
If you are baking with several pans, leave
space between them. Also, be sure the
pans do not touch each other or the
walls of the oven.
Paper and Plastic
Heat-resistant paper and plastic
containers that are recommended for
use in regular ovens can be used in
convection ovens. Plastic cookware that
is heat-resistant to temperatures of
400°F (204°C) can also be used.
When you are convection roasting, it
is important that you use a broiler pan
nd grid designed for broiling for best
a
convection roasting results. The pan is
used to catch grease spills and the grid
is used to prevent grease spatters.
■ Place the rack in the lowest rack
position (A).
Metal and Glass
Any type of cookware will work in your
convection oven. However, metal pans
heat the fastest and are recommended
for convection baking.
■ Darkened or matte-finished pans will bake
faster than shiny pans.
■ Glass or ceramic pans cook more slowly.
For recipes like oven-baked chicken,
use a pan with low sides. Hot air cannot
circulate well around food in a pan with
high sides.
How to Set the Oven for Convection Baking or Roasting
Touch the CONVECTION BAKE pad
once (CONVECTION BAKE MULTI
mode) for multi-rack convection
baking. This mode is used for
cooking food items on more than
one rack (i.e., 2, 3 or more racks) at
the same time in convection bake.
See Multi-Rack Baking section for
more information.
Touch the CONVECTION BAKE pad
twice (CONVECTION BAKE 1 GRILLE
mode) for one-rack convection
baking. This mode is used for
cooking food items on only one
rack in convection bake.
Touch the CONVECTION ROAST pad
for convection roasting.
Touch the number pads to set the
desired oven temperature.
Touch the START pad.
To change the oven temperature, touch
the CONVECTION BAKE or CONVECTION
ROAST pad and then the number pads
to set the new temperature.
When the oven starts to heat, the
changing temperature, starting at 100°F
(38°C), will be displayed. When oven
reaches the temperature you set, 3 beeps
will sound.
Touch RESET/OFF pad when
finished.
■ You will hear a fan while cooking with
convection. The fan will stop when the door
is opened, but the heat will not turn off.
■ You may hear the oven clicking during
baking. This is normal.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
18
Page 19
Using the timed features for convection cooking. www.GEAppliances.ca
You will hear a fan while cooking with these features. The fan will stop when the door is opened, but the heat
will not turn off.
NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to
sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria.
Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
Safety Instructions Operating Instructions
The oven will turn on immediately and cook for a
selected length of time. At the end of the cooking
time, the oven will turn off automatically.
Make sure the clock shows the correct time
of day.
Touch the CONVECTION BAKE pad
once (CONVECTION BAKE MULTI
mode) for multi-rack convection
baking. This mode is used for
cooking food items on more than
one rack (i.e., 2, 3 or more racks) at
the same time in convection bake.
See Multi-Rack Baking section for
more information.
Touch the CONVECTION BAKE pad
twice (CONVECTION BAKE 1
mode) for one-rack convection
baking. This mode is used for cooking
food items on only one rack in
convection bake.
Touch the CONVECTION ROAST pad
for convection roasting.
T
ouch
the number pads to set the
desired oven temperature.
T
ouch
the COOK TIME pad.
NOTE: If your recipe requires preheating, you may
need to add addtional time to the length of the
cooking time.
GRILLE
Touch the number pads to set the
desired length of cooking time. The
minimum cooking time you can set
is 1 minute. The oven temperature
that you set and the cooking time that
you entered will be in the display.
Touch the START pad.
The display will show the changing
temperature (starting at 100°F [38°C])
and the cooking time. The display starts
changing once the temperature reaches
100°F (38°C).
The oven will continue to cook for the
programmed amount of time, then shut
off automatically, unless the WARM
was set. See the How to Set the Oven for
Warming section.
Touch the RESET/OFF pad to clear
the display if necessary. Remove the
food from the oven. Remember,
even though the oven turns off
automatically, food left in the oven
will continue cooking after the oven
turns off.
feature
Care and Cleaning
Troubleshooting Tips Consumer Support
19
Page 20
Using the timed features for convection cooking.
How to Set a Delayed Start and Automatic Stop
You can set the oven control to delay-start the oven,
cook for a specific length of time and then turn off
automatically.
Make sure the clock shows the correct time
of day.
Touch the CONVECTION BAKE pad
once (CONVECTION BAKE MULTI
mode) for multi-rack convection
baking. This mode is used for
cooking food items on more than
one rack (i.e., 2, 3 or more racks)
at the same time in convection bake.
See Multi-Rack Baking section for
more information.
Touch the CONVECTION BAKE pad
twice (CONVECTION BAKE 1
mode) for one-rack convection
baking. This mode is used for cooking
food items on only one rack in
convection bake.
Touch the CONVECTION ROAST pad
for convection roasting.
Touch the number pads to set the
desired oven temperature.
Touch the COOK TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
GRILLE
Touch the number pads to set the
desired cooking time.
ouch the START TIMEor DELAY
T
pad.
START
Touch the number pads to set the
time of day you want the oven to turn
on and start cooking.
If you would like to check the times you have set,
touch the START TIME
check the start time you have set, or touch the COOK
TIME pad to check the length of cooking time you
have set.
Touch the START pad.
NOTE: An attention tone will sound if you are
using timed baking or roasting and do not touch
the START pad after entering the baking or
roasting temperature.
When the oven turns on at the time
of day you have set, the display will
show the changing temperature
(starting at 100°F [38°C]) and the cooking
time. The display starts changing once the
temperature reaches 100°F (38°C).
The oven will continue to cook for the
programmed amount of time, then shut
off automatically, unless the WARM
was set. See the How to Set the Oven for
Warming section.
Touch the RESET/OFF pad to clear the
display if necessary. Remove the food
from the oven. Remember, even
though the oven shuts off
automatically, food left in the oven will
continue cooking after the oven turns
off.
or DELAY START
pad to
feature
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
20
Page 21
Using the convection oven. w
How to Set the Oven for Convection Roasting when Using the Probe
Safety Instructions Operating Instructions
ww.GEAppliances.ca
For best results when roasting large
turkeys and roasts, we recommend
using the probe included in the
convection oven.
To change the oven temperature
during the Convection Roast cycle,
touch the CONVECTION ROAST pad
and then touch the number pads to
set the new desired temperature.
The display will flash PROBE and the
oven control will signal if the probe is
nserted into the outlet, and you have not
i
set a probe temperature and pressed the
START pad.
Place the rack in the lowest position
(A). Insert the probe into the meat.
Plug the probe into the outlet in the
oven. Make sure it is pushed all the
way in. Close the oven door.
Touch the CONVECTION ROAST pad.
Touch the number pads to set the
desired oven temperature.
Touch the PROBE pad.
Touch the number pads to set the
desired internal meat temperature.
Touch the START pad.
When the oven starts to heat, the word
LO will be in the display.
After the internal temperature of the
meat reaches 100°F (38°C), the changing
internal temperature will be shown in the
display.
Convection Roasting Guide
When the internal temperature of
he meat reaches the number you
t
ave set, the probe and the oven
h
turn off and the oven control
signals. To stop the signal, touch
the RESET/OFF pad. Use hot pads to
remove the probe from the food.
Do not use tongs to pull on it—
they might damage it.
CAUTION: To prevent possible
burns, do not unplug the probe from the oven
outlet until the oven has cooled. Do not store
the probe in the oven.
NOTE:
■ If the probe is removed from the food before
the final temperature is reached, a tone will
sound and the display will flash until the probe
is removed from the oven.
■ You will hear a fan while cooking with this
feature. The fan will stop when the door is
opened, but the heat will not turn off.
■ You can use the timer even though you cannot
use timed oven operations.
Care and Cleaning
Meats Minutes/lb/kg Oven Temp. Internal Temp.
Beef Rib, Boneless Rib, Rare 20–24 (44–53) 325°F (163°C) 140°F (60°C)†
Pork Bone-In, Boneless (3 to 5 lbs [1.36 kg to 2.27 kg]) 23–27 (51–60) 325°F (163°C) 170°F (77°C)
Ham
Lamb Bone-In, Boneless Medium 17–20 (37–44) 325°F (163°C) 160°F (71°C)
Seafood Fish, Whole (3 to 5 lbs [1.36 kg to 2.27 kg])
Poultry Whole Chicken (21⁄2 to 31⁄2 lbs [1.13 kg to 1.59 kg]) 24–26 (53–57) 350°F (177°C)
* Stuffed birds generally require 30–45 minutes additional roasting time. Shield legs and breast with foil to prevent
† The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F (60°C)
Top Sirloin Medium 24–28 (53–62) 325°F (163°C) 160°F (71°C)
(3 to 5 lbs [1.36 kg to 2.27 kg]) Well 28–32 (62–71) 325°F (163°C) 170°F (77°C)
Beef Tenderloin Rare 10–14 (22–31) 325°F (163°C) 140°F (60°C)†
Chops (1/2″ to 1″ [1.3 cm to 2.5 cm] thick) 2 chops
Canned, Butt, Shank (3 to 5 lbs [1.36 kg to 2.27 kg]) fully cooked)
(3 to 5 lbs [1.36 kg to 2.27 kg]) Well 20–24 (44–53) 325°F (163°C) 170°F (77°C)
Lobster Tails (6 to 8 oz [170 g to 227 g] each)
Cornish Hens, Unstuffed (1 to 11⁄2 lbs [0.45 kg to 0.68 kg])
Stuffed (1 to 11⁄2 lbs [0.45 kg to 0.68 kg])
Duckling (4 to 5 lbs [1.81 kg to 2.27 kg]) 24–26 (53–57) 325°F (163°C)
Turkey, Whole*
Unstuffed (10 to 16 lbs [4.54 kg to 7.26 kg]) 8–11 (18–24) 325°F (163°C)
Unstuffed (18 to 24 lbs [8.16 kg to 10.89 kg]) 7–10 (15–22) 325°F (163°C)
Turkey Breast (4 to 6 lbs [1.81 kg to 2.72 kg]) 16–19 (35–42) 325°F (163°C) 170°F (77°C)
overbrowning and drying of skin.
means some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June
1985.)
Medium 14–18 (31–40) 325°F (163°C) 160°F (71°C)
4 chops
6 chops
30–35 (66–77) total
35–40 (77–88) total
40–45 (88–99) total
14–18 (31–40) 325°F (163°C) 140°F (60°C)
30–40 (66–88) total
20–25 (44–55) total
50–55 (110–121) total
55–60 (121–132) total
325°F (163°C) 170°F (77°C)
325°F (163°C) 170°F (77°C)
325°F (163°C) 170°F (77°C)
400°F (204°C)
350°F (177°C)
180°–185°F (82°–85°C)
350°F (177°C)
350°F (177°C)
180°–185°F (82°–85°C)
180°–185°F (82°–85°C)
180°–185°F (82°–85°C)
180°–185°F (82°–85°C)
180°–185°F (82°–85°C)
21
Troubleshooting Tips Consumer Support
Page 22
Using the proofing and warming features.
The proofing feature maintains a warm environment useful for rising yeast-leavened products.
How to Set the Oven For Proofing
Place the covered dough in a dish in
the oven on rack B or C.
NOTE: For best results, cover the dough with a
cloth or with greased plastic wrap (the plastic
may need to be anchored underneath the
container so the oven fan will not blow it off).
Touch the PROOF pad and then the
START pad.
The display will read PrF (proof).
The oven interior light turns on and
remains on during proofing.
The proofing feature automatically
provides the optimum temperature for
the proofing process, and therefore does
not have a temperature adjustment.
Set the TIMER for the minimum
proof time.
How to Set the Oven For Warming
The warm feature keeps cooked foods
warm for up to 3 hours after the cooking
function is finished, or it can be activated
independently to keep already cooked
foods warm.
This feature is not designed to reheat
cold food.
To use this feature independently, touch
the WARM pad and then the START pad.
To activate this feature for use after
Timed Baking or Roasting, touch the
WARM pad after setting the desired
length of cooking time and before
touching START.
To Crisp Stale Items
■ Place food in low-sided dishes or pans.
■ For best results, place the food items in
a single layer. Do not stack.
■ Leave them uncovered.
When proofing is finished, touch
the RESET/OFF pad.
■ To avoid lowering the oven temperature
and lengthening proofing time, do not
open the oven door unnecessarily.
■ Check bread products early to avoid
over-proofing.
NOTE:
■ Do not use the proofing mode for warming
food or keeping food hot. The proofing oven
temperature is not hot enough to hold foods
at safe temperatures. Use the WARM feature
to keep food warm.
■ Proofing will not operate when oven is above
125°F (52°C). “HOT” will show in the display.
IMPORTANT NOTES:
■ Food should be kept hot in its cooking container
or transferred to a heat-safe
serving dish.
■ For moist foods, cover them with an oven-safe
lid or aluminum foil.
■ Fried or crisp foods do not need to be covered,
but can become too dry if warmed for too long.
■ Repeated opening of the door allows the hot
air to escape and the food to cool.
■ Allow extra time for the temperature inside the
oven to stabilize after adding items.
■ With large loads it may be necessary to cover
some of the cooked food items.
■ Remove serving spoons, etc., before placing
containers in the oven.
■ Do not use plastic containers, lids or plastic
wrap.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
22
■ Check crispness after 20–30 minutes.
Add time as needed.
CAUTION: Plastic containers,
lids or plastic wrap will melt if placed in the oven.
Melted plastic may not be removable and is
not covered under your warranty.
Page 23
Adjust the oven thermostat—Do it yourself! w
You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to
become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat
yourself.
Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven.
These thermometers may vary 20–40 degrees Fahrenheit (11–22 degrees Celsius).
NOTE: This adjustment will only affect baking and roasting temperatures; it will not affect broiling, convection or
self-cleaning temperatures. The adjustment will be retained in memory after a power failure.
ww.GEAppliances.ca
To Adjust the Thermostat
Safety Instructions Operating Instructions
Touch the BROIL and BAKE pads
at the same time for 3 seconds until
the display shows SF.
Touch the BAKE pad. A two-digit
number shows in the display.
Touch BAKE again to alternate
between increasing and decreasing
the oven temperature.
The oven temperature can be
adjusted up to (+) 35°F (19ºC)
hotter or (-) 35°F (19ºC) cooler.
Touch the number pads the same
way you read them. For example, to
change the oven temperature 15°F
(8ºC), touch 1 and 5.
When you have made the
adjustment, touch the START pad to
go back to the time of day display.
Use your oven as you would
normally.
The type of margarine will affect baking performance!
Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you
decrease the fat, the recipe may not give the same results as with a higher fat product.
Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat
content of a spread product, the more noticeable these differences become.
Care and Cleaning
Troubleshooting Tips Consumer Support
Some government standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat
spreads, on the other hand, contain less fat and more water. The high moisture content of these spreads affects the
texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads
containing at least 70% vegetable oil.
23
Page 24
Using the self-cleaning oven.
The oven door must be closed and all controls set correctly for the cycle to work properly.
Before a Clean Cycle
Wipe up heavy soil on the oven
bottom.
We recommend venting your
kitchen with an open window or using a
ventilation fan or hood during the first
self-clean cycle.
Remove the racks, broiler pan, broiler
grid, probe, all cookware and any
aluminum foil from the oven.
The shiny, silver-colored oven racks
(on some models) can be self-cleaned,
but they will darken, lose their luster and
become hard to slide.
Soil on the front frame of the range and
outside the gasket on the door will need
to be cleaned by hand. Clean these areas
with hot water, soap-filled steel-wool pads
or cleansers such as Soft Scrub®. Rinse
well with clean water and dry.
How to Set the Oven for Cleaning
Touch the CLEAN pad once for
a 4-hour clean time or twice for a
3-hour clean time.
A 3-hour self-clean time is
recommended for use when
cleaning small, contained spills. A
self-clean time of 4 hours or longer
is recommended for a dirtier oven.
If a time other than 4 hours or
3 hours is needed, use the number
pads and enter the desired clean
time.
You can change the clean time to any
time between 3 hours and 5 hours,
depending on how dirty your oven is.
Touch the START pad.
Do not clean the gasket. The fiberglass
material of the oven door gasket cannot
withstand abrasion. It is essential for the
gasket to remain intact. If you notice it
becoming worn or frayed, replace it.
Wipe up any heavy spillovers on the oven
bottom.
Make sure the oven light bulb cover is in
place and the oven light is off.
IMPORTANT: The health of some
birds is extremely sensitive to the fumes
given off during the self-cleaning cycle
of any range. Move birds to another
well- ventilated room.
When the LOCKED light goes off, you will
be able to open the door.
■ The word LOCKED will flash and the
oven control will signal if you set the
clean cycle and forget to close the
oven door.
■ To stop a clean cycle, touch the
RESET/OFF pad. When the LOCKED light
goes off indicating the oven has cooled
below the locking temperature, you
will be able to open the door.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
24
The door locks automatically. The display
will show the clean time remaining. It will
not be possible to open the oven door
until the temperature drops below the
lock temperature and the LOCKED light
goes off.
Page 25
www.GEAppliances.ca
The oven door must be closed and all controls must be set correctly for the cycle to work properly.
How to Delay the Start of Cleaning
Safety Instructions Operating Instructions
ouch the CLEAN pad once for
T
a 4-hour clean time or twice for a
3-hour clean time.
A 3-hour self-clean time is
recommended for use when
cleaning small, contained spills. A
self-clean time of 4 hours or longer
is recommended for a dirtier oven.
If a time other than 4 hours or
3 hours is needed, use the number
pads and enter the desired clean
time.
You can change the clean time to any
time between 3 hours and 5 hours,
depending on how dirty your oven is.
Touch the START TIME or DELAY
START pad.
Using the number pads, enter the
time of day you want the clean cycle
to start.
Touch the START pad.
The door locks automatically. The
display will show the start time. It will
not be possible to open the oven door
until the temperature drops below the
lock temperature and the LOCKED light
goes off.
When the LOCKED light goes off, you will
be able to open the door.
Care and Cleaning
After a Clean Cycle
You may notice some white ash in the
oven. Wipe it up with a damp cloth after
the oven cools.
If white spots remain, remove them with a
soap-filled scouring pad and rinse thoroughly
with a vinegar and water mixture.
These deposits are usually a salt residue
that cannot be removed by the clean
cycle.
If the oven is not clean after one clean
cycle, repeat the cycle.
■ You cannot set the oven for cooking
until the oven is cool enough for the
door to unlock.
■ While the oven is self-cleaning, you
can touch the CLOCK pad to display
the time of day. To return to the clean
countdown, touch the CLEAN pad.
■ If the racks become hard to slide,
apply a small amount of cooking oil
to a paper towel and wipe the edges of
the oven racks with the paper towel.
Troubleshooting Tips Consumer Support
25
Page 26
Special features of your oven control.
Your new touch pad control has additional features that you may choose to use. The following are the features
and how you may activate them.
The special feature modes can only be activated while the display is showing the time of day. They remain
in the control’s memory until the steps are repeated.
When the display shows your choice, touch the START pad. The special features will remain in memory after
a power failure, except for the Sabbath feature, which will have to be reset.
12-Hour Shutdown
With this feature, should you forget and leave the
oven on, the control will automatically turn off the
oven after 12 hours during baking functions or
after 3 hours during a broil function.
If you wish to turn OFF this feature, follow
the steps below.
Touch the BROIL and BAKE pads
at the same time for 3 seconds until
the display shows SF.
Touch the START TIME or DELAY
START pad until no shdn (no shut-
off) appears in the display.
Touch the START pad to activate the
no shut-off and leave the control
set in this special features mode.
Fahrenheit or Celsius Temperature Selection
Your oven control is set to use the Fahrenheit
temperature selections but you may change this
to use the Celsius selections.
Touch the BROIL and BAKE pads
at the same time for 3 seconds until
the display shows SF.
Touch the COOK TIME and BROIL
pads at the same time. The display
will show F (Fahrenheit).
Touch the COOK TIME and BROIL
pads again at the same time. The
display will show C (Celsius).
Touch the START pad.
Tones at the End of a Timed Cycle
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
26
At the end of a timed cycle, 3 short beeps will
sound followed by one beep every 6 seconds
until the RESET/OFF pad is touched. This
continual 6-second beep may be canceled.
To cancel the 6-second beep:
Touch the BROIL and BAKE pads
at the same time for 3 seconds until
the display shows SF.
Touch the TIMER pad. The display
shows CON BEEP (continuous beep).
Touch the TIMER pad again. The
display shows BEEP. (This cancels the
one beep every 6 seconds.)
Touch the START pad.
Page 27
12-Hour, 24-Hour or Clock Blackout
Your control is set to use a 12-hour clock.
If you would prefer to have a 24-hour
military time clock or black out the clock
display, follow the steps below.
Touch the BROIL and BAKE
pads at the same time for 3 seconds
until the display shows SF.
Touch the CLOCK pad once. The
display will show 12 hr. If this is
the choice you want, touch the
START pad.
Using Auto Recipe™Conversion
When using convection bake, the Auto Recipe
Conversion feature will automatically convert
entered regular baking temperatures to
convection baking temperatures.
This feature is activated so the display
will show the actual converted (reduced)
temperature. For example, if you enter a regular
recipe temperature of 350°F (177°C) and touch
the START pad, the display will show CON
and the converted temperature of 325°F (163°C).
NOTE: This feature does not convert convection
bake cooking times, only regular baking
temperatures.
™
ww.GEAppliances.ca
w
Touch the CLOCK pad again to change
to the 24 hour military time clock. The
display will show 24 hr. If this is the choice
ou want, touch the START pad.
y
Touch the CLOCK pad again to black out
the clock display. The display will show
OFF. If this is the choice you want, touch
the START pad.
NOTE: If the clock is in the black-out mode you
will not be able to use the Delay Start function.
To deactivate the feature:
Touch the BROIL and BAKE pads at
the same time for 3 seconds until
the display shows SF.
Touch the CONVECTION BAKE pad.
The display will show CON ON.
Touch the CONVECTION BAKE pad
again. The display will show CON
OFF.
Touch the START pad.
To reactivate the feature, repeat steps 1–3
above but touch the START pad when
CON ON is in the display.
Safety Instructions Operating Instructions
Care and Cleaning
Troubleshooting Tips Consumer Support
27
Page 28
Using the Sabbath Feature.
(Designed for use on the Jewish Sabbath and Holidays.)
The Sabbath feature can be used for baking/roasting only. It cannot be used for convection, broiling, self-cleaning or
Delay Start cooking.
NNOOTTEE::
removed. See the Oven Light Replacement section. On models with a light switch on the control panel, the oven light may be
turned on and left on.
he oven light comes on automatically when the door is opened and goes off when the door is closed. The bulb may be
T
How to Set for Regular Baking/Roasting
When the display shows ⊃ the oven
is set in Sabbath. When the display
shows ⊃ the oven is
baking/roasting.
When the display shows ⊃ the oven
is set in Sabbath. When the display
shows ⊃ the oven is
baking/roasting.
⊃
⊃
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
28
Make sure the clock shows the correct time
of day and the oven is off.
Touch and hold both the BROIL and
BAKE pads, at the same time, until
the display shows SF.
NOTE: If bake or broil appears in the
display, the BROIL and BAKE pads
were not touched at the same time.
Touch the RESET/OFF pad and begin
again.
Tap the START TIME or DELAY START
pad until SAb bAtH appears in the
display.
Touch the START pad and ⊃ will
appear in the display.
Touch the BAKE pad. No signal
will be given.
Using the number pads, enter the
desired temperature between 170°F
and 550°F (77°C and 288°C). No
signal or temperature will be given.
Touch the START pad.
After a random delay period of
approximately 30 seconds to 1
minute, ⊃ will appear in the
⊃
display indicating that the oven is
baking/ roasting. If ⊃ doesn’t
⊃
appear in the display, start again
at Step 4.
To adjust the oven temperature, touch
the BAKE pad, enter the new temperature
using the number pads and touch the
START pad.
NOTE: The RESET/OFF and COOK TIME
pads are active during the Sabbath
feature.
How to Set for Timed Baking/Roasting – Immediate Start and Automatic Stop
Make sure the clock shows the correct time
of day and the oven is off.
Touch and hold both the BROIL and
BAKE pads, at the same time, until
the display shows SF.
NOTE: If bake or broil appears in the
display, the BROIL and BAKE pads
were not touched at the same time.
Touch the RESET/OFF pad and begin
again.
Tap the START TIME or DELAY START
pad until SAb bAtH appears in the
display.
Touch the START pad and ⊃ will
appear in the display.
Touch the COOK TIME pad.
Touch the number pads to set the
desired length of cooking time
between 1 minute and 9 hours and
99 minutes. The cooking time that
you entered will be displayed.
Touch the START pad.
Touch the BAKE pad. No signal
will be given.
Using the number pads, enter the
desired temperature. No signal or
temperature will be given.
Touch the START pad.
After a random delay period
of approximately 30 seconds to
1 minute, ⊃ will appear in the
⊃
display indicating that the oven is
baking/roasting.
⊃
If ⊃ doesn’t
appear in the display, start again
at Step 7.
To adjust the oven temperature, touch
the BAKE pad, enter the new temperature
using the number pads and touch the
START pad.
When cooking is finished, the display
will change from ⊃ to ⊃ and 0:00 will
⊃
appear, indicating that the oven has
turned OFF but is still set in Sabbath.
Remove the cooked food.
Page 29
How to Exit the Sabbath Feature
Safety Instructions Operating Instructions
www.GEAppliances.ca
Touch the RESET/OFF pad.
f the oven is cooking, wait
I
for a random delay period
of approximately 30 seconds
to 1 minute, until only ⊃ is
in the display.
Touch and hold both the BROIL
and BAKE pads, at the same time,
until the display shows SF.
Tap the START TIME or DELAY START
pad until 12 shdn or no shdn appears
in the display. 12 shdn indicates that
the oven will automatically turn off
after 12 hours. no shdn indicates that
the oven will not automatically turn
off.
Touch the START pad.
OTE: If a power outage occurred while
N
the oven was in Sabbath, the oven will
automatically turn off and stay off even
when the power returns. The oven
control must be reset.
Care and Cleaning
29
Troubleshooting Tips Consumer Support
Page 30
Care and cleaning of the range.
Be sure all controls are off and all surfaces are cool before cleaning any part of the range.
WARNING: If your range is removed for cleaning, servicing or any
reason, be sure the anti-tip device is reengaged properly when the range is replaced.
Failure to take this precaution could result in tipping of the range and cause injury.
How to Remove Protective Shipping Film and Packaging Tape
Carefully grasp a corner of the protective
shipping film with your fingers and slowly
peel it from the appliance surface. Do not
use any sharp items to remove the film.
Remove all of the film before using the
appliance for the first time.
Control Knobs
The control knobs may be removed for easier
cleaning.
Make sure the knobs are in the OFF
positions and pull them straight off the
stems for cleaning.
Oven Vent
The oven vent is above the left side of the door.
This area could become hot during
oven use.
To assure no damage is done to the
finish of the product, the safest way to
remove the adhesive from packaging tape
on new appliances is an application of a
household liquid dishwashing detergent.
Apply with a soft cloth and allow to soak.
NOTE: The adhesive must be removed from all
parts. It cannot be removed if it is baked on.
The knobs can be cleaned in a
dishwasher or they may also be washed
with soap and water. Make sure the insides
of the knobs are dry before replacing.
Replace the knobs in the OFF position
to ensure proper placement.
It is normal for steam to come out of
the vent.
The vent is important for proper air circulation.
Never block this vent.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
30
Control Panel
If desired, the touch pads may be deactivated
before cleaning.
See the Cooking/Self-Clean lockout
information in the Special features of
your oven control section in this manual.
Clean up splatters with a damp cloth.
You may also use a glass cleaner.
Remove heavier soil with warm soapy
water. Do not use abrasives of any kind.
Reactivate the touch pads after cleaning.
Page 31
Do not rub or clean the door gasket—
it has an extremely low resistance to
abrasion.
If you notice the gasket becoming worn,
frayed or damaged in any way or if it has
become displaced on the door, you should
have it replaced.
Slot
Hinge lock
Pull hinge locks down to unlock.
Cleaning the Oven Door
To clean the inside of the door:
■ Because the area inside the gasket is
cleaned during the self-clean cycle, you
do not need to clean this by hand.
■ The area outside the gasket and
the door liner can be cleaned with a
soap-filled scouring pad, hot water and
detergent. Rinse well with a vinegar
and water solution.
To clean the outside of the door:
■ Use soap and water to thoroughly
clean the top, sides and front of the
oven door. Rinse well. You may also
use a glass cleaner to clean the glass
Lift-Off Oven Door
The door is very heavy. Be careful when
removing and lifting the door.
Do not lift the door by the handle.
To remove the door:
Fully open the door.
Pull the hinge locks down toward
the door frame, to the unlocked
position. A tool, such as a small
flat-blade screwdriver, may be
required.
Firmly grasp both sides of the door
at the top.
Close door to the door removal
position, which is halfway between
the broil stop position and fully
closed.
www.GEAppliances.ca
n the outside of the door. Do not let
o
water drip into the vent openings.
■ If any stain on the door vent trim is
persistent, use a soft abrasive cleaner
and a sponge-scrubber for best results.
■ Spillage of marinades, fruit
juices, tomato sauces and basting
materials containing acids may cause
discoloration and should be wiped
up immediately. When surface is cool,
clean and rinse.
■ Do not use oven cleaners, cleaning
powders or harsh abrasives on the
outside of the door.
With the
door at the
same angle as
Bottom
edge
of slot
Hinge arm
the removal
position, seat the
indentation of
Indentation
the hinge arm
into the bottom
edge of the hinge slot. The notch in
the hinge arm must be fully seated
into the bottom of the slot.
Fully open the door. If the door will
not fully open, the indentation is
not seated correctly in the bottom
edge of the slot.
Push the hinge locks up against the
front frame of the oven cavity to the
locked position.
Safety Instructions Operating Instructions
Care and Cleaning
Troubleshooting Tips Consumer Support
Lift door up and out until the hinge
Removal position
arm is clear of the slot.
To replace the door:
Firmly grasp both sides of the door
at the top.
Hinge
arm
Hinge lock
Push hinge locks up to lock.
Close the oven door.
31
Page 32
Care and cleaning of the range.
Removable Oven Floor
Press down and pull out.
Oven rack
o remove the oven floor:
T
emove the oven door using the
R
instructions in the Lift-Off Oven Door
section.
Press down and pull out the
removable oven floor.
Oven Racks
All oven racks may be cleaned by hand
with an abrasive cleaner or steel wool.
After cleaning, rinse the racks with clean
water and dry with a clean cloth. Gray
porcelain-coated oven racks may remain
in the oven during the self-cleaning
cycle without being damaged. The shiny,
silver-colored oven racks may remain
in the oven during the self-cleaning
cycle, but they will lose their luster and
become hard to slide.
Storage Drawer Removal
Clean the oven floor with warm
soapy water.
When reinstalling the oven floor, be
sure to slide it all the way to the back
of the oven.
IMPORTANT: Always replace the
removable floor before the next use.
It will be necessary to grease all oven
rack side edges with a light coating of
vegetable oil after cleaning them by hand
or in the oven. This will help maintain
the ease of sliding the racks in and out of
the oven.
Rail
Stop guide
To remove the drawer:
Pull the drawer out until it stops.
Lift the front of the drawer until the
stops clear the guides.
Remove the drawer.
Oven Heating Elements
Do not clean the broil element. Any soil
will burn off when the element is heated.
Clean the oven floor with warm, soapy
water.
To replace the drawer:
Place the drawer rails on the guides.
Push the drawer back until it stops.
Lift the front of the drawer and
push back until the stops clear the
guides.
Lower the front of the drawer and
push back until it closes.
The bake element is not exposed and is under the
oven floor. If spillovers, residue or ash accumulate
on the oven floor, wipe up before self-cleaning.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
32
Page 33
www.GEAppliances.ca
Safety Instructions Operating Instructions
Receptacle
Receptacle
Glass cover
(on some models)
Glass cover
(on some models)
Socket
G6.35 Bulb
Tab
Socket
G9 Bulb
Tab
Oven Light Replacement (
on some models)
WARNING: SHOCK OR
BURN HAZARD: Before replacing oven
light bulb, disconnect the electrical power
to the range at the main fuse or circuit
breaker panel. Failure to do so may result
in electric shock or burn.
CAUTION: BURN HAZARD:
The glass cover and bulb should be
removed when cool. Touching hot glass
with bare hands or a damp cloth can
cause burns.
To remove:
Turn the glass cover
counterclockwise 1/4 turn until
the tabs of the glass cover clear the
grooves of the socket. Wearing latex
gloves may offer a better grip.
Using gloves or a dry cloth, remove
the bulb by pulling it straight out.
To replace:
Use a new 120/130-volt halogen
bulb, not to exceed 50 watts.
Replace the bulb with the same type
of bulb that was removed. Your
model will have one of the two types
shown on the left. To determine
the correct replacement bulb, check
the bulb terminals. Bulbs with 2
straight pin terminals are G6.35
bulbs. Bulbs with 2 looped terminals
are G9 bulbs. (Do not interchange.)
Be sure the replacement bulb is
rated 120 volts or 130 volts (NOT
12 volts).
Receptacle
Use gloves
or cloth
Using gloves or a dry cloth, remove
the bulb from its packaging. Do not
touch the bulb with bare fingers.
Oil from skin will damage the bulb
and shorten its life.
Push the bulb straight into the
receptacle all the way.
Place the tabs of the glass cover into
the grooves of the socket. Turn the
glass cover clockwise 1/4 turn.
For improved lighting inside the
oven, clean the glass cover
frequently using a wet cloth. This
should be done when the oven is
completely cool.
Reconnect electrical power to
the range.
Care and Cleaning
Troubleshooting Tips Consumer Support
Oven Light Replacement (on some models)
Be sure to let the light cover and bulb
cool completely.
To remove the cover:
Hold a hand under the cover so
it doesn’t fall when released. With
fingers of the same hand, firmly
push back the wire cover holder.
Lift off the cover.
Wire cover holder
Do not remove any screws to remove the cover.
Replace bulb with a 40-watt
appliance bulb.
To replace the cover:
Place it into groove of the light
receptacle. Pull wire forward to
the center of the cover until it snaps
into place.
Connect electrical power to the
range.
33
Page 34
Care and cleaning of the range.
Stainless Steel Surfaces
Do not use a steel wool pad; it will scratch
the surface.
To clean the stainless steel surface,
use warm sudsy water or a stainless steel
cleaner or polish. Always wipe the surface
in the direction of the grain. Follow the
cleaner instructions for cleaning the
stainless steel surface.
Painted Surfaces
Painted surfaces include the door,
top of the control panel and the drawer
front. Clean these with soap and water or
a vinegar and water solution.
To inquire about purchasing stainless
steel appliance cleaner or polish, or to
find the location of a dealer or Mabe
Parts Store nearest you, please call our
toll-free number:
National Parts Centre 1.800.661.1616
www.GEAppliances.ca
Do not use commercial oven cleaners,
cleaning powders, steel wool or harsh
abrasives on any painted surface.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
34
Page 35
Cleaning the glass cooktop. w
Control Lockout
Begin by locking the cooktop; see the
ontrol Lockout section.
C
Normal Daily Use Cleaning
Clean your cooktop after
each spill. Use Ceramic
Cooktop Cleaner.
ONLY use Ceramic Cooktop Cleaner on
the glass cooktop. Other creams may not
be as effective.
To maintain and protect the surface of
your glass cooktop, follow these steps:
Before using the cooktop for the
first time, clean it with Ceramic
Cooktop Cleaner. This helps
protect the top and makes
cleanup easier.
Daily use of Ceramic Cooktop
Cleaner will help keep the cooktop
looking new.
Shake the cleaning cream well.
Apply a few drops of Ceramic
Cooktop Cleaner directly to the
cooktop.
Use a paper towel or Cleaning Pad
for Ceramic Cooktops to clean the
entire cooktop surface.
Use a dry cloth or paper towel
to remove all cleaning residue.
No need to rinse.
NOTE: It is very important that you DO NOT
heat the cooktop until it has been cleaned
thoroughly.
Safety Instructions Operating Instructions
ww.GEAppliances.ca
Care and Cleaning
Use a Cleaning Pad for Ceramic
Cooktops.
The Ceramic Cooktop Scraper and
all recommended supplies are
available through our dealers or
through a Mabe Parts Store.
NOTE: Do not use a dull or
nicked blade.
Burned-On Residue
CAUTION: DAMAGE to your
glass surface may occur if you use scrub pads
other than the pad included with your cooktop.
Allow the cooktop to cool.
Spread a few drops of Ceramic
Cooktop Cleaner on the entire
burned residue area.
Using a Cleaning Pad for Ceramic
Cooktops, rub the residue area,
applying pressure as needed.
Heavy, Burned-On Residue
Allow the cooktop to cool.
Use a single-edge razor blade
scraper at approximately a 45°
angle against the glass surface
and scrape the soil. It will be
necessary to apply pressure to
the razor scraper in order to
remove the residue.
After scraping with the razor
scraper, spread a few drops of
Ceramic Cooktop Cleaner on the
entire burned residue area. Use
the Cleaning Pad to remove any
remaining residue.
If any residue remains, repeat the
steps listed above as needed.
For additional protection, after all
residue has been removed, polish
the entire surface with Ceramic
Cooktop Cleaner and a paper
towel.
Troubleshooting Tips Consumer Support
For additional protection,
after all residue has been
removed, polish the entire
surface with Ceramic Cooktop
Cleaner and a paper towel.
35
Page 36
Cleaning the glass cooktop.
Metal Marks and Scratches
Be careful not to slide pots and
pans across your cooktop. It will
leave metal markings on the
cooktop surface.
These marks are removable using
the Ceramic Cooktop Cleaner with
the Cleaning Pad for Ceramic
Cooktops.
Glass surface—potential for permanent damage.
Our testing shows that if you
are cooking high sugar mixtures
such as jelly or fudge and
have a spillover, it can cause
permanent damage to the glass
surface unless the spillover is
immediately removed.
Damage from Sugary Spills and Melted Plastic
Turn off all surface units. Remove
hot pans.
Wearing an oven mitt:
a. Use a single-edge razor blade
scraper (Ceramic Cooktop
Scraper) to move the spill to a
cool area on the cooktop.
b. Remove the spill with
paper towels.
If pots with a thin overlay of
aluminum or copper are allowed
to boil dry, the overlay may leave
black discoloration on the cooktop.
This should be removed
immediately before heating
again or the discoloration may
be permanent.
CAUTION: Carefully check the
bottom of pans for roughness that would scratch
the cooktop.
Any remaining spillover should be
left until the surface of the cooktop
has cooled.
Don’t use the surface units again
until all of the residue has been
completely removed.
NOTE: If pitting or indentation in the glass
surface has already occurred, the cooktop glass
will have to be replaced. In this case, service will
be necessary.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
36
To Order Parts
To inquire about purchasing a part or
an accessory for your appliance, please
call our toll-free number:
National Parts Centre 1.800.661.1616
www.GEAppliances.ca
Ceramic Cooktop Cleaner . . . .# WX10X300
Ceramic Cooktop Scraper . . .# WX10X302
Kit . . . . . . . . . . . . . . . . . . . . . . . . . .# WB64X5027
(Kit includes cream and cooktop scraper)
Cleaning Pads for
Ceramic Cooktops . . . . . . . . . .# WX10X350
Page 37
Before You Call For Service…
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Problem Possible Causes What To Do
Surface units will not Improper cookware • Use pans which are flat and match the diameter of
maintain a rolling boil being used. the surface unit selected.
or cooking is not
fast enough
Surface units do not The self-clean cycle has • During a self-clean cycle, the surface units will not
work or they do not been set. work. Press the RESET/OFF pad to stop the self-clean
work properly cycle or wait until the self-clean cycle is finished to set
and use the surface units. See the About the radiant
surface units section.
A fuse in your home may be • Replace the fuse or reset the circuit breaker.
blown or the circuit breaker
tripped.
Cooktop controls • Check to see the correct control is set for the surface
improperly set. unit you are using.
Scratches (may appear Incorrect cleaning • Scratches are not removable. Tiny scratches will
as cracks) on cooktop methods being used. become less visible in time as a result of cleaning.
glass surface
Cookware with rough bottoms • To avoid scratches, use the recommended cleaning
being used or coarse particles procedures. Make sure bottoms of cookware are clean
(salt or sand) were between before use, and use cookware with smooth bottoms.
the cookware and the surface
of the cooktop.
Cookware has been slid
across the cooktop surface.
Safety Instructions Operating Instructions
Care and Cleaning
Areas of discoloration Food spillovers not cleaned • See the Cleaning the glass cooktop section.
on the cooktop before next use.
Hot surface on a model • This is normal. The surface may appear discolored
with a light-colored cooktop. when it is hot. This is temporary and will disappear
as the glass cools.
Plastic melted to Hot cooktop came into • See the Glass surface – potential for permanent damage
the surface contact with plastic placed section in the Cleaning the glass cooktop section.
on the hot cooktop.
Pitting (or indentation) Hot sugar mixture spilled • Call a qualified technician for replacement.
of the cooktop on the cooktop.
Frequent cycling Improper cookware • Use only flat cookware to minimize cycling.
off and on of being used.
surface units
Oven light does Light bulb is loose or defective. • Tighten or replace the bulb.
not work
Oven will not work Plug on range is not completely • Make sure electrical plug is plugged into a live,
Switch operating • Call for service.
light is broken.
inserted in the electrical outlet. properly grounded outlet.
A fuse in your home may be • Replace the fuse or reset the circuit breaker.
blown or the circuit
breaker tripped.
Oven controls improperly set. • See the Using the oven section.
Troubleshooting Tips Consumer Support
37
Page 38
Before You Call For Service…
Troubleshooting Tips
Problem Possible Causes What To Do
Food does not bake Oven controls improperly set. • See the Using the oven section.
or roast properly
Food does not Oven controls improperly set. • Make sure you touch the BROIL pad.
broil properly
Rack position is incorrect • See the Using the oven section.
or the rack is not level.
Incorrect cookware or • See the Using the oven section.
cookware of improper
size being used.
Oven thermostat needs • See the Adjust the oven thermostat – Do it yourself!
adjustment. section.
Improper rack position • See the Broiling Guide.
being used.
Cookware not suited • For best results, use a pan designed for broiling.
for broiling.
The probe is plugged into the • Unplug and remove the probe from the oven.
outlet in the oven.
In some areas the power • Preheat the broil element for 10 minutes.
(voltage) may be low.
• Broil for the longest period of time recommended in
the Broiling Guide.
Oven temperature Oven thermostat • See the Adjust the oven thermostat – Do it yourself!
too hot or too cold needs adjustment. section.
Oven door is crooked The door is out of position. • Because the oven door is removable, it sometimes
gets out of position during installation. To straighten
the door, push down on the high corner.
Storage drawer Rear drawer support is • Reposition the drawer. See the Storage Drawer
is crooked on top of the guide rail. Removal instructions in the Care and cleaning of your
range section.
Storage drawer Power cord may be • Reposition the drawer and power cord. See the
won’t close obstructing drawer Storage Drawer Removal instructions in the Care and
in the lower back cleaning of your range section.
of the range.
Rear drawer support is • Reposition the drawer. See the Storage Drawer
on top of the guide rail. Removal instructions in the Care and cleaning of your
range section.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
38
Page 39
ww.GEAppliances.ca
w
Problem Possible Causes What To Do
Clock and timer do Plug on range is not completely • Make sure electrical plug is plugged into a live, properly
not work inserted in the electrical outlet. grounded outlet.
A fuse in your home • Replace the fuse or reset the circuit breaker.
may be blown or the
circuit breaker tripped.
Oven controls improperly set. • See the Using the clock and timer section.
Oven will not self-clean The oven temperature is • Allow the range to cool and reset the controls.
too high to set a self-clean
operation.
Oven controls improperly set. • See the Using the self-cleaning oven section.
The probe is plugged into • Remove the probe from the oven.
the outlet in the oven.
Safety Instructions Operating Instructions
“Crackling” or This is the sound of the • This is normal.
“popping” sound metal heating and cooling
during both the cooking and
cleaning functions.
Excessive smoking Excessive soil. • Touch the RESET/OFF pad. Open the windows to rid the
during a clean cycle room of smoke. Wait until the LOCKED light goes off.
Wipe up the excess soil and reset the clean cycle.
Oven door will not Oven too hot. • Allow the oven to cool below locking temperature.
open after a clean cycle
Oven not clean after a Oven controls not properly set. • See the Using the self-cleaning oven section.
clean cycle
“LOCKED” flashes The self-clean cycle has been • Close the oven door.
in the display selected but the door is not
“LOCKED” light is The oven door is locked • Touch the RESET/OFF pad. Allow the oven to cool.
on when you want because the temperature
to cook inside the oven has not
Oven was heavily soiled. • Clean up heavy spillovers before starting the clean
cycle. Heavily soiled ovens may need to self-clean
again or for a longer period of time.
closed.
dropped below the
locking temperature.
Care and Cleaning
Troubleshooting Tips Consumer Support
“F—” and a number You have a function error code. • Touch the RESET/OFF pad. Put the oven back into
or letter flash operation.
in the display
If the function code repeats. • Disconnect all power to the range for at least 30
seconds and then reconnect power. If the function
error code repeats, call for service.
39
Page 40
Before You Call For Service…
Troubleshooting Tips
Problem Possible Causes What To Do
Control signals after You forgot to enter a • Touch the BAKE pad and desired temperature or the
entering cooking time bake temperature or CLEAN pad and desired clean time.
or start time cleaning time.
Display goes blank A fuse in your home may • Replace the fuse or reset the circuit breaker.
be blown or the circuit
breaker tripped.
The clock is in the • See the Special features of your oven control section.
black-out mode.
Display flashes Power failure. • Reset the clock.
Unable to get the Oven control pads were • The BROIL and BAKE pads must be touched at
display to show “SF” not touched properly. the same time and held for 3 seconds.
“Probe” appears in This is reminding you to • Enter a probe temperature.
the display enter a probe temperature
after plugging in the probe.
Power outage, Power outage or surge. • Reset the clock. If the oven was in use, you must
clock flashes reset it by touching the RESET/OFF pad, setting
the clock and resetting any cooking function.
Steam from the vent When using the convection • This is normal.
feature, it is normal to see
steam coming out of the oven
vent. As the number of racks
or amount of food being
cooked increases, the amount
of visible steam will increase.
“Burning” or “oily” This is normal in a new oven • To speed the process, set a self-clean cycle for a
odor emitting from and will disappear in time. minimum of 3 hours. See the Using the self-cleaning
the vent oven section.
Strong odor An odor from the insulation • This is temporary.
around the inside of the oven
is normal for the first few times
the oven is used.
Fan noise A cooling fan or a convection • This is normal. The cooling fan will turn off and on
fan (depending on the to cool internal parts. It may run after the oven is
function you are using) may turned OFF. The convection fan will cycle on and off.
automatically turn on and off. until the function is over or the door is opened.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
40
Page 41
Notes. www.GEAppliances.ca
Safety Instructions Operating Instructions
Care and Cleaning
Troubleshooting Tips Consumer Support
41
Page 42
Notes.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
42
Page 43
Notes. www.GEAppliances.ca
Safety Instructions Operating Instructions
Care and Cleaning
Troubleshooting Tips Consumer Support
43
Page 44
F
R
O
N
T
R
E
A
R
R
E
A
R
Accessories.
Looking For Something More?
To inquire about purchasing a part or an accessory for your appliance,
call our National Parts Centre at 1.800.661.1616.
Oven Racks Broiler Pan
Oven Elements Light Bulbs Knobs
Cleaner Cleaning Pads Scraper
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
44
Page 45
OWNERSHIP REGISTRATION
P.O. BOX 1780
MISSISSAUGA, ONTARIO
L4Y 4G1
(FOR CANADIAN CONSUMERS ONLY)
Please place in envelope and mail to:
Veuillez mettre dans une enveloppe et envoyez à :
45
Page 46
46
Page 47
Electric Range Warranty.
Safety Instructions Operating Instructions
All warranty service provided by our Factory Service
®
Centres, or an authorized Customer Care
technician.
For service, call 1.800.561.3344. Please have serial number
and model number available when calling for service.
Staple your receipt here.
roof of the original purchase
P
date is needed to obtain service
under the warranty.
For The Period Of: Mabe Will Provide:
One Year (GE, GE Profile) Any part of the range which fails due to a defect in materials or workmanship. During this
From the date of the limited one-year warranty, Mabe will also provide, free of charge, all labor and related service
original purchase to replace the defective part.
Five Years (GE Profile) A replacement glass cooktop if it should crack due to thermal shock, discolor, crack at the
From the date of the rubber seal between the glass cooktop and the porcelain edge, or if the pattern wears off.
original purchase
A replacement radiant surface unit if it should burn out.
During this limited additional four-year warranty, you will be responsible for any labor or
related service.
What Mabe Will Not Cover:
■ Service trips to your home to teach you how to use
the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused,
or used for other than the intended purpose or
used commercially.
■ Replacement of house fuses or resetting of circuit
breakers.
■ Damage to the product caused by accident, fire, floods
or acts of God.
■ Incidental or consequential damage caused by possible
defects with this appliance.
Care and Cleaning
■ Damage to the glass cooktop (if included) caused by
use of cleaners other than the recommended cleaning
creams.
■ Damage to the glass cooktop (if included) caused by
hardened spills of sugary materials or melted plastic
that are not cleaned according to the directions in
the Owner’s Manual.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in
this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or
fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada
for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed
reasonable by Mabe to provide.
Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above
exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights
which vary from province to province. To know what your legal rights are in your province, consult your local or
provincial consumer affairs office.
Warrantor: Mabe Canada Inc.,
Burlington, Ontario
Troubleshooting Tips Consumer Support
47
Page 48
Consumer Support.
GE Appliances Website www.GEAppliances.ca
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
ny day of the year! For greater convenience and faster service, you can now download Owner’s Manuals
a
on-line.
Schedule Service www.GEAppliances.ca
Expert GE repair service is only one step away from your door. Call 1.800.561.3344, 7 days a week.
Parts and Accessories www.GEAppliances.ca
To inquire about purchasing a part or an accessory for your appliance, call our National Parts Centre
at 1.800.661.1616.
Contact Us www.GEAppliances.ca
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: Mabe Canada Inc.
1 Factory Lane
Moncton, New Brunswick
E1C 9M3
Register Your Appliance www.GEAppliances.ca
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the preprinted registration card included in the packing material.
48
Printed in the United States
Loading...
