GE JB258DMBB, JB258DMWW, JB258DMCC Specification Sheet
JB258DM/GM/RM
30"
35 3/4"
to
36 1/2"
11"
47 5/8"
28"
25 3/8"
47"
w/handle
w/o handle
30"
25"
2 1/2"
6 1/2"
30
" FREE-STANDING ELECTRIC
SINGLE OVEN
ACCEPTABLE ELECTRICAL
OUTLET AREA
2 1/2"
30"
25"
2 1/2"
6 1/2"
SINGLE OVEN
ACCEPTABLE ELECTRICAL
OUTLET AREA
2 1/2"

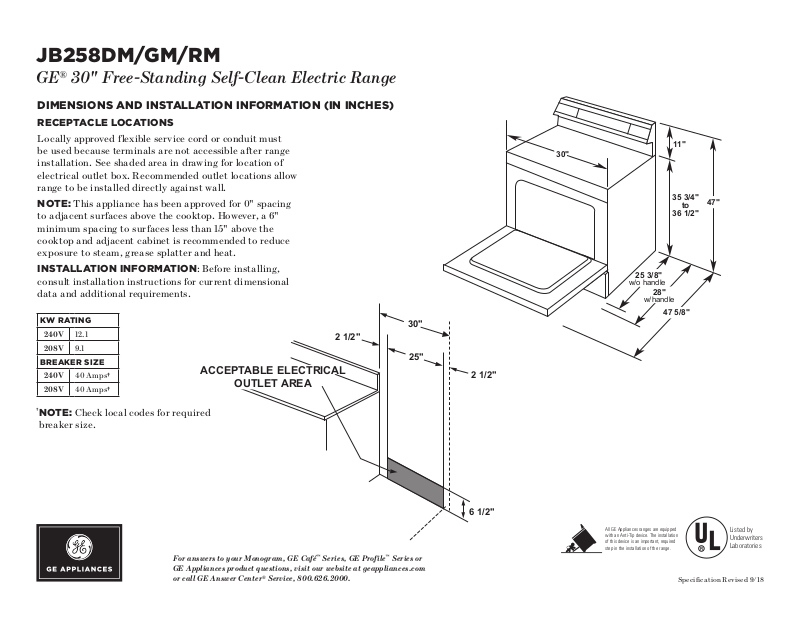

GE® 30" Free-Standing Self-Clean Electric Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTAC L E LOCATIONS
Locally approved flexible service cord or conduit must
be used because terminals are not accessible after range
installation. See shaded area in drawing for location of
electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INSTALLATION I N FORMATI O N : Before installing,
consult installation instructions for current dimensional
data and additional requirements.
KW R ATING
24 0V 12.1
208V 9.1
BREAKER SIZE
24 0V 40 Amps†
208V 40 Amps†
†
NOTE: Check local codes for required
breaker size.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
All GE Appliances ranges are equipped
with an Anti-Tip device. The installation
of this device is an important, required
step in the installation of the range.
Listed by
Underwriters
Laboratories
Speci fication Revised 9/18
JB258DM/GM/RM
GE® 30" Free-Standing Self-Clean Electric Range
FEATURES AND BENEFITS
5.3 cu. ft. oven capacity – Enough room to cook an
entire meal at once
Self-clean oven – Cleans the oven cavity without the
need for scrubbing
Sensi-Temp Technology – Enjoy the same cooking power
as a traditional coil with an added safety feature that
meets new UL858 Household Electric Ranges Standard
for Safety
Dual-element Bake – Upper and lower elements produce
even heat and great results
Removable full-width storage drawer – Store cookware
or kitchen accessories
Model JB258DMBB – Black
Model JB258DMCC – Bisque
Model JB258DMWW – White
Model JB258GMSA – Silver
6:30
6:30
Model JB258RMSS – Stainless steel
Speci fication Revised 9/18
