Safety Information . . . . . . . . . . |
. .2 |
|
Warranty . . . . . . . . . . . . . . . . . . . . . . |
.7 |
|
Assistance / Accessories . . . . |
.8 |
|
Using The Range |
|
|
Surface Units . . . . . . . . . . . . . . . . . . . . |
.9 |
|
Oven Controls. . . . . . . . . . . . . . . . . . . |
10 |
|
Special Features . . . . . . . . . . . . . . . . |
11 |
|
Oven Racks . . . . . . . . . . . . . . . . . . . . . |
12 |
|
Cookware. . . . . . . . . . . . . . . . . . . . . . . |
13 |
|
Cooking Modes . . . . . . . . . . . . . . . . . |
14 |
|
Cooking Guide . . . . . . . . . . . . . . . . . . |
15 |
|
Care and Cleaning |
|
|
Cleaning the Range – Exterior . . . |
16 |
|
Cleaning the Range – Interior . . . . |
18 |
|
Maintenance. . . . . . . . . . . . . . . . . . . . |
19 |
|
Troubleshooting Tips . . . . . . . |
21 |
For a Spanish version of this manual, visit our Website at GEAppliances.com.
Para consultar una version en español de este manual de instrucciones, visite nuestro sitio de internet GEAppliances.com.
Write the model and serial numbers here:
Model # __________________
Serial # ___________________
You can find them on a label behind the door or drawer.

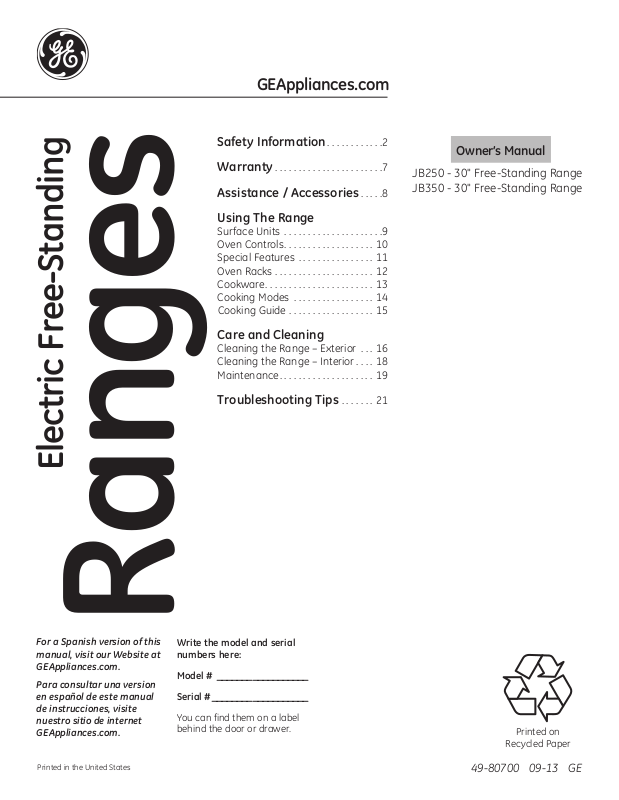

Owner’s Manual
JB250 - 30" Free-Standing Range
JB350 - 30" Free-Standing Range
Printed on
Recycled Paper
Printed in the United States |
49-80700 09-13 GE |
<![endif]>SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING
Read all safety instructions before using the product. Failure to follow these instructions may result in fire, electrical shock, serious injury or death.
ANTI-TIP DEVICE
WARNING |
To reduce the risk of tipping the range, |
|
the range must be secured by a properly |
||
Tip-Over Hazard |
installed anti-tip bracket. See installation |
|
A child or adult can tip the range and be killed. |
||
instructions shipped with the bracket for |
||
Verify the anti-tip bracket has been properly installed |
||
and engaged. |
complete details before attempting to install. |
|
Ensure the anti-tip bracket is re-engaged when the range |
For Free-Standing and Slide-In Ranges |
|
is moved. |
||
Do not operate the range without the anti-tip bracket in |
To check if the bracket is installed and |
|
place and engaged. |
||
Failure to follow these instructions can result in death or |
engaged properly, look underneath the |
|
serious burns to children or adults. |
range to see that the rear leveling leg |
|
is engaged in the bracket. On some models, the storage |
||
|
||
drawer or kick panel can be removed for easy inspection. |
Anti-Tip |
|
If visual inspection is not possible, slide the range forward, |
Bracket |
|
confirm the anti-tip bracket is securely attached to the floor |
|
|
or wall, and slide the range back so the rear leveling leg is |
|
|
under the anti-tip bracket. |
|
|
If the range is pulled from the wall for any reason, always |
Leveling Leg |
|
repeat this procedure to verify the range is properly secured |
Free-Standing and Slide-In Ranges |
|
by the anti-tip bracket. |
||
|
Never completely remove the leveling legs or the range will not be secured to the anti-tip device properly.
STATE OF CALIFORNIA PROPOSITION 65 WARNING
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.
WARNING This product contains one or more chemical known to the State of California to cause cancer, birth defects or other reproductive harm.
Self-clean ovens can cause low-level exposure to some of these substances, including carbon monoxide, during the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation fan or hood.
2 |
SAVE THESE INSTRUCTIONS |
|
49-80700 |
||
|
WARNING GENERAL SAFETY INSTRUCTIONS
Use this appliance only for its intended purpose as described in this Owner’s Manual.
Be sure your appliance is properly installed and grounded by a qualified installer in accordance with the provided installation instructions.
Do not attempt to repair or replace any part of your range unless it is specifically recommended in this manual. All other servicing should be transferred to a qualified technician.
Before performing any service, unplug the range or disconnect the power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.
Do not leave children alone—children should not be left alone or unattended in an area where an appliance is in use. They should never be allowed to climb, sit or stand on any part of the appliance.
CAUTION: Do not store items of interest to children above a range or on the backguard of a range—children climbing on the range to reach items could be seriously injured.
Use only dry pot holders—moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units or heating elements. Do not use a towel or other bulky cloth in place of pot holders.
Never use your appliance for warming or heating the room.
Do not touch the surface units, the heating elements or the interior surface of the oven. These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact the surface units, areas nearby the surface units or any interior area of the oven; allow sufficient time for cooling first. Other surfaces of the appliance may become hot enough to cause burns. Potentially hot surfaces include the cooktop, areas facing the cooktop, oven vent opening, surfaces near the opening and crevices around the oven door.
Do not heat unopened food containers. Pressure could build up and the container could burst, causing an injury.
Do not use aluminum foil to line drip pans or anywhere in the oven, except as described in this manual. Foil can trap heat or melt, resulting in damage to the product and a shock or fire hazard.
Avoid scratching or impacting glass doors, cook tops or control panels. Doing so may lead to glass breakage. Do not cook on a product with broken glass. Shock, fire or cuts may occur.
Cook meat and poultry thoroughly—meat to at least an internal temperature of 160°F and poultry to at least an internal temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.
|
KEEP FLAMMABLE MATERIALS AWAY FROM THE RANGE |
WARNING |
|
|
Failure to do so may result in fire or personal injury. |
|
Do not store or use flammable materials in an oven or near the cooktop, including paper, plastic, pot holders, linens, wall coverings,
curtains, drapes and gasoline or other flammable vapors and liquids.
Never wear loose-fitting or hanging garments while using the appliance. These garments may ignite if they contact hot surfaces causing severe burns.
Do not let cooking grease or other flammable materials accumulate in or near the range. Grease in the oven or on the cooktop may ignite.
Clean ventilating hoods frequently. Grease should not be allowed to accumulate on the hood or filter.
<![endif]>INFORMATION SAFETY
SAVE THESE INSTRUCTIONS
49-80700 |
3 |
|
<![endif]>SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
|
IN THE EVENT OF A FIRE, TAKE THE FOLLOWING |
WARNING |
|
|
STEPS TO PREVENT INJURY AND FIRE SPREADING |
|
Do not use water on grease fires. Never pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.
If there is a fire in the oven during baking, smother the fire by closing the oven door and turning the oven off or by using a multi-purpose dry chemical or foam-type fire extinguisher.
If there is a fire in the oven during self-clean, turn the oven off and wait for the fire to go out. Do not force the door open. Introduction of fresh air at self-clean temperatures may lead to a burst
of flame from the oven. Failure to follow this instruction may result in severe burns.
WARNING COOKTOP SAFETY INSTRUCTIONS
Never leave the surface units unattended at medium or high heat settings. Boilovers cause smoking and greasy spillovers that may catch on fire.
Never leave oil unattended while frying. If allowed to heat beyond its smoking point, oil may ignite resulting in fire that may spread to surrounding cabinets. Use a deep fat
thermometer whenever possible to monitor oil temperature.
To avoid oil spillover and fire, use a minimum amount of oil when shallow pan-frying and avoid cooking frozen foods with excessive amounts of ice.
Use proper pan size—select cookware having flat bottoms large enough to cover the surface heating element. The use of undersized cookware will expose a portion of the surface unit to direct contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also improve efficiency.
Only certain types of glass, glass/ceramic, earthenware or other glazed containers are suitable for cooktop service; others may break because of the sudden change in temperature.
To minimize the possibility of burns, ignition of flammable materials and spillage, the handle of a container should be turned toward the center of the range without extending over nearby surface units.
When preparing flaming foods under a hood, turn the fan on.
If power is lost to an electric cooktop while a surface unit is ON, the surface unit will turn back on as soon as power is restored. In the event of power loss, failure to turn all surface unit knobs to the OFF position may result in ignition of items on or near the cooktop, leading to serious injury or death.
4 |
SAVE THESE INSTRUCTIONS |
|
49-80700 |
||
|
WARNING COIL COOKTOP SAFETY INSTRUCTIONS
Do not immerse or soak the removable surface units. Do not put them in a dishwasher. Do not self-clean the surface units in an oven. Doing so may cause them to fail presenting a burn or fire hazard.
Do not use a surface unit (heating element) if it develops a glowing spot during use or shows
other signs of damage. A glowing spot indicates the surface unit may fail and present a potential burn, fire, or shock hazard. Turn the surface unit off immediately and have it replaced by a qualified service technician.
To avoid the possibility of a burn or electric shock, always be certain that the controls for all surface units are at the OFF position and all coils are cool before attempting to lift or remove a coil surface unit.
Do not use aluminum foil to line drip pans. Foil can trap heat or melt, resulting in damage to the product and a shock or fire hazard.
Be sure the drip pans are not covered and are in place. Their absence during cooking could damage range parts and wiring.
WARNING OVEN SAFETY INSTRUCTIONS
Stand away from the range when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.
Do not use the oven if a heating element develops a glowing spot during use or shows other signs of damage. A glowing spot indicates the heating element may fail and present a potential burn, fire, or shock hazard. Turn the oven off immediately and have the heating element replaced by a qualified service technician.
Keep the oven vent unobstructed.
Keep the oven free from grease buildup. Grease in the oven may ignite.
Place oven racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let pot holder contact hot heating element in oven.
When using cooking or roasting bags in the oven, follow the manufacturer’s directions.
Pull the oven rack to the stop-lock position when loading and unloading food from the oven. This helps prevent burns from touching hot surfaces of the door and oven walls.
Do not leave items such as paper, cooking utensils or food in the oven when not in use. Items stored in an oven can ignite.
Do not use aluminum foil to line the oven bottom. Foil can trap heat or melt, resulting in damage to the product and a shock or fire hazard.
<![endif]>INFORMATION SAFETY
SAVE THESE INSTRUCTIONS
49-80700 |
5 |
|
<![endif]>SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING SELF-CLEANING OVEN SAFETY INSTRUCTIONS
The self-cleaning feature operates the oven at temperatures high enough to burn away food soils in the oven. Follow these instructions for safe operation.
Do not touch oven surfaces during self-clean operation. Keep children away from the oven during self-cleaning. Failure to follow these instructions may cause burns.
Before operating the self-clean cycle, remove pans, shiny metal oven racks and other utensils from the oven. Only gray porcelain-coated oven racks may be left in the oven. Do not use self-clean to clean other parts, such as drip pans or bowls.
Before operating the self-clean cycle, wipe grease and food soils from the oven. Excessive
amount of grease may ignite leading to smoke damage to your home.
If the self-cleaning mode malfunctions, turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.
Do not clean the door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.
Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.
6 |
SAVE THESE INSTRUCTIONS |
|
49-80700 |
||
|
Thank You! ... for your purchase of a GE Brand appliance.
Register Your Appliance: Register your new appliance on-line at your convenience!
www.geappliances.com/service_and_support/register/
Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
GE Electric Range Warranty
GEAppliances.com
All warranty service is provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, visit us at www.geappliances.com/service_and_support/, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.
Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE factory service technician the ability to quickly diagnose any issues with your appliance and helps GE improve its products by providing GE with information on your appliance. If you do not want your appliance data to be sent to GE, please advise your technician not to submit the data to GE at the time of service.
For the period of one year from the date of the original purchase. GE will provide any part of the range which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and in-home service to replace the defective part.
What GE will not cover:
Service trips to your home to teach you how to use the product.
Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, modified or used for other than the intended purpose or used commercially.
Damage to the glass cooktop caused by use of cleaners other than the recommended cleaning creams and pads.
Damage to the glass cooktop caused by hardened spills of sugary materials or melted plastic that are not cleaned according to the directions in the Owner's Manual.
EXCLUSION OF IMPLIED WARRANTIES
Replacement of house fuses or resetting of circuit breakers.
Damage to the product caused by accident, fire, floods or acts of God.
Incidental or consequential damage caused by possible defects with this appliance.
Damage caused after delivery.
Product not accessible to provide required service.
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
Extended Warranties: Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime
www.geappliances.com/service_and_support/shop-for-extended-service-plans.htm
or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.
<![endif]>WARRANTY
| <![if ! IE]> <![endif]>is date |
<![if ! IE]> <![endif]>Staple |
| <![if ! IE]> <![endif]>obtain to needed |
<![if ! IE]> <![endif]>.here receipt your |
| <![if ! IE]> <![endif]>.warranty the under service |
<![if ! IE]> <![endif]>purchase original the of Proof |
|
|
49-80700 |
7 |
|
<![endif]>ASSISTANCE / ACCESSORIES
Have a question or need assistance with your appliance?
Try the GE Appliances Website (www.geappliances.com/service_and_support/) 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts or even schedule service on-line.
Schedule Service: Expert GE repair service is only one step away from your door. Get on-line and schedule your service at www.geappliances.com/service_and_support/ Or call 800.GE.CARES (800.432.2737) during normal business hours.
Parts and Accessories: Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted).Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be
exercised, since improper servicing may cause unsafe operation.
Accessories
Real Life Design Studio: GE supports the Universal Design concept of products, services and environments that can be used by people of all ages, sizes and capabilities. We
recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
Contact Us: If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to:
General Manager, Customer Relations
GE Appliances, Appliance Park Louisville, KY 40225
Looking For Something More?
GE offers a variety of accessories to improve your cooking and maintenance experiences!
To place an order visit us online at:
|
www.GEApplianceParts.com (U.S.) or www.GEAppliances.ca (Canada) |
|
|
or call 800.626.2002 (U.S.) 800.661.1616 (Canada) |
|
The following products and more are available: |
|
|
|
Accessories |
|
|
Small Broiler Pan (8 ¾ ” x 1 ¼” x 13 ½ “) |
WB48X10055 (US) 222D2097G001 (Canada) |
|
Large* Broiler Pan (12 ¾ ” x 1 ¼” x 16 ½ “) |
WB48X10056 (US) 222D2097G002 (Canada) |
|
XL** Broiler Pan (17 ” x 1 ¼” x 19 1/4“) |
WB48X10057 (US) Not available in Canada |
|
Parts |
|
|
Oven racks |
Part numbers vary by model |
|
Oven elements |
Part numbers vary by model |
|
Light bulbs |
Part numbers vary by model |
|
Cleaning Supplies |
|
|
CitruShine Stainless Steel Wipes |
WX10X10007 |
|
CERAMA BRYTE® Stainless Steel Appliance Cleaner |
PM10X311 |
|
CERAMA BRYTE® Cleaning Pads for |
|
|
Ceramic Cooktops . . . . . . |
WX10X350 |
|
CERAMA BRYTE® Ceramic |
|
|
Cooktop Cleaner . . . . . . . . |
WX10X300 |
|
CERAMA BRYTE® Ceramic |
|
|
Cooktop Scraper . . . . . . . . |
WX10X0302 |
|
Kit. . . . . . . . . . . . . . . . . . . . . . |
WB64X5027 |
|
(Kit includes cream and cooktop scraper) |
|
*The large broiler pan does not fit in 20”/24” ranges.
**The XL broiler pan does not fit in 24” wall ovens, 27”drop ins or 20”/24” range
How to Remove Protective Shipping Film and Packaging Tape
Carefully grasp a corner of the protective shipping film with |
on new appliances is an application of a household liquid |
your fingers and slowly peel it from the appliance surface. Do |
dishwashing detergent. Apply with a soft cloth and allow to |
not use any sharp items to remove the film. Remove all of the |
soak. |
film before using the appliance for the first time. |
NOTE: The adhesive must be removed from all parts. It |
|
|
To assure no damage is done to the finish of the product, |
cannot be removed if it is baked on. |
the safest way to remove the adhesive from packaging tape |
|
8 |
49-80700 |
Loading...
