<![endif]>Washers
Printed in Mexico
Safety Instructions . . . . . . . . . . 2, 3
Operating Instructions
Care and Cleaning
of the Washer. . . . . . . . . . . . . . . . . . . . 13 Features . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Loading and Using
the Washer . . . . . . . . . . . . . . . . . . . . . . 11 Operating instructions . . . . . . . . .4–10
Installation Instructions. 14–18 Troubleshooting Tips. . . . . 19–24
Consumer Support
Consumer Help Indicator . . . . . . . . . 10 Consumer Support. . . . . . . . . . . . . . . . 26 Parts and Accessories. . . . . . . . . . .3, 26 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . 25
Write the model and serial numbers here:
Model # _____________
Serial # ______________
You can find them under the lid of the washer.
Owner’s Manual &
Installation Instructions
GTW223
GTW331
GTW451
GTW490
GTW550
GTW580
233D2527P004 R.1
English/Français/Español
29-6395 02-21
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are defined as:
DANGER |
Indicates a hazardous situation which, if not avoided, will result in death or serious injury. |
|
|
WARNING |
Indicates a hazardous situation which, if not avoided, could result in death or serious injury. |
|
|
CAUTION |
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. |
|
|
IMPORTANT SAFETY INSTRUCTIONS
|
To reduce the risk of death, fire, explosion, electric shock, or injury to persons when using your appliance, |
WARNING |
|
|
follow basic precautions, including the following: |
|
Read all instructions before using the appliance.
DO NOT wash or dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline, drycleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.
Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, DO NOT smoke or use an open flame during this time.
DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this appliance is used near children. Before the washer is removed from service or discarded, remove the door or lid. Failure to follow these instructions may result in death or injury to persons.
DO NOT reach into the appliance if the tub or agitator is moving to prevent accidental entanglement.
DO NOT install or store this appliance where it will be exposed to the weather.
DO NOT tamper with controls, repair or replace any part of this appliance or attempt any servicing unless specifically recommended in the user maintenance instructions or in published user repair instructions that you understand and have the skills to carry out.
DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts including a damaged cord or plug.
Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power button DOES NOT disconnect power.
See “Electrical Requirements” located in the Installation Instructions for grounding instructions.
SAVE THESE INSTRUCTIONS
2
GEAppliances.ca
PROPER INSTALLATION
This washer must be properly installed and located in accordance with the Installation Instructions before it is used.
Ensure that the hot water hose is connected to the “H” valve and the cold water hose is connected to the “C” valve.
Install or store where it will not be exposed to temperatures below freezing or exposed to the weather, which could cause permanent damage and invalidate the warranty.
Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.
WARNING
- Electrical Shock Hazard
Plug into a grounded 3 prong outlet. DO NOT remove ground prong.
DO NOT use an adapter.
DO NOT use an extension cord.
Failure to follow these instructions can result in death or electrical shock.
Ensure washer is properly leveled and washer legs are adjusted such that unit is stable.
Optional drain hose extension recommended for discharging heights from 60” - 96”.
Washers do not include supply hoses (only GTW223 model).
GE strongly recommends the use of factory specified parts. A list of factory hoses available for purchase are listed. These hoses are manufactured and tested to meet GE specifications.
GE strongly recommends the use of new water supply hoses. Hoses degrade over time and need to be replaced every 5 years to reduce the risk of hose failures and water damage.
Parts and Accessories
Order on-line at www.geappliances.ca today, 24 hours a day or by phone at 1.800.661.1616 during normal business hours.
Part Number Accessory
WW01F01987 (2) Water supply hoses
START-UP SEQUENCE
Any time the washer is being started or restarts after the washer lid has been opened and closed, the washer will turn on the cold water valve for two short periods followed by a 10 second pause before continuing.
If the lid is opened during this period, the washer will pause. You will have to push the Start button again to restart the cycle.
WHEN NOT IN USE
Turn off water faucets to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; GE recommends changing the hoses every 5 years.
SAVE THESE INSTRUCTIONS
3
Operating instructions.
Throughout this manual, features and appearance may vary from your model.
Step 1 |
Step 2 |
Step 3 |
Step 4 |

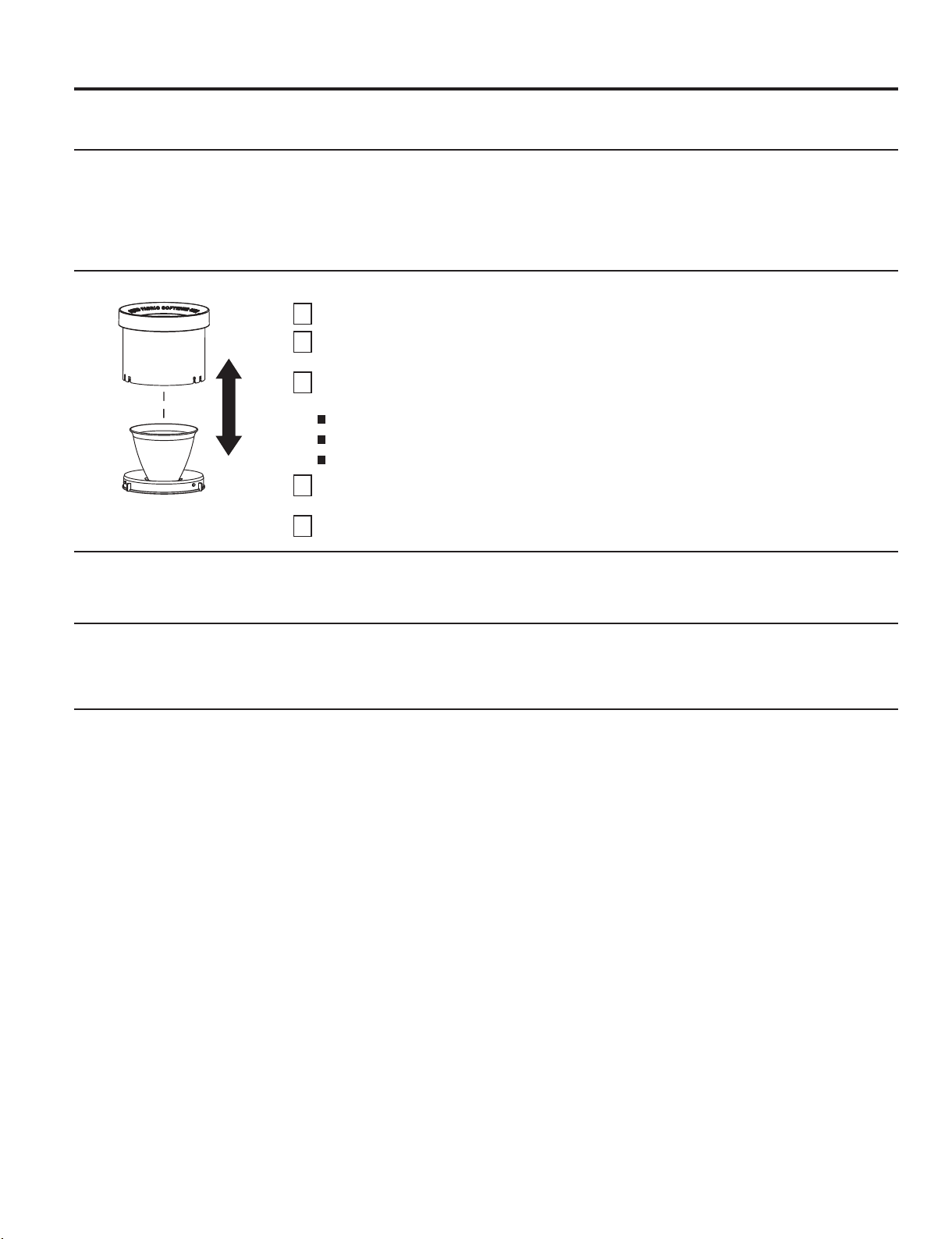

•Add fabric softener to the fabric softener dispenser (Not all features are on all models); see page 12.
•Add the manufacturer’s recommended amount of detergent. GE recommends the use of High Efficiency detergents such as he in your energy efficient washer. Place detergent pods in the bottom of the wash basket before adding clothes.
•Loosely add items around agitator. Overloading may negatively impact wash performance. See page 11 for suggested loading examples.
•Close lid.
NOTE: Washer will not start with lid open.
• Select wash cycle. |
• Press Start. |
•Select wash options, including Deep Rinse option (Not all features are on all models) when using fabric softener.
•Select options.
Controls |
|
C |
C |
B |
|
|
|
|
A |
|
E |
E |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GTW580
C |
|
C |
B |
|
A |
E |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D
GTW550
4
GEAppliances.ca
C |
|
C |
|
|
|
|
|
B |
|
|
|
A |
|
E |
E |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D
GTW490
C |
C |
B |
|
|
|
|
A |
E |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D
GTW451 |
B |
A |
C |
C |
D
GTW331
C |
|
B |
|
A |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D
GTW223 |
5 |
|
Operating instructions.
A Start/Pause
Press Start to begin the cycle. NOTE: The lid must be closed for the washer to start the cycle. If the lid is closed, the lid will lock and the Lid Locked light will illuminate.
Pressing Pause will unlock the lid (if locked at that time), pause the cycle and the Pause indicator light will blink.
To continue the cycle, press Start again. If machine is paused more than 24 hours, the cycle will be cancelled. If water remains in the machine, select the Drain & Spin cycle to drain basket and spin water out of the washer basket.
B Cycle Status Lights
Shows whether the washer is in the Fill, Soak, Wash, Rinse or Spin portion of the cycle.
If an out-of-balance condition is detected by the washer, the Spin light will blink during the remaining portion of the cycle and will stay illuminated for a short time after cycle completion. When this occurs, the washer is taking actions to correct the out-of-balance condition and complete the cycle normally. In some cases, the washer may not be able to balance the load and spin up to full speed. If you notice the load is more wet than normal at the end of the cycle, redistribute the load evenly in the wash basket and run a Drain & Spin cycle.
C
C
Settings
Select settings for agitation (Soil) and water temperature (Temp).
NOTE: Longer Spin times typically reduce dryer time/energy usage (i.e. reduces total energy when using both a washer and a dryer).
Load Size (Not all features are on all models)
Add he detergent to the bottom of the basket and fabric softener to the dispenser (Not all features are on all models) prior to loading clothes. Loosely load items in the washer basket. Overloading may negatively impact wash performance. Adjust the load size accordingly.
Make the load selection:
Precise Fill (Not all features are on all models)
–For convenience, best performance and optimal efficiency, select Precise Fill for models so equipped. This selection automatically provides the correct amount of water suited to the size and type of load placed in the unit. Lid will be locked for the duration of the load sensing process, which includes a series of short spins and a portion of the water fill.
–If you prefer to manually select the water level, select Small through Super. While Precise Fill is best for most loads and general washing, you may want to manually select the load size for specialty items such as bulky, lightweight comforters or pillows, where you want to ensure a larger water level is applied. Manual load size selections should be made for wet items placed in the washer, such as soaked towels or garments.
–The washer will not fill with water when Precise Fill is selected if the lid is opened. When the lid is closed the machine is able to begin filling with water in order to sense the load size.
NOTE: This is a high-efficiency washing machine. This system requires less water while providing effective cleaning action. You may notice that the water level is lower than on your previous washer. This is normal.
6
GEAppliances.ca
D Wash Cycles-Cycle Selector Knob
The wash cycle controls the type of washing process. The cycle selector knob can be turned in either direction. Turning the knob after starting a cycle will stop the washer and change the cycle/options to the new selection. PressStart to begin the new cycle selection.
The chart below will help you match the items to be washed with the best wash cycle settings. For optimal performance, select the cycle that most closely matches the items being washed.
Selections and options shown in bold are the recommended settings for that cycle.
Some cycles and options may not be available on some models.
Items to Wash |
Cycle |
Wash Temp |
Soil Level |
Spin Selection |
Options Available |
Cycle Details |
Cycle for normal, |
Colors |
Hot |
Ex. Heavy |
Max/Extra |
Stain PreTreat Guide |
Cycle for normal, regular, or typical |
regular, or typical |
|
Warm |
Heavy |
|
Auto Soak |
use for washing up to a full load |
use for washing |
|
Colors |
Normal |
Normal |
Deep Rinse |
of normally soiled cotton clothing. |
up to a full load |
|
Cool |
Light |
|
2nd Rinse |
Choose the Heavy or Extra Heavy |
of normally soiled |
|
Cold |
Ex. Light |
|
|
soil level selection and Warm or |
cotton clothing. |
|
Tap Cold |
|
|
|
Hot water temperature selection as |
|
|
|
|
|
|
appropriate for your clothes load |
|
|
|
|
|
|
for a higher degree of cleaning. |
|
|
|
|
|
|
Incorporates multi-stage fills and |
|
|
|
|
|
|
wash periods to provide optimal |
|
|
|
|
|
|
fabric care. |
Dark colored |
Dark |
Hot |
Ex. Heavy |
Max/Extra |
Stain PreTreat Guide |
Lower wash temperatures, a shorter |
items, linens, and |
Colors |
Warm |
Heavy |
|
Deep Fill |
wash period, and a deep fill rinse |
mixed loads. |
|
Colors |
Normal |
Normal |
Auto Soak |
(Not all features are on all models) |
|
|
Cool |
Light |
|
Deep Rinse |
minimizes fading and spotting of dark |
|
|
Cold |
Ex. Light |
|
2nd Rinse |
colored fabrics. Incorporates |
|
|
Tap Cold |
|
|
|
multi-stage fills and wash periods |
|
|
|
|
|
|
to provide optimal fabric care. |
Casual clothes, |
Casuals |
Hot |
Ex. Heavy |
Max/Extra |
Stain PreTreat Guide |
Wash period tailored to care for |
lightly soiled |
|
Warm |
Heavy |
|
Deep Fill |
casual clothes and office wear items. |
office wear. |
|
Colors |
Normal |
Normal |
Auto Soak |
Incorporates multi-stage fills and |
|
|
Cool |
Light |
|
Deep Rinse |
wash periods to provide optimal fabric |
|
|
Cold |
Ex. Light |
|
2nd Rinse |
care. |
|
|
Tap Cold |
|
|
|
|
Lingerie and |
Delicates |
Hot |
Ex. Heavy |
Max/Extra |
Stain PreTreat Guide |
Utilizes a unique “tri-pulse” extra |
special care |
|
Warm |
Heavy |
|
Deep Fill |
gentle agitate profile to provide |
fabrics with light |
|
Colors |
Normal |
Normal |
Auto Soak |
special care to delicate fabrics. It is |
soil. |
|
Cool |
Light |
|
Deep Rinse |
recommended to place small or ultra |
|
|
Cold |
Ex. Light |
|
2nd Rinse |
delicate items in mesh bags before |
|
|
Tap Cold |
|
|
|
washing. |
Garments with a |
SaniFresh |
Hot |
Ex. Heavy |
Max/Extra |
|
The SaniFresh cycle is designed to |
high cotton content |
|
Heavy |
Normal |
Auto Soak |
eliminate common bacteria, viruses |
|
and /or heat resis- |
|
|
Normal |
|
Deep Rinse |
and germs on household linen. |
tant; for example, |
|
|
Light |
|
2nd Rinse |
This cycle is only effective if the hot |
towels, denim, |
|
|
Ex. Light |
|
|
water connection is at a minimum |
sheets, robes, etc. |
|
|
|
|
|
temperature of 119.84°F (48.8 ° C). |
|
|
|
|
|
|
|
Medium to lightly |
Active |
Hot |
Ex. Heavy |
Max/Extra |
Stain PreTreat Guide |
Cycle designed for care of medium |
soiled athletic |
Wear |
Warm |
Heavy |
|
Deep Fill |
to lightly soiled active wear, aththletic |
wear items of |
(Not all |
Colors |
Normal |
Normal |
Auto Soak |
wear, and technical fabrics. |
technical or |
features |
Cool |
Light |
|
Deep Rinse |
Incorporates a multi stage wash |
synthetic fabrics. |
are on all |
Cold |
Ex. Light |
|
2nd Rinse |
period with soak to effectively treat |
|
models) |
Tap Cold |
|
|
|
body soils and odors. Use the Heavy |
|
|
|
|
|
Duty cycle for heavily soiled sports |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
clothing constructed of sturdy fabric. |
|
|
|
|
|
|
|
For waterproof, water-resistant items only use the Delicates cycle. DO NOT use other cycles for these items, for example: ski clothing, diaper covers, bulky waterproof bed covers, umbrella covers, vehicle covers, sleeping bags, waterproof coats, etc).
·In other cycles different to the one recommended, when the basket turns, it is possible that water gets trapped in waterproof items and clothing, which can cause abnormal vibration. Besides, the clothing moves upwards and may be expelled, this may result in injury or damage to the washer, walls, floor, or clothing.
·DO NOT mix waterproof and non-waterproof items.
7
Operating instructions.
D Wash Cycles-Cycle Selector Knob - Continued
Items to Wash |
Cycle |
Wash Temp |
Soil Level |
Spin Selection |
Options Available |
Cycle Details |
Small loads of |
Speed |
Hot |
Ex. Heavy |
Max/Extra |
Stain PreTreat Guide |
Utilizes an expedited wash period and |
lightly soiled items |
Wash |
Warm |
Heavy |
|
Deep Fill |
time saving continuous spray rinse to |
that are needed in |
(Not all |
Colors |
Normal |
Normal |
Auto Soak |
clean small lightly soiled loads in the |
a hurry. |
features |
Cool |
Light |
|
Deep Rinse |
fastest time possible. |
|
are on all |
Cold |
Ex. Light |
|
2nd Rinse |
|
|
models) |
|
|
|||
|
Tap Cold |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Wet load of items. |
Drain & |
|
|
Max/Extra |
|
Utilizes a high speed spin to extract |
For items that need |
Spin |
|
|
|
|
water from wet items. For items that |
only to be rinsed, |
|
|
|
Normal |
|
need to be rinsed, select the Deep |
use this cycle with |
|
|
|
|
Deep Rinse |
Rinse and/or 2nd Rinse option when |
Deep Rinse option. |
|
|
|
|
2nd Rinse |
using this cycle. |
Jeans with |
Jeans |
Hot |
Ex. Heavy |
Max / Extra |
Stain PreTreat Guide |
Combines higher water levels, a |
medium to light |
(Not all |
Warm |
Heavy |
|
Deep Fill |
specially designed agitation profile, |
soil. For heavily |
features |
Colors |
Normal |
Normal |
Auto Soak |
and multi step wash and soak periods |
soiled work jeans, |
are on all |
Cool |
Light |
|
Deep Rinse |
to care for jeans with medium to |
models) |
|
|||||
use the Heavy |
Cold |
Ex. Light |
|
2nd Rinse |
light soil. Use the Heavy Duty cycle |
|
|
|
|||||
Duty Cycle. |
|
Tap Cold |
|
|
|
for heavily soiled work jeans. |
|
|
|
|
|
|
|
Sturdy fabrics with |
Heavy |
Hot |
Ex. Heavy |
Max / Extra |
Stain PreTreat Guide |
Incorporates multi-step wash and |
heavy to medium |
Duty |
Warm |
Heavy |
|
Deep Fill |
soak periods combined with extended |
soil. |
|
Colors |
Normal |
Normal |
Auto Soak |
wash periods to effectively clean |
|
|
Cool |
Light |
|
Deep Rinse |
heavily to medium soiled sturdy |
|
|
Cold |
Ex. Light |
|
2nd Rinse |
fabrics. |
|
|
Tap Cold |
|
|
|
|
Non-waterproof |
Bulky |
Hot |
Ex. Heavy |
Max / Extra |
Stain PreTreat Guide |
Provides a Deep Fill/max fill wash |
large coats, bead |
Items |
Warm |
Heavy |
|
Deep Fill |
water level to wash bulky items. |
spreads, mattress |
|
Colors |
Normal |
Normal |
Auto Soak |
Also incorporates a Deep Fill rinse to |
covers, and similar |
|
Cool |
Light |
|
Deep Rinse |
effectively rinse bulky items. |
large bulky items |
|
Cold |
Ex. Light |
|
2nd Rinse |
|
|
Tap Cold |
|
|
|
|
|
|
|
|
|
|
|
|
Towels. |
Towels / |
Hot |
Ex. Heavy |
Max / Extra |
Stain PreTreat Guide |
Cycle designed washing towels or |
Sheets. |
Sheets |
Warm |
Heavy |
|
Deep Fill |
sheets, using a higher water level |
|
(Not all |
Colors |
Normal |
Normal |
Auto Soak |
and a soak period to effectively |
|
features |
Cool |
Light |
|
Deep Rinse |
clean these items. It is recommended |
|
are on all |
Cold |
Ex. Light |
|
2nd Rinse |
that towels and sheets be washed |
|
models) |
|
||||
|
Tap Cold |
|
|
|
separately for best care and |
|
|
|
|
|
|
||
|
|
|
|
|
|
washing performance. |
Whites and |
Whites |
Hot |
Ex. Heavy |
Max / Extra |
Stain PreTreat Guide |
Cycle tailored to cleanand brighten |
household linens |
|
Warm |
Heavy |
|
Deep Fill |
your whites. |
|
|
Colors |
Normal |
Normal |
Auto Soak |
|
|
|
Cool |
Light |
|
Deep Rinse |
|
|
|
Cold |
Ex. Light |
|
2nd Rinse |
|
|
|
Tap Cold |
|
|
|
|
8
