GE GFW510SCN Specification
GFW510SCN
*With leveling leg adjust.
GE® 4.5 cu. ft. Capacity Front Load ENERGY STAR® Wash er
with UltraFresh Vent System with OdorBlock™

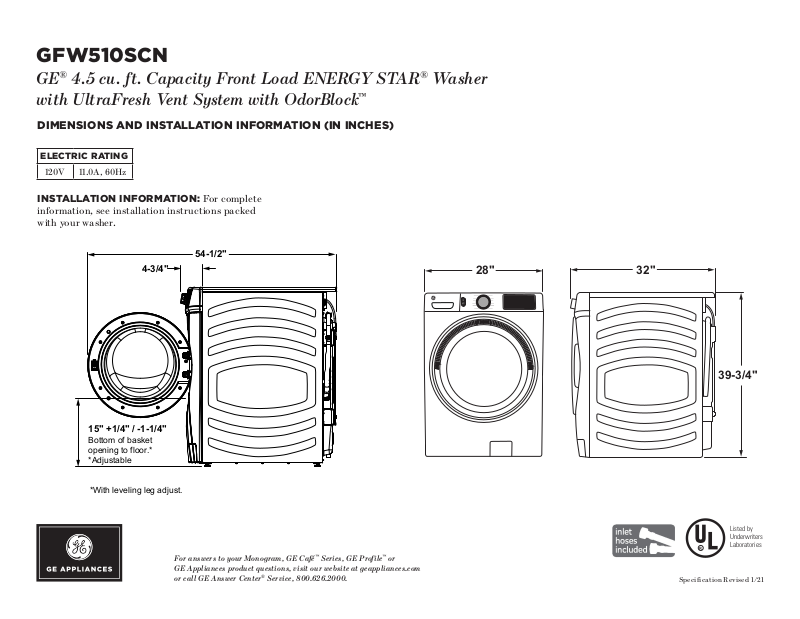

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRIC RATING
120V 11.0A, 60Hz
INS TA LL ATION IN FO RMATION : For complete
information, see installation instructions packed
with your washer.
54-1/2"
4-3/4"
28"
32"
15" +1/4" / -1-1/4"
Bottom of basket
opening to floor.*
*Adjustable
For answers to your Monogram, GE Café™ Series, GE Profile™ or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
39-3/4"
Listed by
Underwriters
R
Speci fication Revised 1/21
Laboratories
GFW510SCN
GE® 4.5 cu. ft. Capacity Front Load ENERGY STAR® Wash er
with UltraFresh Vent System with OdorBlock
™
SPECIAL INSTALLATION REQUIREMENTS:
STAC KED IN STA LL ATION :
- Brackets for stacking dryer over washer are not included with the washer.
Order part no. GFA28KITN.
ALCOVE OR CLOSET INSTALLATION:
- If your dryer is approved for installation in an alcove or closet, it will be
stated on a label on the dryer back.
-The dryer MUST be exhausted to the outside.
- Minimum clearances between dryer cabinet and adjacent walls or other
surfaces are: 0" all sides and top.*
- Closet doors must be louvered or otherwise ventilated and must contain a
minimum of 60 sq. in. of open area equally distributed. If this closet contains
both a washer and a dryer, doors must contain a minimum of 120 sq. in. of
open area equally distributed.
- No other fuel-burning appliance shall be installed in the same closet with
a gas dryer.
BATHROOM OR BEDROOM INSTALLATION:
-The dryer MUST be exhausted to the outdoors.
- The installation must conform with the local codes, or in the absence
of local codes, with the National Electric Code and National Fuel
Gas Code, ANSI Z223.
MINIMUM CLEARANCE OTHER THAN ALCOVE OR CLOSET
INS TA LL ATIONS :
-Minimum clearances to combustible surfaces 0" all sides and top.*
FOR MORE INFORMATION ON VENTING KITS AND
ACCESSORIES, PLEASE CALL 1-800-GE-CARES.
*For improved per formance, a 1/2" clearance is suggested on each side.
STACKED DIMENSIONS
(IN INCHES)
PEDESTAL DIMENSIONS
(IN INCHES)
GFP1528PNDG - DIAMOND GRAY
GFP1528PNRS - SAPPHIRE BLUE
GFP1528PNSN - SATIN NICKEL
GFP1528SNWW - WHITE
This optional 16" pedestal raises
the door opening and height of
the washer or dryer.
16"
79-1/2
28"
28-7/8"
For answers to your Monogram, GE Café™ Series, GE Profile™ or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Speci fication Revised 1/21
