GE GFW450SSM, GFW450SPM Specification

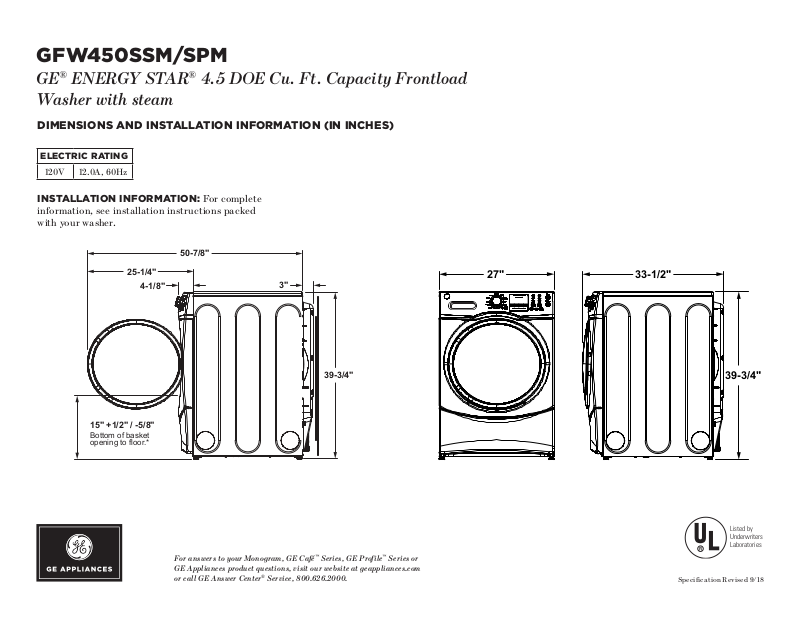

GFW450SSM/SPM
GE® ENERGY STAR® 4.5 DOE Cu. Ft. Capacity Frontload
Washer with steam
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRIC RATING
120V 12.0A, 60Hz
INSTALLATION INFORMATION: For complete information, see installation instructions packed with your washer.
50-7/8"
25-1/4" |
27" |
|
|
33-1/2" |
|
|||||||||||
4-1/8" |
3" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
39-3/4" |
39-3/4" |
15" +1/2" / -5/8"
Bottom of basket opening to floor.*
*With leveling leg adjust.
Above illustration intended for dimensional reference only. Refer to photograph for actual product appearance.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 9/18
GFW450SSM/SPM
GE® ENERGY STAR® 4.5 DOE Cu. Ft. Capacity Frontload Washer with steam
SPECIAL INSTALLATION REQUIREMENTS: |
STACKED DIMENSIONS |
STACKED INSTALLATION: |
(IN INCHES) |
-Brackets for stacking dryer over washer are not included with the washer. |
|
Order part no. GEFLSTACK or part no. WE25X10018. |
|
ALCOVE OR CLOSET INSTALLATION: |
|
-If your dryer is approved for installation in an alcove or closet, it will be |
|
stated on a label on the dryer back. |
|
-The dryer MUST be exhausted to the outside. |
|
-Minimum clearances between dryer cabinet and adjacent walls or other |
|
surfaces are: 0" either side, 3" front and rear |
|
-Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52". |
|
-Closet doors must be louvered or otherwise ventilated and must contain a |
|
minimum of 60 sq. in. of open area equally distributed. If this closet contains |
|
both a washer and a dryer, doors must contain a minimum of 120 sq. in. of |
|
open area equally distributed. |
|
-No other fuel-burning appliance shall be installed in the same closet with |
|
a gas dryer. |
|
79-5/8" |
BATHROOM OR BEDROOM INSTALLATION:
-The dryer MUST be exhausted to the outdoors.
-The installation must conform with the local codes, or in the absence of local codes, with the National Electric Code and National Fuel Gas Code, ANSI Z223.
MINIMUM CLEARANCE OTHER THAN ALCOVE OR CLOSET INSTALLATIONS:
-Minimum clearances to combustible surfaces 0" both sides, 3" rear.
FOR MORE INFORMATION ON VENTING KITS AND ACCESSORIES, PLEASE CALL 1-800-GE-CARES.
PEDESTAL DIMENSIONS (IN INCHES) SBSD137HWW - WHITE
SBSC137HDG - DIAMOND GRAY
This optional 13" pedestal |
27" |
|
raises the door opening and |
||
|
||
height of the washer or dryer. |
|
|
Feet on 13" pedestal allow it to |
13" |
|
adjust to 13-3/8" height. |
||
|
28-3/4"
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or |
|
GE Appliances product questions, visit our website at geappliances.com |
|
or call GE Answer Center® Service, 800.626.2000. |
Specification Revised 9/18 |
