Evolve
Contemporary Conical (EPCC)
LED Post Top
imagination at work
Product Features
The new Evolve™ LED Contemporary Conical Post Top offers energy efficiency and quality of light in a modern
European style. The advanced LED optical system provides improved horizontal and vertical uniformity, reduced glare
and improved lighting control. GE’s unique optical ring technology effectively aims the light where you need it, while
eliminating the unsightly shadow circles commonly seen under other LED post top fixtures.
The Contemporary Conical post top can yield up to a 60-percent reduction in system energy compared with standard
HID systems, depending on applications. This reliable system operates well in cold temperatures and offers more than
11 years of service life to reduce maintenance frequency and expense, based on a 50,000 hour life and 12 hours of
operation per day. Containing no mercury or lead, this environmentally responsible product is RoHS compliant.
Applications
• Roadway, site, area, and general lighting utilizing
advanced LED optical system providing high
uniformity, excellent vertical illuminance, reduced
offsite visibility, and reduced on-site glare.
Housing
• Base and Body: die-cast aluminum housing.
• Top Upper Housing: one-piece spun aluminum.
• A contemporary decorative luminaire of truncated
cone design incorporates the heat sink directly into the
unit ensuring maximum heat transfer and long LED life.
• Meets 2G vibration standards per ANSI C136.31-2001.
For 3G rating contact factory.
LED & Optical Assembly
• Structured LED array for optimized roadway, walkway
and campus photometric distribution.
• Evolve light engine consisting of nested concentric
directional reflectors designed to optimize application
efficiency and minimize glare.
• Utilizes high brightness LEDs, 65 CRI at 4100K or
5600K typical.
• LM-79 tests and reports are performed in accordance
with IESNA standards.
Mounting
• Post top mounting O. D. 2 3/8-inch (60mm) or 3-inch
(76mm) held in place with three hex head set screws.
Finish
• Corrosion resistant polyester powder painted,
minimum 2.0 mil. thickness.
• Standard colors: Black, Grey and Dark Bronze.
•
RAL & custom colors available.
Electrical
• 120-277 volt and 347-480 volt available.
• System power factor is >90% and THD <20%.
• Class “A” Sound rating.
• Integral surge protection non-dimming:
- For 120-277VAC per IEEE/ANSI C62.41.-1991,
4kV/2kA Location Category B2 (120 Events)
- For 347-480VAC per IEEE/ANSI C62.41.-1991,
6kV/3kA Location Category B3 (120 Events)
• Integral surge protection GE dimming:
- For 120- 480VAC per IEEE/ANSI C62.41.2-2002,
6kV/3kA Location Category B (120 Events)
•
EMI: Title 47 CFR Part 15 Class A
• Photo Electric Sensors (PE) available for all voltages.
Lumen Maintenance
• System rating is 50,000 hours at L85. Contact factory
for L rating (Lumen Depreciation) beyond 50,000 hours.
Ratings
• UL/cUL listed, suitable for wet locations.
• IP 65 rated optical enclosure per ANSI C136.25-2009.
• Temperature rated at –40° to 50°C.
Warranty
•
5-year limited system warranty standard.
Ordering Number Logic
Contemporary Conical Post Top (EPCC)
E P C C P
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
PROD. ID
E = Evolve
P = Area
C =
Contemporary
C = Conical
OPTICAL
CODE
VOLTAGE
0 = 120 - 277
H = 347 - 480
1 = 120*
2 = 208*
3 = 240*
4 = 277*
5 = 480*
D = 347*
*
Specify single
voltage only if
fuse option is
selected
TYPE
OPTICAL
LED COLOR
CODE
TEMP
41 = 4100K
56 = 5600K
TYPICAL INITIAL
LUMENS
4100K
5600K
OPTICAL
SELECTION
P = Polycarbonate
TYPICAL SYSTEM
WAT TAG E
120-277V
347-480V
PE FUNCTION
1 = None
2 = PE Rec.
4 = PE Rec. with
Shorting Cap
5 = PE Rec. with
Control
PE control not
available for
347-480V. Must be
a discrete voltage.
POLE
SPACING
(2-4 LANES)
MOUNTING ARM
K = 2 3/8” Pole Mount
P = 3” Pole Mount
BUG RATINGS
4100K 5600K
B U G
COLOR
BLCK = BLACK
DKBZ = DARK BRONZE
GRAY = GRAY
WHTE = WHITE
Contact factory for
other colors.
B U G
IES FILE
NUMBERS
4100K
R5 Symmetric 4000 4400 88 96 5:1 N/A 2 2 N/A 2 2 454572 454569
A4 Asymmetric Forward 2000 2200 63 71 5:1 2 2 2 2 2 2 454573 454570
A3 Asymmetric Wide 4000 4400 88 96 5:1 2 2 2 2 2 2 454574 454571

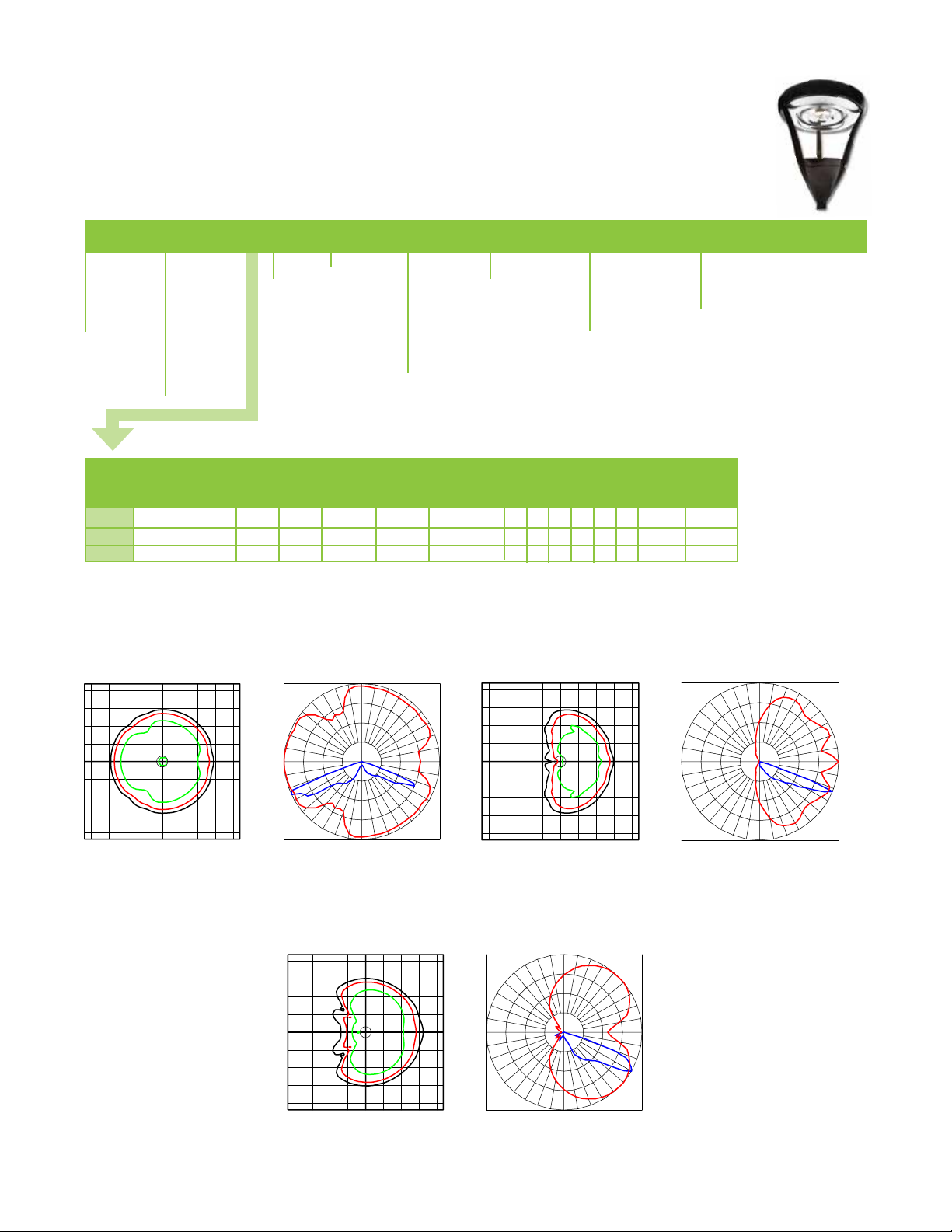

Photometrics
EPCC Type V - Symmetric Round (R5)
4,400 Lumens, 5600K (GE454569.ies)
.1
.5
.2
1
2134
1601
1067
534
2
EPCC Type IV - Asymmetric Forward (A4)
2,200 Lumens, 5600K (GE454570.ies)
.1.2
.5
OPTIONS
D = Dimmable (0-10 Volt Input)*
F = Fusing
XXX = Special Options
*Contact factory for availability
5600K
2101
1575
1050
525
1
2
Grid Distance in Units of
Mounting Height at 16’
Initial Footcandle Values at Grade
Polar Trace Vertical and Horizontal
Plane through Horizontal Angle of
Maximum Candlepower
EPCC Type III - Asymmetric Wide (A3)
4,400 Lumens, 5600K (GE454571.ies)
.2
.5
Grid Distance in Units of
Mounting Height at 16’
Initial Footcandle Values at Grade
Grid Distance in Units of
Mounting Height at 16’
Initial Footcandle Values at Grade
2734
2050
1367
.1
Polar Trace Vertical and Horizontal
Plane through Horizontal Angle of
Maximum Candlepower
683
1
2
Polar Trace Vertical and Horizontal
Plane through Horizontal Angle of
Maximum Candlepower
Product Dimensions
25.4 in.
(645 mm)
27.6 in.
(701 mm)
24.9 in.
(634 mm)
22.3 in.
(566 mm)
10.2 in.
(260 mm)
DATA
29.9 in.
(760 mm)
4.1 in.
(104 mm)
11.6 in.
(294 mm)
• Approximate Net Weight: 34-40 lbs (16-18 kgs)
• Suggested Mounting Height: 8-16 ft max (2.5-5 m)
• Effective Projected Area (EPA): 1.6 sq ft max (0.15 sq m)
