RSTI-EP Slice I/O

GFK-2992B

Serial Communication Module EP-5261

September 2016

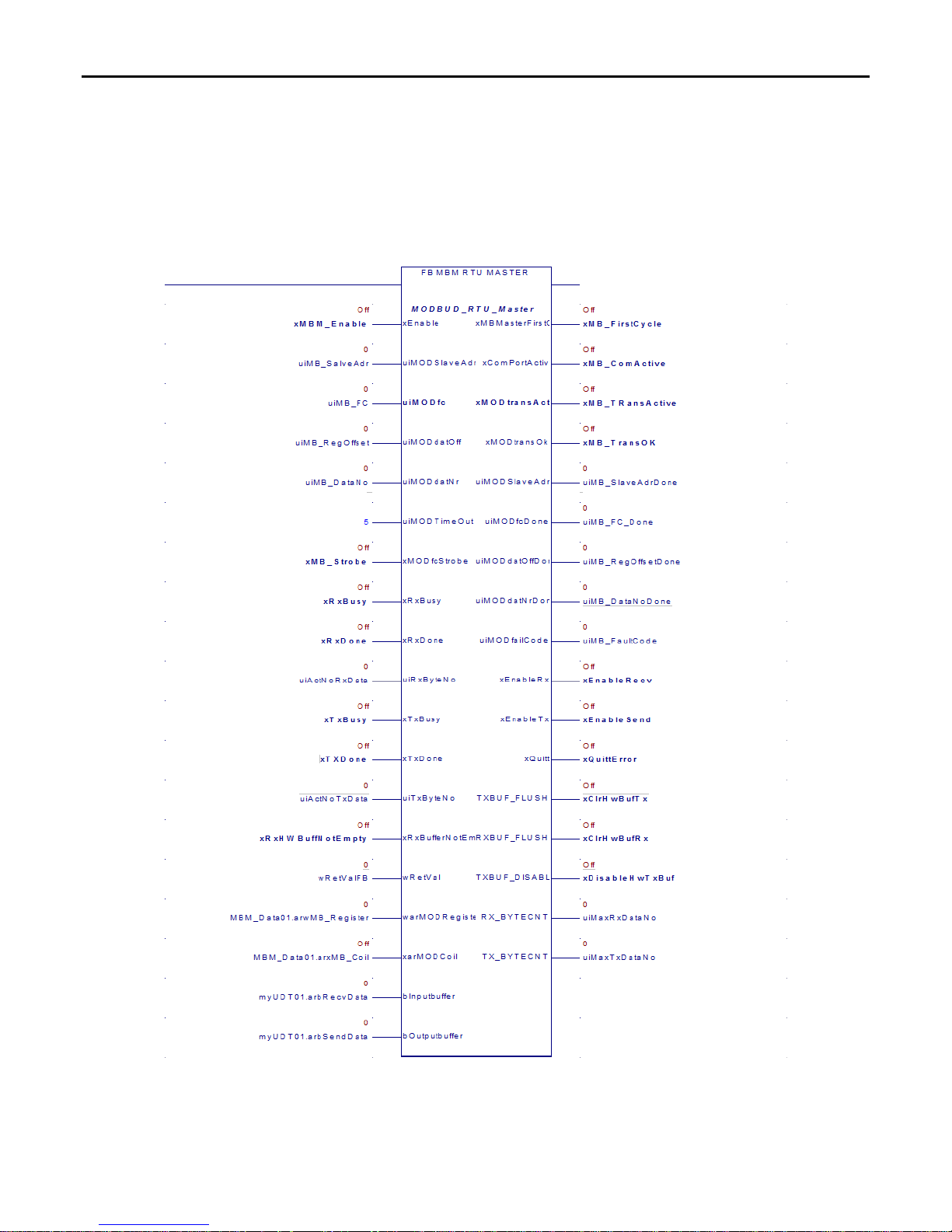

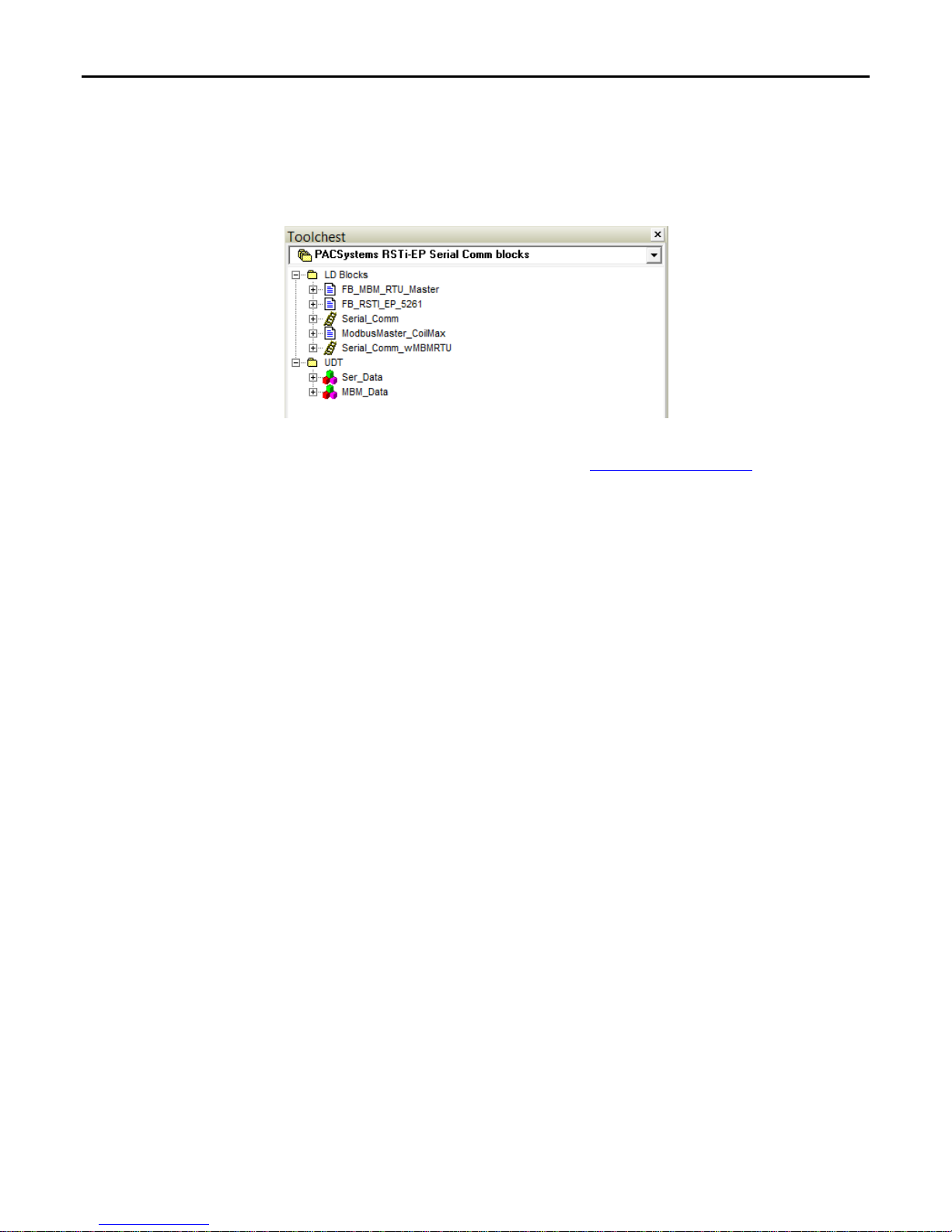

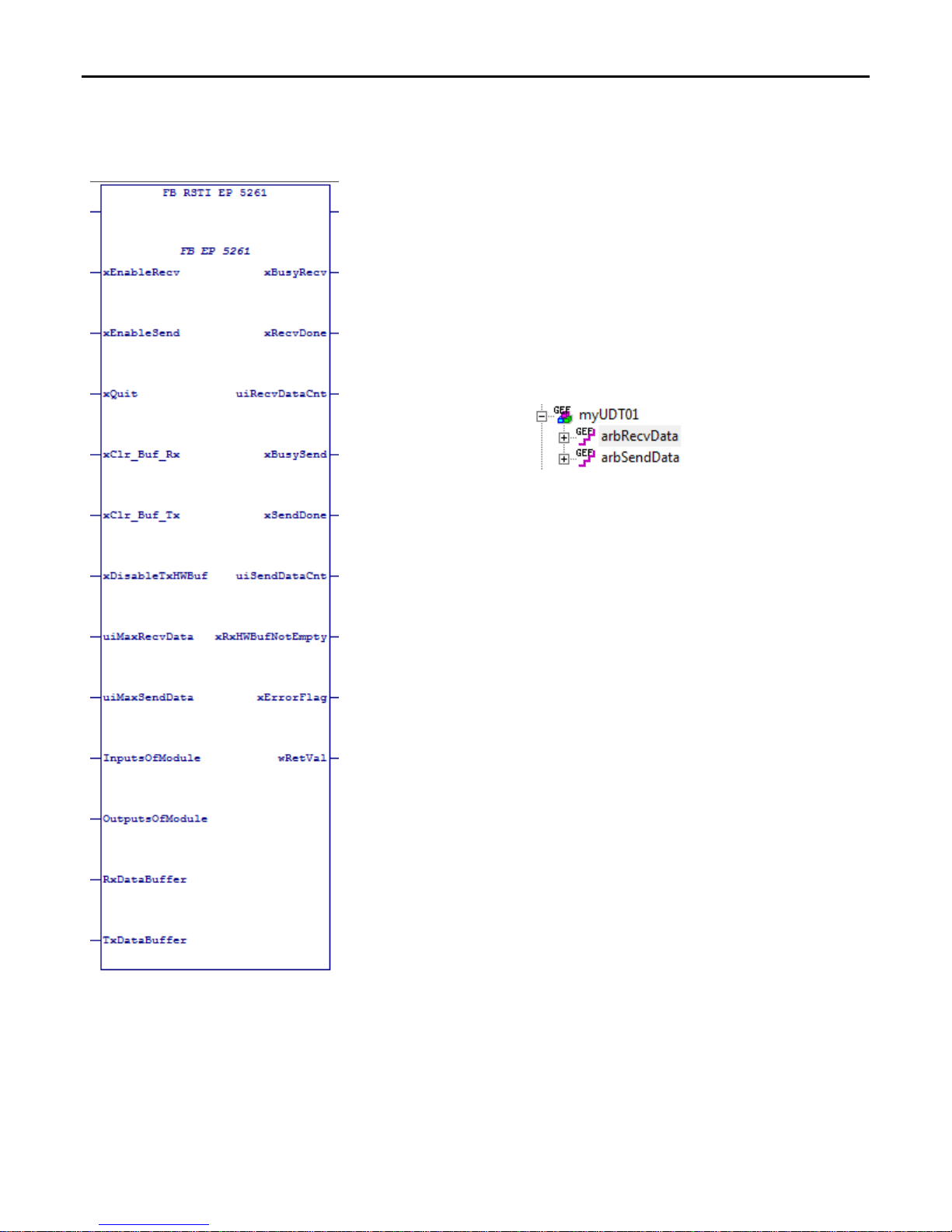

Function Block FB_RSTI_EP_5261

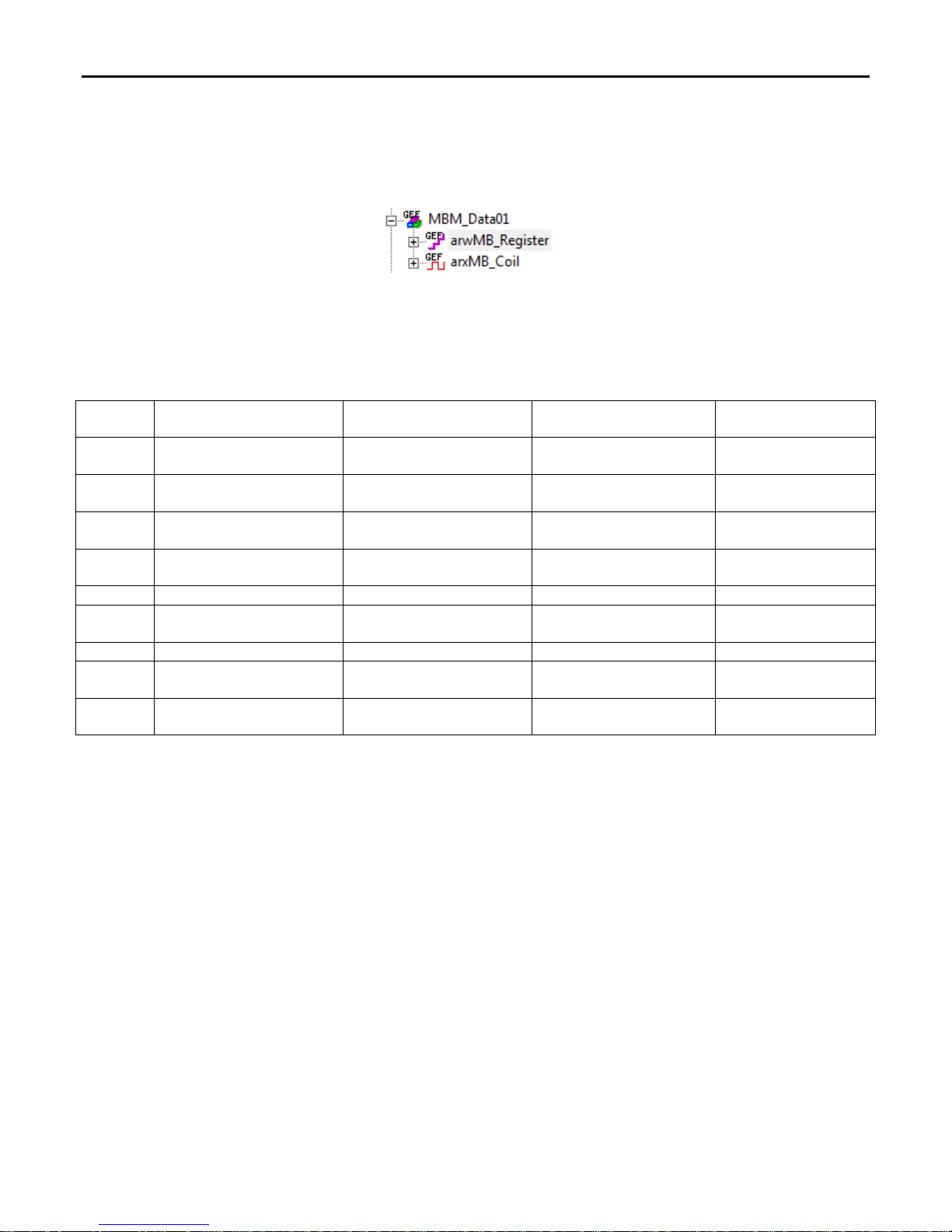

Handling Function Block FB_MBM_RTU_Master

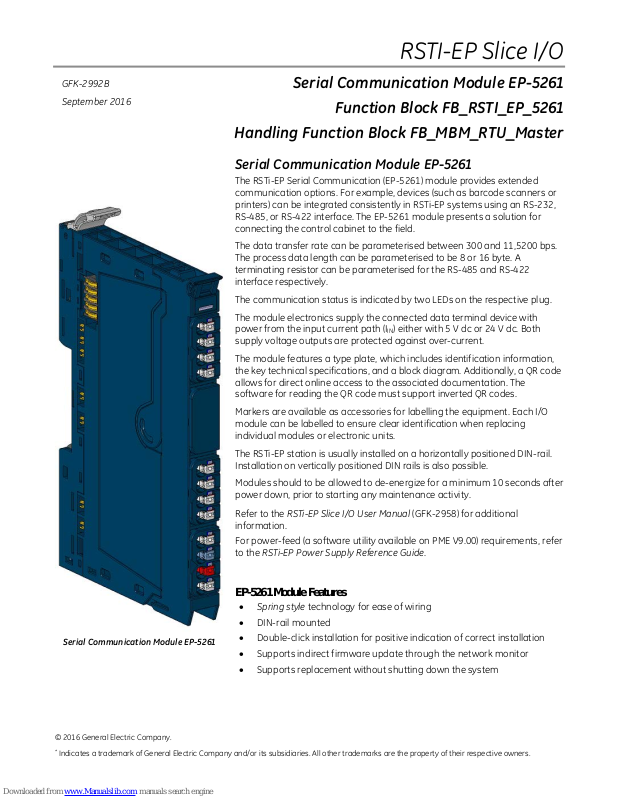

Serial Communication Module EP-5261

The RSTi-EP Serial Communication (EP-5261) module provides extended communication options. For example, devices (such as barcode scanners or printers) can be integrated consistently in RSTi-EP systems using an RS-232, RS-485, or RS-422 interface. The EP-5261 module presents a solution for connecting the control cabinet to the field.

The data transfer rate can be parameterised between 300 and 11,5200 bps. The process data length can be parameterised to be 8 or 16 byte. A terminating resistor can be parameterised for the RS-485 and RS-422 interface respectively.

The communication status is indicated by two LEDs on the respective plug.

The module electronics supply the connected data terminal device with power from the input current path (I supply voltage outputs are protected against over-current.

The module features a type plate, which includes identification information, the key technical specifications, and a block diagram. Additionally, a QR code allows for direct online access to the associated documentation. The software for reading the QR code must support inverted QR codes.

Markers are available as accessories for labelling the equipment. Each I/O module can be labelled to ensure clear identification when replacing individual modules or electronic units.

) either with 5 V dc or 24 V dc. Both

The RSTi-EP station is usually installed on a horizontally positioned DIN-rail. Installation on vertically positioned DIN rails is also possible.

Modules should to be allowed to de-energize for a minimum 10 seconds after power down, prior to starting any maintenance activity.

Refer to the RSTi-EP Slice I/O User Manual (GFK-2958) for additional information.

For power-feed (a software utility available on PME V9.00) requirements, refer to the RSTi-EP Power Supply Reference Guide.

EP-5261 Module Features

• Spring style technology for ease of wiring

• DIN-rail mounted

Serial Communication Module EP-5261

Indicates a trademark of General Electric Company and/or its subsidiaries. All other trademarks are the property of their respective owners.

• Double-click installation for positive indication of correct installation

• Supports indirect firmware update through the network monitor

• Supports replacement without shutting down the system

Page 2

2 RSTi-EP Slice I/O Serial Communication Module

System Data

Data

Process, parameter, and diagnostic data depend on the network adapter used

Interface

RSTi-EP system bus

System bus transfer rate

48 Mbps

Serial Interfaces

Number

Type

parameterisable

Transfer Rate

300 – 11,5200 Bps, parameterisable

Supply voltage

5 V dc or 24 V dc

Current of power supply output

500 mA max

Standards RS232

DIN 66020, DIN 66259, EIA-RS232C, CCITT V.24 / V.28

RS485/RS422

Short-circuit-proof

Yes

Module diagnosis

Yes

Individual channel diagnosis

Yes

Supply

Supply voltage

20.4 V – 28.8 V

system current path I

SYS

current path IIN

General Data

Operating temperature

-20 to +60°C (-4 to +140 °F)

Storage temperature

-40 to +85°C (-40 to +185 °F)

5 to 95%, noncondensing as per IEC 61131-2

Width

11.5 mm (0.45 in)

76 mm (2.99 in)

Height

120 mm (4.72 in)

Weight

92 g (3.25 oz)

GFK-2992B

Ordering Information

Module Description

EP-5261 RSTi-EP Slice I/O Serial Communication module

Specifications

Item EP-5261 Specification

RS-232, RS-485, RS-422,

Standards RS485/RS422 DIN 66259 part 1 and 3, EIA-RS422/485, CCITT V.11

Terminating resistor

Current consumption from

Current consumption from input

Air humidity (operation/transport)

Depth

120 Ω, parameterisable

8 mA

16 mA + Load

Page 3

RSTi-EP Slice I/O Serial Communication Module 3

Product

IIN

EP-5261

8 mA

16 mA + Load

Current consumption from the system current path

Must be included when calculating the power supply

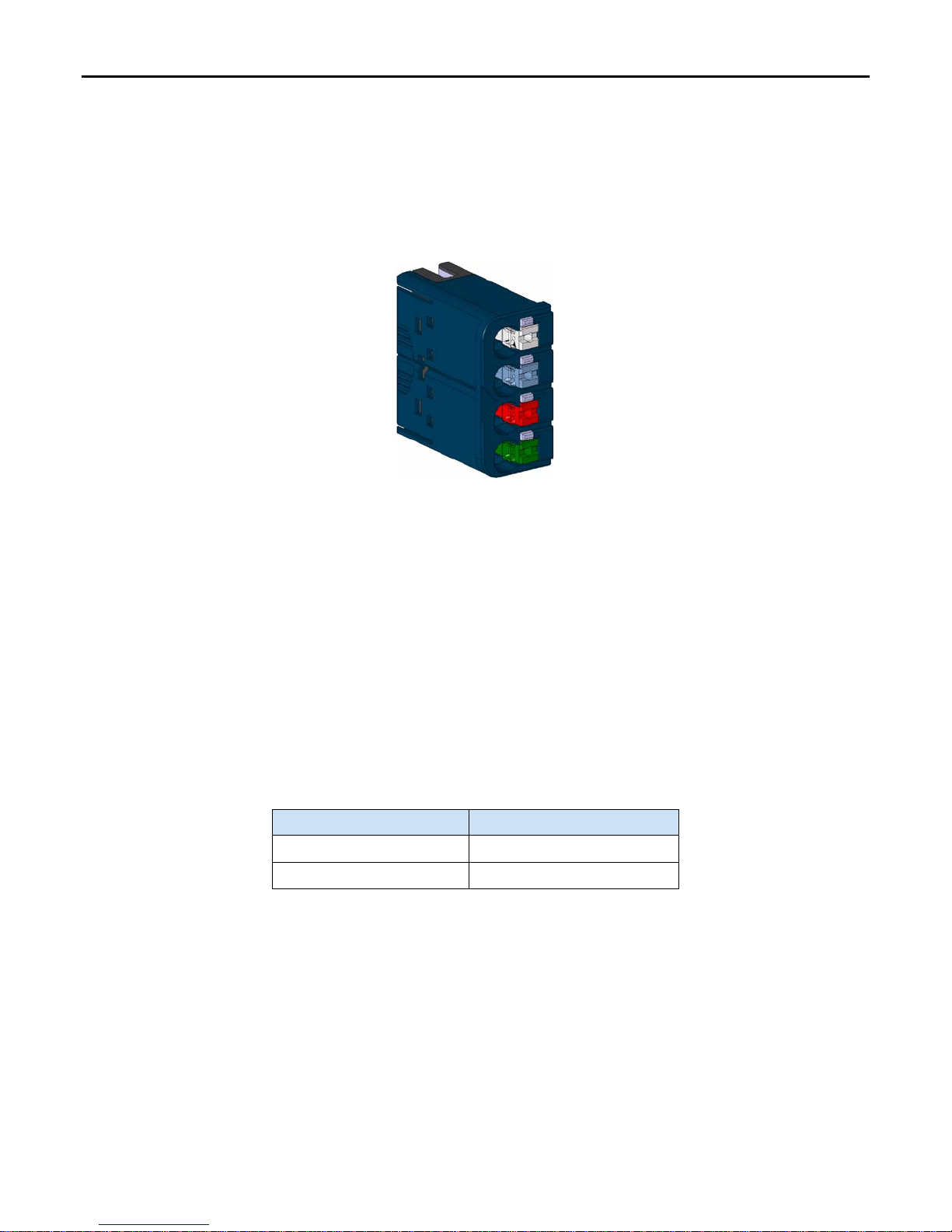

LED

EP-5261 Status

Red: Collective error diagnostic

Yellow flashing: Data is being received

Yellow flashing: Data is being transmitted

1.3

1.4

2.1

2.2

2.3

2.4

3.1

3.2

3.3

Yellow flashing: Data are being recieved

3.4

Yellow flashing: Data are being transmitted

4.1

Green: Supply voltage +5 V dc

4.2

4.3

Green: Supply voltage +24 V dc

4.4

GFK-2992B

Current Demand for Analog Output Modules

LEDs

SYS

OUT

Module

Status

1.1

1.2

SYS

Power consumption from input current path Power consumption from output current path Current demand of the connected sensors Current demand of the connected actuators

Green: Communication over the system bus

Yellow: RS-232 parameterised

3.1 - 3.4 Yellow: RS-422 parameterised

3.1 + 3.2 Off, 3.3 + 3.4 Yellow: RS-485 parameterised

OUT

For public disclosure

Page 4

4 RSTi-EP Slice I/O Serial Communication Module

Description

Options1

Default

Operating mode

Disabled (0) / RS232 (1) / RS485 (2) / RS422 (3)

Disabled

Data bits2

7 Bit (0) / 8 Bit (1)

8 Bit

300 (0) / 600 (1) / 1200 (2) / 2400 (3) / 4800 (4) / 9600 (5) / 14400 (6) / Stop bit

1 Bit (0) / 2 Bit (1)

1 Bit

Parity

None (0) / Even (1) / Odd (2)

None

Flow control

None (0) / CTS/RTS (1) / XON/XOFF (2)

None

XON character

0 ... 255

XOFF character

0 ... 255

Terminating resistor Process data length

16 Byte (1)

16 Byte

1) Values in brackets for EtherCAT and Modbus-TCP

2) Option 7 Bit works only in combination with a parity (even or odd)

GFK-2992B

Overview of Editable Parameters

Baud rate

RS-485/422

19200 (7) / 28800 (8) / 38400 (9) / 57600 (10) / 115200 (11)

Off (0) / On (1) Off

9600

Page 5

RSTi-EP Slice I/O Serial Communication Module 5

Name

Bytes

Bit

Description

Default

Module error

Internal error

External error

Channel error

Error 5

Reserved

Parameter error

1 1 0

2 1 3

Reserved

Error byte 2

0-7

Reserved

0-2

Reserved

Internal diagnostic FIFO full

4-7

Reserved

1 0 2

5 1 6 1 7

Diagnostic bits per Number of channels

6 Number of similar channels per module

Channel error

7-10

0-31

Reserved

Time stamp

43-46

Time stamp [μs] (32 bit)

GFK-2992B

Diagnostic Data

Error indicator 0

Module Type 0x05

Module type 1

Error byte 3 3

Channel type 4

channel

Channel type 0x79

5 Number of diagnostic bit per channel 0

For public disclosure

Page 6

6 RSTi-EP Slice I/O Serial Communication Module

Byte

Format

Name

Bit

Description

Notes

RX = 0: Receive memory is empty

ready for transmission.

Only 10 characters are left in the

parametrerised.

IX0.2

Not used

The RX_CNT value is assigned to each

The TX_CNT_ACK value is a copy of the

data has been taken over successfully.

STAT = 1: Communication with the

Length of the

diagnosis data

IB 2 ... IB

GFK-2992B

Data Transfer

The process data length can be parameterized to be 8 or 16 Bytes. Byte 0 is used for status and diagnosis, Byte 1 for the data segment length, and the remaining 6 or 14 Bytes are user data.

Process input data: The data sent from the serial device are written into the receive memory of the module. As soon as the SPS request results in that RX_CNT is not equal RX_CNT_ACK, the data will be sent in segments via the fieldbus coupler to the PLC. The successfully data transfer will be acknowledged to the module.

The receive memory can safe a maximum of 255 Bytes. A software handshake (XON/XOFF) or a hardware handshake (RTS/CTS) can be parameterised using the flow control, so that an alarm will warn against a buffer overflow.

Process output data: The data sent from the PLC via the fieldbus coupler are written into the transmission memory of the module. The module is continously checking if data is ready to be sent or a data transfer to the device has completed successfully. Not until then will the next data will be transferred.

Process Input Data

IB0

Word

Status and Diagnosis

IX0.0

IX0.1

IX0.3 RX_CNT

IX0.4 RX_CNT

IX0.5 TX_CNT_ACK

IX0.6 TX_CNT_ACK

IX0.7 STAT

Data in the receive memory

Receive memory nearly full

RX = 1: A telegram or telegram segment in the receive memory is

receive memory. XOFF will be set if

data segment of the process input data while transmission. The sequence or the RX_CNT values is: Binary: 00, 01, 10, 11, 00, ... Decimal: 0, 1, 2, 3, 0, ... A faulty data seqence indicates missing data segments.

TX_CNT value, which has been transferred together with the last data segment of the process output data. TX_CNT_ACK acknowledges that the

device is without fault. STAT = 0: Faulty communication with the device.

IB1 Word

7 or IB 2 ... IB 15

Received data

data segment / of the subsequent

User data of the transferred telegram segment

Length of the data / diagnosis data in this frame

Page 7

RSTi-EP Slice I/O Serial Communication Module 7

Byte

Format

Name

Bit

Description

Remarks

Bit 0: RXBUF FLUSH

scrubbed with RXBUF FLUSH = 1.

Bit 1: TXBUF FLUSH

scrubbed with TXBUF FLUSH = 1.

Bit 2: DisableSend_TX_HWBUFFER

DisableSend_TX_HWBUFFER is set to 0 again.

The TX_CNT value is assigned to each data

segments.

RX_CNT_ACK must include a copy of the

receive new data.

The input data status bit STAT will be reset

cannot be scrubbed.

Length of the data segment

QB 2 ... QB 7

QB 2 ... QB 15

User data of the

telegram segment

GFK-2992B

Process Output Data

The receive memory can be scrubbed using this bit. STATRES = 1: A requirement with RXBUF FLUSH = 1 will be ignored. STATRES = 0: The receive memory will be

The emission memory can be scrubbed using this bit. STATRES = 1: A requirement with TXBUF FLUSH = 1 will be ignored. STATRES = 0: The emission memory will be

This bit controls the hardware emission memory: DisableSend_TX_HWBUFFER = 0: The hardware emission memory is released. A character (Byte) will be sent as soon as it reaches the buffer. DisableSend_TX_HWBUFFER = 1: The hardware emission memory is locked. Characters (Bytes) will only be sent, when

segment of the process output data. The sequence or the TX_CNT values is: Binary: 00–>01–>10–>11–>00... Decimal: 0–>1–>2–>3–>0... A faulty data sequence indicates missing data

QB0

Word

IX0.0 RXBUF FLUSH

IX0.1 TXBUF FLUSH

IX0.2 RX_HWBUFFER

Status and Diagnosis

IX0.3 TX_CNT

IX0.4 TX_CNT

QB1 Word

Transmission data

IX0.5 RX_CNT_ACK

IX0.6 RX_CNT_ACK

IX0.7

Communication Status

transferred

For public disclosure

RX_CNT value. The RX_CNT value has been transferred together with the last data segment of the process input data. RX_CNT_ACK must be set in analogy with RX_CNT (in the status byte). It indicates that the data segment has been transferred successfully by using RX_CNT and enables to

using this bit. When changing from 1 to 0 (falling edge) STAT will be reset from 0 to 1. STAT = 0: All changes in the data fields TX_BYTE_CNT, TX_CNT and RX_CNT_ACK will be ignored. The receive or emission memory can be scrubbed using RXBUF FLUSH or TXBUF FLUSH respectively. STAT = 1 or changing from 0 to 1: The buffers

Page 8

8 RSTi-EP Slice I/O Serial Communication Module

SPS application error

Segment-sequence error

GFK-2992B

Enabling the Data Transfer

There are ways to announce the communication module to the control. Using the test mode, you only copy

the input data into the output data of the module so the received data will be sent again. Or, select one of the

function blocks provided by your engineering tool. For programming, refer to the following schemes

showing the sequences for receiving and transmission.

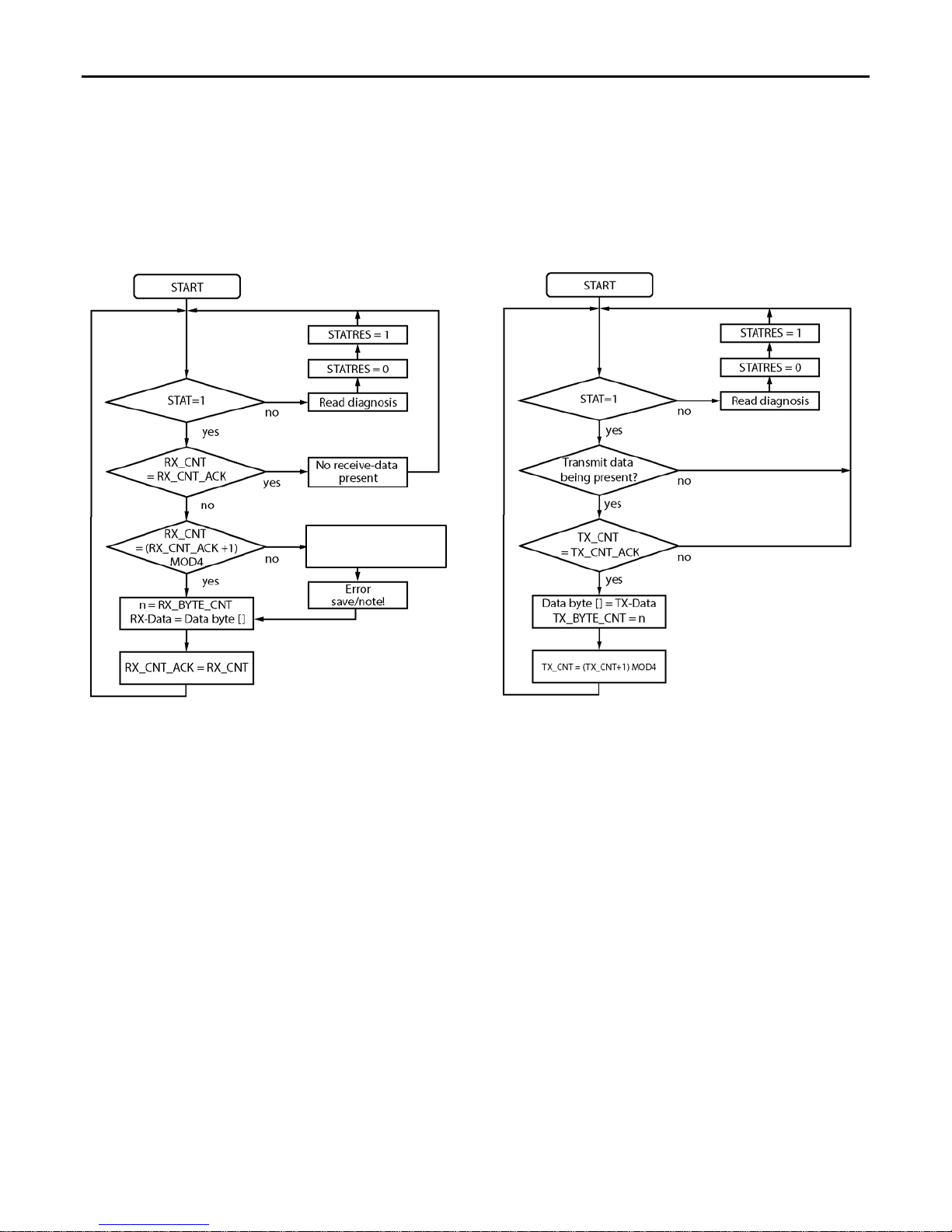

Scheme of the Receiving Sequence Scheme of the Transmission Sequence

Page 9

RSTi-EP Slice I/O Serial Communication Module 9

Input Byte 0 (Status) of Module

Input

Output byte 0 (control) off the module

Output

Notes

7 6 5 4 3 2 1 0 7 6 5 4 3 2 1

After

cation

PLC is

(response)

Module

bytes

over

Before

TX bytes

sent data

GFK-2992B

The status and control word values during various states of communication are provided in the following table.

Action

Stat TX_CNT_ACK RX_CNT STATRES RX_CNT_ACK TX_CNT

Init/ Startup

Activate communication

Receive data

Send data

1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

1 0 0 0 1 0 0 0

1 0 0 0 1 0 0 0 N 1 0 1 0 0 0 0 0 0

1 0 0 0 1 0 0 0 X 1 0 1 0 1 0 0 0

1 0 1 0 1 0 0 0 X 1 0 1 0 1 0 0 0 N

Byte 1

(length

of RX

byte

seg.)

(1 ..14)

1 0 0 0 0 0 0 0 0

byte 1

(length

of TX

byte

seg.)

(1..14)

powerup, module is ready for communi-

ready for communication

has received

acknowledge after data taken

changing TX-CNT, set

acknowledge after module

For public disclosure

Page 10

10 RSTi-EP Slice I/O Serial Communication Module

Cable Capacitance

Maximum Cable Length

≤ 2500 pF

15 m (49 ft), shielded

55 pF/m

45 m (147 ft)

GFK-2992B

Field Wiring

The connection frame can take up to four connectors (shown in the following figure), and four wires can be connected to each connector. The Spring style technology allows either finely stranded or solid wire conductors with crimped wireend ferrules or ultrasonically welded wires, each with a maximum cross-section of 1.5 mm² (16 guage), to be inserted easily through the opening in the clamping terminal without having to use tools. To insert fine stranded wires without wire-end ferrules, the pusher must be pressed in with a screwdriver and released to latch the wire.

Connector Block with Four Wire Connectors

Connector Specifications:

• Conductor cross-section 0.14 to 1.5 mm² (26 – 16 guage)

• 10 A max amperes

• 4-pole

The modules do not have a fused sensor/activator power supply. All cables to the connected sensors/actuators must be fused corresponding to their conductor cross-sections (as per Standard DIN EN 60204-1, section 12).

Connection Cables for the Serial Device

Use shielded cables, because electromagnetic interferences from the surroundings have to be assumed. The maximum permissable cable length depends on the cable capacitance and the baud rate.

Connecting a RS-232 Device

Maximum Cable Length RS-232

Page 11

RSTi-EP Slice I/O Serial Communication Module 11

Baud Rate in kbps

Maximum Cable Length

≤ 19200

1200 m (3937 ft), shielded

38400

500 m (1640 ft)

57600

250 m (820 ft)

115200

200 m (656 ft)

GFK-2992B

Connecting RS-485 or RS-422 Device

The serial device must be connected using a twisted pair cable (U/UTP, Type Cat- 3 or J-2YY-2x2x0,6).

Maximum Cable Length RS-422/485

• RS-485: Use one core pair for Data+/Data–; use any wire for the ground singal GND COM. The remaining free

wires should be connected to ground.

• RS-422: Connect the wires for transmitting signals TXD+/TXD– and those for receiving signals RXD+/RXD– in

pairs respectively. Use any wire for the ground singal GND COM. The remaining free wires should be connected to ground.

Refer to the RSTi-EP Slice I/O User Manual (GFK-2958) for additional information. Technical assistance is available at http://support.ge-ip.com

Installation in Hazardous Areas

 EQUIPMENT LABELED WITH REFERENCE TO CLASS I, GROUPS A, B, C & D, DIV. 2 HAZARDOUS AREAS IS SUITABLE FOR USE IN

CLASS I, DIVISION 2, GROUPS A, B, C, D OR NON-HAZARDOUS AREAS ONLY

 WARNING - EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2;  WARNING - EXPLOSION HAZARD - WHEN IN HAZARDOUS AREAS, TURN OFF POWER BEFORE REPLACING OR WIRING

MODULES; AND

 WARNING - EXPLOSION HAZARD - DO NOT CONNECT OR DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN

SWITCHED OFF OR THE AREA IS KNOWN TO BE NONHAZARDOUS.

ATEX Marking

II 3 G Ex nA IIC T4 Gc

Ta: -20 to +60°C (-4 to +140 °F)

For public disclosure

Page 12

12 RSTi-EP Slice I/O Serial Communication Module

GFK-2992B

Connection Diagrams

EP-5261 Module Connections

Page 13

RSTi-EP Slice I/O Serial Communication Module 13

RS232 RXD RS232 TXD RS232 RTS RS

232 CTS

RS485/422 RXD+ RS485/422 RXDRS422 TXD+ RS422 TXD-

5 V GND 24 V GND COM

GFK-2992B

Connection Block Diagrams

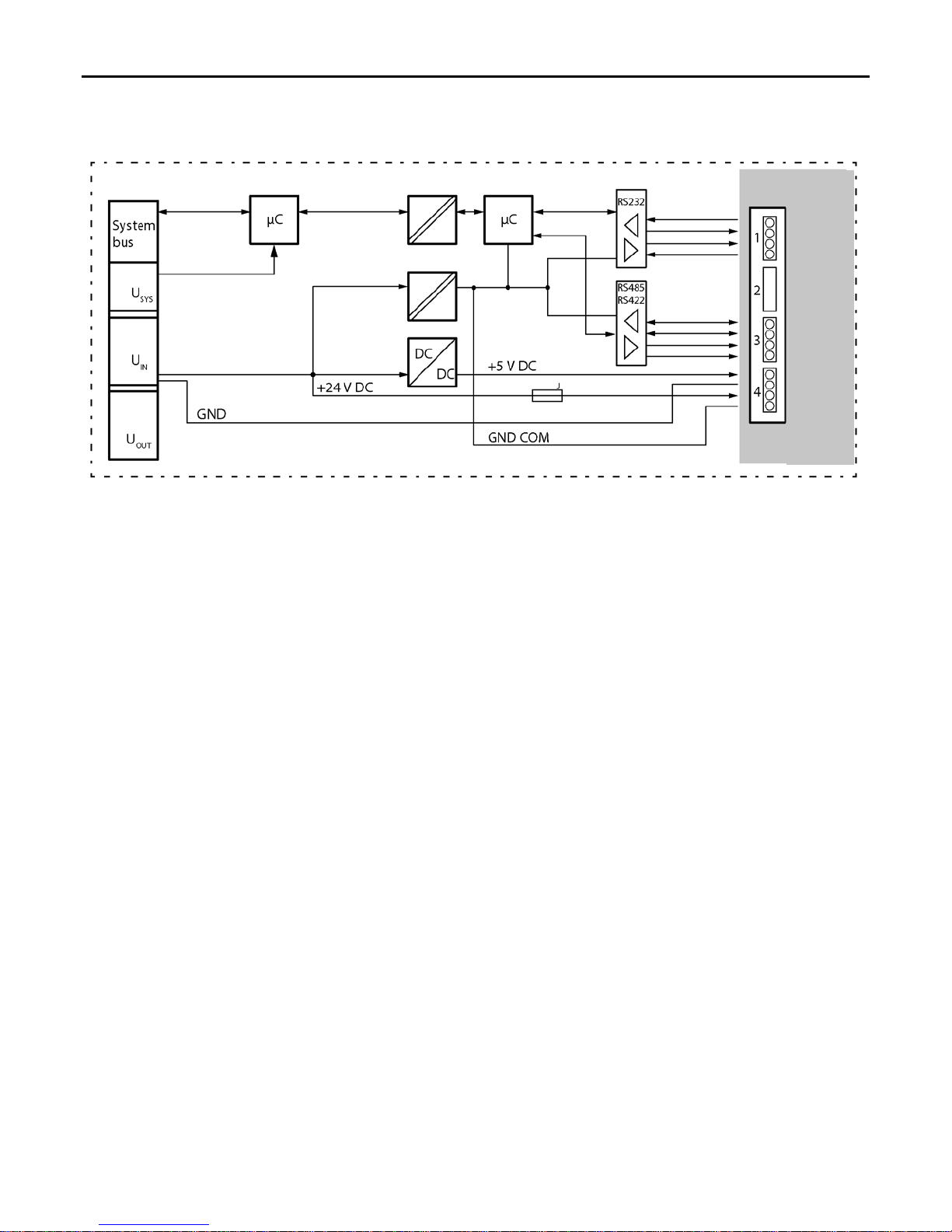

EP-5261 Block Diagram

For public disclosure

Page 14

14 RSTi-EP Slice I/O Serial Communication Module

GFK-2992B

Function Blocks for Enabling Serial Communication

The serial communication module uses 8 registers of input memory and 8 registers of output memory to send and receive the data to any serial device. Function blocks are provided as part of the toolchest drawer to enable faster implementation of serial communication with less efforts on application development.

Toolchest Structure

Note: The toolchest drawer is available for download from the support site at http://geautomation.com

The function block FB_RSTI_EP_5261 is used to send and receive byte strings of length upto 400 bytes. The function block can send 400 bytes of data and receive 400 bytes of data. The length of the data to be received and sent is determined by the input parameter of the function block.

The function block FB_MBM_RTU_Master is used to send and receive Modbus messages with the support of the FB_RSTI_EP_5261 function block. The RTU master function block reads the user inputs and creates Modbus messages. Tthe byte string is then input to the function block FB_RSTI_EP_5261 which in turn outputs the bytes on the serial bus. The response is received by FB_RSTI_EP_5261 and passed as input to the RTU master to parse the response and update the data to internal controller memory.

The function block ModbusMaster_CoilMax is internally used by the RTU master function block.

Note: Refer to the respective function block section in this document for more information on input and output parameters of the serial and RTU master function blocks.

The blocks Serial_Comm and Serial_Comm_wMBMRTU are pre-defined blocks that call to FB_RSTI_EP_5261 and FB_MBM_RTU_Master. Additionally, the symbolic variables are assigned to the inputs and outputs of the function blocks FB_RSTI_EP_5261 and FB_MBM_RTU_Master.

 To invoke serial and RTU master functions blocks

If only serial communication is required for the application, perform the following steps:

1. Import the UDT Ser_Data to the controller target.

2. Import the block FB_RSTI_EP_5261 to the controller target.

3. Import the block Serial_Comm.

4. Call the block Serial_Comm in the application logic.

If Modbus RTU communication is to be used,

1. Import the UDT’s Ser_Data and MBM_Data into the controller target.

2. Import the blocks in the following sequence as follows: a. ModbusMaster_CoilMax b. FB_MBM_RTU_Master c. FB_RSTI_EP_5261 d. Serial_Comm_wMBMRTU

3. Call the block Serial_Comm_wMBMRTU in the application logic.

Page 15

RSTi-EP Slice I/O Serial Communication Module 15

GFK-2992B

Function Block FB_RSTI_EP_5261

The RSTi-EP Function Block (FB_RSTI_EP_5261) can be used for the data handling of the serial interface module RSTi EP-5261 (1 Channel Serial Communications, RS-232, 422, 485). It supports simultaneous transmitting and receiving of data (full duplex mode). For example, using RS-232 mode is possible. As only the input and output data is evaluated, this block can be chosen regardless of the type of interface used.

To enable data transmission using FB_RSTI_EP_5261, a User Defined Type Ser_Data must be imported.

Additionally, each array must to be limited to 400 bytes. To use the variables, an instance of this UDT must be built.

The FB_RSTI_EP_5261 block retrieves the process input data (such as InputOfModule, %AI0001) and stores it on the data buffer (RxDataBuffer) of a UDT. The size and the location of the data buffer are user-determined. Additionally, the user can define the number of bytes within a telegram (uiMaxRecvData). The same process applies for data transmission.

Function Block FB_RSTi_EP-5261

For public disclosure

Page 16

16 RSTi-EP Slice I/O Serial Communication Module

Variable

Type

Description

xEnableRecv

BOOL

Enables receive data: 0 = Receive disabled, 1 = Receive enabled

xEnableSend

BOOL

Enables send data: 0 = Send disabled, 1 = Send enabled

xQuit

BOOL

Acknowledgement of errors

xClr_Buf_Rx

BOOL

Flushes receive buffer : 0 to 1 and Quit = 1

xClr_Buf_Tx

BOOL

Flushes the send buffer : 0 to 1 and Quit = 1

xDisableTxHWBuffer

BOOL

Disables the hardware (HW) transmit buffer: 0 = released , 1 = disabled

Maximum number of the data byte to be received within one telegram. Can be

Note: Must be > 0. If not, data will not be received.

Maximum number of the data byte to be transmitted within one telegram. Can be

Note: Must be > 0. If not, data will not be transmitted.

Process input data of the module . Data type is INT.

Process input data of the module. Data type is INT.

Address of the buffer that receives data within the PLC. Array of n elements of data type BYTE. Currently fixed to 400 bytes.

Address of the buffer that transmits data within the PLC. Array of n elements of data type BYTE. Currently fixed to 400 bytes.

Variable

Type

Description

xBusyRecv

BOOL

Displays an active data reception

xRecvDone

BOOL

Displays finished data reception. Remains TRUE until xEnableRecv is TRUE.

uiRecvDataCnt

UINT

Counter for the received data bytes

xBusySend

BOOL

Displays active data transmission

xSendDone

BOOL

Displays finished data transmission. Remains TRUE until xEnableSend is TRUE.

uiSendDataCnt

UINT

Counter for transmitted data bytes

xRxHWBufNotEmpty

BOOL

Indicates that the hardware receive buffer is not empty

xErrorFlag

BOOL

Displays a general error. Can be reset by acknowledging the variable xQuit.

wRetVal

WORD

Return Value: value is > 8000h to error

Possible Output Variable

16#0000

No error

16#0001

Receive buffer not empty

16#0002

Handshake (CTS or XOFF) ON

16#0003

Receive buffer not empty and handshake (CTS or XOFF) ON

16#8000

Module not ready for communication. Check the address of variable InputOfMdule.

16#8008

Indicates a parameter fault. Check the parameter choice in the PLC configuration.

16#8010

Indicates a hardware fault. Replace the hardware.

16#8020

Indicates fault data flow control. Check the parameter in the PLC configuration.

16#8040

Indicates frame fault. Check the parameter choise in the PLC configuration.

16#8080

Indicates (receive)buffer overflow of EP-5261 module. Check the communication.

Indicates (receive)buffer overflow and frame fault of EP-5261 module. Check the communication.

16#8101

Size of receive buffer is > maximum number of received bytes ==> FB abort.

16#8201

Size of send buffer is > maximum number of bytes to be sent ==> FB abort.

GFK-2992B

FB_RSTi_EP-5261 Input Variables

uiMaxRecvData UINT

uiMaxSendData UINT

InputOfModule ARRAY [0..7] OF INT

OutputOfModule ARRAY [0..7] OF INT

RxDataBuffer ARRAY OF BYTE

TxDataBuffer ARRAY OF BYTE

FB_RSTi_EP-5261 Output Variables

changed before a new job according to the expected telegram length.

RetVal

Warnings

Errors

16#80C0

Description

Page 17

RSTi-EP Slice I/O Serial Communication Module 17

GFK-2992B

Modbus RTU Master Function Block (FB_MBM_RTU_Master)

The modbus RTU master function block FB_MBM_RTU_Master is a MODBUS RTU Master block used in combination with

the Serial Communication Interface module RTSi EP-5261 and the function block FB_RSTI_EP_5261. Using this block, a

maximum of 120 registers / 1024 coils per job per message can be exchanged.

Modbus RTU Master Function Block (FB_MBM_RTU_Master)

For public disclosure

Page 18

18 RSTi-EP Slice I/O Serial Communication Module

Function Code

Number of requested coils

Coil target buffer in master

Input source offset in slave

Number of requested inputs

Input target buffer in master

Holding register source offset in slave

Number of requested registers

Holding register target buffer in master

Input register source offset in slave

Number of requested registers

Input register target buffer in master

FC 5

Coil target offset in slave

---

Coil value in index [1]

Holding register target offset in slave

FC 8

---

Test value in index [1]

---

Coil source buffer in master

Holding register target offset in slave

Number of registers to be sent

Holding register source buffer in master

GFK-2992B

To enable MODBUS data access, a User Defined Types MBM_Data must be imported.

To use the variables, an instance of this UDT must be built.

Every data transfer on the bus is initiated and controlled by the master. A high level on the input varible xMODfcStrobe starts the job, and its function is determined by the function code entered at the input variable usiMODfc. Communication with the MODBUS station, for which an address has been parameterized on the input variable usiMODslaveAdr, is accepted. Depending on the function code, the MODBUS input parameters are interpreted as listed in the following table.

uiMODdatOff uiMODdatNr warMODRegister xarMODCoil

FC 1 Coil source offset in slave

FC 2

FC 3

FC 4

FC 6

FC 15 Coil target offset in slave Number of coils to be sent ---

FC 16

---

Buffers warMODRegister and xarMODCoil are always Read or Written by the master from the first index (MODBUS to 1). The MODBUS diagnostic outputs usi_MODslaveAdrDone, usiMODfcDone, uiMODdatOffDone, and uiMODdatNrDone, always mirror the communication state during a malfunction, meaning they acknowledge the respective inputs or provide information concerning the content of the slave response. With function codes 5, 6 and 8, uiMODdatNrDone describes the written value. The output xMODtransActive is TRUE during execution, until the slave response is received. After the job has been completed, the output returns to FALSE and xMODtransOk is set to a value of 1 if no telegram fault, protocol fault, data fault, or other communication fault has occurred. During a fault, xMODtransOk remains at FALSE and the fault is described with the usiMODfailCode exception code. If the slave does not answer within the set tMODtimeOut timeout threshold, an error message is generated. The outputs are refreshed each time a new job is started.

Page 19

RSTi-EP Slice I/O Serial Communication Module 19

Function Code

Read multiple coil status

Reading of bit variables (Coils)

Read multiple input status

Reading of bit variables (Inputs)

Read multiple holding registers

Reading of word variables (Register)

Read multiple input registers

Reading of word variables (Inputs)

Force single coil

Writing of a bit variable

Force single register

Writing of a word variable

Loop back diagnostic test (00: return query data)

Connection test

Force multiple coils

Writing multiple bit variables (Coils)

Force multiple registers

Writing multiple word variables (Register)

Variable

Type

Description

Enable COM port for MODBUS communication and reset/initiate the module EP5261 while toggle the flag.

usiMODSlaveAdr

BYTE

Address of MODBUS Slave. Default = 0.

Function codes 1, 2, 3, 4, 5, 6, 8, 15, 16 are supported, depending of the MODBUS slave

uiMODdatOff

WORD

Offset address (begin) of MODBUS register that will be accessed

uiMODdatNr

WORD

Number of MODBUS register of the access

tMODtimeOut

TIME

Timeout for MODBUS slave answer. Default = 10s, value in second.

xMODfcStrobe

BOOL

Start of a MODBUS request 0 to 1

xRxBusy

BOOL

Responding bit of FB_RSTI_EP_5261: Receive action is active

xRxDone

BOOL

Responding bit of FB_RSTI_EP_5261: Receive action is done

uiRxByteNo

WORD

Responding CNT of FB_RSTI_EP_5261: Received byte count

xTxBusy

BOOL

Responding bit of FB_RSTI_EP_5261: Send action is active

xTxDone

BOOL

Responding bit of FB_RSTI_EP_5261: Send action is done

uiTxByteNo

WORD

Responding CNT of FB_RSTI_EP_5261: Send byte count

xRxBufferNotEmpty

BOOL

Responding bit of FB_RSTI_EP_5261: RxHWBuffer not empty

wRetVal

WORD

Responding state of FB_RSTI_EP_5261 RetVal of FB_RSTI_EP_5261

Variable

Type

Description

Array 0..120 of WORD

MODBUS data: Buffer for receive or send register, such as MBM_Data01.arwMB_Register.

Array 0..1023 of BOOL

MODBUS data: Buffer for receive or send BOOL(coil) variables, such as MBM_Data01.arxMB_Coil.

Responding data base of FB_RSTI_EP_5261: Address of the buffer for

such as myUDT01.arbRecvData.

Responding data base of FB_RSTI_EP_5261: Address of the buffer for the

such as myUDT01.arbSendData.

GFK-2992B

Supported Function Codes

Description Output

FB_MBM_RTU_Master Input Variables

xEnable BOOL

usiMODfc BYTE

FB_MBM_RTU_Master Input/Output Variables

warMODRegister

xarMODCoil

bInputbuffer

bOutputbuffer

Array 0..270 of BYTE

receives data within the PLC. Array of 400 elements of data type BYTE,

transmit data within the PLC. Array of 400 elements of data type BYTE,

For public disclosure

Page 20

20 RSTi-EP Slice I/O Serial Communication Module

Variable

Type

Description

xMBMasterFirstCycle

BOOL

Flag first cycle: set to a value of 1 after the first cycle

xComPortActiv

BOOL

Status of COMport, MODBUS is activated

xMODtransActive

BOOL

MODBUS transmission is active

xMODtransOk

BOOL

MODBUS request is answered OK

usiMODslaveAdrDone

BYTE

Last addressed MODBUS slave

usiMODfcDone

BYTE

Last Function Code

uiMODdatOffDone

WORD

Last offset addr. of MODBUS register

uiMODdatNrDone

WORD

Last number of MODBUS register

usiMODfailCode

BYTE

MODBUS fail code

xEnableRx

BOOL

Responding Bit of FB_RSTI_EP_5261: Start/Enable Receive

xEnableTx

BOOL

Responding Bit of FB_RSTI_EP_5261: Start/Enable Send

xQuitt

BOOL

Responding Bit of FB_RSTI_EP_5261: Error acknowledge

TXBUF_FLUSH

BOOL

Responding Bit of FB_RSTI_EP_5261 flush the transmit buffer of RST- EP-5261

RXBUF_FLUSH

BOOL

Responding Bit of FB_RSTI_EP_5261: flush the receive buffer of RSTi EP-5261

TXBUF_DISABLE

BOOL

Responding Bit of FB_RSTI_EP_5261: Disable Tx hard buffer

RX_BYTECNT

WORD

Responding CNT of FB_RSTI_EP_5261: Byte counter of received bytes of RSTi EP5261

TX_BYTECNT

WORD

Responding CNT of FB_RSTI_EP_5261: Byte counter of transmitted bytes of RSTi EP-5261

Possible Output Variable

No error

MODBUS: Illegal Function Code

MODBUS: Error Data address

MODBUS: Error Data value

MODBUS: Error telegram length

Parameter error of the function block

COMport open/initializing failed

MODBUS: CRC Error

MODBUS: Time out

MODBUS: Error slave address

MODBUS: Slave indicates incorect Function Code

MODBUS: Slave indicates incorrect number or address of register

GFK-2992B

FB_MBM_RTU_Master Output Variables

usiMODfailCode Description

Error code

Note: FB_MBM_RTU_Master uses and calls the auxiliary function block ModbusMaster_CoilMax (included in the library).

Page 21

RSTi-EP Slice I/O Serial Communication Module 21

1-800-433-2682

GFK-2992B

Release History

Catalog Number Firmware Version Date Comments

EP-5261 01.01 Jun 2015 Initial release

FB_RSTI_EP_5261

FB_MBM_RTU_Master

01.00 Aug 2016 Initial release

Important Product Information for this Release

Updates

None

Funcional Compatibility

N/A

Problems Resolved by this Release

None

New Features and Enhancements

None

Known Restrictions and Open Issues

None

Operational Notes

None

Product Documentation

RSTi-EP Slice I/O Module User Manual (GFK-2958)

RSTi-EP Slice I/O Functional Safety Module User Manual (GFK-2956)

1-434-978-5100

www.geautomation.com

For public disclosure
