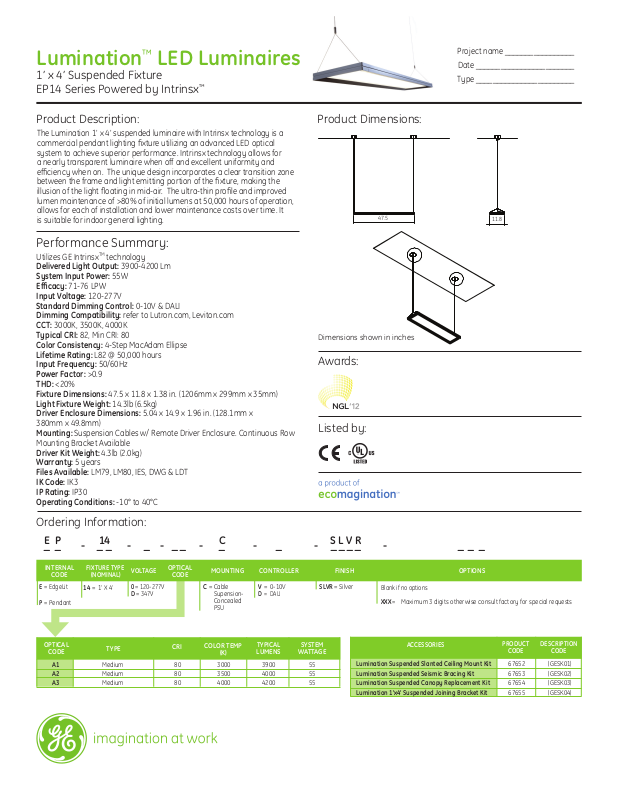

GE EP Specification Sheet

Lumination™ LED Luminaires

1’ x 4’ Suspended Fixture EP14 Series Powered by Intrinsx

™

Project name _________________ Date ________________________ Type ________________________

Product Description:

The Lumination 1’ x 4’ suspended luminaire with Intrinsx technology is a commercial pendant lighting ﬁxture utilizing an advanced LED optical system to achieve superior performance. Intrinsx technology allows for a nearly transparent luminaire when off and excellent uniformity and efﬁciency when on. The unique design incorporates a clear transition zone between the frame and light emitting portion of the ﬁxture, making the illusion of the light ﬂoating in mid-air. The ultra-thin proﬁle and improved lumen maintenance of >80% of initial lumens at 50,000 hours of operation, allows for each of installation and lower maintenance costs over time. It is suitable for indoor general lighting.

Performance Summary:

Utilizes GE IntrinsxTM technology

Delivered Light Output: 3900-4200 Lm System Input Power: 55W Efﬁcacy: 71-76 LPW Input Voltage: 120-277V Standard Dimming Control: 0-10V & DALI Dimming Compatibility: refer to Lutron.com, Leviton.com CCT: 3000K, 3500K, 4000K Typical CRI: 82, Min CRI: 80 Color Consistency: 4-Step MacAdam Ellipse Lifetime Rating: L82 @ 50,000 hours Input Frequency: 50/60Hz Power Factor: >0.9 THD: <20% Fixture Dimensions: 47.5 x 11.8 x 1.38 in. (1206mm x 299mm x 35mm) Light Fixture Weight: 14.3lb (6.5kg) Driver Enclosure Dimensions: 5.04 x 14.9 x 1.96 in. (128.1mm x

380mm x 49.8mm) Mounting: Suspension Cables w/ Remote Driver Enclosure. Continuous Row Mounting Bracket Available

Driver Kit Weight: 4.3lb (2.0kg) Warranty: 5 years Files Available: LM79, LM80, IES, DWG & LDT IK Code: IK3 IP Rating: IP30 Operating Conditions: -10° to 40°C

Product Dimensions:

47.5

Dimensions shown in inches

Awards:

Listed by:

11.8

Ordering Information:

E P 14 C S L V R _ _ - _ _ - _ - _ _ - _ - _ - _ _ _ _ - _ _ _

INTERNAL

CODE

E = EdgeLit

Pendant

P =

OPTICAL

CODE

A1 Medium 80 3000 3900 55 A2 Medium 80 3500 4000 55 A3 Medium 80 4000 4200 55

FIXTURE TYPE

(NOMINAL)

14 = 1’ X 4’

TYPE

VOLTAGE

0 = 120-277V D = 347V

OPTICAL

CODE

CRI

MOUNTING

C = Cable

Supension Concealed PSU

COLOR TEMP

(K)

CONTROLLER

V = 0-10V D = DALI

TYPICAL LUMENS

SYSTEM

WATTAGE

FINISH

SLVR = Silver

OPTIONS

Blank if no options

XXX

Maximum 3 digits otherwise consult factory for special requests

ACCESSORIES

Lumination Suspended Slanted Ceiling Mount Kit 67652 (GESK01) Lumination Suspended Seismic Bracing Kit 67653 (GESK02) Lumination Suspended Canopy Replacement Kit 67654 (GESK03) Lumination 1’x4’ Suspended Joining Bracket Kit 67655 (GESK04)

PRODUCT

CODE

DESCRIPTION

CODE

Photometric Data:

PTLED12E08069-A.ies

CANDLEPOWER SUMMARY

Angle 0° 45° 90°

45°

1858 2873 4 049

55°

2193 3726 5 782

65°

2608 4766 8 185

75°

2780 5275 9 487

85°

1451 1950 2 581

ZONAL LUMEN SUM MARY

Zone Lumens

0-10 31.69 10-20 100.89 20-30 184.79 30-40 284.17 40-50 389.00 50-60 482.90 60-70 514.81 70-80 373.60 80-90 72.59 90-100 133.42 100-110 485.07 110-120 519.23 120-130 360.10 130-140 192.85 140-150 96.71 150-160 51.70 160-170 26.03 170-180 7.96

NOTE: Floor Cavity Reflectance : 20%

Total Luminaire Efficiency = N.A.%

Lumination

RC 80% 70% 50% 30% 10% 0% RW 70% 50% 30% 10% 70% 50% 30% 10% 50% 30% 10% 50% 30% 10% 50% 30% 10% 0%

0 109 109 109 109 101 101 101 101 87 87 87 74 74 74 62 62 62 57 1 97 92 87 83 90 86 81 78 73 70 67 62 60 58 52 50 49 44 2 87 78 71 65 80 72 66 61 62 57 53 52 48 45 43 40 38 33 3 78 67 58 52 72 62 54 48 53 47 42 44 40 36 37 33 30 26 4 71 58 49 42 65 54 46 39 46 39 34 38 33 29 32 28 24 21 5 64 51 42 35 59 47 39 33 40 34 28 34 28 24 28 23 20 17 6 59 45 36 30 54 42 34 28 36 29 24 30 25 20 24 20 17 14 7 54 40 31 25 50 37 29 24 32 25 21 27 21 18 22 18 15 12 8 50 36 28 22 46 34 26 21 29 22 18 24 19 15 20 16 13 10 9 46 33 25 19 43 31 23 18 26 20 16 22 17 13 1 8 14 11 9 10 43 30 22 17 40 28 21 16 24 18 14 20 15 12 17 13 10 8

ZONAL LUMEN SUM MARY

Zone Lumens % of Lam p % of Fixture

0-20 132.59 N. A. 3.10 0-30 317.38 N. A. 7.40 0-40 601.55 N. A. 14.00 0-60 1473.45 N.A. 34.20 0-80 2361.86 N.A . 54.80 0-90 2434.45 N.A. 56.50

1’ x 4’ Suspended Fixture EP 14 Series

COEFFICIENTS O F UTILIZATION

Polar Graph

Medium Distribution

959

719

479

240

Product Speciﬁcations:

Optical System:

Delivers superior performance and greater control of how the light is distributed. GE’s innovative system approach using Intrinsx™ technology. Intrinsx technology allows for a nearly transparent luminaire when off and excellent uniformity and efﬁciency when on. Intrinsx helps to create a space that feels brighter, cleaner and more modern.

• Precision formed optical assembly comprised of injection molded high specularity reﬂectors, and an injection molded conformal transmissive lens

• High optical grade acrylic providing good efﬁciency and impact resistance

• Durable hard coated protective layers for scratch resistance and ease of cleaning

• LED light engine consists of a precision die-cast aluminum heat sink, a Metal Core Printed Circuit Board Assembly (MCPCB)

• Beam Uniformity: Du’v’ = 0.0008

• Luminance Uniformity: 2:1 max to min

• No visible diodes

Construction:

• Durable, long lasting designer aluminum frame

• IP Rating: IP30

• Impact Resistance: IK=3

Maximum Driver Remote Mounting Distance:

Supply Wire Gauge Wire Length*

18 AWG (0.82 mm2) 59.0ft (18m) 16 AWG (1.31 mm2 ) 98.4ft (30m) 14 AWG (2.08 mm2) 154.2ft (47m) 12 AWG (3.31 mm2) 249.3ft (76m)

* Includes ﬁxture’s 6.6ft (2m) power cord

Electrical System:

• Class 1, replaceable, high efﬁciency LED driver rated for 100,000 hours when used within operating conditions.

• Audible Noise – Per 29CFR 1910 sub part G: <24 dba (1 foot)

• Thermal overload protection shuts down the luminaire when system temperatures exceed designed operating conditions

• THD: <20%

• Transient Protection: 100 kHz ring wave, 2.5 kV level

• Environmental Testing: High Temperature High Humidity: 60°C / 90% (non-condensing)

• Electronic Vibration Testing: Multi Axis, Random Vibration Proﬁle: 2-2000 Hz, 5Gs on electronics

• Input Current: 120V/55W - 455mA 230V/55W - 248mA 277V/55W - 216mA

Installation:

• Suspension cables and mounting accessories provided standard

• Remote PSU enclosure delivers a clean, uninterrupted luminaire below the ceiling grid

• Luminaire Vibration Testing: Luminaire test to 0.5 G, 100,000 cycles per axis, 2 axis

For more information and access to all of our resources, including our design tool visit: www.gelightingsolutions.com

GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com

1 - 8 8 8 - 6 9 - 4 3 - 5 3 3

GE Lighting Solutions, LLC is a subsidiary of the General Electric Company. The GE brand logo, Lumination and Intrisx are trademarks of the General Electric Company. © 2012 GE Lighting Solutions, LLC. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.

IND024-R112712
