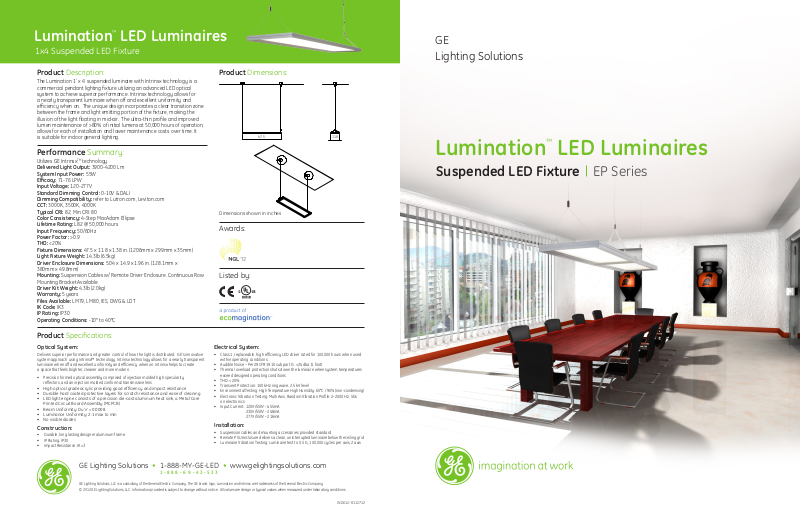

GE EP Data Sheet
Lumination™ LED Luminaires
1x4 Suspended LED Fixture
GE
Lighting Solutions
Product Description:
The Lumination 1’ x 4’ suspended luminaire with Intrinsx technology is a
commercial pendant lighting fixture utilizing an advanced LED optical
system to achieve superior performance. Intrinsx technology allows for
a nearly transparent luminaire when off and excellent uniformity and
efficiency when on. The unique design incorporates a clear transition zone
between the frame and light emitting portion of the fixture, making the
illusion of the light floating in mid-air. The ultra-thin profile and improved
lumen maintenance of >80% of initial lumens at 50,000 hours of operation,
allows for each of installation and lower maintenance costs over time. It
is suitable for indoor general lighting.
Performance Summary:
Utilizes GE IntrinsxTM technology
Delivered Light Output: 3900-4200 Lm
System Input Power: 55W
Efficacy: 71-76 LPW
Input Voltage: 120-277V
Standard Dimming Control: 0-10V & DALI
Dimming Compatibility: refer to Lutron.com, Leviton.com
CCT: 3000K, 3500K, 4000K
Typical CRI: 82, Min CRI: 80
Color Consistency: 4-Step MacAdam Ellipse
Lifetime Rating: L82 @ 50,000 hours
Input Frequency: 50/60Hz
Power Factor: >0.9
THD: <20%
Fixture Dimensions: 47.5 x 11.8 x 1.38 in. (1206mm x 299mm x 35mm)
Light Fixture Weight: 14.3lb (6.5kg)
Driver Enclosure Dimensions: 5.04 x 14.9 x 1.96 in. (128.1mm x
380mm x 49.8mm)
Mounting: Suspension Cables w/ Remote Driver Enclosure. Continuous Row
Mounting Bracket Available
Driver Kit Weight: 4.3lb (2.0kg)
Warranty: 5 years
Files Available: LM79, LM80, IES, DWG & LDT
IK Code: IK3
IP Rating: IP30
Operating Conditions: -10° to 40°C
Product Dimensions:
47.5
Dimensions shown in inches
Awards:
Listed by:
11.8
Lumination™ LED Luminaires
Suspended LED Fixture EP Series
Product Specifications:
Optical System:
Delivers superior performance and greater control of how the light is distributed. GE’s innovative
system approach using Intrinsx™ technology. Intrinsx technology allows for a nearly transparent
luminaire when off and excellent uniformity and efficiency when on. Intrinsx helps to create
a space that feels brighter, cleaner and more modern.
• Precision formed optical assembly comprised of injection molded high specularity
reflectors, and an injection molded conformal transmissive lens
• High optical grade acrylic providing good efficiency and impact resistance
• Durable hard coated protective layers for scratch resistance and ease of cleaning
• LED light engine consists of a precision die-cast aluminum heat sink, a Metal Core
Printed Circuit Board Assembly (MCPCB)
• Beam Uniformity: Du’v’ = 0.0008
• Luminance Uniformity: 2:1 max to min
• No visible diodes
Construction:
• Durable, long lasting designer aluminum frame
• IP Rating: IP30
• Impact Resistance: IK=3
GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com
1 - 8 8 8 - 6 9 - 4 3 - 5 3 3
GE Lighting Solutions, LLC is a subsidiary of the General Electric Company. The GE brand, logo, Lumination and Intrinsx are trademarks of the General Electric Company.
© 2012 GE Lighting Solutions, LLC. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
Electrical System:
• Class 1, replaceable, high efficiency LED driver rated for 100,000 hours when used
within operating conditions.
• Audible Noise – Per 29CFR 1910 sub part G: <24 dba (1 foot)
• Thermal overload protection shuts down the luminaire when system temperatures
exceed designed operating conditions
• THD: <20%
• Transient Protection: 100 kHz ring wave, 2.5 kV level
• Environmental Testing: High Temperature High Humidity: 60°C / 90% (non-condensing)
• Electronic Vibration Testing: Multi Axis, Random Vibration Profile: 2-2000 Hz, 5Gs
on electronics
• Input Current: 120V/55W - 455mA
230V/55W - 248mA
277V/55W - 216mA
Installation:
• Suspension cables and mounting accessories provided standard
• Remote PSU enclosure delivers a clean, uninterrupted luminaire below the ceiling grid
• Luminaire Vibration Testing: Luminaire test to 0.5 G, 100,000 cycles per axis, 2 axis
IND012-R112712
Maximized
Performance
Both ambient and directional, this fixture carefully
guides light up for general illumination as well as
aiming it precisely down for specific functionally.
It is perfect for applications that include
conference rooms, open offices, lobbies, retail
settings, anywhere you want to make a
statement. Imagine what you can do with
this clearly unique fixture. Its immaculate
design aesthetic is unlike anything
you’ve seen before.
Minimalist Design
There’s never been a fixture quite like it; the Lumination Suspended LED
Luminaire marks the beginning of a new era in interior lighting. Minimalist
design creates an exceptionally thin profile that appears to float across your
ceiling landscape. When turned on, it produces a perfectly even glow, and while
off, it is nearly transparent with LEDs hidden inside the frame. The effect is
dramatic and opens up a new world of striking design possibilities.
