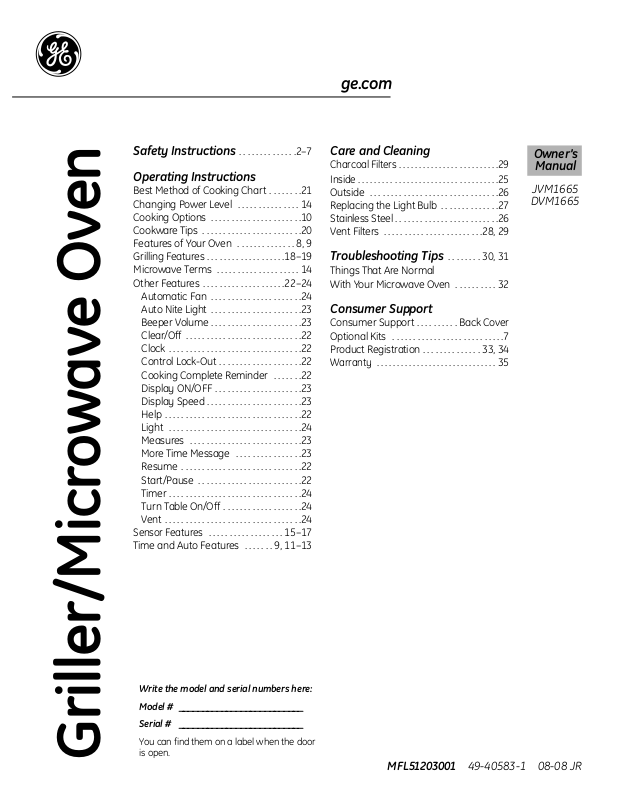

GE DVM1665 User Manual
Griller/Microwave Oven
MFL51203001 49-40583-1 08-08 JR
JVM1665
DVM1665
Owner’s
Manual
ge.com
Write the model and serial numbers here:
Model # __________________________
Serial # __________________________
You can find them on a label when the door
is open.
Safety Instructions . . . . . . . . . . . . . .2–7
Operating Instructions
Best Method of Cooking Chart . . . . . . . .21
Changing Power Level . . . . . . . . . . . . . . . 14
Cooking Options . . . . . . . . . . . . . . . . . . . . . .10
Cookware Tips . . . . . . . . . . . . . . . . . . . . . . . .20
Features of Your Oven . . . . . . . . . . . . . . 8, 9
Grilling Features . . . . . . . . . . . . . . . . . . .18–19
Microwave Terms . . . . . . . . . . . . . . . . . . . . 14
Other Features . . . . . . . . . . . . . . . . . . . .22–24
Automatic Fan . . . . . . . . . . . . . . . . . . . . . .24
Auto Nite Light . . . . . . . . . . . . . . . . . . . . . .23
Beeper Volume . . . . . . . . . . . . . . . . . . . . . .23
Clear/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Control Lock-Out . . . . . . . . . . . . . . . . . . . .22
Cooking Complete Reminder . . . . . . .22
Display ON/OFF . . . . . . . . . . . . . . . . . . . . .23
Display Speed . . . . . . . . . . . . . . . . . . . . . . .23
Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Measures . . . . . . . . . . . . . . . . . . . . . . . . . . .23
More Time Message . . . . . . . . . . . . . . . .23
Resume . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Start/Pause . . . . . . . . . . . . . . . . . . . . . . . . .22
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Turn Table On/Off . . . . . . . . . . . . . . . . . . .24
Vent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Sensor Features
. . . . . . . . . . . . . . . . . . 15–17
Time and Auto Features . . . . . . . 9, 11–13
Care and Cleaning
Charcoal Filters . . . . . . . . . . . . . . . . . . . . . . . . .29
Inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Replacing the Light Bulb . . . . . . . . . . . . . .27
Stainless Steel . . . . . . . . . . . . . . . . . . . . . . . . .26
Vent Filters . . . . . . . . . . . . . . . . . . . . . . . .28, 29
Troubleshooting Tips . . . . . . . . 30, 31
Things That Are Normal
With Your Microwave Oven . . . . . . . . . . 32
Consumer Support
Consumer Support . . . . . . . . . . Back Cover
Optional Kits . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Product Registration . . . . . . . . . . . . . . 33, 34
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
IMPORTANT SAFETY INSTRUCTIONS.
READ ALL INSTRUCTIONS BEFORE USING.
■ Read and follow the specific precautions
in the PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY section above.
■ This appliance must be grounded. Connect only
to a properly grounded outlet . See the GROUNDING
INSTRUCTIONS section on page 6.
■ Install or locate this appliance only in accordance with
the provided installation instructions.
■ This microwave oven is UL listed for installation over
electric and gas ranges.
■ This microwave oven is not approved or tested
for marine use.
■ This over-the-range oven is designed for use over ranges
no wider than 36.″ It may be installed over both gas
and electric cooking equipment.
■ Do not operate this appliance if it has a damaged power
cord or plug, if it is not working properly, or if it has been
damaged or dropped. If the power cord is damaged,
it must be replaced by General Electric Service or an
authorized service agent using a power cord available
from General Electric.
■ Do not cover or block any openings on the appliance.
■ Use this appliance only for its intended use as described
in this manual. Do not use corrosive chemicals or vapors
in this appliance. This microwave oven is specifically
designed to heat, dry or cook food, and is not intended
for laboratory or industrial use.
■ To reduce the risk of fire in the oven cavity:
— Do not overcook food. Carefully attend appliance when
paper, plastic or other combustible materials are placed
inside the oven while cooking.
— Remove wire twist-ties and metal handles from paper
or plastic containers before placing them in the oven.
— Do not use the oven for storage purposes. Do not leave
paper products, cooking utensils or food in the oven when
not in use.
— Do not pop popcorn in your microwave oven unless
in a special microwave popcorn accessory or unless
you use popcorn labeled for use in microwave ovens.
— If materials inside the oven ignite, keep the oven door
closed, turn the oven off and disconnect the power cord,
or shut off power at the fuse or circuit breaker panel.
If the door is opened, the fire may spread.
— Do not use the Sensor Features twice in succession
on the same food portion. If food is undercooked after
the first countdown, use Time Cook for additional
cooking time.
WARNING!
To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:
(a) Do Not Attempt to operate this oven with the door
open since open-door operation can result in harmful
exposure to microwave energy. It is important not
to defeat or tamper with the safety interlocks.
( b) Do Not Place any object between the oven front
face and the door or allow soil or cleaner residue
to accumulate on sealing surfaces.
(c) Do Not Operate the oven if it is damaged.
It is particularly important that the oven door close
properly and that there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The Oven Should Not be adjusted or repaired by
anyone except properly qualified service personnel.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
2
Consumer Support Troubleshooting Tips Care and Cleaning
Operating Instructions
Safety Instructions
3
ge.com
IMPORTANT SAFETY INSTRUCTIONS.
■ When using the Auto Grill, Manual Grill or Combo Grill
functions, both the outside and inside of the oven will
become hot. Always use hot pads to remove containers
of food and accessories such as the oven shelf.
■ Thermometer—Do not use regular cooking or oven
thermometers when cooking by microwave. The metal
and mercury in these thermometers could cause
arcing and possible damage to the oven. Do not use
a thermometer in food you are microwaving unless
the thermometer is designed or recommended for
use in the microwave oven.
■ Do not clean with metal scouring pads. Pieces can burn off
the pad and touch electrical parts involving risk of electric
shock.
■ Do not store any materials, other than our recommended
accessories, in this oven when not in use.
■ Do not store this appliance outdoors. Do not use this
product near water—for example, in a wet basement,
near a swimming pool, near a sink or in similar locations.
■ Keep power cord away from heated surfaces.
■ Do not immerse power cord or plug in water.
■ Some products such as whole eggs and sealed
containers—for example, closed jars—are able to explode
and should not be heated in this microwave oven.
Such use of the microwave oven could result in injury.
■ It is important to keep the area clean where the door
seals against the microwave. Use only mild, non-abrasive
detergents applied with a clean sponge or soft cloth.
Rinse well.
■ This appliance must only be serviced by qualified service
personnel. Contact nearest authorized service facility
for examination, repair or adjustment.
■ As with any appliance, close supervision is necessary
when used by children.
■ Do not store anything directly on top of the microwave
oven surface when the microwave oven is in operation.
■ Do not mount this appliance over a sink.
SAVE THESE INSTRUCTIONS
ARCING
If you see arcing, press the CLEAR/OFF button and correct the problem.
Arcing is the microwave term for sparks in the oven.
Arcing is caused by:
■ The metal shelf not installed correctly so it
touches the microwave wall.
■ Metal or foil touching the side of the oven.
■ Turntable ring support not installed correctly.
■ Foil not molded to food (upturned edges act
like antennas).
■ Metal, such as twist-ties, poultry pins,
or gold-rimmed dishes, in the microwave.
■ Recycled paper towels containing small metal
pieces being used in the microwave.
WARNING!
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
4
IMPORTANT SAFETY INSTRUCTIONS.
READ ALL INSTRUCTIONS BEFORE USING.
FOODS
■ Do not pop popcorn in your microwave oven unless
in a special microwave popcorn accessory or unless
you use popcorn labeled for use in microwave
ovens.
■ Do not boil eggs in a microwave oven. Pressure will
build up inside egg yolk and will cause it to burst,
possibly resulting in injury.
■ Operating the microwave with no food inside for
more than a minute or two may cause damage
to the oven and could start a fire. It increases
the heat around the magnetron and can shorten
the life of the oven.
■ Foods with unbroken outer “skin” such as potatoes,
hot dogs, sausages, tomatoes, apples, chicken livers
and other giblets, and egg yolks should be pierced
to allow steam to escape during cooking.
■ SUPERHEATED WATER
Liquids, such as water, coffee, or tea, are able to
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A SPOON OR
OTHER UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
— Do not overheat the liquid.
— Stir the liquid both before and halfway through
heating it.
— Do not use straight-sided containers with narrow
necks.
— After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
— Use extreme care when inserting a spoon or other
utensil into the container.
■ Foods cooked in liquids (such as pasta) may tend
to boil more rapidly than foods containing less
moisture. Should this occur, refer to the Care
and cleaning of the microwave oven section for
instructions on how to clean the inside of the oven.
■ Avoid heating baby food in glass jars, even with
the lid off. Make sure all infant food is thoroughly
cooked. Stir food to distribute the heat evenly.
Be careful to prevent scalding when warming
formula. The container may feel cooler than the
formula really is. Always test the formula before
feeding the baby.
■ Don’t defrost frozen beverages in narrow-necked
bottles (especially carbonated beverages). Even
if the container is opened, pressure can build up.
This can cause the container to burst, possibly
resulting in injury.
■ Hot foods and steam can cause burns. Be careful
when opening any containers of hot food, including
popcorn bags, cooking pouches and boxes.
To prevent possible injury, direct steam away
from hands and face.
■ Do not overcook potatoes. They could dehydrate
and catch fire, causing damage to your oven.
■ Cook meat and poultry thoroughly—meat to at
least an INTERNAL temperature of 160°F and
poultry to at least an INTERNAL temperature
of 180°F. Cooking to these temperatures usually
protects against foodborne illness.
WARNING!
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
5
ge.com
MICROWAVE-SAFE COOKWARE
Do not operate the oven in the microwave mode without the turntable and the turntable support seated
and in place. The turntable must be unrestricted so it can rotate.
Make sure all cookware used in your microwave oven is suitable for microwaving. Most glass casseroles,
cooking dishes, measuring cups, custard cups, pottery or china dinnerware which does not have
metallic trim or glaze with a metallic sheen can be used. Some cookware is labeled “suitable for
microwaving.”
■ If you are not sure if a dish
is microwave-safe, use this
test: Place in the oven both
the dish you are testing
and a glass measuring cup
filled with 1 cup of water—
set the measuring cup
either in or next to the dish. Microwave 30–45
seconds at high. If the dish heats, it should not
be used for microwaving.
If the dish remains cool and only the water in
the cup heats, then the dish is microwave-safe.
■ Oversized food or oversized metal cookware
should not be used in a microwave/convection
oven because they increase the risk of electric
shock and could cause a fire.
■ Sometimes the oven floor, turntable and walls
can become too hot to touch. Be careful touching
the floor, turntable and walls during and after
cooking.
■ If you use a meat thermometer while
microwaving or using the Auto Grill, Manual Grill
or Combo Grill mode, make sure it is safe for use
in microwave ovens.
■ Do not use recycled paper products. Recycled
paper towels, napkins and waxed paper can
contain metal flecks which may cause arcing
or ignite. Paper products containing nylon or nylon
filaments should be avoided, as they may also
ignite.
■ Some styrofoam trays (like those that meat
is packaged on) have a thin strip of metal
embedded in the bottom. When microwaved,
the metal can burn the floor of the oven or
ignite a paper towel.
■ Use of the shelf accessory:
— Remove the shelf from the oven when
not in use.
— Use pot holders when handling the shelf and
cookware. They may be hot.
— Be sure that the shelf is positioned properly inside
the oven to prevent product damage.
— Do not cover the shelf or any part of the oven
with metal foil. This will cause overheating of
the microwave/griller oven.
■ Do not use your microwave/convection oven
to dry newspapers.
■ Not all plastic wrap is suitable for use in microwave
ovens. Check the package for proper use.
■ Paper towels, waxed paper and plastic wrap can
be used to cover dishes in order to retain moisture
and prevent spattering while microwaving. Be sure
to vent plastic wrap so steam can escape.
■ Do not use paper products when the microwave/
griller oven is operated in the Auto Grill, Manual
Grill or Combo Grill mode.
■ Cookware may become hot because of heat
transferred from the heated food. Pot holders
may be needed to handle the cookware.
■ When microwaving “boilable” cooking pouches
and tightly closed plastic bags, they should be slit,
pierced or vented as directed by package. If they
are not, plastic could burst during or immediately
after cooking, possibly resulting in injury. Also,
plastic storage containers should be at least
partially uncovered because they form a tight seal.
When cooking with containers tightly covered with
plastic wrap, remove covering carefully and direct
steam away from hands and face.
■ Use foil only as directed in this manual. When using
foil in the microwave oven, keep the foil at least 1″
away from the sides of the oven.
■ Plastic cookware—Plastic cookware designed for
microwave cooking is very useful, but should be
used carefully. Even microwave-safe plastic may
not be as tolerant of overcooking conditions as
are glass or ceramic materials and may soften or
char if subjected to short periods of overcooking.
In longer exposures to overcooking, the food
and cookware could ignite.
Plastic microwave cookware can NOT be used
when using the grilling functions of this oven.
Follow these guidelines:
Use microwave-safe plastics only and use
them in strict compliance with the cookware
manufacturer’s recommendations.
Do not microwave empty containers.
Do not permit children to use plastic cookware
without complete supervision.
3
2
1
Safety Instructions Operating Instructions
Care and Cleaning
Troubleshooting Tips
Consumer Support
How to test for
a microwave-safe dish.
6
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
GROUNDING INSTRUCTIONS
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the risk
of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped with a power cord
having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or service technician
if the grounding instructions are not completely
understood, or if doubt exists as to whether
the appliance is properly grounded.
If the outlet is a standard 2-prong wall outlet,
it is your personal responsibility and obligation
to have it replaced with a properly grounded
3-prong wall outlet.
Do not under any circumstances cut or remove
the third (ground) prong from the power cord.
Do not use an adapter plug with this appliance.
Do not use an extension cord with this appliance.
If the power cord is too short, have a qualified
electrician or service technician install an outlet
near the appliance.
For best operation, plug this appliance into its
own electrical outlet to prevent flickering of lights,
blowing of fuse or tripping of circuit breaker.
WARNING!
WARNING: Improper use of the grounding plug can result in a risk of electric shock.
THE VENT FAN
The fan will operate automatically under certain
conditions (see Automatic Fan feature). Take care
to prevent the starting and spreading of accidental
cooking fires while the vent fan is in use.
■ Clean the underside of the microwave often.
Do not allow grease to build up on the microwave
or the fan filters.
■ In the event of a grease fire on the surface units
below the microwave oven, smother a flaming
pan on the surface unit by covering the pan
completely with a lid, a cookie sheet or a flat tray.
■ Use care when cleaning the vent fan filters.
Corrosive cleaning agents, such as lye-based
oven cleaners, may damage the filters.
■ When preparing flaming foods under
the microwave, turn the fan on.
■ Never leave surface units beneath your microwave
oven unattended at high heat settings. Boilovers
cause smoking and greasy spillovers that may
ignite and spread if the microwave vent fan is
operating. To minimize automatic fan operation,
use adequate sized cookware and use high heat
on surface units only when necessary.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Ensure proper ground exists
before use.
7
ge.com
Filler Panel Kit
■ JX52
When replacing a 36″ range hood, the filler panel kit
fills in the additional width to provide a custom
built-in appearance.
For installation between cabinets only; not for
end-of-cabinet installation. Each kit contains
two 3″ wide filler panels.
Filter Kit
■ JX81A—Recirculating Charcoal Filter Kit
A filter kit is used when
the oven cannot be
vented to the outside.
Available at extra cost
from your GE supplier.
See the back cover for
ordering by phone or
at ge.com.
Available at extra cost from your GE supplier.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
JX81A
Optional kits
NOTICE: PACEMAKERS
Most pacemakers are shielded from interference from
electronic products, including microwaves. However,
patients with pacemakers may wish to consult their
physicians if they have concerns.
8
About the features of your oven.
Throughout this manual, features and appearance may vary from your model.
Features of the Oven
Door Latch Release Handle.
Door Latches.
Window with Metal Shield. Screen allows
cooking to be viewed while keeping microwaves
confined in the oven.
Control Panel and Selector Dial.
Removable Turntable. Do not operate the oven
in the microwave mode without the turntable
and turntable support seated and in place.
Removable Turntable Support. Do not operate
the oven in the microwave mode without
the turntable and turntable support seated
and in place.
Grilling Shelf. Use with Auto Grill and
Manual Grill. The shelf is optional with Combo
Grill. The shelf is also optional with Auto and
Manual Grill when grilling large items that would
be too close to the top of the microwave.
Grilling Pan. Use with the grilling shelf during
Auto Grill, Manual Grill and Combo Grill.
Grilling Element.
Shelf. Lets you microwave several foods at
once. Food microwaves best when placed
directly on the turntable.
Consumer Support
Troubleshooting Tips
Care and Cleaning
Operating Instructions
Safety Instructions
Microwave Cooking Time and Auto Features
Press Turn and push dial to enter
Time Cook Amount of cooking time
Press once to microwave any time
between 15 seconds and 95 minutes.
Add 30 Seconds Starts immediately!
Defrost
Press once (Fast) Food weight up to one pound
Press twice (Auto) Food weight up to six pounds
Press three times (Time) Amount of defrosting time
Beverage (6–12 oz.) Starts immediately!
Power Level Power level 1–10
Sensor Features
Press Turn and push dial to enter Option
Popcorn Starts immediately! more/less time
Potato Starts immediately! more/less time
Soften/Melt
Press once (soften) Food type
Press twice (melt) Food type
Auto Cook Food type more/less time
Grilling Features
Press Turn and push dial to enter
Auto Grill Food type/Specific food
Manual Grill Desired cook time
Combo Grill Food type/Specific food
9
You can cook by Microwave, Auto Grill, Manual Grill or Combo Grill.
About the cooking features
of your microwave/griller oven.
ge.com
Cooking Controls
Dial Selector
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
10
Always use the grilling shelf when
using Auto Grill or Manual Grill unless
the item you are cooking is too large.
Cooking Method
Microwave energy
is distributed evenly
throughout the
oven for thorough,
fast cooking
of food.
Heat Source
Microwave energy.
Heat Conduction
Heat produced
within food by
instant energy
penetration.
Benefits
Fast, high efficiency
cooking. Oven
and surroundings
do not get hot.
Easy clean-up.
Cooking Method
Hot air radiates
around food to
produce a browned
exterior.
Heat Source
Radiating
heated air.
Heat Conduction
Heat conducted
from outside
of food to inside.
Benefits
Aids in browning
and enhances
flavor.
Available cooking options.
Microwave Cooking
Auto Grill/Manual Grill
During grilling, a heating element is used to generate radiant heat to brown the exterior
of the food. Your oven offers the option of using automatic or manual grilling. Automatic grilling
allows you to select the correct food type from a pre-programmed menu. Manual grilling allows
you to specify the amount of time you wish to grill.
Your oven uses microwave energy to cook by a set time or weight, or automatically
by sensor.
Sensor microwave works by detecting the increasing humidity released during cooking.
The oven automatically adjusts the cooking time to various types and amounts of food.
Cooking Method
Microwave energy
and radiating
heated air combine
to grill foods faster.
Heat Source
Microwave energy
and radiating
heated air.
Heat Conduction
Food heats from
instant microwave
energy penetration
and from heat
conducted from
outside.
Benefits
Shortened
grilling time from
microwave energy
plus browning
and flavor
enhancement.
For best results, use the grilling shelf
when using Combo Grill unless the item
you are cooking is too large.
Combination Grill
Your oven also offers the option of using Combination Grill. This feature allows for faster grilling
by combining grilling and microwave energy.
Consumer Support
Troubleshooting Tips
Care and Cleaning
Operating Instructions Safety Instructions
11
Time Cook
(Do not use the shelves when
microwave cooking.)
Time Cook I
Allows you to microwave for any time
between 15 seconds and 95 minutes.
Power level 10 (High) is automatically set,
but you may change it for more flexibility.
Press the Time Cook button.
Turn the dial to set the cook time and
press the dial to enter.
Change power level if you don’t want full
power. (Press Power Level. Turn the dial
to select. Press the dial to enter.)
Press the dial or the Start/Pause button
to start cooking.
You may open the door during Time Cook
to check the food. Close the door and press
the dial or Start/Pause to resume cooking.
NOTE: You may change the cook time at
any time during cooking by turning the dial.
You may also change the power level by
pressing the Power Level button.
Time Cook II
Lets you change power levels automatically
during cooking. Here’s how to do it:
Press the Time Cook button.
Turn the dial to set the first cook time
and press the dial to enter.
Change the power level if you don’t want
full power. (Press Power Level. Turn the
dial to select. Press the dial to enter.)
Press the Time Cook button again.
Turn the dial to set the second cook time
and press the dial to enter.
Change the power level if you don’t
want full power. (Press Power Level. Turn
the dial to select. Press the dial to enter.)
Press the dial or the Start/Pause button
to start cooking.
At the end of Time Cook I, Time Cook II
counts down.
NOTE: You may change the cook time
at any time during cooking by turning
the dial. You may also change the power
level by pressing the Power Level button.
7
6
5
4
3
2
1
4
3
2
1
Add 30 Seconds (Do not use the shelves
when microwave cooking.)
This is a quick way to set and start cooking
in 30 second blocks each time the Add 30
Seconds button is pressed. The cook time
may be changed by turning the dial at any
time during cooking.
The power level will automatically be set
at 10 and the oven will start immediately.
The power level can be changed as time is
counting down. Press the Power Level button,
turn the dial and press to enter.
About the time and auto microwave features. ge.com
Using the Dial
You can make selections on the oven by
turning the dial and pressing it to enter
the selection.
Pressing the dial can also be used in place
of the Start/Pause button for quicker
programming of the oven.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
12
About the time and auto microwave features.
Auto Defrost (Do not use the shelves
when microwave cooking.)
Use Auto Defrost for meat, poultry and fish
weighing up to six pounds.
Use Time Defrost
for most other frozen foods.
Auto Defrost automatically sets the
defrosting times and power levels to give
even defrosting results for meats, poultry
and fish.
■Remove meat from package and place
on microwave-safe dish.
Press the Defrost button twice.
Turn the dial to the food weight,
using the Conversion Guide at right.
For example, dial 1.2 for 1.2 pounds
(1 pound, 3 oz.). Press the dial to enter.
Press the Start/Pause button to start
defrosting.
Turn the food over if the oven signals
TURN FOOD OVER.
■Remove defrosted meat or shield warm
areas with small pieces of foil.
■After defrosting, most meats need to stand
5 minutes to complete defrosting. Large
roasts should stand for about 30 minutes.
4
3
2
1
Consumer Support
Troubleshooting Tips
Care and Cleaning
Operating Instructions Safety Instructions
Fast Defrost (Do not use the shelves
when microwave cooking.)
Fast Defrost automatically sets the
defrosting times and power levels to give
even defrosting results for meats, poultry and
fish weighing up to one pound.
■Remove meat from package and place on
microwave-safe dish.
Press the DEFROST button once.
Turn the dial to the food weight,
using the Conversion Guide at right.
For example, dial .5 for .5 pounds
(8 oz.) Press the dial to enter.
Press the START/PAUSE button to start
defrosting.
Turn the food over if the oven signals
TURN FOOD OVER.
■Remove defrosted meat or shield warm
areas with small pieces of foil.
■After defrosting, most meats need to stand
5 minutes to complete defrosting.
4
3
2
1
Conversion Guide
If the weight of food is stated in pounds
and ounces, the ounces must be converted
to tenths (.1) of a pound.
Weight of Food Enter Food Weight
in Ounces (tenths of a pound)
1–2 .1
3.2
4–5 .3
6–7 .4
8.5
9–10 .6
11 .7
12–13 .8
14–15 .9
13
ge.com
Time Defrost (Do not use the shelves
when microwave cooking.)
Use Time Defrost to defrost for a selected
length of time.
Press the Defrost button three times.
Turn the dial to select the time you want.
Press the dial to enter.
Press the Start/Pause button to start
defrosting.
Turn the food over if the oven signals
TURN FOOD OVER.
You may change the defrost time at any time
during defrosting by turning the dial.
Power level is automatically set at 3, but can
be changed. You can defrost small items
quickly by raising the power level after
entering the time. Power level 7 cuts the total
defrosting time in about half; power level 10
cuts the total time to approximately 1/3.
However, food will need more frequent
attention than usual.
A dull thumping noise may be heard during
defrosting. This is normal when oven is not
operating at High power.
Defrosting Tips
■
Foods frozen in paper or plastic can be
defrosted in the package. Closed packages
should be slit, pierced or vented AFTER food
has partially defrosted. Plastic storage
containers should be partially uncovered.
■Family-size, prepackaged frozen
dinners can be defrosted and microwaved.
If the food is in a foil container, transfer
it to a microwave-safe dish.
■Foods that spoil easily should not be
allowed to sit out for more than one hour
after defrosting. Room temperature
promotes the growth of harmful bacteria.
■For more even defrosting of larger foods,
such as roasts, use Auto Defrost. Be sure
large meats are completely defrosted
before cooking.
■When defrosted, food should be cool
but softened in all areas. If still slightly icy,
return to the microwave very briefly, or let
it stand a few minutes.
■Some models include a defrost rack. If you
have a defrost rack, place it on top of the
turntable and the food item on the rack for
best results.
4
3
2
1
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
Beverage (Do not use the shelves when
microwave cooking.)
The Beverage feature heats beverages from
6 to 12 ounces.
Drinks heated with the Beverage feature may
be very hot. Remove the container with care.
Potato (Do not use the shelves when
microwave cooking.)
The Potato feature allows you to cook
1 to 3 potatoes at a time at 8–10 oz. each.
14
About changing the power level.
The power level may be entered or
changed immediately after entering the time
for Time Cook, Time Defrost or Add 30
Seconds. The power level may also be
changed during time countdown.
First, follow directions for Time Cook,
Time Defrost or Add 30 Seconds.
Press the Power Level button.
Turn the dial clockwise to increase and
counterclockwise to decrease the power
level. Press the dial to enter.
Press the Start/Pause button to start
cooking.
Variable power levels add flexibility to
microwave cooking. The power levels on
the microwave oven can be compared to
the surface units on a range. Each power level
gives you microwave energy a certain
percent of the time. Power level 7 is
microwave energy 70% of the time. Power
level 3 is energy 30% of the time. Most
cooking will be done on High (power level 10)
which gives you 100% power. Power level 10
will cook faster but food may need more
frequent stirring, rotating or turning over.
A lower setting will cook more evenly and
need less stirring or rotating of the food.
Some foods may have better flavor, texture
or appearance if one of the lower settings is
used. Use a lower power level when cooking
foods that have a tendency to boil over,
such as scalloped potatoes.
Rest periods (when the microwave
energy cycles off) give time for the food
to “equalize” or transfer heat to the inside
of the food. An example of this is shown with
power level 3—the defrost cycle. If microwave
energy did not cycle off, the outside
of the food would cook before
the inside was defrosted.
Here are some examples of uses for various
power levels:
High 10: Fish, bacon, vegetables, heating
liquids.
Med-High 7: Gentle cooking of meat and
poultry; baking casseroles and reheating.
Medium 5: Slow cooking and tenderizing
for stews and less tender cuts of meat.
Low 2 or 3: Defrosting; simmering; delicate
sauces.
Warm 1: Keeping food warm; softening
butter.
4
3
2
1
Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:
■ the metal shelf being installed incorrectly and touching the microwave walls.
■ metal or foil touching the side of the oven.
■ foil that is not molded to food (upturned edges act like antennas).
■ metal such as twist-ties, poultry pins, gold-rimmed dishes.
■ recycled paper towels containing small metal pieces.
■ the turntable ring support being installed incorrectly.
Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or
covering with wax paper allows excess steam to escape.
Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving,
you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would
cook before larger parts.
Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking
or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not
placed on a cooling rack.
Venting After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess
steam can escape.
Microwave terms.
Term Definition
Consumer Support
Troubleshooting Tips
Care and Cleaning
Operating Instructions Safety Instructions
15
About the sensor microwave features. ge.com
Humidity Sensor
What happens when using the Sensor Features:
The Sensor Features detect the increasing humidity released during cooking.
The oven automatically adjusts the cooking time to various types and amounts of food.
Do not use the Sensor Features twice in succession on the same food portion—it may result
in severely overcooked or burnt food. If food is undercooked after the countdown, use Time
Cook for additional cooking time.
■ The proper containers and covers are essential for best auto cooking.
■ Always use microwave-safe containers and cover them with lids or vented plastic wrap.
Never use tight sealing plastic containers—they can prevent steam from escaping and
cause food to overcook.
■ Be sure the outside of the cooking containers and the inside of the microwave oven are
dry before placing food in the oven. Beads of moisture turning into steam can mislead
the sensor.
Dry off dishes so they don’t mislead
the sensor.
Vented
Covered
Auto Cook (Do not use the shelves when microwave cooking.)
Because most cooking containers must be covered during Auto Cook, this feature is best with
foods that you want to steam or retain moisture.
NOTE: Use of the metal shelf with Auto Cook is not recommended.
Recommended Foods
A wide variety of foods including meats, fish and vegetables can be cooked
using this feature.
Foods not recommended
Foods that must be cooked uncovered, foods that require constant attention, foods that
require addition of ingredients during cooking and foods calling for a dry look or crisp surface
after cooking should not be cooked using this feature. It is best to Time Cook them.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
16
Auto Cook Food Type Guide
Food Type Servings Serving Size Comments
Chicken Pieces
1 to 4 2 to 8 Use oblong, square or round dish.
pieces Cover with vented plastic wrap.
Fish 1 to 4 4 to 16 oz. Use oblong, square or round dish.
Cover with vented plastic wrap.
Ground Meat — 8 to 32 oz. Use round casserole dish. Crumble meat
(Beef, Pork, Turkey) into dish. Cover with vented plastic wrap.
Potatoes 1 to 4 8 to 32 oz. Pierce skin with fork. Arrange in a
star pattern in center of turntable.
Canned Vegetables 1 to 4 4 to 16 oz. Use microwave-safe casserole or bowl.
Cover with lid or vented plastic wrap.
Fresh Vegetables 1 to 4 4 to 16 oz. Use microwave-safe casserole or bowl.
Add 2 tablespoons water for each serving.
Cover with lid or vented plastic wrap.
Frozen Vegetables 1 to 4 4 to 16 oz. Use microwave-safe casserole or bowl.
Follow package instructions for adding
water. Cover with lid or vented plastic wrap.
Auto Cook (Do not use the shelves when
microwave cooking.)
Place covered food in the oven and close
the door. Press the Auto Cook button.
ENTER FOOD TYPE appears in the
display.
Turn the dial to the desired food type.
Press to enter.
See the Auto Cook Food Type Guide below
for specific foods and instructions.
The oven starts immediately.
NOTE: If the door was open while the control
was being set, close the door and press
the Start/Pause button to begin cooking.
If food is undercooked after the countdown,
use Time Cook for additional cooking time.
Do not open the oven door before
the countdown time is displayed—steam
escaping from the oven can affect cooking
performance. If the door is opened, close
the door and press Start/Pause immediately.
If ground meat was selected, the oven may
signal you to drain and stir the meat. Open
the door, drain the meat and close the door.
Press the Start/Pause button if necessary
to resume cooking.
Cooking Tips
■ When oven signals and countdown time
is displayed, the door may be opened
for stirring, turning or rotating food.
To resume cooking, close the door
and press Start/Pause.
■ Match the amount of food to the size of
container. Fill containers at least 1/2 full.
■ Be sure outside of container and inside
of oven are dry.
■ After completion of Cook cycle, if food
needs additional cooking, return food to
oven and use Time Cook to finish cooking.
How to Adjust the Oven’s Automatic
Settings for a Shorter or Longer Cook
Time (Not available for all food types)
To subtract 10% from the automatic
cooking time:
Within the first 30 seconds after the oven
starts, turn the dial counterclockwise, until
a minus (“–”) sign appears, and press to enter.
To add 10% to the automatic cooking time:
Within the first 30 seconds after the oven
starts, turn the dial clockwise, until a plus (“+”)
sign appears, and press to enter.
2
1
About the sensor microwave features.
NOTE: Do not use this feature
twice in succession on the
same food portion—it may
result in severely overcooked
or burnt food.
Consumer Support
Troubleshooting Tips
Care and Cleaning
Operating Instructions Safety Instructions
ge.com
Popcorn (Do not use the shelves when
microwave cooking.)
CAUTION: Popping microwave
popcorn with shelf can cause fire or
damage to your microwave oven.
To use the Popcorn feature:
Follow package instructions, using Time Cook
if the package is less than 1.5 ounces or larger
than 3.5 ounces. Place the package of
popcorn in the center of the turntable.
Press the Popcorn button. The oven starts
immediately.
If you open the door while POPCORN SENSOR
is displayed, an error message will appear.
Close the door, press Clear/Off and begin again.
If food is undercooked after the countdown,
use Time Cook for additional cooking time.
How to Adjust the Automatic Popcorn Setting
to Provide a Shorter or Longer Cook Time
If you find that the brand of popcorn you use
underpops or overpops consistently, you can
add or subtract 20–30 seconds to the automatic
popping time.
To subtract time:
Within the first 30 seconds after the oven starts,
turn the dial counterclockwise, until a minus
(“–”) sign appears, for 20 seconds less cooking time.
Press to enter. Turn again, until two minus (“– –”)
signs appear, to reduce cooking time another
10 seconds for a total of 30 seconds less time.
Press to enter.
To add time:
Within the first 30 seconds after the oven starts,
turn the dial clockwise, until a plus (“+”) sign
appears, for an extra 20 seconds cooking time.
Press to enter. Turn again, until two plus (“++”) signs
appear, to add another 10 seconds for a total
of 30 seconds additional time. Press to enter.
2
1
Use only with prepackaged
microwave popcorn weighing
1.5 to 3.5 ounces.
NOTE: Do not use this feature
twice in succession on the
same food portion—it may
result in severely overcooked
or burnt food.
17
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
18
Grilling uses a heating element to generate radiant heat to brown the exterior of the food.
Your oven offers the option of using automatic, manual or combination grilling.
Automatic grilling allows you to select the correct food type from a pre-programmed menu.
Manual grilling allows you to specify the amount of time you wish to grill. Combination grilling
combines grilling and microwaving to give you faster cook times.
For Best Results…
Use the Grilling Shelf and Pan. The grilling shelf sits on the turntable. As the shelf turns, the food
you are grilling will get even passes under the grilling element. Because it is on the grilling shelf,
it is closer to the element; therefore, it will cook faster and will brown.
Auto Grill
Place grill tray and rack on the turntable.
Place food on the tray and close the door.
Press the Auto Grill button.
Turn and press the dial to select FOOD
TYPE (Beef/Pork/Poultry/Seafood).
When FOOD TYPE has been selected,
turn the dial to select the specific food
from the list given.
When the food selection has been
entered, USE GRILL TRAY AND RACK
will be displayed to remind you that
you must use these when cooking
with Auto Grill.
Press Start/Pause and grill time will
be displayed.
If your food must be turned during
cooking, a signal will sound once and
TURN FOOD will be displayed until the
dial or button is pressed or the door is
opened. When the door is open, PAUSE
and the remaining grill time will be
displayed.
Press the dial or Start/Pause button.
Cooking will resume and the time
countdown will be displayed.
NOTE: You may change the cook time at
any time during cooking by turning the dial.
8
7
6
5
4
3
2
1
About the grilling features.
Correct shelf
Incorrect shelf
Consumer Support
Troubleshooting Tips
Care and Cleaning
Operating Instructions Safety Instructions
Food Selection Guide
BEEF
“BURGERS” “1–2 PATTIES 1/2″ THICK” (1ST/DEFAULT)
“BURGERS” “3–4 PATTIES 1/2″ THICK”
“BURGERS” “1–2 PATTIES 1″ THICK”
“BURGERS” “3–4 PATTIES 1″ THICK”
“STEAKS” “1–2 PCS 1/2″ THICK MEDIUM”
“STEAKS” “1–2 PCS 1/2″ THICK WELL DONE”
“STEAKS” “1–2 PCS 1/2″ THICK MEDIUM”
“STEAKS” “1–2 PCS 1″ THICK WELL DONE”
PORK
“PORK CHOPS” “1–2 CHOPS 1/2″ THICK” (1ST/DEFAULT)
“PORK CHOPS” “3–4 CHOPS 1/2″ THICK”
“PORK CHOPS” “1–2 CHOPS 1″ THICK”
“PORK CHOPS” “3–4 CHOPS 1″ THICK”
POULTRY
“CHICKEN” “1 PC BONE-IN” (1ST/DEFAULT)
“CHICKEN” “2 PC BONE-IN”
“CHICKEN” “3 PC BONE-IN”
“CHICKEN” “4 PC BONE-IN”
“CHIC BRST” “1 PC BONE-LESS”
“CHIC BRST” “2 PC BONE-LESS”
“CHIC BRST” “3 PC BONE-LESS”
“CHIC BRST” “4 PC BONE-LESS”
“CHIC NGTS” “4 PC FROZEN”
“CHIC NGTS” “6 PC FROZEN”
“CHIC NGTS” “8 PC FROZEN”
“CHIC NGTS” “10 PC FROZEN”
SEAFOOD
“FISH FILT” “1 PIECE” (1ST/DEFAULT)
“FISH FILT” “2 PIECES”
“FISH FILT” “3 PIECES”
“FISH FILT” “4 PIECES”
“SHRIMP” “4 OZ”
“SHRIMP” “8 OZ”
“SHRIMP” “12 OZ”
“SHRIMP” “16 OZ”
19
Manual Grill Combo Grill
Placing grill tray and rack on the turntable is optional.
Place food on the tray and close the door.
Press the Manual Grill button.
Turn and press the dial to enter desired grill time.
Press Start/Pause.
If the door is opened, Pause and the remaining grill time
will be displayed.
Press the dial or the Start/Pause button. Cooking will
resume and the time countdown will be displayed.
Placing grill tray and rack on the turntable is optional.
Place food on the tray and close the door.
Press the Combo Grill button.
Turn and press the dial to enter FOOD TYPE and grill
time. The cooking combination COMBO 1 or COMBO 2
is automatically determined by the food selection.
When FOOD TYPE is selected, a present time will be
displayed. You can rotate the dial to adjust cooking
time as desired.
Press Start/Pause.
If your food must be turned during cooking, a signal
will sound once and TURN FOOD will be displayed
until the dial or button is pressed or the door is opened.
When the door is open, PAUSE and the remaining grill
time will be displayed.
Press the dial or the Start/Pause button. Cooking will
resume and the time countdown will be displayed.
7
6
5
4
3
2
1
6
5
4
3
2
1
ge.com
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
NOTE: You may change the cook time at any
time during cooking by turning the dial.
Food Type Guide for Combo Grill
Food Type Combo Setting 1st Side 2nd Side
Baked Potato Combo 2 5:00 4:00
Hamburgers-2 Combo 1 6:00 4:00
Hamburgers-4 Combo 1 8:00 5:00
Chicken, Pieces Combo 1 19:00 16:00
Chicken, Whole Combo 2 30:00 30:00
Fish Fillets Combo 2 9:00 3:00
Hot Dogs Combo 1 5:00 4:00
Roast Beef, Med Combo 2 14:00 6:00
Roast Beef, Well Combo 2 25:00 8:00
Sausage Combo 2 5:00 4:00
All foods have a “turn” signal at the end of the first side cook time.
20
Cookware tips.
Metal Pans are recommended for manual and auto grilling, especially where
browning is important. Dark or dull finish metal pans are best because they absorb heat
and produce a crisper exterior.
Glass or Glass-Ceramic casserole or baking dishes are best suited for egg and cheese recipes
due to the cleanability of glass. They are also recommended when the grilling pan is not large
enought to accommodate what you are cooking.
Glass or Glass-Ceramic containers are recommended for microwaving and combination
grilling. Be sure not to use items with metal trim as it may cause arcing (sparking) with
oven wall or oven shelf. This can damage the cookware, the shelf or the oven.
Consumer Support
Troubleshooting Tips
Care and Cleaning
Operating Instructions Safety Instructions
Cookware Microwave Grilling
Heat-Resistant Glass, Glass-Ceramic Yes Yes
(Pyrex®, Fire King®, Corning Ware®, etc.)
Metal No No for Combo Grill
Yes for Auto Grill
and Manual Grill
Non Heat-Resistant Glass No No
Microwave-Safe Plastics Yes No
Plastic Films and Wraps Yes No
Paper Products Yes No
Straw, Wicker and Wood Yes No
* Use only microwave cookware that is safe to 450°F.
21
Use the following guide to select the best method of cooking. Recipes can be adapted using the guidelines below
to determine the appropriate cooking mode.
Foods Microwave Auto Grill Combo
Manual Grill Grill
Appetizers
Dips and Spreads ✓
Pastry Snacks ✓
Beverages ✓
Sauces and Toppings ✓
Soups and Stews ✓
Meats
Defrosting ✓
Grilling ✓✓
Poultry
Defrosting ✓
Grilling ✓✓✓
Fish and Seafood
Defrosting ✓
Cooking ✓✓✓
Casseroles ✓✓
Eggs and Cheese
Scrambled, Omelets ✓
Quiche, Souffle ✓
Vegetables, (fresh) ✓
Potatoes ✓✓
Breads
Muffins, Coffee Cake ✓
Desserts
Custard and Pudding ✓
Bar Cookies ✓
Fruit ✓
Pies and Pastry
Candy ✓
Blanching Vegetables ✓
Frozen Convenience Foods ✓
Select the best method of cooking. ge.com
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
About the other features.
22
Clock
Press to enter the time of day or to check
the time of day while cooking.
Press the Clock button.
Turn the dial to set hours. Press the dial
to enter.
Turn the dial to set minutes. Press the dial
to enter.
Turn the dial to select AM or PM.
Press the dial to enter.
4
3
2
1
Cooking Complete Reminder
The Cooking Complete Reminder is a short
beep 1 minute after the end of the final beep
in the 4 beep end-of-cooking sequence.
This beep sounds at the current beep volume.
Start/Pause
In addition to starting many functions,
Start/Pause allows you to stop cooking
without opening the door or clearing
the display.
Clear/Off
Press the Clear/Off button to stop
and cancel cooking at any time.
Control Lock-Out
You may lock the control panel to prevent
the oven from being accidentally started
or used by children.
To lock or unlock the controls, press and
hold the Clear/Off button for about three
seconds. When the control panel is locked,
CONTROL LOCKED will be displayed briefly
anytime a button or dial is pressed.
Help
The Help button displays feature information
and helpful hints. Press Help, then turn
the dial to select a feature and press
the dial to enter.
Resume
After the “attention” beeps have completed,
PRESS FOR MORE TIME will be displayed
for 5 minutes. If your food needs to cook a bit
longer, you can restart the oven by pressing
Start/Pause or the dial.
If the dial or Start/Pause is pressed, the
RESUME COOKING feature is activated and
the oven will immediately restart at 10%
of the elapsed time.
If the door is opened or the Clear button
is pressed during the first 5 minutes,
the RESUME feature will remain active for
another 60 seconds. If the door is closed and
the Start/Pause button is pressed within that
60 seconds, the oven will immediately restart
at 10% of the elapsed time.
Consumer Support
Troubleshooting Tips
Care and Cleaning
Operating Instructions Safety Instructions
Loading...
