INSTALLATION
INSTRUCTIONS
Advantium
®
Built-In Wall Oven
CSB913
MFL59060928_00
31-2000354 Rev.0
03-19 GEA
Español
For a Spanish version of this manual, visit
our Website at cafeappliances.com.
Para consultar una version en español de
este manual de instrucciones, visite nuestro
sitio de internet cafeappliances.com.
Safety Information
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT
for local inspector’s use.
IMPORTANT
and ordinances.
• Note to Installer — Be sure to leave these
instructions with the Consumer.
• Note to Consumer — Keep these instructions
with your Owner’s Manual for future reference.
• Skill Level — Installation of this appliance
requires basic mechanical and electrical skills.
• Completion Time — 1 Hour.
• Proper installation is the responsibility
of the installer. Product failure due to improper
installation is not covered under the warranty.
See Owner’s Manual for warranty information.
IMPORTANT
intended purpose. Never use the oven for
warming or heating a room. Prolonged use
of the oven without proper ventilation can be
hazardous.
CAUTION
breaker before beginning installation to avoid
severe or fatal shock injury.
CAUTION
capable of supporting the cabinet load, in addition
to the added weight of the oven and drawer, plus
additional oven loads.
—
Save these instructions
—
Observe all governing codes
—
Use this oven only for its
For personal safety, remove
house fuse or oven circuit
For personal safety, the
mounting surface must be
CONTENTS
Design Information
Models Available ..............................................2
Product Dimensions and Clearances ............... 3
Tools and Parts Required ................................3
Advance Planning ............................................ 3
Installation Preparation
Electrical Requirements ................................... 4
Preparing the Opening (Standard) ................... 5
Preparing the Opening (Flush Mount) .............. 9
Storage Drawer Preparation
Standard ........................................................ 11
Flush ..............................................................11
Installation Instructions
Step 1, Remove Packaging and Parts ........... 12
Step 2, Slide the Oven into the Cutout .......... 13
Step 3, Install Bottom Trim ............................. 13
Step 4, Install Bottom Trim with Accessory
Drawer .......................................................... 13
Step 5, Install Mounting Screws ..................... 14
Step 6, Finalize Installation ............................ 14
MODELS AVAILABLE
Café Pro Models:
CSB913P2NS1 – Stainless Steel
CSB913P3ND1 – Matte Black
CSB913P4NW2 – Matte White
Café Min Model
CSB913M2NS5 – Stainless Steel
* Accessory storage drawer is only available for
stainless steel models
2 31-2000354 Rev. 0
Design Information
PRODUCT DIMENSIONS AND CLEARANCES
NOTE: Appearance will vary by model.
21-1/2Ǝ
2-1/4Ǝ
1Ǝ
1-1/4Ǝ
13 1/4Ǝ
29-3/4Ǝ
20 1/8Ǝ
TOOLS AND PARTS REQUIRED
(NOT SUPPLIED)
• #2 Phillips screwdriver
• Hand-held drill
• High speed drill bit, 3/32Ǝ diameter
• 3/8Ǝ slot-head screwdriver
• Level
• Saw
• 3/8Ǝ min. plywood for floor (if required)
• Wood screws or other hardware for installing runner
or shelf to support oven (if required)
• Safety glasses or goggles
FLUSH MOUNT INSTALLATION
This installation method allows for the unit face to be
inline with the cabinet face.
IMPORTANT: HIGH SKILL LEVEL IN CARPENTRY
IS REQUIRED. Non-standard cabinetry may be
required.
Flush installation of the oven will lead to the exposure
of the cabinet face frame edges.
Side cleats may be visible and should be a finished
surface.
ADVANCE PLANNING
7KHVHRYHQVPD\EHLQVWDOOHGGLUHFWO\LQWRDƎ
wide oven cabinet with standard installation.
• Cutout height dimensions are different for
installations with an accessory storage drawer.
Make sure to use the correct cutout when preparing
the opening.
• Allow for clearance to adjacent corners, walls,
drawers, etc.
• Cabinets installed adjacent to wall ovens must have
an adhesion spec of at least 194ºF temperature
rating.
The oven must be securely installed in a cabinet that
is firmly attached to the house structure. Weight on
the oven door could cause the oven to tip and result
in injury. Never allow anyone to climb, sit, stand or
hang on the oven door.
If installing the drawer accessory, the drawer must
be assembled to the oven prior to installation into
the cabinet. See the Accessory Storage Drawer
Assembly Instructions.
31-2000354 Rev.0 3
Installation Preparation
ELECTRICAL REQUIREMENTS
Single Advantium Built-In Oven Installation:
This product requires a 120-volt, 60 Hz, 15-amp
circuit and draws 1.8 kilowatts. This product must be
connected to a supply circuit of the proper voltage and
frequency.
• Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code for
this kilowatt rating.
• The power supply cord and plug should be brought
to a separate 15 or 20 ampere branch circuit single
grounded receptacle. The outlet box should be located
within reach of the 48” power cord.
ELECTRICAL LOCATION
6”
9”
Locate outlet box in the shaded area
Install a recessed electrical outlet
in the back wall of the opening
within 6Ǝ of either side and at least
9Ǝ above the cutout floor.
GROUNDING INSTRUCTIONS
WARNING
Ensure Proper ground
exists before use.
power cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or service technician if
the GROUNDING INSTRUCTIONS are not completely
understood, or if doubt exists as to whether the
Improper use of the grounding plug can result in a risk of electric shock.
This appliance must be grounded.
In the event of an electrical short
circuit, grounding reduces the risk
of electric shock by providing an
escape wire for the electric current.
This appliance is equipped with a
appliance is properly grounded.
If the outlet is a standarf 2-prong wall outlet, it is your
personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet.
Do not under any circumstacnes cut or remove the third
(ground) prong from the power cord.
Do not use an extension cord. If the power cord is too
short, have a qualified electrician or service technician
install an outlet near the appliance.
For best operation, plug this appliance into its own
electrical outlet to prevent flickering of lights, blowing of
fuse or tripping of circuit breaker.
4 31-2000354 Rev. 0

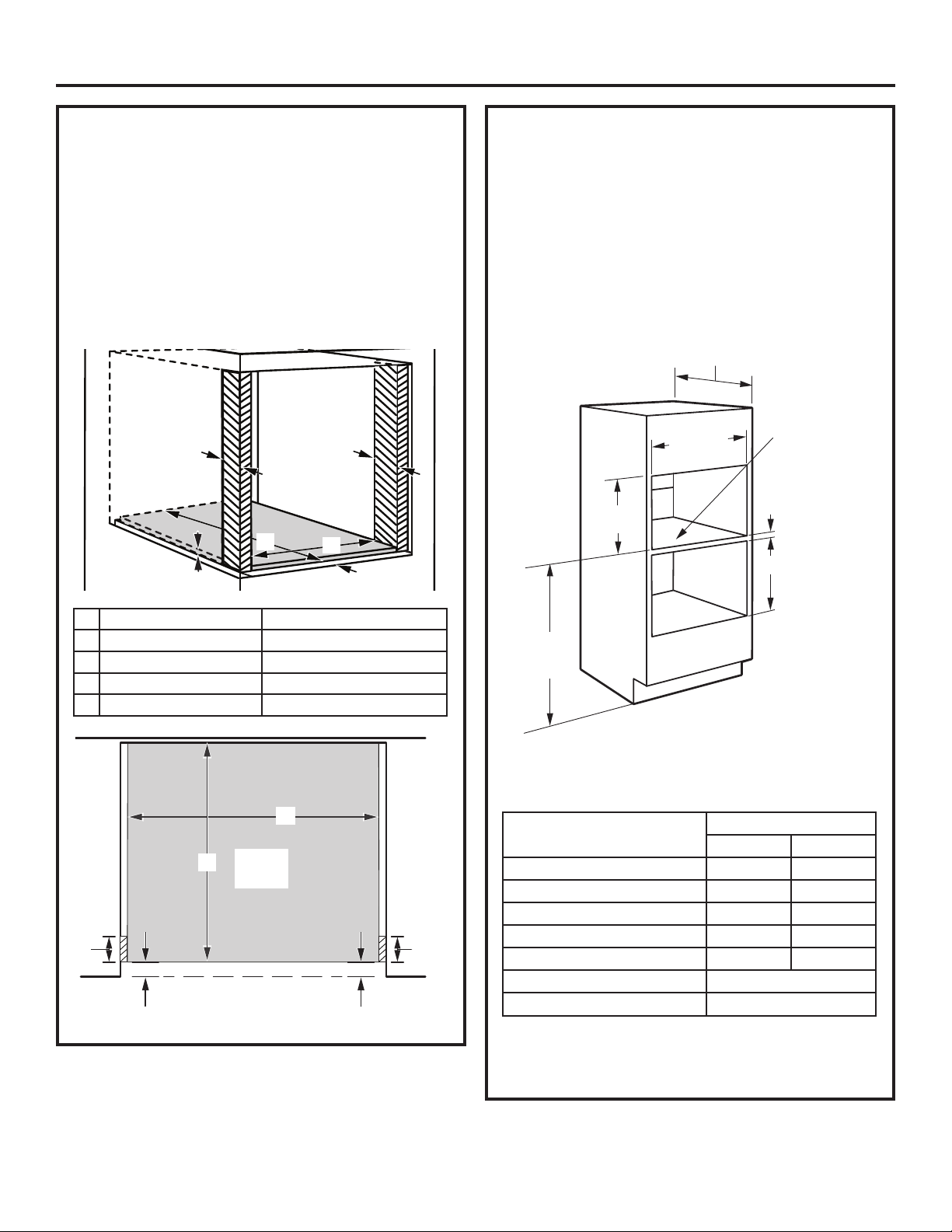

Standard Installation Preparation
PREPARE THE OPENING
Advantium Built-In Oven can be installed in
combination with other Built-In appliances. Always
follow each product’s Installation Instructions to
complete the installation.
Single Advantium Built-In Oven Installation:
Order a 30” wide single oven cabinet or cut the
opening in a wall to the dimensions shown.
30”
17-1/2”
36-3/4”
Min.
23-1/2”
25-1/4”
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four
sides. Must
be able to
support
weight of
oven and
contents.
PREPARE THE OPENING (CONT.)
Installation over a Warming Drawer:
30”
17-1/2”
36-3/4”
Min.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location does not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
23-1/2”
25-1/4”
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four
sides. Must be
able to support
weight of oven
and contents.
2” Min.
(3” Recommended)
Per Warming
Drawer
Requirement
• Allow 2-1/4” case trim overlap at the
top and 1” overlap on the bottom and 2-1/4” overlap
for each side of the opening.
• Oven overlaps will conceal cut edges on all sides of
the opening.
When installed over a single oven or a warming
drawer, allow at least 2” between the two openings.
This separation will provide clearance for bottom
overlap of the Advantium 120 and the other
appliance overlaps.
• The support must be level and rigidly mounted, flush
with the bottom edge of the cutout.
31-2000354 Rev.0 5
Standard Installation Preparation
PREPARE THE OPENING (CONT.)
Installation over a Wall Oven:
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
2” Min.
(3” Recommended)
Per Oven
Requirement
45-1/4”
Min.
30”
17-1/2”
23-1/2”
25-1/4”
PREPARE THE OPENING (CONT.)
Installation over a Wall Oven and Warming
Drawer:
Construct
Solid Bottom
Min. 3/8”
Plywood
Supported
by
2x4 or 2x2
Runners all
Four Sides
2” Min.
(3” recommended)
Per Oven
Requirement
2” Min.
45-1/4”
Min.
30”
17-1/2”
23-1/2”
25-1/4”
• If you are replacing an electric double oven with the
combined installation of an Advantium Built-In Oven
and a single oven, use the dimensions shown. The
middle rail separating the two openings may need to
be larger than the 2” minimum shown.
Per warming drawer requirement
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location does not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
CAUTION
mounting surface must be capable of supporting the
cabinet load, in addition to the added weight of the
oven and drawer, plus additional oven loads.
For personal safety, the
6 31-2000354 Rev. 0
Standard Installation Preparation
PREPARE THE OPENING (CONT.)
Installation over another Advantium Built-In
Oven:
30Ǝ
17-1/2Ǝ
17-1/2Ǝ
23-1/2Ǝ
25-1/4Ǝ
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
2 1/2Ǝ Min.
(3 1/2Ǝ Recommended)
PREPARE THE OPENING (CONT.)
Installation under a Microwave Oven and over
a Warming Drawer:
Construct
30Ǝ
Per Microwave
Oven Requirement
17-1/2Ǝ
Per Warming
Drawer
Requirement
23-1/2Ǝ
25-1/4Ǝ
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
3.5Ǝ Min.
(4.5Ǝ Recommended)
2Ǝ Min.
(3Ǝ Recommended)
• If you are mounting a GE Appliances Appliances/
Monogram Built-In
use the dimensions
separating the two openings may need to be larger
than the 2Ǝ minimum shown.
Advantoum Oven over another,
shown. The middle rail
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location do not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
CAUTION
mounting surface must be capable of supporting the
cabinet load, in addition to the added weight of the
oven and drawer, plus additional oven loads.
For personal safety, the
31-2000354 Rev.0 7
Standard Installation Preparation
PREPARE THE OPENING (CONT.)
Installation beside another Advantium Built-In
Oven:
• If you are mounting an Advantium Built-In
another, use the dimensions shown. The middle rail
separating the two openings may need to be larger
than the 4-1/2Ǝ minimum shown.
Oven
beside
25-1/4Ǝ
17-1/2Ǝ
23-1/2Ǝ
25-1/4Ǝ
17-1/2Ǝ
4-1/2Ǝ Min.
(5-1/2Ǝ Recommended)
PREPARE THE OPENING (CONT.)
Installation under an Advantium 30Ǝ or 36Ǝ Cooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size.
See the label on top of the oven for approved cooktop models. This oven requires a separate, properly grounded
15-Amp, 120-Volt, 60Hz power supply. The cooktop requires a separate power supply. Use a 36Ǝ or wider base
cabinet.
Cooktop
Cooktop
1-1/2Ǝ Min.
25Ǝ
36Ǝ
Countertop
Height
Ǝ
Cooktop height including depth
of electrical box on some
models. Refer to cooktop
installation instructions.
No minimum clearance required
between cooktop and oven.
23-1/2
4Ǝ High
Toekick
17-1/2
25-1/4Ǝ
Ǝ
8 31-2000354 Rev. 0
Flush Mount Installation Preparation
PREPARE THE INTERIOR
Cut and install side cleats:
• Cut side wood cleats to height of cabinet opening
and approx. 2-1/2” in depth. Install, on each side,
1-3/8” from the front face of the cabinet.
Cut and install bottom cleat:
• Cut bottom wood cleat to a height of 1-1/8”, a depth
of the cabinet minus 1-3/8” and a width of 25-1/4”
to fit between side cleats. Install onto the cabinet
floor between the side cleats, push it all the way
back against cabinet wall and make sure its front face
aligns with the front faces of the side cleats (1-3/8”
gap from the front cabinet face).
A A
C
B
D
E
PREPARE THE OPENING
The Advantium Built-In Oven can be installed
in combination with other Advantium Built-In
ovens. Always follow each product’s Installation
Instructions to complete the installation.
Single Advantium Built-In Oven
Installation:
Cut the opening in a cabinet to the dimensions
shown.
23-1/2” min.
F *
**20 5/8”
Construct
solid bottom
- Min. 3/8”
plywood
supported on
all four sides.
Must be able to
support weight
of oven and
contents.
A Side cleats depth 2-1/2” min.
B Bottom cleat height 1-1/8”
C Bottom cleat depth Cabinet depth minus 1-3/8”
D Bottom cleat width 25-1/4”
E All three cleats 1 1/4”
D
TOP
C
VIEW
A A
Front Face of Cabinet
EE
36-3/4”
Min.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
Approved Flush Installation
Single Advantium 30” 30-1/4”
Over Warming Drawer 30” 30-1/4”
Over Oven
Over Oven and Warming Drawer
Over Advantium Built-In Oven
Double Advantium (side by side)
Under Cooktop or Countertop See page 10
Dimension F
1/8” Reveal 1/4” Reveal
30” 30-1/4”
30” 30-1/4”
30” 30-1/4”
See page 10
** Top and bottom reveals are set to 1/8”.
31-2000354 Rev.0 9
Flush Mount Installation Preparation
PREPARE THE OPENING
The Advantium Built-In Oven can be installed beside
another Advantium Built-In Oven in a side-by-side
combination.
Double Advantium Built-In Oven
Installation:
Cut the opening in a cabinet to the dimensions shown.
• Center divider acts as cleat for side of each respective
unit. Only one additional side cleat needed per oven
cutout.
• The support must be level and rigidly mounted, flush
with the bottom edge of the cutout.
Dimension 1/8” Reveal 1/4” Reveal
G 59-7/8” 60-1/4”
H 5-1/8” 5-1/4”
I 27-3/8” 27-1/2”
36-3/4”
Min.
23-1/2” min.
G*
H*
I*
I*
20 5/8”
1 1/4”
Construct solid bottom
- Min. 3/8” plywood
supported on all four
sides. Must be able
to support weight of
oven and contents.
PREPARE THE OPENING
Installation under an Advantium 30Ǝ or 36Ǝ Cooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size.
See the label on top of the oven for approved cooktop models. This oven requires a separate from the cooktop,
properly grounded 15-Amp, 120-Volt, 60Hz power supply. Use a 36Ǝ or wider base cabinet.
23-1/2
1-1/2Ǝ Min.
Cooktop
Cooktop
20-5/8”
J*
Ǝ
25Ǝ
36Ǝ
Countertop
Height
Cooktop height including
depth of electrical box
on some models. Refer
to cooktop installation
instructions.
No minimum clearance
required between cooktop
and oven.
*1/8” reveals on
sides and top
4Ǝ High
Toekick
*See table for desired reveals on sides.
Dimension 1/8” Reveal 1/4” Reveal
J 30” 30-1/4”
10 31-2000354 Rev. 0
Installation Preparation
Preparation with an Accessory Storage Drawer
As needed, see the Standard Mount Installation Preparation OR Flush Mount Installation Preparation for
configuration details. Note the modified cutout height below.
PREPARE THE OPENING (cont.)
The Advantium Built-In Oven can be installed in combination with other GE Appliances/Monogram appliances.
Always follow each product’s Installation Instructions to complete the installation.
Single Advantium Built-In Oven Installation:
Order a 30Ǝ wide single oven cabinet or cut the opening in a wall to the dimensions shown.
STANDARD MOUNT:
30Ǝ
23-1/2Ǝ
25-1/4Ǝ
Min.
21Ǝ
36-3/4Ǝ
Min.
Dimension 1/8”
Reveal
K 30” 30-1/4”
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
1/4”
Reveal
FLUSH MOUNT:
23-1/2Ǝ
K*
24Ǝ
36-3/4Ǝ
Min.
• Allow 2-1/8Ǝ case trim overlap on the sides, 2 1/4Ǝ
overlap on the top and 1Ǝ overlap on the bottom of the
opening for all models.
• Oven overlaps will conceal cut edges on all sides of
the opening.
• When installed over a single oven or a warming
drawer, allow at least 2Ǝ between the two openings.
This separation will provide clearance for bottom
overlap of the Advantium Built-In Oven and the other
appliance overlaps.
• The support must be level and rigidly mounted, flush
with the bottom edge of the cutout.
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
31-2000354 Rev.0 11
Installation Instructions
1
REMOVE THE PACKAGING AND PARTS
• Remove all packing material and tape.
• Locate parts package containing mounting
screws.
• Remove the oven from the carton. Do not lift unit
by handle or conduit. Two people are required to
lift this oven.
• Open the door and remove any packaging in
oven.
5 Color-Matched Screws
(4 required, 1 extra)
8 Brass Screws for the
Bottom Trim
(3 required, 5 extra)
Owner’s
Manual
Owner’s Manual
Glass Tray
Installation
Instructions
Cooking
Guide
Cooking Guide
Turntable Ring
Flat-Head Screws (4 extra)
Bottom Trim
IMPORTANT: If installing the Advantium Built-In
Oven with an accessory storage drawer, read the
storage drawer assembly instructions to assemble
the products together before proceeding to Step 2.
Metal Trays (2)
Rack
12 31-2000354 Rev. 0
Installation Instructions
2
SLIDE THE OVEN INTO THE
CUTOUT
CAUTION
the oven into the opening. Grasp the bottom at
front and rear. DO NOT USE THE HANDLE TO
LIFT THE OVEN. DAMAGE WILL OCCUR.
• Lift and hold the oven at the front of the opening.
Hold the oven at an angle and plug in the power
cord.
Two people are required to lift
3
INSTALL BOTTOM TRIM
NOTE: If installing the Advantium Built-In Oven
with an accessory storage drawer, the bottom trim
is not required. Proceed to Step 5.
• Installation Below or Above 36Ǝ, align trim tabs
on the trim to slots in the bottom of the oven.
• Align bottom trim tabs to slots in the bottom of
the oven.
• Secure the bottom trim to the bottom of the
oven using 3 screws provided.
• Carefully, slide the oven into the cabinet part
way. Leave the oven a few inches forward of
the cabinet frame.
• Check to be sure the power cord is not trapped
under the oven or along the sides of the oven.
31-2000354 Rev.0 13
Installation Instructions
4
INSTALL MOUNTING SCREWS
• Slide the oven the remaining way into the
opening so that the side flanges and control
panel are against the cabinet frame. Make sure
that the oven is centered in the opening.
• Open the door, place a turntable tray in the oven
and make sure that the tray in the unit is level.
• Drill pilot holes through the side flanges.
• Drive the color-matched screws into the side
flanges. It is recommended that the screws
be hand tightened.
If installing oven with an accessory storage
drawer:
• Open the drawer.
• Drill pilot holes through the side flanges.
• Drive color-matched screws into the side flanges.
It is recommended that the screws be hand
tightened.
5
FINALIZE INSTALLATION
• Turn power on at the source. The interior light should
come on when the door is opened.
• Refer to Owner’s Manual for operating instructions.
14 31-2000354 Rev. 0
Notes
31-2000354 Rev.0 15
NOTE: While performing installations described in this
book, safety glasses or goggles should be worn.
NOTE: Product improvement is a continuing endeavor
at GE Appliances. Therefore, materials, appearance and
Printed in China
specifications are subject to change without notice.
16 31-2000354 Rev. 0
Loading...
