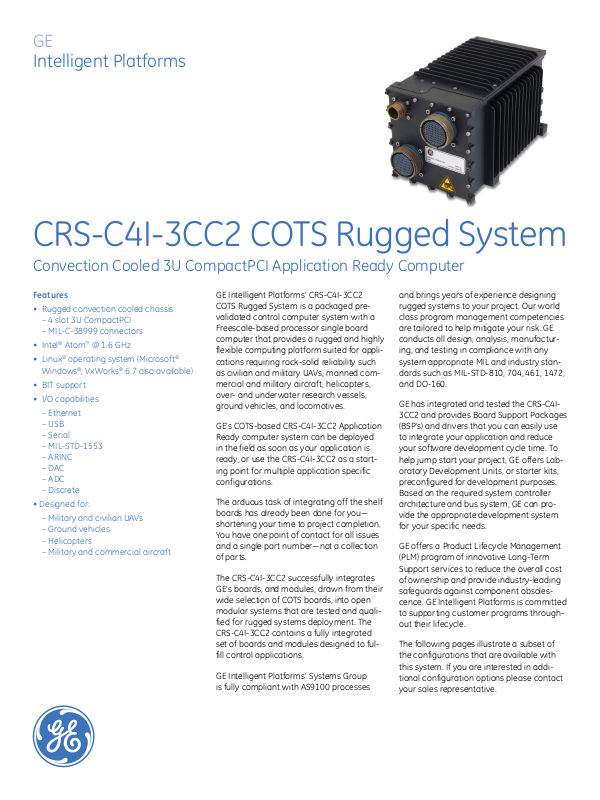

CRS-C4I-3CC2 COTS Rugged System
Convection Cooled 3U CompactPCI Application Ready Computer
Features
• Rugged convection cooled chassis
– 4 slot 3U CompactPCI
– MIL-C-38999 connectors
®
• Intel
Atom™ @ 1.6 GHz
®
• Linux
• BIT support
• I/O capabilities
– Ethernet
• Designed for:
– Military and civilian UAVs
operating system (Microsoft®
Windows
– USB
– Serial
– MIL-STD-1553
– ARINC
– DAC
– ADC
– Discrete
– Ground vehicles
– Helicopters
– Military and commercial aircraft
®
, VxWorks® 6.7 also available)
GE Intelligent Platforms’ CRS-C4I-3CC2
COTS Rugged System is a packaged prevalidated control computer system with a
Freescale-based processor single board
computer that provides a rugged and highly
flexible computing platform suited for applications requiring rock-solid reliability such
as civilian and military UAVs, manned commercial and military aircraft, helicopters,
over- and underwater research vessels,
ground vehicles, and locomotives.
GE’s COTS-based CRS-C4I-3CC2 Application
Ready computer system can be deployed
in the field as soon as your application is
ready, or use the CRS-C4I-3CC2 as a starting point for multiple application specific
configurations.
The arduous task of integrating off the shelf
boards has already been done for you—
shortening your time to project completion.
You have one point of contact for all issues
and a single part number—not a collection
of parts.
The CRS-C4I-3CC2 successfully integrates
GE’s boards, and modules, drawn from their
wide selection of COTS boards, into open
modular systems that are tested and qualified for rugged systems deployment. The
CRS-C4I-3CC2 contains a fully integrated
set of boards and modules designed to fulfill control applications.
GE Intelligent Platforms’ Systems Group
is fully compliant with AS9100 processes
and brings years of experience designing
rugged systems to your project. Our world
class program management competencies
are tailored to help mitigate your risk. GE
conducts all design, analysis, manufacturing, and testing in compliance with any
system appropriate MIL and industry standards such as MIL-STD-810, 704, 461, 1472,
and DO-160.
GE has integrated and tested the CRS-C4I3CC2 and provides Board Support Packages
(BSP’s) and drivers that you can easily use
to integrate your application and reduce
your software development cycle time. To
help jump start your project, GE offers Laboratory Development Units, or starter kits,
preconfigured for development purposes.
Based on the required system controller
architecture and bus system, GE can provide the appropriate development system
for your specific needs.
GE offers a Product Lifecycle Management
(PLM) program of innovative Long-Term
Support services to reduce the overall cost
of ownership and provide industry-leading
safeguards against component obsolescence. GE Intelligent Platforms is committed
to supporting customer programs throughout their lifecycle.
The following pages illustrate a subset of
the configurations that are available with
this system. If you are interested in additional configuration options please contact
your sales representative.
CRS-C4I-3CC2 COTS Rugged System
Standard Configurations* CRS-C4I-3CC2-00 CRS-C4I-3CC2-01 CRS-C4I-3CC2-02 CRS-C4I-3CC2-03
Additional Memory
(Flash, SSD, etc.)
Ethernet Ports
Serial Ports
USB Ports
MIL-STD-1553 Channels
ARINC 429 Channels
DAC Channels
ADC Channels
CAN Bus
Discrete I/O
Other I/O
Power Dissipation (W)
Order Number
NA SATA - 64 GB NA NA
10x 10/100/1000BaseT 2x 10/100/1000BaseT 2x 10/100/1000BaseT 2x 10/100/1000BaseT
1x RS232
1x RS232/422
2x USB 2.0 2x USB 2.0 2x USB 2.0 2x USB 2.0
NA 1x MIL-STD-1553 Redundant Ch
NA
NA NA NA NA
NA NA NA NA
NA NA NA 2x CANbus Ch
7x GPIO+PRST
1x VGA
58W 42W 39W 37W
920-100848-000 920-100848-001 920-100848-002 920-100848-003
Discrete (SE) Out 6x Discrete (DIFF)
1x RS232
1x MIL-STD-1553 Redundant Ch
15x ARINC 429 RX Ch
15x ARINC 429 TX Ch
7x GPIO+PRST
13x Discrete Ch
1x IRIG In/Out
12x HL Discrete( SE) In 8x HL
8x HL Discrete (SE) Out 4x Discrete
In/Out
1x VGA
1x RS232
12x RS232/422/485
1x RT_ADDR
NA NA
7x GPIO+PRST
20x Discrete Ch**
1x IRIG In/Out
8x HL Discrete( SE) In
(DIFF) In/Out
1x VGA
1x RS232
1x MIL-STD-1553 Redundant Ch
1x RT_ADDR
7x GPIO+PRST
12x Discrete Ch**
1x IRIG In/Out
8x HL Discrete( SE) In
8x HL Discrete (SE) Out
4x Discrete (DIFF) In/Out
1x VGA
Standard Configurations* CRS-C4I-3CC2-04 CRS-C4I-3CC2-05 CRS-C4I-3CC2-06 CRS-C4I-3CC2-07
Additional Memory
(Flash, SSD, etc.)
Ethernet Ports
Serial Ports
USB Ports
MIL-STD-1553 Channels
ARINC 429 Channels
DAC Channels
ADC Channels
CAN Bus
Discrete I/O
Other I/O
Power Dissipation (W)
1x MIL-STD-1553 Redundant Ch
4x HL Discrete (SE) Out 2x Discrete
NA NA NA NA
10x 10/100/1000BaseT 2x 10/100/1000BaseT 10x 10/100/1000BaseT 2x 10/100/1000BaseT
1x RS232 1x RS232
2x USB 2.0 2x USB 2.0 2x USB 2.0 2x USB 2.0
1x RT_ADDR
NA NA NA NA
NA 4x DAC Ch NA 4x DAC Ch
NA 5x ADC Diff Ch NA 5x ADC Diff Ch
NA NA NA NA
7x GPIO+PRST
12x Discrete Ch**
1x IRIG In/Out
8x HL Discrete( SE) In
(DIFF) In/Out
1x VGA
68W 38W 67W 38W
1x MIL-STD-1553 Redundant Ch
1x RT_ADDR
7x GPIO+PRST
8x GPIO
12x Discrete Ch**
1x IRIG In/Out
12x HL Discrete( SE) In
4x HL Discrete (SE) Out 4x Discrete
(DIFF) In/Out
1x VGA
3x RTD Ch
4x HL Discrete (SE) Out 2x Discrete
1x RS232
12x RS232/422/485
NA NA
7x GPIO+PRST
8x HL Discrete( SE) In
4x HL Discrete (SE) Out 4x Discrete
(DIFF) In/Out
8x Discrete
1x VGA
3x RS232
13x RS232/422/485
7x GPIO+PRST
8x GPIO
12x HL Discrete( SE) In
(DIFF) In/Out
1x VGA
5x RTD Ch
Order Number
920-100848-004 920-100848-005 920-100848-006 920-100848-007
CRS-C4I-3CC2 COTS Rugged System
Standard Configurations* CRS-C4I-3CC2-08 CRS-C4I-3CC2-09 CRS-C4I-3CC2-10
Additional Memory
(Flash, SSD, etc.)
Ethernet Ports
Serial Ports
USB Ports
MIL-STD-1553 Channels
ARINC 429 Channels
DAC Channels
ADC Channels
CAN Bus
Discrete I/O
Other I/O
Power Dissipation (W)
Order Number
SATA - 64 GB NA SATA - 64 GB
2x 10/100/1000BaseT 2x 10/100/1000BaseT 10x 10/100/1000BaseT
1x RS232
12x RS232/422/485
2x USB 2.0 2x USB 2.0 2x USB 2.0
NA NA
NA NA NA
NA 4x DAC Ch NA
NA 5x ADC Diff Ch NA
2x CANBus Ch 2x CANBus Ch NA
7x GPIO+PRST 7x GPIO+PRST
1x IRIG In/Out
8x HL Discrete( SE) In
8x HL Discrete (SE) Out 4x Discrete (DIFF) In/Out
8x Discrete
1x VGA
38W 36W 69W
920-100848-008 920-100848-009 920-100848-010
1x RS232
12x RS232/422/485
12x HL Discrete( SE) In
4x HL Discrete (SE) Out 4x Discrete (DIFF) In/Out
1x VGA
5x RTD Ch
1x RS232
1x MIL-STD-1553
1x RT_ADDR
7x GPIO+PRST,
12x Discrete Ch**
1x IRIG In/Out;
8x HL Discrete (SE) In;
4x HL Discrete (SE) Out;
2x Discrete (DIFF) In/Out;
1x VGA
* Contact factory for additional modification options. ** An additional 6 Discrete channels are available if the RT_ADDR channel is not used.
SE = Single Ended, HL = High Level, DIFF = Differential, PRST = Pushbutton Reset
4 Slot / 3U cPCI Backplane
CRS-C4I-3CC2 COTS Rugged System
Specifications: All Systems
Processor
• Intel Atom @ 1.6 GHz
SBC RAM
• 1 GB with ECC
SBC Flash Memory
• 4 GB
Operating System
• Linux, VxWorks 6.7, Windows Embedded
Cooling
• Convection
Form Factor
• 3U CPCI
Slots
• 4
Dimensions (H x W x D, excludes connectors)
• 4.90 x 4.66 x 8.39 (inches); 12.45 x 11.84 x 21.31 (cm)
Weight
• 7.5 lbs (3.4 kg)
Input Power (MIL-STD)
• 28V DC nominal (MIL-STD-704E)
Operating Temperature Range
• -40° C to +50° C (qual. -40° C to +60° C)
Shock (operational)
• +40g SRS (MIL-STD-810G/1)
(DO-160Category B)
Random Vibration
• 0.1g2/Hz, 15-1000Hz; 6dB/octave decrease, 1000-
2000Hz (MIL-STD-810F/1, Method 514.5)
(DO-160 Category S1/2, Zone2, Curve E)
Humidity
• 95% non-condensing
(DO-160 Procedure 6, Category B)
Block Diagram
J2J3J1
I/O Board
Slot 1
Processor
Slot 2
PIO
Slot 3
Ethernet / PIO /
Carrier
Power Supply
28VDC
SATA Drive (Optional)
1553 / Serial /
ARINC 429 / CAN Bus
1553 / Serial /
ARINC 429 / CAN Bus
