GE AJCQ06LCF Specification
AJCQ06LCF
Premium, Deluxe and Value Model
Wall Case Dimensions (in inches)
GE® Series 115 Volt Built-in Cool-only Room Air Conditioner

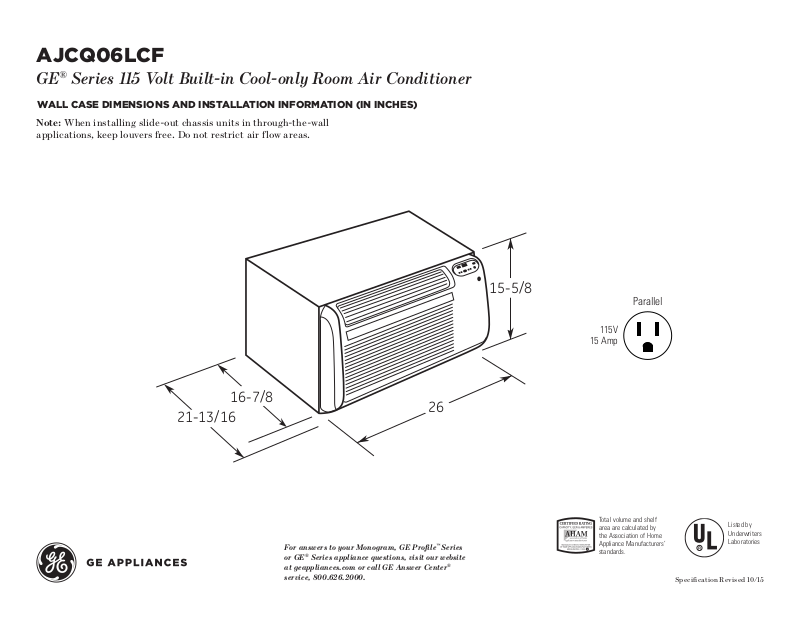

WALL CASE DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
Note: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas.
16-7/8
21-13/16
For answers to your Monogram, GE Profile™ Series
or GE® Series appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
26
15-5/8
Parallel
115V
15 Amp
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Speci fication Revised 10/15
AJCQ06LCF
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Lintel
GE® Series 115 Volt Built-in Cool-only Room Air Conditioner
DIMENSIONS (IN INCHES)
INSTALLATION INFORMATION : A finished opening
of 26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame walls
should have wood studding surrounding case to provide
firm anchoring with screws. Case can be fastened directly
Make frame if desired or caulk
between case and siding
Lintel
to brick or block walls with screws sunk in lead expansion
shields.
NOTE: Units should be caulked on all four sides of case
to the building exterior to assure building integrity.
WALL CASE FOR TENANT OPTION INSTALLATION
When the air conditioner is offered as a tenant option, this
26-1/8
15-3/4
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
wall case provides protection against outside elements.
RAB48 – includes wall case, exterior grille,
Frame Construction
Flexible Mounting Position
steel closure panel and two layers of insulation.
STANDARD WALL CASE RAB46
Solid-sided wall case fabricated of galvanized steel
with baked enamel finish. Welded areas are coated with
Lintel
a sealing compound to help resist rust and corrosion.
Polymer gasket surrounds opening to assure tight weather
seal. Aluminum grille (RAG13) is included. Panels on
interior and between case and grille provide weather
protection prior to installation of chassis. Provide
firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in
lead expansion shields.
Brick Block and Brick
Frame Construction
15-3/4
26-1/8
Fill open cells
with mortar
or insulation
Plaster Line
Trim Molding
(if desired)
For answers to your Monogram, GE Profile™ Series
or GE® Series appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Speci fication Revised 10/15
